  1. Introduction of CSNS Control Control Group Feb.13 , 2009

  2. Outline • Overview • Primary design parameters/Milestones • Site and effective drawing • Control Architecture Based on EPICS • Standardization • CSNS Control System • Globle control: Computer, Network, MPS, PPS… • Front End control: PS, VA, LLRF, Ion, Injection/Extraction… • Commissioning Software: XAL… • Other interface control: CF, target, spectrometer… • WBS and Manpower

  3. Primary design parameters

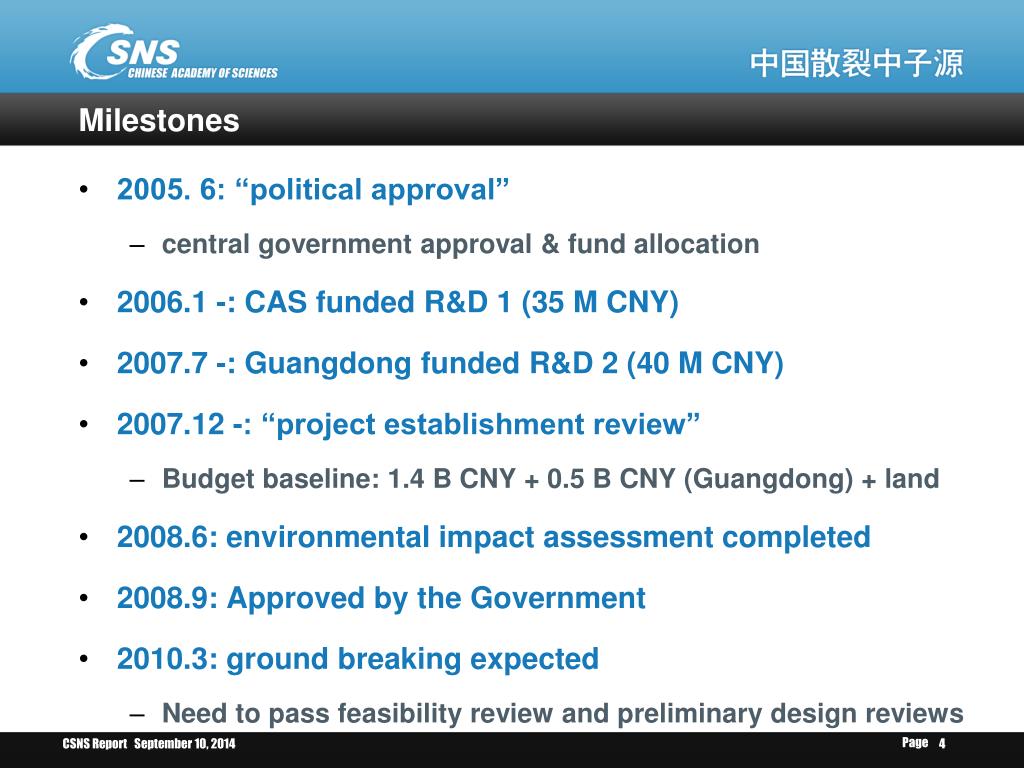

  4. Milestones • 2005. 6: “political approval” • central government approval & fund allocation • 2006.1 -: CAS funded R&D 1 (35 M CNY) • 2007.7 -: Guangdong funded R&D 2 (40 M CNY) • 2007.12 -: “project establishment review” • Budget baseline: 1.4 B CNY + 0.5 B CNY (Guangdong) + land • 2008.6: environmental impact assessment completed • 2008.9: Approved by the Government • 2010.3: ground breaking expected • Need to pass feasibility review and preliminary design reviews

  5. Dang Lang Town, Dong Guan City, Guang Dong Province CSNS

  6. CSNS: 80 MeV Injector,two Transport Lines,1.6 GeV RCS, one Target, Three Spectrometers，etc. Layout of CSNS

  7. Overview Distributed Control System PPS/Vac,etc IOC/PLC

  8. Overview Software：Client, Service, Front-End. • Client Tier • 人机界面 • 运行管理 • Services Tier • RDBMS • 调束软件 • 数据归档 • 故障管理 • 高层反馈控制 • 在线计算作业 • 控制应用 • 应用软件开发 • Front-End Tier • 实时OS • 实时DB • 设备驱动 • 现场控制 • 快速反馈系统 From the ILC Design report

  9. Overview-Standardization • Software: EPICS and other Standard software Components • Linux, VxWorks, Windows, RTEMS • GNU C,CVS, C/C++,Java, LabView, Eclips • Oracle • Hardware: Standard Commercial Product • VME(VME64XCrate, MVME5500 or MVME6000 Processor) • PLC will adopt Yogokawa PLC • IPC (Industrial PC) • Intelligence Controller: RS232 to Ethernet, etc • Oscillograph

  10. CSNS control System • Global System • Computer • Server (HP linux, Sun Solaris) • EPICS Server • Archiver Server • Oracle Server • Other Server: NFS, NIS, NTP, etc • Operator Console (Linux,sunRay) • etc

  11. CSNS control System-Global system • Control Network(IPV4 and IPV6) • Cisco Product • Star Topology • 100M/1000Mbps or 100M/1000M/10G Backbone • Core Switcher: Redundance • Fiber Optical between core switches and mid-level switches • Firewall, Anti-Virus Gateway, CA gateway, etc Control Network Structure

  12. CSNS control System-Global system • MPS(Machine Protection System) • MPS to protect the accelerator from beam induced damage. • MPS to ensure that Beam Loss <1W/m,10-4 • MPS will terminate beam in less than 20usec from receiving a fault. • MPS only controls Source and RFQ enables and timing gates • MPS consists of Run permit, Fast permit and PLC • MPS is not a personnel protection system (PPS) • MPS is not an alarm handler

  13. CSNS control System-Global system • MPS is new, challenging system • We will learn more experience from J-PARC and SNS(U.S,A) • Noise immunity (Fiber Optic instead of copper cable) • Improve Availability (>99%) • Next Step • Build up the prototype of MPS • Do some R&D to evaluate the response time of Fast protection system and noise immunity of MPS

  14. CSNS control System-Global system Run Permit (Software) MPS PLC Fast Permit Trigger Control CPLD that logically adds triggers and gates as appropriate. From Alan Jones’ report “Machine Protection System”

  15. CSNS control System-Global system From the report “Machine Protection System for J-PARC”

  16. CSNS control System-Global system From the report “Machine Protection System for J-PARC”

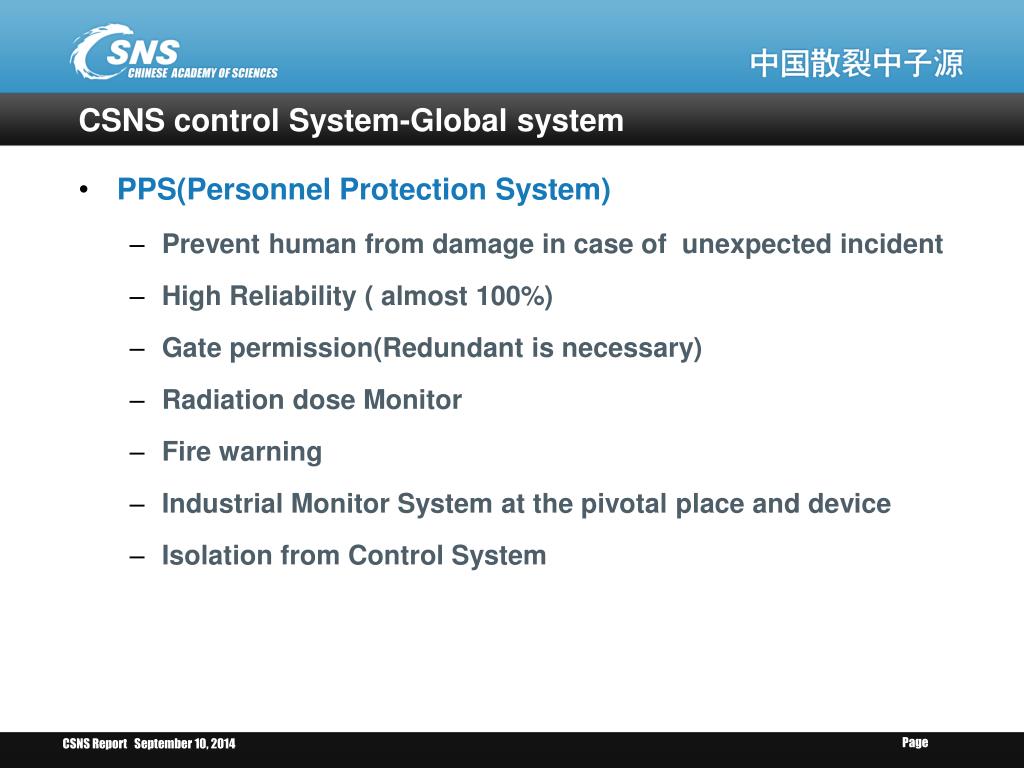

  17. CSNS control System-Global system • PPS(Personnel Protection System) • Prevent human from damage in case of unexpected incident • High Reliability ( almost 100%) • Gate permission(Redundant is necessary) • Radiation dose Monitor • Fire warning • Industrial Monitor System at the pivotal place and device • Isolation from Control System

  18. CSNS control System-Frond End control • Ion Source control • Power supplies: arc ,extract , deflexion magnet, accelerating, discharging • Temperature measure & control : 6 • Local Trigger Generator : 7 triggers • Vacuum system: pump , valves, mass flow meters • Hydrogen gas : Piezoelectricity valve • Cesium gas : Power supplies (2) • Water cooling: pump ,valve • All devices are on – 50 kv HV platform except accelerating powers supply and vacuum devices

  19. CSNS control System-Frond End control • Ion Source control 图3 潘宁型离子源控制系统硬件结构

  20. CSNS control System-Frond End control • Injection/Extraction Control • 4/4 horizontal/ vertical painting magnets, 2 Pulsed power supplies • 10 kicker magnets, 10 pulsed power supplies Figure1 Injector control Structure Fiugre2 Extract coontrol Structure

  21. CSNS control System-Frond End control • Power Supply Control

  22. CSNS control System-Frond End control • Power Supply Control • Embedded IOC based on FPGA+ColdFire MPS or other CSNS电源控制系统结构图

  23. CSNS control System-Frond End control • Power Supply Control • Embedded IOC R&D • Build up RTEMS/EPICS • Create an example IOC /RTEMS • Next: How to control the FPGA • Background: PS Group develop the FPGA function to control the Power Supply

  24. CSNS control System-Frond End control • Vacuum control • 40Ion Pump Controller,33 Vacuum Gauge and 26 Valves IOC/PLC

  25. CSNS control System-Linac LLRF

  26. CSNS control System-Linac LLRF • Basic LLRF requirements for CSNS RFQ & DTL • Frequency: 324 MHz • Klystron peak output power at saturation: • 2.5 MW ( < 1 MW for RFQ) • Repetition rate: 25 Hz • RF pulse width: 1 ms max. • Cavity field control • Amplitude error +/- 1% • Phase error +/- 1 deg. • Cavity resonance control • RF high power protection

  27. CSNS control System-High Level Applicaton • XAL • One student cooperator with SLAC(Paul Chu) • One young guy from Physics Group visit SLAC on XAL

  28. CSNS control System- CF, target, spectrometer • Interface between control and CF, target, spectrometer • SCADA, OPC, OPC Gateway

  29. WBS and Manpower • WBS • 52.10M RMB(6.5%), less than 8％-10％ of accelerator • Manpower • 20People

  30. Thank you for your attention! Welcome any advice and comment on CSNS control system. Whatever, thank you again!
