Phosphorylation 전의 마지막 결과

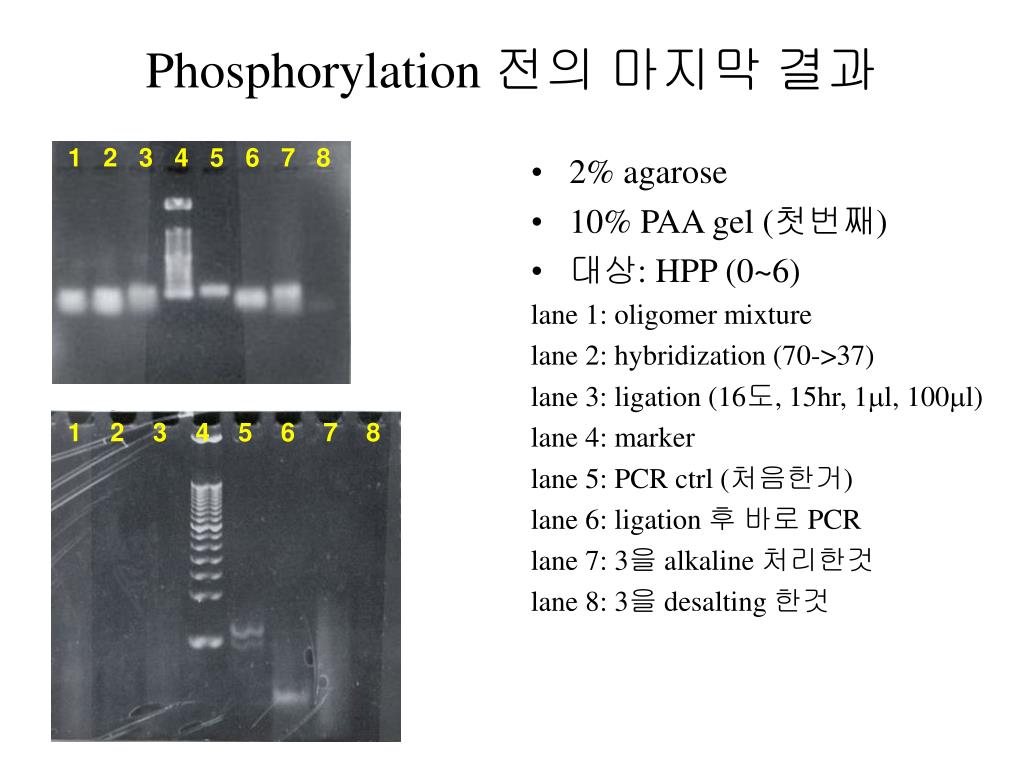

2% agarose 10% PAA gel ( 첫번째 ) 대상 : HPP (0~6) lane 1: oligomer mixture lane 2: hybridization (70->37) lane 3: ligation (16 도 , 15hr, 1 m l, 100 m l) lane 4: marker lane 5: PCR ctrl ( 처음한거 ) lane 6: ligation 후 바로 PCR lane 7: 3 을 alkaline 처리한것 lane 8: 3 을 desalting 한것.

luisa
Télécharger la présentation

Phosphorylation 전의 마지막 결과

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. 2% agarose 10% PAA gel (첫번째) 대상: HPP (0~6) lane 1: oligomer mixture lane 2: hybridization (70->37) lane 3: ligation (16도, 15hr, 1ml, 100ml) lane 4: marker lane 5: PCR ctrl (처음한거) lane 6: ligation 후 바로 PCR lane 7: 3을 alkaline 처리한것 lane 8: 3을 desalting 한것 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 Phosphorylation 전의 마지막 결과

  2. 2% agarose 10% PAA gel (두번째) 대상: HPP (0~6) lane 1: marker lane 2: kination한 oligomer mixture lane 3: oligomer mixture lane 4: ligation 후 바로 PCR lane 5: lig/ppt 하고 PCR lane 6: PCR ctrl (새로한것) lane 7: 예전에 phosphate 없이 PCR했던것 lane 8: PCR premix만 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 Kination 후의 첫 결과

  3. 2% agarose 대상: HPP (0~6) lane 1: marker lane 2: kination한 oligomer mixture lane 3: oligomer mixture lane 4: ligation 후 바로 PCR lane 5: PCR ctrl lane 6: 예전에 phosphate 없이 PCR했던것 1 2 3 4 5 6

  4. 10% PAA gel (세번째) 대상: HPP (0~6:S) TSP (0~6:S/A) lane 1: marker lane 2: oligomer mixture lane 3: ligation result lane 4: PCR ctrl (새로한것) lane 5: lig/ppt 하고 PCR lane 6: ligation 후 바로 PCR lane 7: PCR-TSP (S) - ppt lane 8: PCR-TSP (S) - lig lane 9: PCR-TSP (A) - ppt lane 10: PCR-TSP (A) - lig 1 2 3 4 5 6 7 8 9 10 5’-phosphate로 실험한 첫 결과 • annealing temp. = 50도 • polymerization = 30 sec

  5. 10% PAA gel (네번째) 대상: HPP (0~6:S) TSP (0~6:S/A) lane 1: marker lane 2: PCR-HPP (S) - ppt lane 3: PCR-TSP (S) - ppt lane 4: PCR-TSP (A) - ppt lane 5: PCR ctrl (처음 한것) lane 6: oligomer mixture - TSP (S) lane 7: ligation/ppt - TSP (S) lane 8: oligomer mixture - TSP (A) lane 9: ligation/ppt - TSP (A) 1 2 3 4 5 6 7 8 9 5’-phosphate로 실험한 첫 결과

  6. 03, 06 annealing temp. = 52도 polymerization = 30 sec 10% PAA gel (다섯번째) 대상:TSP (0~3:S) lane 1: marker lane 2: PCR- TSP03 (S) - ppt lane 3: TSP03 (S) - lig/ppt lane 4: PCR- TSP06 (S) - ppt lane 5: TSP06 (S) - lig/ppt lane 6~9: 예전에 했던 것들. 1 2 3 4 5 6 7 8 9 5’-phosphate로 실험한 두번째 결과

  7. 04, 05, 06, 36 annealing temp. = 50도 10% PAA gel (여섯번째) 대상:TSP (03, 04, 05, 06, 36:S/A) lane 1: marker lane 2: PCR- TSP03 (S) - ppt (지난번꺼) lane 3: PCR- TSP04 (A) -ppt lane 4: PCR- TSP05 (A) - ppt lane 5: PCR- TSP06 (A) - ppt lane 6: PCR- TSP36 (S) - ppt 1 2 3 4 5 6 5’-phosphate로 실험한 세번째 결과

  8. 10% PAA gel 대상:TSP (15, 03, 04, 05, 06, 36:S/A) 모두 ppt를 PCR lane 1, 2: marker lane 3: TSP15 (A) lane 4: TSP03 (A) lane 5: TSP04 (A) - 다시 ppt한것 lane 6: TSP06 (A) - 다시 ppt한것 lane 7: TSP36 (A) lane 8: TSP36 (A) - lig/ppt lane 9: TSP15 (A) oligomer mixture lane 10: TSP15 (A) - lig/ppt 1 2 3 4 5 6 7 8 9 10 5’-phosphate로 실험한 네번째 결과

  9. 현재 가지고 있는 vertex들의 Tm vertex 0 = 57.6 ℃ vertex 1 = 52.6 ℃ vertex 2 = 57.3 ℃ vertex 3 = 60.4 ℃ vertex 4 = 49.4 ℃ vertex 5 = 50.2 ℃ vertex 6 = 53.6 ℃ 적당하다고 생각되는 pair 1~6  problem size = 6 1~5  problem size = 5 0~3  problem size = 4 0~3 vertex : 0, 1, 2, 3 edge : 01, 02, 12, 13, 23 ( 2) weight : 3 ( 3), 5, 7 Tm (avg) = 59 ℃ 1~6 vertex : 1, 2, 3, 4, 5, 6 edge : 12, 13, 16, 23, 34, 35, 36, 45, 56 ( 2) weight : 3 ( 5), 7, 7, 11 ( 2) Tm (avg) = 53.1 ℃ 새로이 시작..

  10. Tm (avg) = 53.1℃ 2.5% Agarose gel lane 1: marker lane 2: 1X template (primer 100pmole) lane 3: 0.1X “ (primer 50pmole) lane 4: 0.02X “ (primer 100pmole) lane 5: ligation lane 6: 예전 TSP lane 7: 예전 HPP TSP 1~6 결과 I 1 2 3 4 5 6 7

  11. 2.5% Agarose gel lane 1: marker lane 2: 0.02X template (primer 50pmole) lane 3: 0.004X “ (primer 50pmole) lane 4: 0.0008X “ (primer 100pmole) TSP 1~6 결과 II 1 2 3 4

  12. template 양이 영향이 있는듯. negative control은 negative하지 않다. 중간의 weight sequence가 문제가 있지는 않은듯. 2% Agarose gel lane 1: marker lane 2: 0.1X template (primer 25pmole) lane 3: 0.01X “ lane 4: 0.001X “ lane 5: 0.0001X “ lane 6: negative control (only primers) lane 7: ligation TSP 1~6 결과 III 1 2 3 4 5 6 7

  13. Tm (avg) = 59℃ 2% Agarose gel lane 1: ligation lane 2: marker 0.1X template lane 3: 0.1X template lane 4: 0.01X “ lane 5: 0.001X “ lane 6: 0.0001X “ lane 7: negative control (only primers) TSP 0~3 결과 1 2 3 4 5 6 7

  14. Tm (avg) = 55.6℃ 2% Agarose gel lane 1: marker lane 2: 1X template lane 3: 0.1X “ lane 4: 0.01X “ lane 5: 0.001X “ lane 6: ligation TSP 0~6 결과 1 2 3 4 5 6

  15. Think!!! • Template 양 (Oligomer 양) • Negative control : Primer dimer? or not? : 80 ~ 100bp • Hybridization/ Ligation 여부? • New Problem New construction vs. Renovation ?? 비슷한 Tm, 또는 높은 Tm의 primer addition of edges removal of edges TGGE
