Electronic Voting

Electronic Voting Ian Brown (with some slides from Matt Bishop, UC Davis)

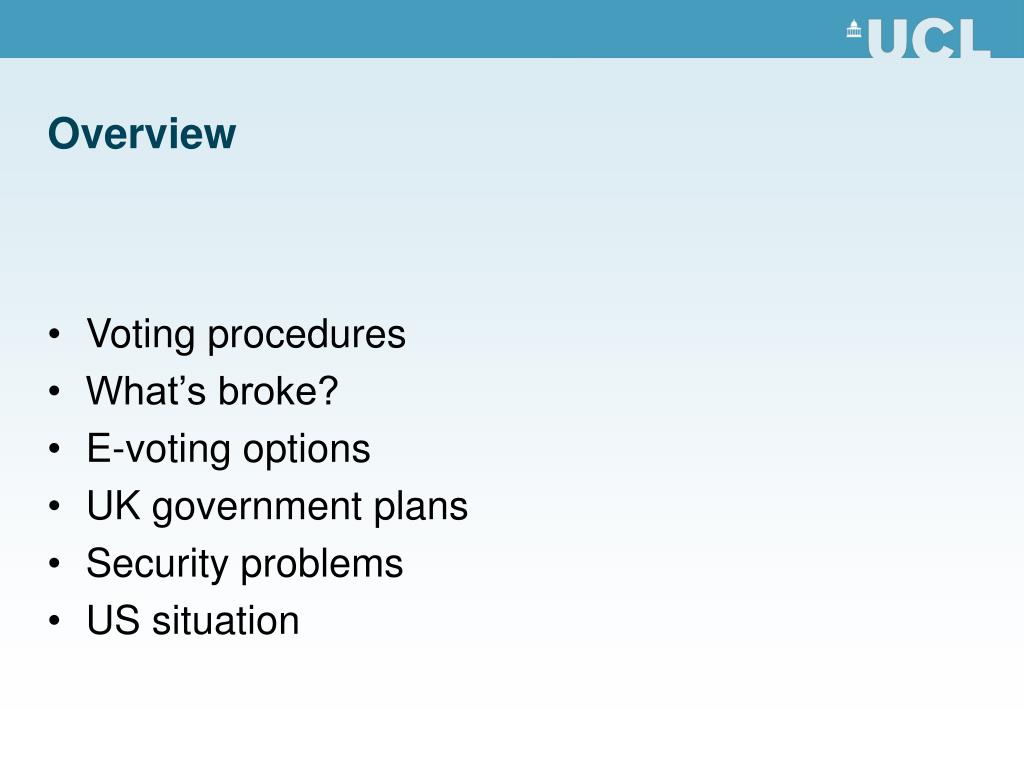

Overview • Voting procedures • What’s broke? • E-voting options • UK government plans • Security problems • US situation

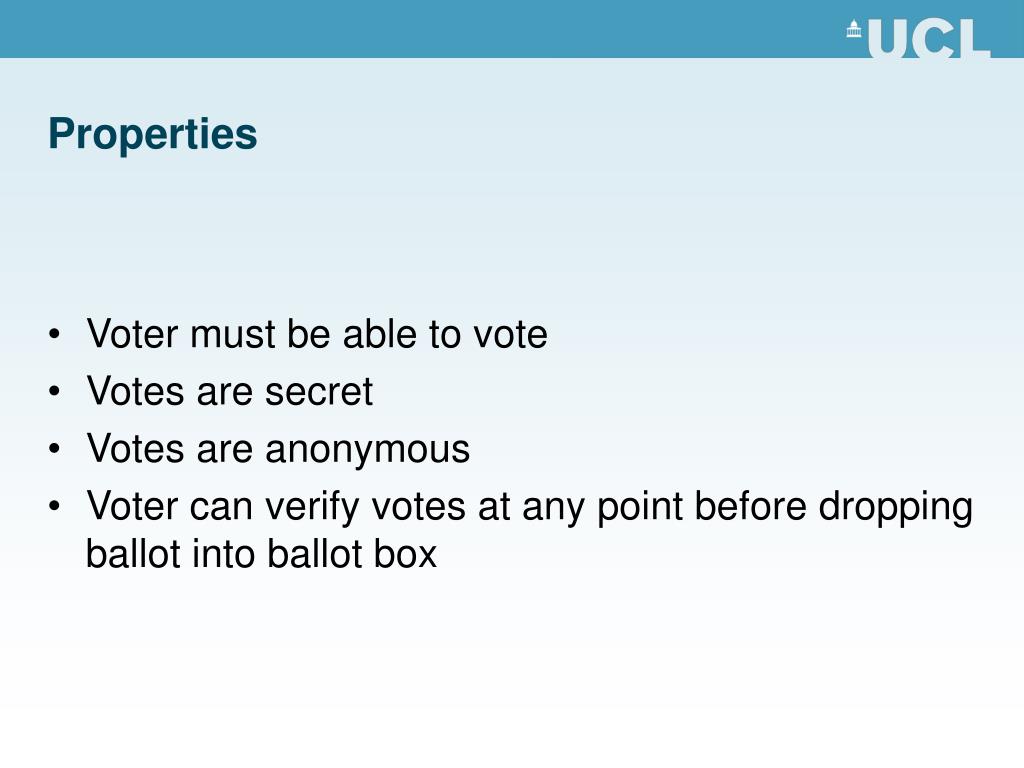

Properties • Voter must be able to vote • Votes are secret • Votes are anonymous • Voter can verify votes at any point before dropping ballot into ballot box

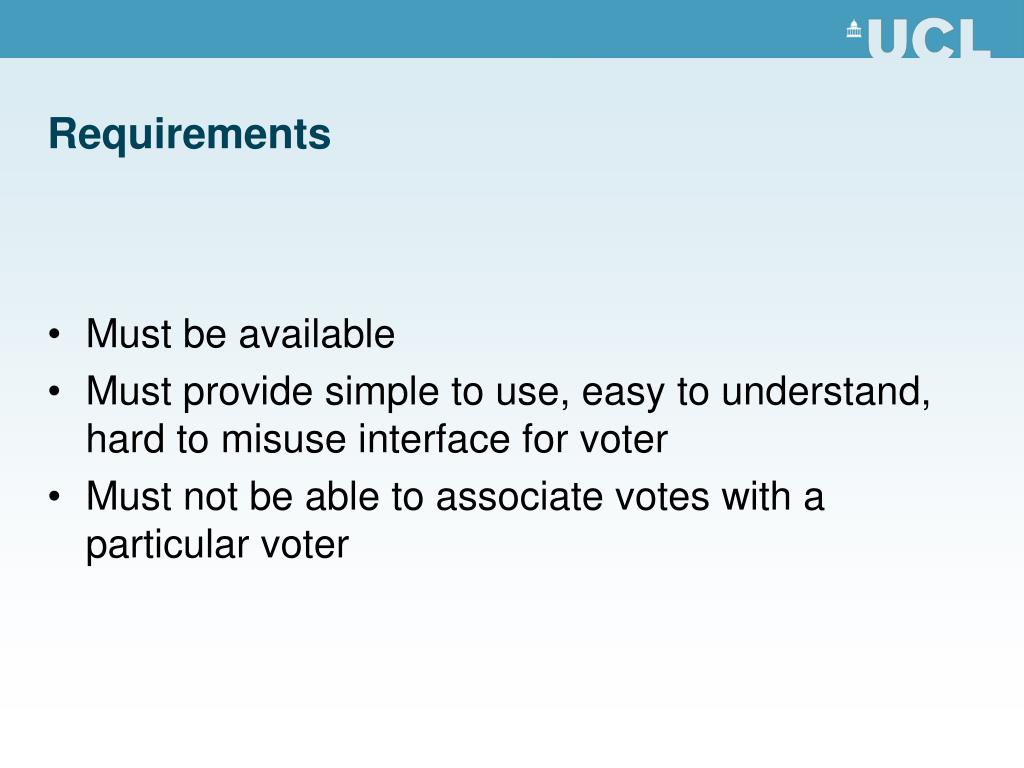

Requirements • Must be available • Must provide simple to use, easy to understand, hard to misuse interface for voter • Must not be able to associate votes with a particular voter

Requirements (2) • Must allow voter to discard votes up to the time the voter officially casts ballot • Must prevent voter from casting more than limited number of votes per race, or once per ballot • Voter must be able to verify vote up to time vote is cast

Key Ideas • Separation of Privilege • Observers can check everything in paper election • Not with e-voting systems to the same degree • Auditability • Maybe with e-voting systems …

Paper elections • Go to polling place and give name, address • Get ballot paper, enter booth • Use pencil to mark paper to indicate vote • Fold ballot paper • Leave booth, drop paper into ballot box

What’s broke? • Low turnout in elections – 61% in 2005 general election (compared to historical figures of 70—80%), 20—30% local elections • Especially prevalent among younger voters (40% of 18—24 year olds voted in 2001) • Voters only get their say roughly once every four years on national government

UK government plans • Add options for casting vote – expand postal vote, introduce telephone, SMS, digital TV and Internet voting • Trials in local elections • Want to use in next-but-one general election • Might eventually lead to greater use of referendums

May 2002 trials • New voting methods trialled in council elections • 30 local authorities tested various combinations of all-postal voting and remote electronic voting technology

Trial results • Some local authorities saw a doubling of turnout in postal votes • Technology methods seemed to make no significant difference to turnout • Scope found that disabled voters felt accessibility was improved • Use of polling station equipment not seen as a useful way forward

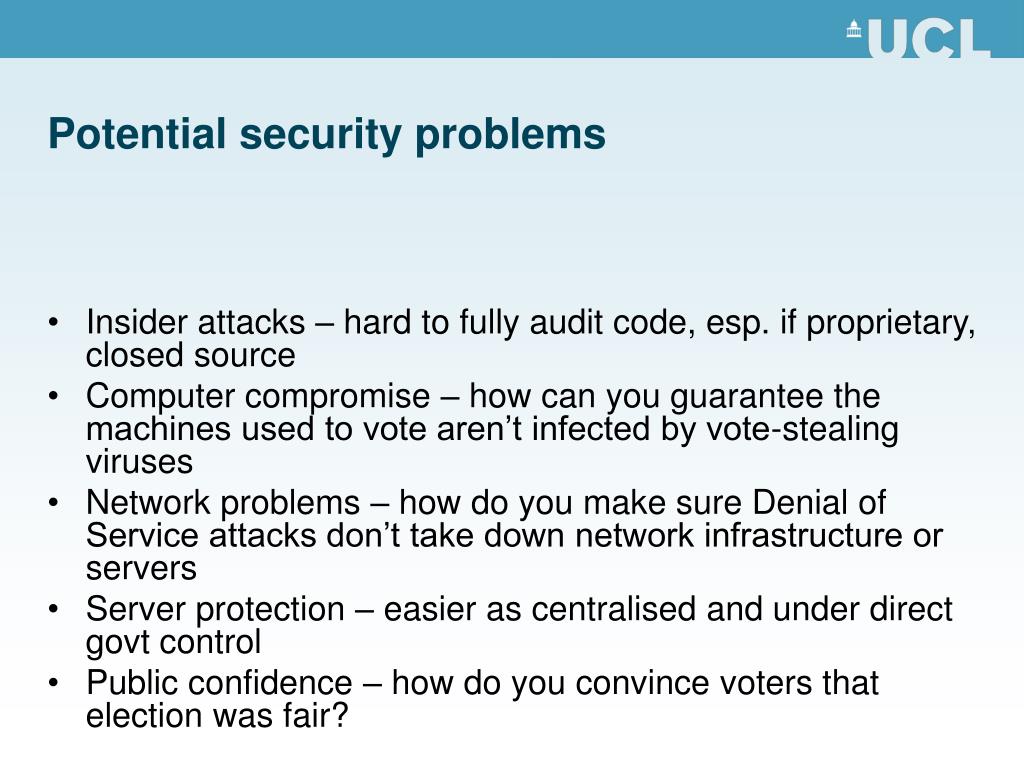

Potential security problems • Insider attacks – hard to fully audit code, esp. if proprietary, closed source • Computer compromise – how can you guarantee the machines used to vote aren’t infected by vote-stealing viruses • Network problems – how do you make sure Denial of Service attacks don’t take down network infrastructure or servers • Server protection – easier as centralised and under direct govt control • Public confidence – how do you convince voters that election was fair?

Local e-democracy National Project • Aim is to improve democratic participation between elections • Piloting projects to allow council meeting documents to be tracked online, enable micro-consultations, online petitions and citizen panels • Provide evidence to councillors of effectiveness of web pages, e-mail, and other online consultation mechanisms • Research tools to promote social inclusion of groups such as the disabled and less literate

US situation • Each ballot paper tends to contain MANY options for voters – local officials (e.g. sherrifs), referendums – perhaps >100 • Makes hand count of ballots impracticable • Machines have been used for many years, but problems (e.g. hanging chads) led to Help America Vote Act • HAVA funding new computerised terminals across the US

AccuVote-TS Terminals

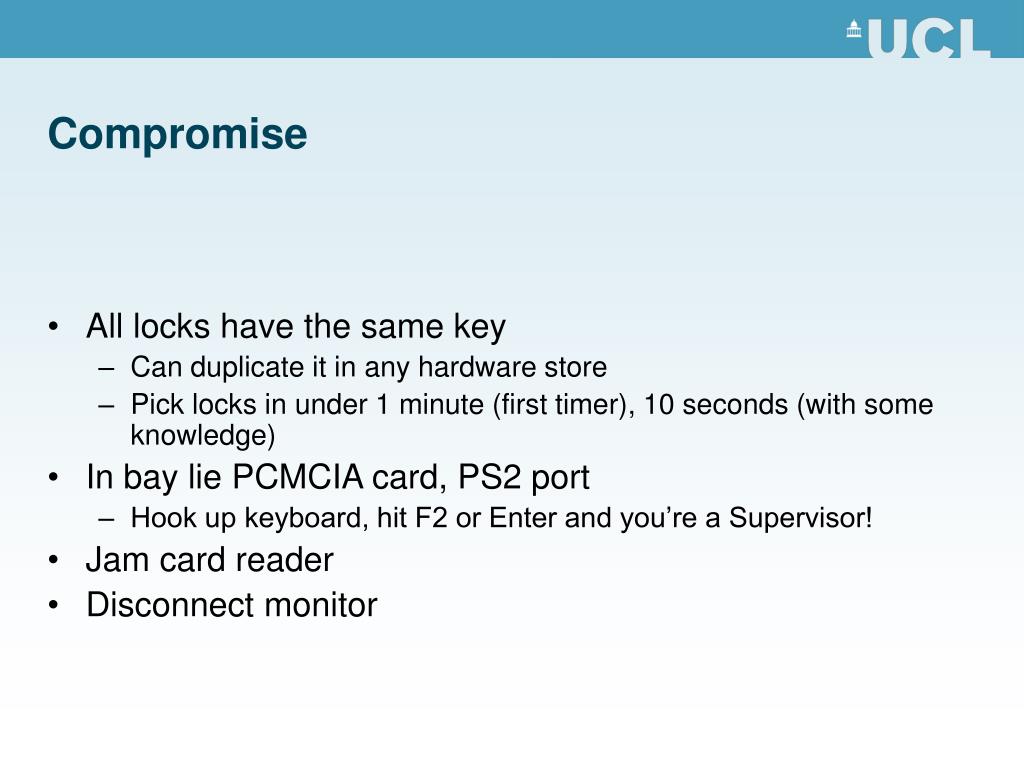

Compromise • All locks have the same key • Can duplicate it in any hardware store • Pick locks in under 1 minute (first timer), 10 seconds (with some knowledge) • In bay lie PCMCIA card, PS2 port • Hook up keyboard, hit F2 or Enter and you’re a Supervisor! • Jam card reader • Disconnect monitor

Voter Verified Audit Trail • How can voter know whether her votes tallied accurately? • Some sort of paper trail • NOT just a printout from a voting machine, but a printed slip that voters can check when casting vote • Stored in machine or ballot box • May be optically scanned • Can be used as basis for recount when required (and randomly to verify machine operation) • Required by law in California for all new e-voting machines after March 2004, and cannot use e-voting machines without them after 2006

Pentagon SERVE project • Secure Electronic Registration and Voting Experiment • US project to allow 100,000 overseas personnel to cast votes remotely for primaries and general election using the Internet • Shut down after damaging report from Security Peer Review Group: “There really is no good way to build such a voting system without a radical change in overall architecture of the Internet and the PC”

Conclusions • Election security is hard – anonymity requirement and high stakes – and has been evolving for over a century in the UK • New voting mechanisms have been suggested as way of increasing turnout, but is “how” or “why” more important? • Trials in 2002 UK local elections found no significant effect on turnout of new technology • UK government still pressing ahead with e-voting, but e-participation projects might have more immediate impact

Electronic Voting
