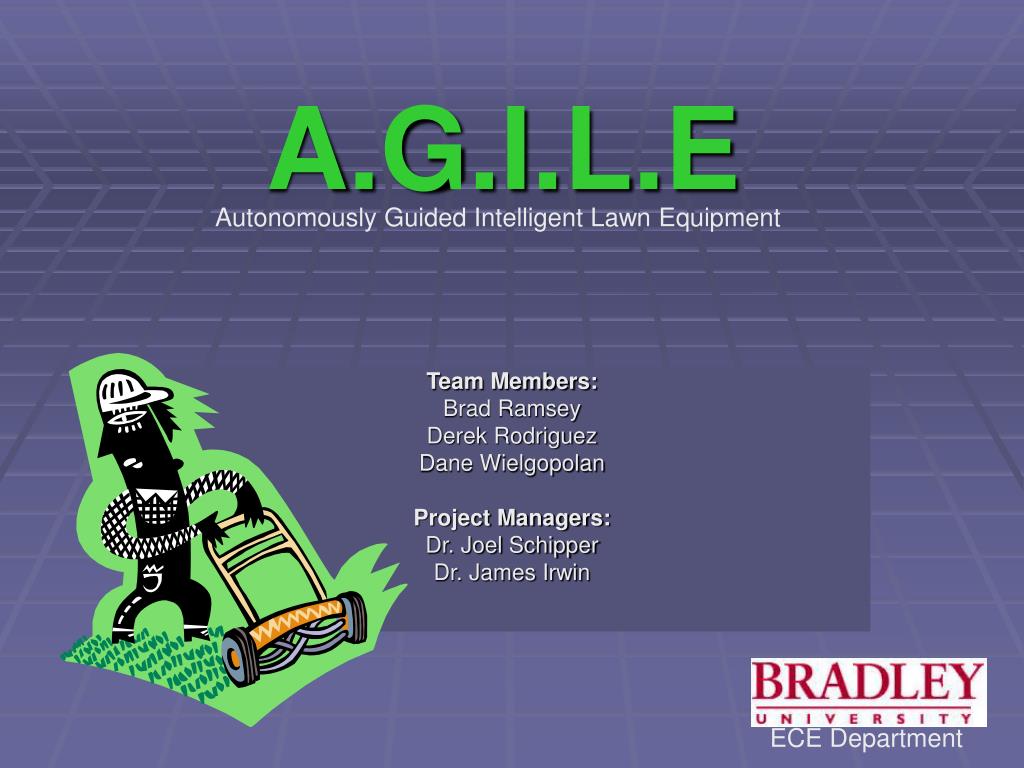

  1. Autonomously Guided Intelligent Lawn Equipment A.G.I.L.E Team Members: Brad Ramsey Derek Rodriguez Dane Wielgopolan Project Managers: Dr. Joel Schipper Dr. James Irwin ECE Department

  2. PRESENTATION OUTLINE • PROJECT OBJECTIVES • PREVIOUS WORK • PRELIMINARY LAB WORK • EQUIPMENT INFORMATION • PARTS LIST • SCHEDULE OF TASKS FOR NEXT SEMESTER

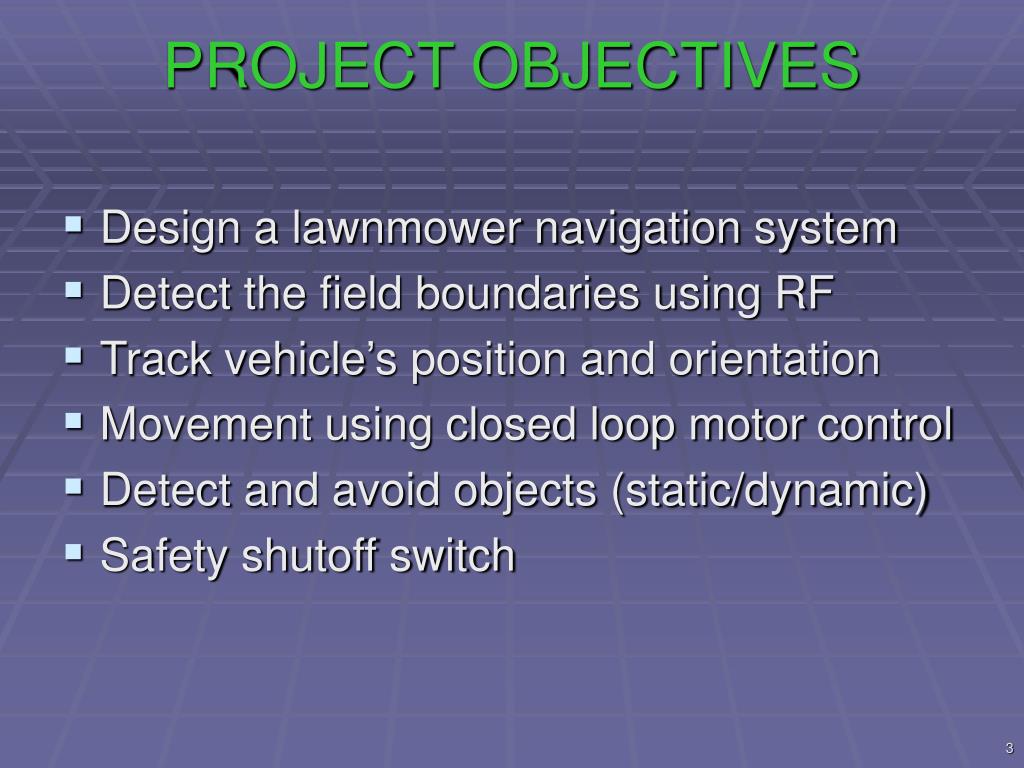

  3. PROJECT OBJECTIVES • Design a lawnmower navigation system • Detect the field boundaries using RF • Track vehicle’s position and orientation • Movement using closed loop motor control • Detect and avoid objects (static/dynamic) • Safety shutoff switch

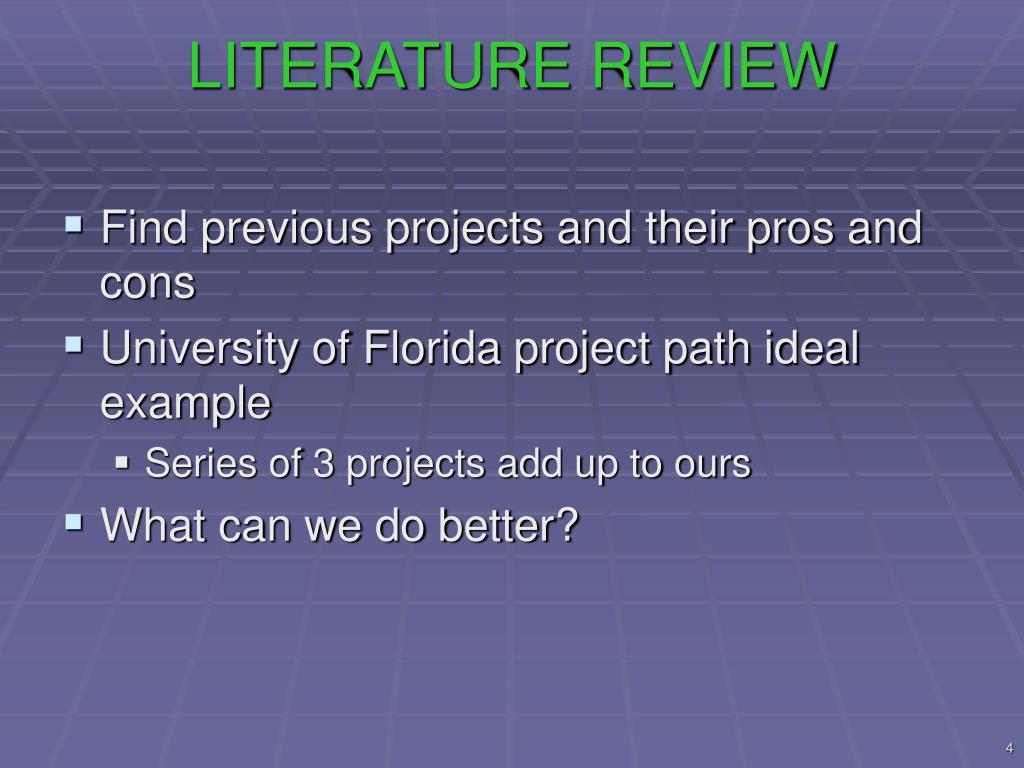

  4. LITERATURE REVIEW • Find previous projects and their pros and cons • University of Florida project path ideal example • Series of 3 projects add up to ours • What can we do better?

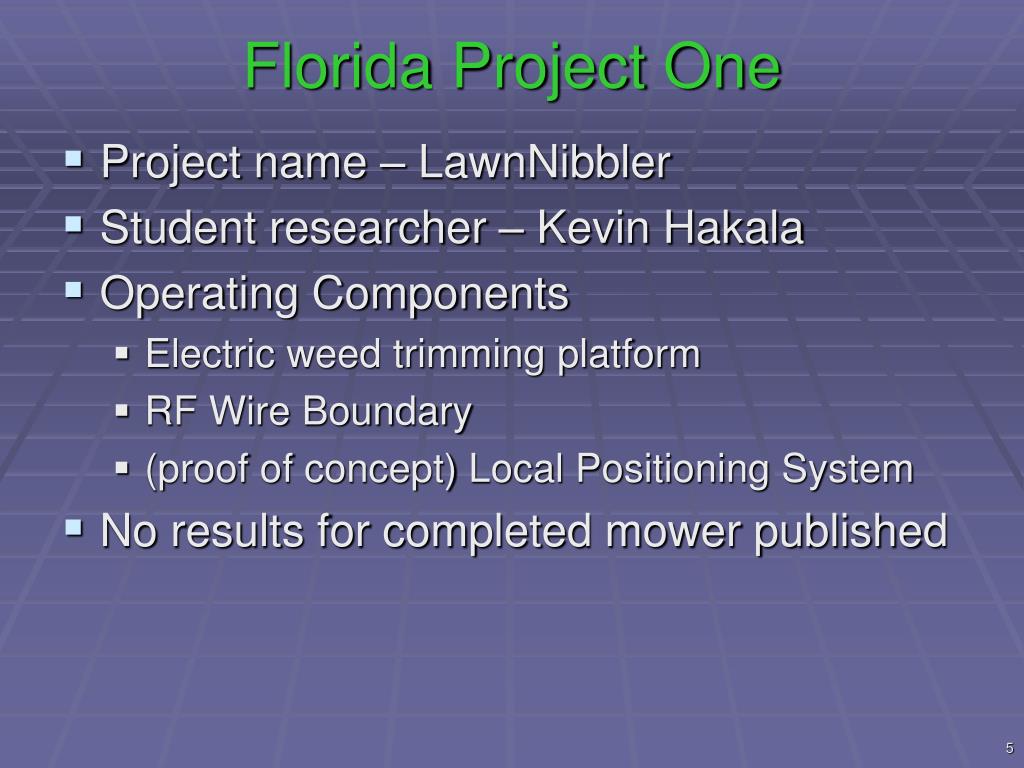

  5. Florida Project One • Project name – LawnNibbler • Student researcher – Kevin Hakala • Operating Components • Electric weed trimming platform • RF Wire Boundary • (proof of concept) Local Positioning System • No results for completed mower published

  6. Florida Project Two • Project name – LawnShark • Student researcher – Rand Chandler and Katherine Meiszer • Operating Components • Electric Toro Lawnmower • Local Positioning System • Ultrasonic sensors (2) • No results for completed mower published

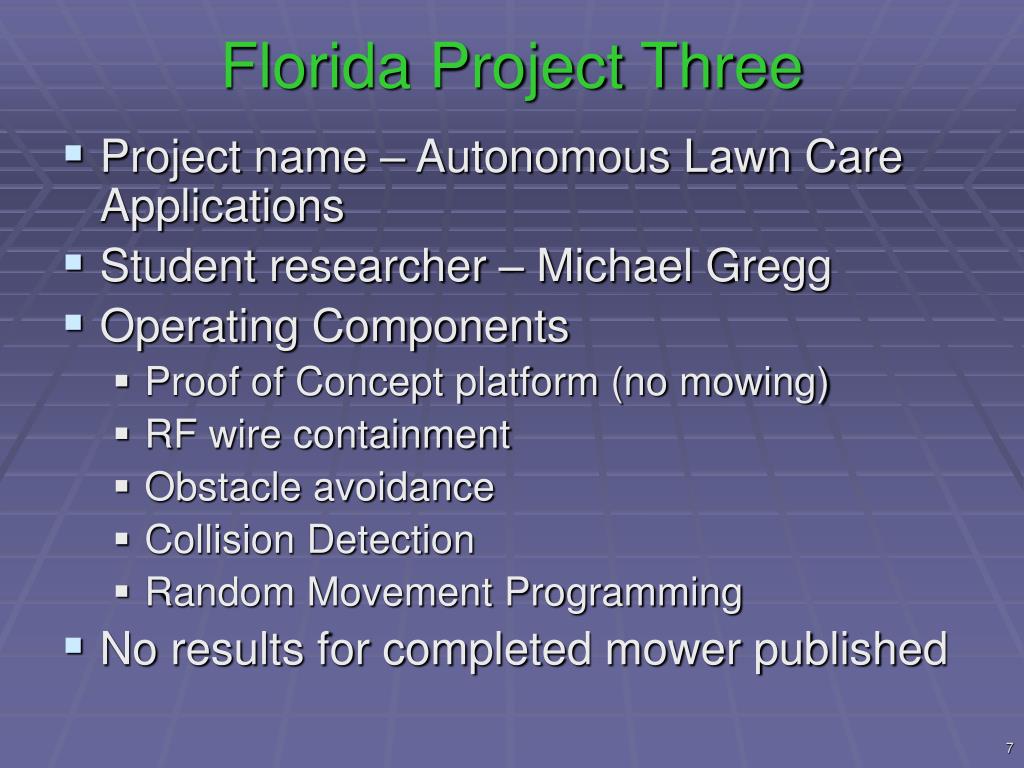

  7. Florida Project Three • Project name – Autonomous Lawn Care Applications • Student researcher – Michael Gregg • Operating Components • Proof of Concept platform (no mowing) • RF wire containment • Obstacle avoidance • Collision Detection • Random Movement Programming • No results for completed mower published

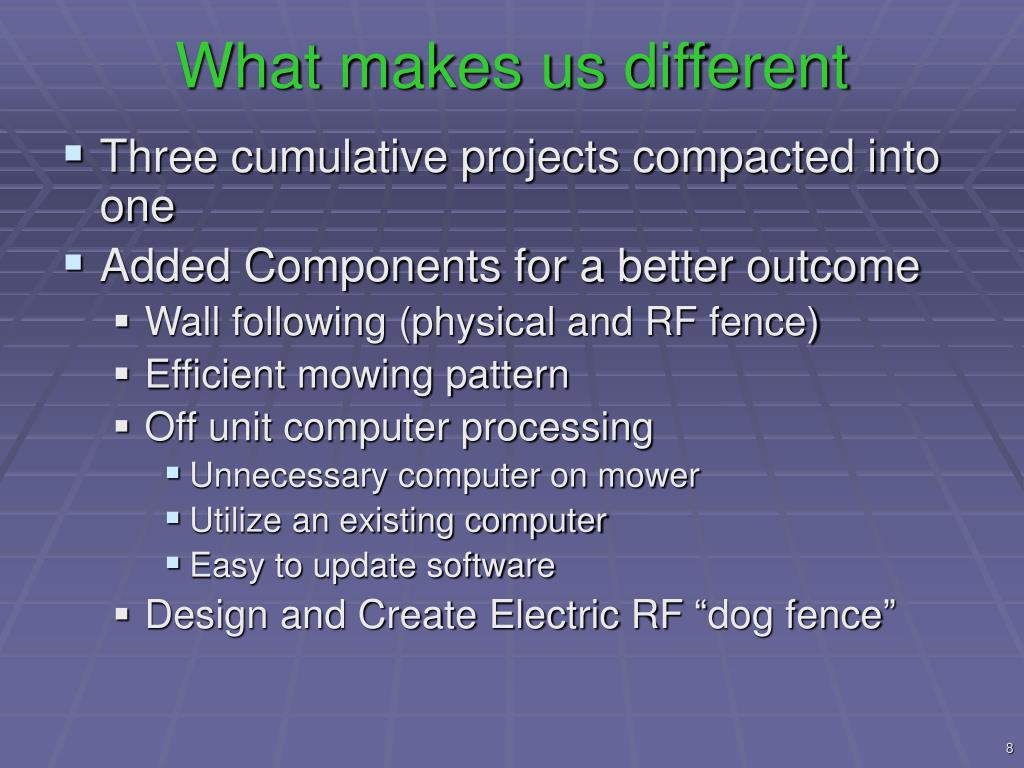

  8. What makes us different • Three cumulative projects compacted into one • Added Components for a better outcome • Wall following (physical and RF fence) • Efficient mowing pattern • Off unit computer processing • Unnecessary computer on mower • Utilize an existing computer • Easy to update software • Design and Create Electric RF “dog fence”

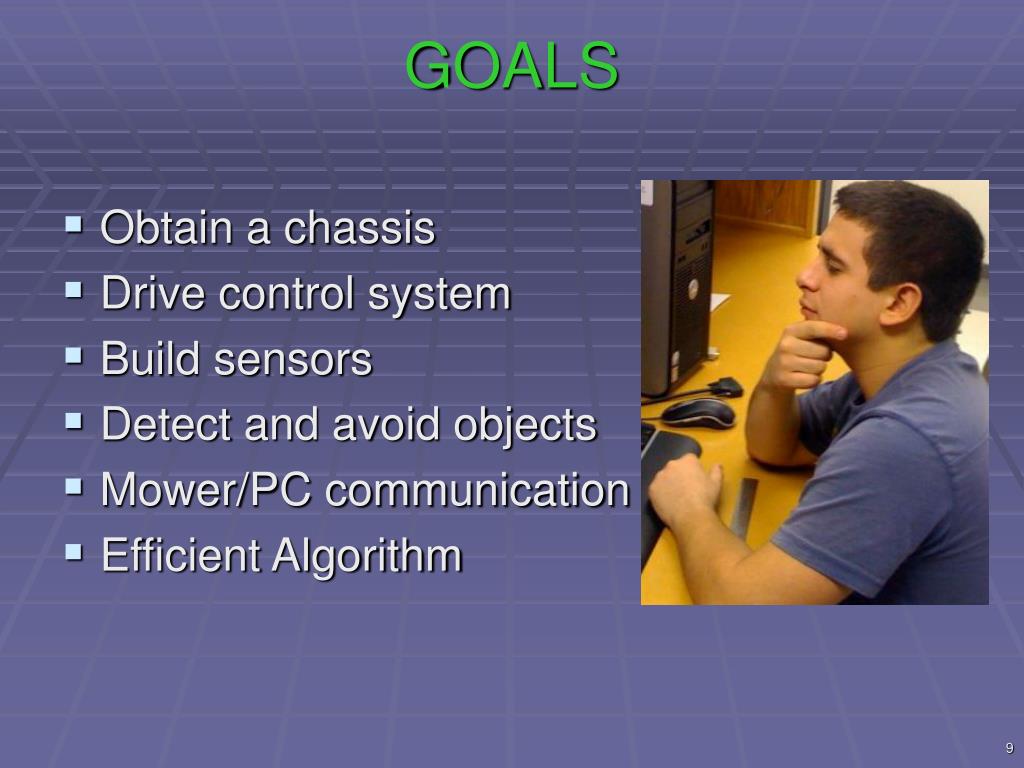

  9. GOALS • Obtain a chassis • Drive control system • Build sensors • Detect and avoid objects • Mower/PC communication • Efficient Algorithm

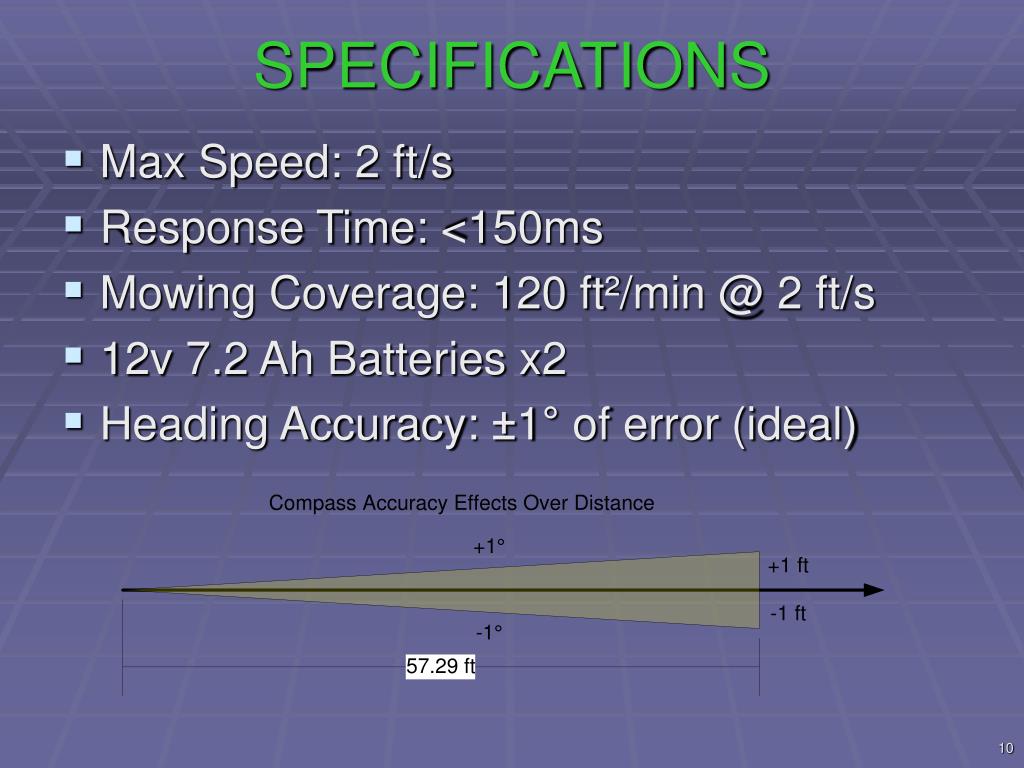

  10. SPECIFICATIONS • Max Speed: 2 ft/s • Response Time: <150ms • Mowing Coverage: 120 ft²/min @ 2 ft/s • 12v 7.2 Ah Batteries x2 • Heading Accuracy: ±1° of error (ideal)

  11. SYSTEM BLOCK DIAGRAM

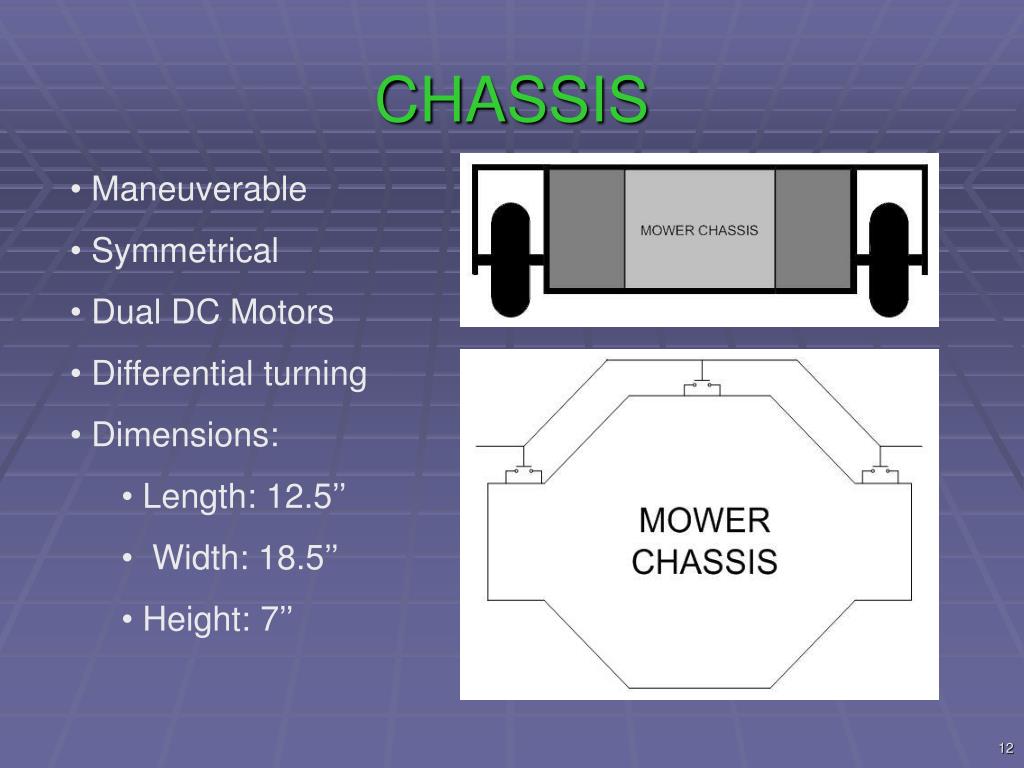

  12. CHASSIS • Maneuverable • Symmetrical • Dual DC Motors • Differential turning • Dimensions: • Length: 12.5’’ • Width: 18.5’’ • Height: 7’’

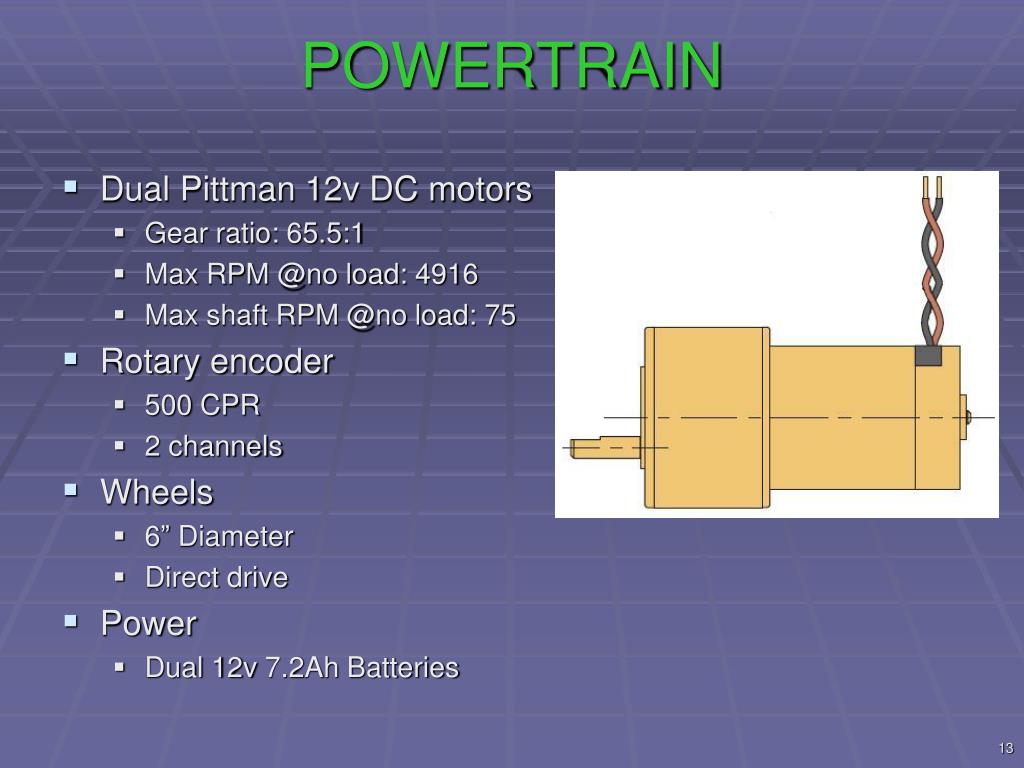

  13. POWERTRAIN • Dual Pittman 12v DC motors • Gear ratio: 65.5:1 • Max RPM @no load: 4916 • Max shaft RPM @no load: 75 • Rotary encoder • 500 CPR • 2 channels • Wheels • 6” Diameter • Direct drive • Power • Dual 12v 7.2Ah Batteries

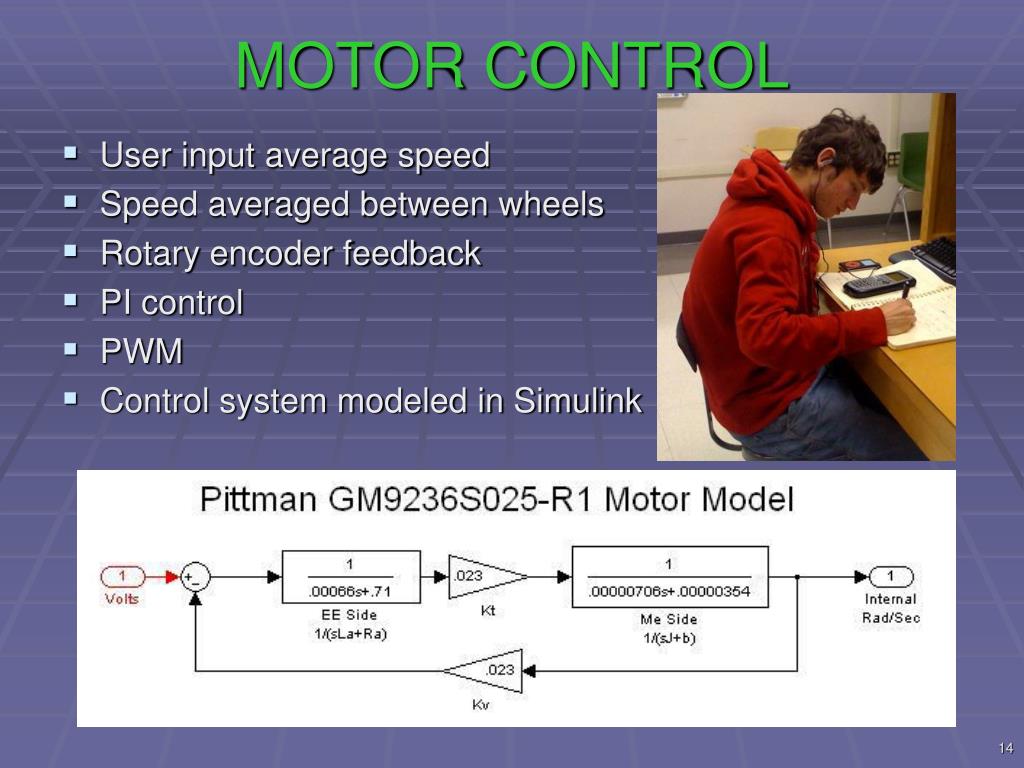

  14. MOTOR CONTROL • User input average speed • Speed averaged between wheels • Rotary encoder feedback • PI control • PWM • Control system modeled in Simulink

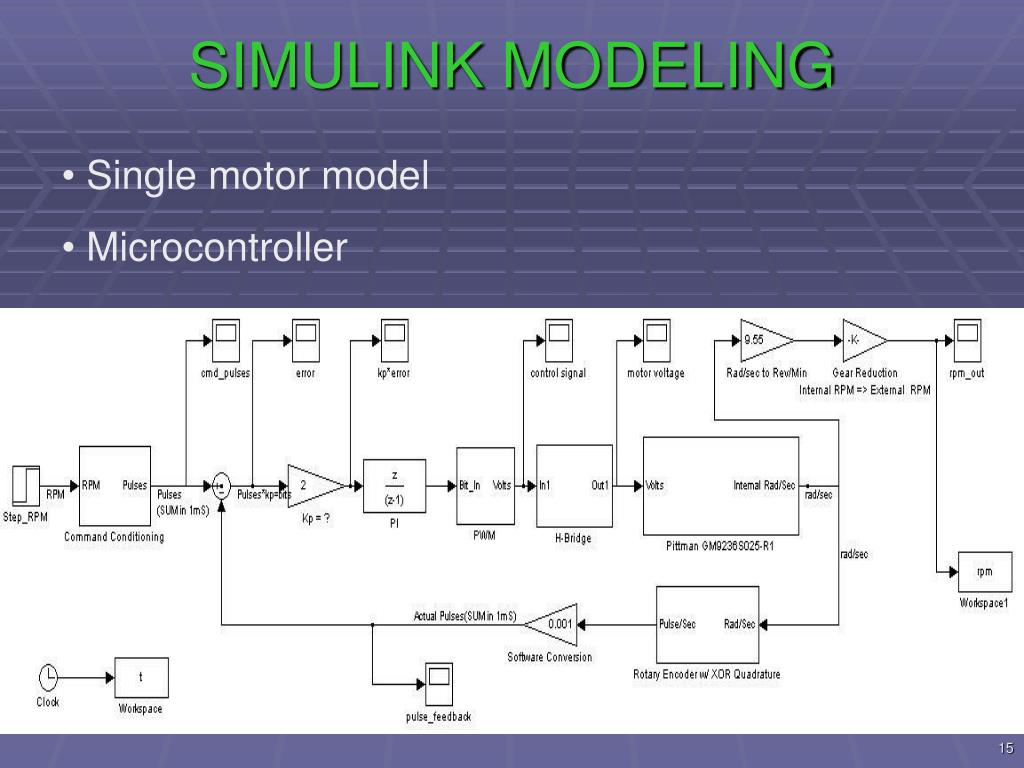

  15. SIMULINK MODELING • Single motor model • Microcontroller

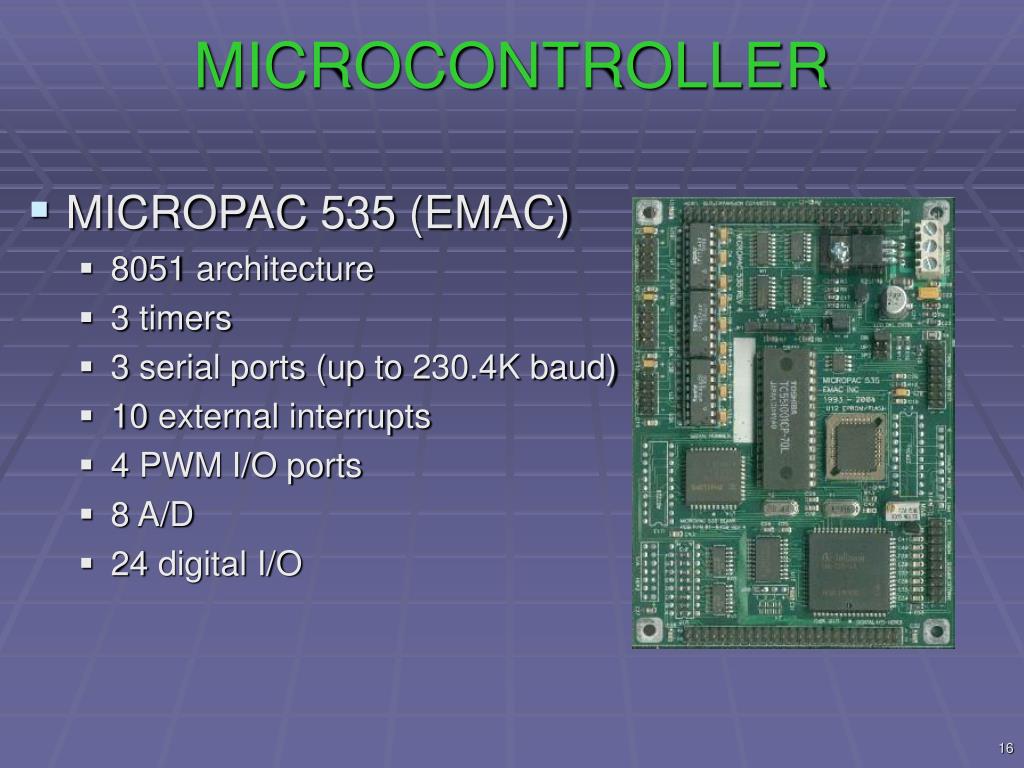

  16. MICROCONTROLLER • MICROPAC 535 (EMAC) • 8051 architecture • 3 timers • 3 serial ports (up to 230.4K baud) • 10 external interrupts • 4 PWM I/O ports • 8 A/D • 24 digital I/O

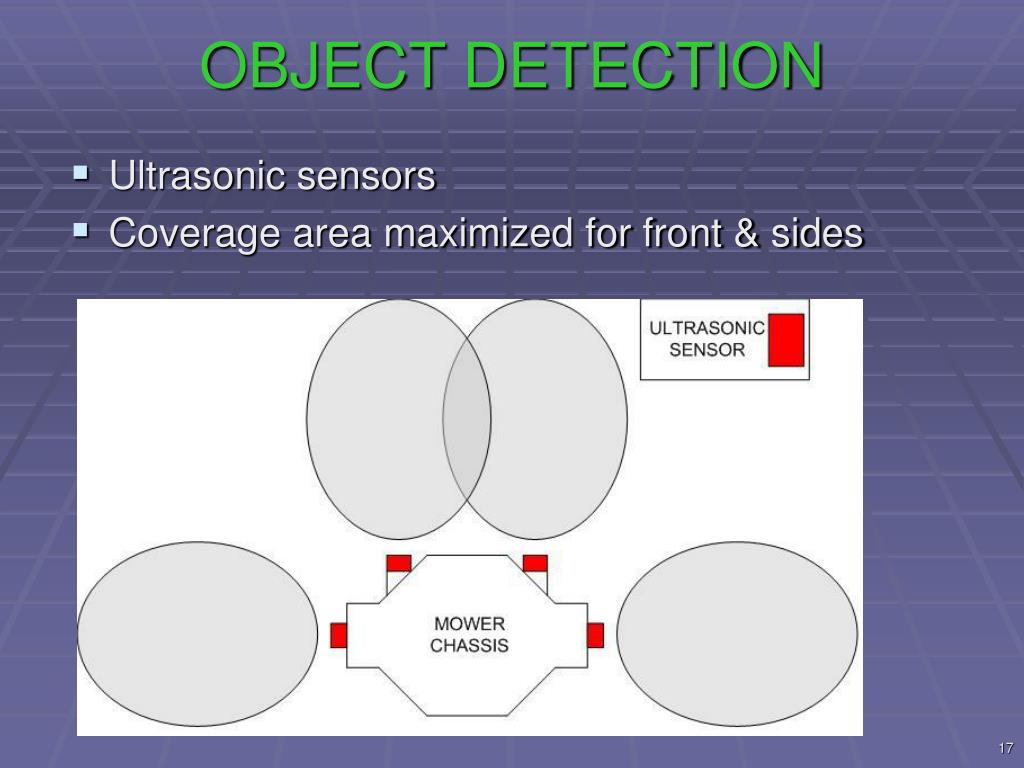

  17. Ultrasonic sensors Coverage area maximized for front & sides OBJECT DETECTION

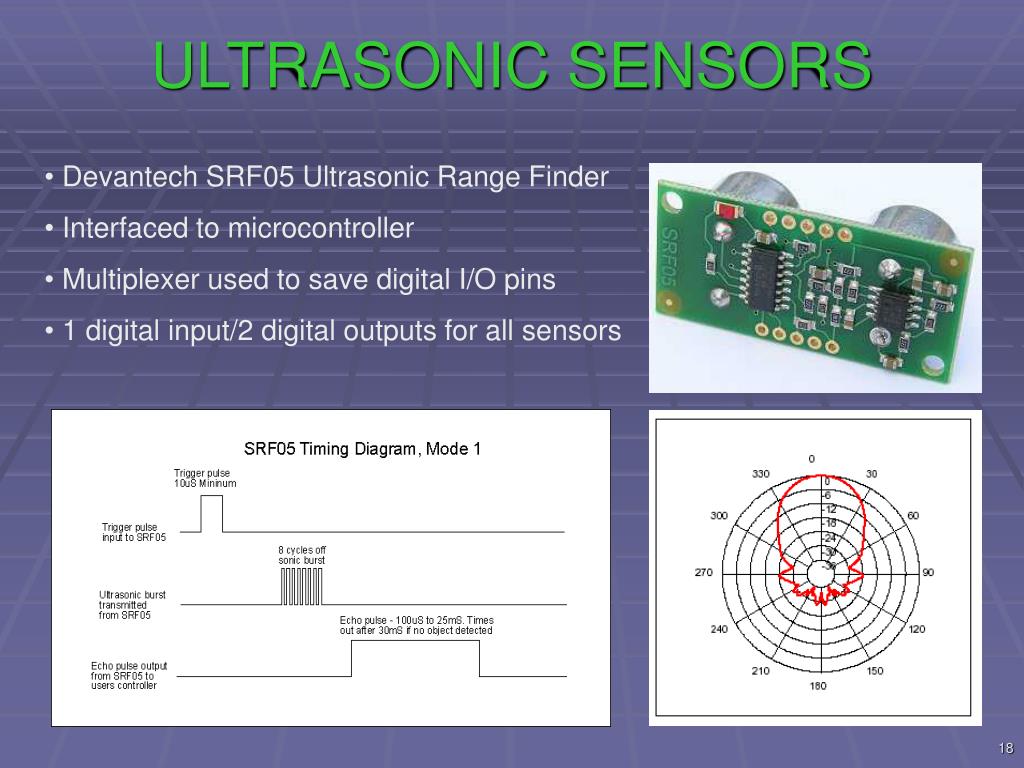

  18. ULTRASONIC SENSORS • Devantech SRF05 Ultrasonic Range Finder • Interfaced to microcontroller • Multiplexer used to save digital I/O pins • 1 digital input/2 digital outputs for all sensors

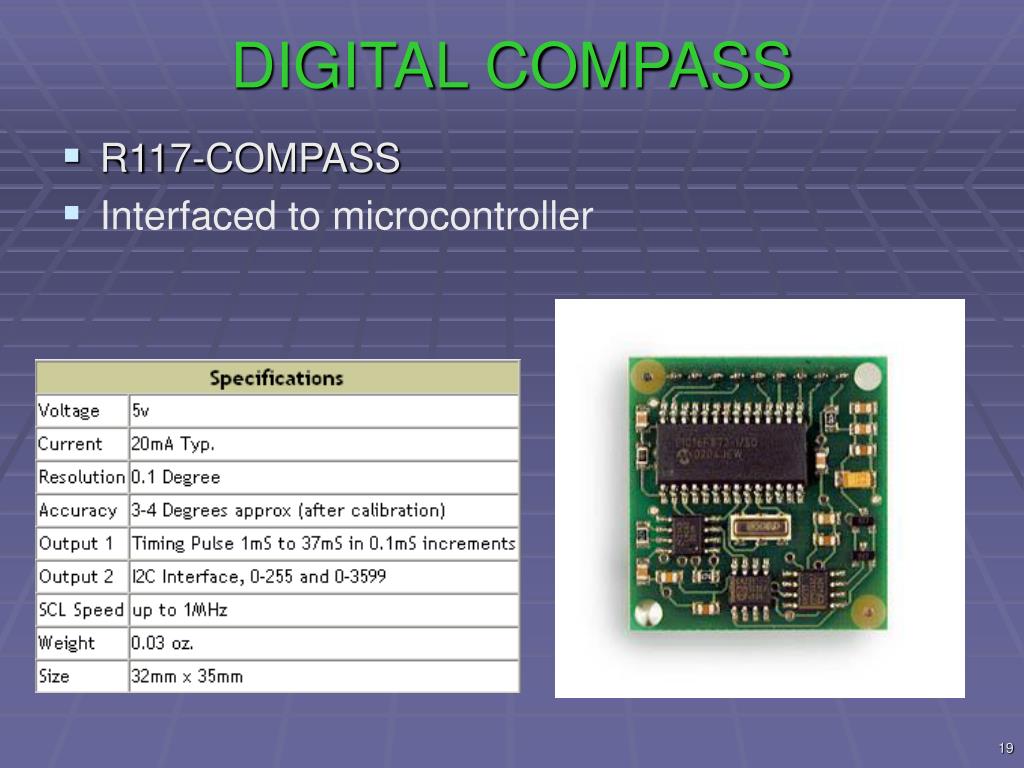

  19. DIGITAL COMPASS • R117-COMPASS • Interfaced to microcontroller

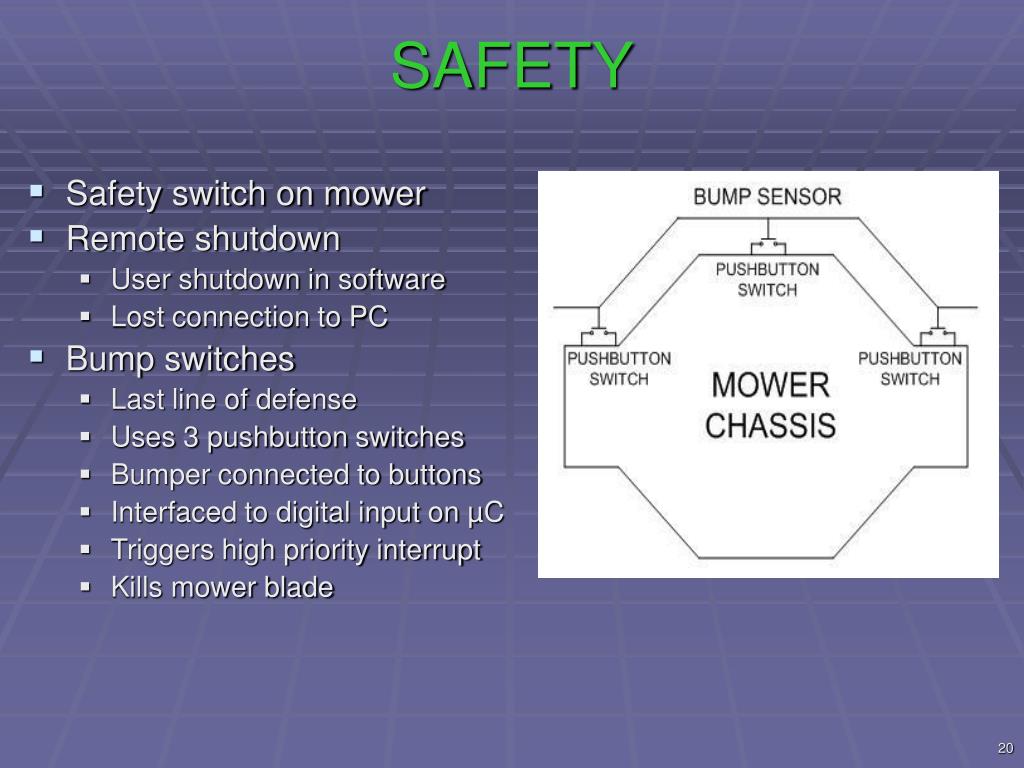

  20. SAFETY • Safety switch on mower • Remote shutdown • User shutdown in software • Lost connection to PC • Bump switches • Last line of defense • Uses 3 pushbutton switches • Bumper connected to buttons • Interfaced to digital input on µC • Triggers high priority interrupt • Kills mower blade

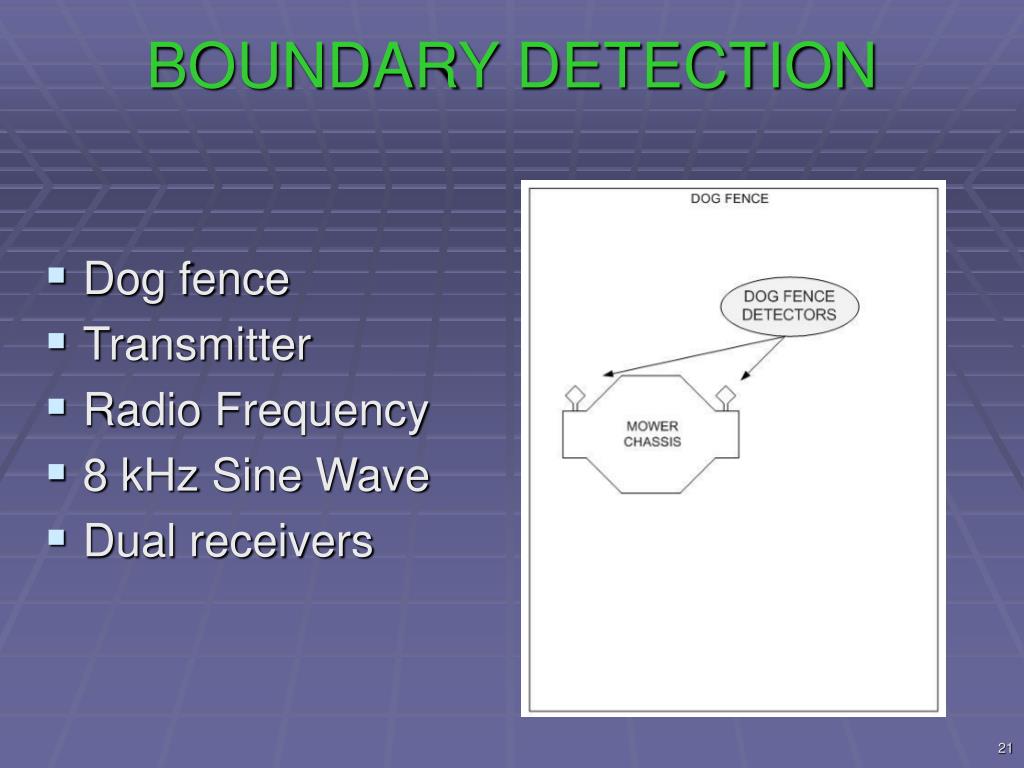

  21. Dog fence Transmitter Radio Frequency 8 kHz Sine Wave Dual receivers BOUNDARY DETECTION

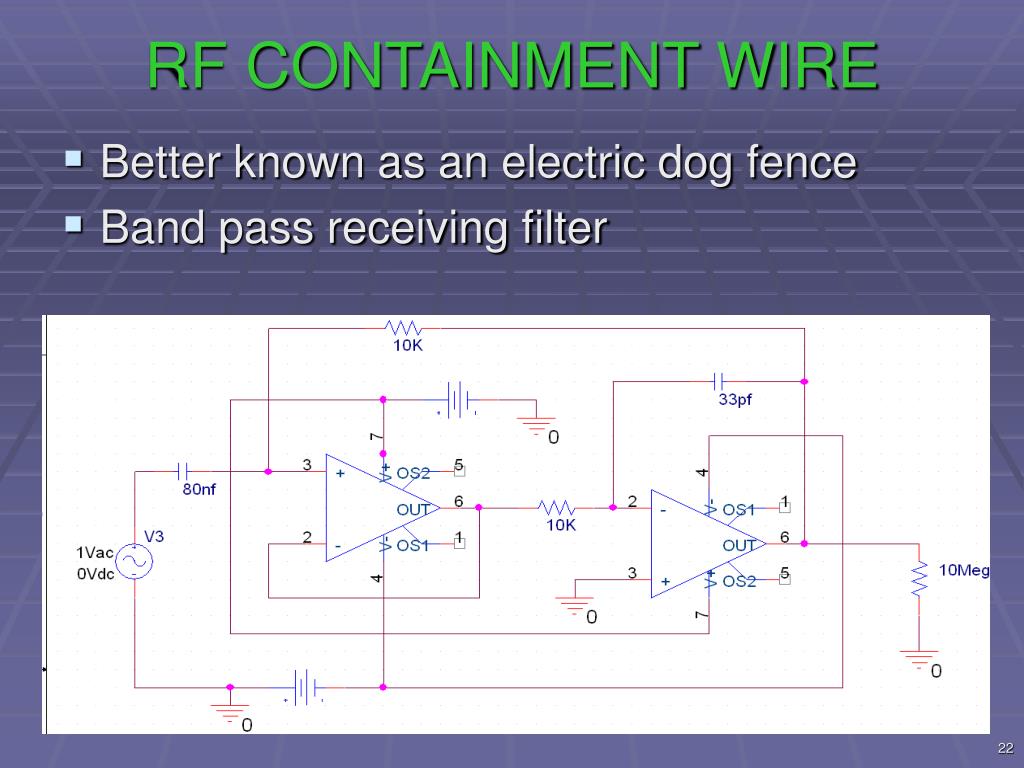

  22. RF CONTAINMENT WIRE • Better known as an electric dog fence • Band pass receiving filter

  23. SOFTWARE • C/Assembly on EMAC • C++ On PC • EMAC will acquire data • Remote PC • Receive user settings • Process data • Implement algorithm

  24. SOFTWARE FLOW CHART

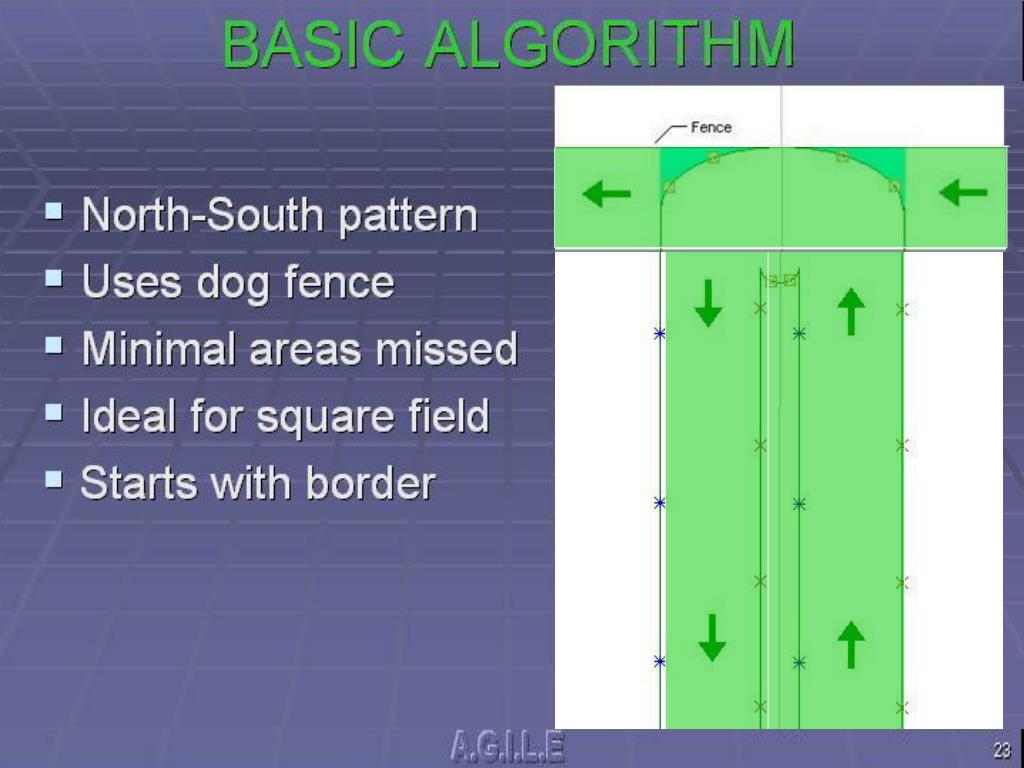

  25. BASIC ALGORITHM • North-South pattern • Uses dog fence • Minimal areas missed • Ideal for square field • Starts with border

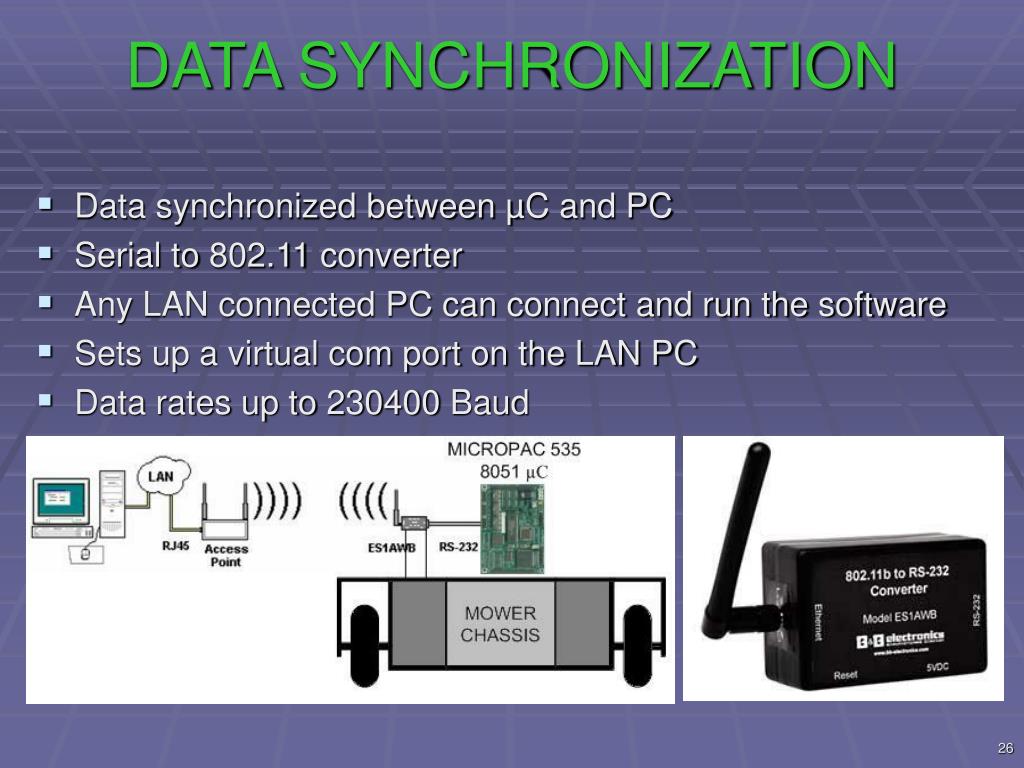

  26. DATA SYNCHRONIZATION • Data synchronized between µC and PC • Serial to 802.11 converter • Any LAN connected PC can connect and run the software • Sets up a virtual com port on the LAN PC • Data rates up to 230400 Baud

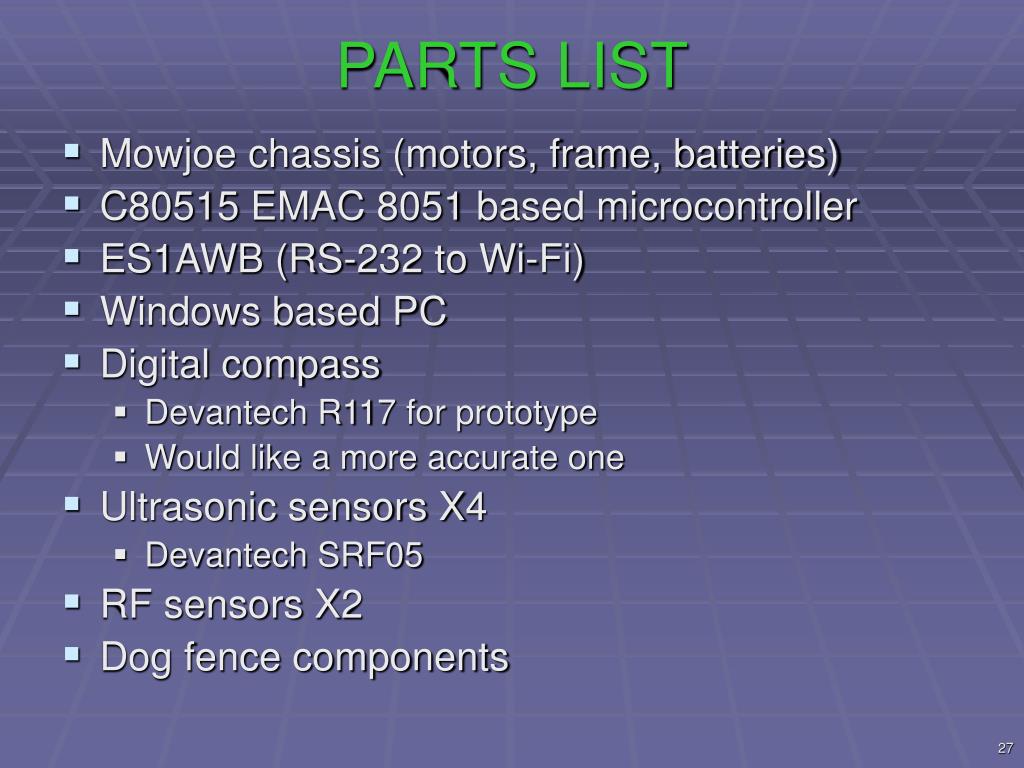

  27. PARTS LIST • Mowjoe chassis (motors, frame, batteries) • C80515 EMAC 8051 based microcontroller • ES1AWB (RS-232 to Wi-Fi) • Windows based PC • Digital compass • Devantech R117 for prototype • Would like a more accurate one • Ultrasonic sensors X4 • Devantech SRF05 • RF sensors X2 • Dog fence components

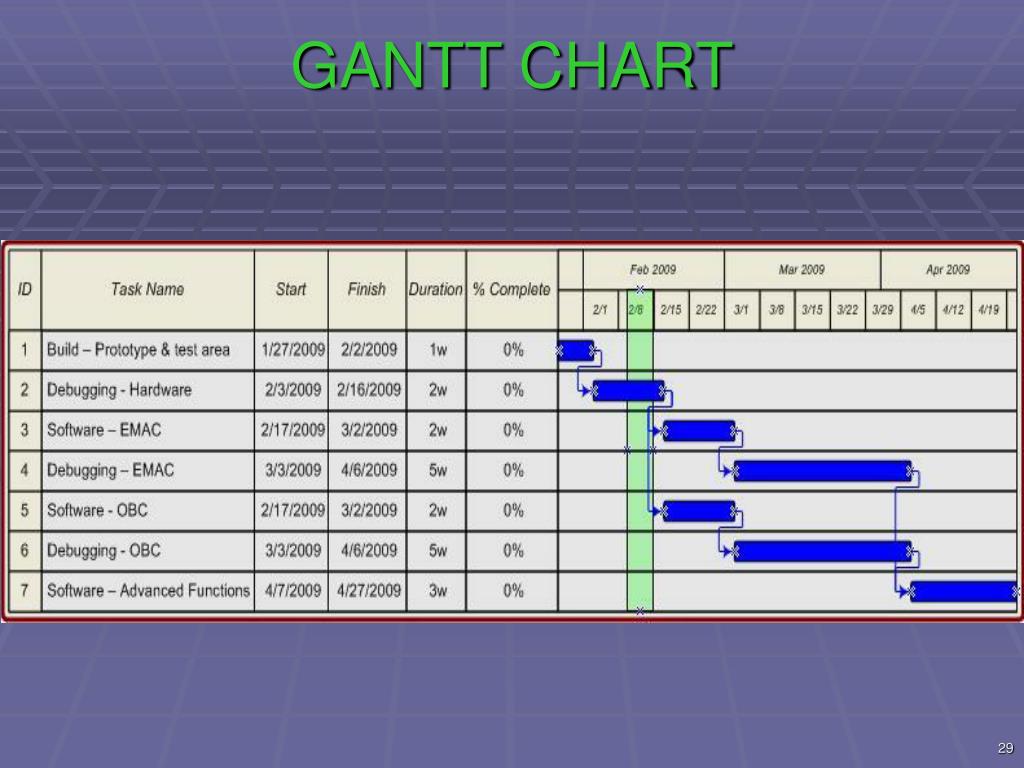

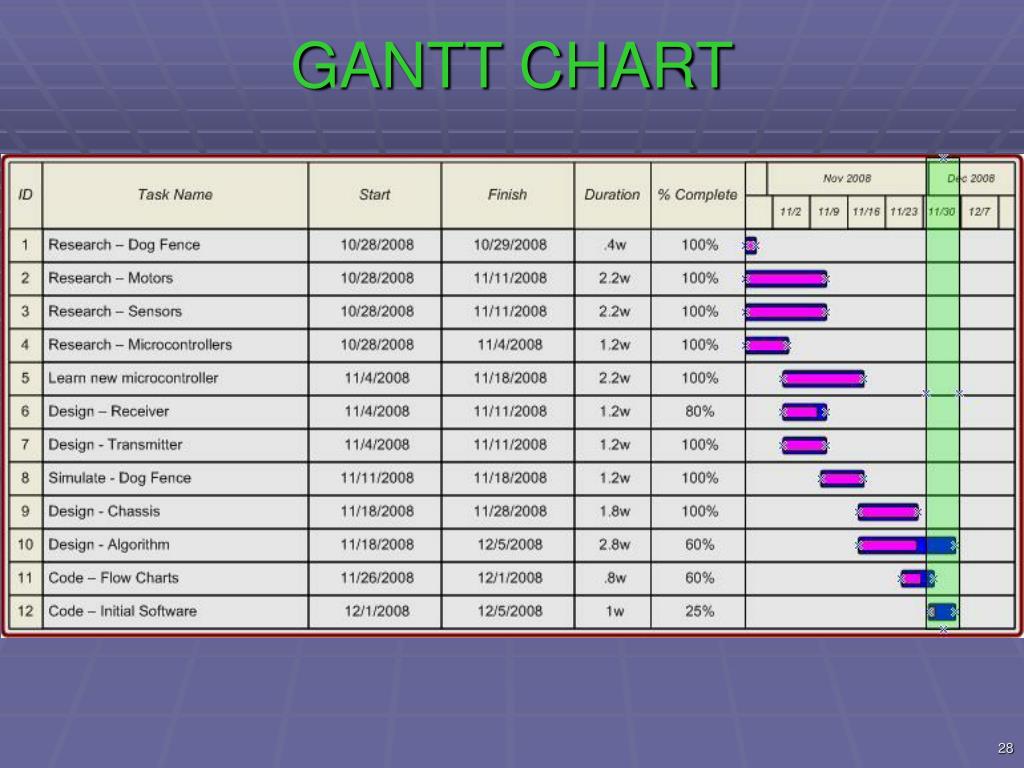

  28. GANTTCHART

  29. GANTTCHART

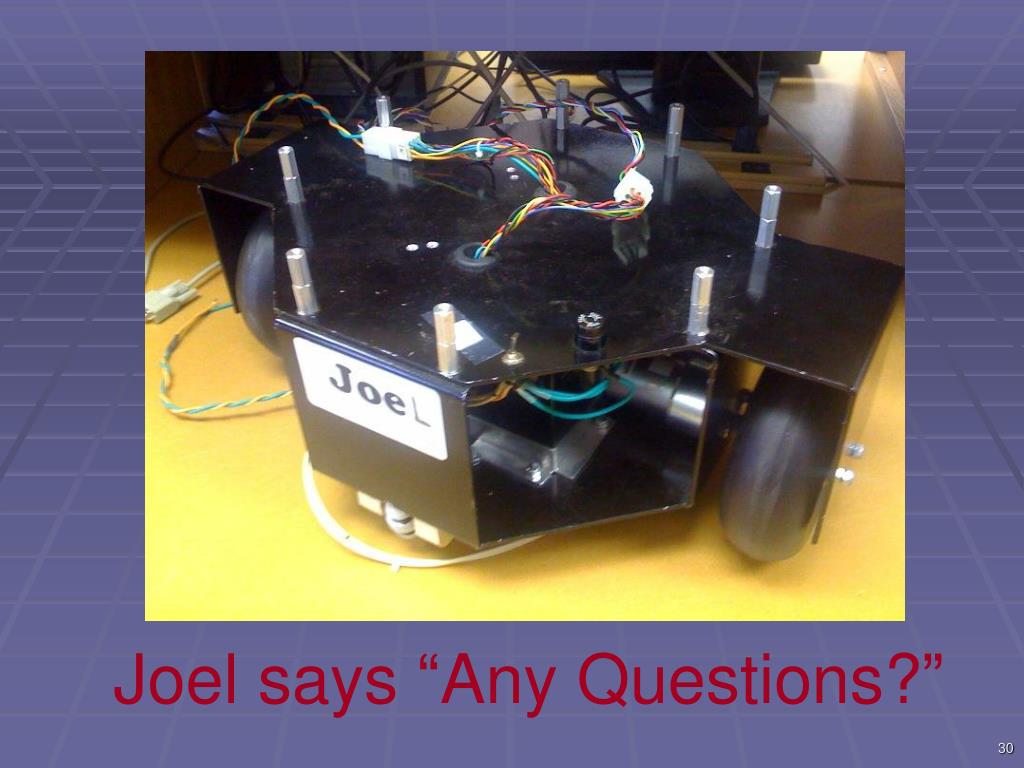

  30. Joel says “Any Questions?”
