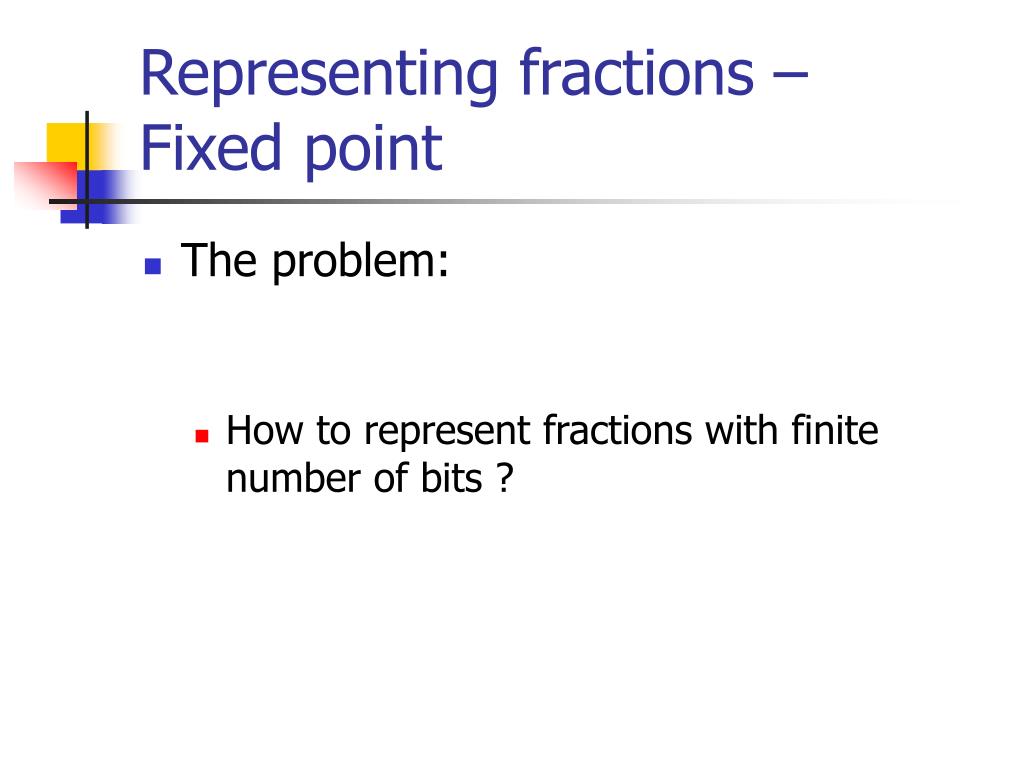

  1. Representing fractions – Fixed point • The problem: • How to represent fractions with finite number of bits ?

  2. Representing fractions – Fixed point A number with 10 bits a1a2a3a4a5a6a7a8a9a10

  3. Representing fractions – Fixed point A number with 10 bits a1a2a3a4a5a6a7a8a9a10 a1a2a3a4a5a6a7a8.a9a10 Fixing the point

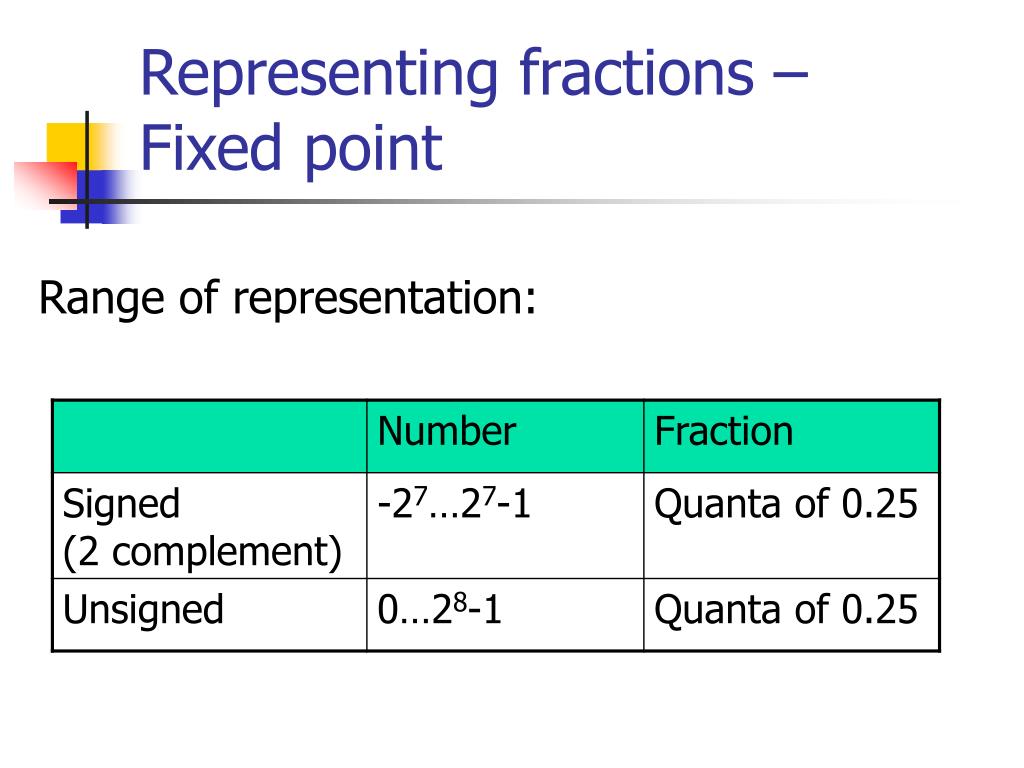

  4. Representing fractions – Fixed point Range of representation:

  5. Fixed point : the problem • Cannot represent wide ranges of numbers. • In scientific applications.

  6. Representing Fractions – Floating point 1 * 101 10 Base (radix) - r -1.23 * 10-2 -0.123

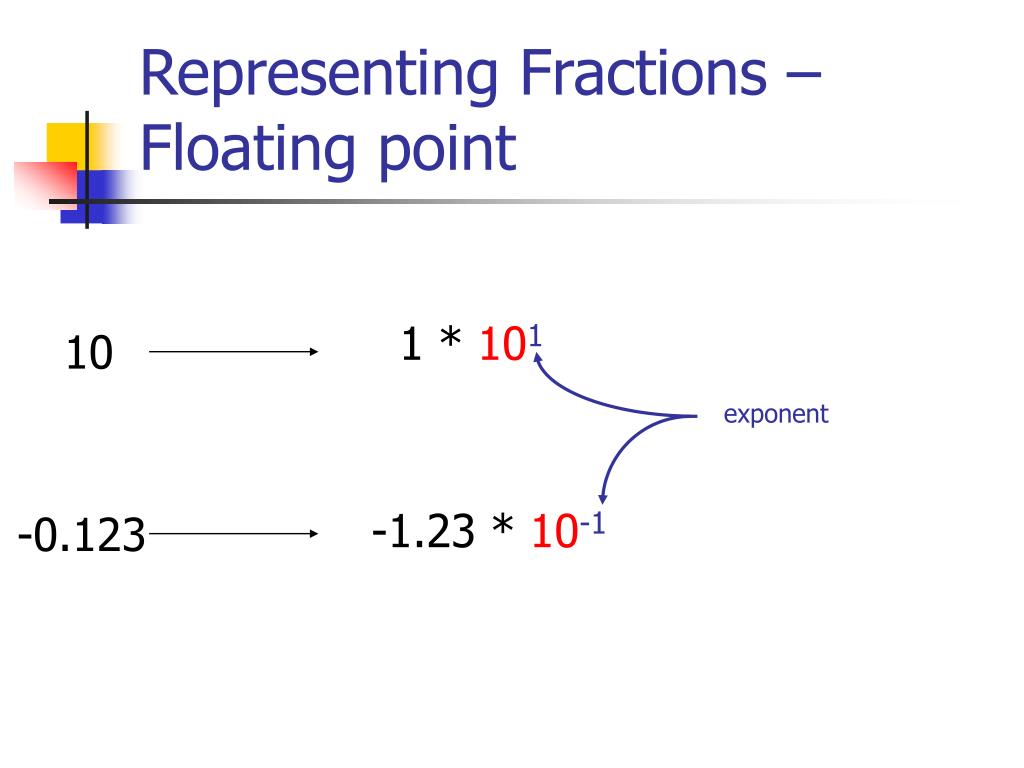

  7. Representing Fractions – Floating point 1 * 101 10 exponent -1.23 * 10-1 -0.123

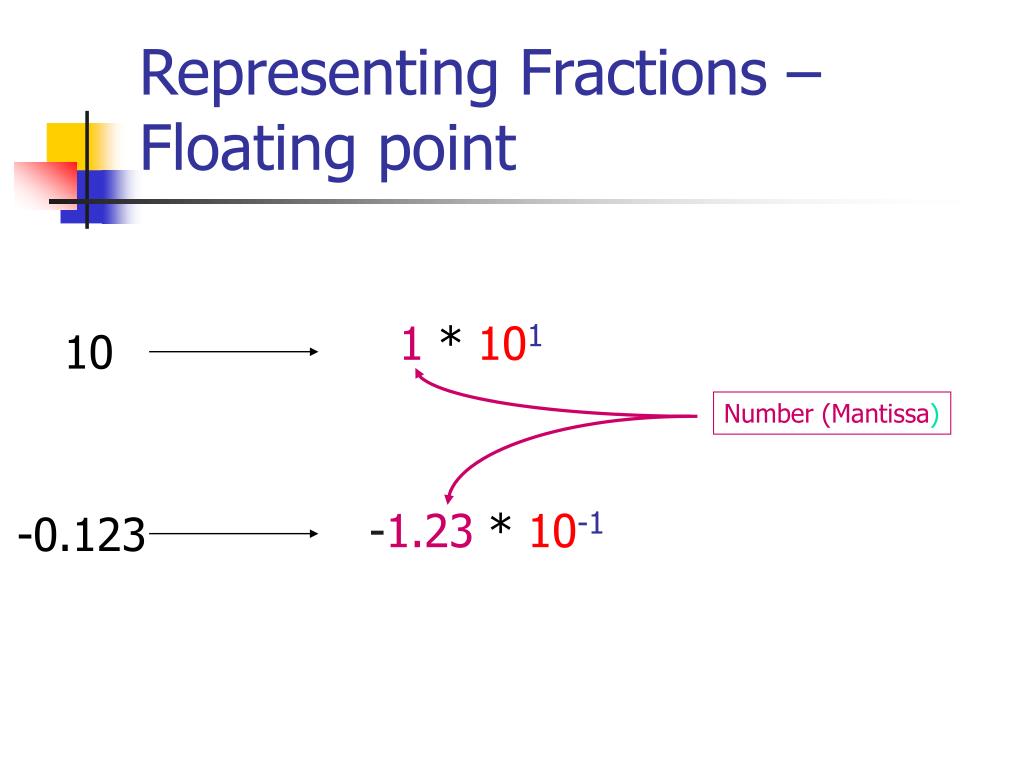

  8. Representing Fractions – Floating point 1 * 101 10 Number (Mantissa) -1.23 * 10-1 -0.123

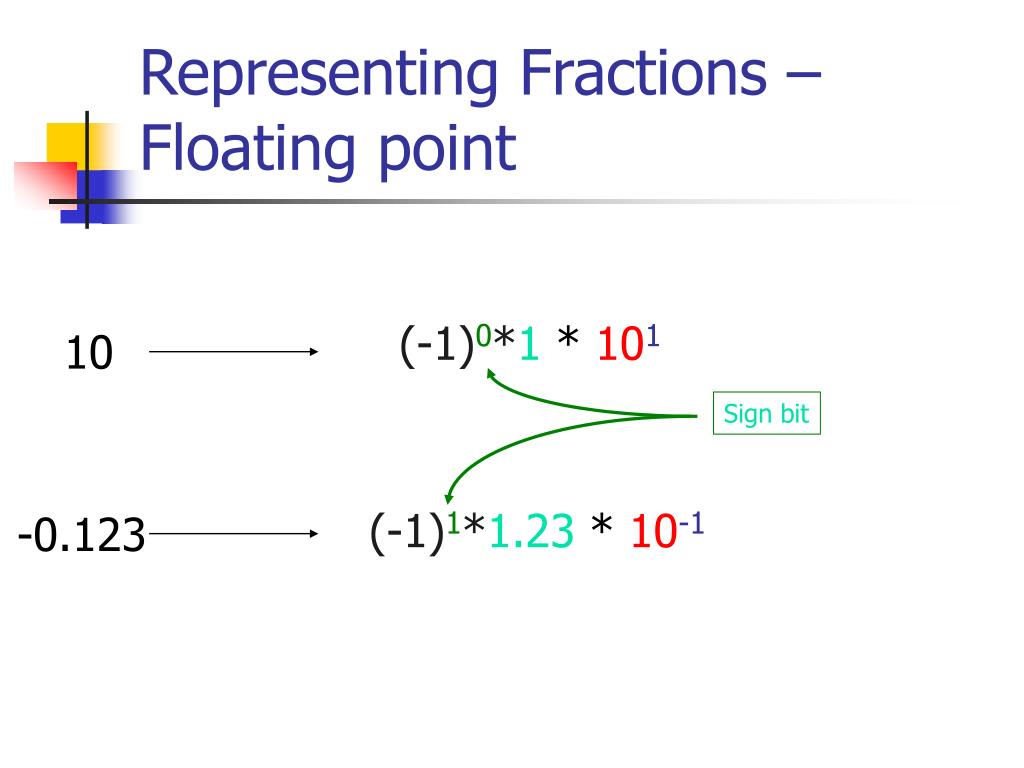

  9. Representing Fractions – Floating point (-1)0*1 * 101 10 Sign bit (-1)1*1.23 * 10-1 -0.123

  10. Problem of uniqueness 100*10-4 0.1 Representation is not Unique 0.001*102

  11. Problem of uniqueness - Normalization 610*10-4 0.61 6.1*10-1 Standardization One digit to the Left of the point 0.0061*102

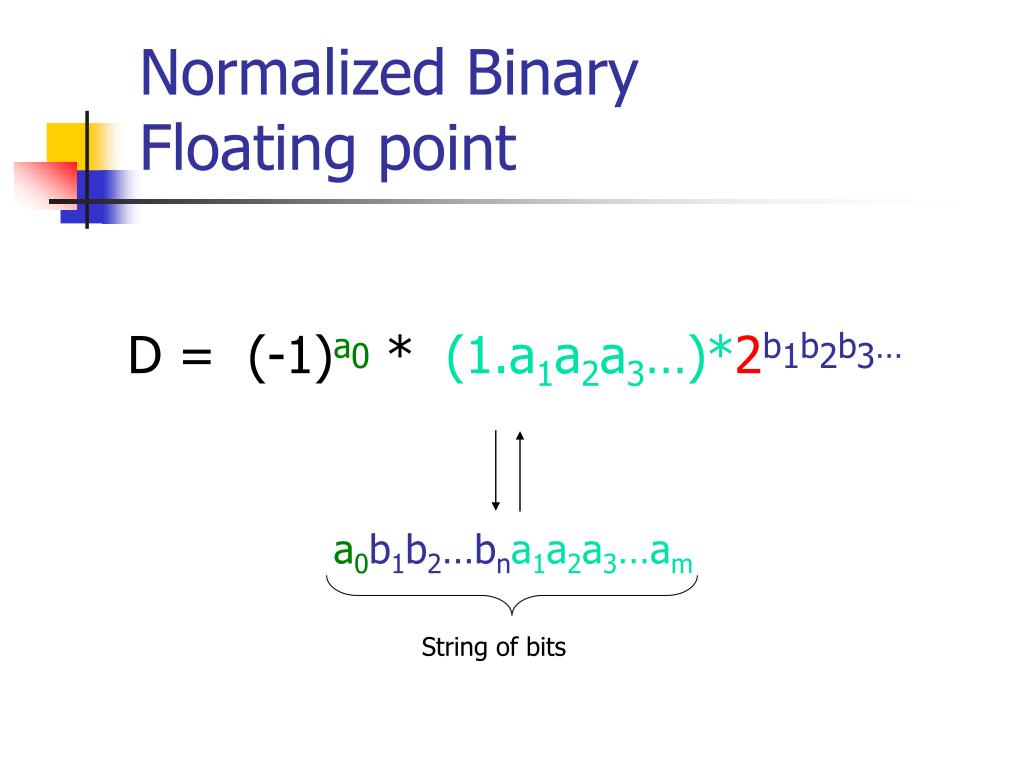

  12. Normalized Binary Floating point D = (-1)a0 * (1.a1a2a3…)*2b1b2b3… a0b1b2…bna1a2a3…am String of bits

  13. Floating point - Questions • Representing the (signed) exponent • How to represent zero? • And Nan, infinity ? • How to add, subtract and multiply? • Rounding Errors.

  14. Floating point – Representing the exponent How to represent singed number ? Sign bit 2-Complement

  15. Floating point – Representing the exponent How to represent singed number ? Sign bit Neither 2-Complement

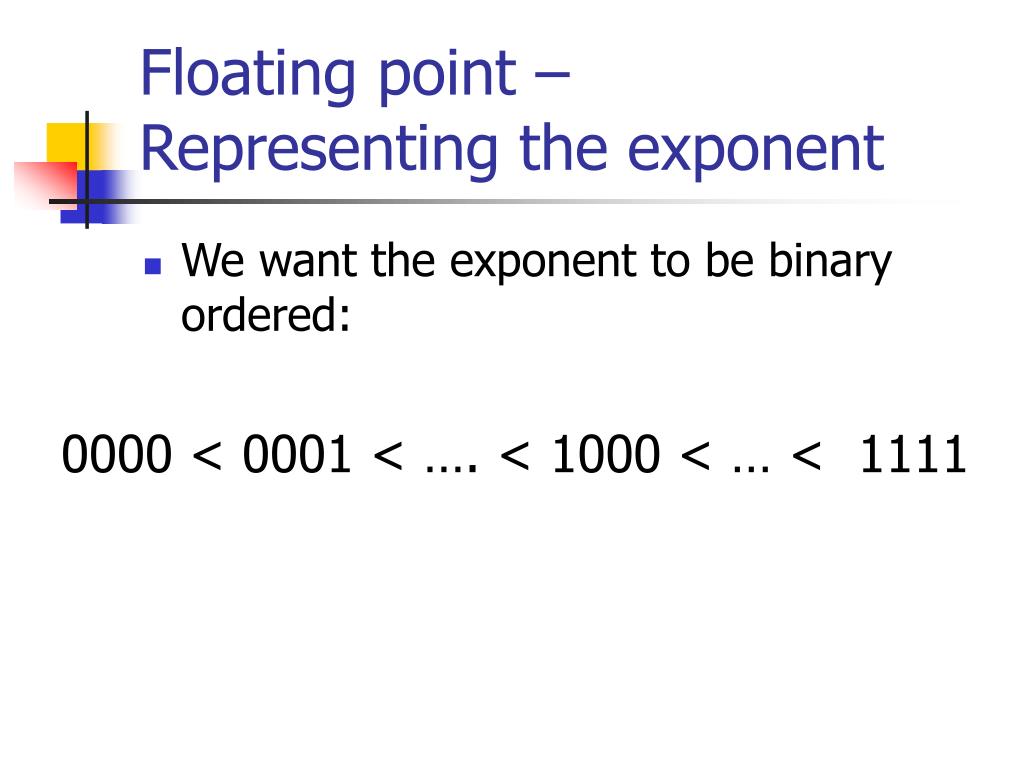

  16. Floating point – Representing the exponent • We want the exponent to be binary ordered: 0000 < 0001 < …. < 1000 < … < 1111

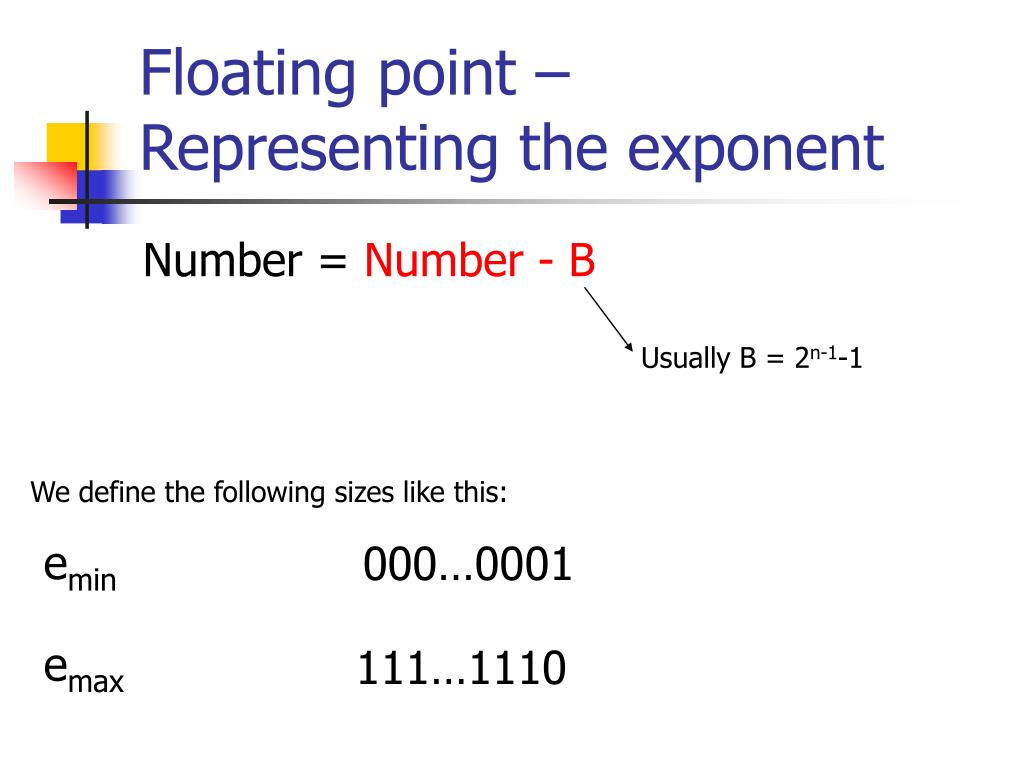

  17. Floating point – Representing the exponent Number = Number - B Usually B = 2n-1-1 We define the following sizes like this: emin 000…0001 emax 111…1110

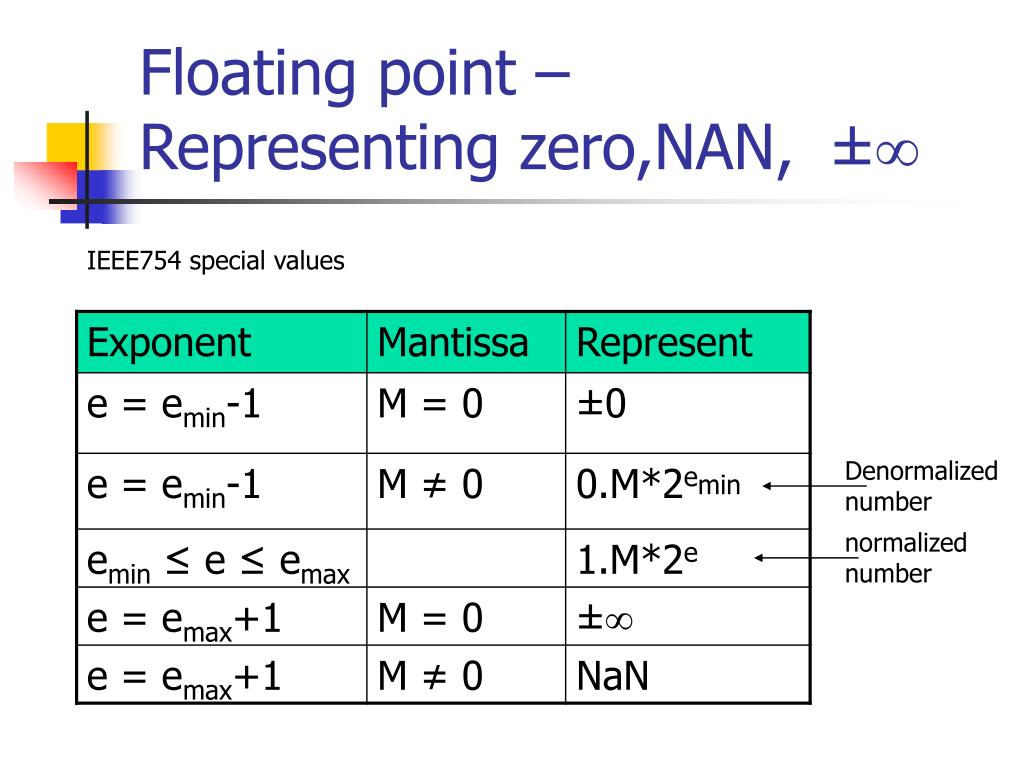

  18. Floating point – Representing zero,NAN, ± IEEE754 special values Denormalized number normalized number

  19. IEEE 754 (Including the sign Bit)

  20. What is NaN (not a number) Partial list

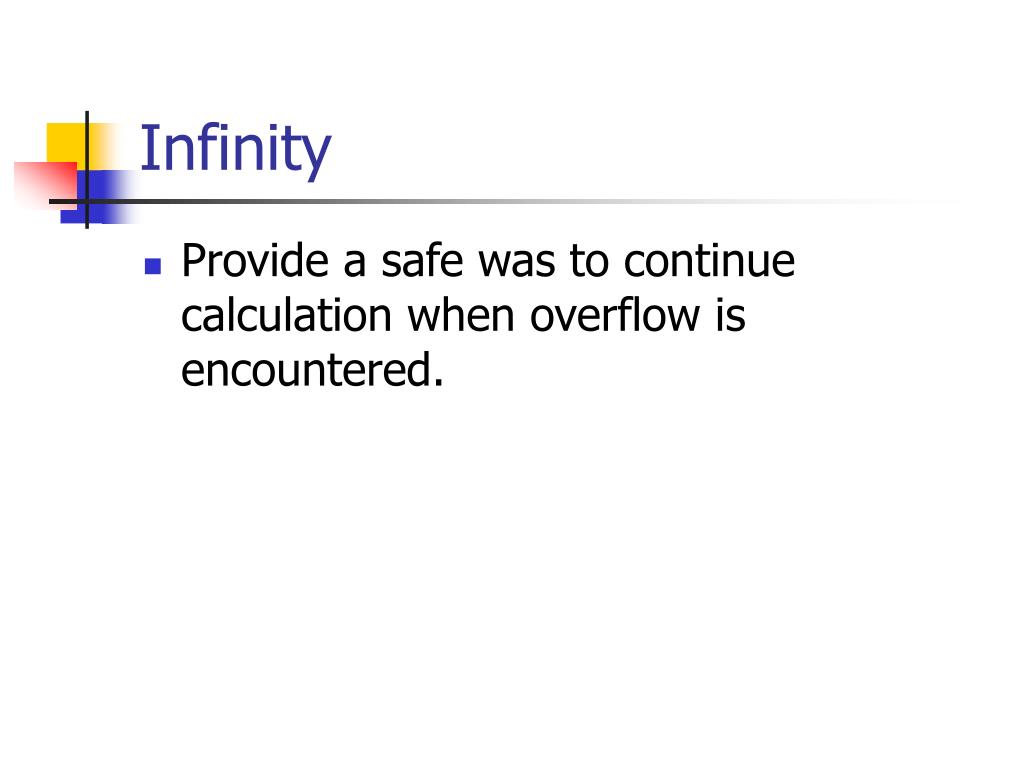

  21. Infinity • Provide a safe was to continue calculation when overflow is encountered.

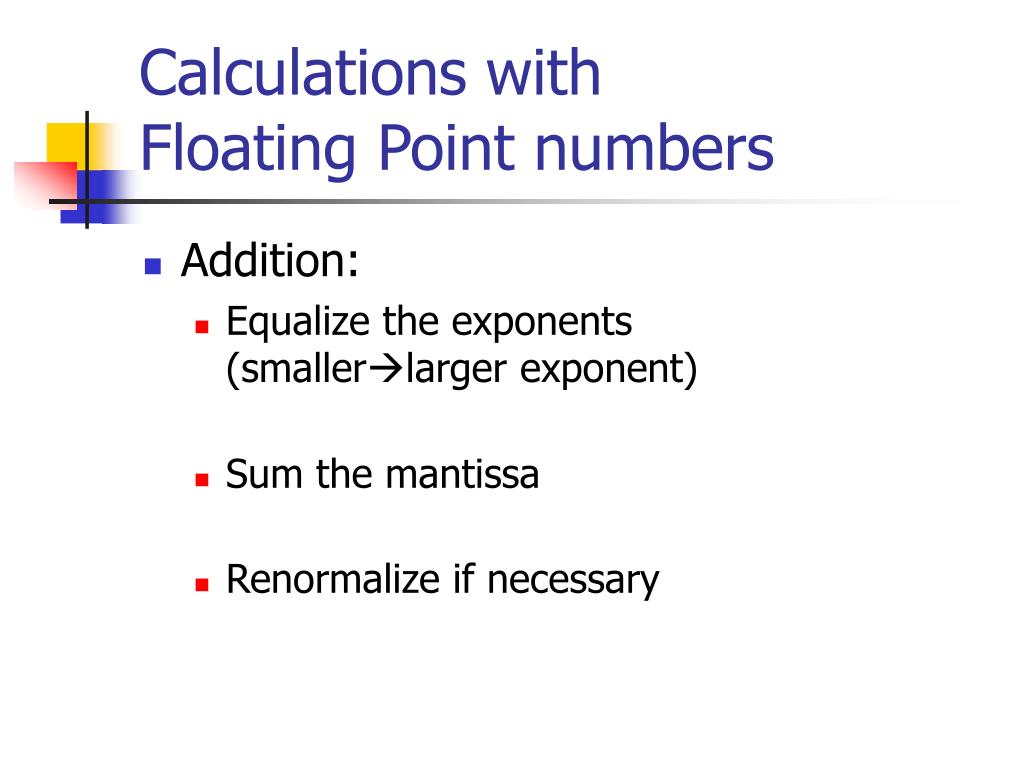

  22. Calculations with Floating Point numbers • Addition: • Equalize the exponents (smallerlarger exponent) • Sum the mantissa • Renormalize if necessary

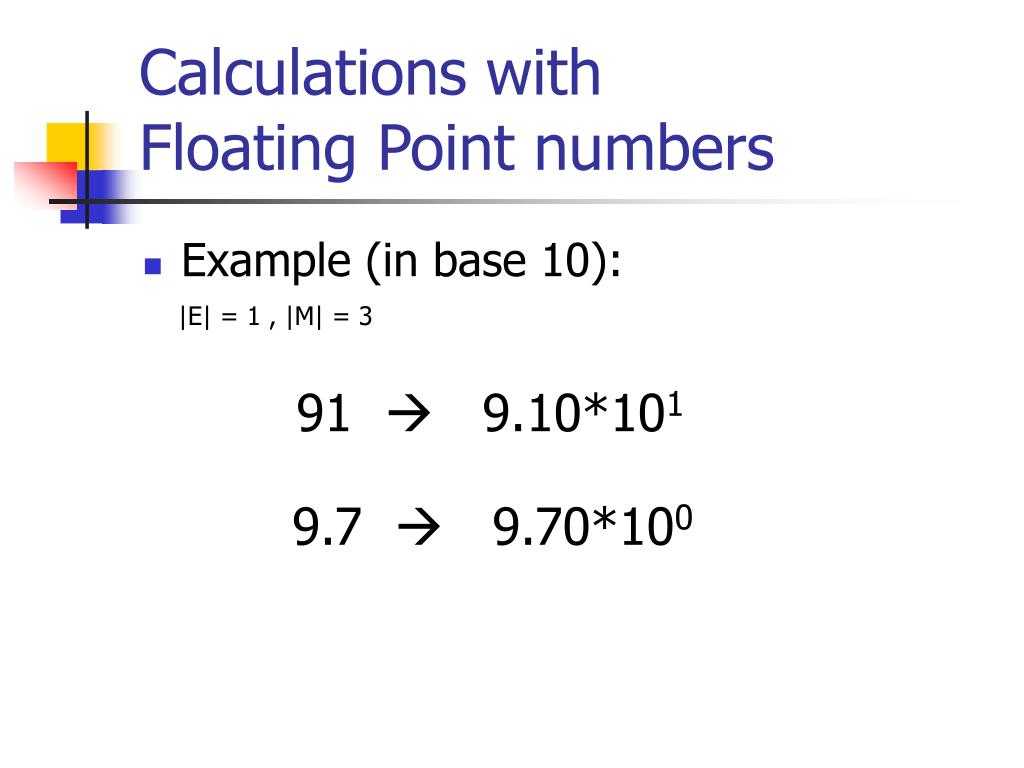

  23. Calculations with Floating Point numbers • Example (in base 10): |E| = 1 , |M| = 3 91  9.10*101 9.7  9.70*100

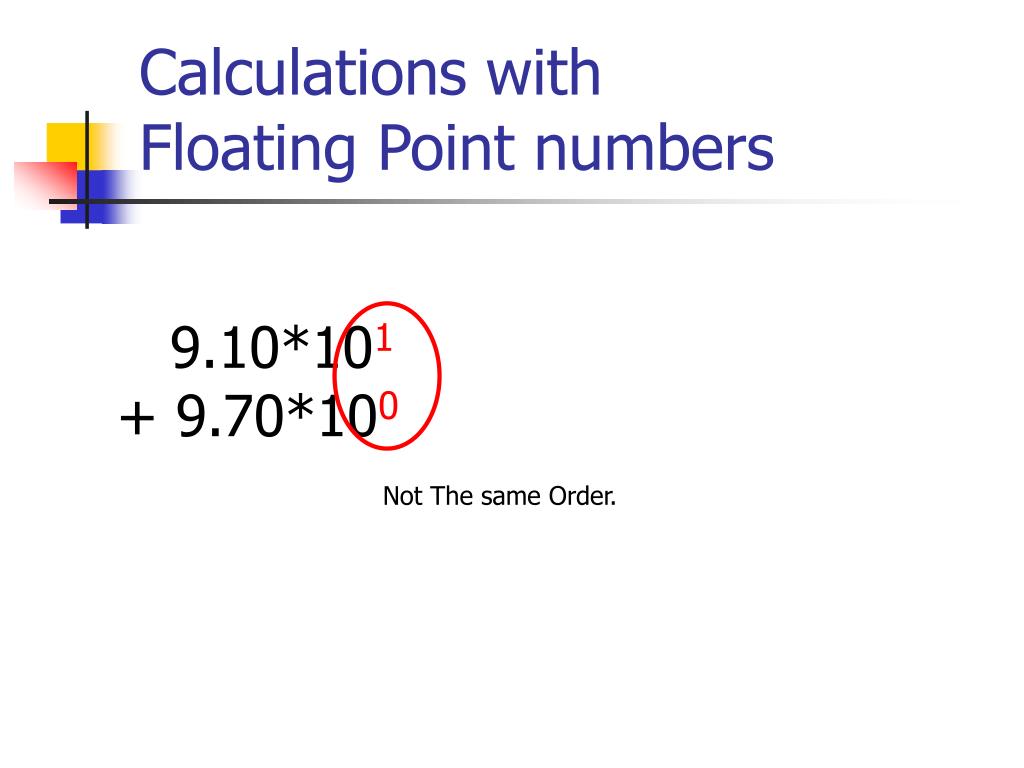

  24. Calculations with Floating Point numbers 9.10*101 + 9.70*100 Not The same Order.

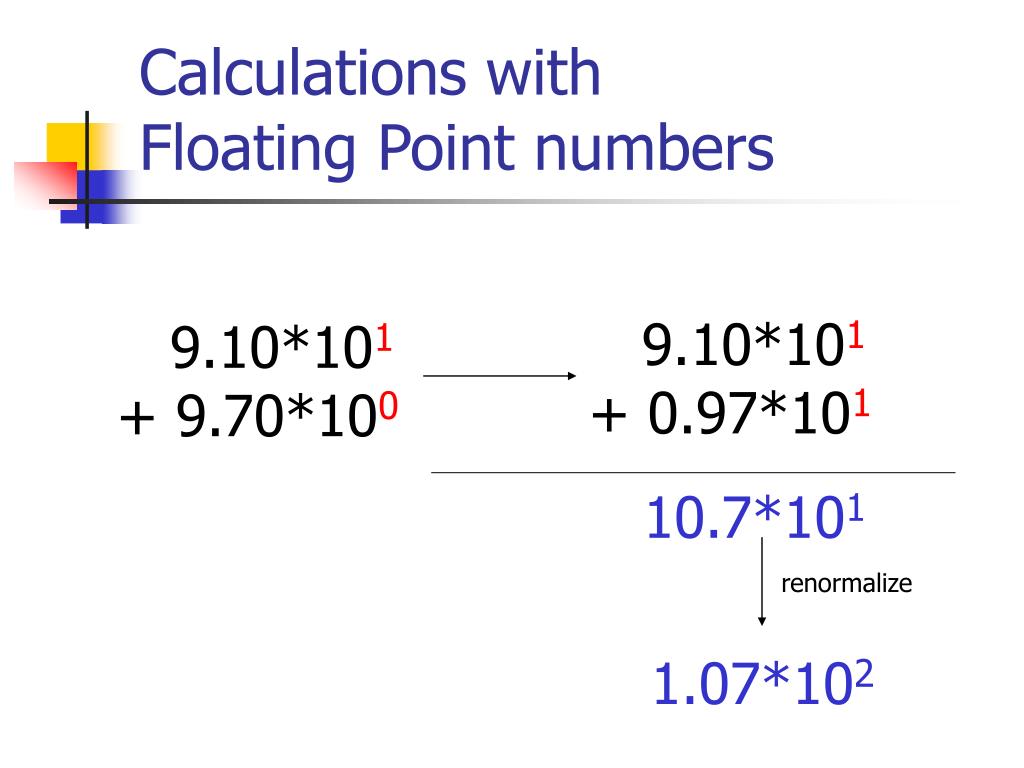

  25. Calculations with Floating Point numbers 9.10*101 + 0.97*101 9.10*101 + 9.70*100 10.7*101 renormalize 1.07*102

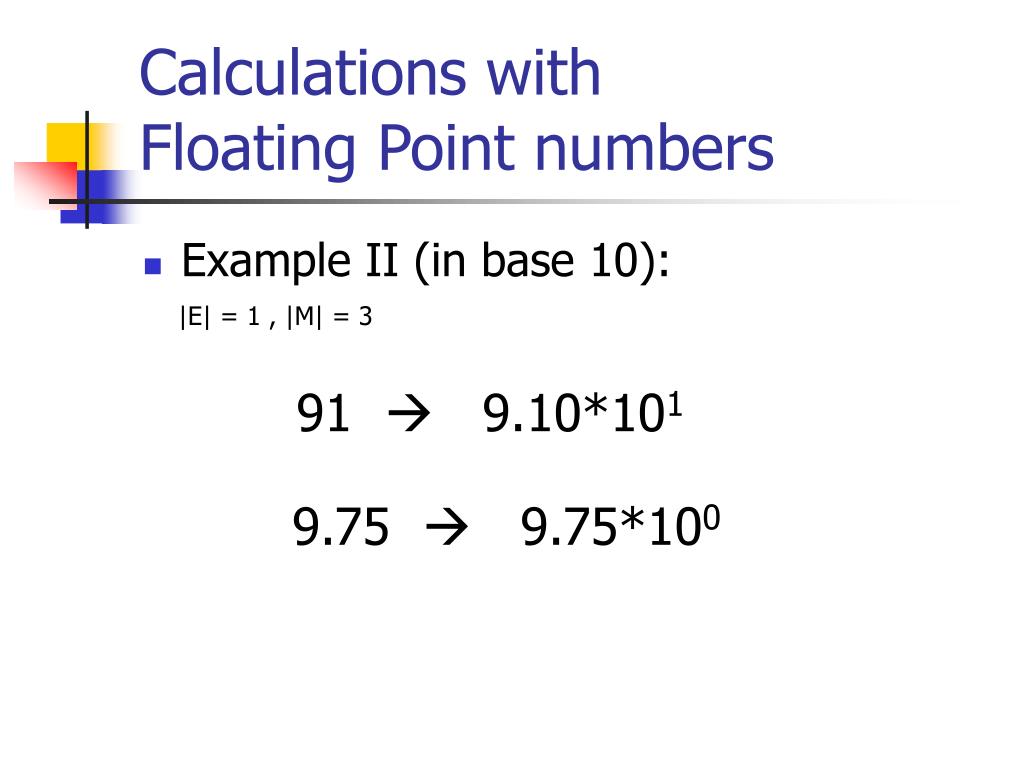

  26. Calculations with Floating Point numbers • Example II (in base 10): |E| = 1 , |M| = 3 91  9.10*101 9.75  9.75*100

  27. Calculations with Floating Point numbers 9.10*101 + 9.75*100 Not The same Order.

  28. Calculations with Floating Point numbers 9.10 *101 + 0.975*101 9.10*101 + 9.75*100 10.75*101 renormalize 5 (rounding error) 1.07*102

  29. Rounding Errors The Problem: Squeezing infinite many real numbers into a finite number of bits

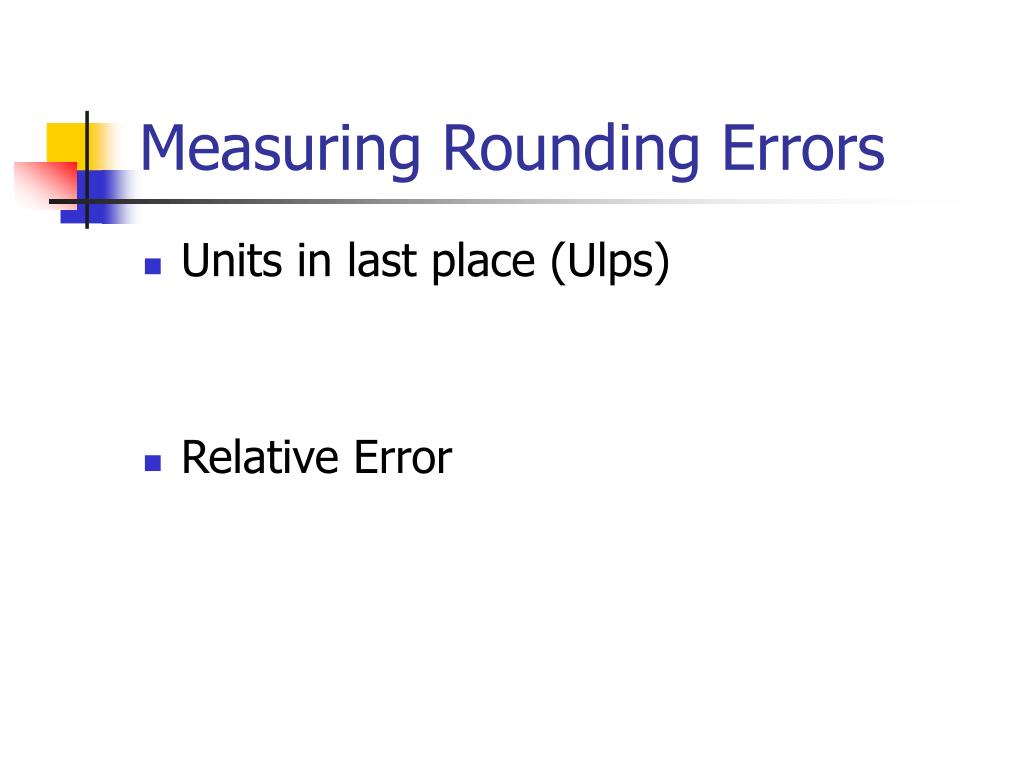

  30. Measuring Rounding Errors • Units in last place (Ulps) • Relative Error

  31. Measuring Rounding Errors – ULP p digits If d.dddd*re represent z error = |d.dddd – (z/re)|*rp-1

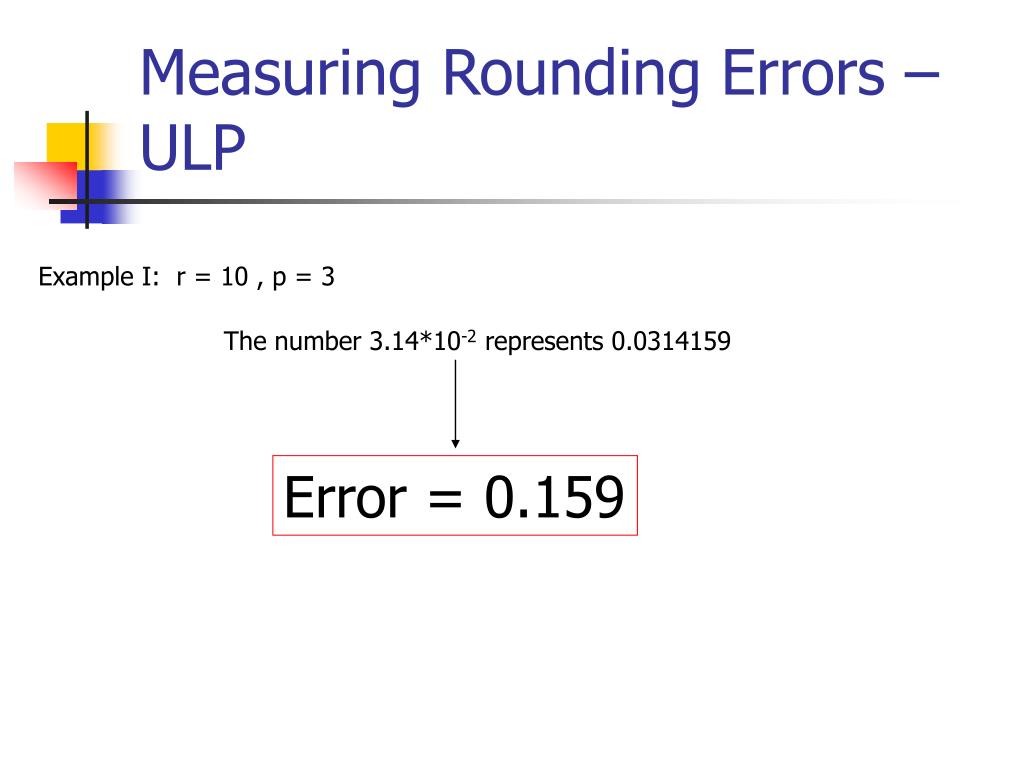

  32. Measuring Rounding Errors – ULP Example I: r = 10 , p = 3 The number 3.14*10-2 represents 0.0314159 Error = 0.159

  33. Measuring Rounding Errors – ULP • What is the maximum ULP if the rounding is toward the nearest number? 0.5 ULP

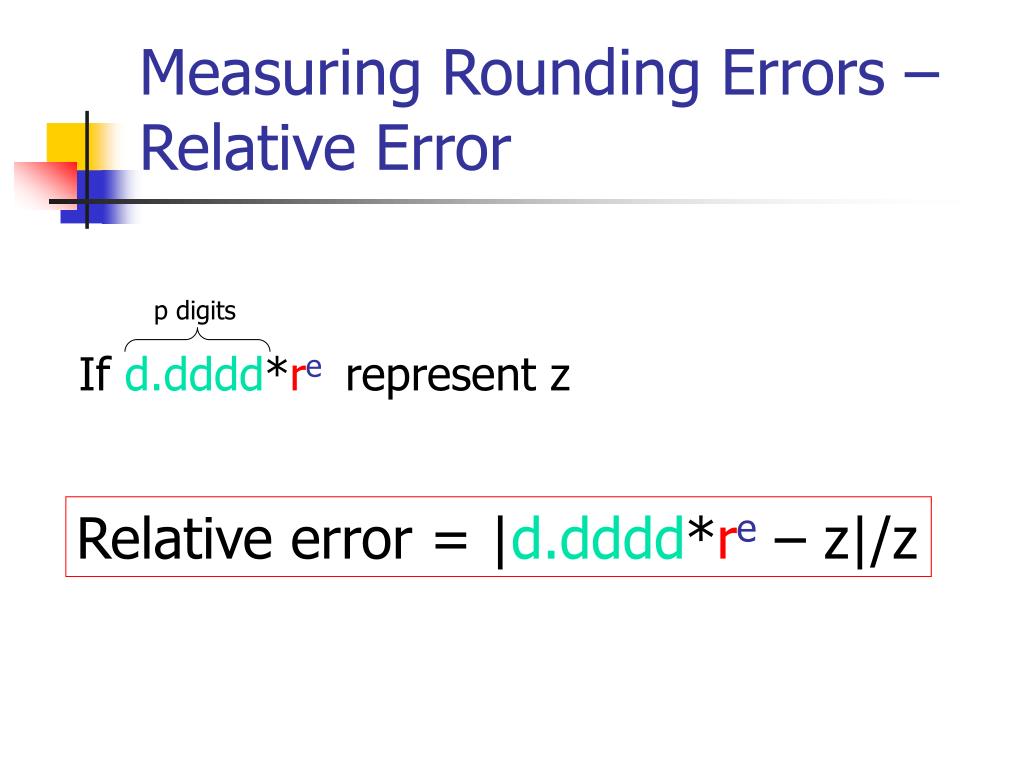

  34. Measuring Rounding Errors – Relative Error p digits If d.dddd*re represent z Relative error = |d.dddd*re – z|/z

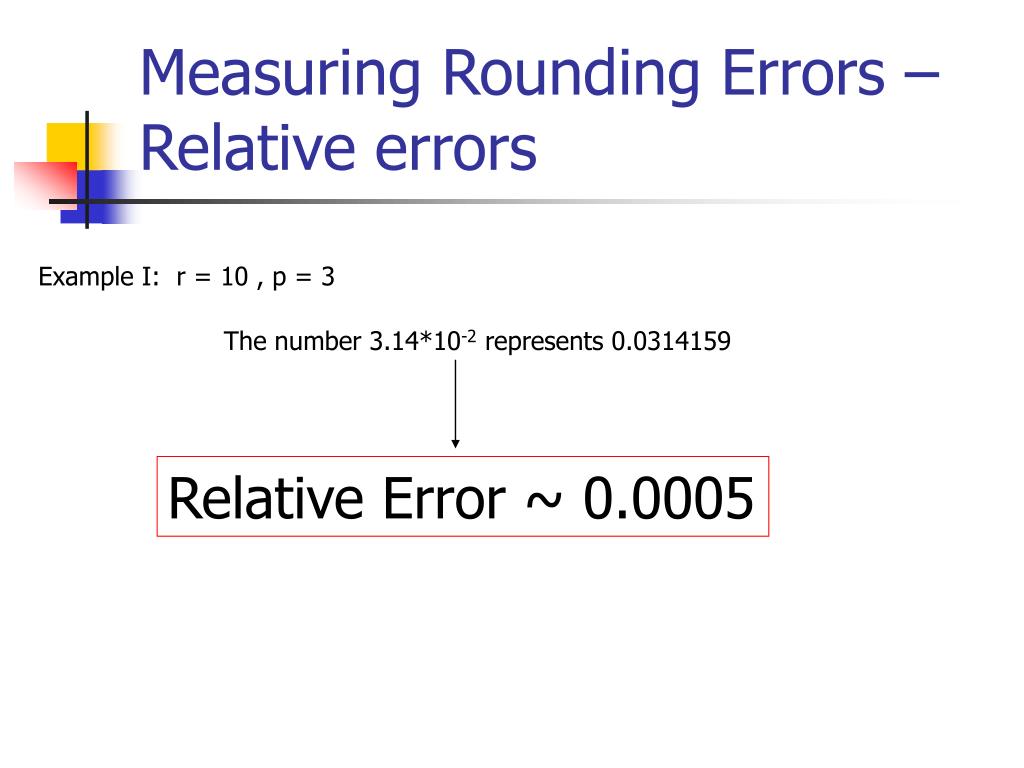

  35. Measuring Rounding Errors – Relative errors Example I: r = 10 , p = 3 The number 3.14*10-2 represents 0.0314159 Relative Error ~ 0.0005
