  1. Chapter 3: Lists, Stacks and Queues • Concept of Abstract Data Type (ADTS) • How to efficiently perform operations on list • Stack ADT and its applications • Queue ADT and its applications

  2. 3.1 Abstract Data Type • Modular program • Advantages: (1) debugging (2) team work (3) easy to modify

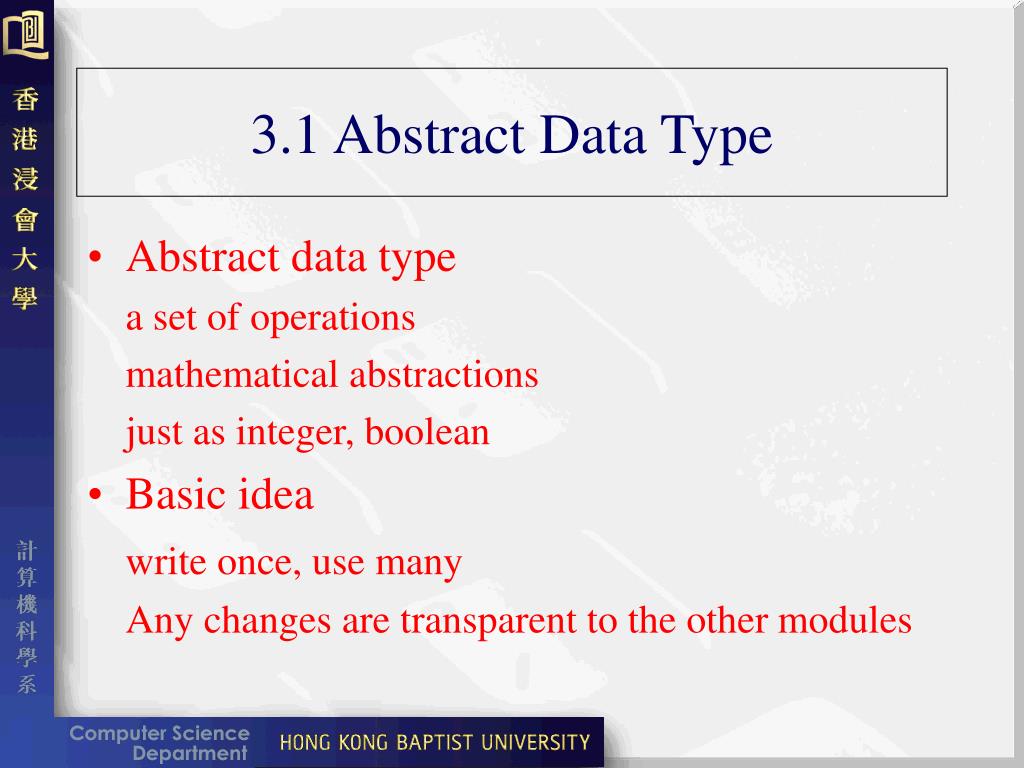

  3. 3.1 Abstract Data Type • Abstract data type a set of operations mathematical abstractions just as integer, boolean • Basic idea write once, use many Any changes are transparent to the other modules

  4. 3.2 List ADT • Review on linked list • Common errors memory allocation segmentation violation check for NULL pointer free memory

  5. 3.2 List ADT • Doubly linked list struct node { int Number; struct node *left; struct node *right; }

  6. 3.2.1 List ADT: Example1 • Single-variable Polynomials typedef struct { int CoeffArray[MaxDegree+1]; int HighPower } *polynomial

  7. 3.2.1 List ADT: Example 1 • Initialize a polynomial void ZeroPolynomial(Polynomial Poly) { int j; for (j = 0; j < MaxDegree; j++) poly->CoeffArray[j] = 0; Poly->HighPower = 0; }

  8. 3.2.1 List ADT: Example 1 • Add two polynomials void AddPolynomial(const Polynomial Poly1, const Polynomial Poly2, Polynomial PolySum) { int j; ZeroPolynomial(PolySum); PolySum->HighPower = Max(Poly1-> HighPower, Poly2 -> HighPower); for (j=PolySum->HighPower; j>=0; j--) PolySum->CoeffArray[j] = Poly1-> CoeffArray [j] + Poly2-> CoeffArray[j]; }

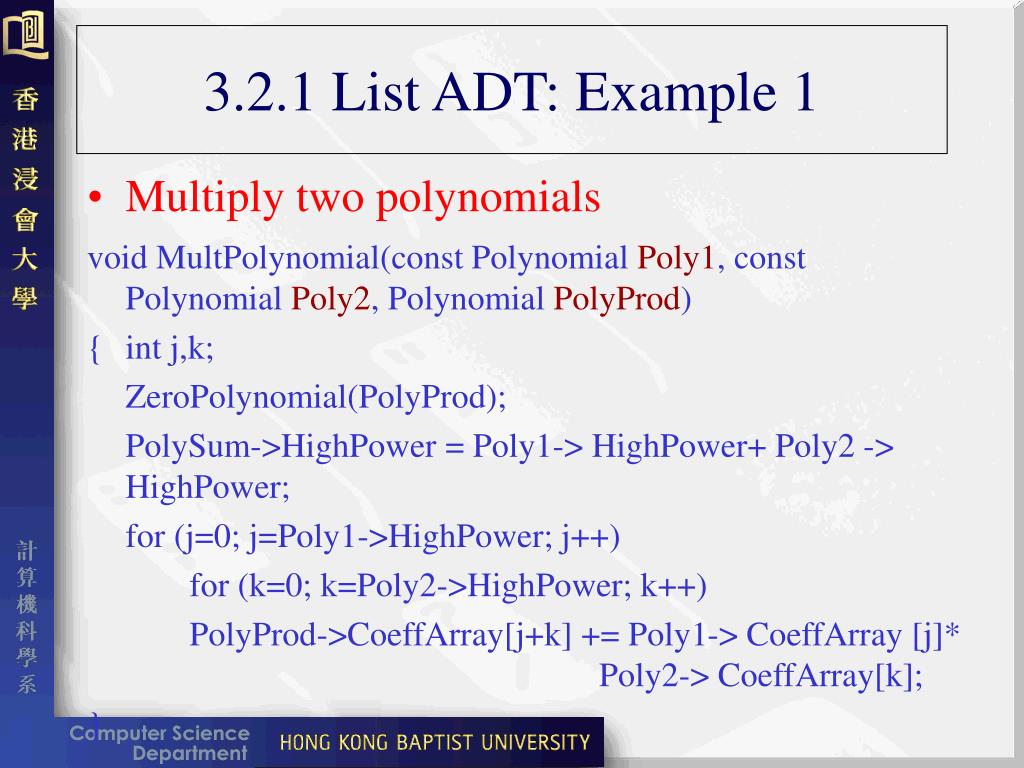

  9. 3.2.1 List ADT: Example 1 • Multiply two polynomials void MultPolynomial(const Polynomial Poly1, const Polynomial Poly2, Polynomial PolyProd) { int j,k; ZeroPolynomial(PolyProd); PolySum->HighPower = Poly1-> HighPower+ Poly2 -> HighPower; for (j=0; j=Poly1->HighPower; j++) for (k=0; k=Poly2->HighPower; k++) PolyProd->CoeffArray[j+k] += Poly1-> CoeffArray [j]* Poly2-> CoeffArray[k]; }

  10. 3.2.1 List ADT: Example 1 • Multiply two polynomials: limitation • Consider the following situation P1(X) = 10 X1000 + 5X14 + 1 P2(X) = 3X1990 - 2X1492 +11X +5 • Most of the time is spent multiplying zeros

  11. 3.2.1 List ADT: Example 1 • Multiply two polynomials: better structure struct node { int Coefficient; int Exponent; struct node *Next; }

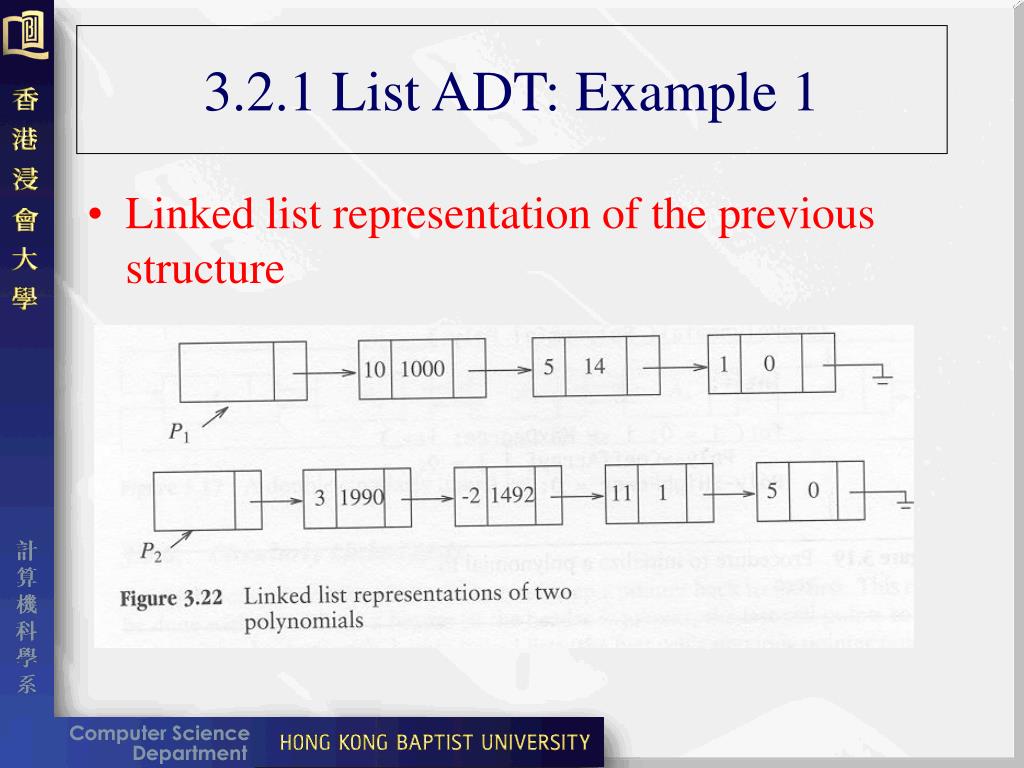

  12. 3.2.1 List ADT: Example 1 • Linked list representation of the previous structure

  13. 3.2.2 List ADT: Example 2 • Multilists • A university with 40,000 students and 2,500 subjects needs to generate 2 reports 1. Lists of registration for each class 2. Classes that each student registered. Implementation: construct 2D array (40Kx2K5) = 100M entries if each student takes 3 subjects => only 120K entries (~0.1% of 100M) => waste of resources.

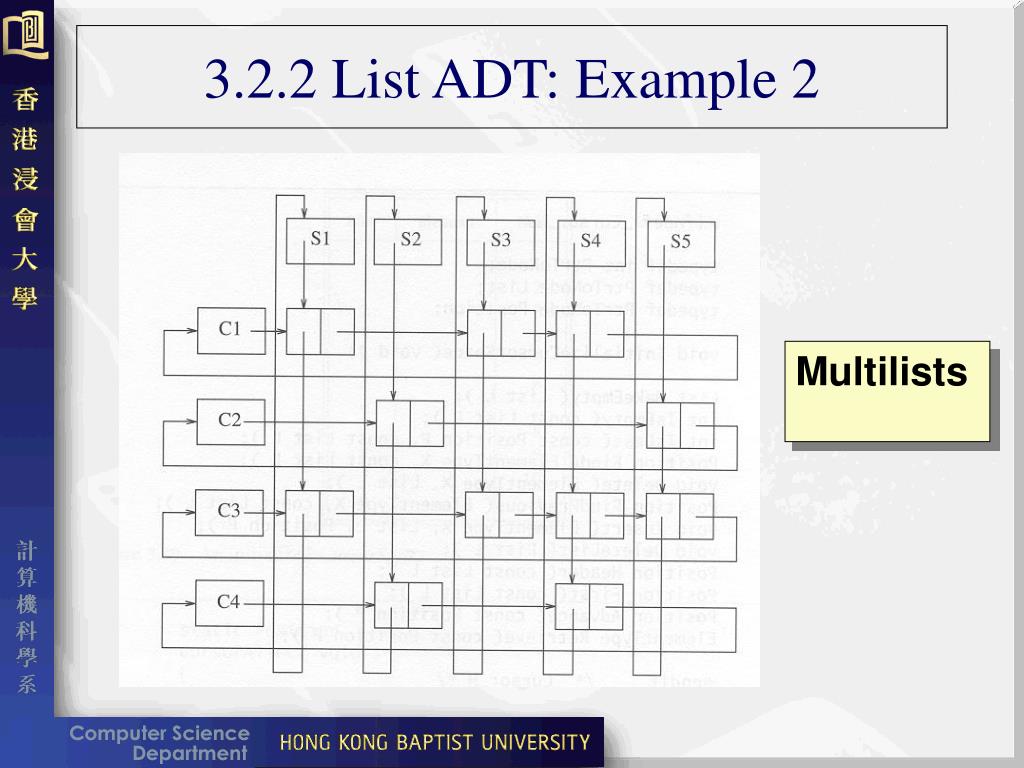

  14. 3.2.2 List ADT: Example 2 Multilists

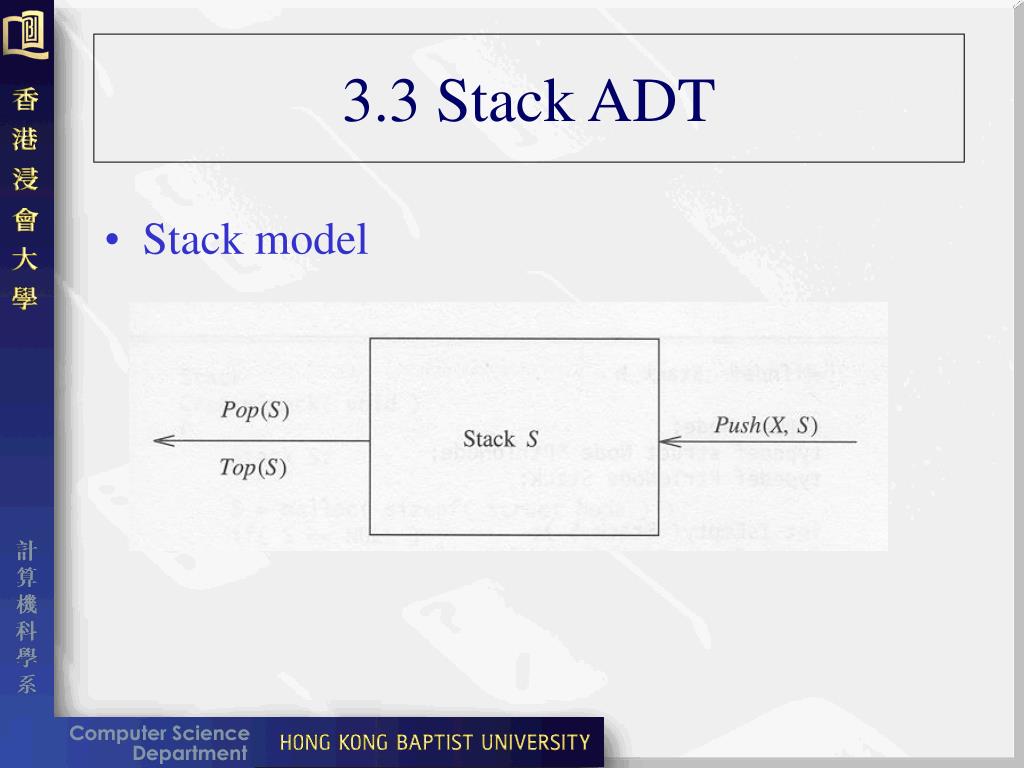

  15. 3.3 Stack ADT • Stack model

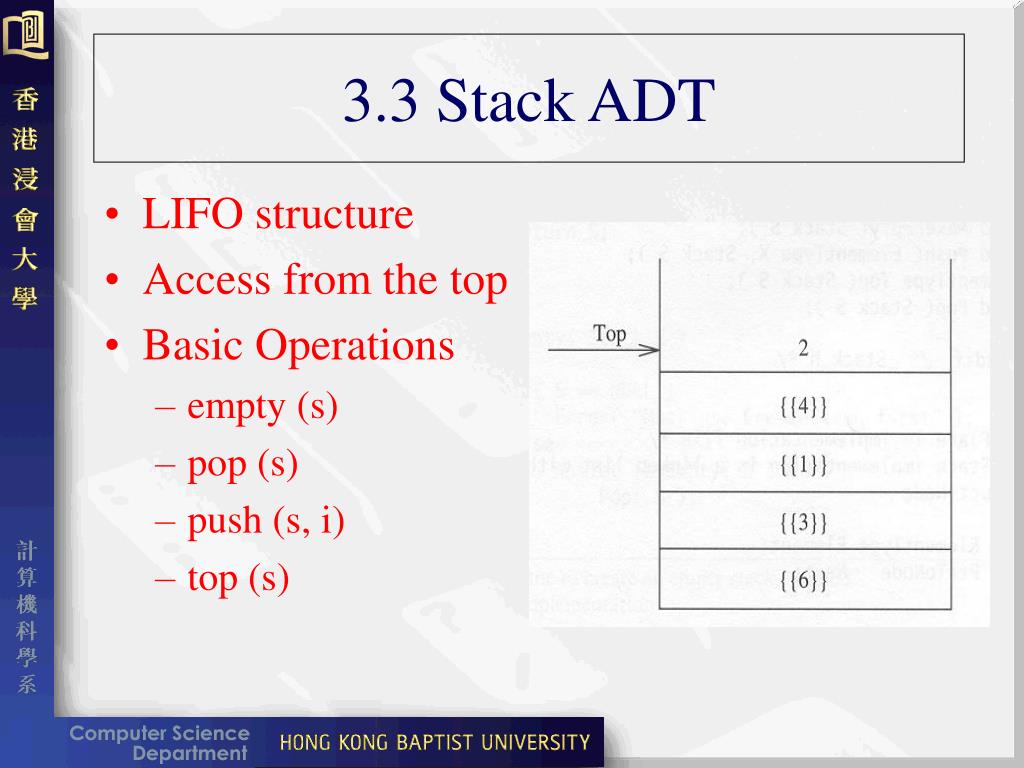

  16. 3.3 Stack ADT • LIFO structure • Access from the top • Basic Operations • empty (s) • pop (s) • push (s, i) • top (s)

  17. 3.3.1Implementation of stack using Linked List struct Node; typedef struct Node *PtrToNode; typedef PtrToNode Stack; struct Node { ElementType Element; PtrToNode Next; }

  18. 3.3.1Implementation of stack using Linked List int IsEmpty(Stack S); Stack CreatStack(void); void DisposeStack(Stack S); void MakeEmpty(Stack S); void Push(ElementType X, Stack S); void Pop(Stack S); ElementType Top(Stack S);

  19. 3.3.1Implementation of stack using Linked List • Test for an empty stack int Isempty(Stack S) { return (SNext == NULL) }

  20. 3.3.1Implementation of stack using Linked List void MakeEmpty(Stack S) { if (S==NULL) printf(“Error message!”); else while (!IsEmpty(S)) pop(S) } • Create an empty stack stack CreatStack(void) { Stack S; S=malloc(sizeof(struct Node)); if (S==NULL) FatalError(“Out of space!!!”); MakeEmpty(S) return(S); }

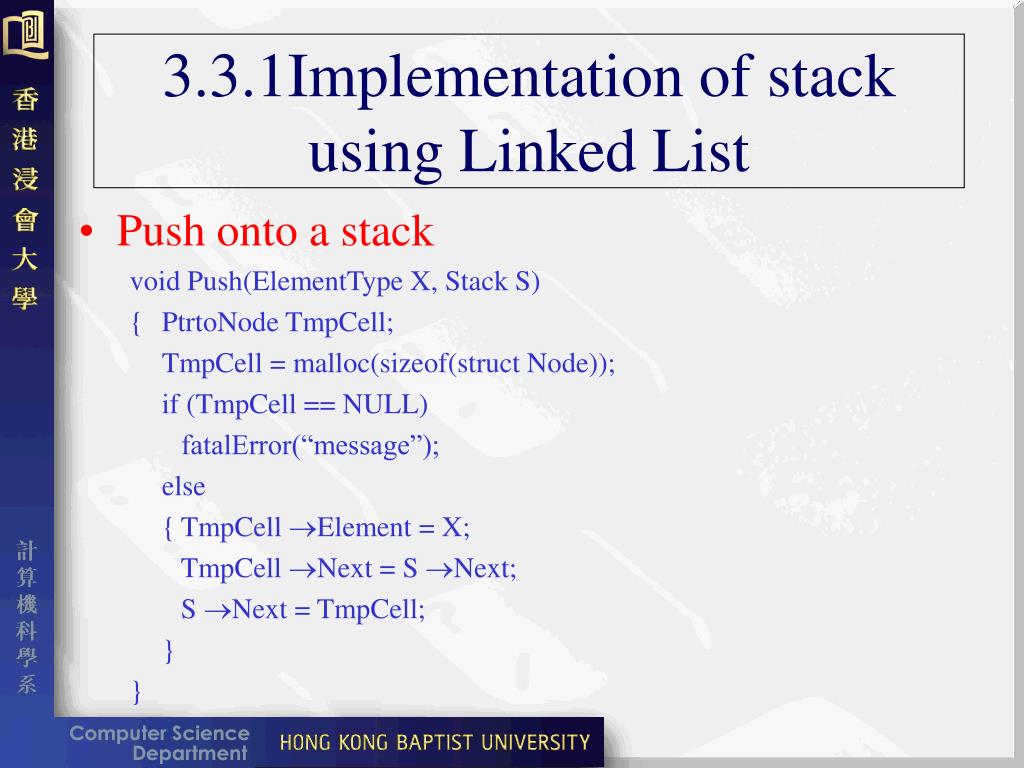

  21. 3.3.1Implementation of stack using Linked List • Push onto a stack void Push(ElementType X, Stack S) { PtrtoNode TmpCell; TmpCell = malloc(sizeof(struct Node)); if (TmpCell == NULL) fatalError(“message”); else { TmpCell Element = X; TmpCell Next = S Next; S Next = TmpCell; } }

  22. 3.3.1Implementation of stack using Linked List • Return top element in a stack ElementType Top(Stack S) { if (!IsEmpty(S)) return (S Next Element); Error(“Empty stack”); return 0; }

  23. 3.3.1Implementation of stack using Linked List • Pop from a stack void Pop(Stack S) { PtrToNode FirstCell; if (ISEmpty(S); Error (“Empty stack”); else { FirstCell = S Next; S Next =S Next Next; free(FirstCell);} }

  24. 3.3.2 Implementation of stack using Array Struct StackRecord { int Capacity; int TopOfStack; ElementType *Array; } #define STACKSIZE 100 Struct StackRecord { int top; ElementType Array[STACKSIZE]; }

  25. 3.3.2 Implementation of stack using Array • Test for empty stack empty (stack *ps) { return (ps  top == -1) }

  26. 3.3.2 Implementation using Array • Pop top element from stack int pop (stack *ps) { int x if (empty (ps)) printf (“%s\n”, “stack underflow!”); else { x = ps  array [ps  top]; (ps  top)--; return (x); } }

  27. 3.3.2 Implementation using Array · Push an element onto the stack push (stack *ps, int x) { if (ps  top == STACKSIZE – 1) printf (“%s\n”, “stack overflow!”); else { (ps  top)++; ps  items [ps  top] = x; } }

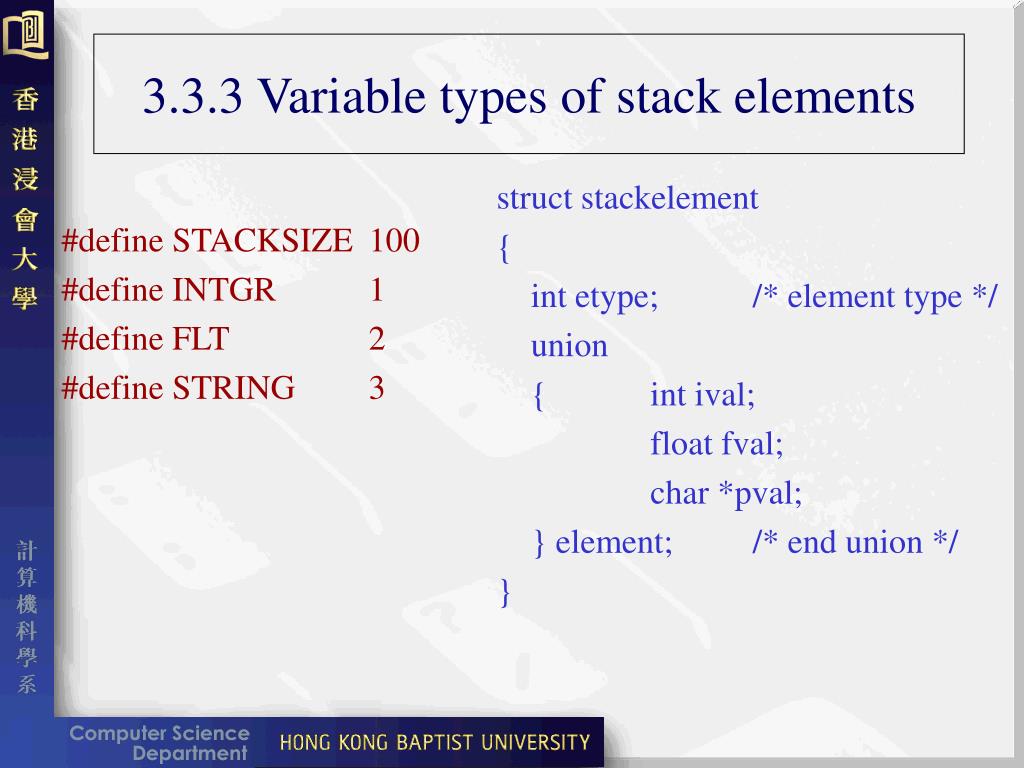

  28. 3.3.3 Variable types of stack elements struct stackelement { int etype; /* element type */ union { int ival; float fval; char *pval; } element; /* end union */ } #define STACKSIZE 100 #define INTGR 1 #define FLT 2 #define STRING 3

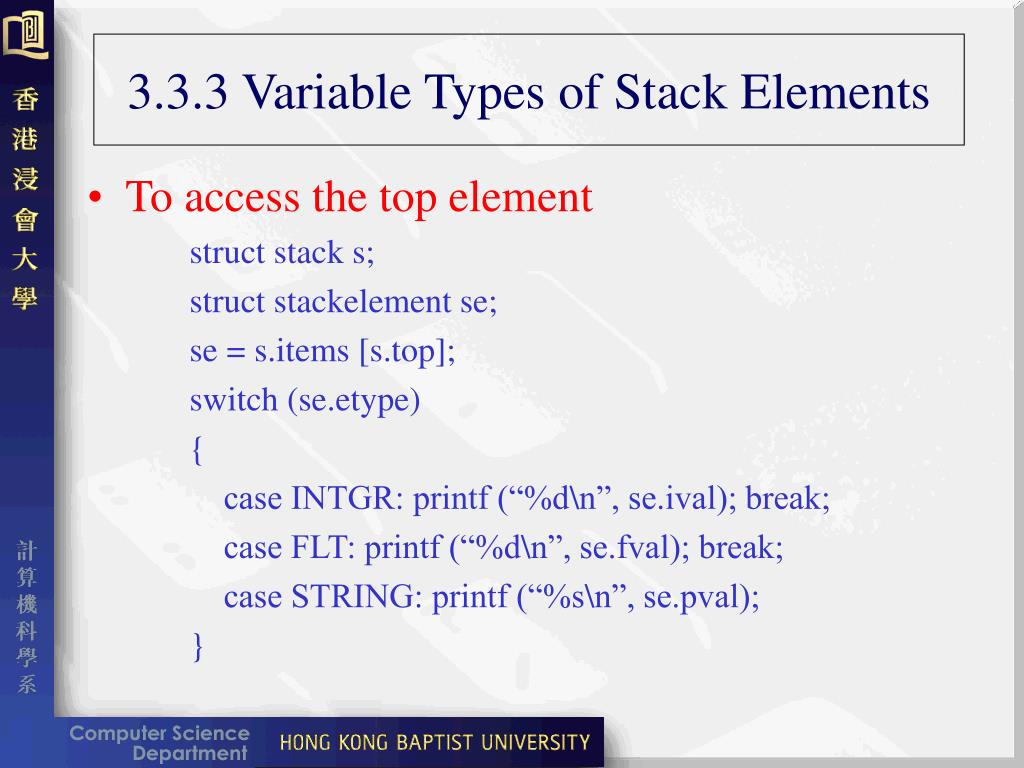

  29. 3.3.3 Variable Types of Stack Elements • To access the top element struct stack s; struct stackelement se; se = s.items [s.top]; switch (se.etype) { case INTGR: printf (“%d\n”, se.ival); break; case FLT: printf (“%d\n”, se.fval); break; case STRING: printf (“%s\n”, se.pval); }

  30. 3.3.4 Applications • Balancing Symbols • Make an empty stack. Read characters until end of file. • If the character is an opening symbol, push it onto stack. • If it is a closing symbol, then if the stack is empty, report an error. Otherwise, pop the stack. • If the symbol popped is not the corresponding opening symbol, then report an error. • At the end of file, if the stack is not empty, report an error.

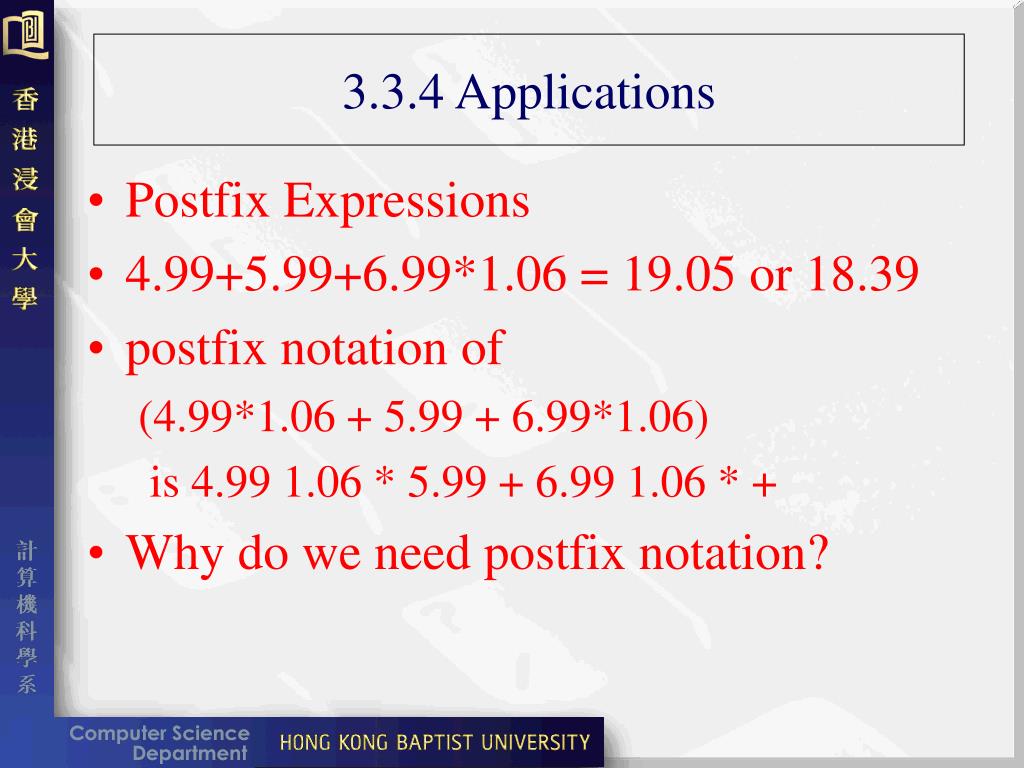

  31. 3.3.4 Applications • Postfix Expressions • 4.99+5.99+6.99*1.06 = 19.05 or 18.39 • postfix notation of (4.99*1.06 + 5.99 + 6.99*1.06) is 4.99 1.06 * 5.99 + 6.99 1.06 * + • Why do we need postfix notation?

  32. 3.3.4 Application: Postfix • How does postfix work? • e.g. 6 5 2 3 + 8 * + 3 + *

  33. 3.3.4 Application : Postfix

  34. 3.3.4 Application : Postfix

  35. Converting infix expressions into postfix Infix A * B + C * D Postfix A B * C D * + 3.3.4 Applications

  36. Stack -> Input Postfix String A A * * A * B A B + + A B * + C A B * C + * * A B * C + * D A B * C D pop stack A B * C D * + 3.3.4 Application: infix  postfix

  37. opstk = the empty stack; while (not end of input) { symb = next input character; if (symb is an operand) add symb in the postfix string; else { while (!empty (opstk) && prcd (stack (opstk), symb)) { topsymb = pop (opstk); add topsymb to postfix string; } push (opstk, symb); } } 3.3.4 Application: infix  postfix

  38. /* output any remaining operators */ while (!empty (opstk)) { topsymb = pop (opstk); add topsymb to the postfix string; } 3.3.4 Application: infix  postfix

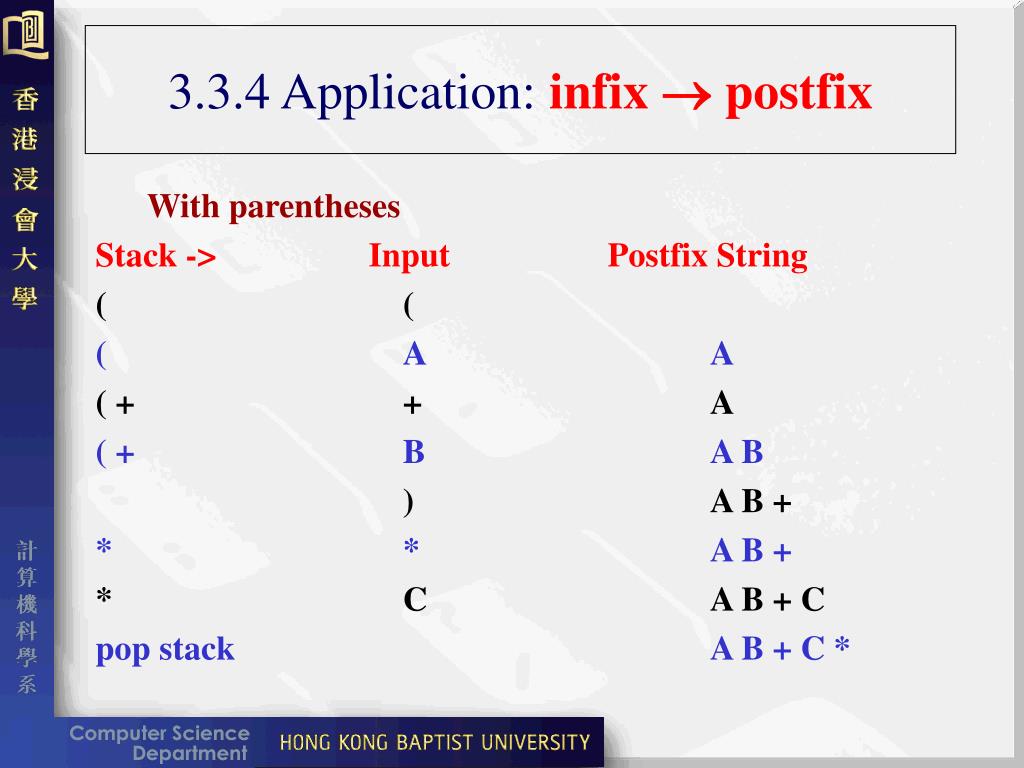

  39. With parentheses Stack -> Input Postfix String ( ( ( A A ( + + A ( + B A B ) A B + * * A B + * C A B + C pop stack A B + C * 3.3.4 Application: infix  postfix

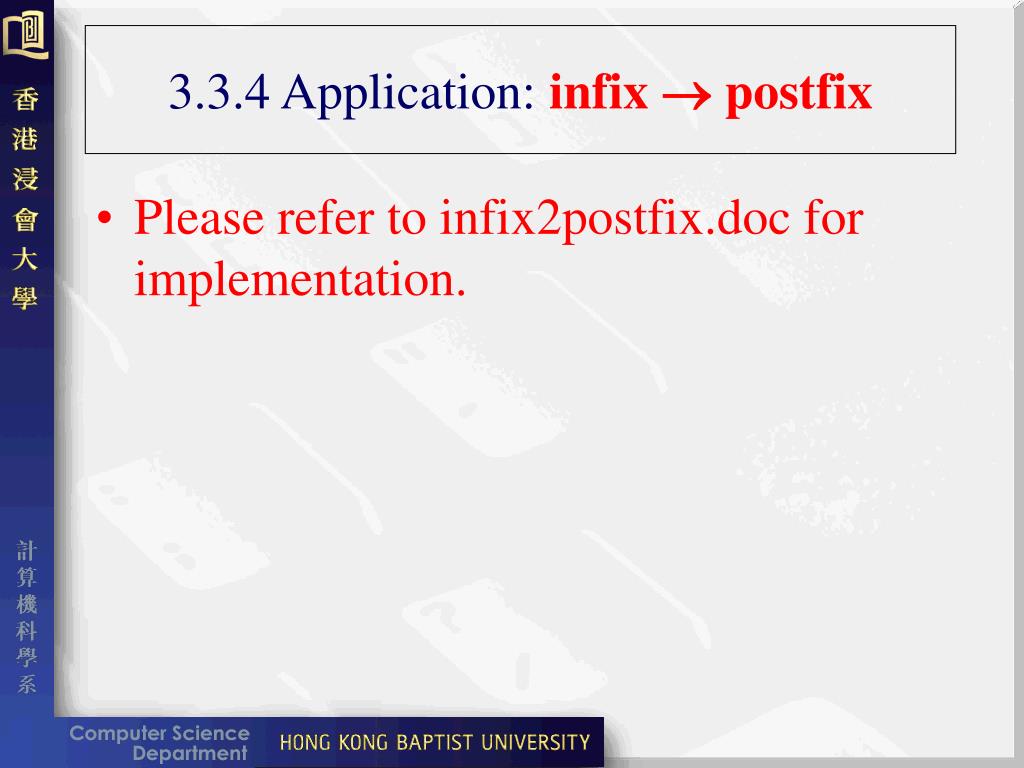

  40. Please refer to infix2postfix.doc for implementation. 3.3.4 Application: infix  postfix

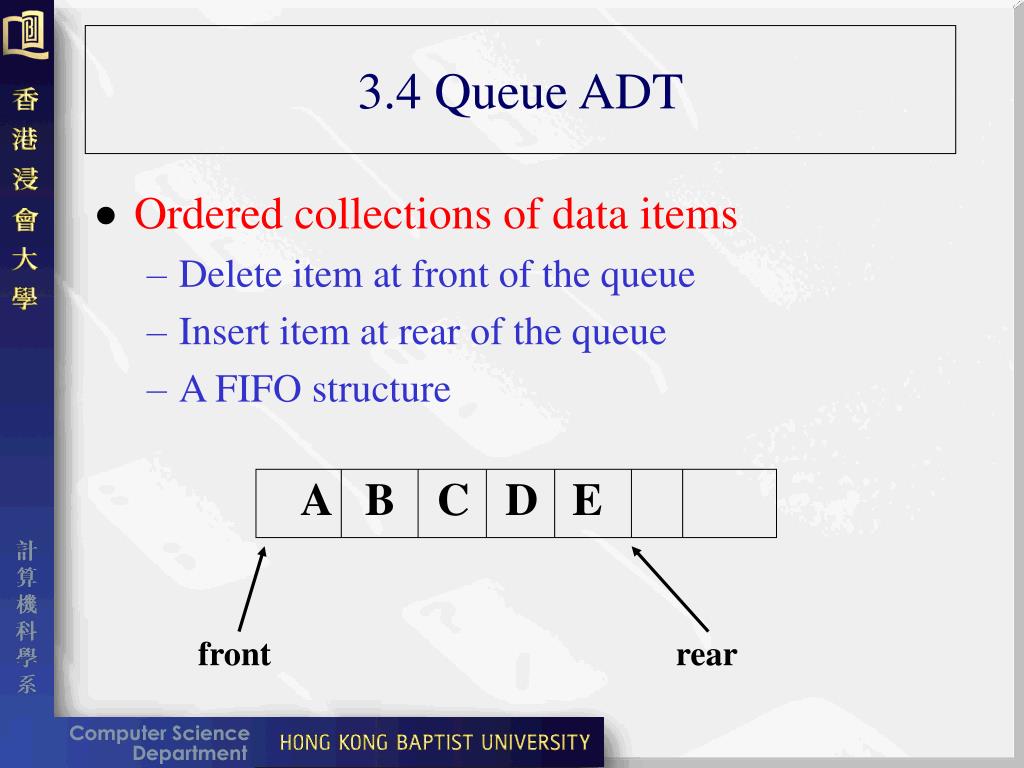

  41. ·Ordered collections of data items Delete item at front of the queue Insert item at rear of the queue A FIFO structure A B C D E front rear 3.4 Queue ADT

  42. Basic operations (1) insert (q, x) (2) remove (q, x) (3) empty (q) 3.4 Queue ADT

  43. Array implementation #define MAXQUEUE 100 struct queue { int items [MAXQUEUE]; int front, rear, length; } q; 3.4 Queue ADT

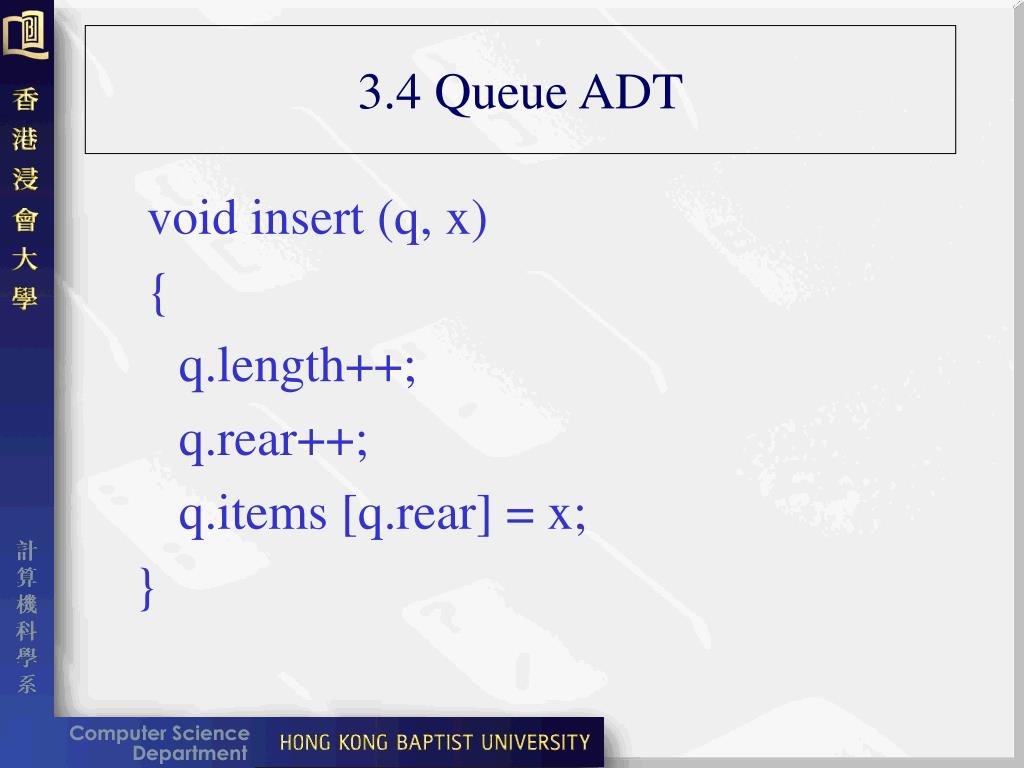

  44. void insert (q, x) { q.length++; q.rear++; q.items [q.rear] = x; } 3.4 Queue ADT

  45. void remove (q, x) { x = q.items [q.front]; q.front++; q.length--; } 3.4 Queue ADT

  46. Problem: May run out of rooms (1) Keep front always at 0 by shifting the contents up the queue, but the computer solution is inefficient (2) Use a circular queue (wrap around & use a length variable to keep track of the queue length) 3.4 Queue ADT

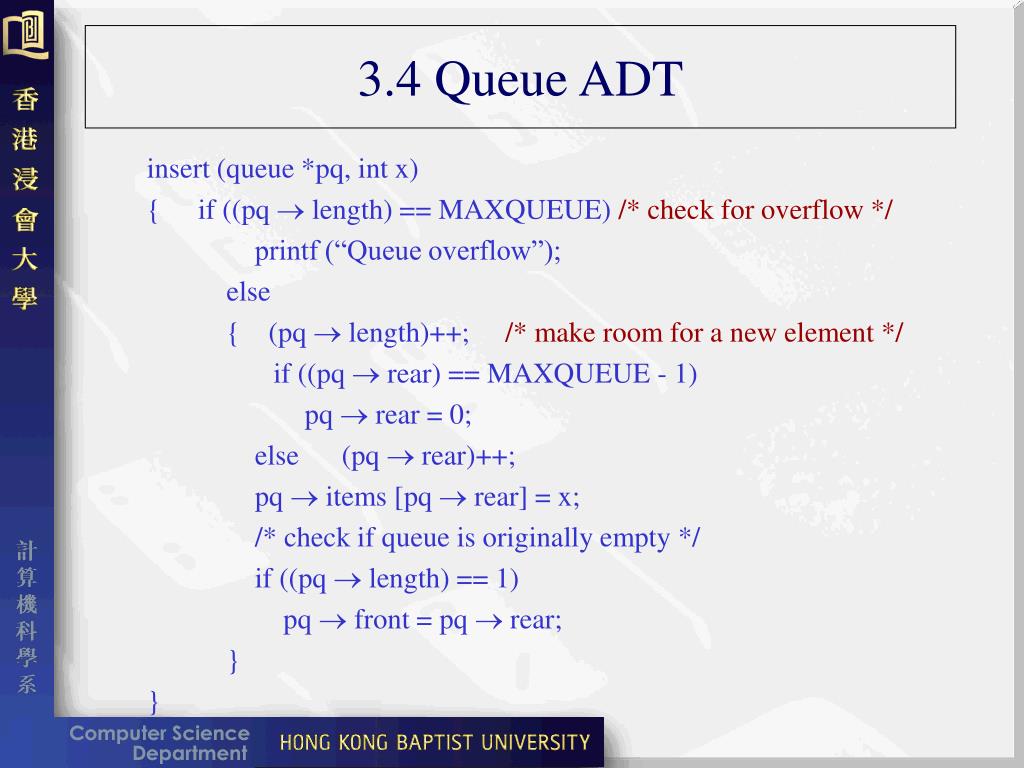

  47. insert (queue *pq, int x) { if ((pq  length) == MAXQUEUE) /* check for overflow */ printf (“Queue overflow”); else { (pq  length)++; /* make room for a new element */ if ((pq  rear) == MAXQUEUE - 1) pq  rear = 0; else (pq  rear)++; pq  items [pq  rear] = x; /* check if queue is originally empty */ if ((pq  length) == 1) pq  front = pq  rear; } } 3.4 Queue ADT

  48. void empty (queue *pq) { if ((pq  length) == 0) return (TRUE); else return (FALSE); } 3.4 Queue ADT

  49. void remove (queue *pq) { if (empty (pq)) printf (“Queue underflow”); else if (pq  front == MAXQUEUE - 1) { pq  front = 0; return (pq  items [MAXQUEUE - 1]); } else { (pq  front)++; return (pq  items [(pq  front) - 1]); } } 3.4 Queue ADT

  50. Print jobs Computer networks OS Real-life waiting lines 3.4 Applications of Queues
