  1. CSCE 715:Network Systems Security Chin-Tser Huang huangct@cse.sc.edu University of South Carolina

  2. Authentication Applications • Developed to support application-level authentication and digital signatures • A famous example is Kerberos – a password authentication service

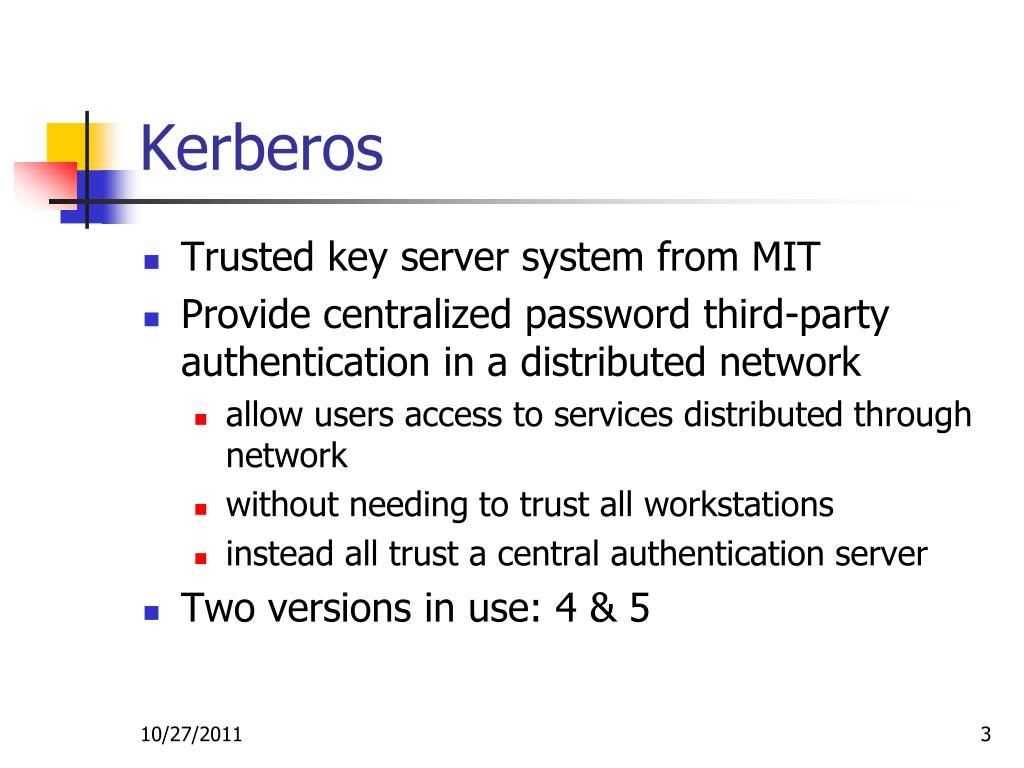

  3. Kerberos • Trusted key server system from MIT • Provide centralized password third-party authentication in a distributed network • allow users access to services distributed through network • without needing to trust all workstations • instead all trust a central authentication server • Two versions in use: 4 & 5

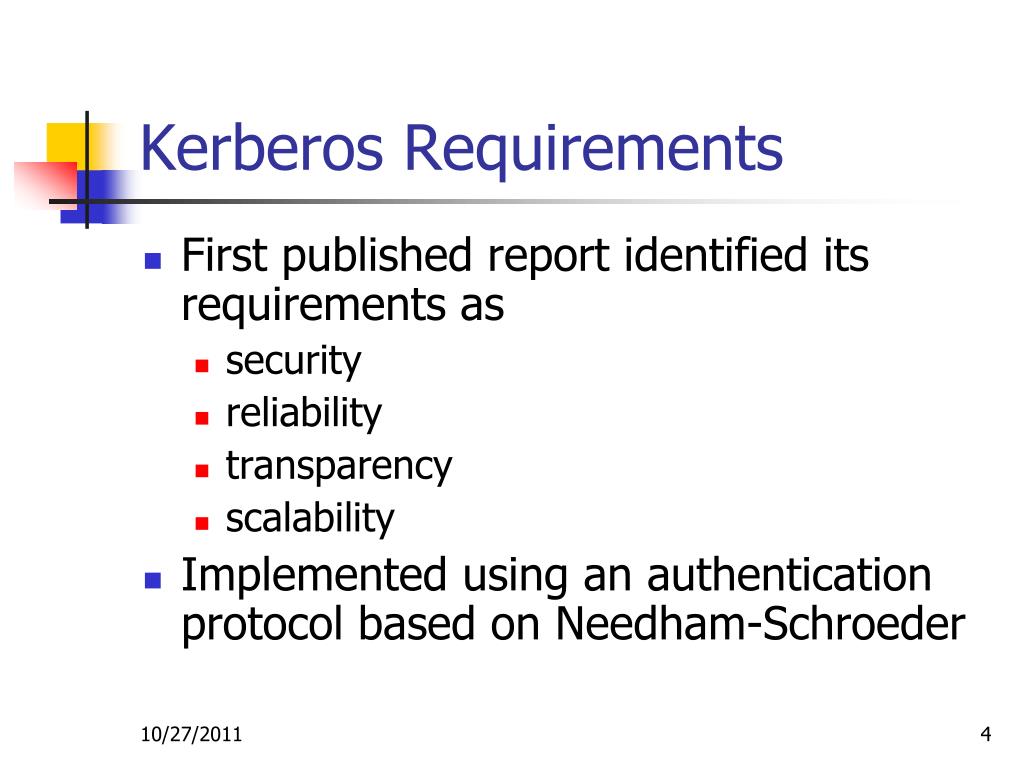

  4. Kerberos Requirements • First published report identified its requirements as • security • reliability • transparency • scalability • Implemented using an authentication protocol based on Needham-Schroeder

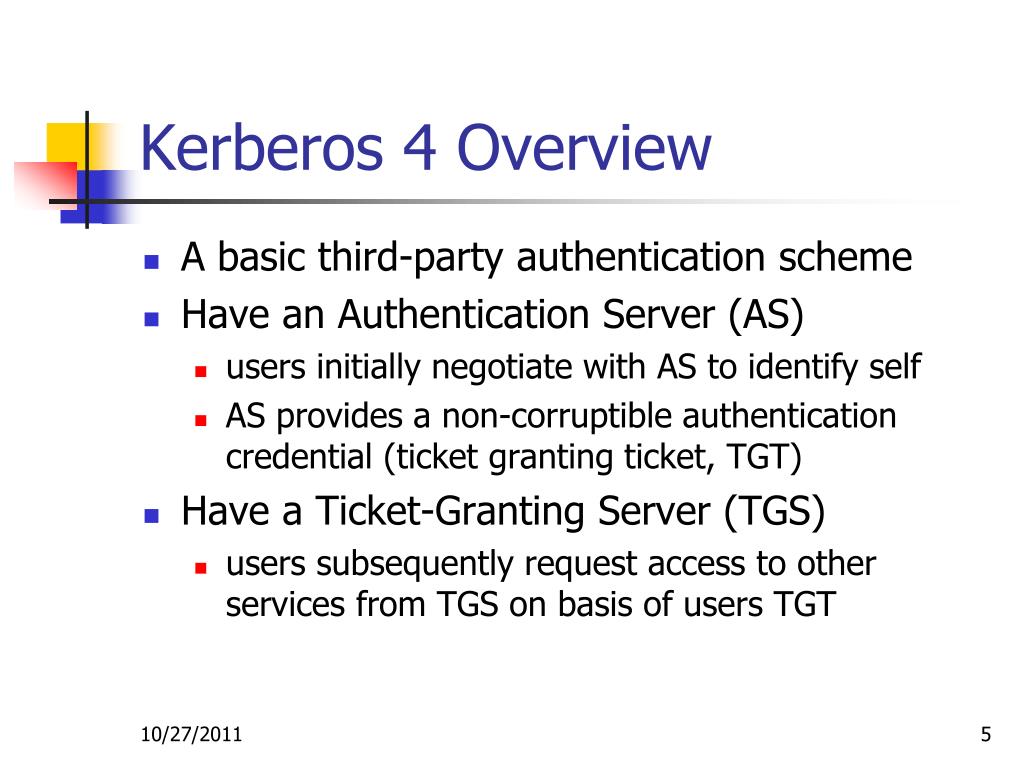

  5. Kerberos 4 Overview • A basic third-party authentication scheme • Have an Authentication Server (AS) • users initially negotiate with AS to identify self • AS provides a non-corruptible authentication credential (ticket granting ticket, TGT) • Have a Ticket-Granting Server (TGS) • users subsequently request access to other services from TGS on basis of users TGT

  6. First Design (1) C  AS: IDc||Pc||IDv (2) AS  C: Ticket (3) C  V: IDc||Ticket Ticket = EKv [IDc||ADc||IDv]

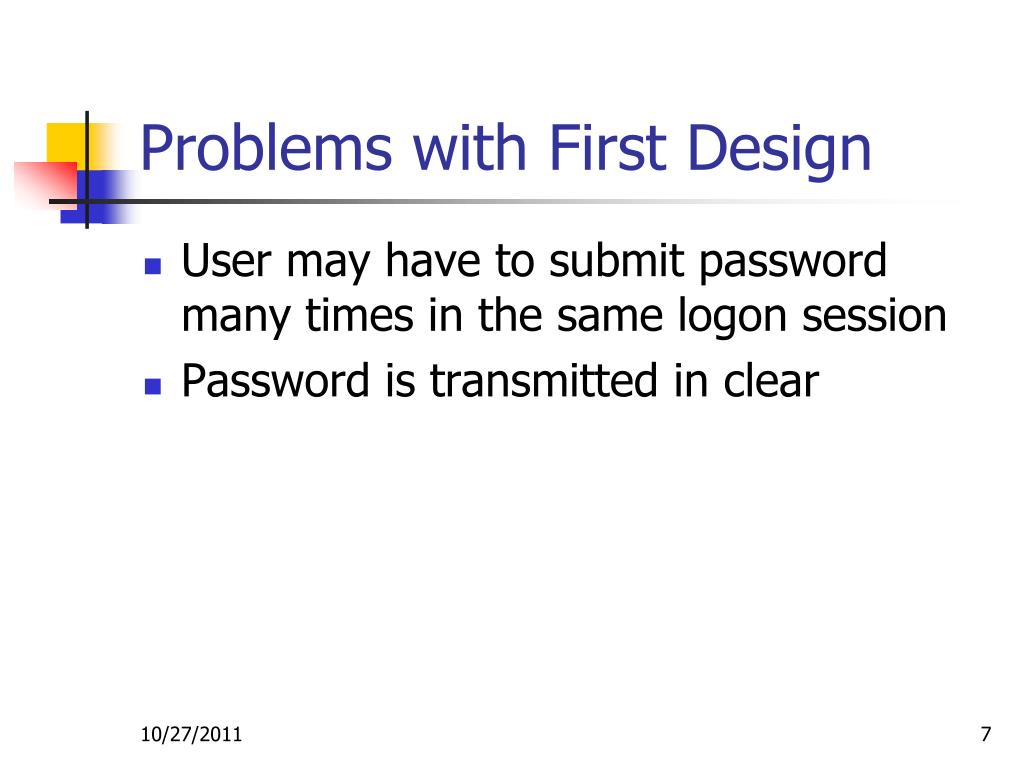

  7. Problems with First Design • User may have to submit password many times in the same logon session • Password is transmitted in clear

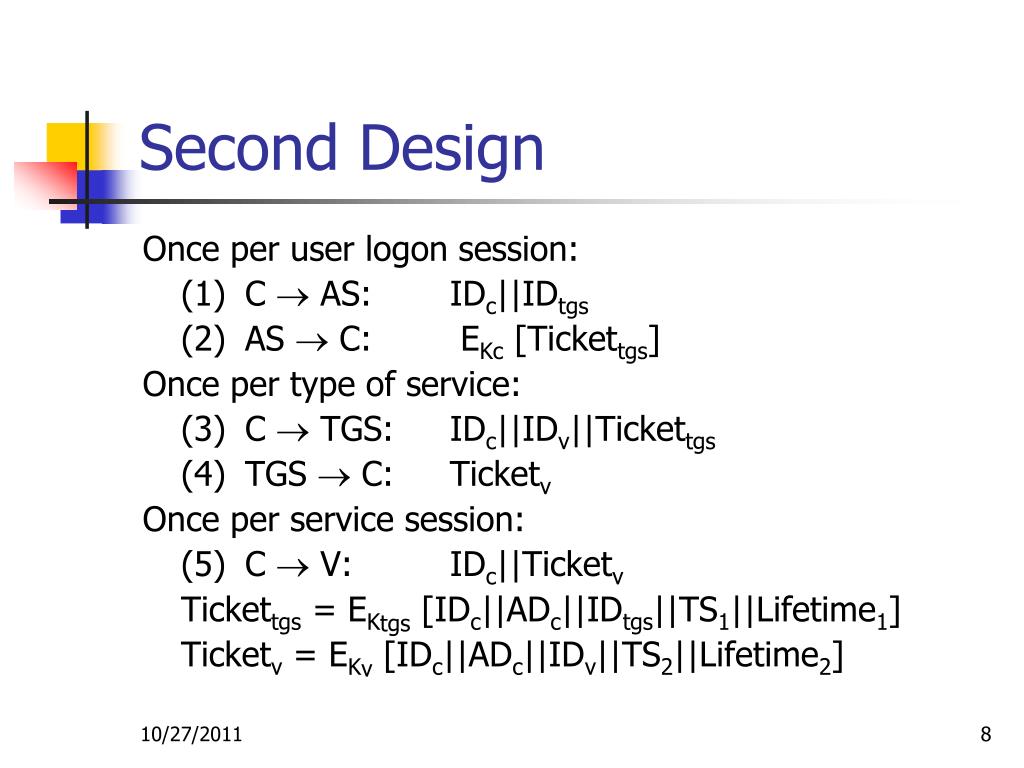

  8. Second Design Once per user logon session: (1) C  AS: IDc||IDtgs (2) AS  C: EKc [Tickettgs] Once per type of service: (3) C  TGS: IDc||IDv||Tickettgs (4) TGS  C: Ticketv Once per service session: (5) C  V: IDc||Ticketv Tickettgs = EKtgs [IDc||ADc||IDtgs||TS1||Lifetime1] Ticketv = EKv [IDc||ADc||IDv||TS2||Lifetime2]

  9. Problems with Second Design • Requirement for server (TGS or application server) to verify that the person using a ticket is the same person to whom ticket was issued • Requirement for server to authenticate themselves to users

  10. Kerberos 4 Message Exchange

  11. Kerberos 4 Message Exchange Kc,tgs: a session key created by AS to permit secure exchange between client and TGS without requiring them to share a permanent key

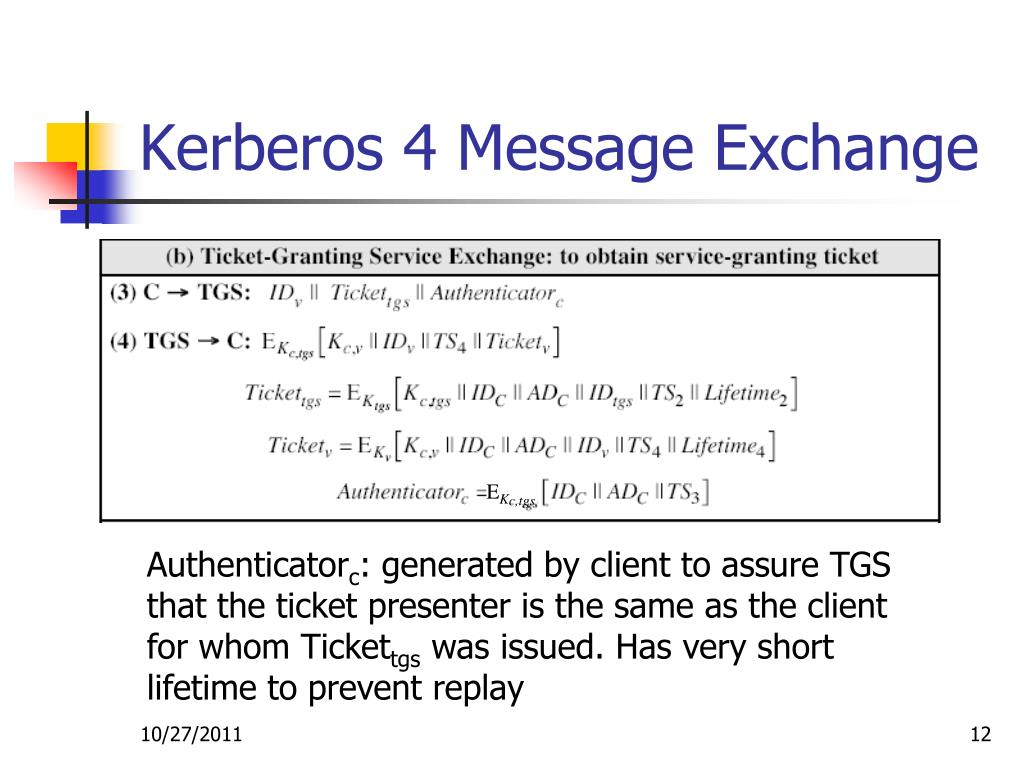

  12. Kerberos 4 Message Exchange EKc,tgs Authenticatorc: generated by client to assure TGS that the ticket presenter is the same as the client for whom Tickettgs was issued. Has very short lifetime to prevent replay

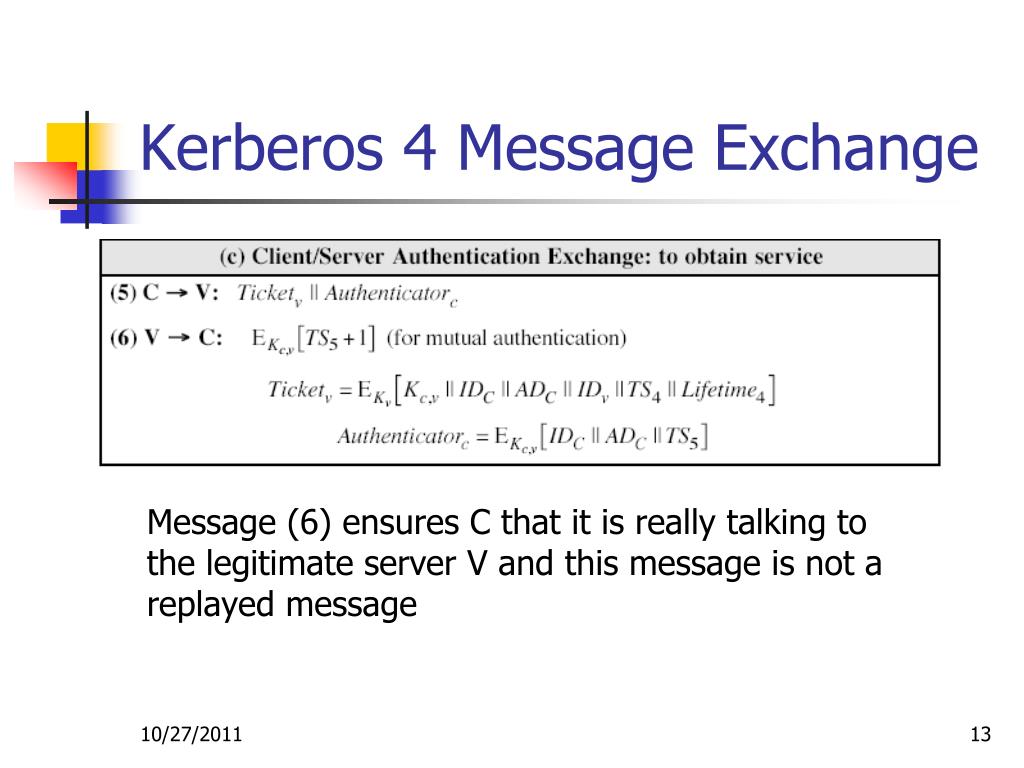

  13. Kerberos 4 Message Exchange Message (6) ensures C that it is really talking to the legitimate server V and this message is not a replayed message

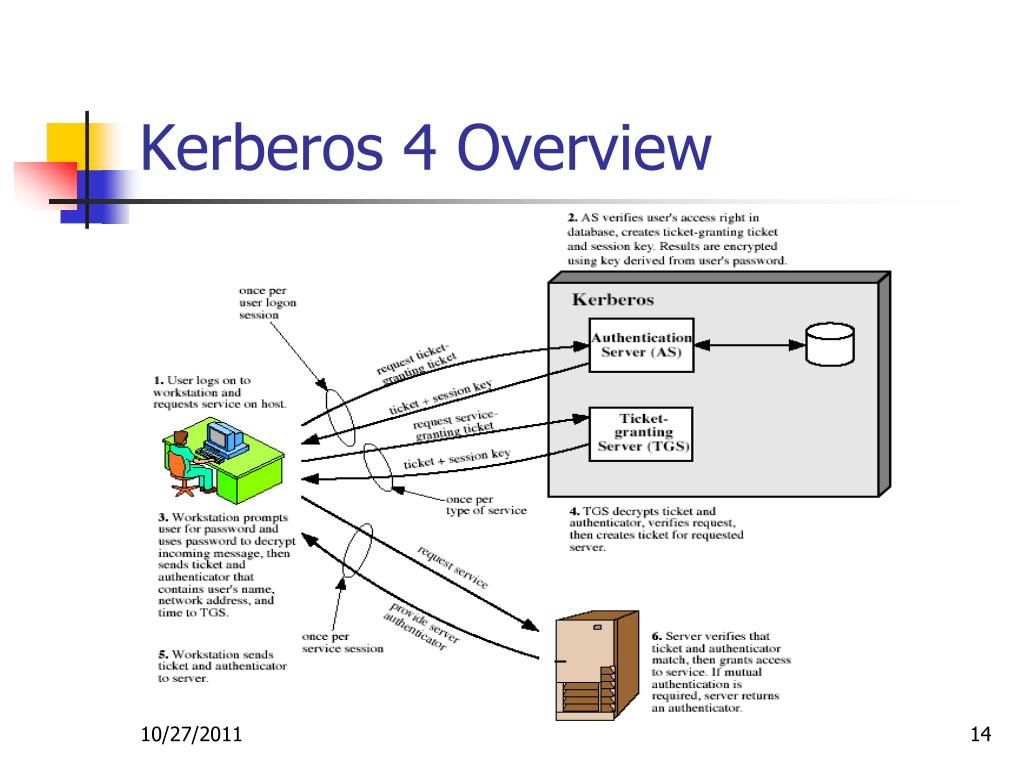

  14. Kerberos 4 Overview

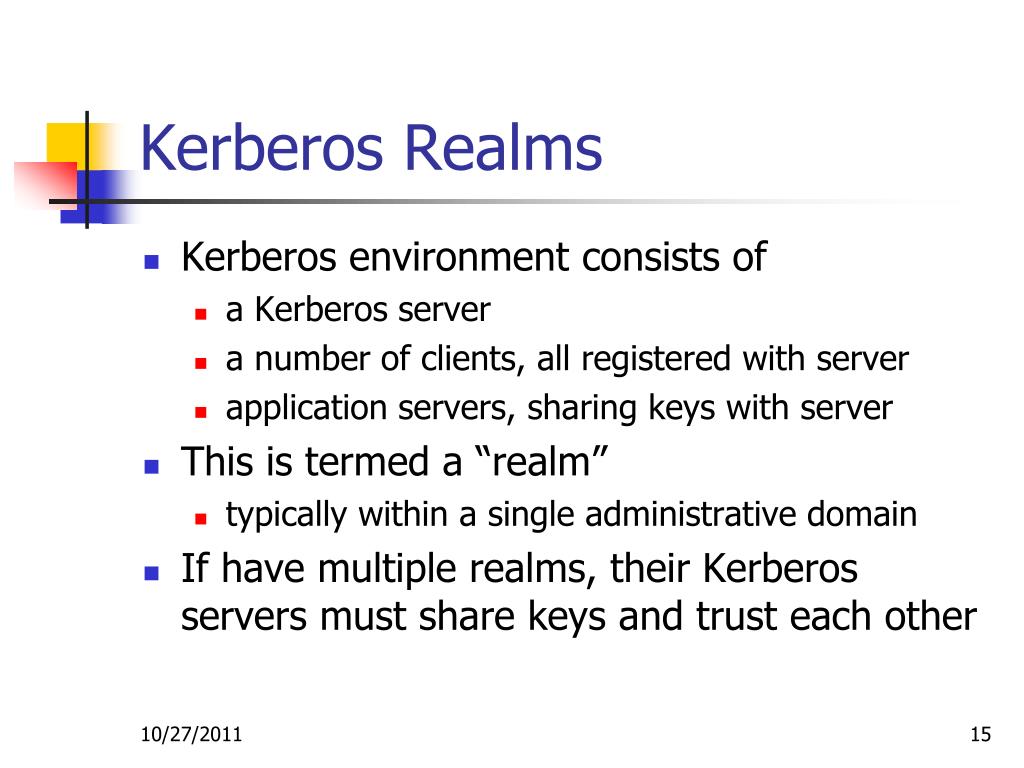

  15. Kerberos Realms • Kerberos environment consists of • a Kerberos server • a number of clients, all registered with server • application servers, sharing keys with server • This is termed a “realm” • typically within a single administrative domain • If have multiple realms, their Kerberos servers must share keys and trust each other

  16. Request Service in Another Realm

  17. Kerberos Version 5 • Developed in mid 1990’s • Provide improvements over Version 4 • addresses environmental shortcomings • encryption alg, network protocol, byte order, ticket lifetime, authentication forwarding, interrealm auth • and technical deficiencies • double encryption, non-std mode of use, session keys, password attacks • Specified as Internet standard RFC 1510

  18. Kerberos 5 Message Exchange

  19. Next Class • X.509 certificate and authorization
