Presentation Transcript

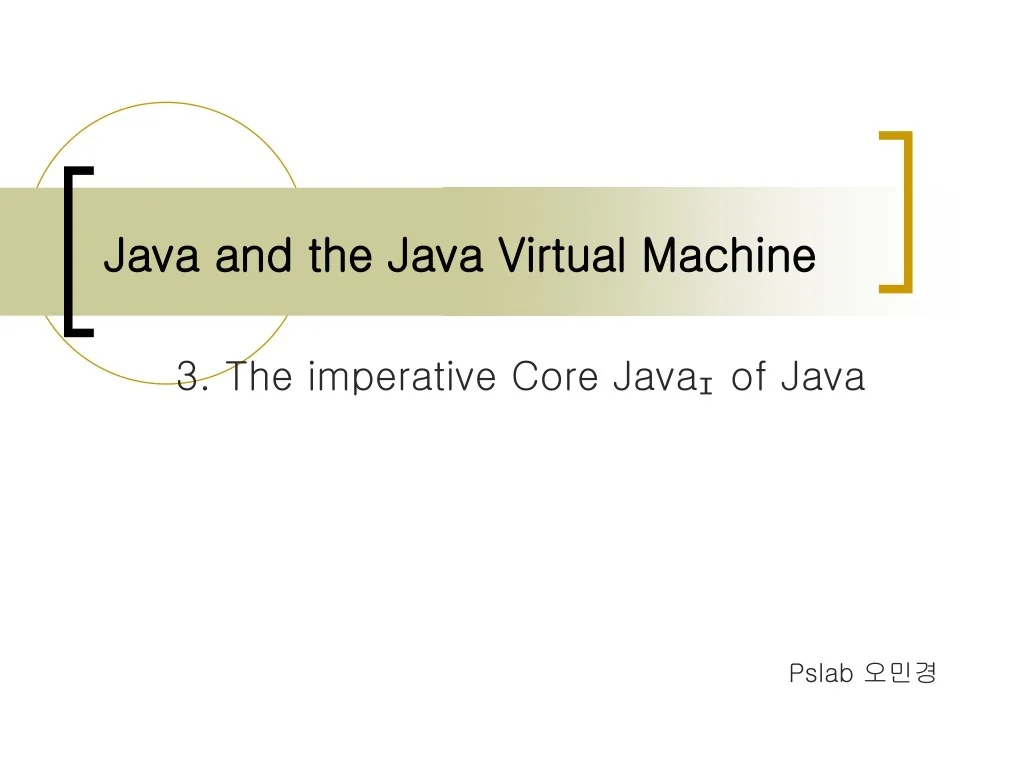

  1. Java and the Java Virtual Machine 3. The imperative Core JavaI of Java Pslab 오민경

  2. Static semantics of JavaI • Primitive type • Numeric type • Integral type : byte, short, int long, char • Floating point type : float, double • Conditional type • boolean • Literal • External representations of values of primitive type • i.e. 11, 3.14f, true …

  3. Static semantics of JavaI • Relation ‘⊆’ • A ⊆ B • A is subtype of B ( A, B : Type) • exist a widening primitive conversion from A to B • Each value of A can used as a value of B, however, information may be lost. • Relation ‘⊆’ • Byte ⊆ short ⊆ int ⊆ long ⊆ float ⊆ double, char ⊆ int • Reflexive : A ⊆ A • Transitive : if A ⊂ B and B ⊂ C, then A ⊂ C

  4. Syntax of JavaI • Domain • Domains (or universes) : words beginning with a capital letter • i.e. Exp … expressions, Stm … statements • Elements of ‘Dom’ : ‘dom’ • Local variable • Local variable declaration : ‘A loc;’ • The scope of loc consists of the statements following the variable declaration in the block.

  5. Type checking of JavaI • Position • Position : small Greek letters α, β, γ. • i.e. αexp, βstm • The universe of positions is called ‘Pos’. • Compiler verification : type checking • The compiler has to verify that a program is well-typed. • As a result of pasing and elaboration the parse tree annotated with type information : T(α). • During compilation and type checking explicit unary conversion operators (type cast) are inserted at places where they are necessary.

  6. Transition rules for JavaI • execJavaI = execJavaExpI execJava StmI • execJavaExpI • All expressions are evaluated from innermost to outermost. • For this purpose, • the current control is transferred, by updating pos. • from unevaluated expressions to the appropriate subexpressions. • until an atom (a literal or a variable) is reached.

  7. Transition rules for JavaI • execJava StmI • The syntactical structure of the statement to be computed by transferring. • For this purpose • through updates of pos, the current control from structured statements to the appropriate substatements • until the current statement has been computed normally or abrupts the computation. • Abruption : Jump statement (break, continue) • Not a labeled phrase, not degree labeled phrase : Abruption is propagated upwards. • Break(labb) : execution proceeds normally at the next phrase of the target • Continue(labc) : execution proceeds with the next iteration of the corresponding while statement.

  8. Derived language constructs • Java constructs that can be syntactically reduced to the core language • ++loc : loc=(A)(loc+1) • --loc : loc=(A)(loc-1) • If (exp) stm : if (exp) stm else; • The ‘if statement without else’ suffers from the so-called ‘dangling else problem’ • If (exp1) if (exp2) stm1 else stm2 • If (exp1) { if (exp2) stm1 else stm2 } => O • If (exp1) { if (exp2) stm1 } else stm2 => X

  9. Syntax of Java Exp := Lit | Loc | Uop Exp | Exp Bop Exp | Exp ? Exp : Exp | Asgn Asgn := Loc = Exp Stm := ; | Asgn; | Lab : Stm | break Lab; | continue Lab; | if (Exp) Stm else Stm | while (Exp) Stm | Block Block := {Bstm1 … Bstmn} Bstm := Type Loc; | Stm Phrase := Exp | Bstm | Val | Abr | Norm

  10. Execution of JavaI expressions execJavaExpI = case context(pos) of lit → yield(JLS(lit)) loc → yield(locals(loc)) uop αexp → pos := α uop ►val → yieldUp(JLS(uop, val)) αexp1 bop βexp2 → pos := α ► val bop βexp → pos := β αval1 bop ► val2 → if ¬(bop 2 divMod ∧ isZero(val2)) then yieldUp(JLS(bop, val1, val2)) loc = αexp → pos := α loc = ►val → locals := locals + {(loc, val)} yieldUp(val) αexp0 ? βexp1 : γexp2 → pos := α ►val ? βexp1 : γexp2 → if val then pos := β else pos := γ αTrue ? ►val : γexp → yieldUp(val) αFalse ? βexp : ►val → yieldUp(val)

  11. Execution of JavaI statements execJavaStmI = case context(pos) of ; → yield(Norm) αexp; → pos := α ► val; → yieldUp(Norm) break lab; → yield(Break(lab)) continue lab; → yield(Continue(lab)) lab : αstm → pos := α lab : ► Norm → yieldUp(Norm) lab : ► Break(labb) → if lab = labb then yieldUp(Norm) else yieldUp(Break(labb)) lab : ► Continue(labc) → if lab = labc then yield(body/pos) else yieldUp(Continue(labc)) phrase(► abr) → if pos ≠ firstPos ∧propagatesAbr(restbody/up(pos)) then yieldUp(abr)

  12. Execution of JavaI statements { } → yield(Norm) {α1stm1…αn stmn} → pos := α1 {α1Norm …► Norm} → yieldUp(Norm) {α1Norm …► Normαi+1stmi+1…αnstmn} → pos := αi+1 if (αexp) βstm1 else γstm2 → pos := α if (► val) βstm1 else γstm2 → if val then pos := β else pos := γ if (αTrue) ► Norm else γstm → yieldUp(Norm) if (αFalse) βstm else ► Norm → yieldUp(Norm) while (αexp) βstm → pos := α while (► val) βstm → if val then pos := β else yieldUp(Norm) while (αTrue) ► Norm → yieldUp(body/up(pos)) Type x ; → yield(Norm)
