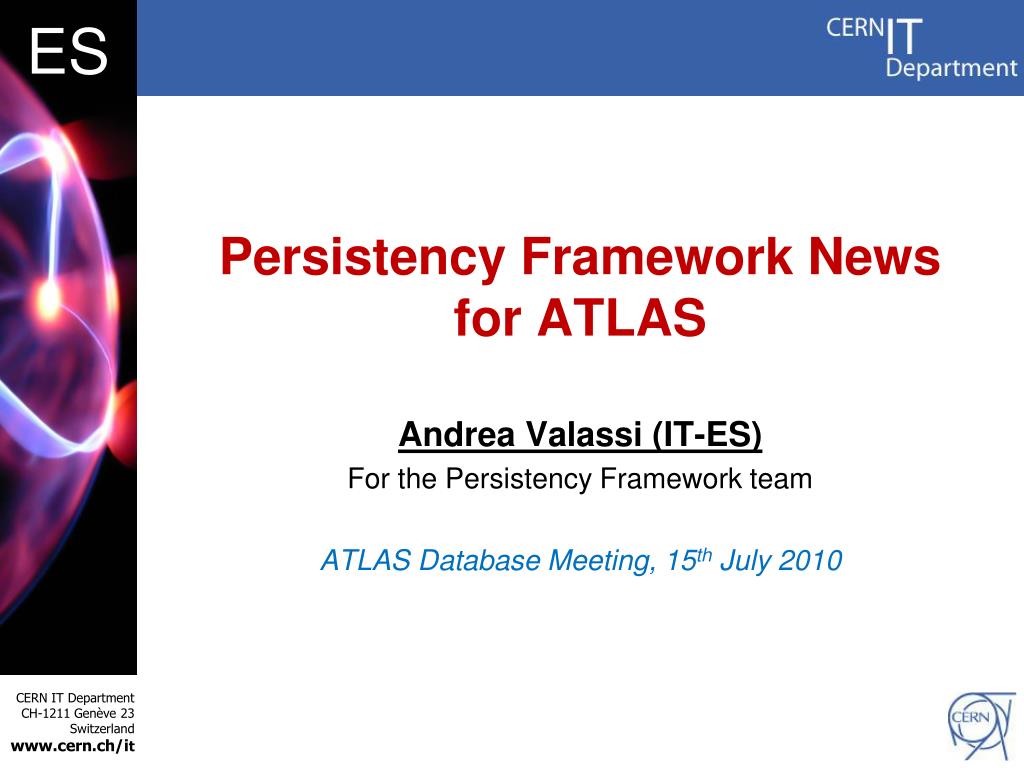

  1. Persistency Framework Newsfor ATLAS Andrea Valassi (IT-ES) For the Persistency Framework team ATLAS Database Meeting, 15th July 2010

  2. Outline • Recent developments and releases • POOL, CORAL, COOL • Oracle client • Work in progress

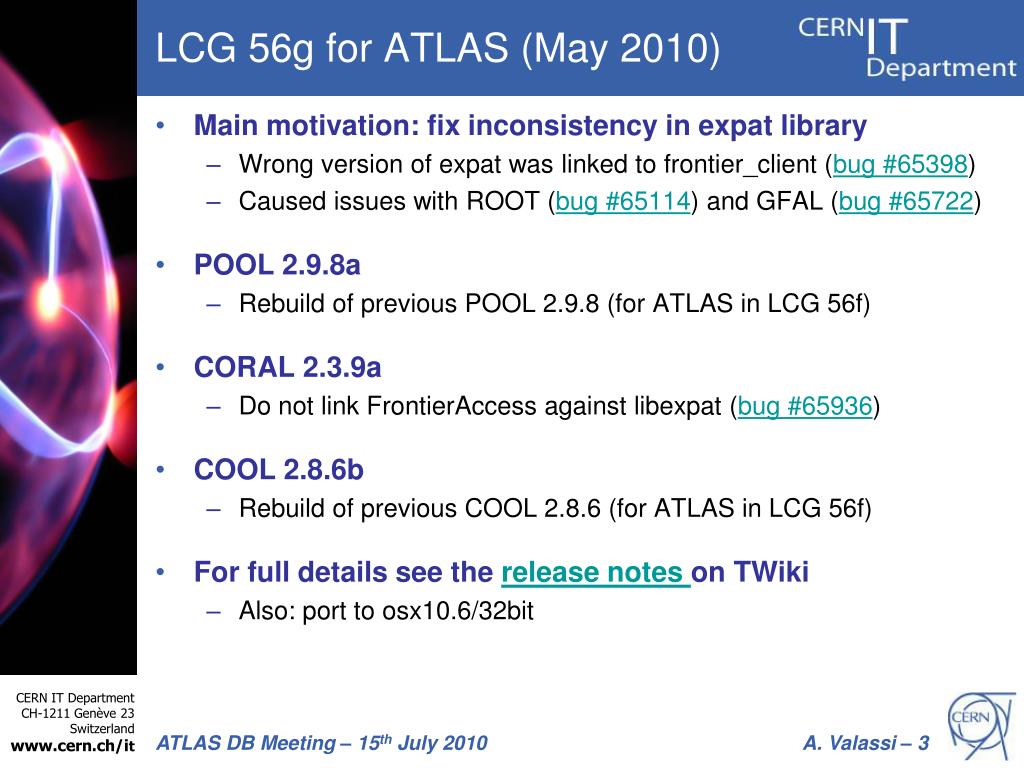

  3. LCG 56g for ATLAS (May 2010) • Main motivation: fix inconsistency in expat library • Wrong version of expat was linked to frontier_client (bug #65398) • Caused issues with ROOT (bug #65114) and GFAL (bug #65722) • POOL 2.9.8a • Rebuild of previous POOL 2.9.8 (for ATLAS in LCG 56f) • CORAL 2.3.9a • Do not link FrontierAccess against libexpat (bug #65936) • COOL 2.8.6b • Rebuild of previous COOL 2.8.6 (for ATLAS in LCG 56f) • For full details see the release notes on TWiki • Also: port to osx10.6/32bit

  4. LCG 59 for ATLAS (July 2010) • Main motivation: external upgrades, POOL/CORAL patches • ROOT 5.26, python 2.6, oracle 11.2, Xerces 3.1, Qt 4.6… • POOL 2.9.9a • ATLAS-specific support for fast file merge • Improved handling of RelationalCollection metadata • CORAL 2.3.10a • First (incomplete?) fix for transaction bug #65597 in reconnecting • ATLAS-specific optimizations in FrontierAccess (bug #66638) • Fix to write CLOBs larger than 64kb in ATLAS_DD (bug #47663) • Fix segfault with synonyms in ATLAS PVSS (bug #68313) • COOL 2.8.6d • Rebuild of previous COOL 2.8.6b (for ATLAS in LCG 56g) • For full details see the release notes on TWiki • Also: drop osx10.5 (keep only osx10.6)

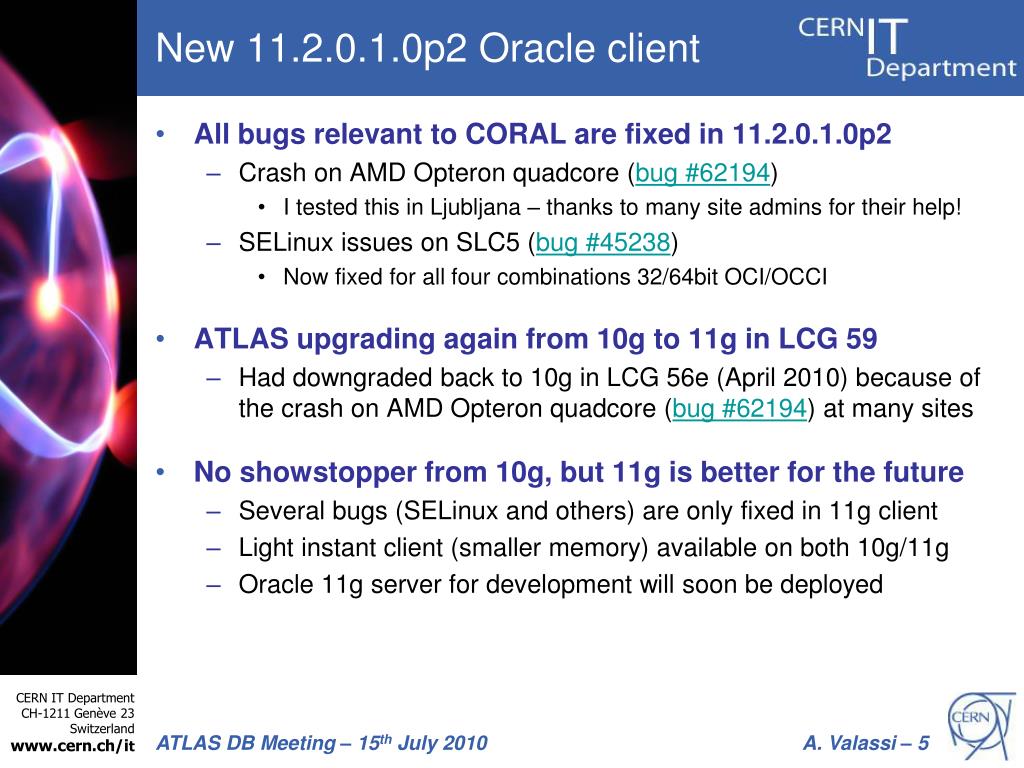

  5. New 11.2.0.1.0p2 Oracle client • All bugs relevant to CORAL are fixed in 11.2.0.1.0p2 • Crash on AMD Opteron quadcore (bug #62194) • I tested this in Ljubljana – thanks to many site admins for their help! • SELinux issues on SLC5 (bug #45238) • Now fixed for all four combinations 32/64bit OCI/OCCI • ATLAS upgrading again from 10g to 11g in LCG 59 • Had downgraded back to 10g in LCG 56e (April 2010) because of the crash on AMD Opteron quadcore (bug #62194) at many sites • No showstopper from 10g, but 11g is better for the future • Several bugs (SELinux and others) are only fixed in 11g client • Light instant client (smaller memory) available on both 10g/11g • Oracle 11g server for development will soon be deployed

  6. Frontier and CORAL / COOL • Smooth integration of Frontier into ATLAS software in 2009 • Frontier was already supported in CORAL (production use in CMS) • Frontier was already supported in COOL (…just in case…!) • A few ATLAS-specific s/w optimizations were needed • E.g., avoid duplicated queries in FrontierAccess (bug #66638) • Also, minor functional fixes in FrontierAccess (e.g. bug #60053) • Further optimizations have been suggested • E.g. additional table caches in COOL – pending (bug #66639) • Is anything else needed on the software side? • Monitoring of Frontier servers and Squid caches • Very active community of users and site admins in ATLAS and IT (focusing on service-level monitoring of load and availability) • Some query-level monitoring in frontier_client (used by CORAL) • Work ongoing in CORAL team for query-level monitoring (e.g. for CORAL server monitoring in ATLAS online) • Is anything needed for Frontier monitoring on the software side?

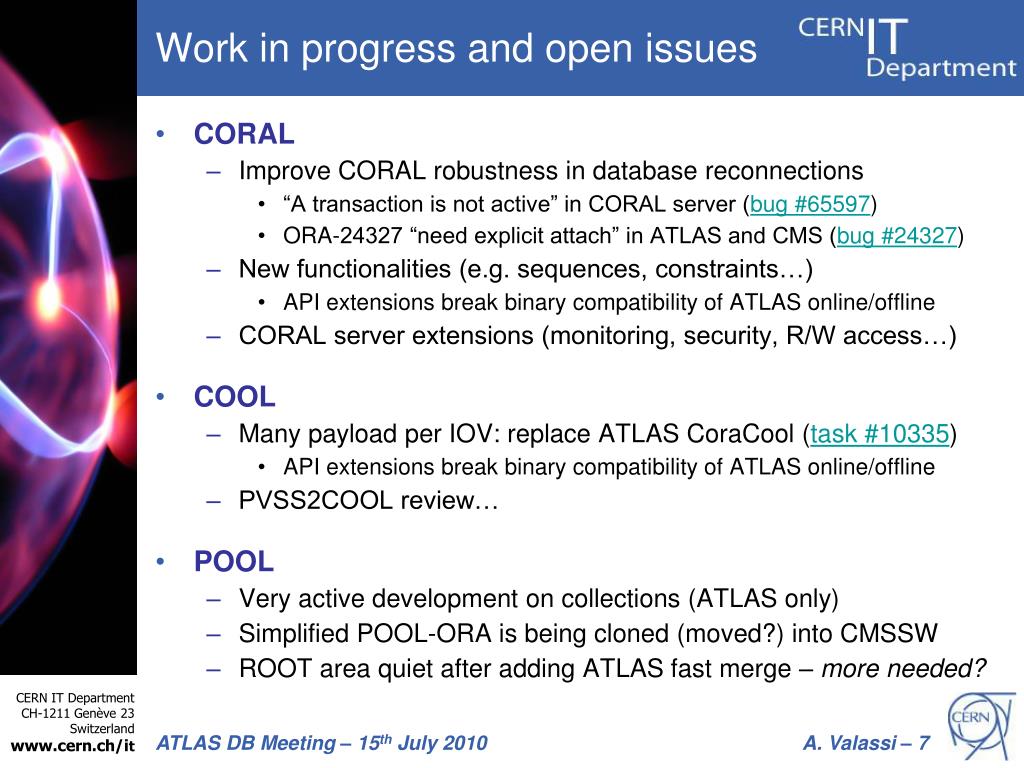

  7. Work in progress and open issues • CORAL • Improve CORAL robustness in database reconnections • “A transaction is not active” in CORAL server(bug #65597) • ORA-24327 “need explicit attach” in ATLAS and CMS (bug #24327) • New functionalities (e.g. sequences, constraints…) • API extensions break binary compatibility of ATLAS online/offline • CORAL server extensions (monitoring, security, R/W access…) • COOL • Many payload per IOV: replace ATLAS CoraCool (task #10335) • API extensions break binary compatibility of ATLAS online/offline • PVSS2COOL review… • POOL • Very active development on collections (ATLAS only) • Simplified POOL-ORA is being cloned (moved?) into CMSSW • ROOT area quiet after adding ATLAS fast merge – more needed?

  8. Reserve slides

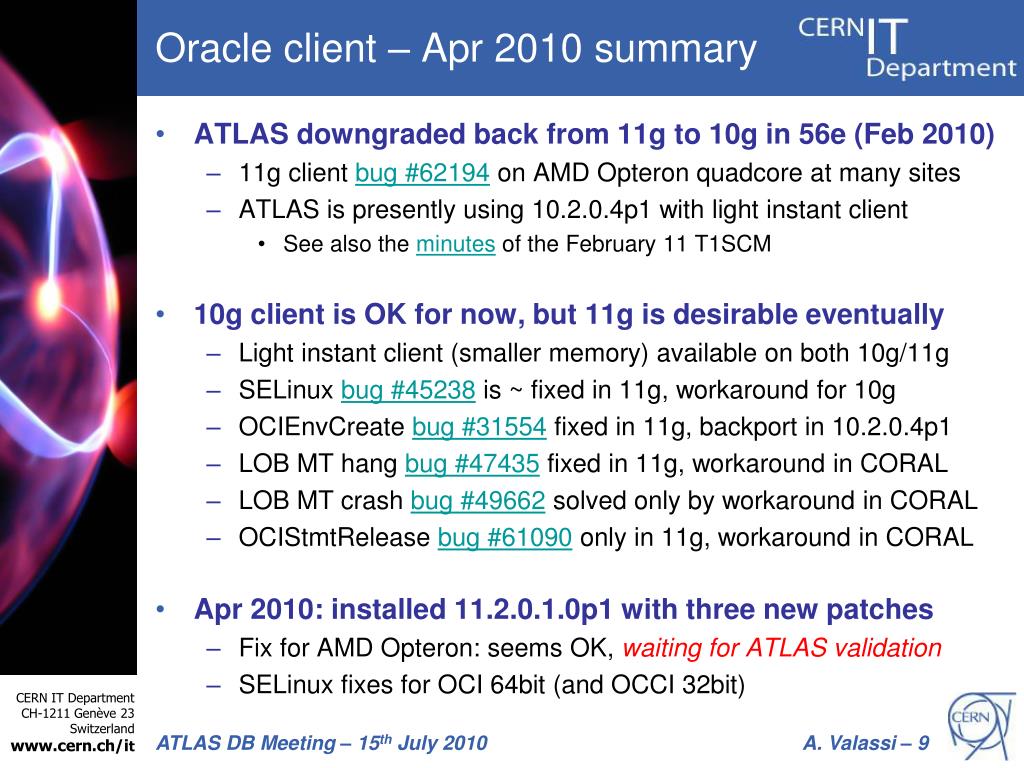

  9. Oracle client – Apr 2010 summary • ATLAS downgraded back from 11g to 10g in 56e (Feb 2010) • 11g client bug #62194 on AMD Opteron quadcore at many sites • ATLAS is presently using 10.2.0.4p1 with light instant client • See also the minutes of the February 11 T1SCM • 10g client is OK for now, but 11g is desirable eventually • Light instant client (smaller memory) available on both 10g/11g • SELinux bug #45238 is ~ fixed in 11g, workaround for 10g • OCIEnvCreatebug #31554 fixed in 11g, backport in 10.2.0.4p1 • LOB MT hang bug #47435 fixed in 11g, workaround in CORAL • LOB MT crash bug #49662 solved only by workaround in CORAL • OCIStmtReleasebug #61090 only in 11g, workaround in CORAL • Apr 2010: installed 11.2.0.1.0p1 with three new patches • Fix for AMD Opteron: seems OK, waiting for ATLAS validation • SELinux fixes for OCI 64bit (and OCCI 32bit)
