  1. Authentication and Authorization in Condor

  2. Outline • General Requirements • Issues • Our Design • Current Status • Plans and Issues

  3. General Requirements • Why do we need security? • A question of trust • We need security in a distributed environment • Control resources usage • Privacy reason • And much more

  4. General Requirements • Secure channel • We want to have a secure way to communicate • Send commands, messages or data securely • Secure channel should provide • Privacy – no one can eavesdrop on the channel • Integrity – no one can tamper with the communication • Authenticity – who am I talking to and how can I make sure it’s true

  5. General Requirements • Authentication – who are you? • Provide a positive identification • Mutual authentication is often required • Credentials • Forms of identification • Normally a product of a successful authentication

  6. General Requirements • Authorization • I know who you are, but what can you do? • Map a user to a set of rights • Many different ways to setup the mapping • e.g. Host based, role based • Data Integrity • Make sure that the data is not tampered • Data Security

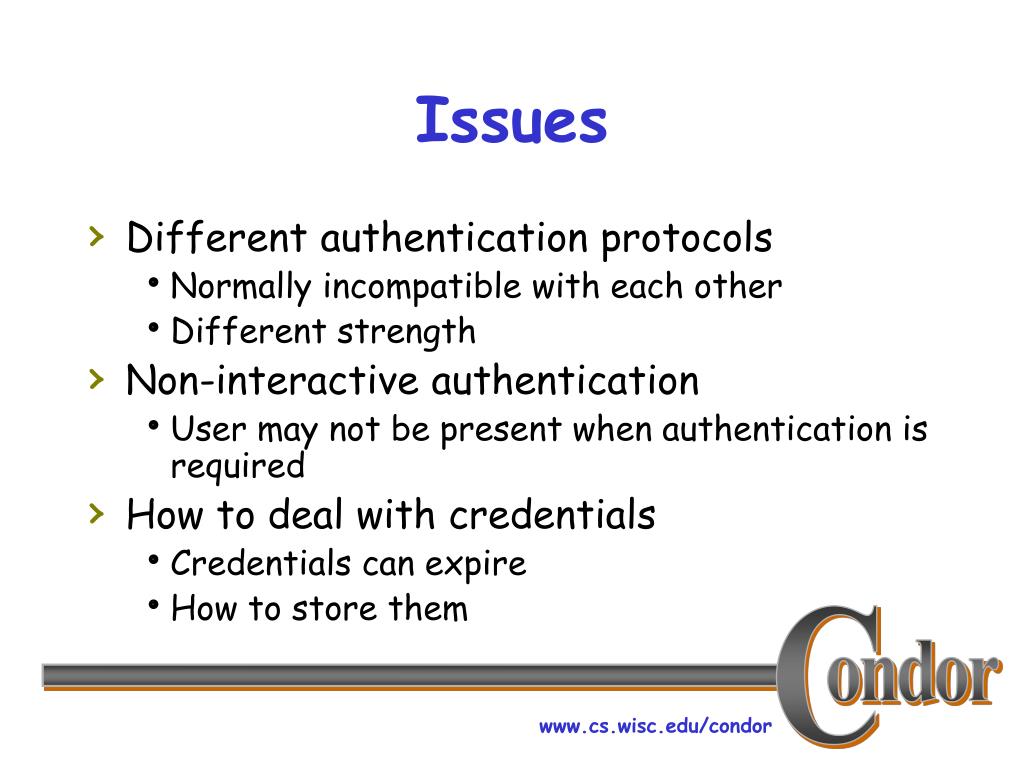

  7. Issues • Different authentication protocols • Normally incompatible with each other • Different strength • Non-interactive authentication • User may not be present when authentication is required • How to deal with credentials • Credentials can expire • How to store them

  8. Our Design • Authentication • Support multiple protocols • Independent of actual protocol used • Use API to provide consistency and hide complexity of the protocols • Authorization • User based access control policy • Separation of policy from mechanism

  9. Our Design Condor Daemons ..... Authentication API (partial) • authenticate • forward_credential • receive_credential • is_valid • remove_credential • update_credential Kerberos X.509 ..... NTSSPI

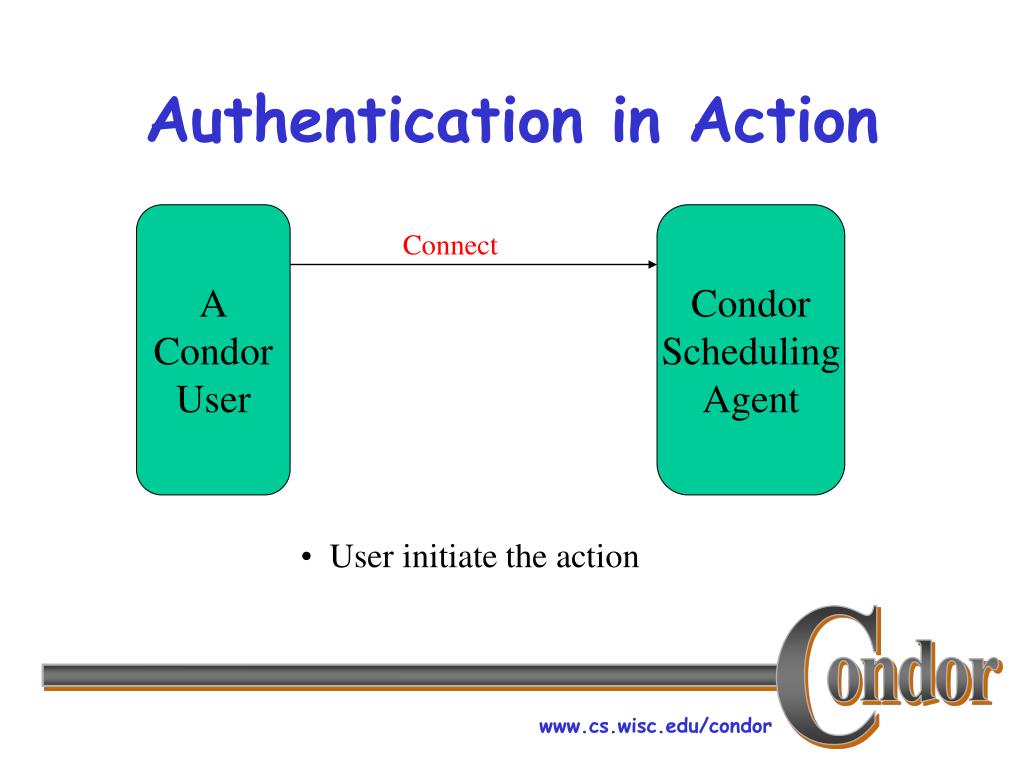

  10. Authentication in Action A Condor User Condor Scheduling Agent Connect • User initiate the action

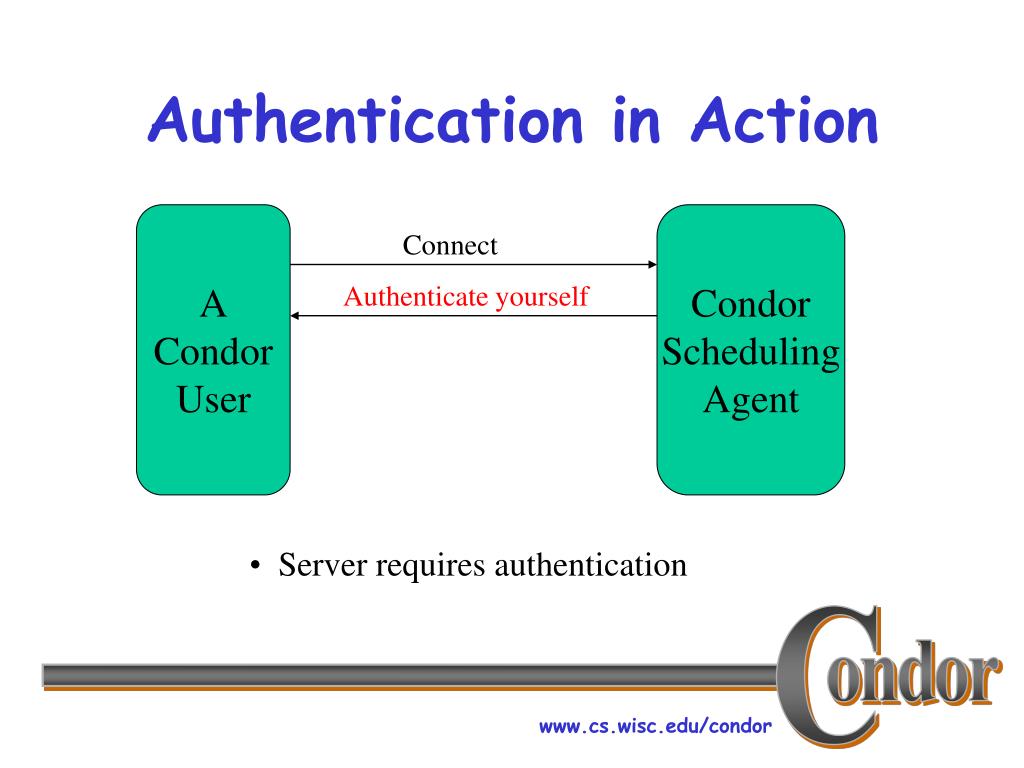

  11. Authentication in Action A Condor User Condor Scheduling Agent Connect Authenticate yourself • Server requires authentication

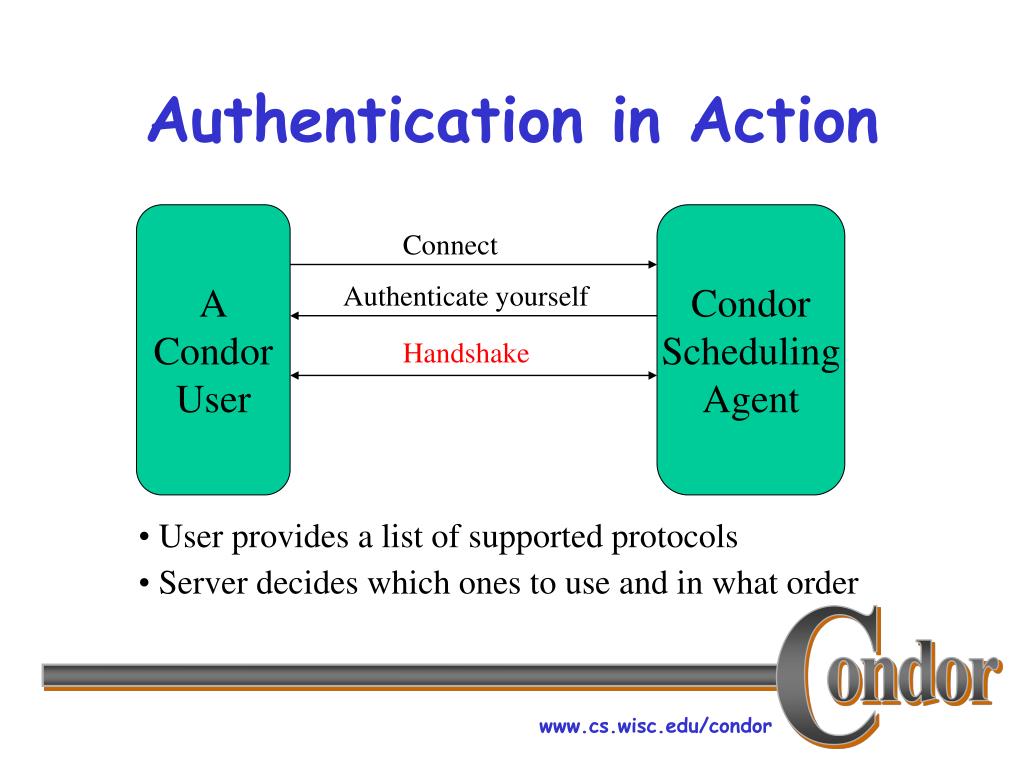

  12. Authentication in Action A Condor User Condor Scheduling Agent Connect Authenticate yourself Handshake • User provides a list of supported protocols • Server decides which ones to use and in what order

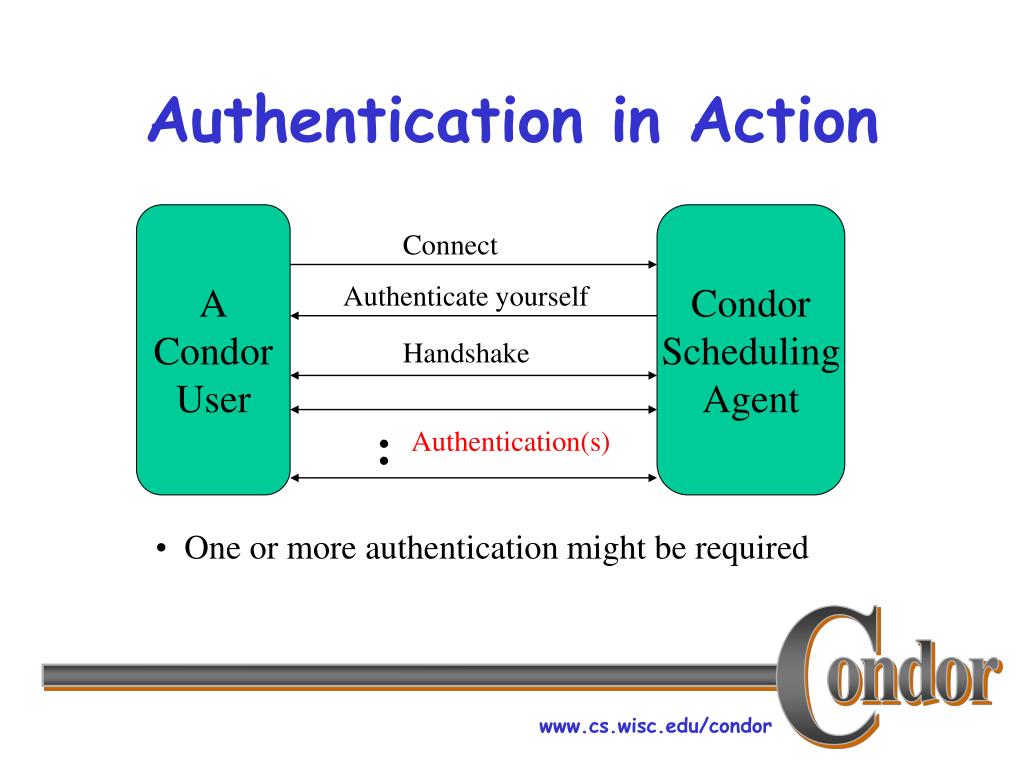

  13. Authentication in Action A Condor User Condor Scheduling Agent Connect Authenticate yourself Handshake Authentication(s) • One or more authentication might be required

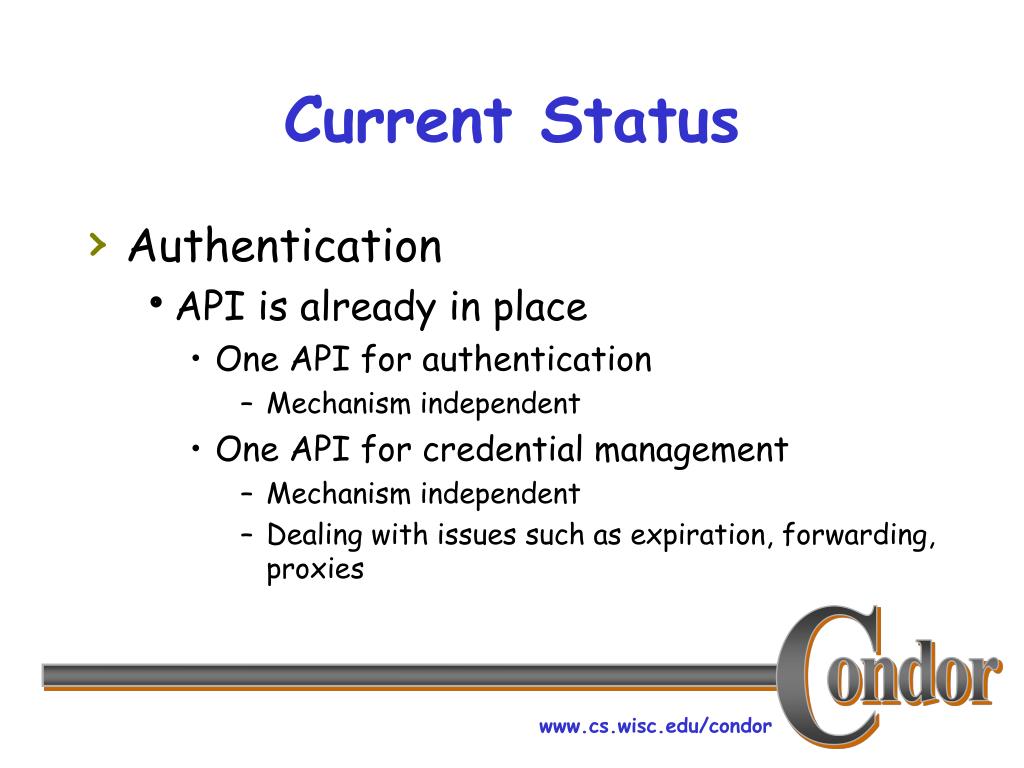

  14. Current Status • Authentication • API is already in place • One API for authentication • Mechanism independent • One API for credential management • Mechanism independent • Dealing with issues such as expiration, forwarding, proxies

  15. Current Status • Authentication (cont.) • Protocols already supported: • NTSSPI, Claimtobe, Filesystem • X.509 and Kerberos support is coming soon • Supports mutual authentication • Supports encryption • Supports proxy/delegation • Use GSS-API for X.509

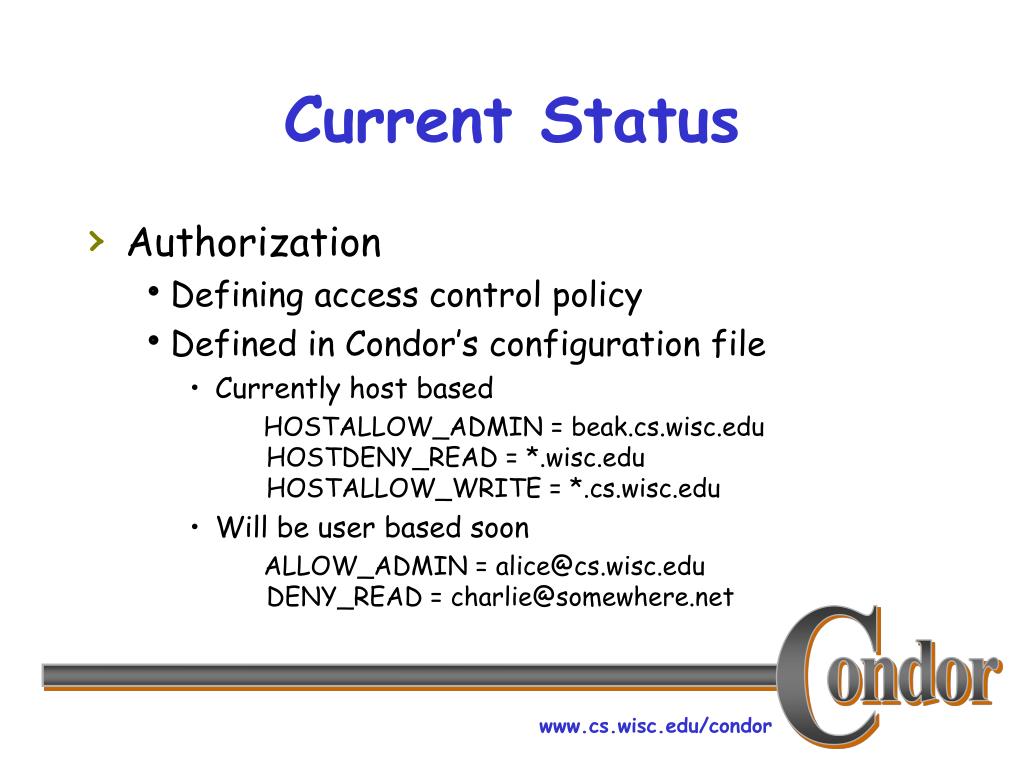

  16. Current Status • Authorization • Defining access control policy • Defined in Condor’s configuration file • Currently host based HOSTALLOW_ADMIN = beak.cs.wisc.eduHOSTDENY_READ = *.wisc.eduHOSTALLOW_WRITE = *.cs.wisc.edu • Will be user based soon ALLOW_ADMIN = alice@cs.wisc.eduDENY_READ = charlie@somewhere.net

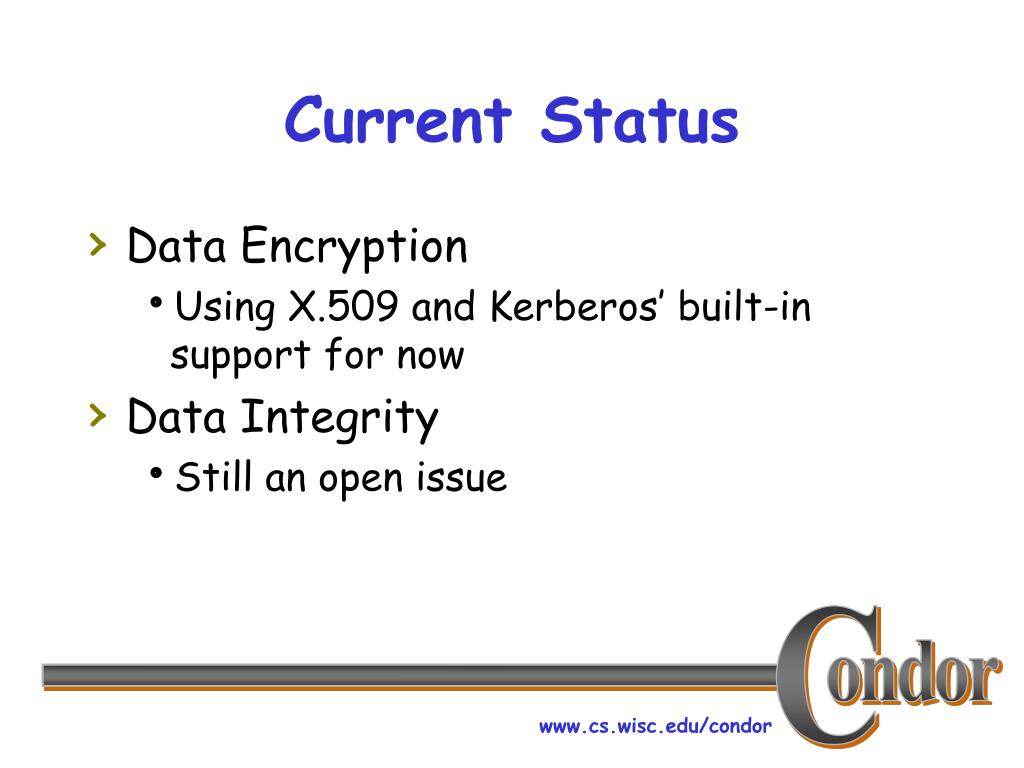

  17. Current Status • Data Encryption • Using X.509 and Kerberos’ built-in support for now • Data Integrity • Still an open issue

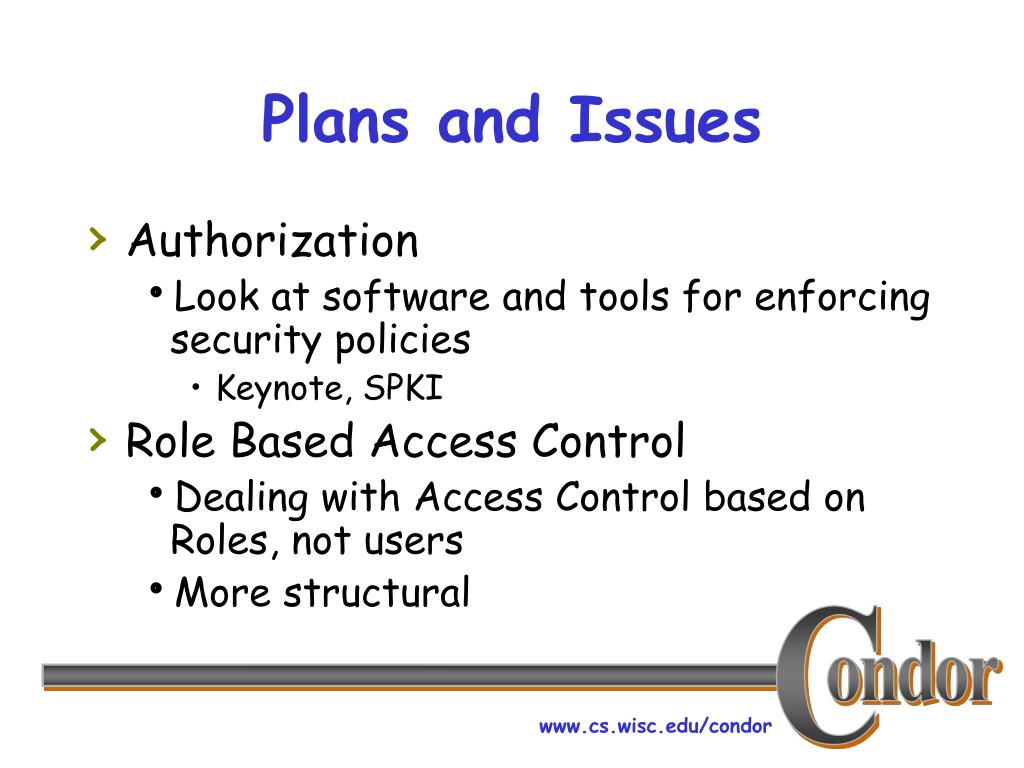

  18. Plans and Issues • Authorization • Look at software and tools for enforcing security policies • Keynote, SPKI • Role Based Access Control • Dealing with Access Control based on Roles, not users • More structural

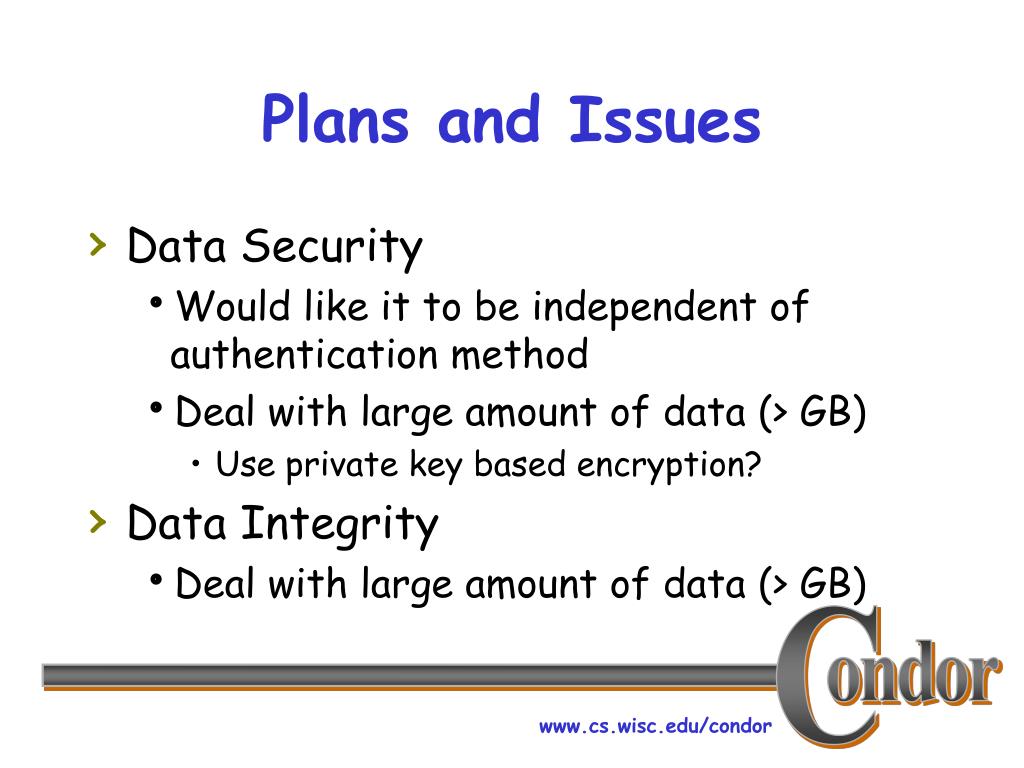

  19. Plans and Issues • Data Security • Would like it to be independent of authentication method • Deal with large amount of data (> GB) • Use private key based encryption? • Data Integrity • Deal with large amount of data (> GB)

  20. Conclusion • Our goal is: • Make Condor a secure environment to work with • Where are we? • Worked primarily in authentication and authorization • Still much to be done

  21. That’s it for now! • Questions? • Comments? • Ideas?
