  1. CMPT 371 Data Communications and Networking Summary Switching ,throughput, Multiplexing Protocol layers

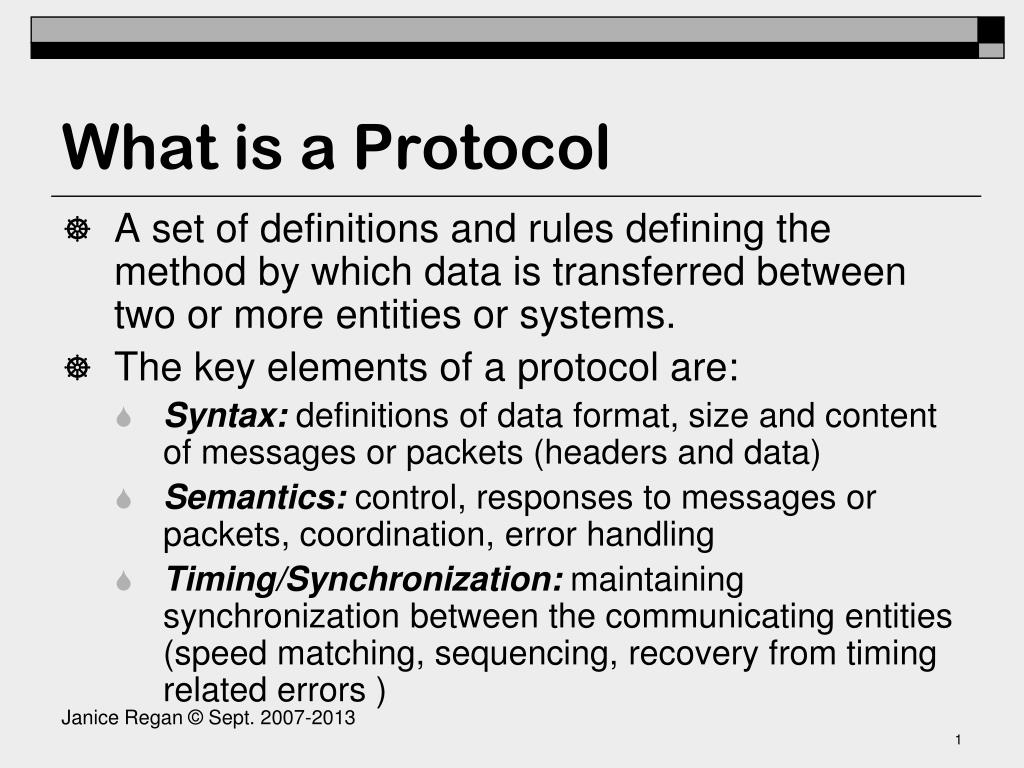

  2. What is a Protocol • A set of definitions and rules defining the method by which data is transferred between two or more entities or systems. • The key elements of a protocol are: • Syntax: definitions of data format, size and content of messages or packets (headers and data) • Semantics: control, responses to messages or packets, coordination, error handling • Timing/Synchronization: maintaining synchronization between the communicating entities (speed matching, sequencing, recovery from timing related errors )

  3. Characteristics of Protocols: 1 • Direct: data passes from source to destination without active intervention (point to point or multipoint link) • Indirect: data from source must pass through intermediate active entities to reach the destination (switched networks) Set Switch Fixed connection Source Destination Network Active Intermediate nodes Source Destination

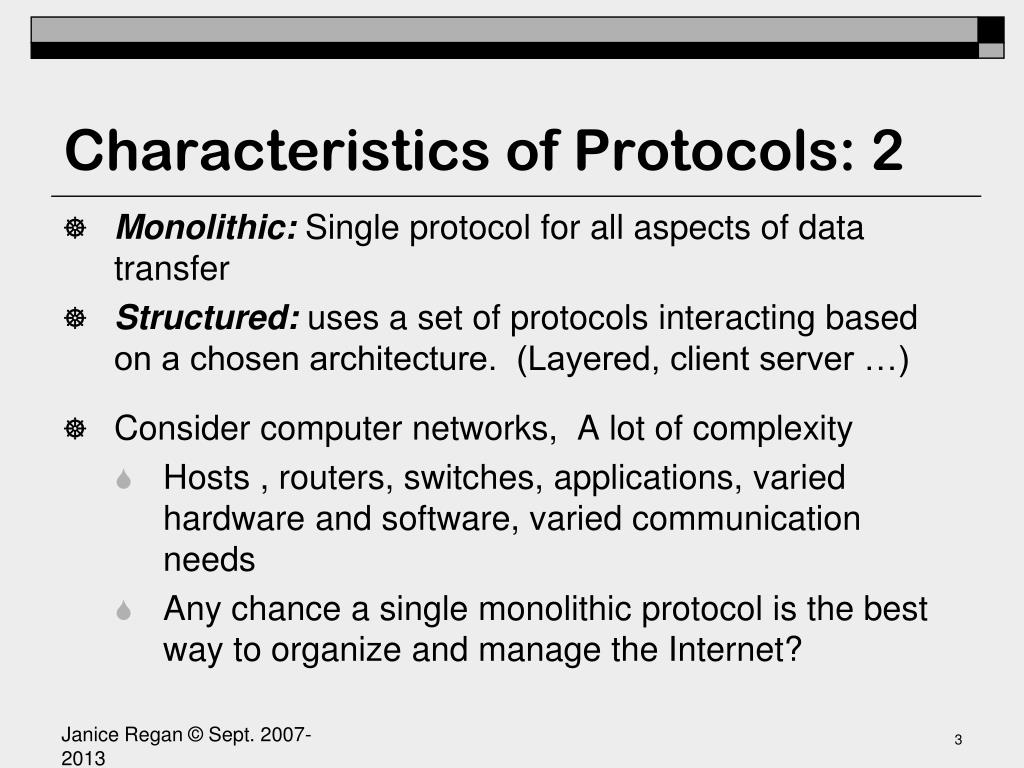

  4. Characteristics of Protocols: 2 • Monolithic: Single protocol for all aspects of data transfer • Structured: uses a set of protocols interacting based on a chosen architecture. (Layered, client server …) • Consider computer networks, A lot of complexity • Hosts , routers, switches, applications, varied hardware and software, varied communication needs • Any chance a single monolithic protocol is the best way to organize and manage the Internet?

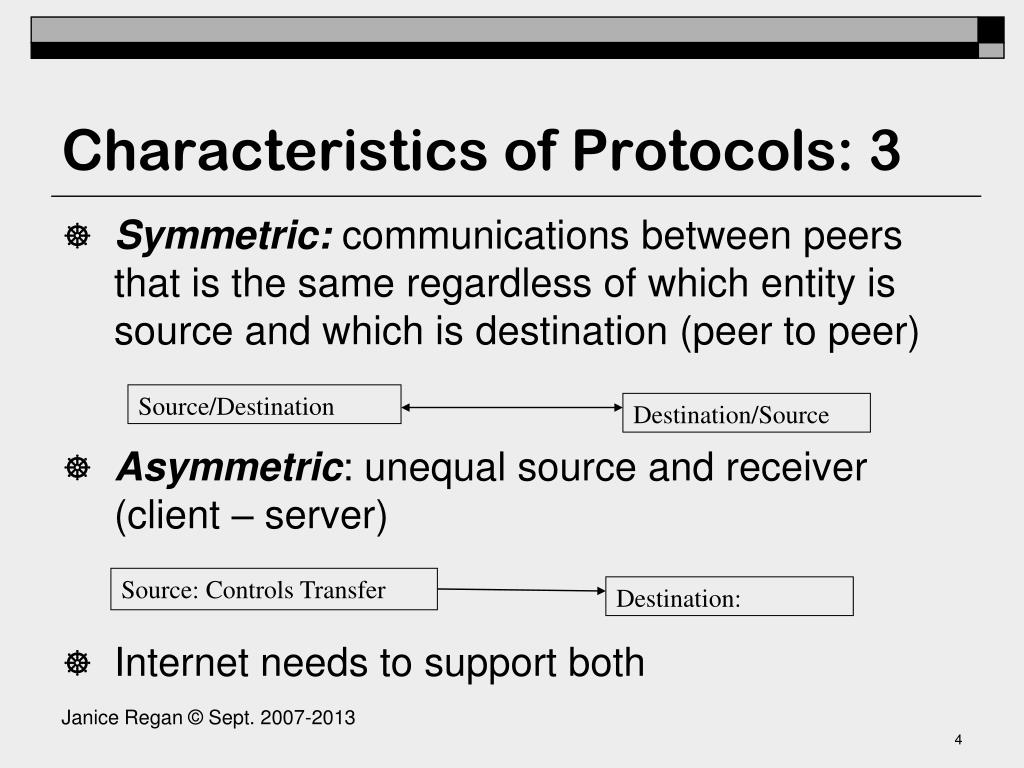

  5. Characteristics of Protocols: 3 • Symmetric: communications between peers that is the same regardless of which entity is source and which is destination (peer to peer) • Asymmetric: unequal source and receiver (client – server) • Internet needs to support both Source/Destination Destination/Source Source: Controls Transfer Destination:

  6. Characteristics of Protocols: 4 • Standard: independent of hardware and application • Used by all members of network, no need for translation • Operates in a given layer regardless of operating system or system hardware (may require multiple implementations) • Nonstandard: designed for specific hardware or application • Must translate between nonstandard protocols increasing load on system rapidly as number of nonstandard systems increases

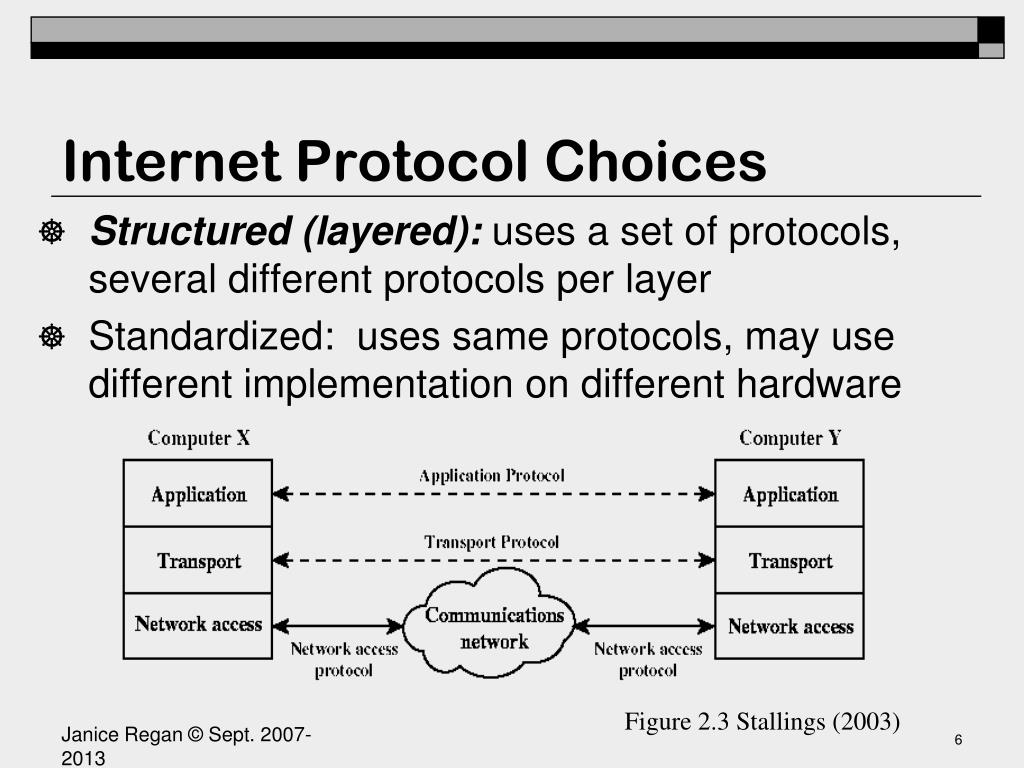

  7. Internet Protocol Choices • Structured (layered):uses a set of protocols, several different protocols per layer • Standardized: uses same protocols, may use different implementation on different hardware Figure 2.3 Stallings (2003)

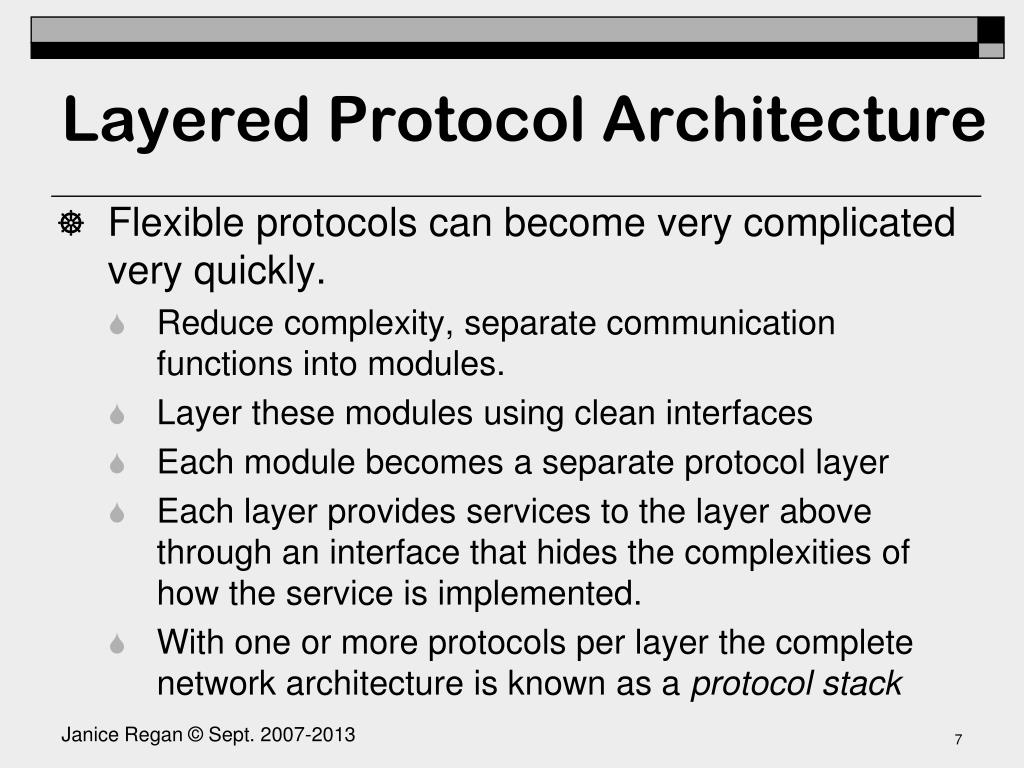

  8. Layered Protocol Architecture • Flexible protocols can become very complicated very quickly. • Reduce complexity, separate communication functions into modules. • Layer these modules using clean interfaces • Each module becomes a separate protocol layer • Each layer provides services to the layer above through an interface that hides the complexities of how the service is implemented. • With one or more protocols per layer the complete network architecture is known as a protocol stack

  9. Standardization • Clearly defined functions for each layer allow for independent and simultaneous development of multiple layers (Lower layers = more detail) • Protocol specification for each layer and for interfaces between layers must be exact • Format of data units • allowed sequence of PDUs • Semantics (meanings) of all fields

  10. Standardization • Particular operations are localized in a given layer regardless of operating system or system hardware (may require multiple implementations) • Service Definition: standards for services provided by a layer, using a given set of protocols, to the layer above it • Addressing: Provide the defined services to entities with particular addresses

  11. The OSI model • A classic model that is not generally implemented • Layered • Each layer performs a different set of communications functions. • Each layer encapsulates and hides complexity from the layer above it • Each layer uses the layer below it the perform more primitive and detailed functions • Clear interfaces between layers make independent changes in one layer independent of the other layers

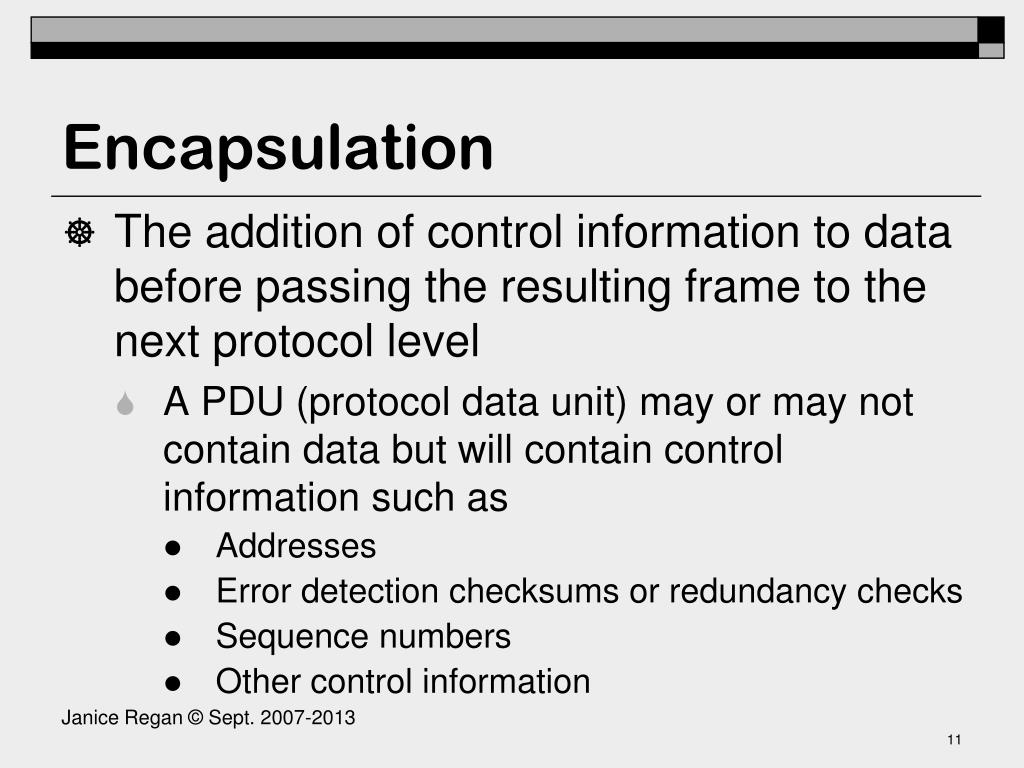

  12. Encapsulation • The addition of control information to data before passing the resulting frame to the next protocol level • A PDU (protocol data unit) may or may not contain data but will contain control information such as • Addresses • Error detection checksums or redundancy checks • Sequence numbers • Other control information

  13. The OSI Environment Figure 2.7 Stallings (2003)

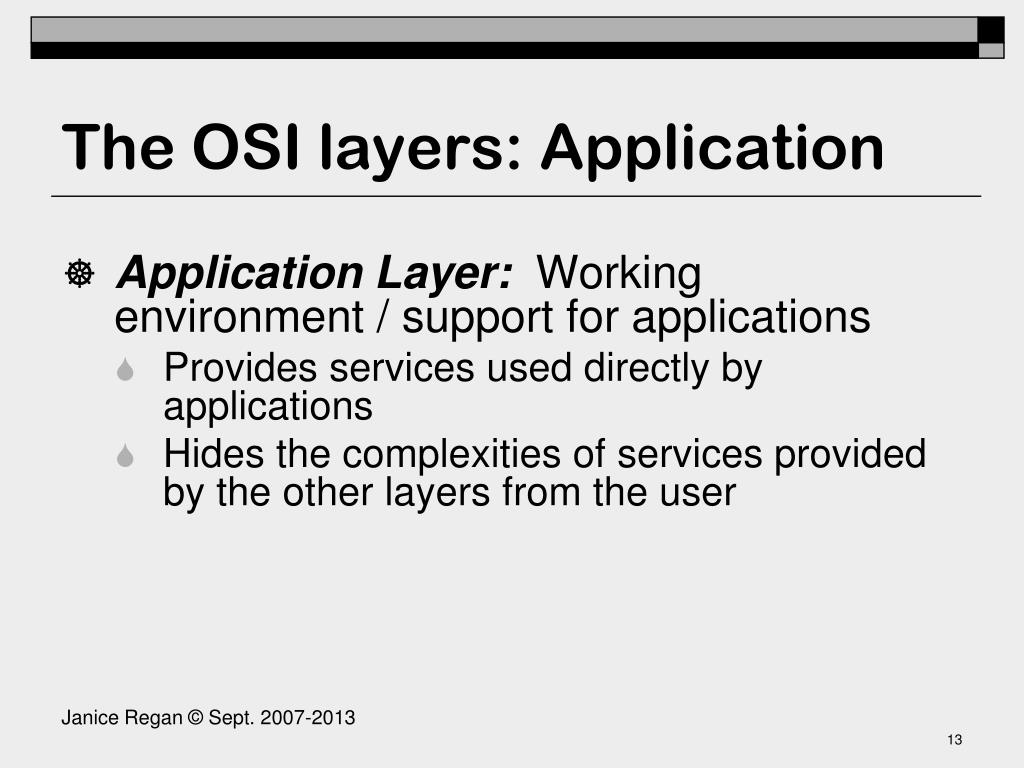

  14. The OSI layers: Application • Application Layer: Working environment / support for applications • Provides services used directly by applications • Hides the complexities of services provided by the other layers from the user

  15. The OSI layers: • Session Layer • Initiation, management, termination of sessions between local and remote devices • Presentation Layer: Defines the format of the data to be exchanged between applications • Data compression, encryption as Implemented in the internet as part of applications/protocols like SSL, Mime

  16. The OSI layers: Transport • Transport Layer:Manages exchange of application data between end systems • Connection oriented reliable delivery (TCP) • Manages connections and error free, In sequence, loss and duplication free data transfer • Best effort delivery (UDP) • Packet oriented, connectionless • Process level addressing, Segmentation, Multiplexing / De-multiplexing

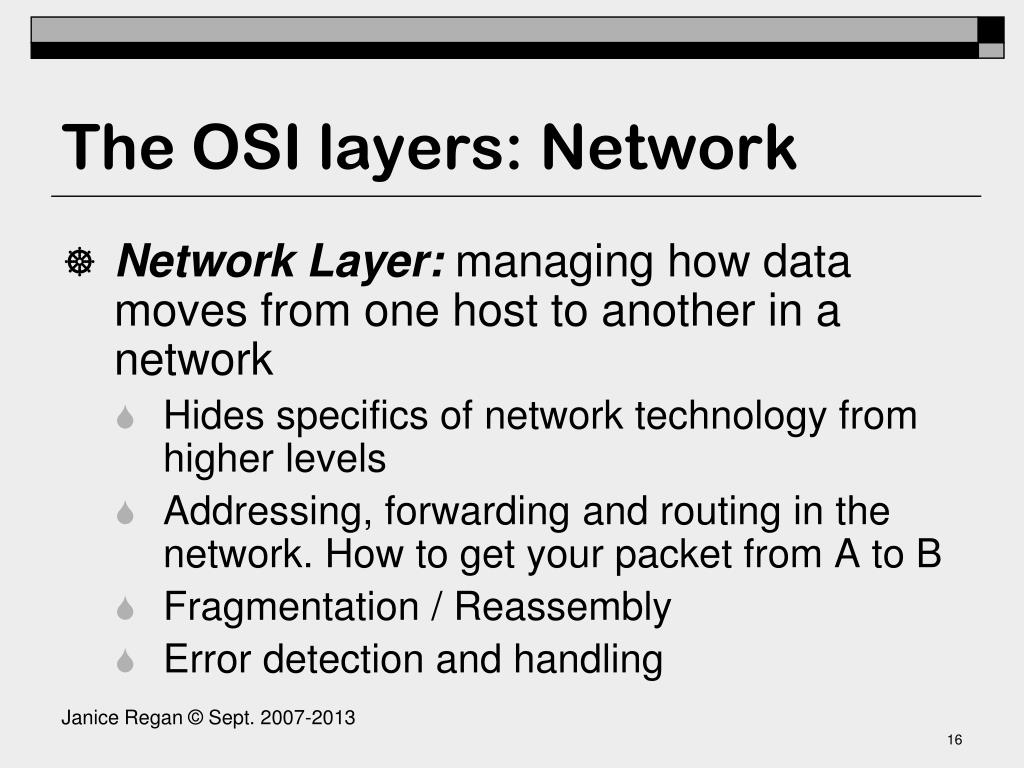

  17. The OSI layers: Network • Network Layer:managing how data moves from one host to another in a network • Hides specifics of network technology from higher levels • Addressing, forwarding and routing in the network. How to get your packet from A to B • Fragmentation / Reassembly • Error detection and handling

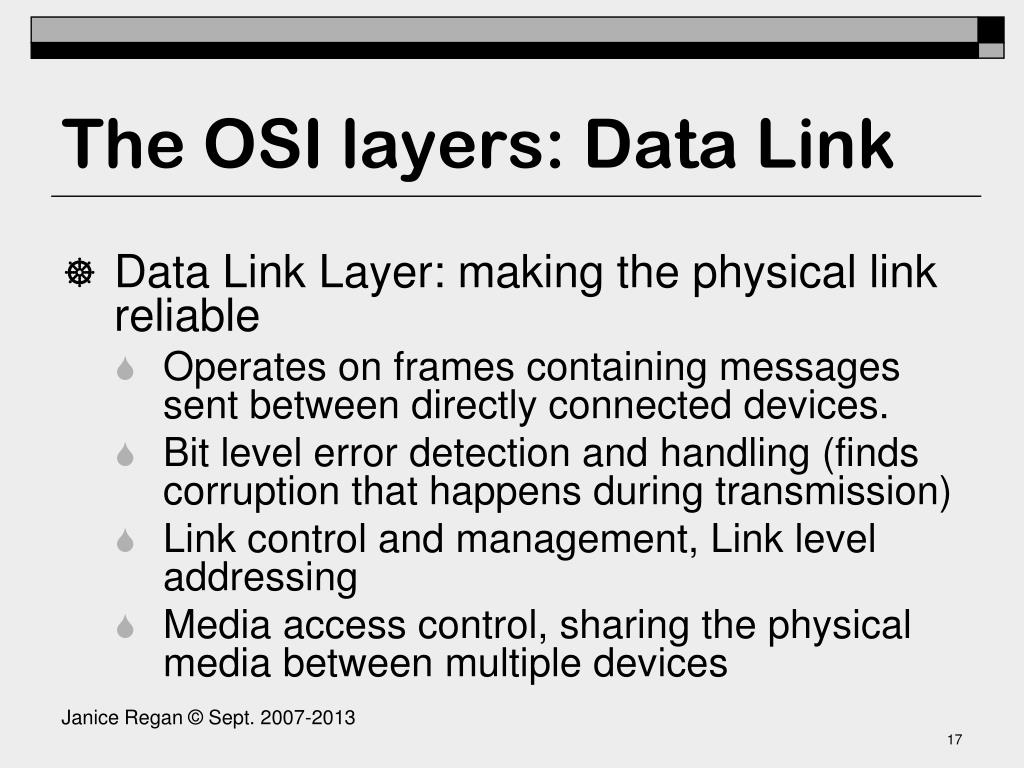

  18. The OSI layers: Data Link • Data Link Layer: making the physical link reliable • Operates on frames containing messages sent between directly connected devices. • Bit level error detection and handling (finds corruption that happens during transmission) • Link control and management, Link level addressing • Media access control, sharing the physical media between multiple devices

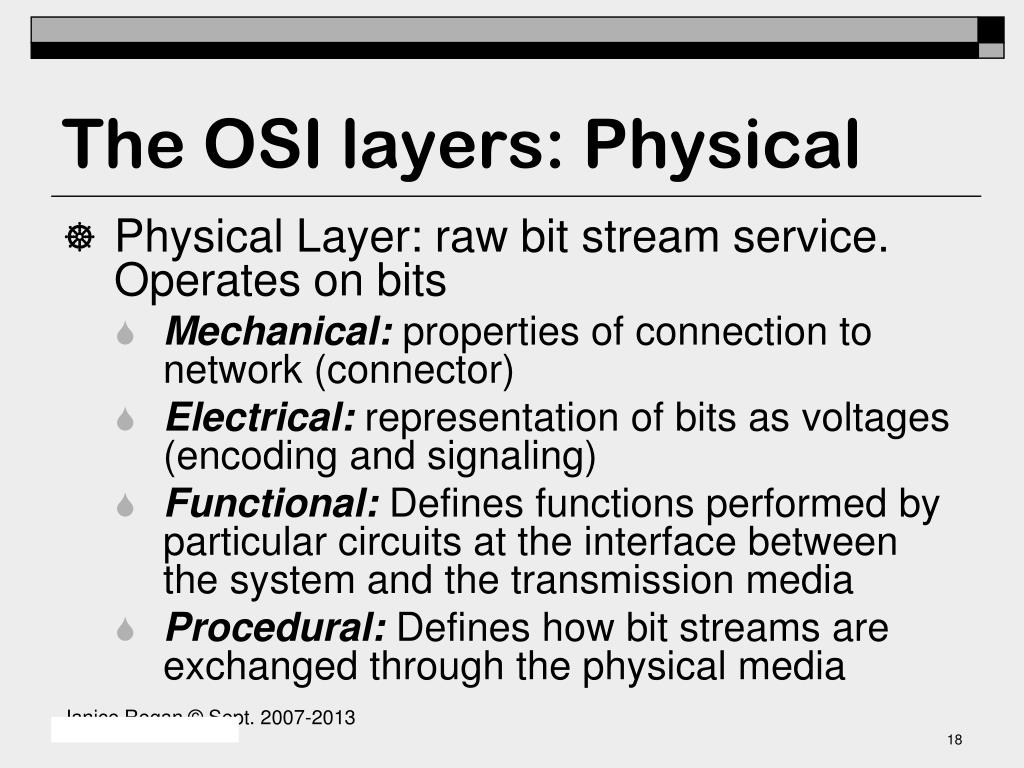

  19. The OSI layers: Physical • Physical Layer: raw bit stream service. Operates on bits • Mechanical: properties of connection to network (connector) • Electrical: representation of bits as voltages (encoding and signaling) • Functional: Defines functions performed by particular circuits at the interface between the system and the transmission media • Procedural: Defines how bit streams are exchanged through the physical media

  20. Figure 1.11 Stallings (2000)

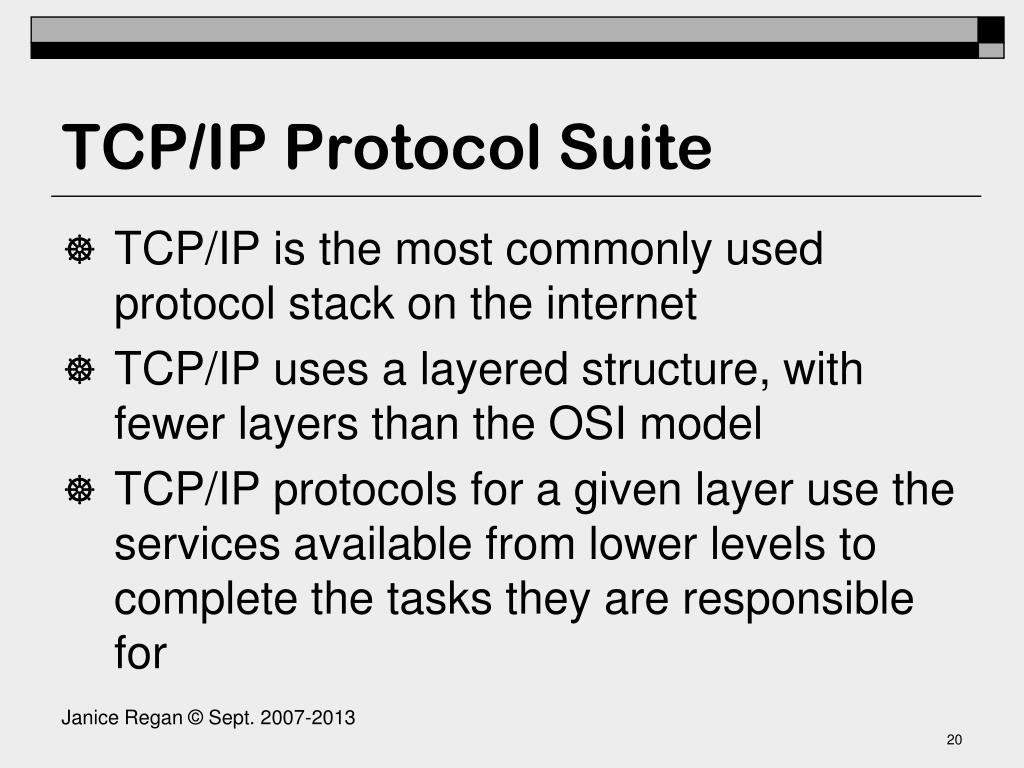

  21. TCP/IP Protocol Suite • TCP/IP is the most commonly used protocol stack on the internet • TCP/IP uses a layered structure, with fewer layers than the OSI model • TCP/IP protocols for a given layer use the services available from lower levels to complete the tasks they are responsible for

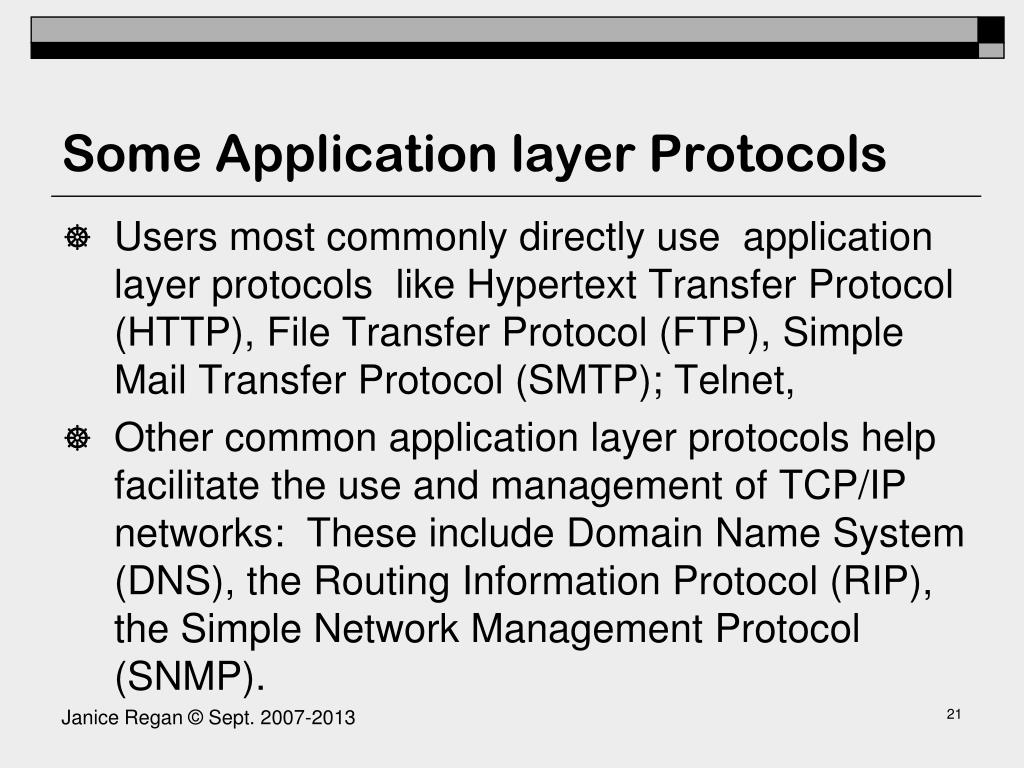

  22. Some Application layer Protocols • Users most commonly directly use application layer protocols like Hypertext Transfer Protocol (HTTP), File Transfer Protocol (FTP), Simple Mail Transfer Protocol (SMTP); Telnet, • Other common application layer protocols help facilitate the use and management of TCP/IP networks: These include Domain Name System (DNS), the Routing Information Protocol (RIP), the Simple Network Management Protocol (SNMP).

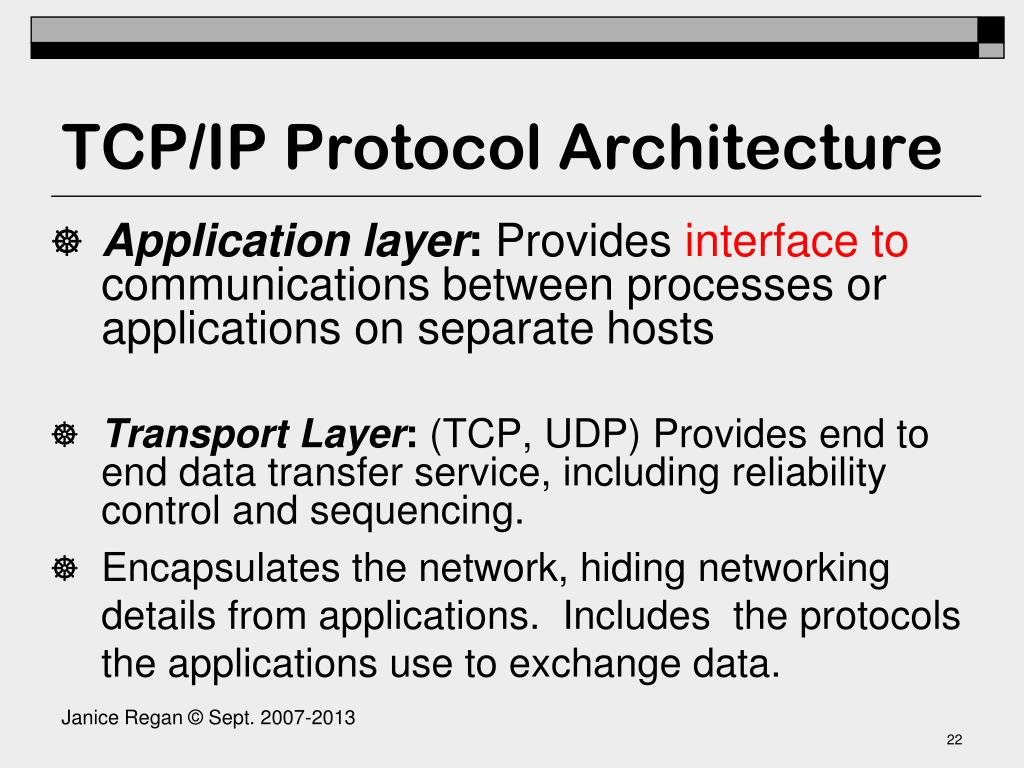

  23. TCP/IP Protocol Architecture • Application layer:Provides interface to communications between processes or applications on separate hosts • Transport Layer: (TCP, UDP) Provides end to end data transfer service, including reliability control and sequencing. • Encapsulates the network, hiding networking details from applications. Includes the protocols the applications use to exchange data.

  24. TCP/IP Protocol Architecture • Internet Layer: (IP) procedures for routing across multiple heterogeneous networks and through routers • Network Access Layer: Interface between end system and network, routing within a single network, access to a particular network, Depends on type of network • Physical Layer: Defines characteristics of the transmission medium, signaling rate, and encoding

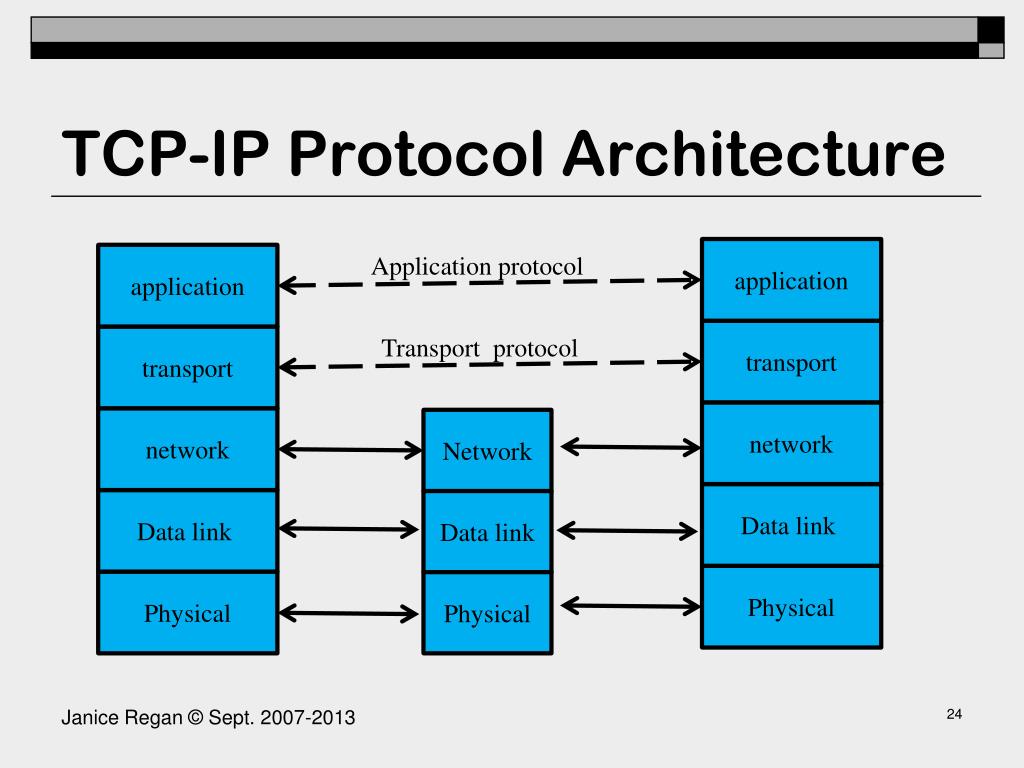

  25. TCP-IP Protocol Architecture application application Application protocol transport transport Transport protocol network network Data link Data link Network Physical Physical Data link Physical

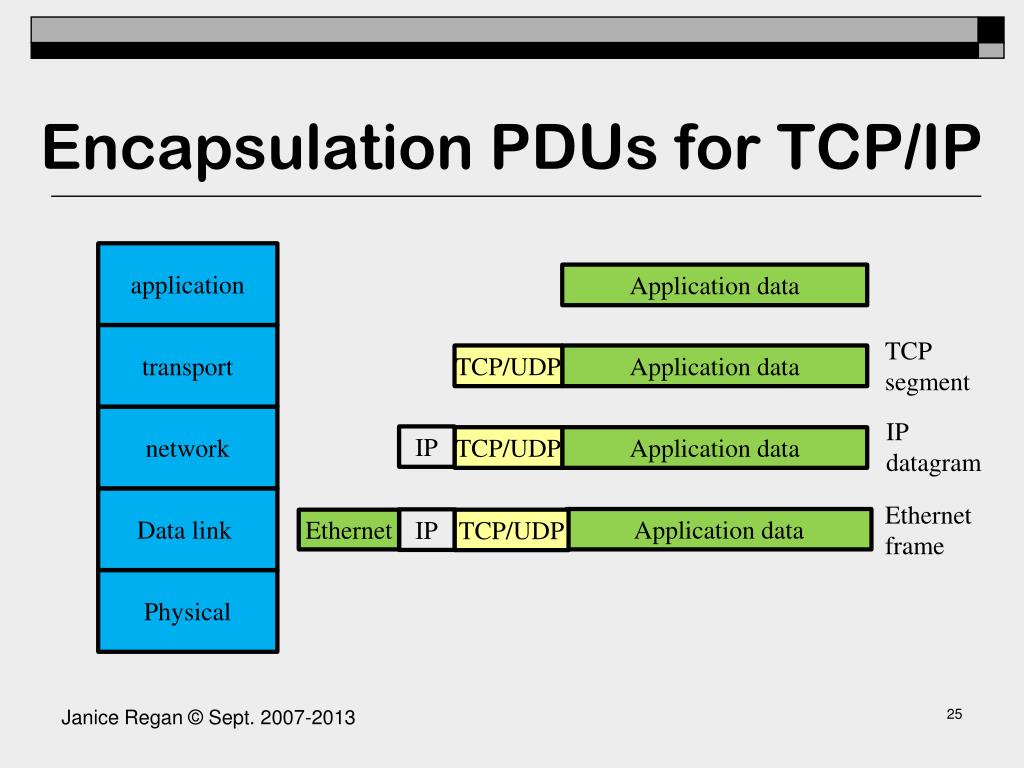

  26. Encapsulation PDUs for TCP/IP application Application data transport TCP segment TCP/UDP Application data network IP datagram IP TCP/UDP Application data Data link Ethernet frame Physical Application data IP Ethernet TCP/UDP

  27. Encapsulation: PDU Headers • TCP segment: User data +Transport Header • Destination and source process address of each occurrence of an application, called a port • Sequence Number used to manage packet flow, deliver packets in the correct order • Checksum preserves reliability of data transfer and assure delivery to correct destination • Lengths, flags …

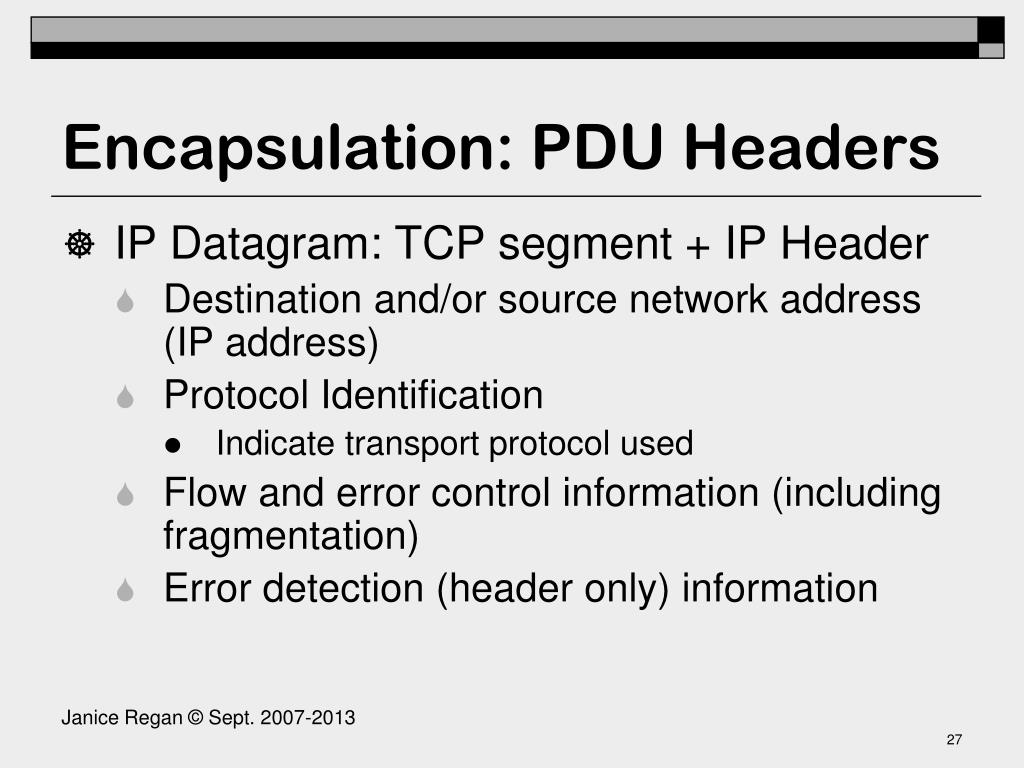

  28. Encapsulation: PDU Headers • IP Datagram: TCP segment + IP Header • Destination and/or source network address (IP address) • Protocol Identification • Indicate transport protocol used • Flow and error control information (including fragmentation) • Error detection (header only) information

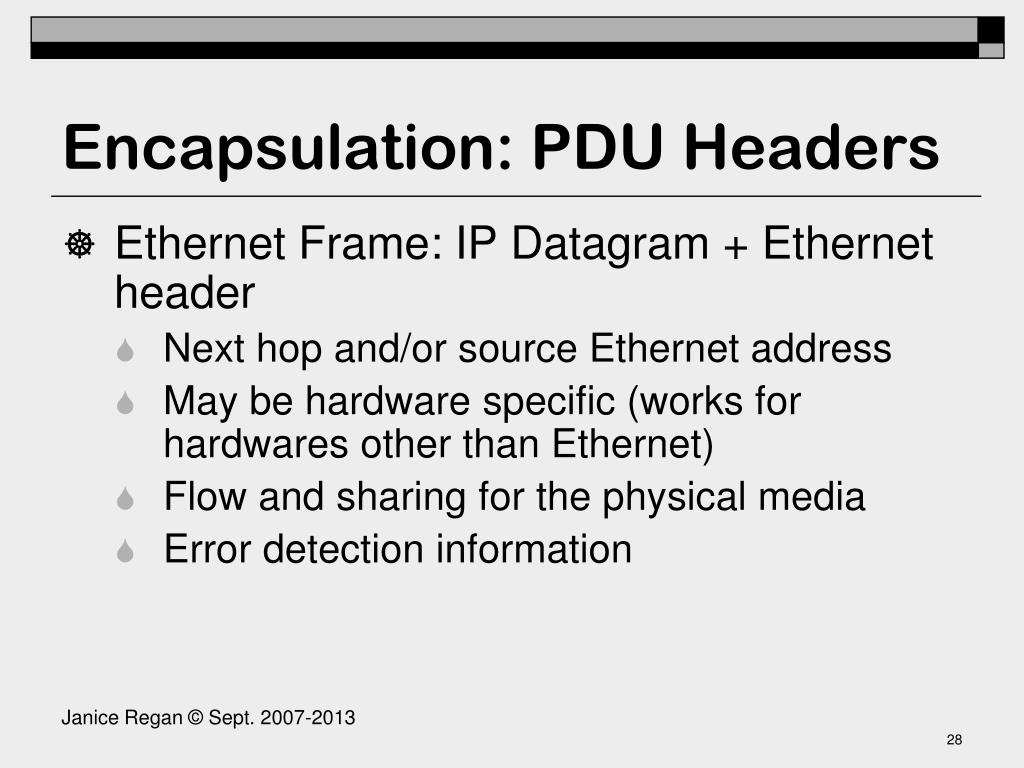

  29. Encapsulation: PDU Headers • Ethernet Frame: IP Datagram + Ethernet header • Next hop and/or source Ethernet address • May be hardware specific (works for hardwares other than Ethernet) • Flow and sharing for the physical media • Error detection information

  30. Using a relay (router) application application transport transport network network Data link Data link Network Physical Physical Data link Physical

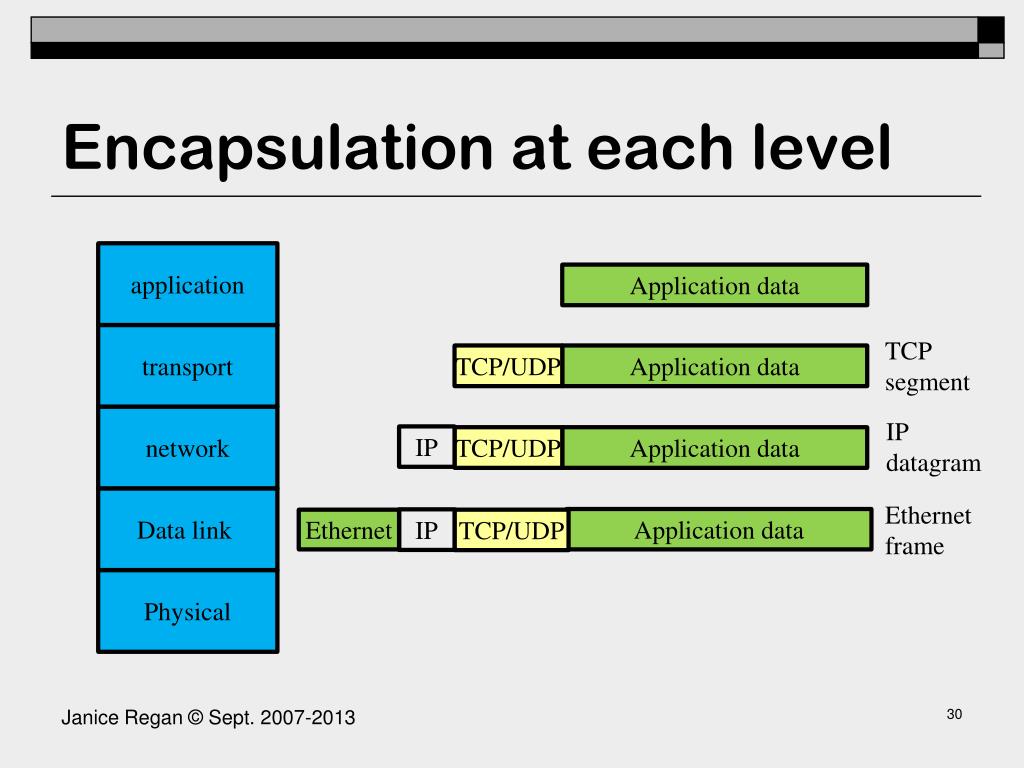

  31. Encapsulation at each level application Application data transport TCP segment TCP/UDP Application data network IP datagram IP TCP/UDP Application data Data link Ethernet frame Physical Application data IP Ethernet TCP/UDP

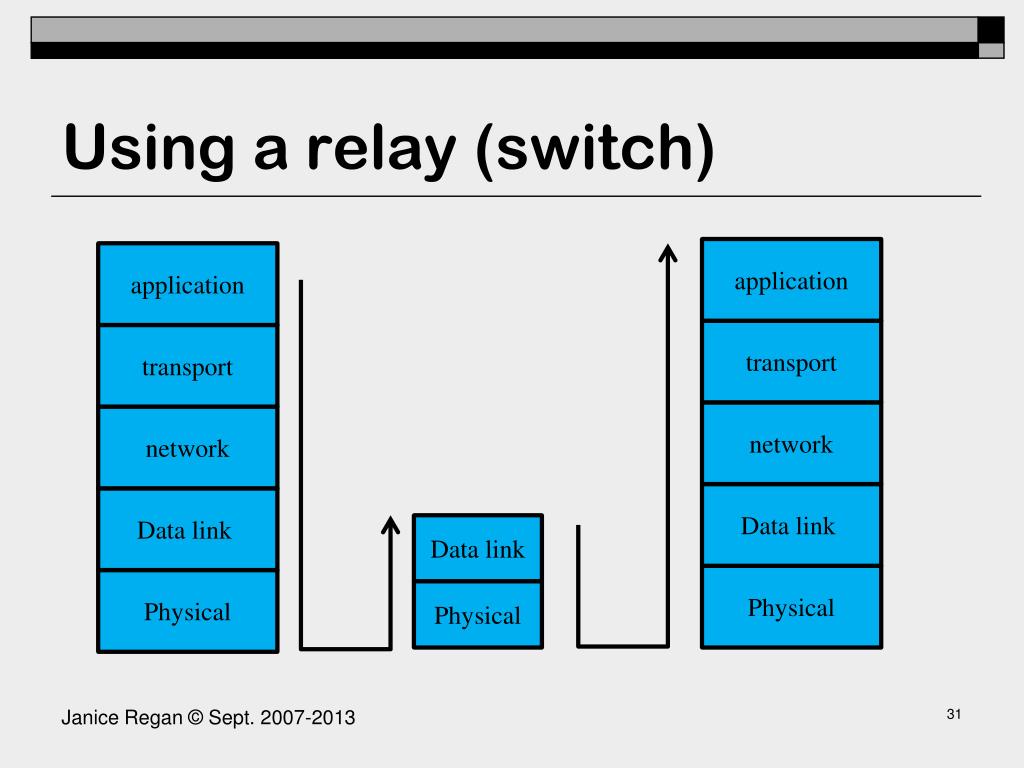

  32. Using a relay (switch) application application transport transport network network Data link Data link Physical Physical Data link Physical
