  1. Intelligent Environments Computer Science and Engineering University of Texas at Arlington Intelligent Environments

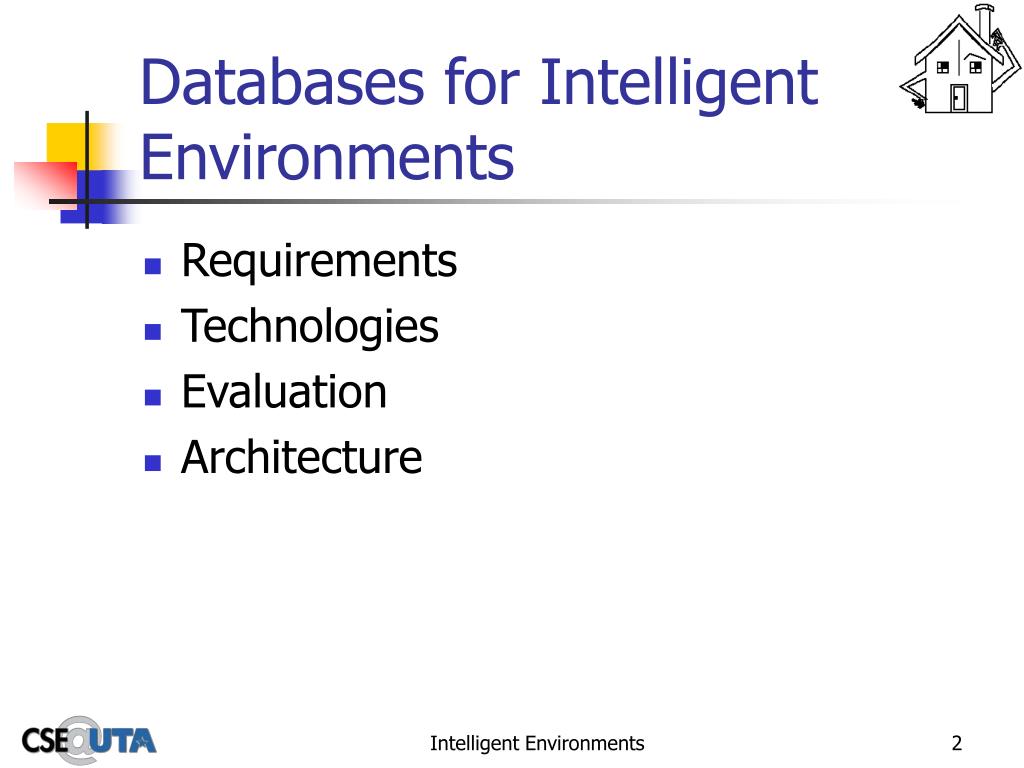

  2. Databases for Intelligent Environments • Requirements • Technologies • Evaluation • Architecture Intelligent Environments

  3. Intelligent Environments Database Requirements Intelligent Environments

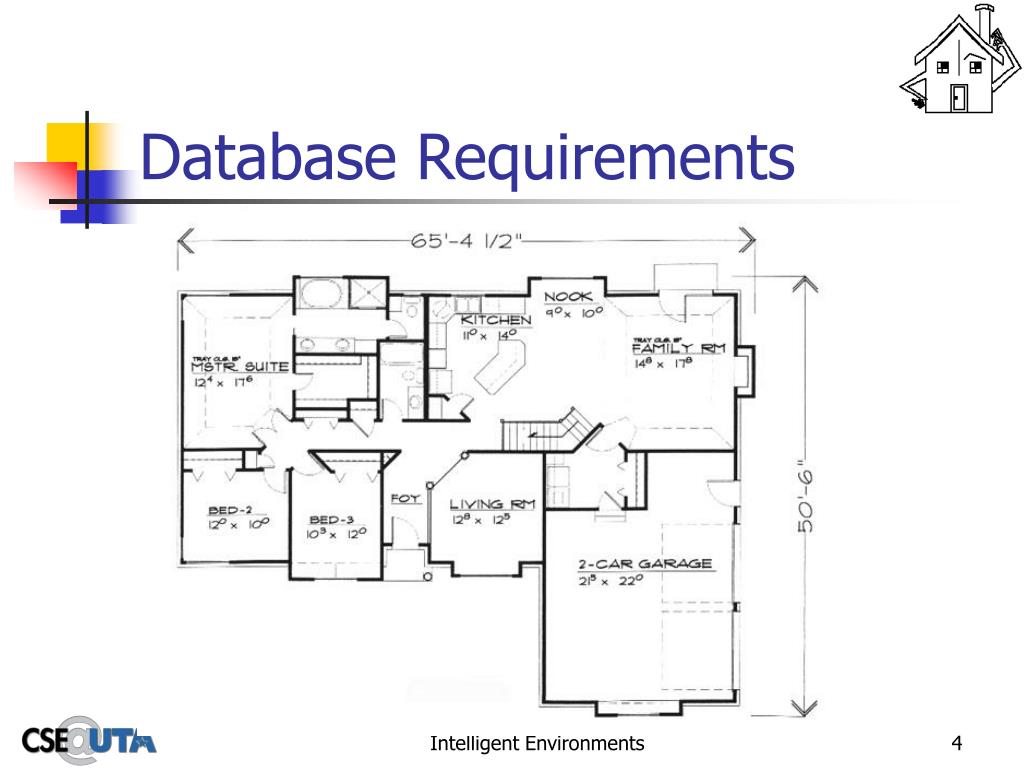

  4. Database Requirements Intelligent Environments

  5. Data Storage Requirements • Sensor data • Temperature (15 @ 8 Kbps) • Humidity (15 @ 8 Kbps) • Gas (15 @ 8 Kbps) • Light (15 @ 8 Kbps) • Motion (15 @ 8 Kbps) • Pressure (100 @ 8 Kbps) • Microphone (15 @ 500 Kbps) • Camera (15 @ 10 Mbps) Intelligent Environments

  6. Data Storage Requirements • User data • Multimedia • Phone messages/conversations (500 Kbps – 10 Mbps) • Music (500 Kbps) • TV/Radio broadcasts (500 Kbps – 10 Mbps) • Home movies (10 Mbps) • Images • Computer • Programs • Data files • Operating systems Intelligent Environments

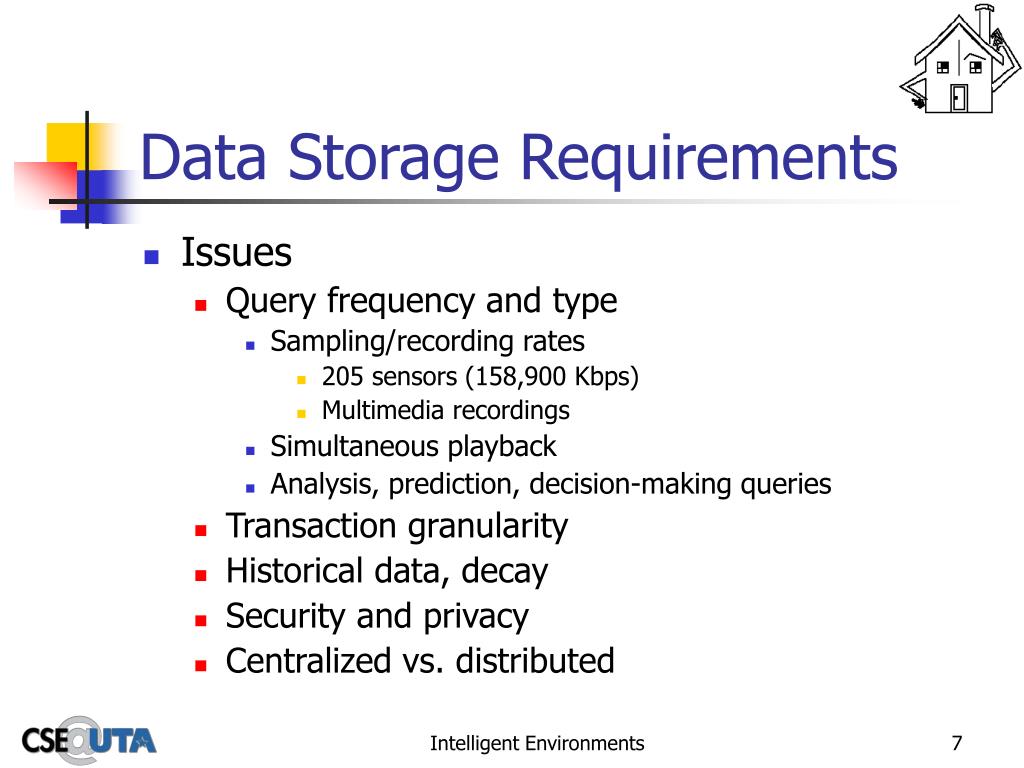

  7. Data Storage Requirements • Issues • Query frequency and type • Sampling/recording rates • 205 sensors (158,900 Kbps) • Multimedia recordings • Simultaneous playback • Analysis, prediction, decision-making queries • Transaction granularity • Historical data, decay • Security and privacy • Centralized vs. distributed Intelligent Environments

  8. Intelligent Environments Database Technologies Intelligent Environments

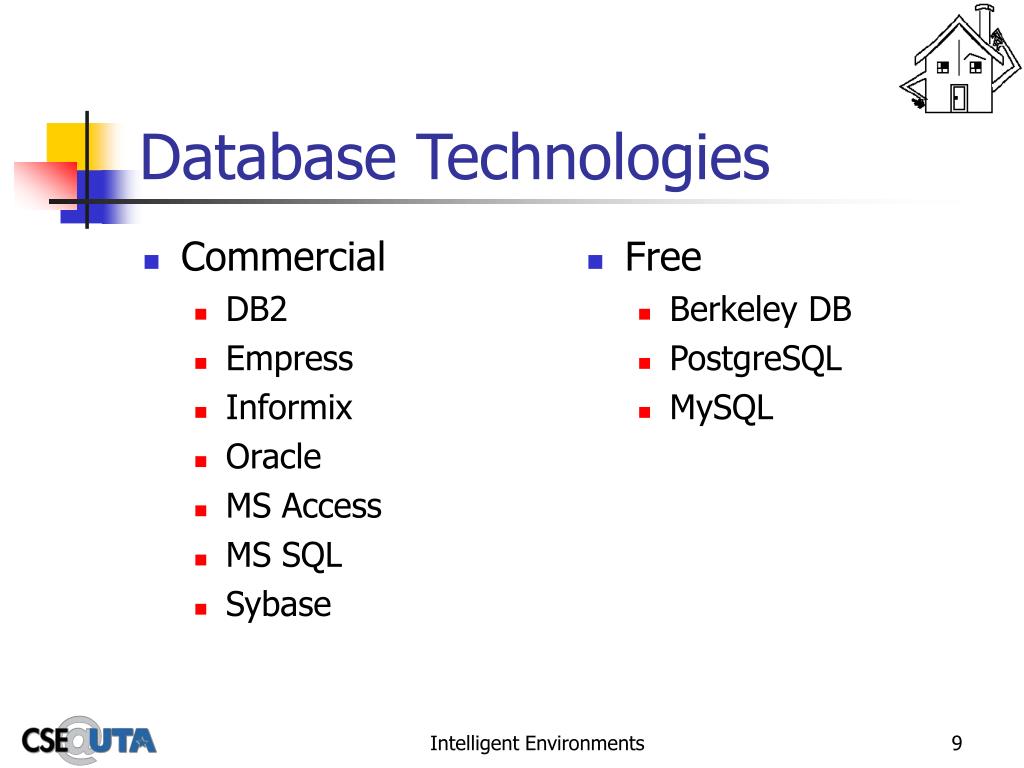

  9. Commercial DB2 Empress Informix Oracle MS Access MS SQL Sybase Free Berkeley DB PostgreSQL MySQL Database Technologies Intelligent Environments

  10. DB2 • Vendor: IBM • Availability: Commercial ($300) • www.ibm.com/software/data/db2 • Features • Comprehensive Intelligent Environments

  11. Empress • Vendor: Empress • Availability: Commercial ($ call) • www.empress.com • Features • Designed for embedded, real-time applications Intelligent Environments

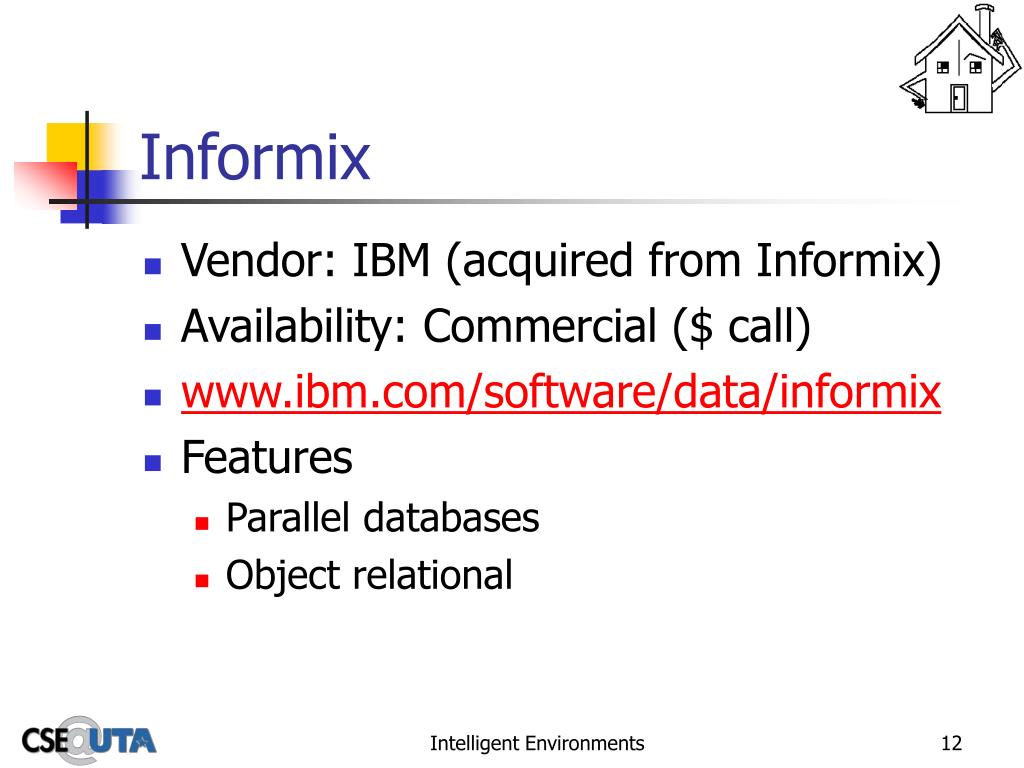

  12. Informix • Vendor: IBM (acquired from Informix) • Availability: Commercial ($ call) • www.ibm.com/software/data/informix • Features • Parallel databases • Object relational Intelligent Environments

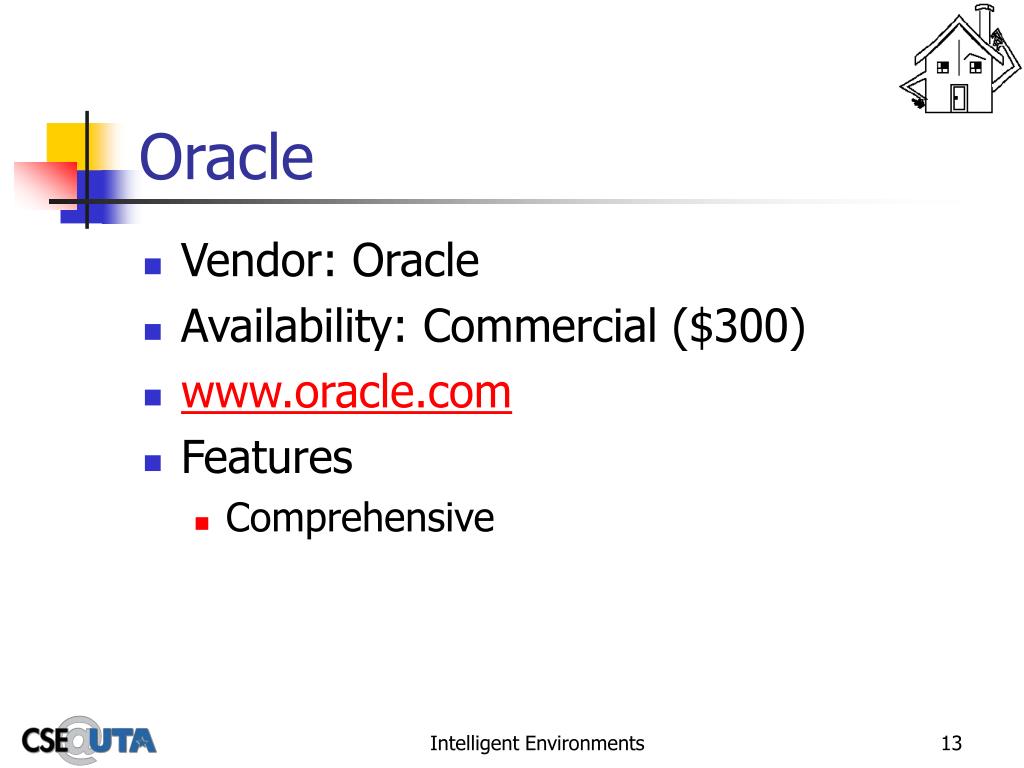

  13. Oracle • Vendor: Oracle • Availability: Commercial ($300) • www.oracle.com • Features • Comprehensive Intelligent Environments

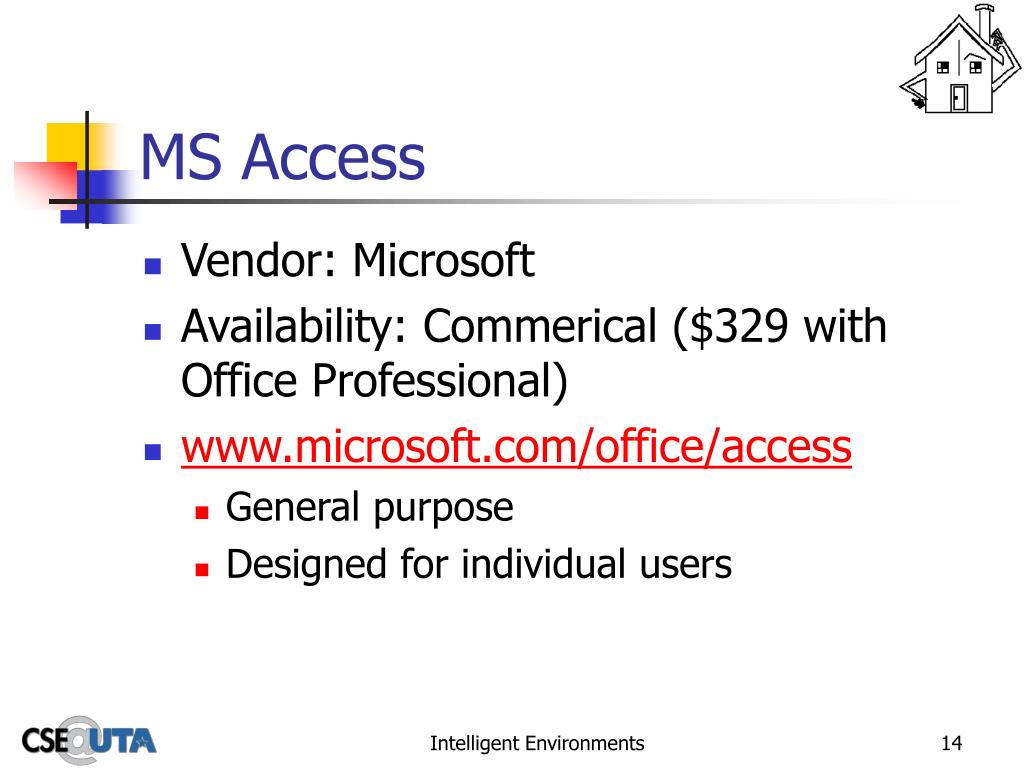

  14. MS Access • Vendor: Microsoft • Availability: Commerical ($329 with Office Professional) • www.microsoft.com/office/access • General purpose • Designed for individual users Intelligent Environments

  15. MS SQL • Vendor: Microsoft • Availability: Commercial ($5,000) • www.microsoft.com/sql • Features • General purpose • Designed for enterprise users Intelligent Environments

  16. Sybase • Vendor: Sybase • Availability: Commercial ($1,000) • www.sybase.com • Features • General purpose Intelligent Environments

  17. Berkeley DB • Vendor: UC Berkeley • Availability: Free • www.sleepycat.com • Features • Designed for embedded systems applications Intelligent Environments

  18. MySQL • Vendor: MySQL • Availability: Free • www.mysql.com • Features • General purpose Intelligent Environments

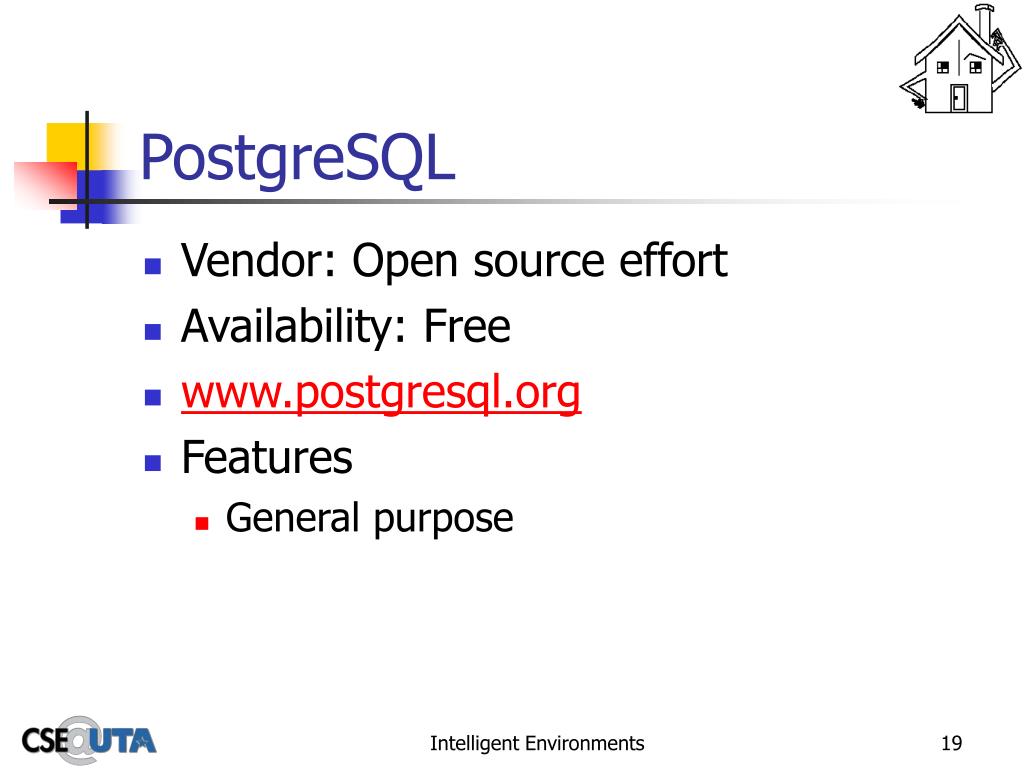

  19. PostgreSQL • Vendor: Open source effort • Availability: Free • www.postgresql.org • Features • General purpose Intelligent Environments

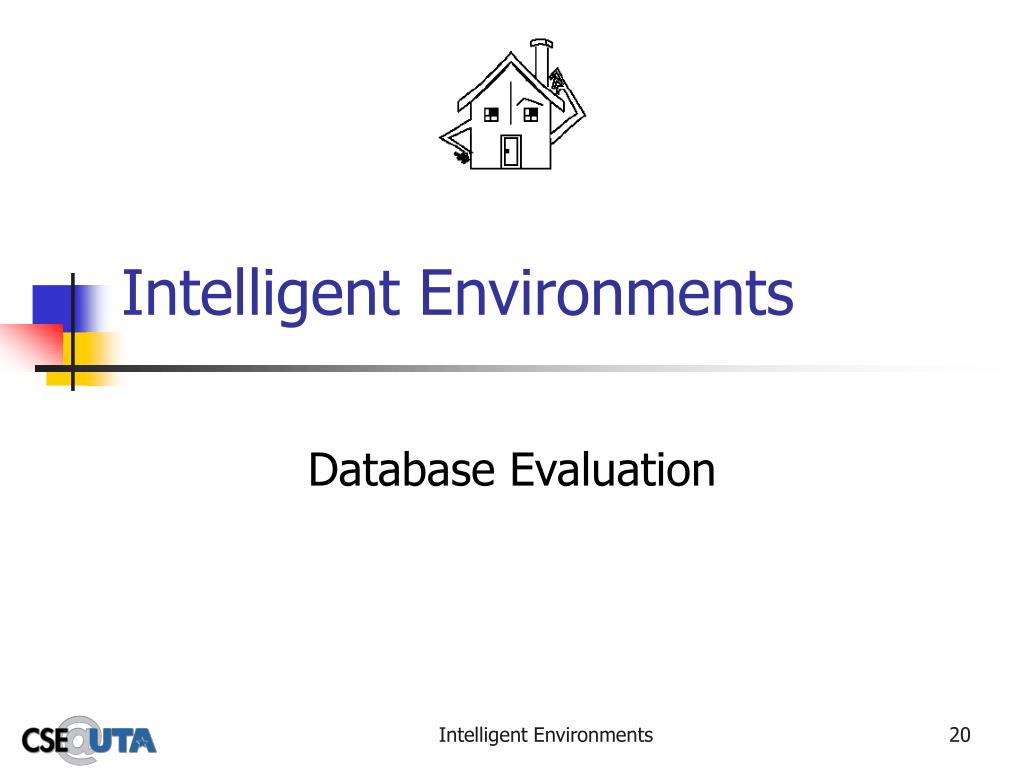

  20. Intelligent Environments Database Evaluation Intelligent Environments

  21. Database Benchmarking • Transaction Processing Performance Council (TPC) • www.tpc.org • Rigorously-defined benchmarks • Independent regulatory body • TPC benchmarks • TPC-C, TPC-H, TPC-R, TPC-W Intelligent Environments

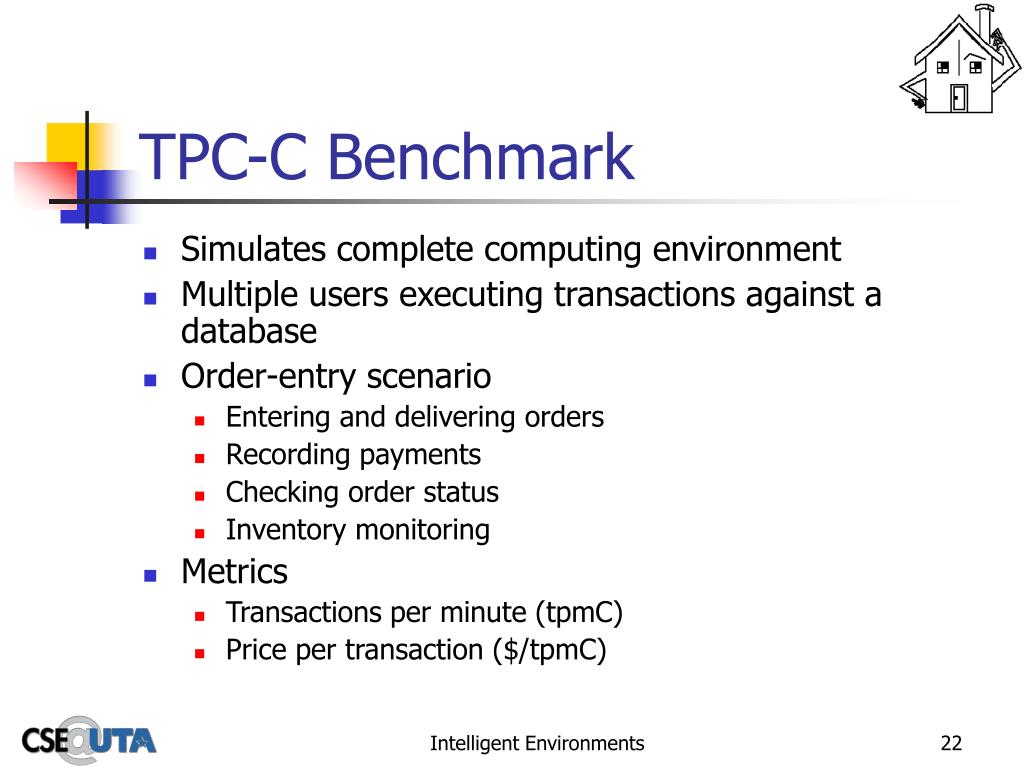

  22. TPC-C Benchmark • Simulates complete computing environment • Multiple users executing transactions against a database • Order-entry scenario • Entering and delivering orders • Recording payments • Checking order status • Inventory monitoring • Metrics • Transactions per minute (tpmC) • Price per transaction ($/tpmC) Intelligent Environments

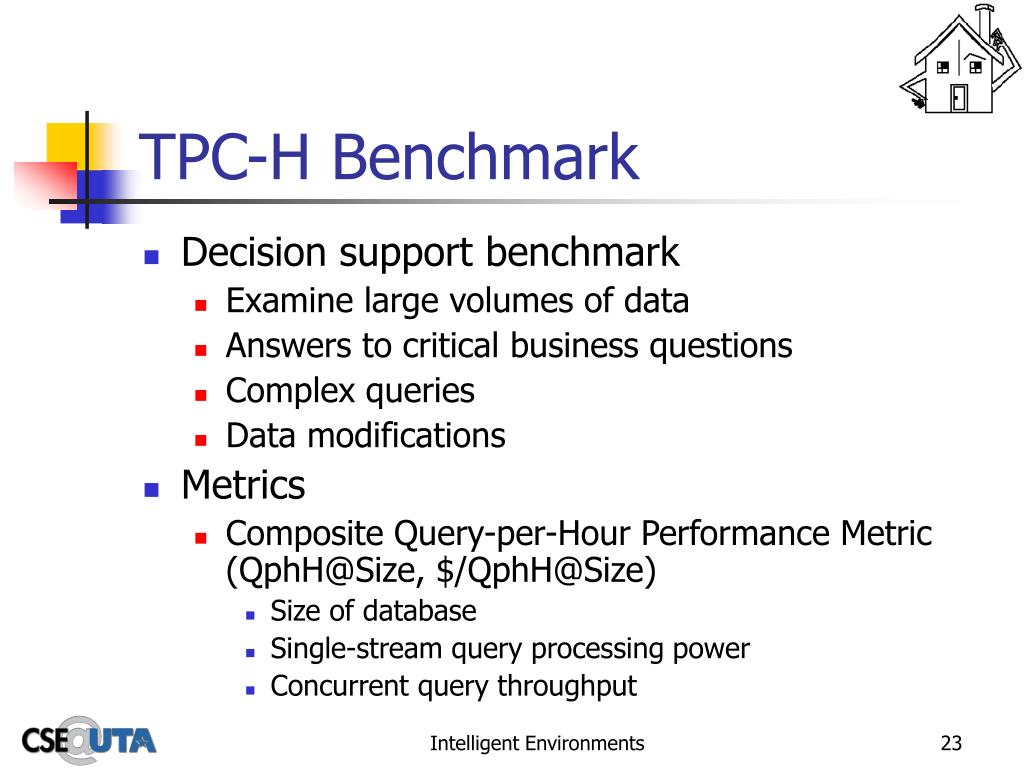

  23. TPC-H Benchmark • Decision support benchmark • Examine large volumes of data • Answers to critical business questions • Complex queries • Data modifications • Metrics • Composite Query-per-Hour Performance Metric (QphH@Size, $/QphH@Size) • Size of database • Single-stream query processing power • Concurrent query throughput Intelligent Environments

  24. TPC-R Benchmark • Decision support benchmark • Similar to TPC-H • Advanced knowledge of queries • Allows optimization • Metrics • Composite Query-per-Hour Performance Metric (QphR@Size, $/QphR@Size) Intelligent Environments

  25. TPC-W Benchmark • Web transactions benchmark • E-commerce scenario • Multiple browser sessions • Dynamic page generation with database access and update • Simultaneous transaction execution • Heterogeneous database tables (sizes, attributes, relationships) • Metrics • Web interactions processed per second (WIPS, $/WIPS) Intelligent Environments

  26. TPC Results • Best • TPC-C • 709,220 tpmC (MS SQL) • TPC-H • 100GB: 5578 QphH (Oracle) • 300GB: 5976 QphH (Oracle) • 1000GB: 25,805 QphH (Oracle) • 3000GB: 79,528 QphH (Teradata) • 10,000GB: 81,501 QphH (Teradata) Intelligent Environments

  27. TPC Results • Best • TPC-R • 100GB: 4442 QphR (Oracle) • TPC-W • 10,000 items: 21,139 WIPS (MS SQL) • 100,000 items: 10,439 WIPS (MS SQL) • More results at www.tpc.org Intelligent Environments

  28. Other Benchmarks • Wisconsin • Relational queries • AS3AP • ANSI SQL Scalable and Portable benchmark • Mix of transactions, relational queries, and utility functions • Open Source Database Benchmark (OSDB) • Based on AS3AP Intelligent Environments

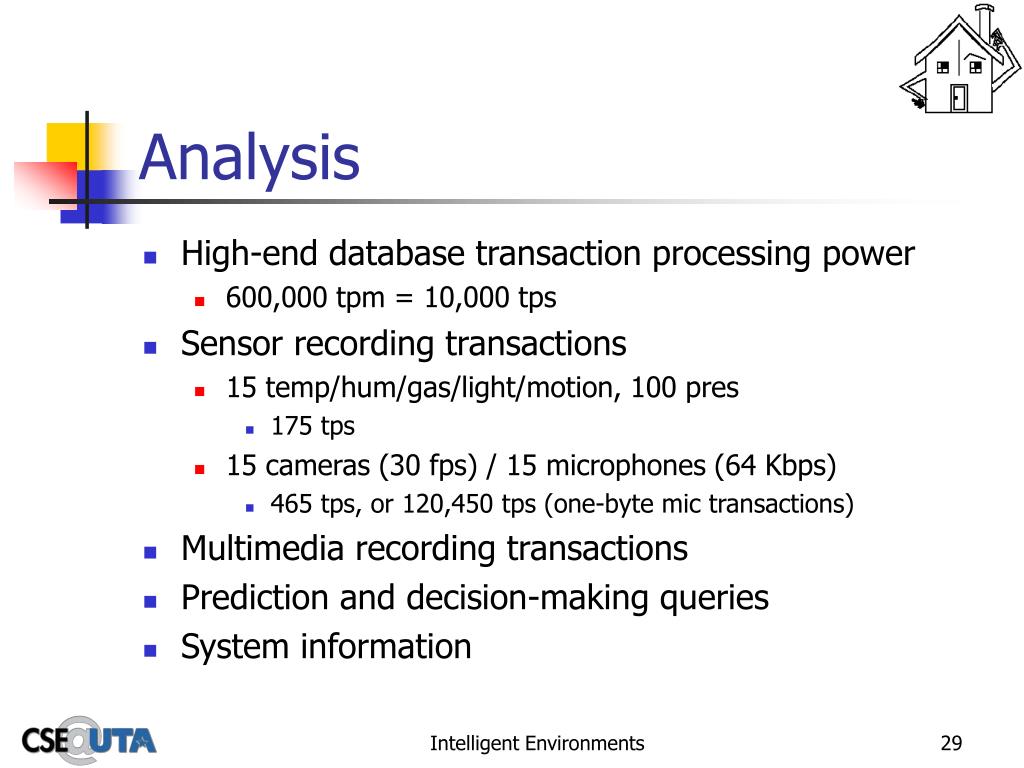

  29. Analysis • High-end database transaction processing power • 600,000 tpm = 10,000 tps • Sensor recording transactions • 15 temp/hum/gas/light/motion, 100 pres • 175 tps • 15 cameras (30 fps) / 15 microphones (64 Kbps) • 465 tps, or 120,450 tps (one-byte mic transactions) • Multimedia recording transactions • Prediction and decision-making queries • System information Intelligent Environments

  30. Intelligent Environments Database Architecture Intelligent Environments

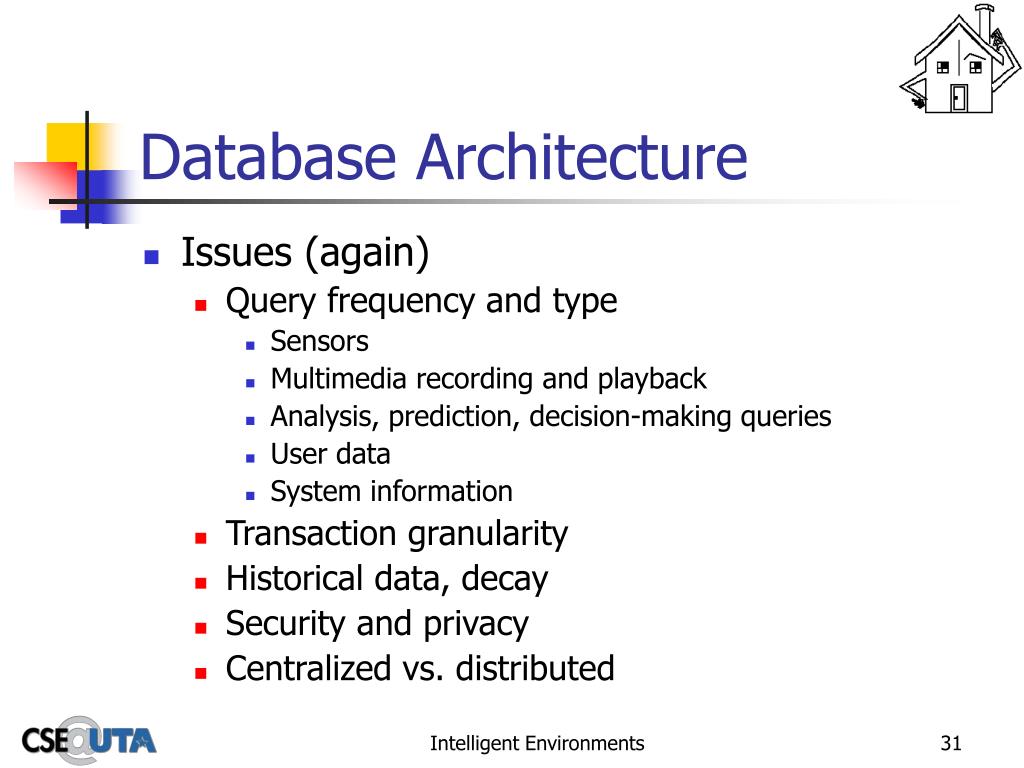

  31. Database Architecture • Issues (again) • Query frequency and type • Sensors • Multimedia recording and playback • Analysis, prediction, decision-making queries • User data • System information • Transaction granularity • Historical data, decay • Security and privacy • Centralized vs. distributed Intelligent Environments

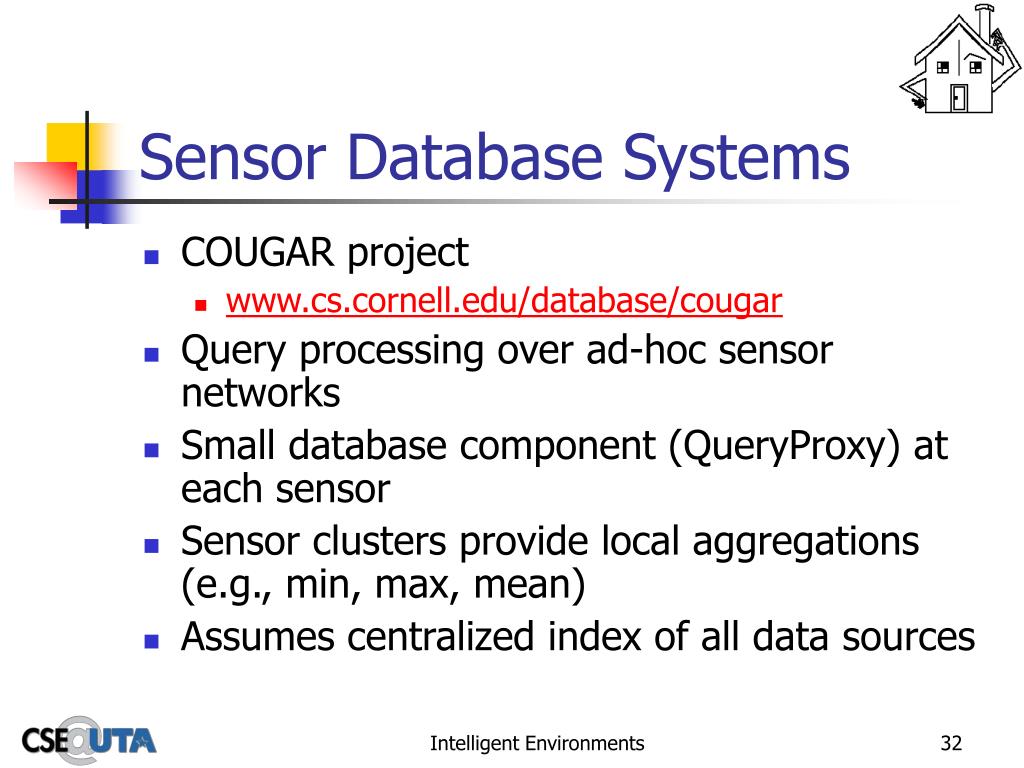

  32. Sensor Database Systems • COUGAR project • www.cs.cornell.edu/database/cougar • Query processing over ad-hoc sensor networks • Small database component (QueryProxy) at each sensor • Sensor clusters provide local aggregations (e.g., min, max, mean) • Assumes centralized index of all data sources Intelligent Environments

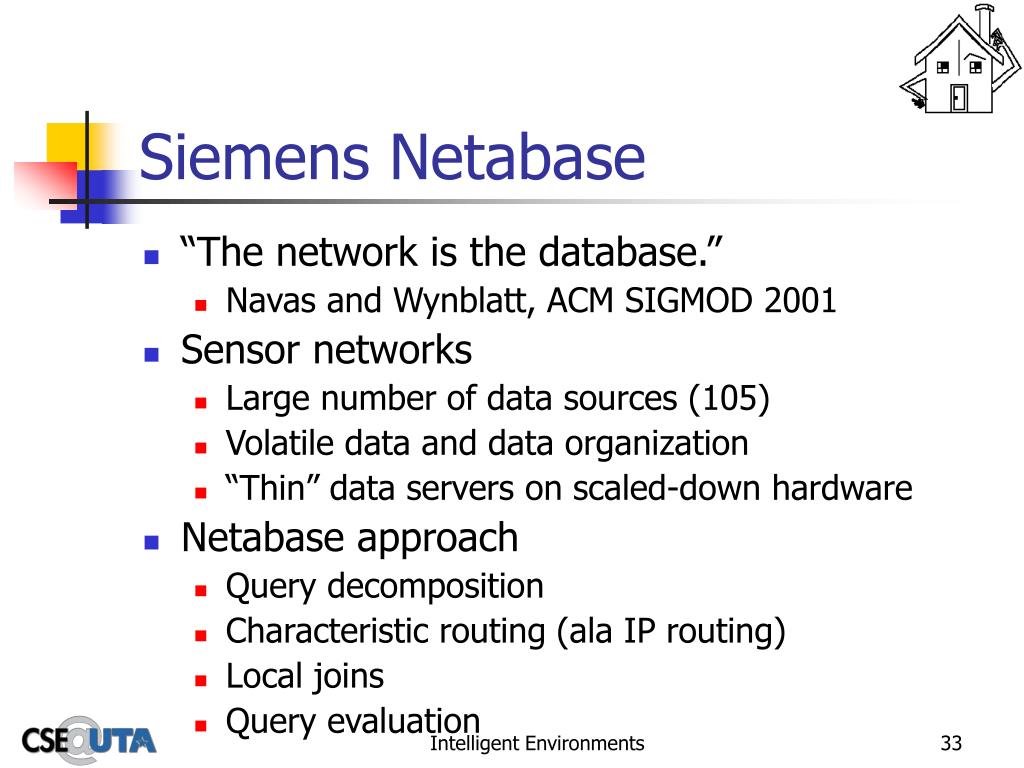

  33. Siemens Netabase • “The network is the database.” • Navas and Wynblatt, ACM SIGMOD 2001 • Sensor networks • Large number of data sources (105) • Volatile data and data organization • “Thin” data servers on scaled-down hardware • Netabase approach • Query decomposition • Characteristic routing (ala IP routing) • Local joins • Query evaluation Intelligent Environments

  34. Siemens Netabase • www.netabasesoftware.com Intelligent Environments

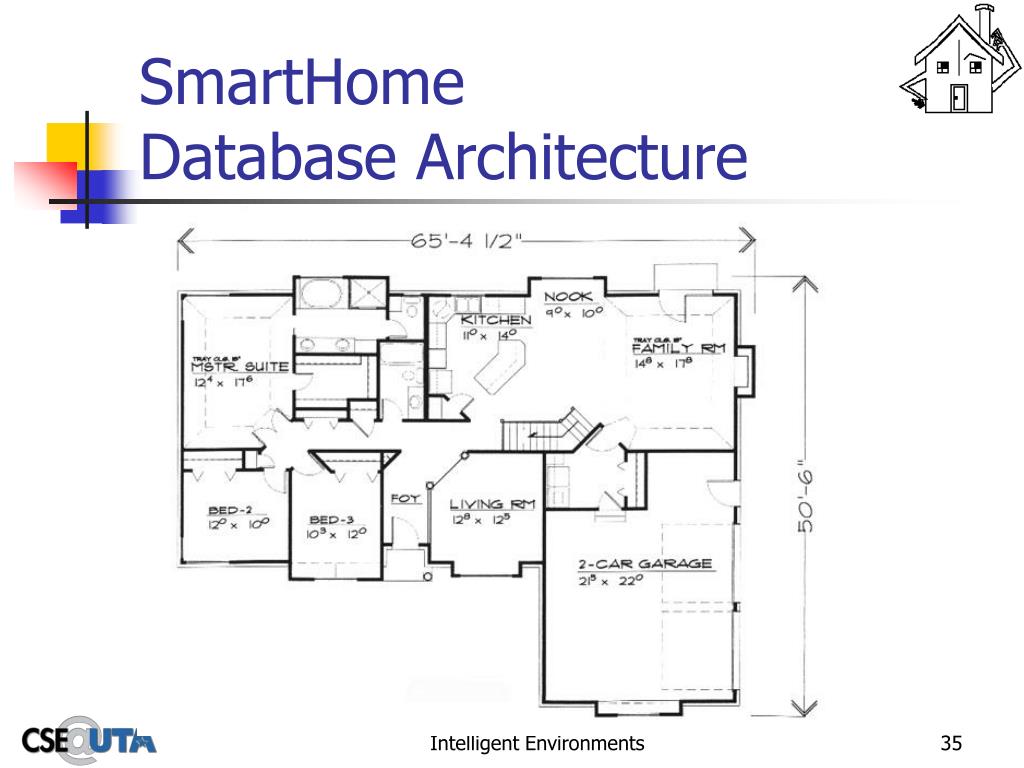

  35. SmartHomeDatabase Architecture Intelligent Environments

  36. SmartHomeDatabase Architecture • Centralized vs. distributed? • Answer: Both • Central storage of high demand, persistent data • Distributed storage of low demand, dynamic data • Distributed queries • Push processing toward sensors • Adaptive, hierarchical organization • End-effector autonomy (“smart sensor”) Intelligent Environments

  37. UTA MavHome Smart Home Intelligent Environments
