Efficient Biomimic Artificial Neuron Integrators

This paper explores the implementation of integrators for biomimic artificial neurons, designed to mimic real neuron signal characteristics with low power dissipation and small chip area. The circuit operates within a feedback loop in a Hodgkin-Huxley model.

lynton
Télécharger la présentation

Efficient Biomimic Artificial Neuron Integrators

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

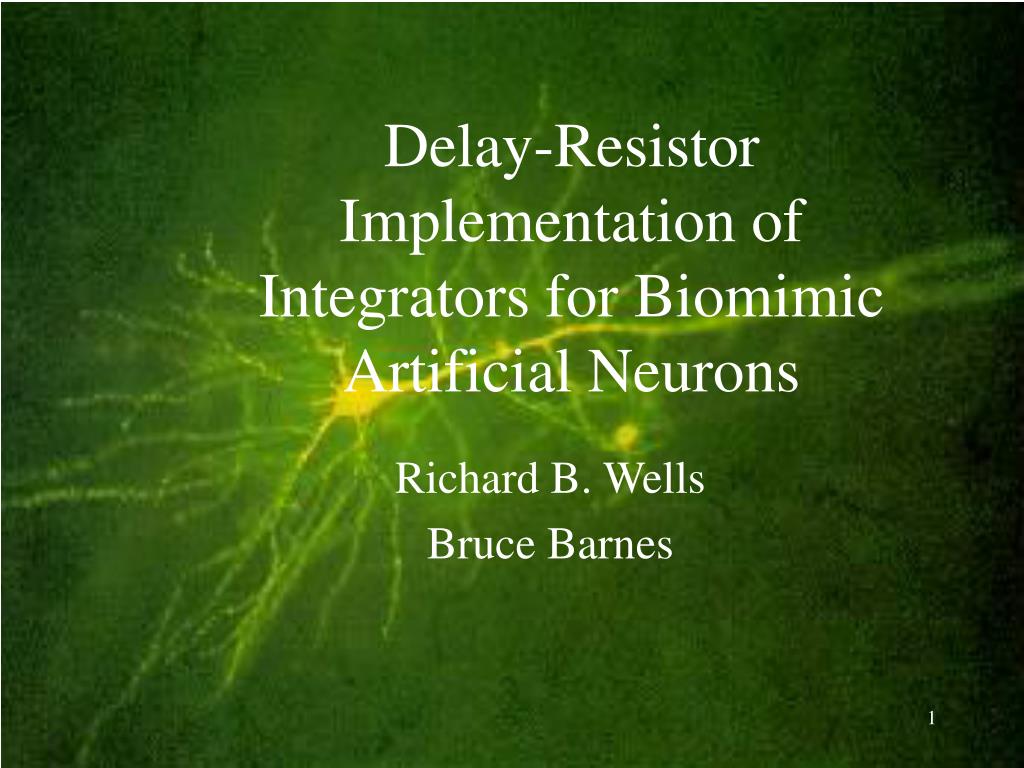

  1. Delay-Resistor Implementation of Integrators for Biomimic Artificial Neurons Richard B. Wells Bruce Barnes

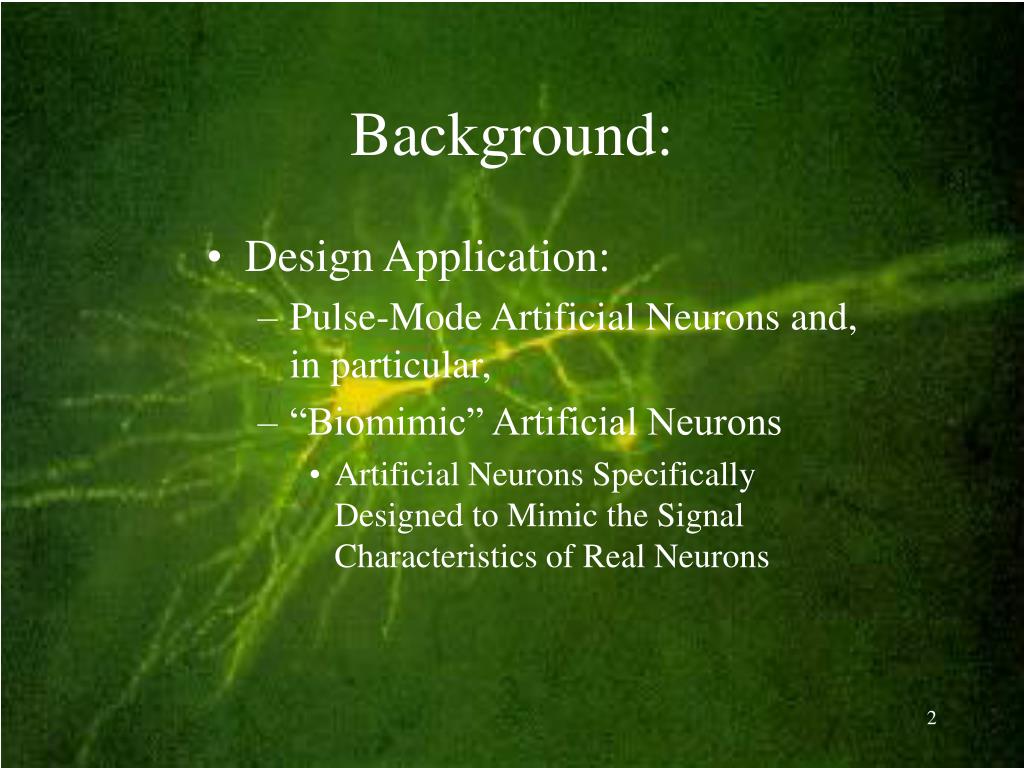

  2. Background: • Design Application: • Pulse-Mode Artificial Neurons and, in particular, • “Biomimic” Artificial Neurons • Artificial Neurons Specifically Designed to Mimic the Signal Characteristics of Real Neurons

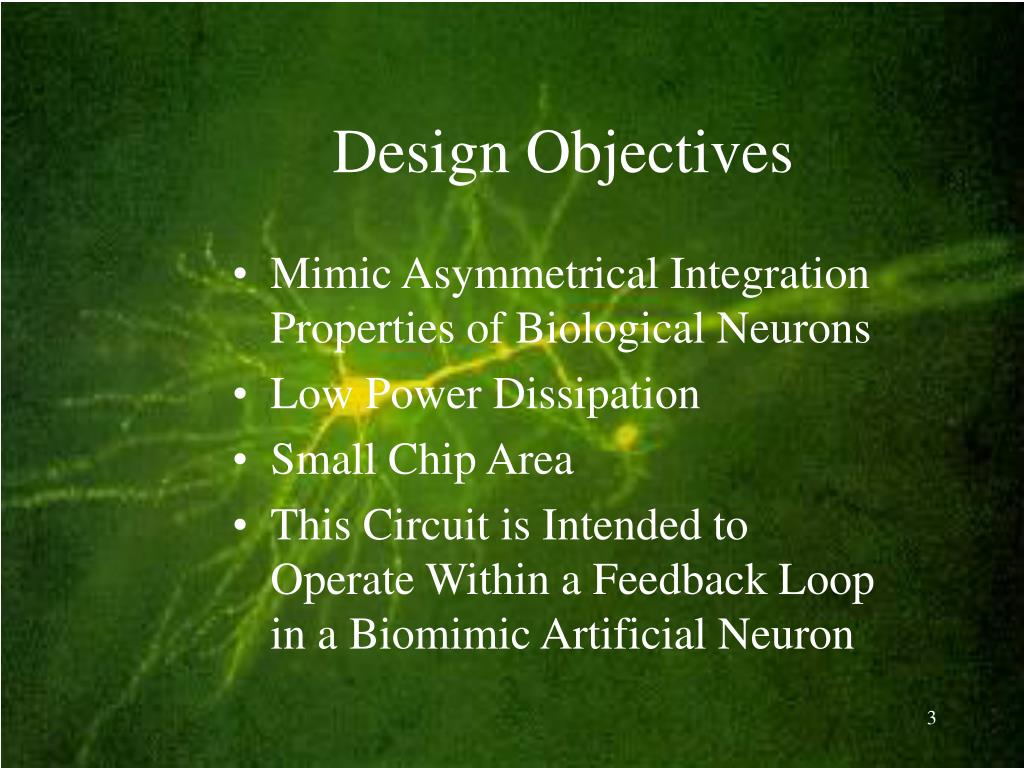

  3. Design Objectives • Mimic Asymmetrical Integration Properties of Biological Neurons • Low Power Dissipation • Small Chip Area • This Circuit is Intended to Operate Within a Feedback Loop in a Biomimic Artificial Neuron

  4. Hodgkin-Huxley Model • The H-H Model Describes the Dynamics of Membrane Potential

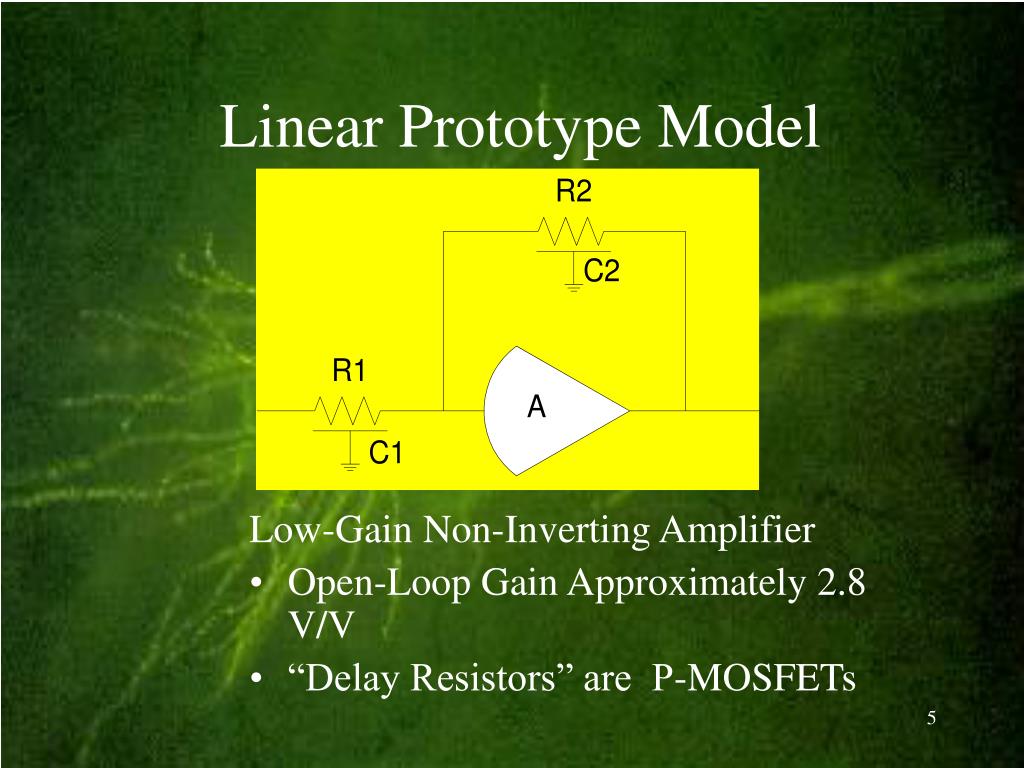

  5. Linear Prototype Model Low-Gain Non-Inverting Amplifier • Open-Loop Gain Approximately 2.8 V/V • “Delay Resistors” are P-MOSFETs

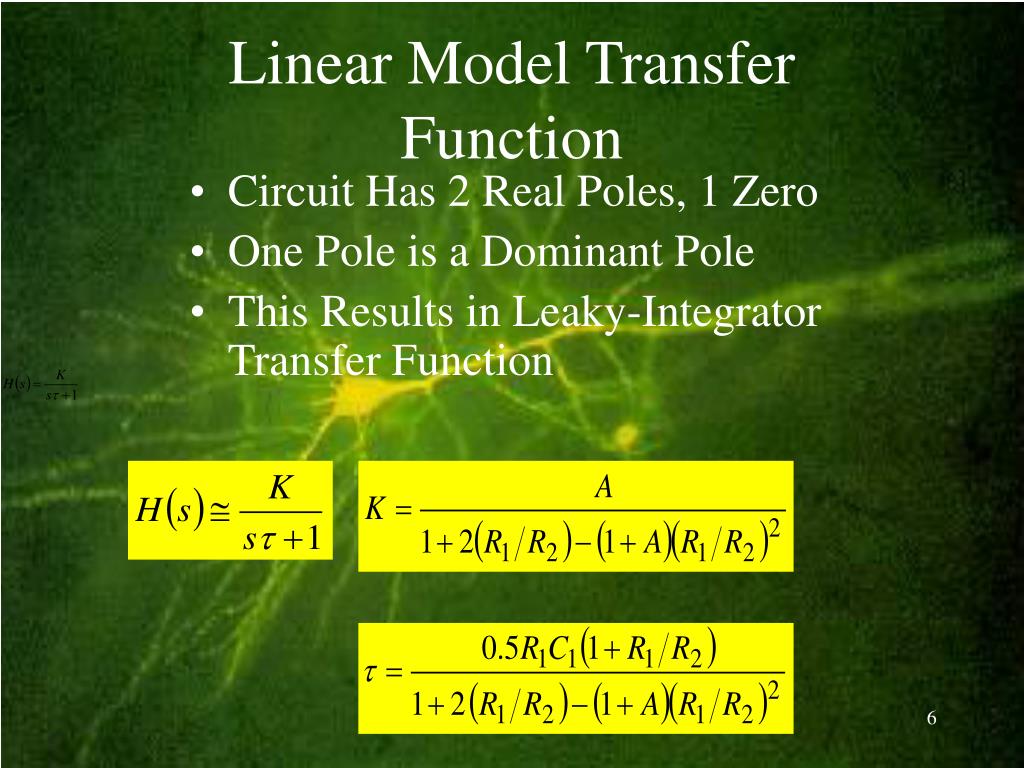

  6. Linear Model Transfer Function • Circuit Has 2 Real Poles, 1 Zero • One Pole is a Dominant Pole • This Results in Leaky-Integrator Transfer Function

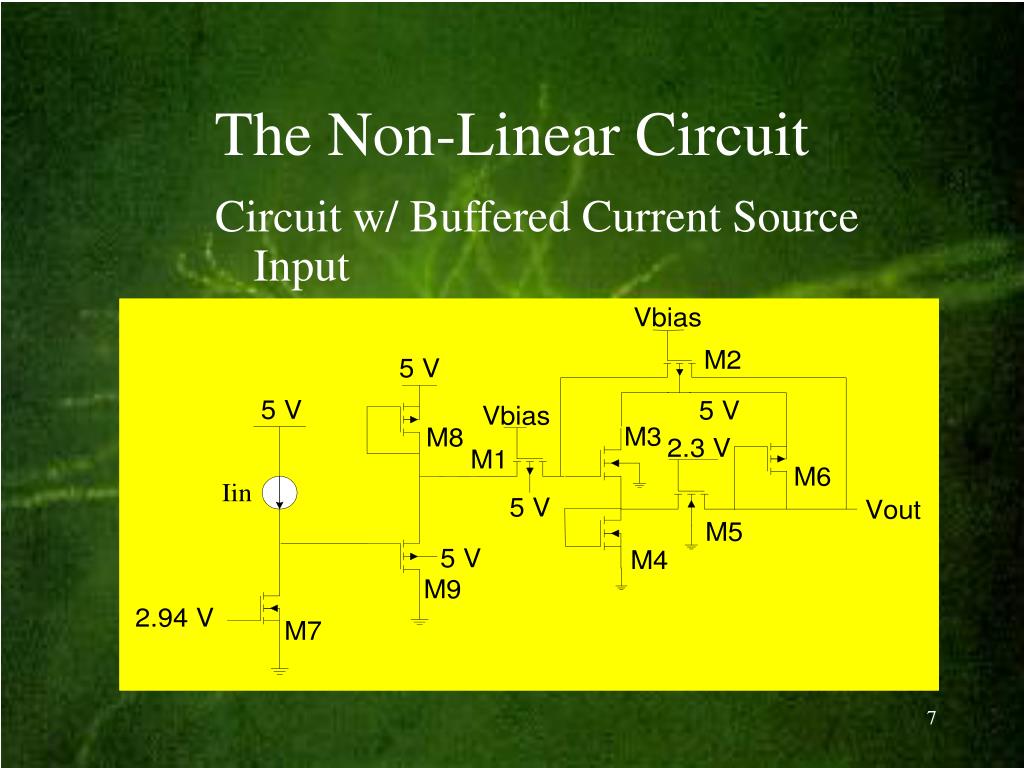

  7. The Non-Linear Circuit Circuit w/ Buffered Current Source Input

  8. Transfer Characteristic • Current In to Voltage Out

  9. Integrator Response • Fall Time vs. Vbias of Delay Resistors

  10. Response to Pulse Input • Vbias = 1.77 Volts

  11. Thank You. Questions?
