  1. Distributed File System Yanjun Zhao

  2. DFS • A network file system where a single file system can be distributed across several physical computers • allows administrators to group shared folders located on different servers by transparently connecting them to one or more DFS namespaces

  3. Characteristics of a DFS • Network transparency: same access operation as local files • Location transparency: file name should not reveal its location • Location independence: file name should not be changed when its physical location changes • User mobility: access to file from anywhere • Fault tolerance • Scalability • File mobility: move files from one place to another in a running system

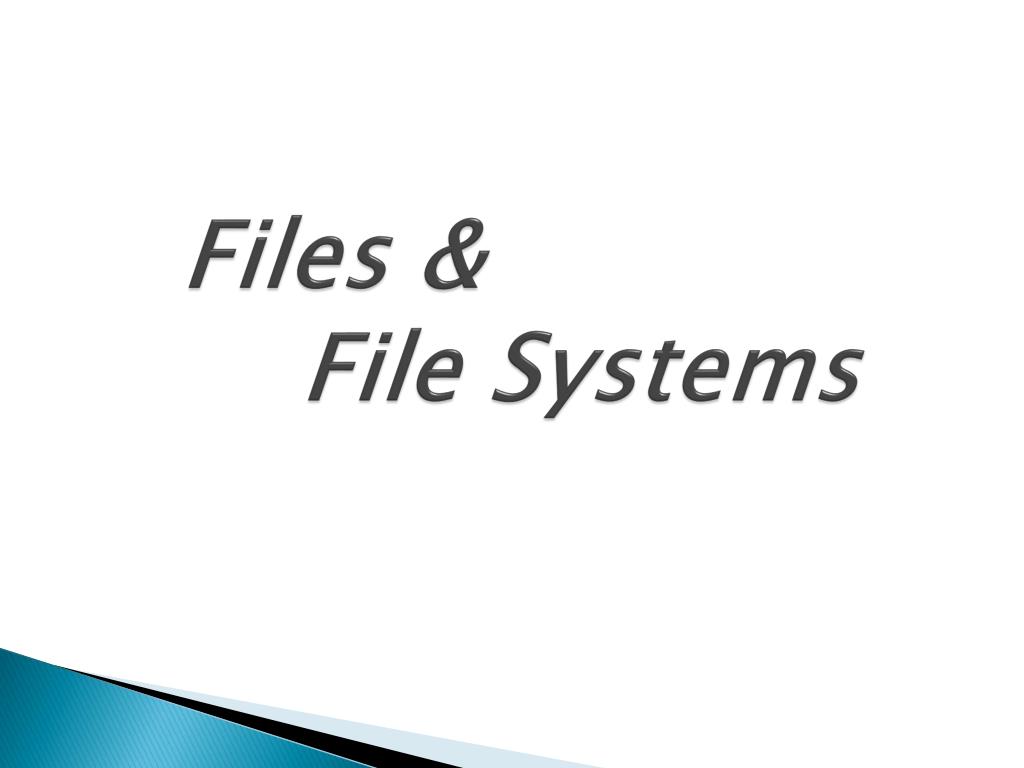

  4. Files & File Systems

  5. Files & File Systems • Files are named data objects. Files hold structured data that are used by programs but that are not part of the programs themselves. • File system is responsible for the naming, creation, deletion, retrieval, modification, and protection of a file in the system. • Logical components of a file for users. File Name File Attributes Data units

  6. Example • UNIX • Files are streams of characters for application programs and sequences of logical fixed size blocks for file system. • Both sequential and direct access methods are supported. Other access methods can be built on top of the flat file structures.

  7. Major Components in a file system

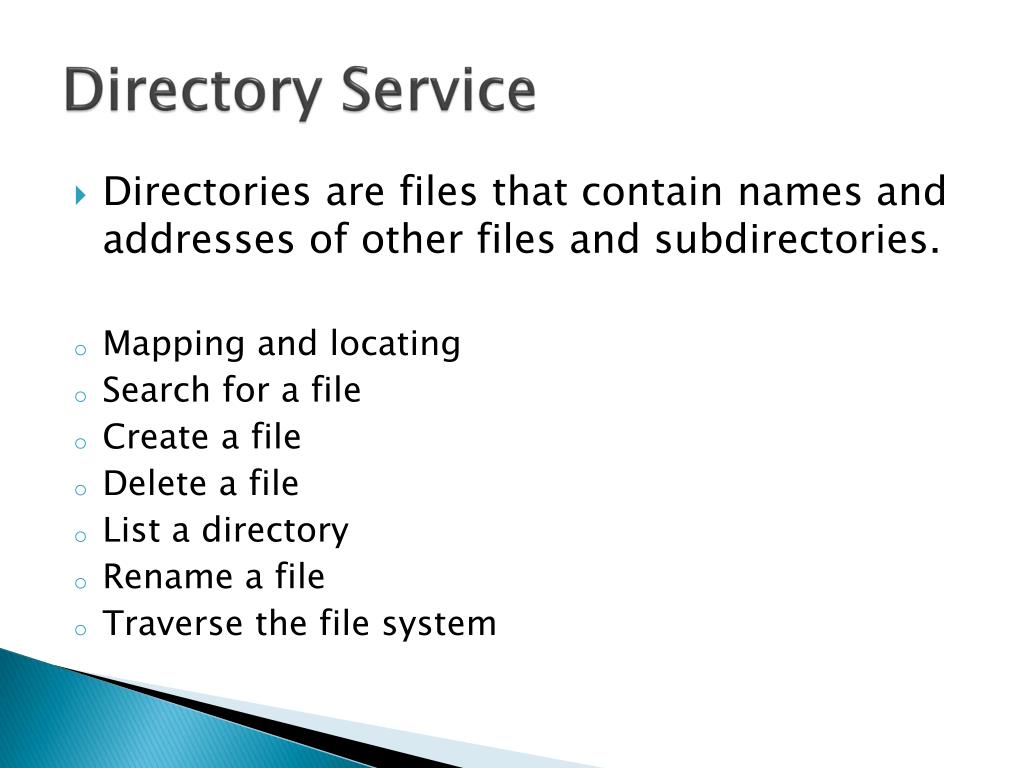

  8. Directory Service • Directories are files that contain names and addresses of other files and subdirectories. • Mapping and locating • Search for a file • Create a file • Delete a file • List a directory • Rename a file • Traverse the file system

  9. Authorization Service • File access must be regulated to ensure security • Types of access • Read • Write • Execute • Append • Delete • List

  10. File Service – Basic Operations • Delete • Search the directory • Release all file space • Truncate • Reset the file to length zero • Open(Fi) • Search the directory structure • Move the content of the directory entry to memory • Close(Fi) • move the content in memory to directory structure on disk • Get/set file attributes • Create • Allocate space • Make an entry in the directory • Write • Search the directory • Write is to take place at the location of the write pointer • Read • Search the directory • Read is to take place at the location of the read pointer • Reposition within file – file seek • Set the current file pointer to a given value

  11. System Service • System services are a FS’s interface to the hardware and are transparent to users of FS • Mapping of logical to physical block addresses • Interfacing to services at the device level for file space allocation/de-allocation • Actual read/write file operations • Caching for performance enhancement • Replicating for reliability improvement

  12. File Mounting & Server Registration

  13. File Mounting • Attach a remote named file system to the client’s file system hierarchy at the position pointed to by a path name • A mounting point is usually a leaf of the directory tree that contains only an empty subdirectory • Once files are mounted, they are accessed by using the concatenated logical path names without referencing either the remote hosts or local devices • Location transparency • The linked information (mount table) is kept until they are unmounted

  14. File Mounting • Different clients may perceive a different FS view • To achieve a global FS view – SA enforces mounting rules • Export: a file server restricts/allows the mounting of all or parts of its file system to a predefined set of hosts • The information is kept in the server’s export file • File system mounting: • Explicit mounting: clients make explicit mounting system calls whenever one is desired • Boot mounting: a set of file servers is prescribed and all mountings are performed the client’s boot time • Auto-mounting: mounting of the servers is implicitly done on demand when a file is first opened by a client

  15. Server Registration • The mounting protocol is not transparent – the initial mounting requires knowledge of the location of file servers • Server registration • File servers register their services, and clients consult with the registration server before mounting • Clients broadcast mounting requests, and file servers respond to client’s requests

  16. Stateful & Stateless File Servers

  17. Stateful&Stateless File Servers • State information • Opened files and their clients • File descriptors and file handles • Current file position pointers • Mounting information • Lock status • Session keys • Cache or buffer

  18. Stateful& Stateless File Servers • Sateful : a file server maintains internally some of the state information • Stateless : a file server maintains none at all. • Stateful file Server : file servers maintain state information about clients between requests • Stateless file Server : when a client sends a request to a server, the server carries out the request, sends the reply, and then remove from its internal tables all information about the request • Between requests, no client-specific information is kept on the server • Each request must be self-contained: full file name and offset…

  19. Comparing

  20. File Sharing & Space Multiplexing

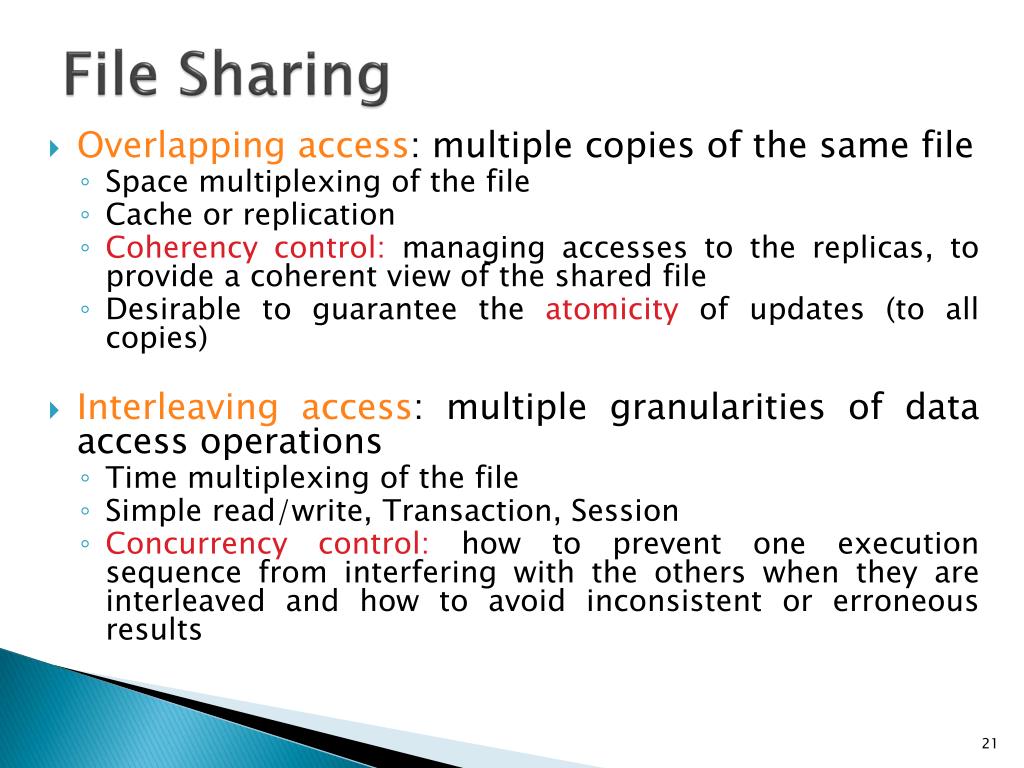

  21. File Sharing • Overlapping access: multiple copies of the same file • Space multiplexing of the file • Cache or replication • Coherency control: managing accesses to the replicas, to provide a coherent view of the shared file • Desirable to guarantee the atomicity of updates (to all copies) • Interleaving access: multiple granularities of data access operations • Time multiplexing of the file • Simple read/write, Transaction, Session • Concurrency control: how to prevent one execution sequence from interfering with the others when they are interleaved and how to avoid inconsistent or erroneous results

  22. Space Multiplexing • Remote access: no file data is kept in the client machine. Each access request is transmitted directly to the remote file server through the underlying network. • Cache access: a small part of the file data is maintained in a local cache. A write operation or cache miss results a remote access and update of the cache • Download/upload access: the entire file is downloaded for local accesses. A remote access or upload is performed when updating the remote file

  23. MADFS: The Mobile Agent-based Distributed Network File System

  24. The Disadvantages of Conventional Distributed File System • File storage protocol and cache management mechanism are not suitable for WAN • Flexibility is poor • Availability is poor

  25. MADFS • Reduce the overhead of network transfer and cache management inherent to the distribution of a distributed files system in WAN. • Organizes hosts into a hierarchical structure, and uses mobile agents as the underlying facility for transmission, communication and synchronization. • Uses the Hierarchical and Convergent Cache Coherency Mechanism (HCCM) to minimize the network communication and server overhead of cache management.

  26. WAN & LAN • LAN : wide bandwidth and low transfer delay, • WAN: low bandwidth and high transfer delay[

  27. The Architecture of MADFS

  28. The Architecture of MADFS • MADFS is divided into a number of domains in which are connected through high speed LAN and linked to each other through low speed WAN. • Each domain is composed of number of hosts. • In MADFS, a domain acts as the major domain and is in charge of the all others domains in MADFS. • Every server MADFS run the environment for mobile agent and the whole MADFS is a large platform for mobile agent.

  29. The Advantages in the Hierarchical Architecture of MADFS • Share all the overloads of communication and cache management over all DMA (Domain Manage Agent) and avoid the single central server to be the bottleneck of system. • The communication in domain can gain a better performance by using the protocol designed for LAN, and the security operation can be properly reduced

  30. The Two Layer Lock Request Mechanism

  31. The Advantage of The Two Layer Lock Request Mechanism • Reducing the network communication for managing file lock and duplicating the file buffer, particularly the communication in WAN • Converging can reduce effectively the overload of the maintaining the lockstate

  32. Reference • Jun Lu; Bin Du; Yi Zhu; DaiWei Li. MADFS: The Mobile Agent-Based Distributed Network File System Intelligent Systems, 2009. GCIS '09. WRI Global Congress on Volume 1,  19-21 May 2009 Page(s):68 - 74

  33. Thanks!
