  1. ICT4SMARTDGICT Solutions to enable Smart Distributed Generation SAMARES contribution to WP2

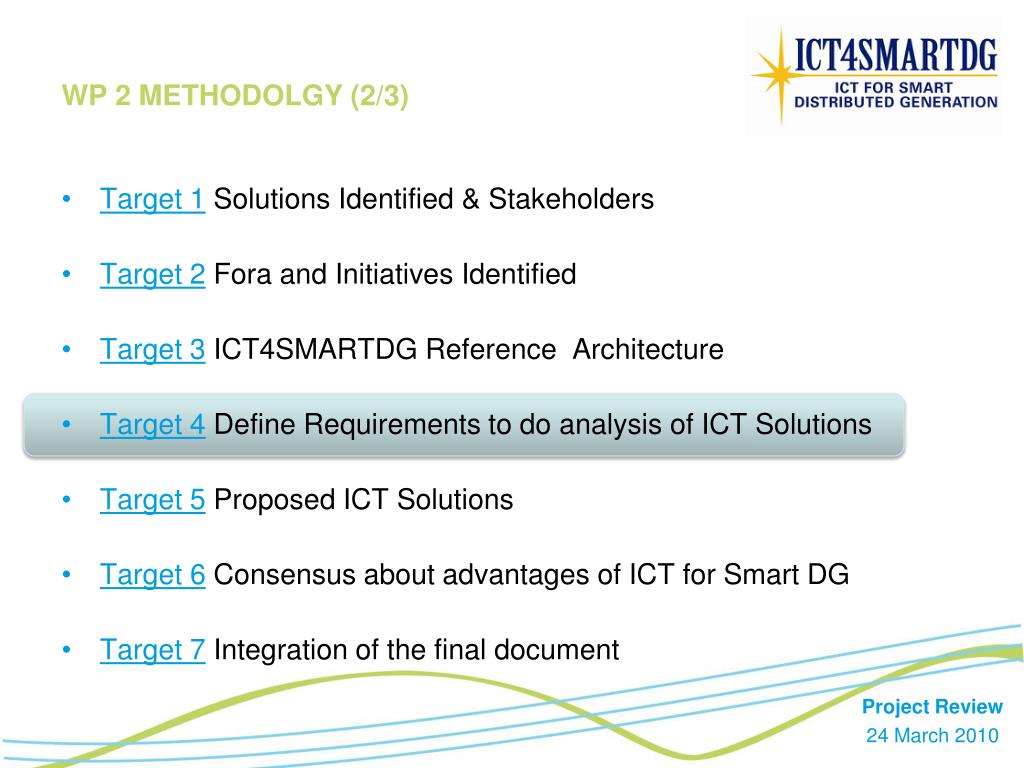

  2. WP 2 METHODOLGY (2/3) • Target 1Solutions Identified & Stakeholders • Target 2Fora and Initiatives Identified • Target 3ICT4SMARTDG Reference Architecture • Target 4Define Requirements to do analysis of ICT Solutions • Target 5Proposed ICT Solutions • Target 6Consensus about advantages of ICT for Smart DG • Target 7Integration of the final document

  3. OSIRIDE SMART OPERATION CENTER OSIRIDE controls the global production from distributed Renewable Energy Sources OSIRIDE SMART Mediation Devices responsible to collect all data from different standard protocols and elaborate a common SMART Energy Data for the Operation Center OSIRIDE SMART Operation Center Monitors the Global Energy Production and enables each user to elaborate personal data

  4. WP 2 METHODOLGY (2/3) • Target 1Solutions Identified & Stakeholders • Target 2Fora and Initiatives Identified • Target 3ICT4SMARTDG Reference Architecture • Target 4Define Requirements to do analysis of ICT Solutions • Target 5Proposed ICT Solutions • Target 6Consensus about advantages of ICT for Smart DG • Target 7Integration of the final document

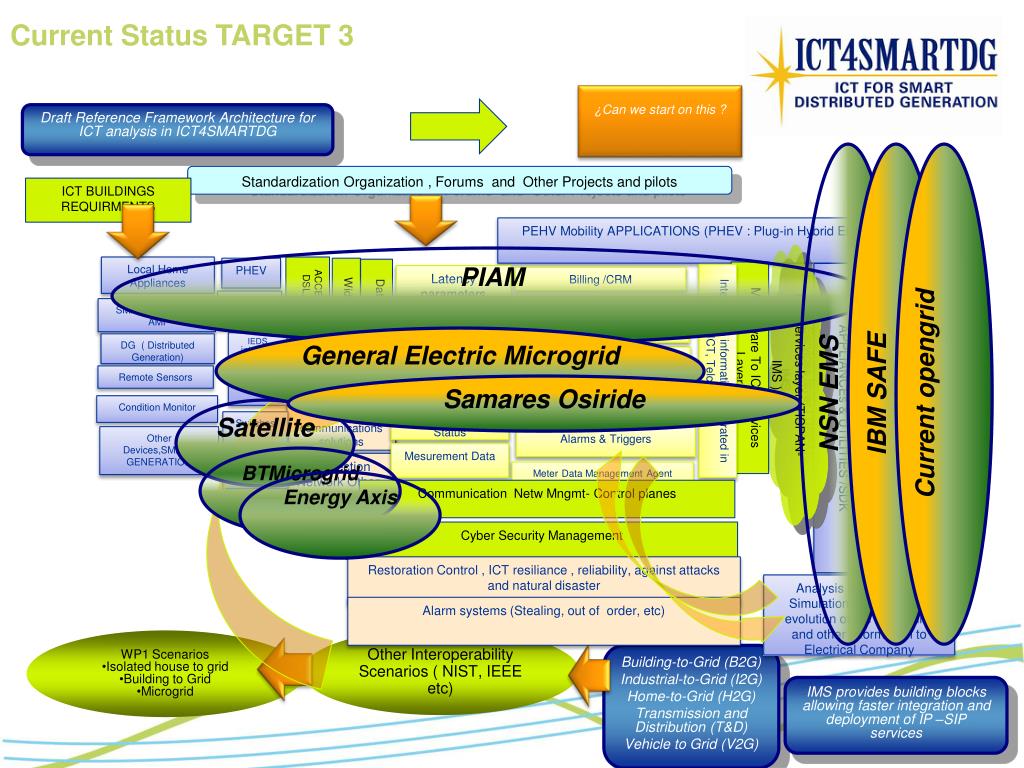

  5. Current Status TARGET 3 ¿Can westartonthis ? Draft Reference Framework Architecture for ICT analysis in ICT4SMARTDG Standardization Organization , Forums and Other Projects and pilots ICT BUILDINGS REQUIRMENTS PEHV Mobility APPLICATIONS (PHEV : Plug-in Hybrid Electric Vehicle) PIAM Local Home Appliances PHEV Latency parameters Billing /CRM LEGACY METERS Loss Management Technical/ non Technical SMART METERS- AMI ACCESS( Cellular, Wimax, DSL, Fiber, Cable, BPL), satellite Demand Management, smart metering , etc Data Mediation and mangement Wide Area Network General Electric Microgrid IEDS intelligentelectronicdevices DG ( Distributed Generation) NSN EMS IBM SAFE Currentopengrid EMS/dms/OMS Middleware To ICT Services Layer ICT Services layer (TISPAN-IMS ) Interface to information generated in ICT, Telco etc Remote Sensors Renewables aggregation Samares Osiride Provisioning & Netw Monitoring Condition Monitor APPLIANCEs & UTILITIES /SDK OPEN DELIVERY SERVICE`PLATFORM MARKET PLACE FRONT END Satellite Backup communications solutions Update Equipment Status Switches Other Devices,SMART GENERATION Alarms & Triggers Mesurement Data BTMicrogrid Other devices Connection Network Other microgrids Meter Data Management Agent (MDMA) Energy Axis Communication Netw Mngmt- Control planes Cyber Security Management Restoration Control , ICT resiliance , reliability, against attacks and natural disaster Analysis Contingency, Simulation Models of the evolution of the SmartGrid and other information to Electrical Company Alarm systems (Stealing, out of order, etc) Other Interoperability Scenarios ( NIST, IEEE etc) • WP1 Scenarios • Isolated house to grid • Building to Grid • Microgrid Building-to-Grid (B2G) Industrial-to-Grid (I2G) Home-to-Grid (H2G) Transmission and Distribution (T&D) Vehicle to Grid (V2G) IMS provides building blocks allowing faster integration and deployment of IP –SIP services

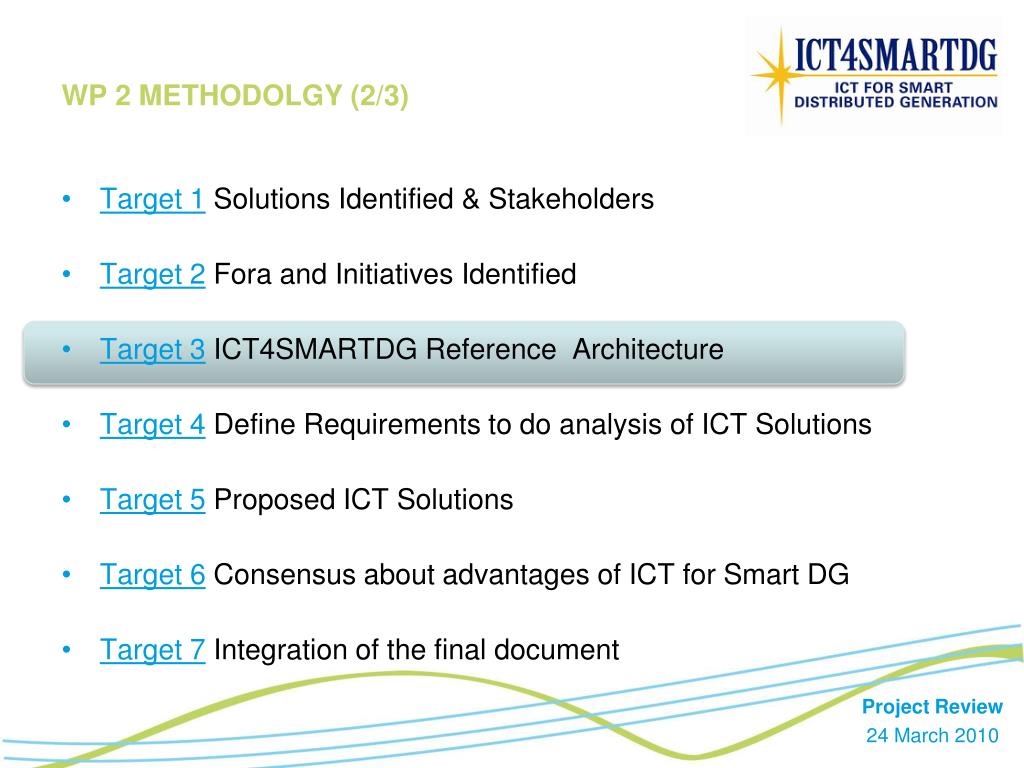

  6. WP 2 METHODOLGY (2/3) • Target 1Solutions Identified & Stakeholders • Target 2Fora and Initiatives Identified • Target 3ICT4SMARTDG Reference Architecture • Target 4Define Requirements to do analysis of ICT Solutions • Target 5Proposed ICT Solutions • Target 6Consensus about advantages of ICT for Smart DG • Target 7Integration of the final document

  7. Different levels of communication standard protocols: SMART Operation Center SMARTGRID standard communication protocol SMART Mediation Device 1° level of standard communication protocol Protocol Converter Propertary communication protocol Appliance 3 Appliance 3 Appliance 2 Appliance 2 Appliance 1 Appliance 1

  8. Role of different levels of communication standard protocols • SMARTGRID standard communication protocol • To be defined • 1° level of standard communication protocol • Many devices already use common communication protocols • i.e. MODBUS, COSEM, … • Propertary communication protocol • Standardiazation of each appliance available on the Market may require very long time and huge efforts • SMART Mediation Device • May communicate with 1° and propertary level of protocols to elaborate data and mediate Smart communications up to Smart Operation Center

  9. Different levels of communication standard protocols: SMART Operation Center Is responsible to communicate with 1° and propertary level of protocols to elaborate data and mediate Smart communications up to Smart Operation Center Tobedefined SMARTGRID standard communication protocol SMART Mediation Device Many devices already use common communication protocols i.e. MODBUS, COSEM, … 1° level of standard communication protocol Protocol Converter Standardiazation of each appliance available on the Market may require very long time and huge efforts Appliance 3 Propertary communication protocol Appliance 3 Appliance 2 Appliance 2 Appliance 1 Appliance 1

  10. Samares Solution for Smart City: SMART Mediation Devices Smart Mediation Device with local intelligence, able to elaborate Green Energy Production data SMD Smart Operation Center Internet SMD SMD SMD SMD SMD SMD SMD

  11. Samares Solution for Smart City: SMART Operation Center Public Show screens SMART Operation Center A Service Local Community Ownership of Green Production data Internet Global City Green Production ADV Advanced O&M Citizen and Industry web access
