  1. Welcome to the Minnesota SharePoint User Group November 11th, 2009 SharePoint 2010 Administration Wes Preston, Brian Caauwe • Meeting # 60 http://www.sharepointmn.com

  2. *Disclaimer* All of the information gathered and presented today is based on versions of the software prior to final release. Features and functionality *may still change* before the RTM versions are available. Many of the slides and graphics presented today were originally released and presented at SPC 09 http://www.sharepointmn.com

  3. Agenda Architecture Installation / Configuration Central Administration Tools http://www.sharepointmn.com

  4. Architecture - Services Access Services Business Data Catalog Excel Services Managed Metadata Service People Search Service Application Secure Store Service State Service Usage and Health data collection Visio Graphics Service Web Analytics Service Application Word Conversion Service Application Search User Profiles Excel Calc BDC Visio WAC 3rd party Service http://itweb/ http://hrweb http://www.sharepointmn.com

  5. Architecture - Services Highlighted Services Business Data Catalog / Business Connectivity Services Full C.R.U.D. Support Managed Metadata Service Single management of global content types People 2-way sync to AD Search Service Application Support for multiple index servers Usage and Health data collection Best practices analyzer Built in reporting http://www.sharepointmn.com

  6. Architecture - Authentication Classic Mode (Windows) NTLM Kerberos Basic Claims Mode (Mixed) Single URL!!! Windows Forms Based Authentication Federation http://www.sharepointmn.com

  7. Architecture - Office Web Applications Applications Word Excel PowerPoint In Browser Viewing AND Editing Multi-Authoring Server side document loading… speeds up document viewing Links and Preview in search results http://www.sharepointmn.com

  8. Installation / Configuration - Splash Screen http://www.sharepointmn.com

  9. Installation / Configuration - Software Prerequisites Web Server (IIS) role Application Server role Microsoft .NET Framework version 3.5 SP1 Microsoft "Geneva" Framework Microsoft Sync Framework Runtime v1.0 (x64) Microsoft Filter Pack 2.0 Microsoft Chart Controls for the Microsoft .NET Framework 3.5 Windows PowerShell 2.0 CTP3 SQL Server 2008 Native Client Microsoft SQL Server 2008 Analysis Services ADOMD.NET ADO.NET Data Services v1.5 CTP2 http://www.sharepointmn.com

  10. Installation / Configuration - Farm Configuration Wizard Use only for Evaluation Sets crazy database names http://www.sharepointmn.com

  11. Central Administration Not just Operations / Application Management anymore http://www.sharepointmn.com

  12. Central Administration - Application Management Web Applications Site Collection Service Applications Databases http://www.sharepointmn.com

  13. Central Administration - Application Management List Throttling View Threshold OM Override Lookup Threshold http://www.sharepointmn.com

  14. Central Administration - System Settings Servers Email and Text Farm Management http://www.sharepointmn.com

  15. Central Administration - System Settings Services on Server Many more services Keep server roles the same http://www.sharepointmn.com

  16. Central Administration - Monitoring Health Analyzer Timer Jobs Reporting http://www.sharepointmn.com

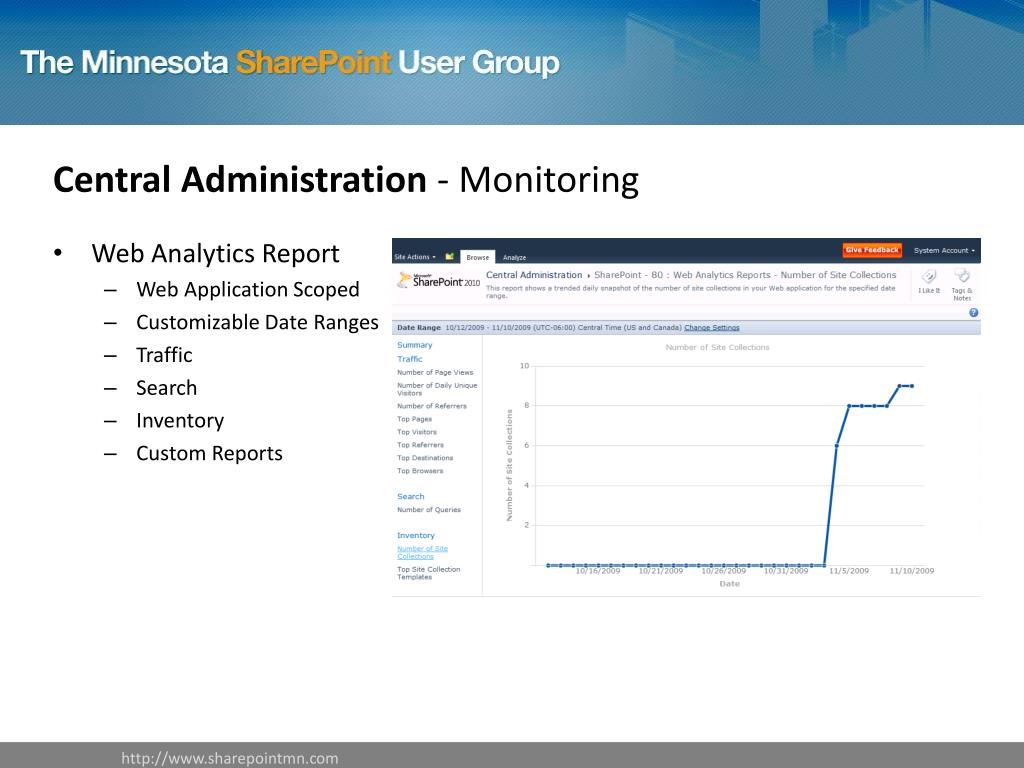

  17. Central Administration - Monitoring Web Analytics Report Web Application Scoped Customizable Date Ranges Traffic Search Inventory Custom Reports http://www.sharepointmn.com

  18. Central Administration - Backup / Restore Farm Backups Content and Configuration Configuration ONLY Granular Backups Same as export / import Unattached Content DB http://www.sharepointmn.com

  19. Central Administration - Backup / Restore Unattached Content Database Backup Browse content Backup Site Collection Export site or list http://www.sharepointmn.com

  20. Central Administration - Security User Settings General Security Information Policy http://www.sharepointmn.com

  21. Central Administration - Security Managed Accounts Reusable account list Password Management http://www.sharepointmn.com

  22. Central Administration - Upgrade and Migration Upgrade and Patch Management http://www.sharepointmn.com

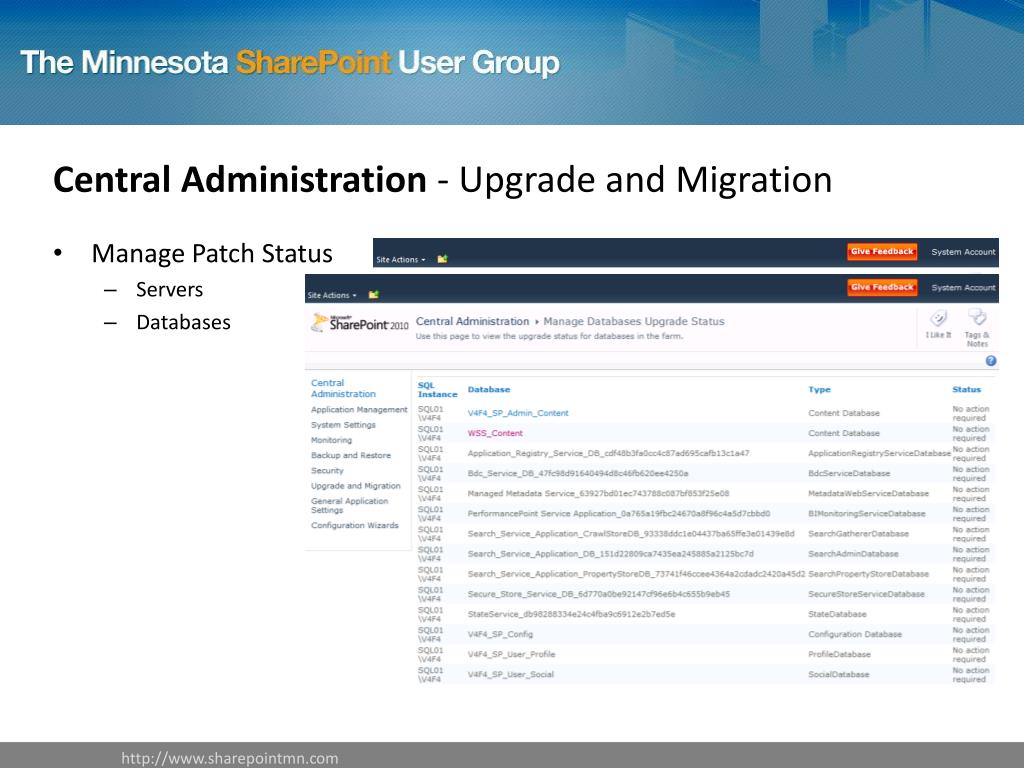

  23. Central Administration - Upgrade and Migration Manage Patch Status Servers Databases http://www.sharepointmn.com

  24. Central Administration - General Application Settings External Service Connections InfoPath Forms Services Site Directory SharePoint Designer Search Content Deployment http://www.sharepointmn.com

  25. Central Administration - General Application Settings SharePoint Designer Settings Web Application Based Enable SPD Ghosting Customize Master PagesPage Layouts Manage structure http://www.sharepointmn.com

  26. Tools - PowerShell • Over 500+ new cmdlets • Remote Access (PowerShell v2) • Object Model terminology • SPWebApplication • SPSite • SPWeb • Upgrade cmdlets • Test-SPContentDatabase • Upgrade-SPContentDatabase • Upgrade-SPEnterpriseSearchApplication • PSConfig Replacement - New-SPConfigurationDatabase • New-SPConfigurationDatabase -DatabaseName SP2010_Config -DatabaseServer <DBSERVERNAME> -AdministrationContentDatabaseName SP2010_Admin_Content Passphrase (ConvertoTo-SecureString “pass@word1” -AsPlainText -force) http://www.sharepointmn.com

  27. Tools - Developer Dashboard • Helps debug page loads, bad web parts http://www.sharepointmn.com

  28. Tools - Correlation ID • Each process in SharePoint are related • Helps locate issues in SharePoint Logs http://www.sharepointmn.com

  29. Why SharePoint 2010 is good for Administrators? • Flexible services architecture • Investments in authentication • Multi-Authoring with Office Web Applications • Reduces time needed and confusion for installation • Lists can now scale to 50 Million items • Automatic View throttling • Built in administrative reports • Granular backup / restore IN browser • Unattached database restore • Improved patch management • More and more tools http://www.sharepointmn.com

  30. Q & A http://www.sharepointmn.com
