Unsupervised Learning K-means clustering The EM Algorithm Competetive Learning & SOM Networks

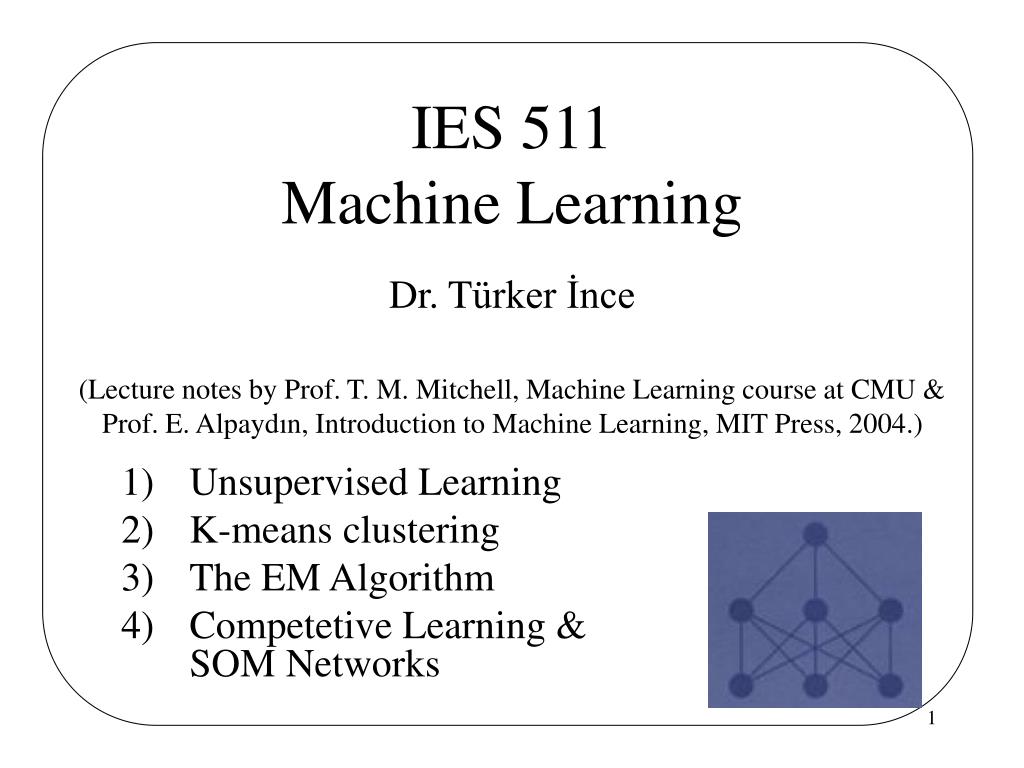

1. IES 511Machine Learning Dr. Türker İnce(Lecture notes by Prof. T. M. Mitchell, Machine Learning course at CMU & Prof. E. Alpaydın, Introduction to Machine Learning, MIT Press, 2004.) Unsupervised Learning K-means clustering The EM Algorithm Competetive Learning & SOM Networks

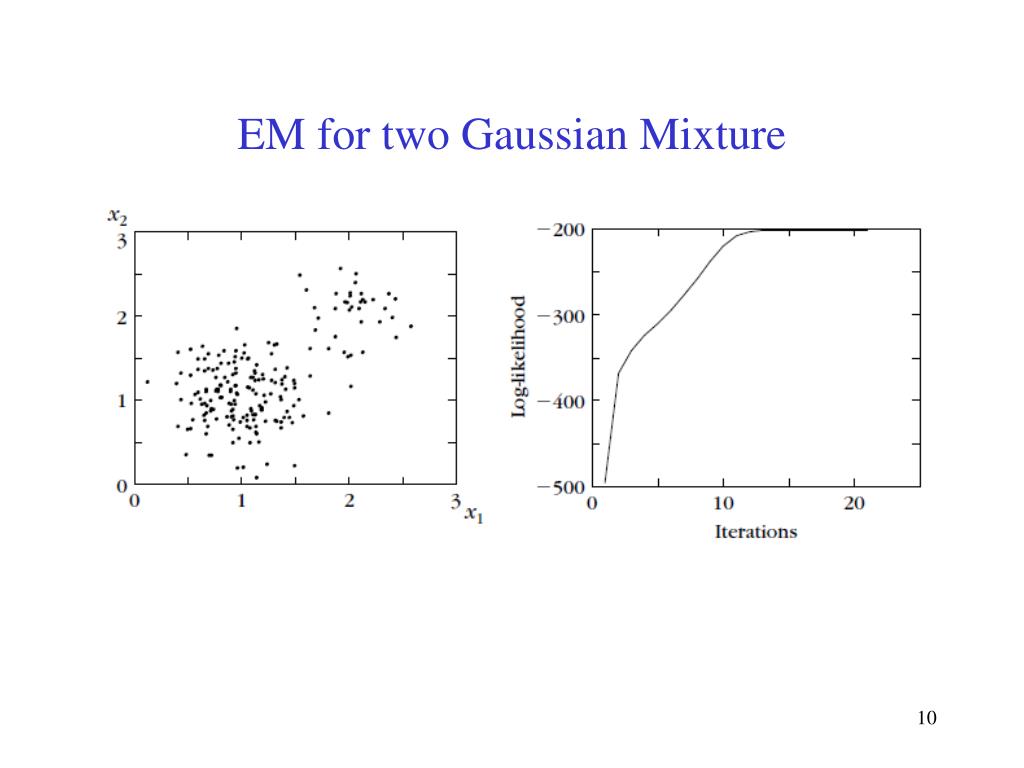

10. EM for two Gaussian Mixture

11. Simple Competitive Learning • Unsupervised learning • Goal: • Learn to form classes/clusters of examplers/sample patterns according to similarities of these examplers. • Patterns in a cluster would have similar features • No prior knowledge as what features are important for classification, and how many classes are there. • Architecture: • Output nodes: Y_1,…….Y_m, representing the m classes • They are competitors (Winner-Take-All algorithm)

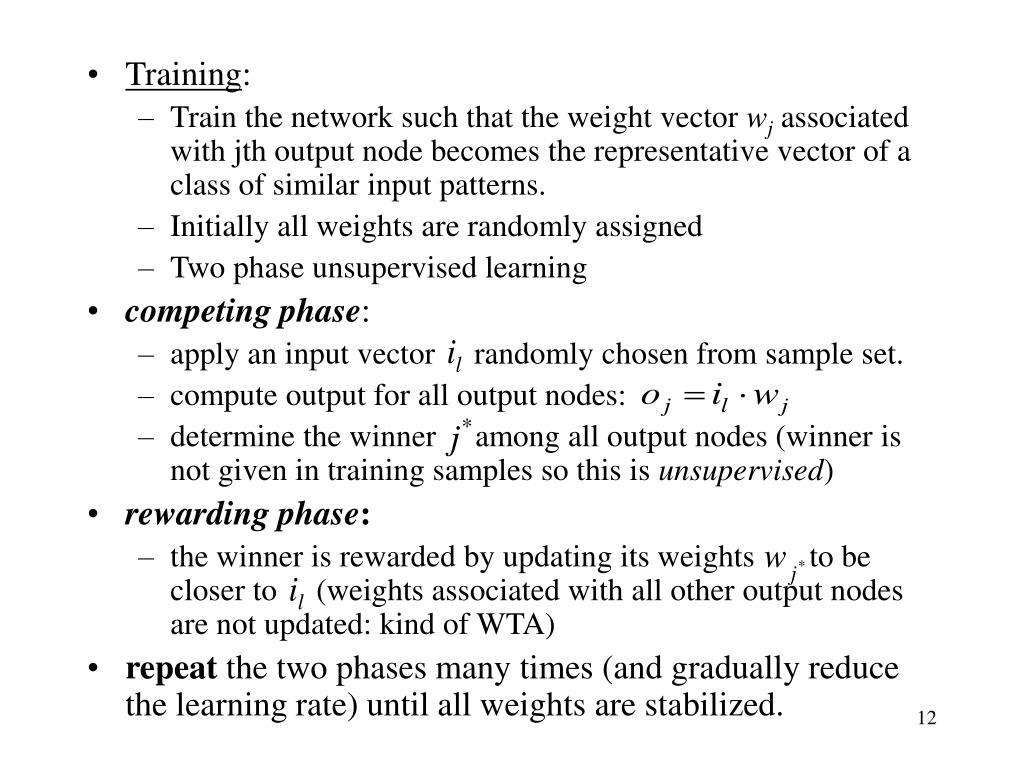

12. Training: • Train the network such that the weight vector wj associated with jth output node becomes the representative vector of a class of similar input patterns. • Initially all weights are randomly assigned • Two phase unsupervised learning • competing phase: • apply an input vector randomly chosen from sample set. • compute output for all output nodes: • determine the winner among all output nodes (winner is not given in training samples so this is unsupervised) • rewarding phase: • the winner is rewarded by updating its weights to be closer to (weights associated with all other output nodes are not updated: kind of WTA) • repeat the two phases many times (and gradually reduce the learning rate) until all weights are stabilized.

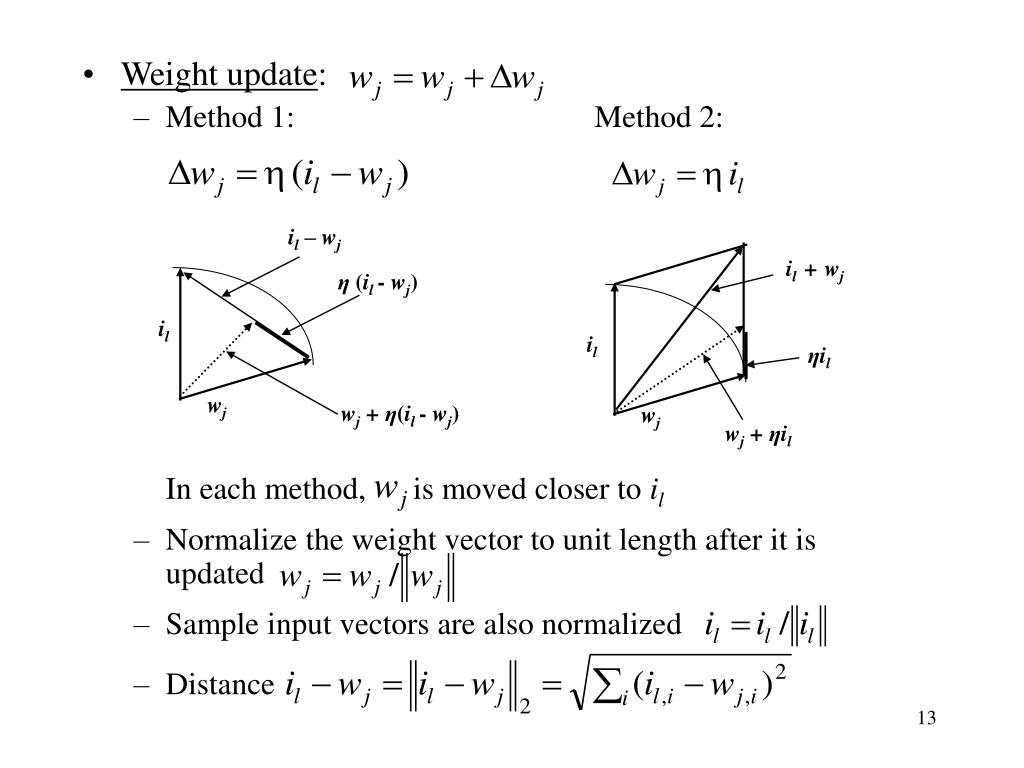

13. Weight update: • Method 1: Method 2: • In each method, is moved closer to il • Normalize the weight vector to unit length after it is updated • Sample input vectors are also normalized • Distance il – wj il +wj η (il - wj) il il ηil wj wj + η(il - wj) wj wj + ηil

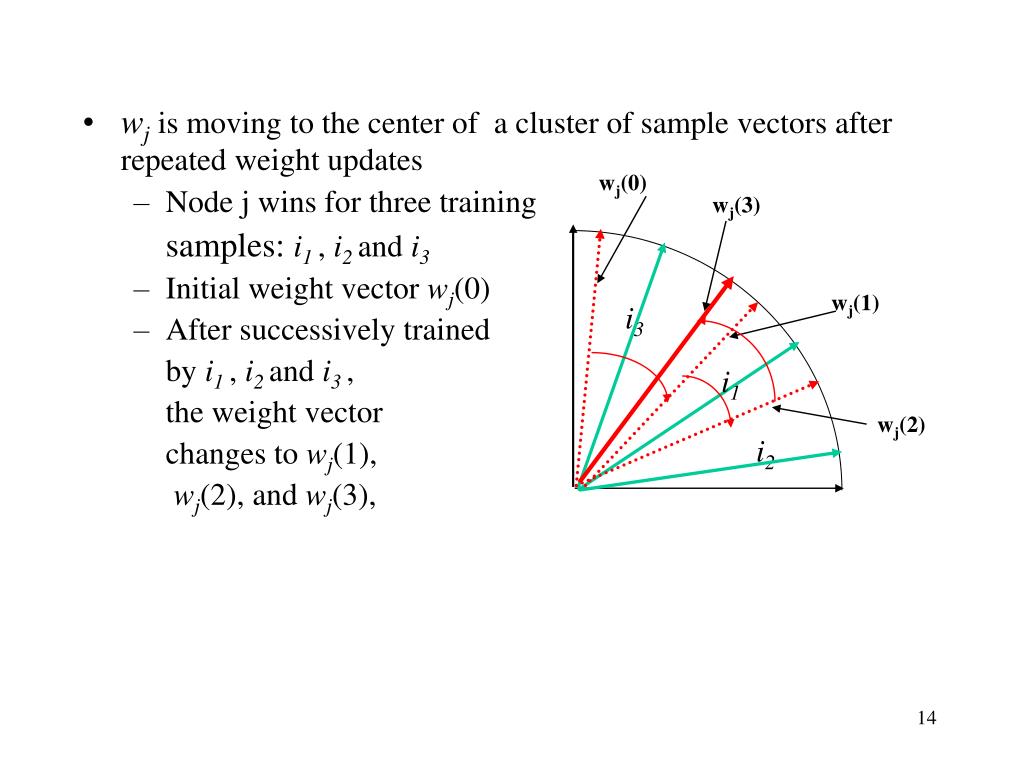

14. wj is moving to the center of a cluster of sample vectors after repeated weight updates • Node j wins for three training • samples: i1 , i2 and i3 • Initial weight vector wj(0) • After successively trained • by i1 , i2 and i3 , • the weight vector • changes to wj(1), • wj(2), and wj(3), wj(0) wj(3) wj(1) i3 i1 wj(2) i2

17. SOM Examples • Input vectors are uniformly distributed in the region, and randomly drawn from the region • Weight vectors are initially drawn from the same region randomly (not necessarily uniformly) • Weight vectors become ordered according to the given topology (neighborhood), at the end of training

18. 1-D Lattice

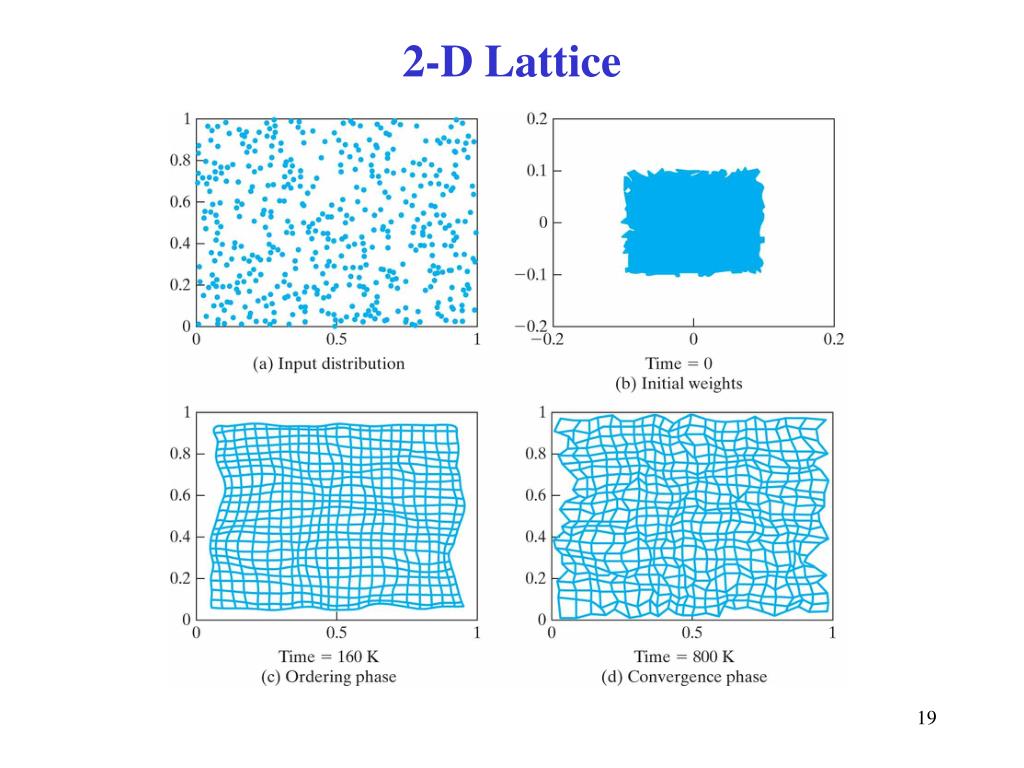

19. 2-D Lattice

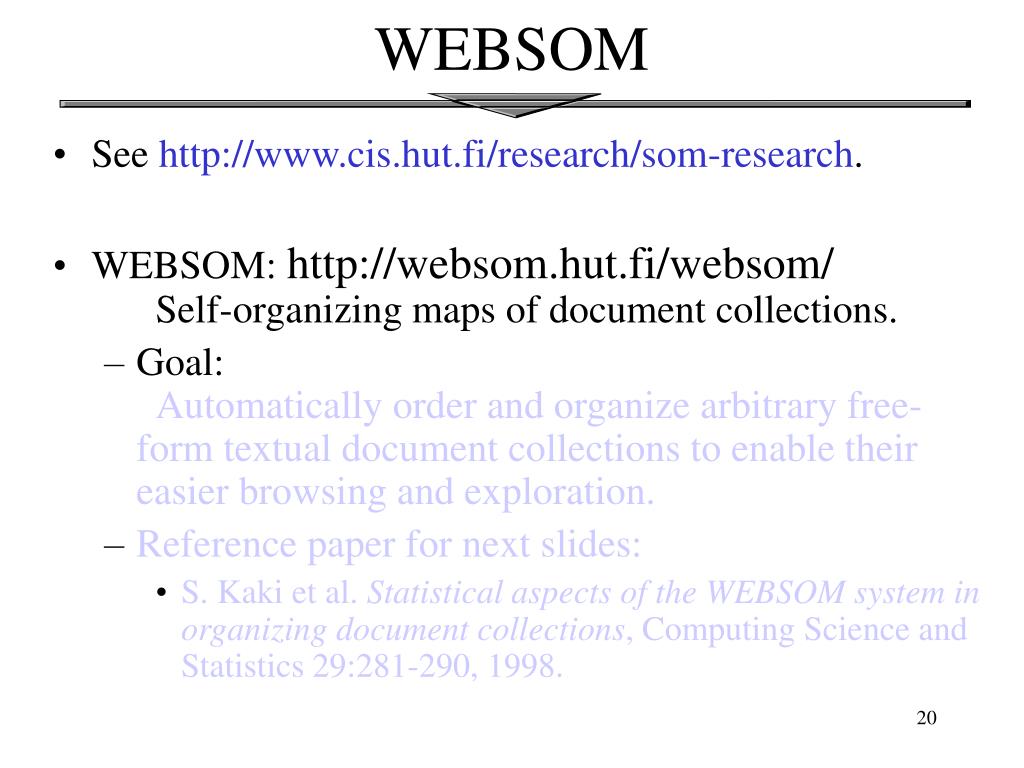

20. WEBSOM • See http://www.cis.hut.fi/research/som-research. • WEBSOM: http://websom.hut.fi/websom/ Self-organizing maps of document collections. • Goal: Automatically order and organize arbitrary free-form textual document collections to enable their easier browsing and exploration. • Reference paper for next slides: • S. Kaki et al. Statistical aspects of the WEBSOM system in organizing document collections, Computing Science and Statistics 29:281-290, 1998.

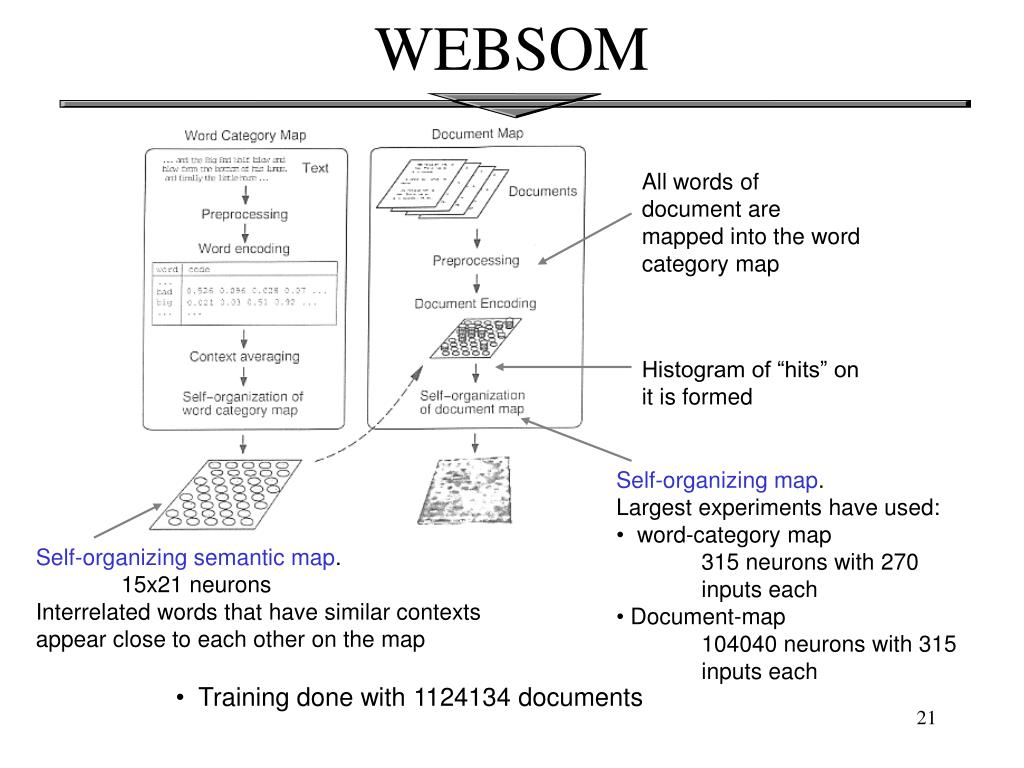

21. WEBSOM All words of document are mapped into the word category map Histogram of “hits” on it is formed • Self-organizing map. • Largest experiments have used: • word-category map 315 neurons with 270 inputs each • Document-map 104040 neurons with 315 inputs each Self-organizing semantic map. 15x21 neurons Interrelated words that have similar contexts appear close to each other on the map • Training done with 1124134 documents

23. Word histogram

24. Word categories

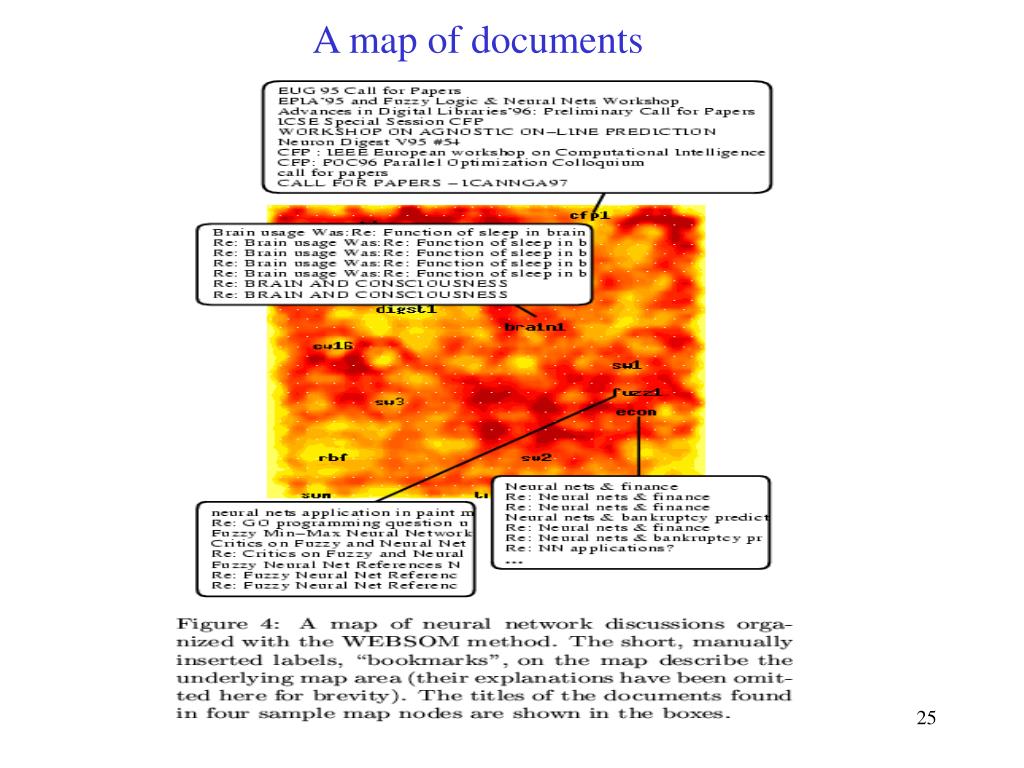

25. A map of documents
