  1. CS 551/651Advanced Graphics Technical Background

  2. FLTK • Hopefully you downloaded and compiled successfully • Questions • Assignment 1 – Warmup • Interactive B-Spline Editor • Due two weeks from today

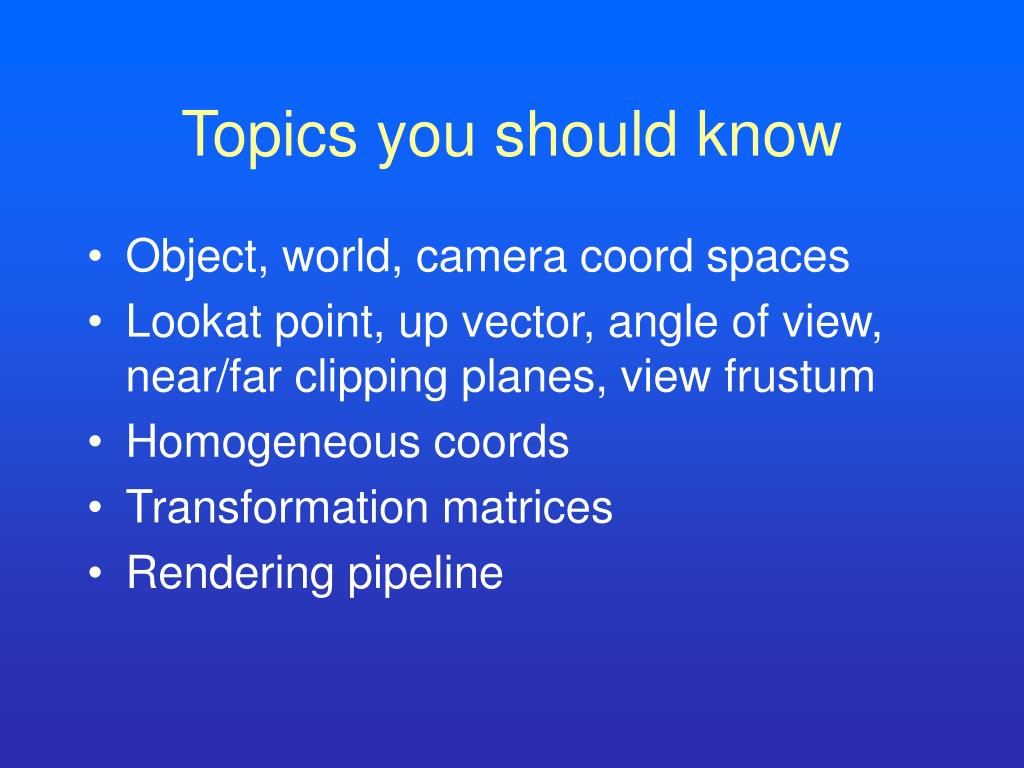

  3. Topics you should know • Object, world, camera coord spaces • Lookat point, up vector, angle of view, near/far clipping planes, view frustum • Homogeneous coords • Transformation matrices • Rendering pipeline

  4. Affine Transformations • A transformation that preserves • Angles • Lengths • Parallel lines • Ex • Translation • Rotation • Scaling • Reflection • Shear

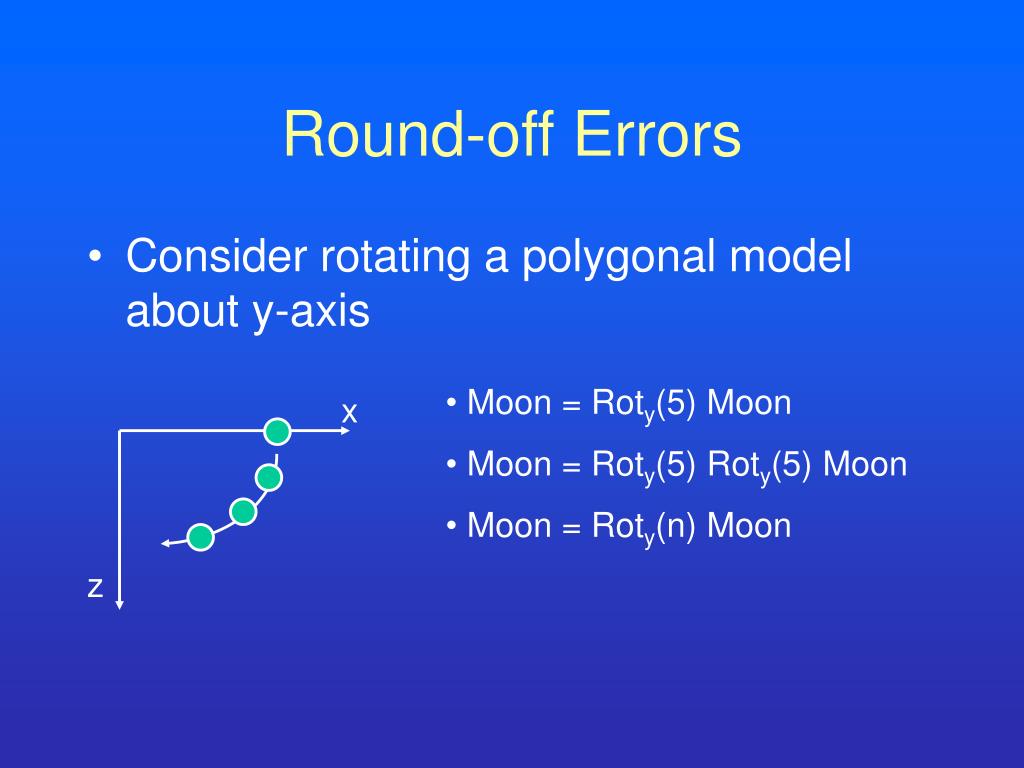

  5. x z Round-off Errors • Consider rotating a polygonal model about y-axis • Moon = Roty(5) Moon • Moon = Roty(5) Roty(5) Moon • Moon = Roty(n) Moon

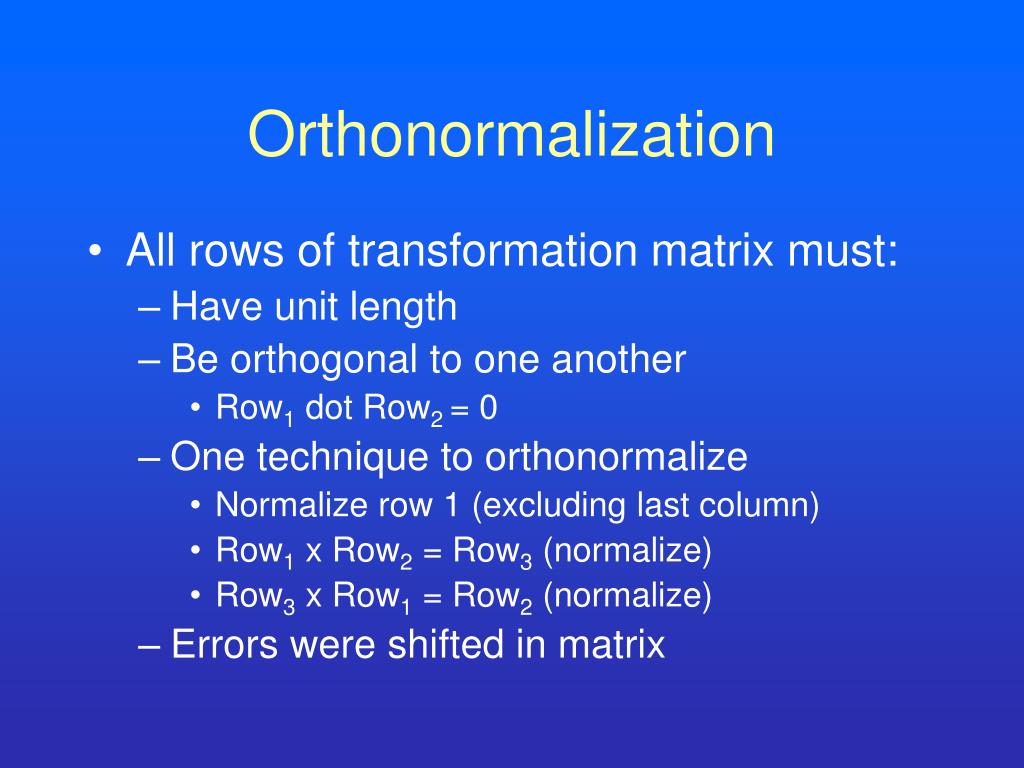

  6. Orthonormalization • All rows of transformation matrix must: • Have unit length • Be orthogonal to one another • Row1 dot Row2 = 0 • One technique to orthonormalize • Normalize row 1 (excluding last column) • Row1 x Row2 = Row3 (normalize) • Row3 x Row1 = Row2 (normalize) • Errors were shifted in matrix

  7. Rotations • Give me four rotation representations and their shortcomings… • 3x3 matrix • Euler Angles • Axis-angle • Quaternion - Interpolation - Gimbal Lock - Compiling Rot Seqs

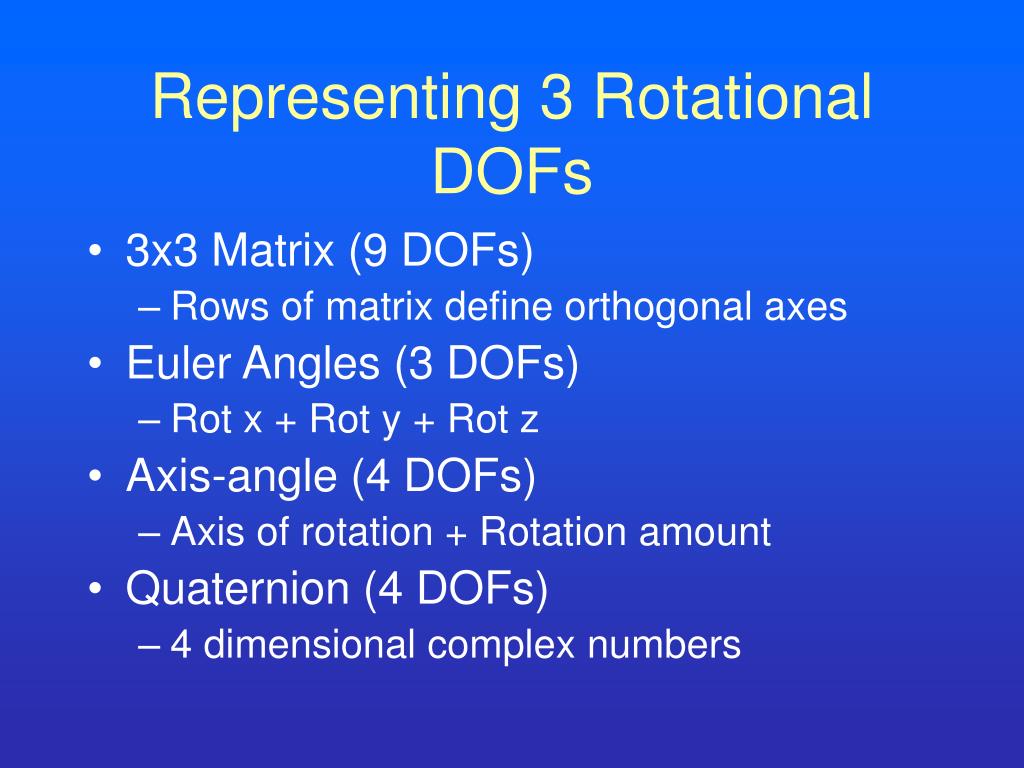

  8. Representing 3 Rotational DOFs • 3x3 Matrix (9 DOFs) • Rows of matrix define orthogonal axes • Euler Angles (3 DOFs) • Rot x + Rot y + Rot z • Axis-angle (4 DOFs) • Axis of rotation + Rotation amount • Quaternion (4 DOFs) • 4 dimensional complex numbers

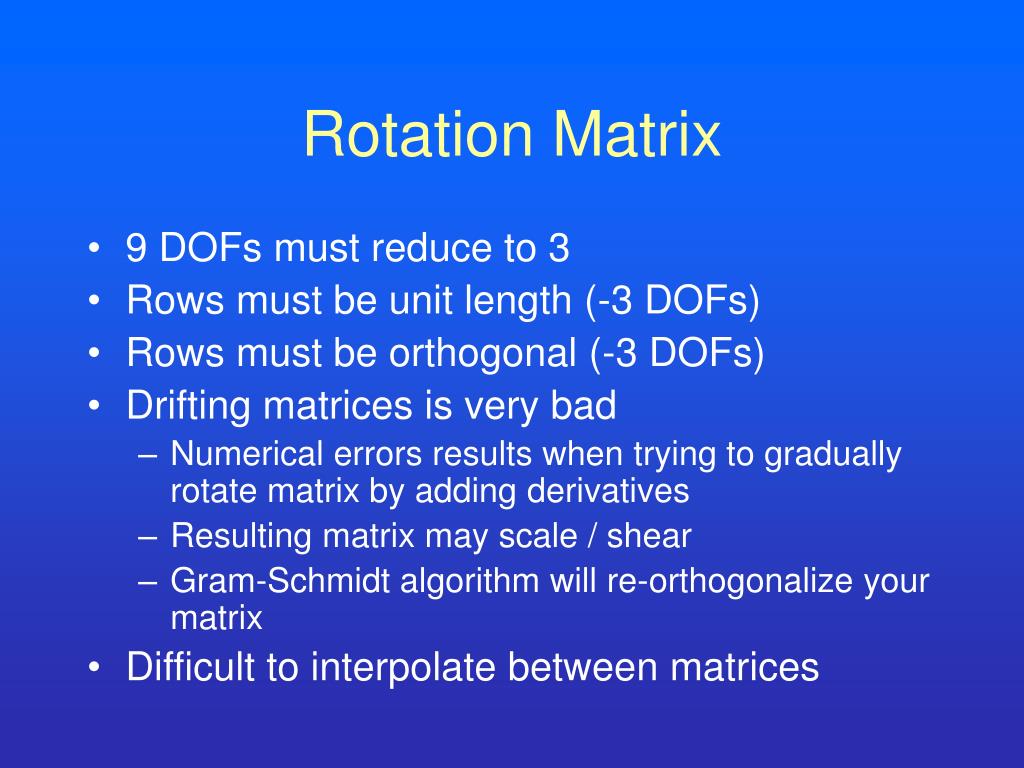

  9. Rotation Matrix • 9 DOFs must reduce to 3 • Rows must be unit length (-3 DOFs) • Rows must be orthogonal (-3 DOFs) • Drifting matrices is very bad • Numerical errors results when trying to gradually rotate matrix by adding derivatives • Resulting matrix may scale / shear • Gram-Schmidt algorithm will re-orthogonalize your matrix • Difficult to interpolate between matrices

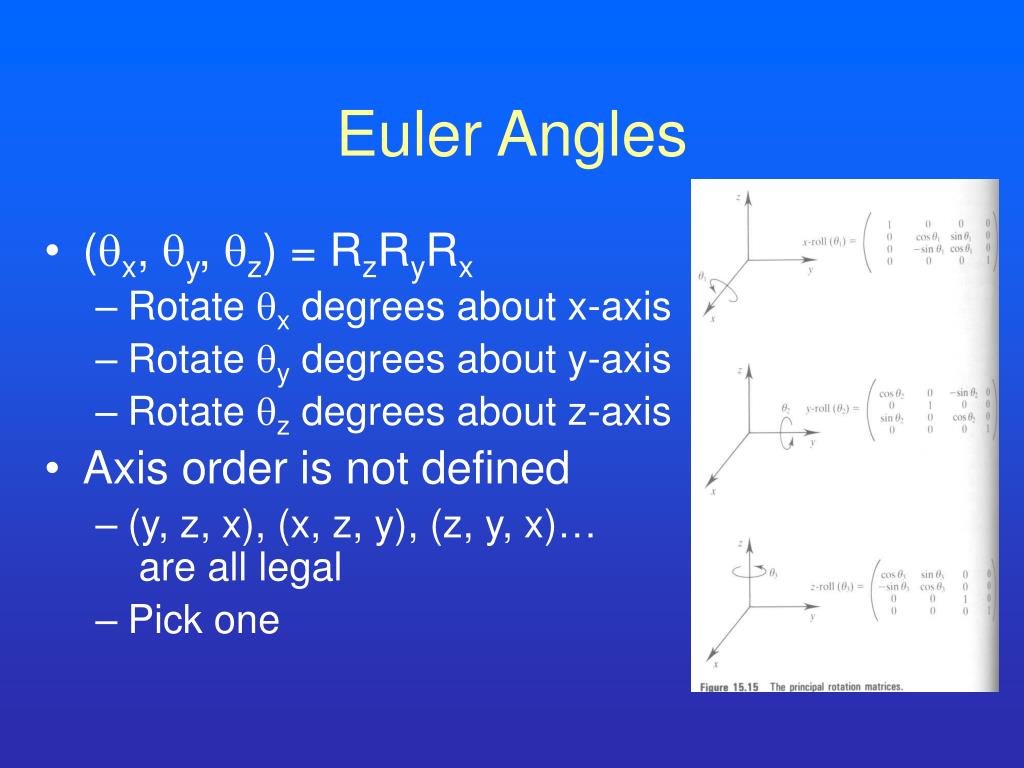

  10. Euler Angles • (qx, qy, qz) = RzRyRx • Rotate qx degrees about x-axis • Rotate qy degrees about y-axis • Rotate qz degrees about z-axis • Axis order is not defined • (y, z, x), (x, z, y), (z, y, x)… are all legal • Pick one

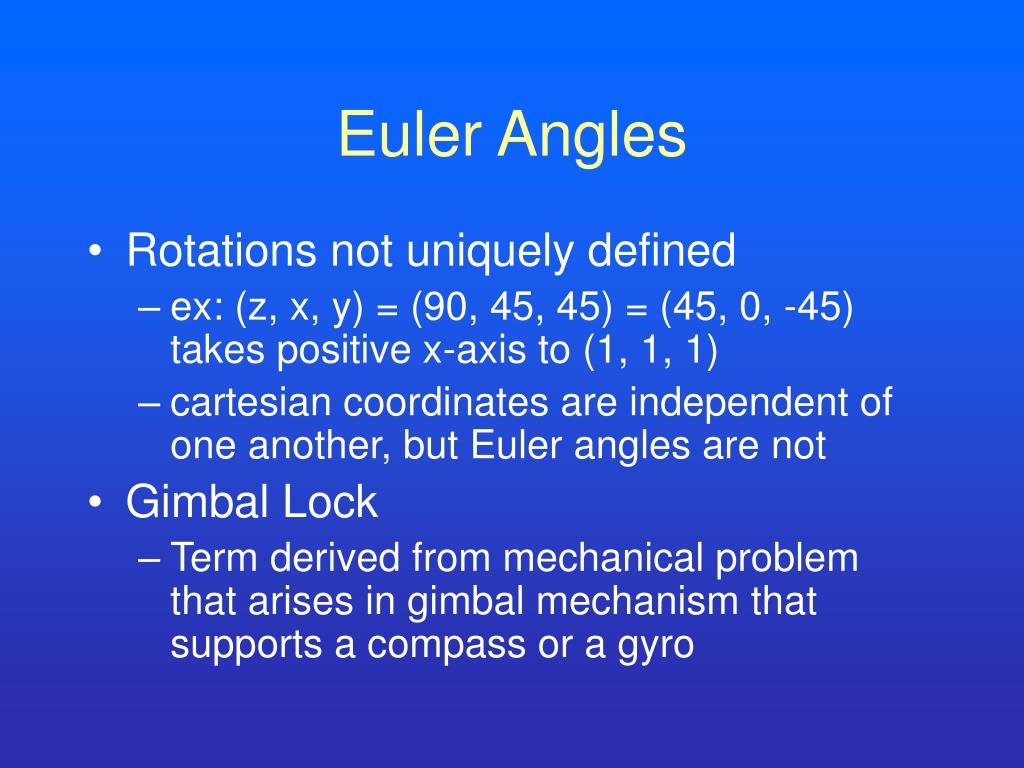

  11. Euler Angles • Rotations not uniquely defined • ex: (z, x, y) = (90, 45, 45) = (45, 0, -45)takes positive x-axis to (1, 1, 1) • cartesian coordinates are independent of one another, but Euler angles are not • Gimbal Lock • Term derived from mechanical problem that arises in gimbal mechanism that supports a compass or a gyro

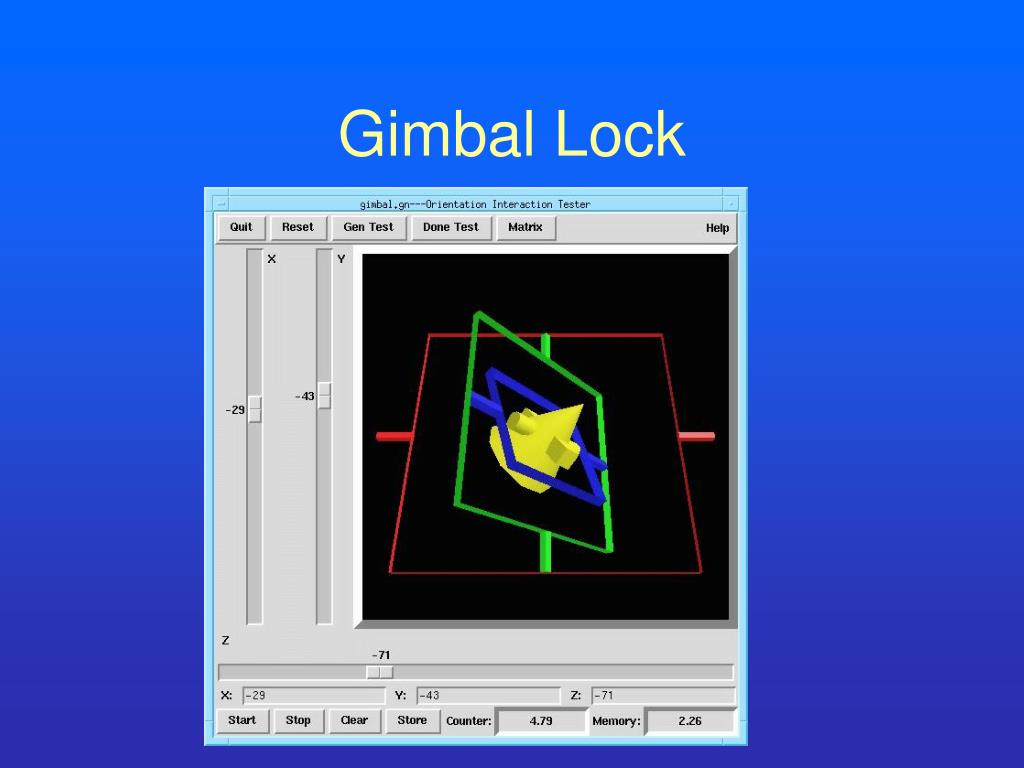

  12. Gimbal Lock

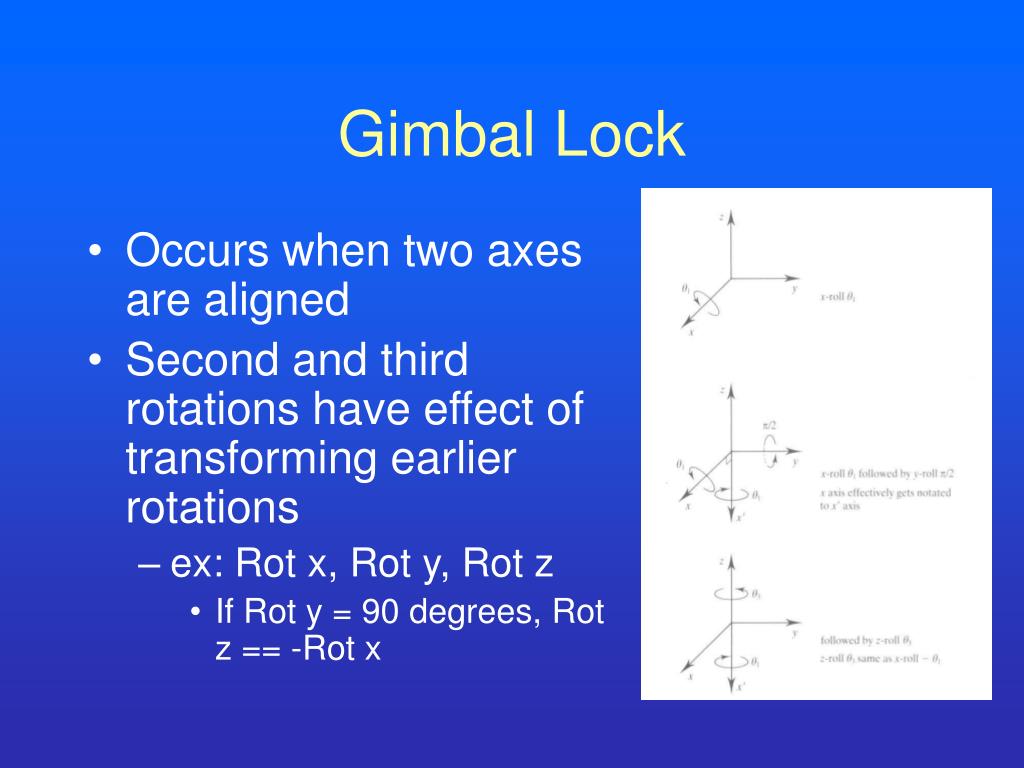

  13. Gimbal Lock • Occurs when two axes are aligned • Second and third rotations have effect of transforming earlier rotations • ex: Rot x, Rot y, Rot z • If Rot y = 90 degrees, Rot z == -Rot x

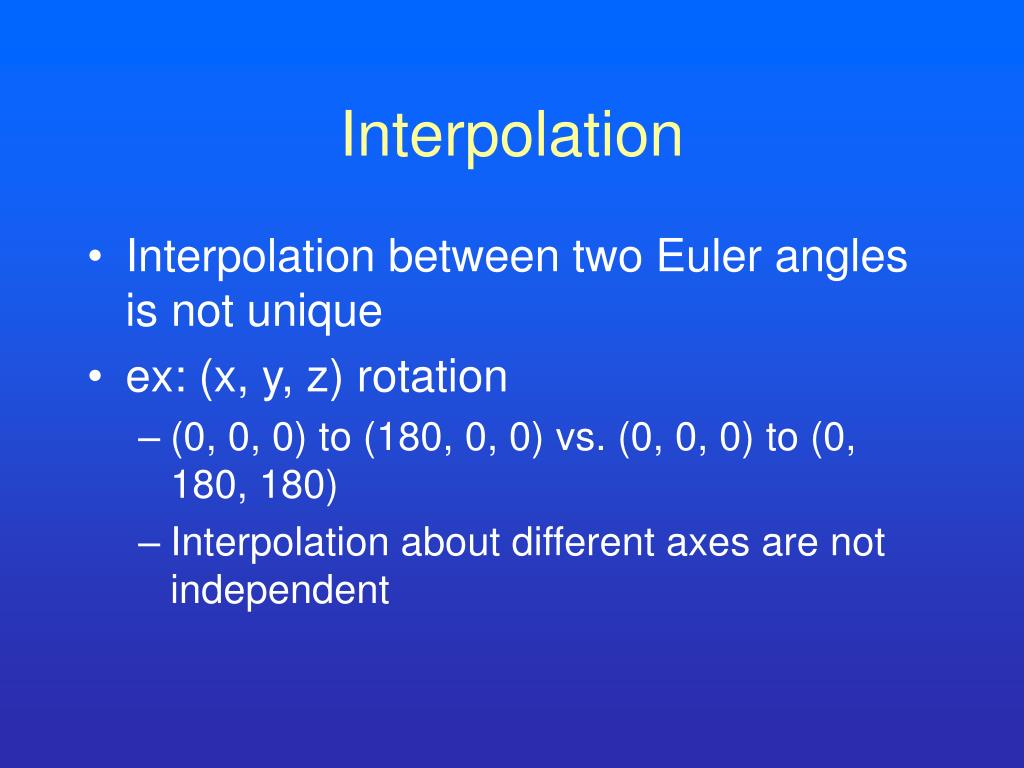

  14. Interpolation • Interpolation between two Euler angles is not unique • ex: (x, y, z) rotation • (0, 0, 0) to (180, 0, 0) vs. (0, 0, 0) to (0, 180, 180) • Interpolation about different axes are not independent

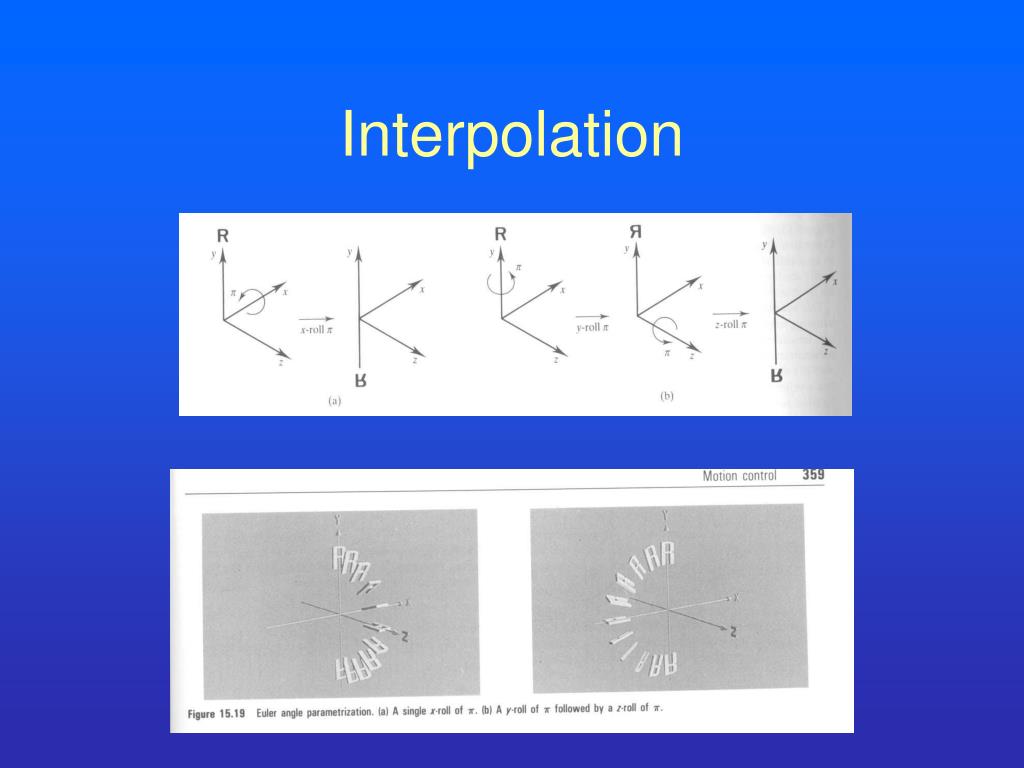

  15. Interpolation

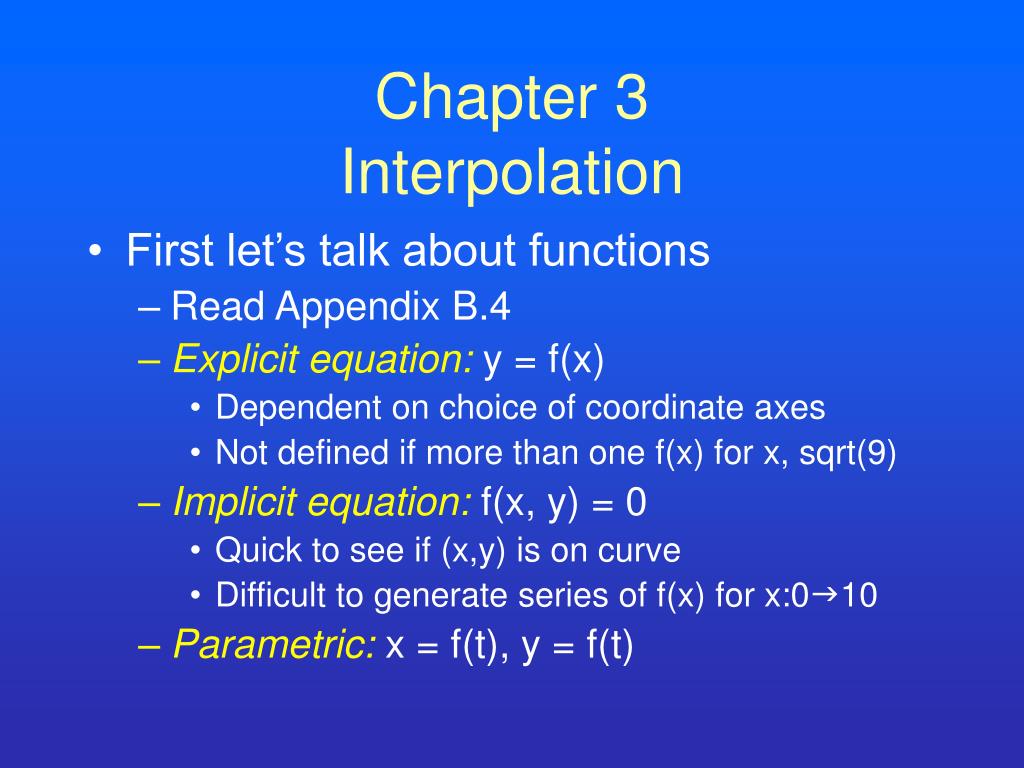

  16. Chapter 3Interpolation • First let’s talk about functions • Read Appendix B.4 • Explicit equation: y = f(x) • Dependent on choice of coordinate axes • Not defined if more than one f(x) for x, sqrt(9) • Implicit equation: f(x, y) = 0 • Quick to see if (x,y) is on curve • Difficult to generate series of f(x) for x:0g10 • Parametric: x = f(t), y = f(t)

  17. Equations • Polynomial: only containing variables raised to a power • Linear, quadratic, cubic: polynomial equation with highest power of 1, 2, 3 • Transcendental: equations containing trig functions, logs, exponentials

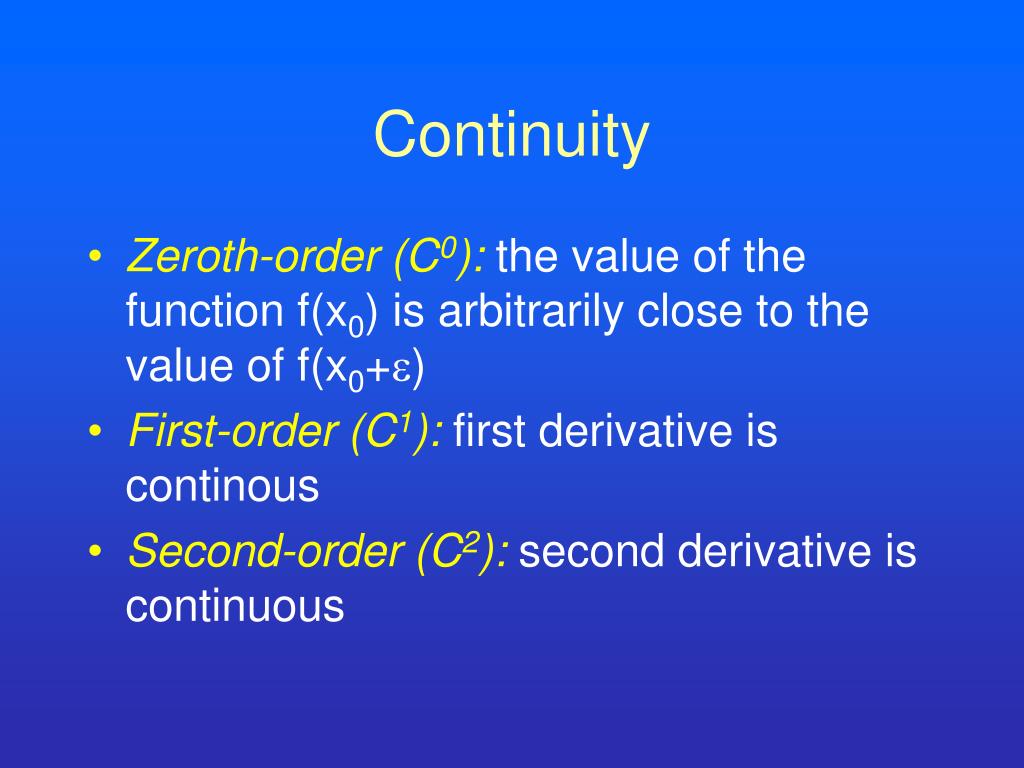

  18. Continuity • Zeroth-order (C0): the value of the function f(x0) is arbitrarily close to the value of f(x0+e) • First-order (C1): first derivative is continous • Second-order (C2): second derivative is continuous

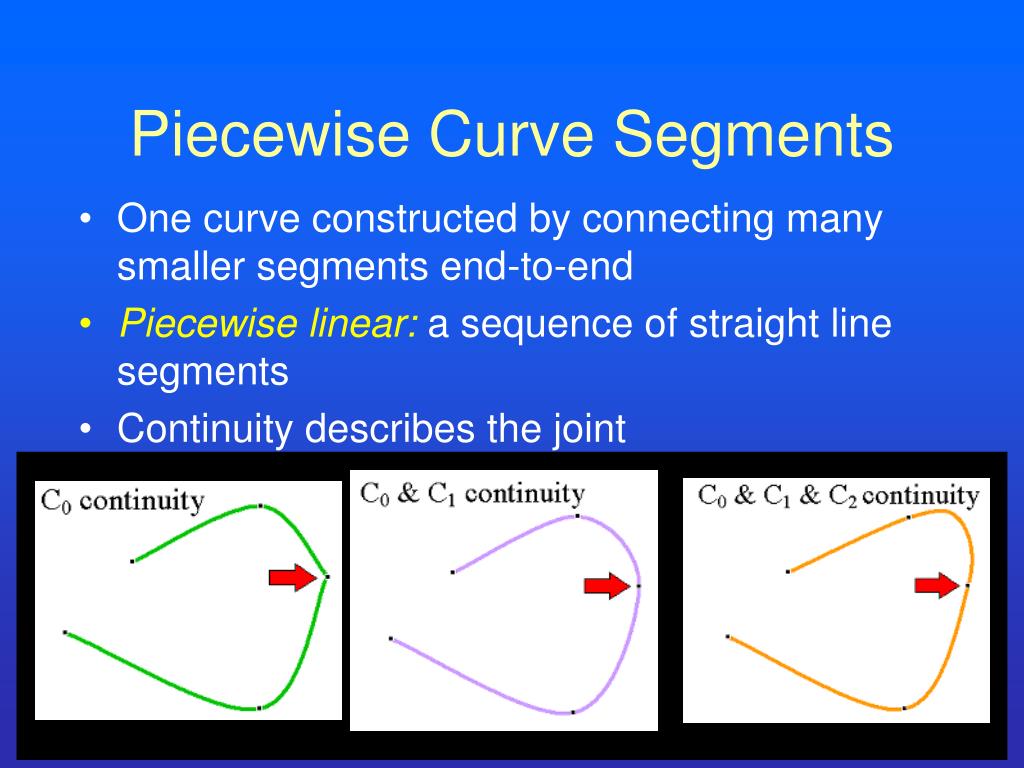

  19. Piecewise Curve Segments • One curve constructed by connecting many smaller segments end-to-end • Piecewise linear: a sequence of straight line segments • Continuity describes the joint

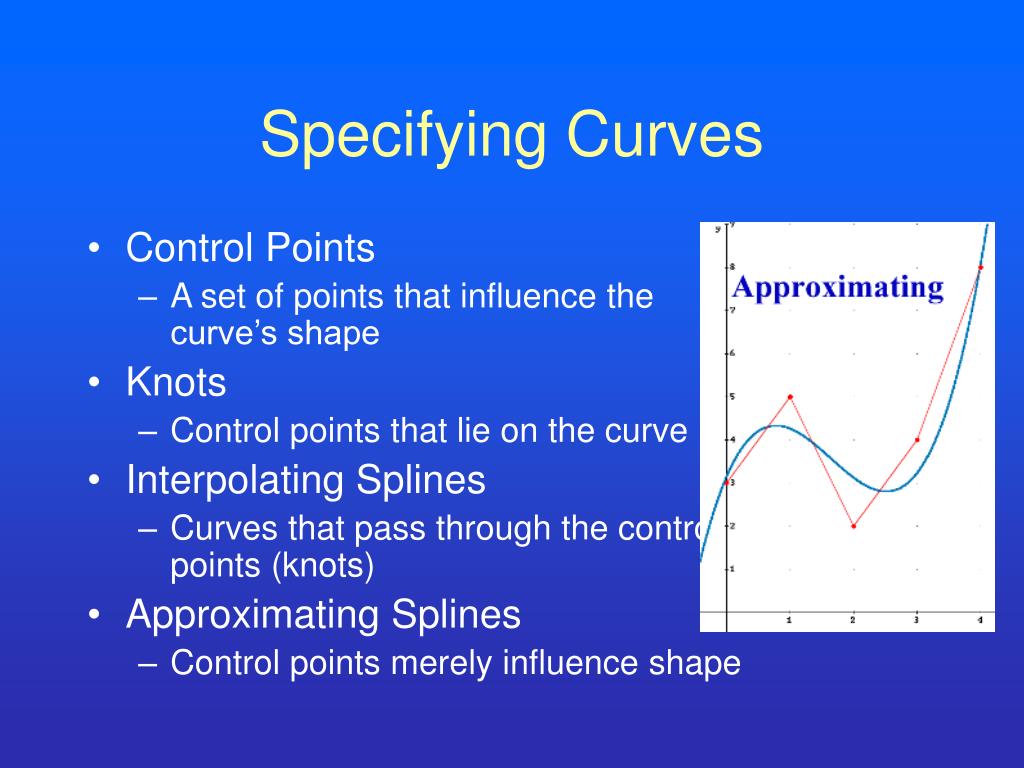

  20. Specifying Curves • Control Points • A set of points that influence the curve’s shape • Knots • Control points that lie on the curve • Interpolating Splines • Curves that pass through the control points (knots) • Approximating Splines • Control points merely influence shape

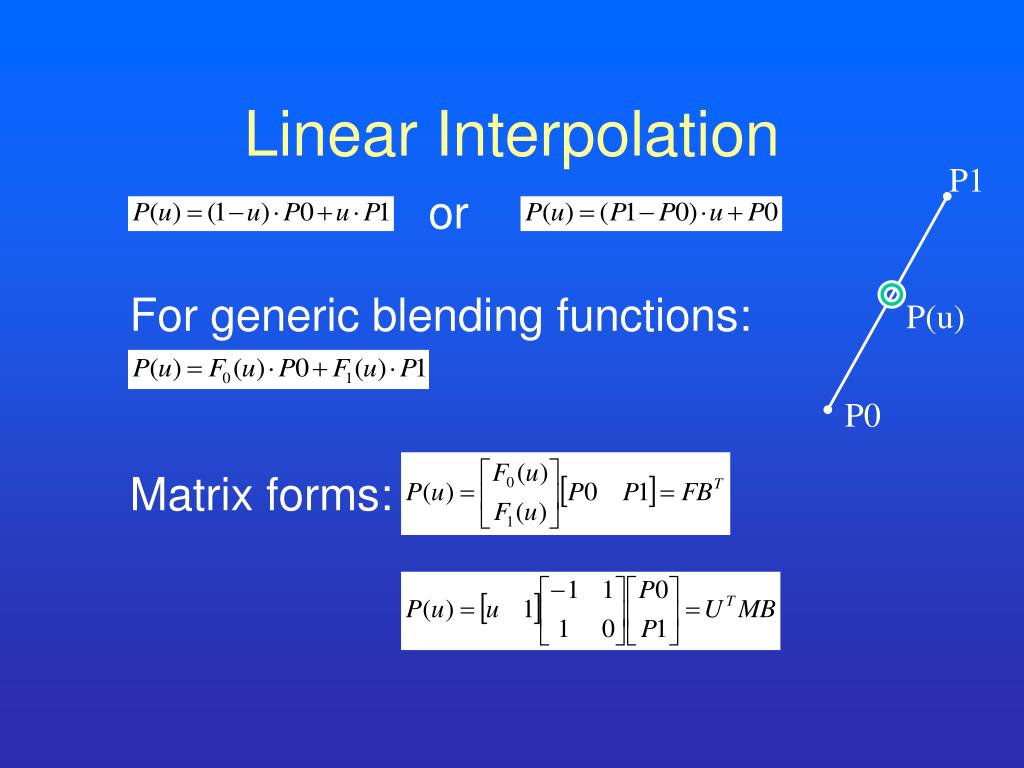

  21. Linear Interpolation P1 or For generic blending functions: P(u) P0 Matrix forms:

  22. Interpolation Functions • Hermite • Bezier • B-spline • Global vs. local control

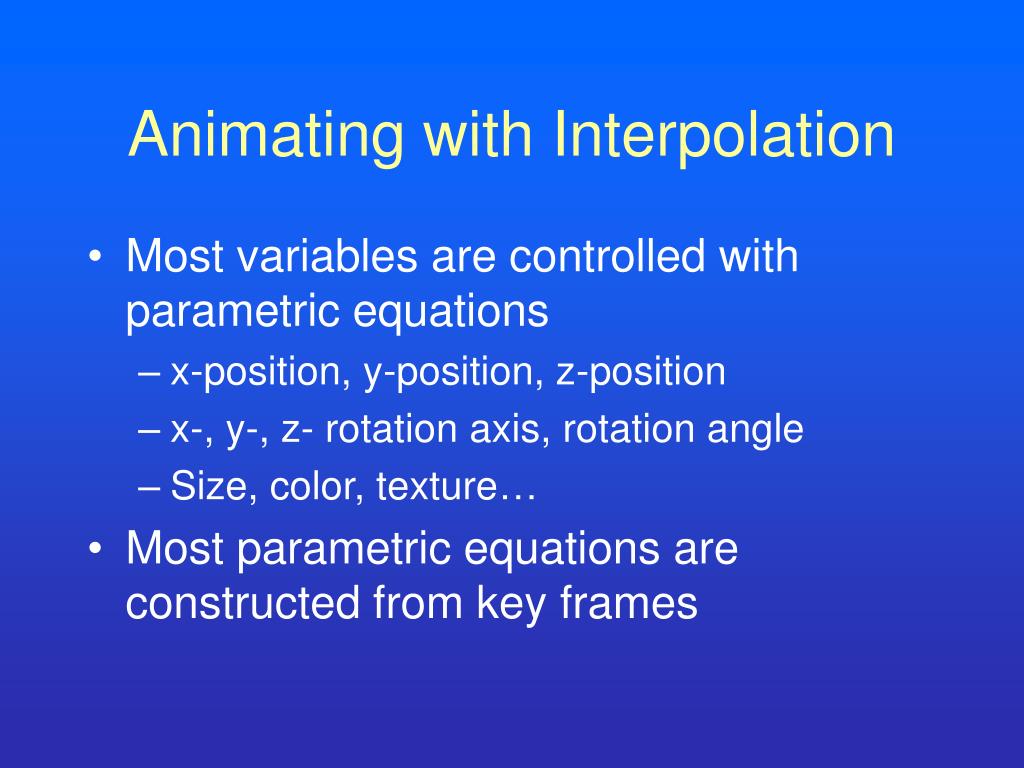

  23. Animating with Interpolation • Most variables are controlled with parametric equations • x-position, y-position, z-position • x-, y-, z- rotation axis, rotation angle • Size, color, texture… • Most parametric equations are constructed from key frames

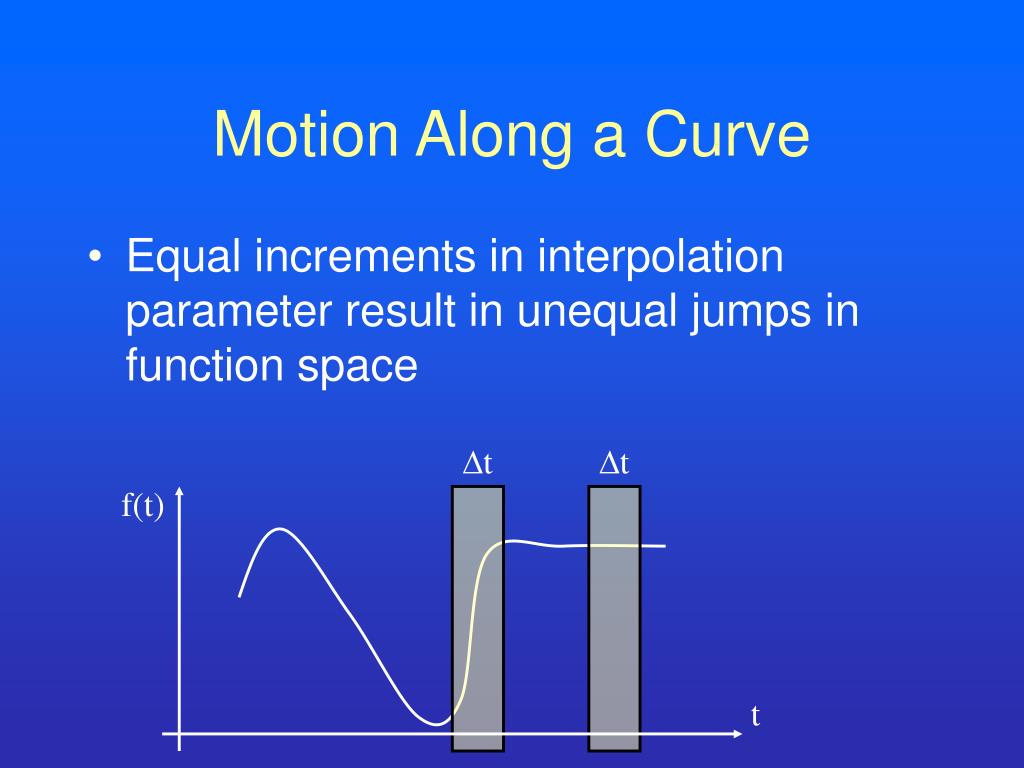

  24. Motion Along a Curve • Equal increments in interpolation parameter result in unequal jumps in function space Dt Dt f(t) t

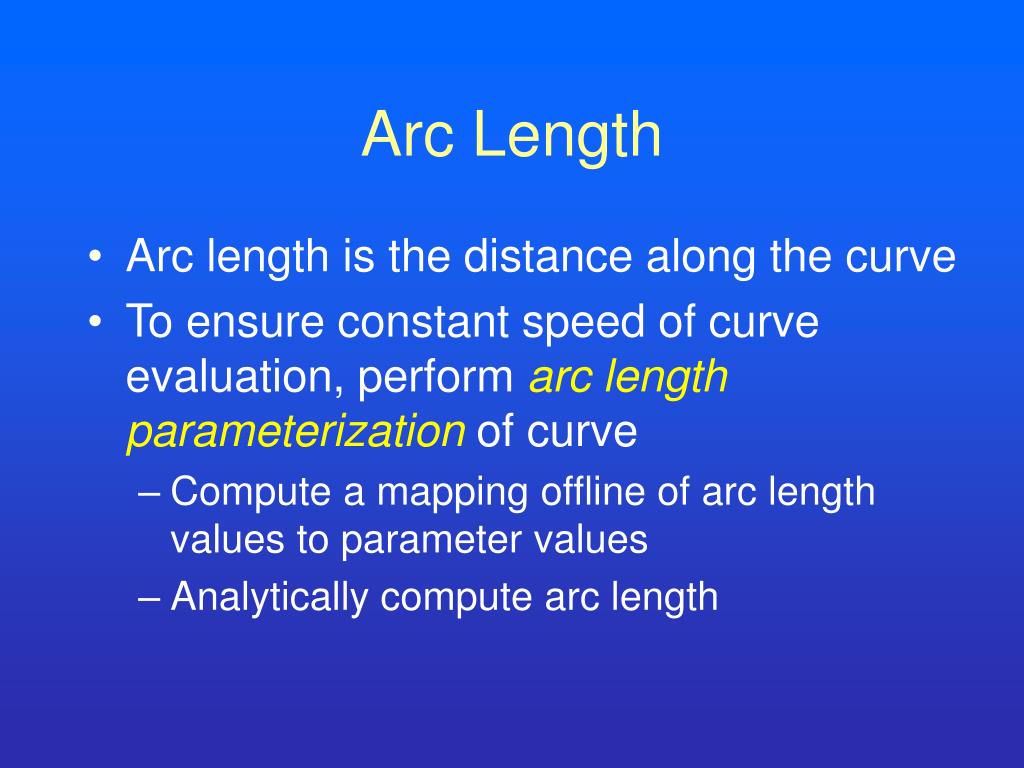

  25. Arc Length • Arc length is the distance along the curve • To ensure constant speed of curve evaluation, perform arc length parameterization of curve • Compute a mapping offline of arc length values to parameter values • Analytically compute arc length

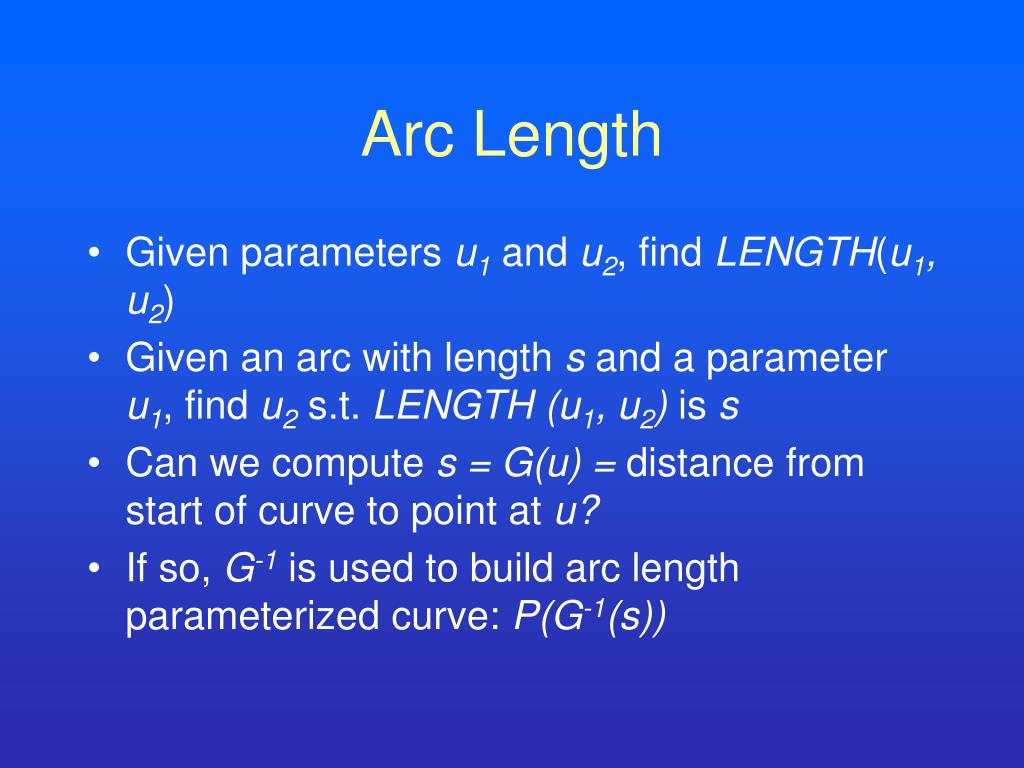

  26. Arc Length • Given parameters u1 and u2, find LENGTH(u1, u2) • Given an arc with length s and a parameter u1, find u2 s.t. LENGTH(u1, u2) is s • Can we compute s = G(u) = distance from start of curve to point at u? • If so, G-1 is used to build arc length parameterized curve: P(G-1(s))

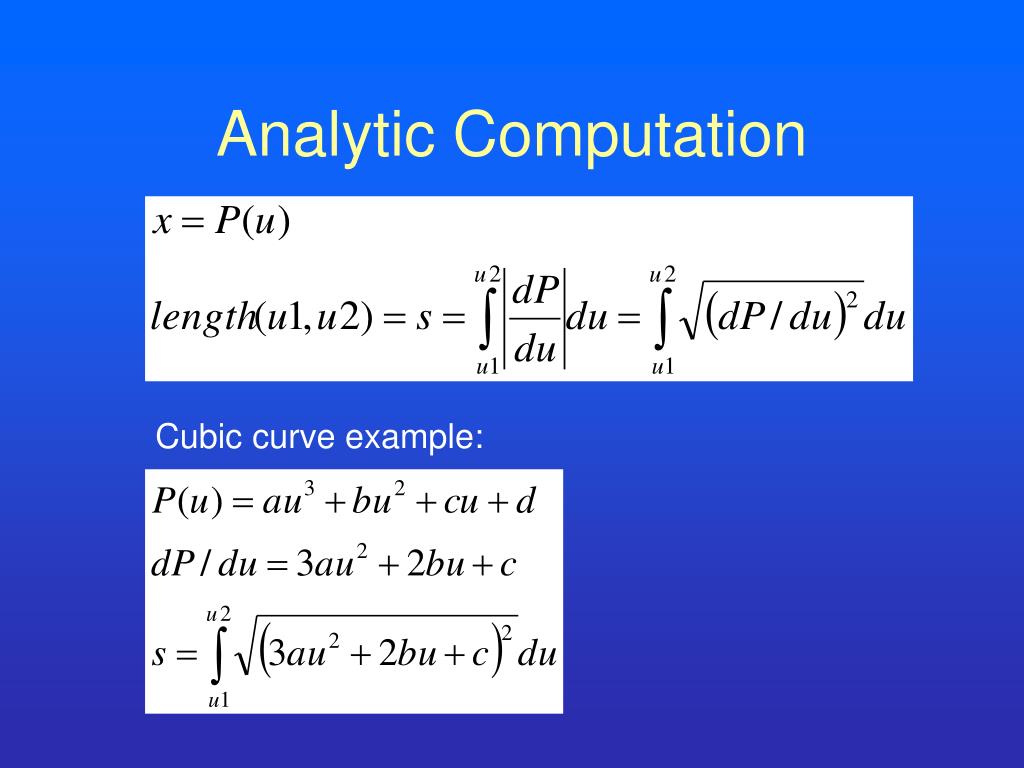

  27. Analytic Computation Cubic curve example:

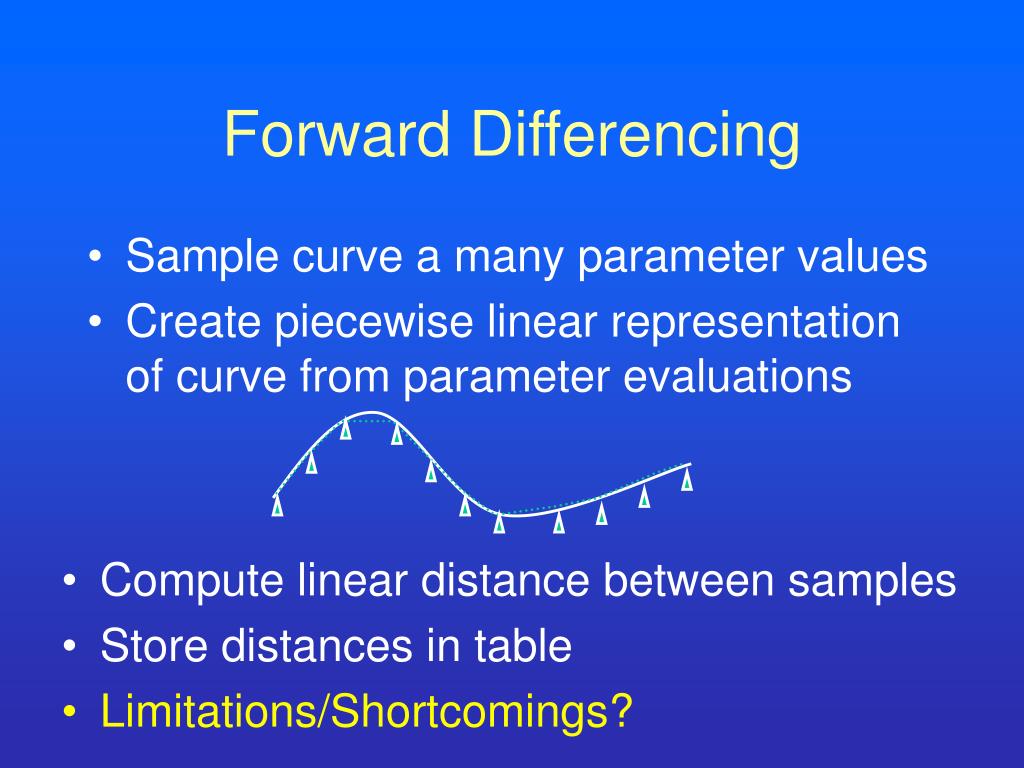

  28. Forward Differencing • Sample curve a many parameter values • Create piecewise linear representation of curve from parameter evaluations • Compute linear distance between samples • Store distances in table • Limitations/Shortcomings?

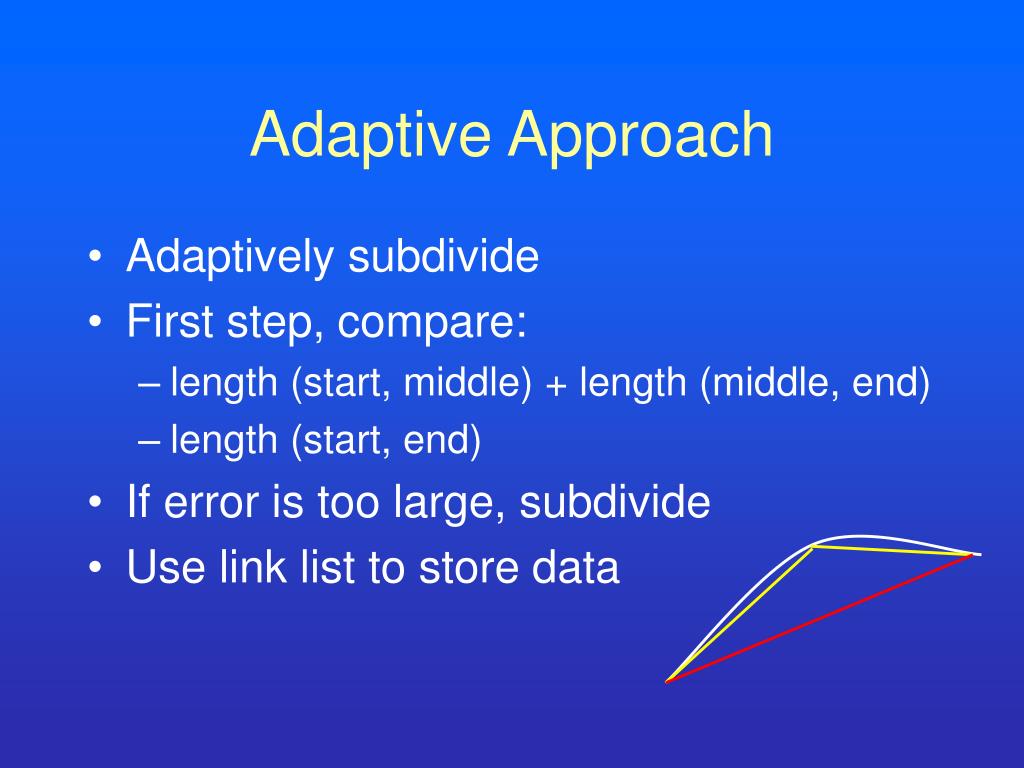

  29. Adaptive Approach • Adaptively subdivide • First step, compare: • length (start, middle) + length (middle, end) • length (start, end) • If error is too large, subdivide • Use link list to store data

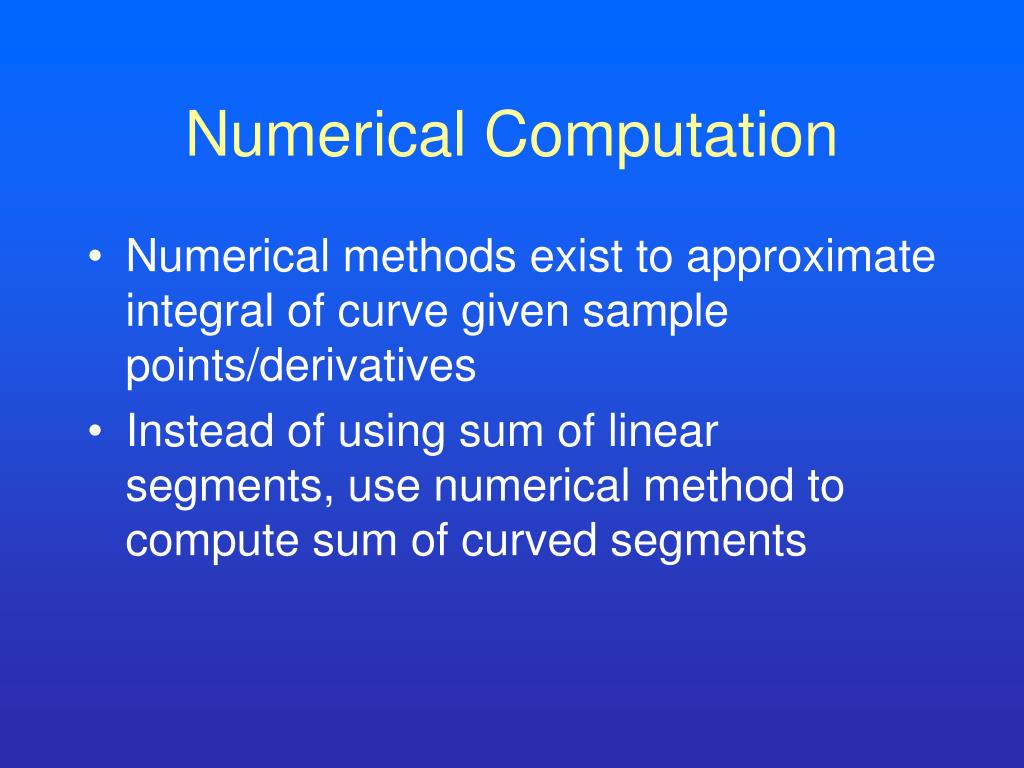

  30. Numerical Computation • Numerical methods exist to approximate integral of curve given sample points/derivatives • Instead of using sum of linear segments, use numerical method to compute sum of curved segments

  31. Gaussian Quadrature • Computes the arc length of a cubic curve • Adaptive gaussian integration monitors errors to subsample • Build a table that maps parameter values to arc length values • To solve arc length at u, find ui and ui+1that bound u • Use gaussian quadrature to compute intermediate arc length between that at uiand ui+1

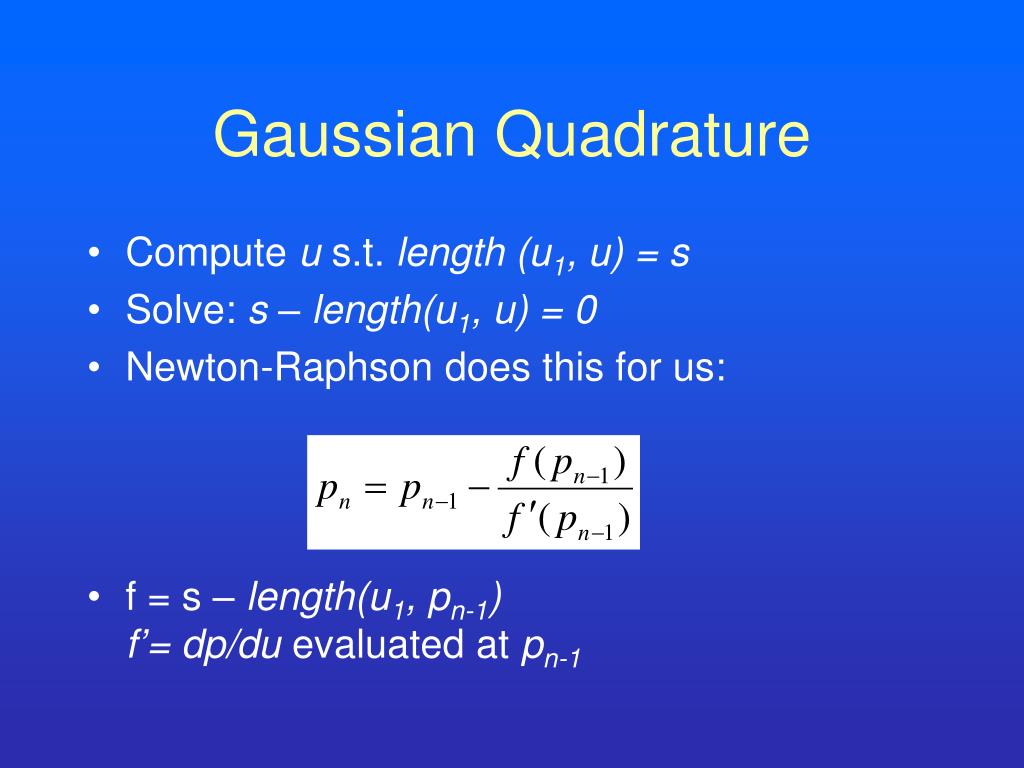

  32. Gaussian Quadrature • Compute u s.t. length (u1, u) = s • Solve: s – length(u1, u) = 0 • Newton-Raphson does this for us: • f = s – length(u1, pn-1) f’= dp/du evaluated at pn-1

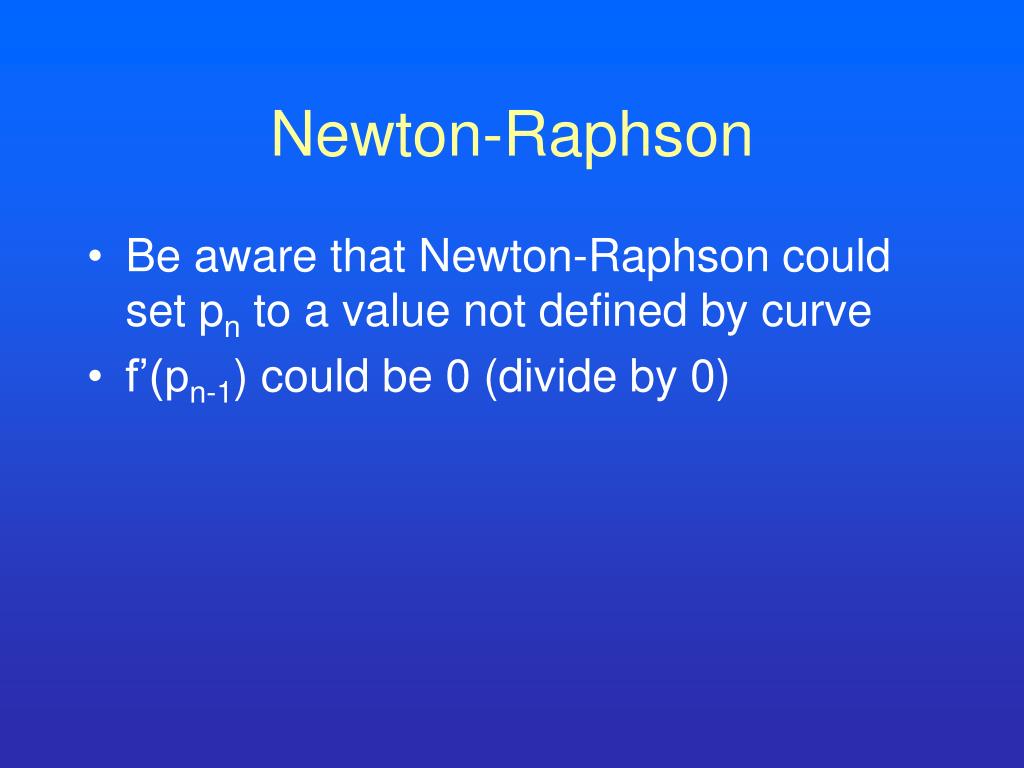

  33. Newton-Raphson • Be aware that Newton-Raphson could set pn to a value not defined by curve • f’(pn-1) could be 0 (divide by 0)
