Presentation Transcript

  1. CSC418 Computer Graphics • Cameras and Projections Follow lecture notes on 3D Projection and Clipping : www.dgp.toronto.edu/~karan/courses/csc418/fall_2002/notes/lectures.html

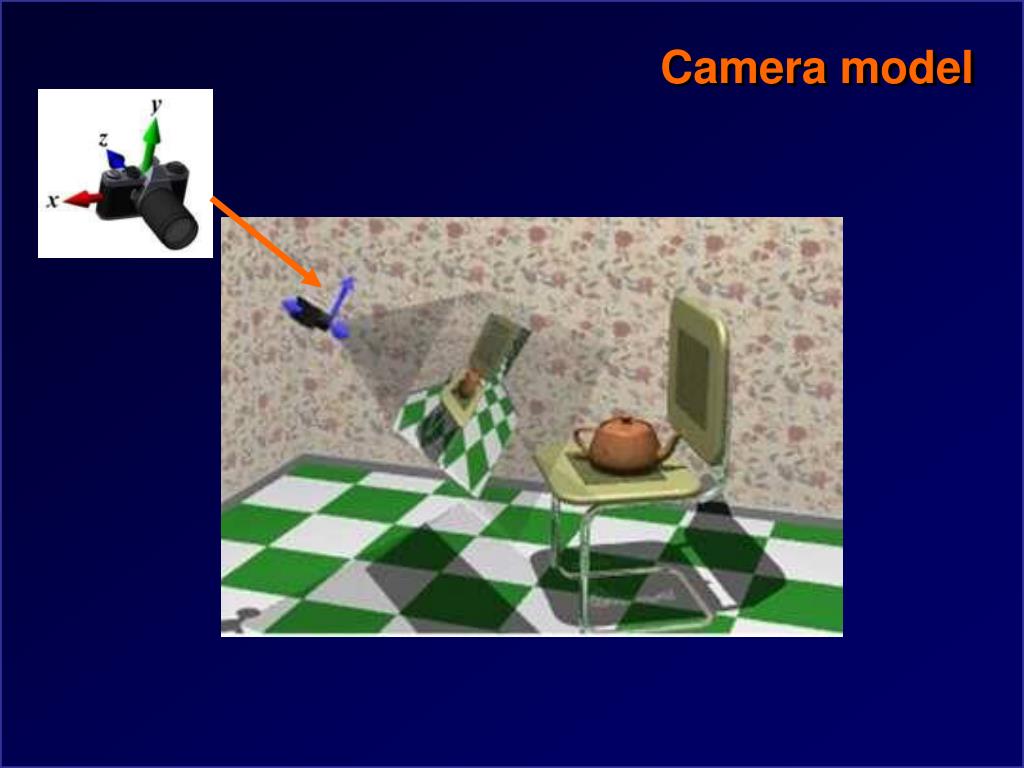

  2. Camera model

  3. Viewing Transform Vup Peye Pref

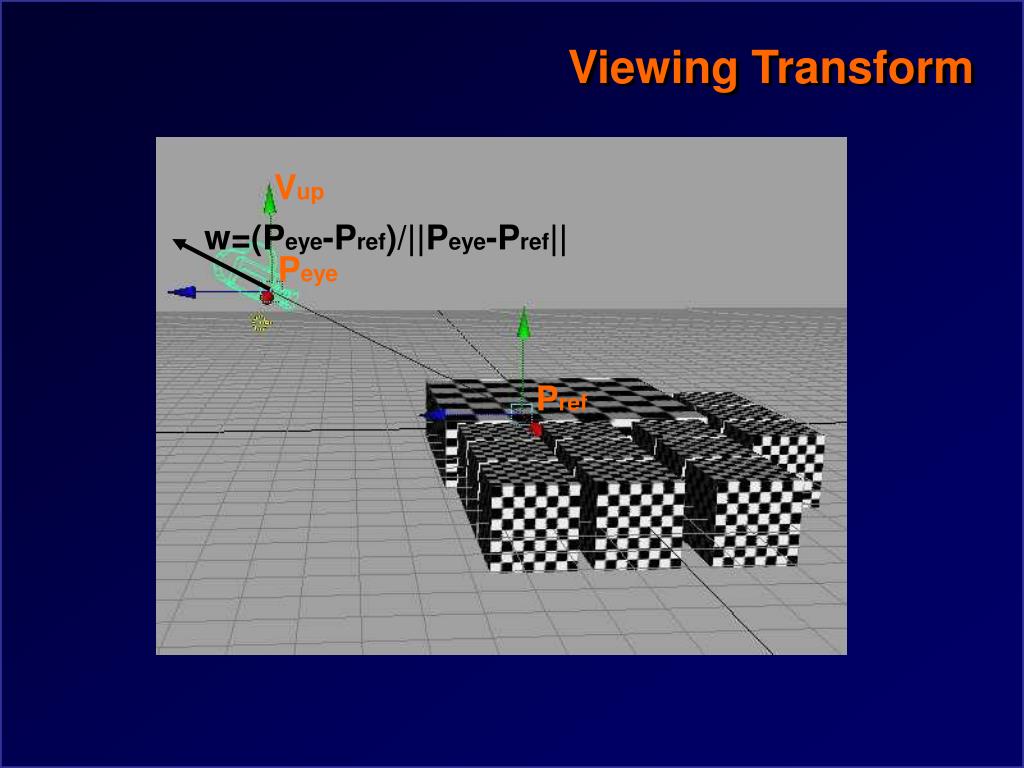

  4. Viewing Transform Vup w=(Peye-Pref)/||Peye-Pref|| Peye Pref

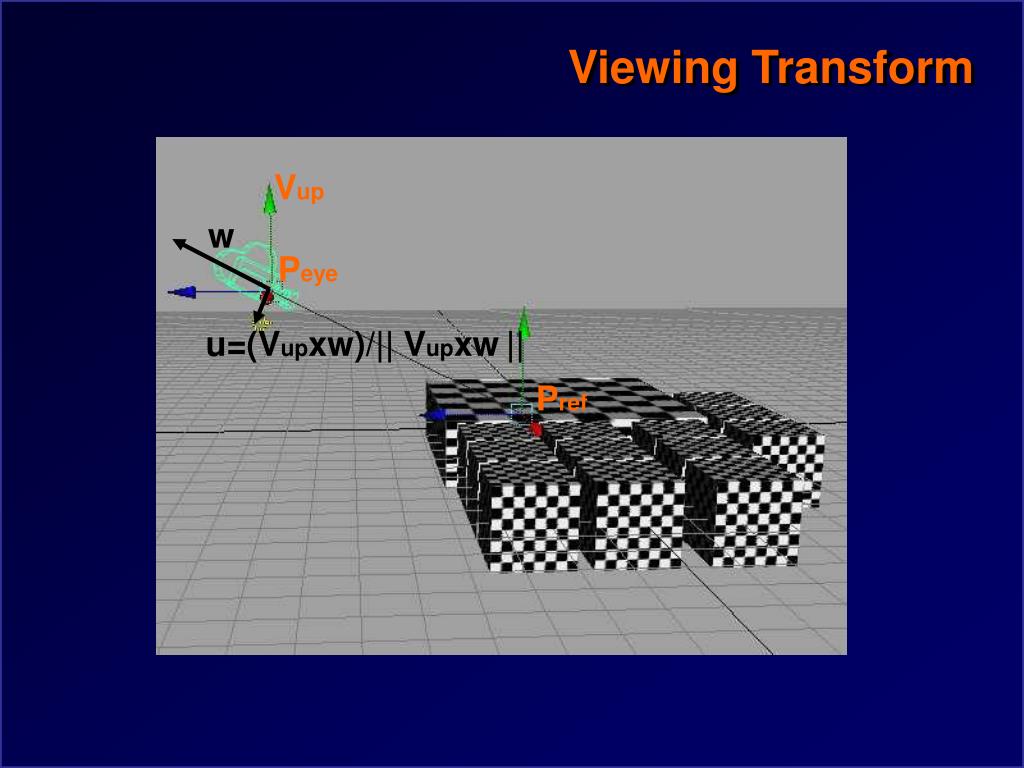

  5. Viewing Transform Vup w Peye u=(Vupxw)/|| Vupxw|| Pref

  6. Viewing Transform Vup w v=wxu Peye u Pref

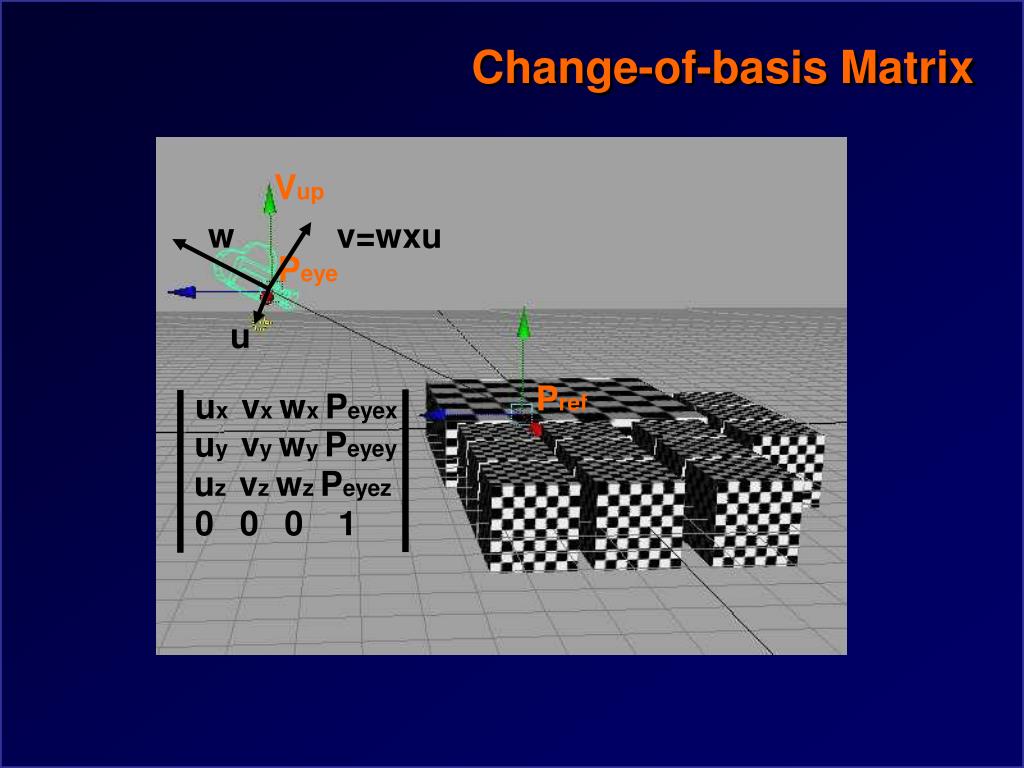

  7. Vup w v=wxu Peye u Pref Change-of-basis Matrix ux vx wx Peyex uy vy wy Peyey uz vz wz Peyez 000 1

  8. Camera model

  9. Camera model What is the difference between these images? Perspective Orthographic

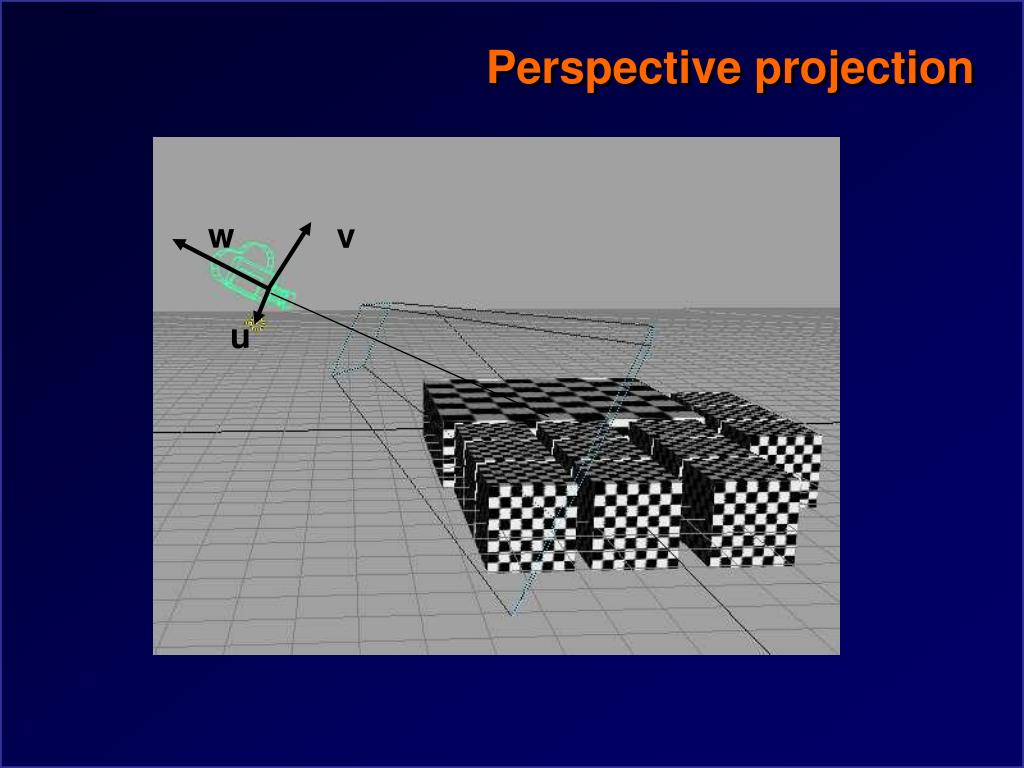

  10. Perspective projection w v u

  11. Perspective projection w v P’ P d u

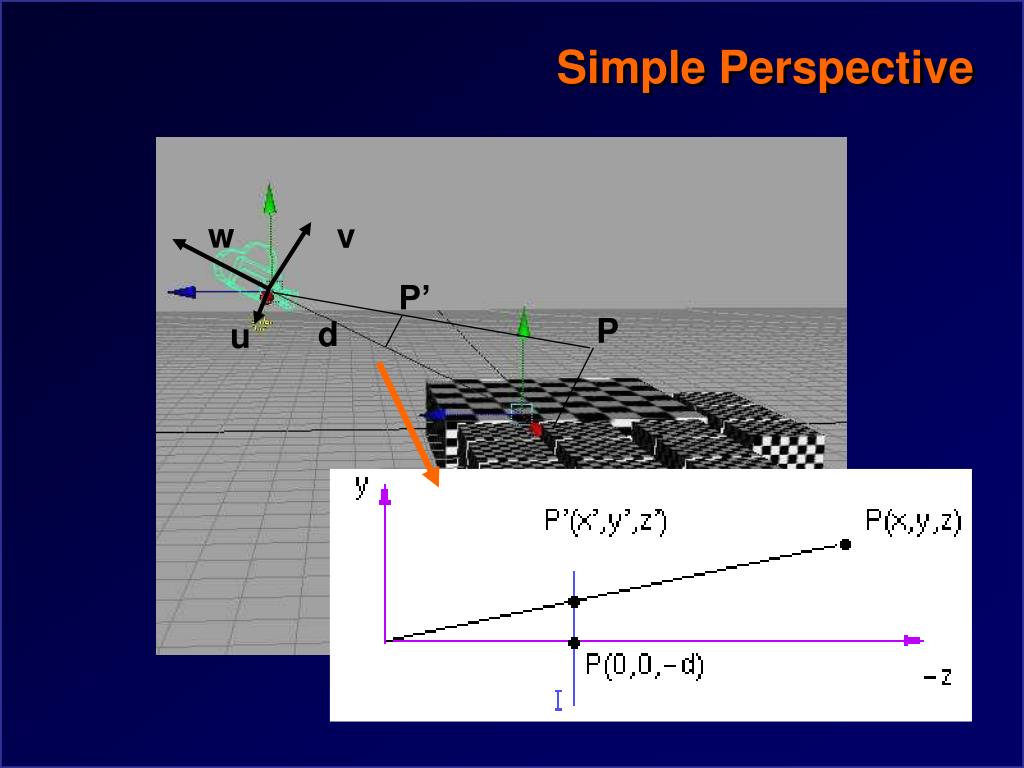

  12. Simple Perspective w v P’ P d u

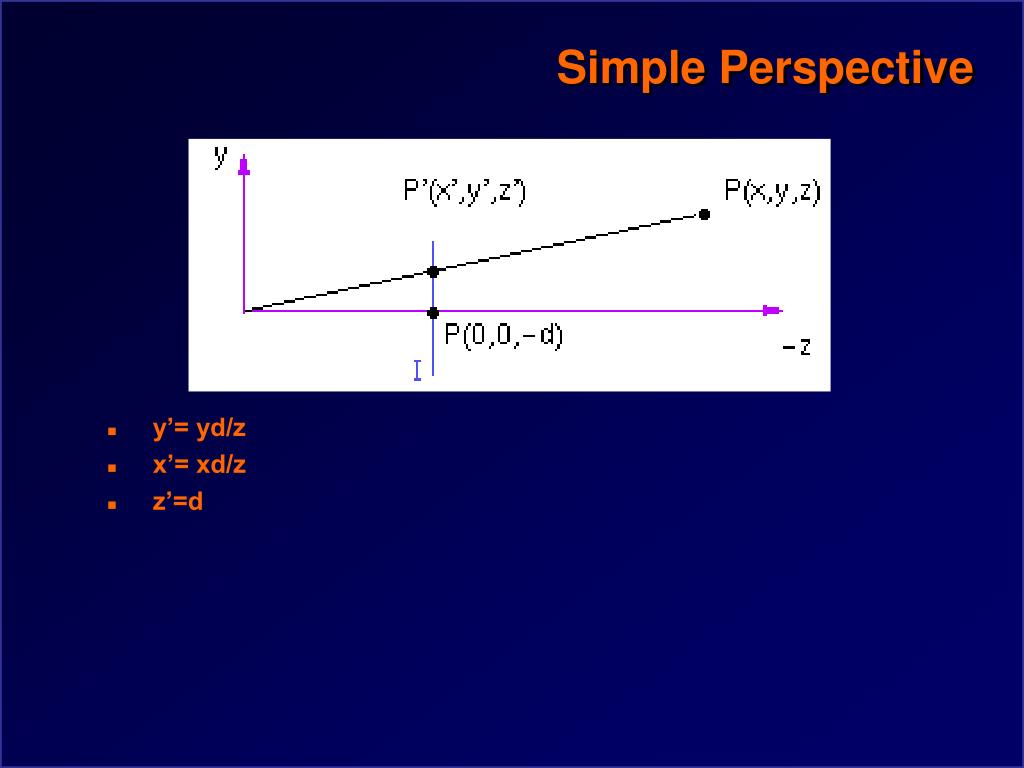

  13. Simple Perspective • y’= yd/z • x’= xd/z • z’=d

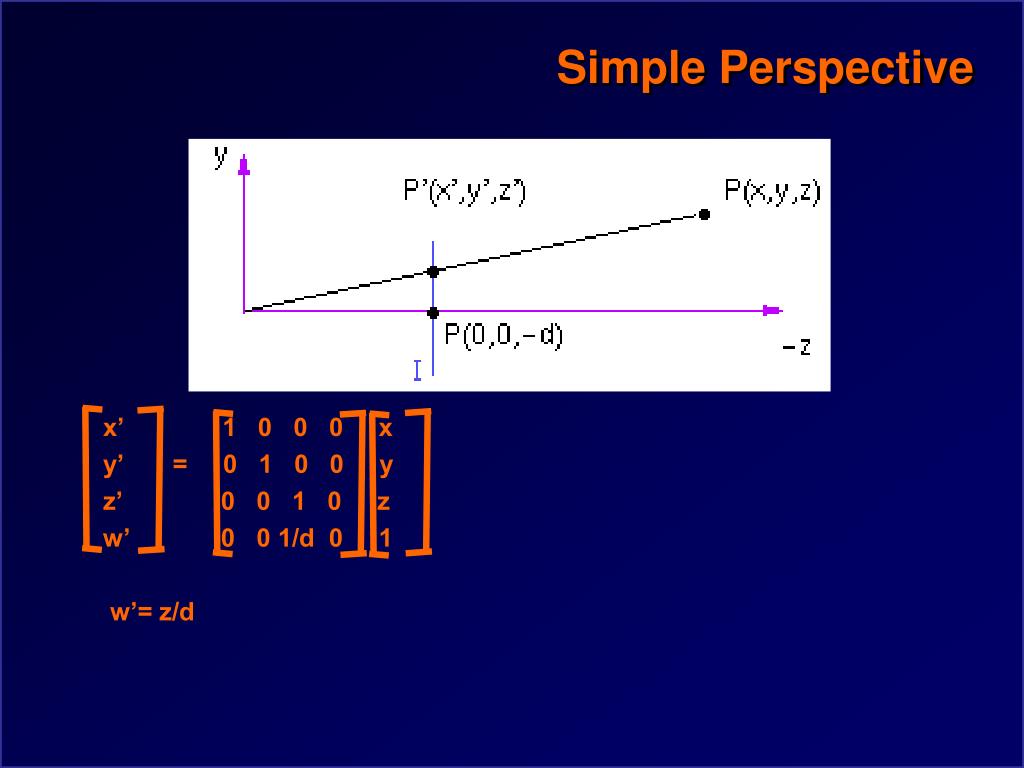

  14. Simple Perspective x’ 1 0 0 0 x y’ = 0 1 0 0 y z’ 0 0 1 0 z w’ 0 0 1/d 0 1 w’= z/d

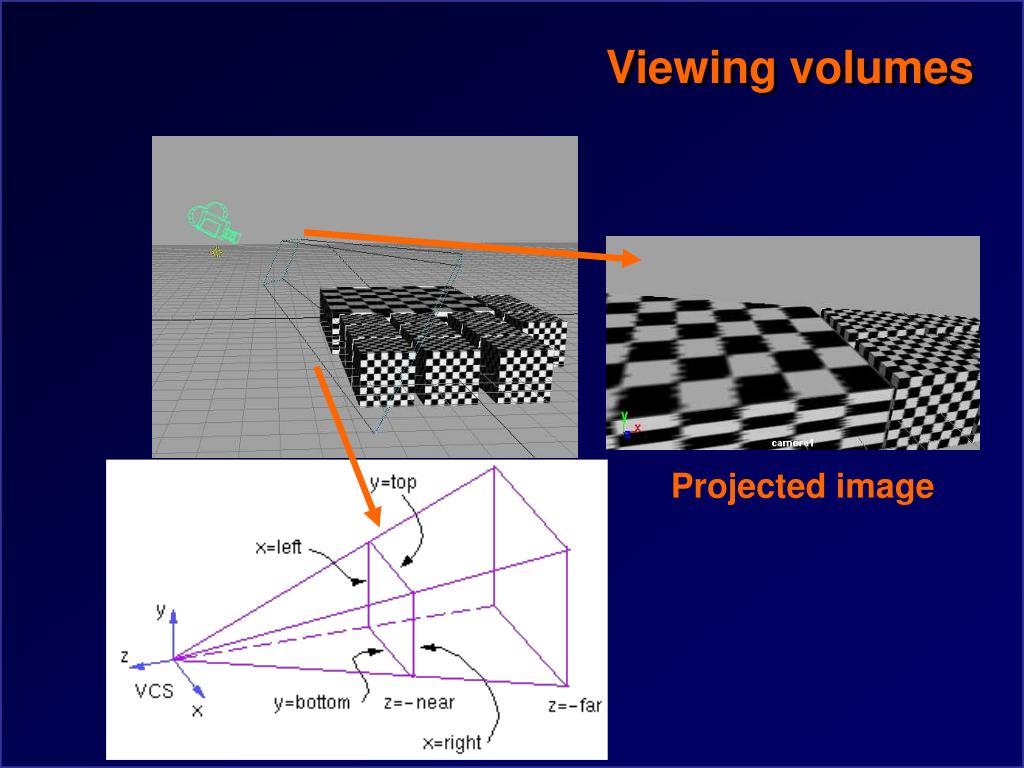

  15. Viewing volumes Projected image

  16. Viewing volumes Projected image

  17. Viewing Pipeline

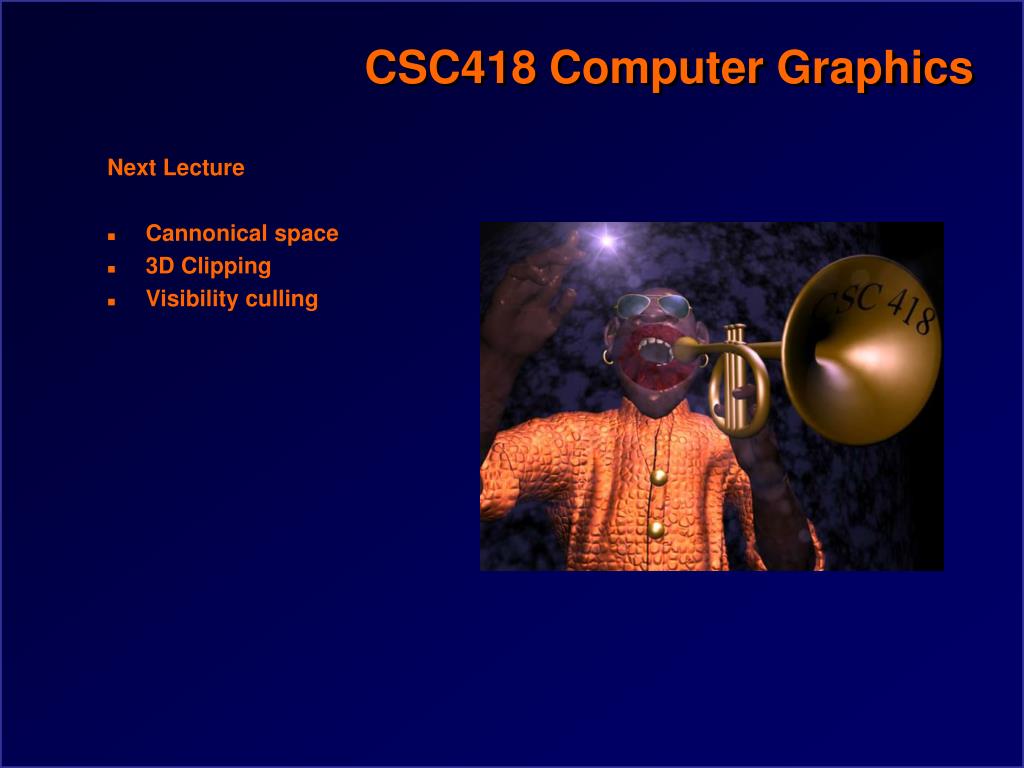

  18. CSC418 Computer Graphics Next Lecture • Cannonical space • 3D Clipping • Visibility culling
