  1. Programming Language Interface (PLI) Pedram A. Riahi Test Seminar August 11th, 2004

  2. Contents • PLI History • Verilog PLI Overview • Verilog VPI Routines • Cadence VPI Environment • Mentor Graphics VPI Environment • References Test Seminar

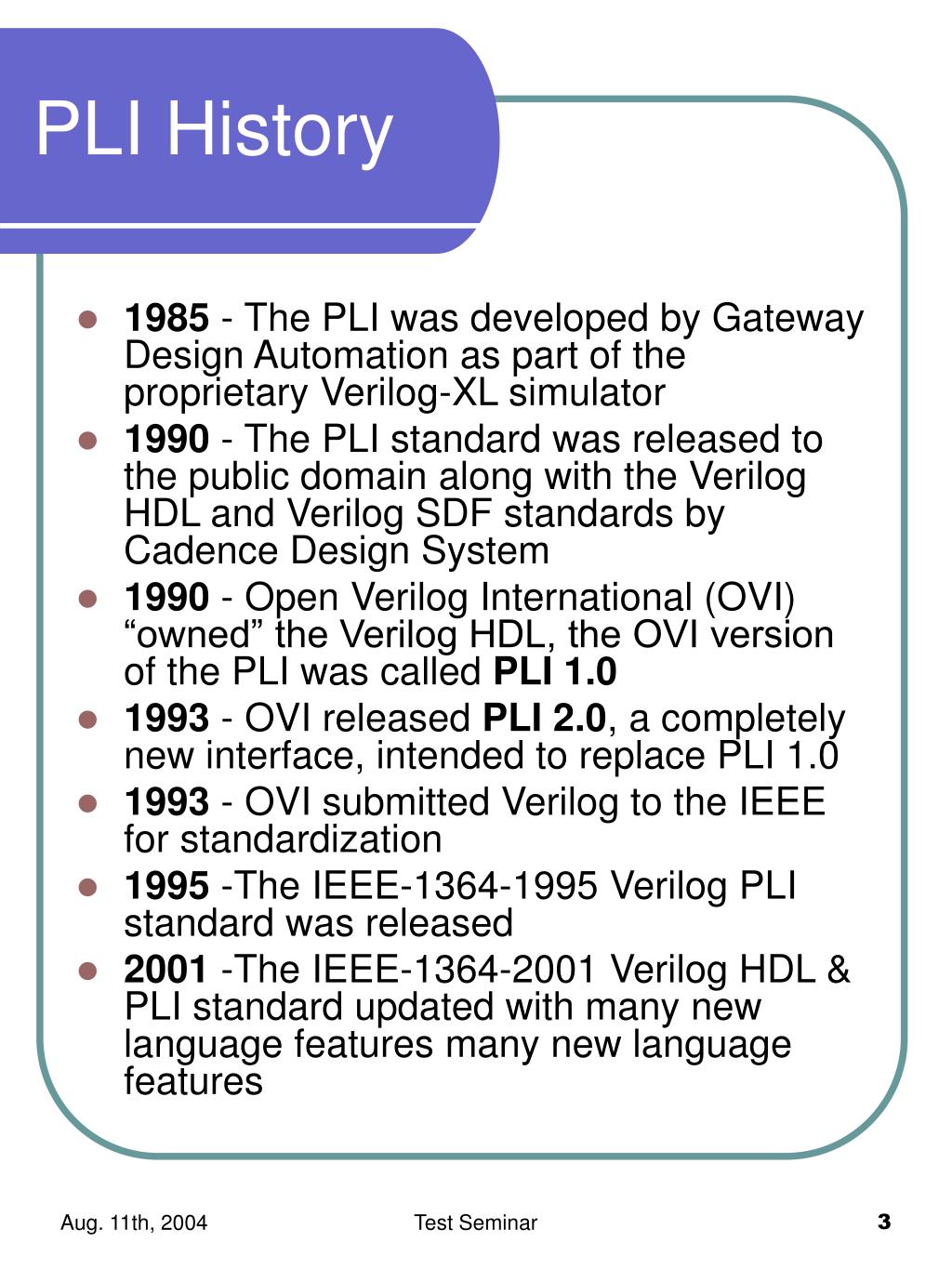

  3. PLI History • 1985 - The PLI was developed by Gateway Design Automation as part of the proprietary Verilog-XL simulator • 1990 - The PLI standard was released to the public domain along with the Verilog HDL and Verilog SDF standards by Cadence Design System • 1990 - Open Verilog International (OVI) “owned” the Verilog HDL, the OVI version of the PLI was called PLI 1.0 • 1993 - OVI released PLI 2.0, a completely new interface, intended to replace PLI 1.0 • 1993 - OVI submitted Verilog to the IEEE for standardization • 1995 -The IEEE-1364-1995 Verilog PLI standard was released • 2001 -The IEEE-1364-2001 Verilog HDL & PLI standard updated with many new language features many new language features Test Seminar

  4. Verilog PLI Overview • IEEE Std Verilog HDL LRM Clauses 20-27 and Appendices E-G • Verilog PLI Generations: • Task/Function Routines (TF Routines, “tf_”) • Access Routines (ACC Routines, “acc_”) • Verilog Procedural Interface Routines (VPI Routines, “vpi_”) Test Seminar

  5. Verilog PLI Overview • User-Defined System Tasks and Functions • Names ($) • Types • Overriding • User-Supplied PLI Applications • Arguments • Interface Mechanism • Include Files • acc_user.h • veriuser.h • vpi_user.h • Memory Restriction Test Seminar

  6. Verilog VPI Routines • System Tasks and Functions • vpi_register_systf() • vlog_startup_routines[] • Interface • Call-backs • vpi_register_cb() • Access to HDL and Simulation Objects • module m, wire w: m1.w, m2.w • Error Handling • Function Availability • Traversing Expressions Test Seminar

  7. Verilog VPI Routines • Call-backs • Simulation Call-backs • Simulation Action and Features • Simulation Times • Simulation Events • Statement Call-backs • Removing Call-backs • Time Queue Test Seminar

  8. Verilog VPI Routines • Diagram Key for Objects and Classes Object Definition Object Reference Class Definition Class Reference Unnamed Class Test Seminar

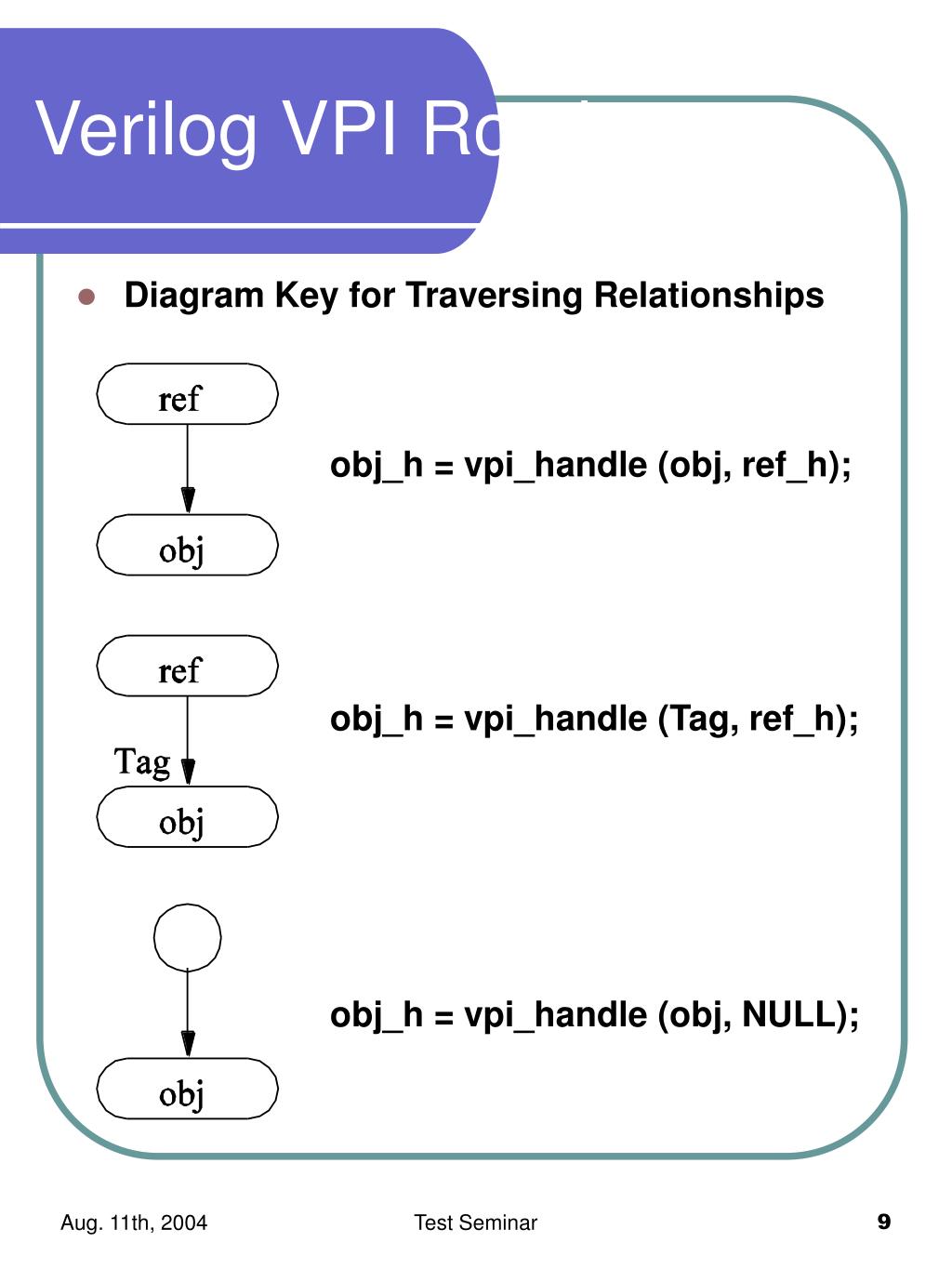

  9. Verilog VPI Routines • Diagram Key for Traversing Relationships obj_h = vpi_handle (obj, ref_h); obj_h = vpi_handle (Tag, ref_h); obj_h = vpi_handle (obj, NULL); Test Seminar

  10. Verilog VPI Routines • Diagram Key for Traversing Relationships itr = vpi_iterate (obj, ref_h); while (obj_h = vpi_scan (itr)) { process obj_h} itr = vpi_iterate (Tag, ref_h); while (obj_h = vpi_scan (itr)) { process obj_h} itr = vpi_iterate (obj, NULL); while (obj_h = vpi_scan (itr)) { process obj_h} Test Seminar

  11. Verilog VPI Routines • Diagram Key for Accessing Properties PLI_INT32 vect_flag = vpi_get (vpiVector, obj_h); PLI_INT32 size = vpi_get (vpiSize, obj_h); PLI_INT8 *name = vpi_get_str (vpiName, obj_h); Identified Routines Test Seminar

  12. Verilog VPI Routines • Object Relationships and Properties modH = vpi_handle (vpiModule, netH); Test Seminar

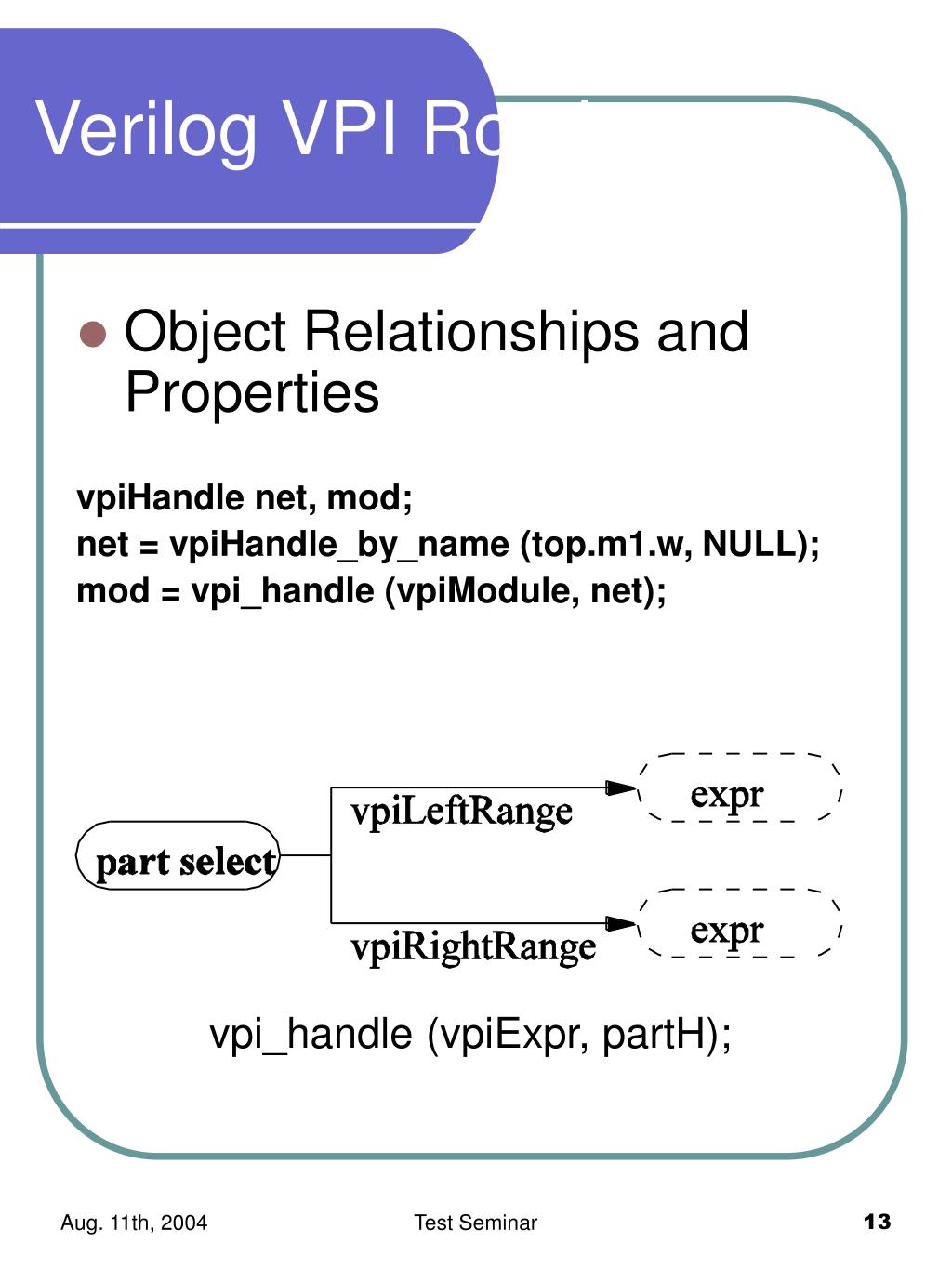

  13. Verilog VPI Routines • Object Relationships and Properties vpiHandle net, mod; net = vpiHandle_by_name (top.m1.w, NULL); mod = vpi_handle (vpiModule, net); vpi_handle (vpiExpr, partH); Test Seminar

  14. Verilog VPI Routines • Object Relationships and Properties PLI_BYTE8 *name = vpi_get_str (vpiFullName, mod); vpiHandle itr; itr = vpi_iterate(vpiNet, mod); while (net = vpi_scan (itr)) vpi_printf(‘‘%s\n’’, vpi_get_str (vpiFullName, net)); Test Seminar

  15. Verilog VPI Routines • Object Relationships and Properties void traverseExpr (vpiHandle expr) { vpiHandle subExprI, subExprH; switch (vpi_get (vpiExpr, expr)) { case vpiOperation: subExprI = vpi_iterate (vpiOperand, expr); if (subExprI) while (subExprH = vpi_scan (subExprI)) traverseExpr (subExprH); default: break; }} Test Seminar

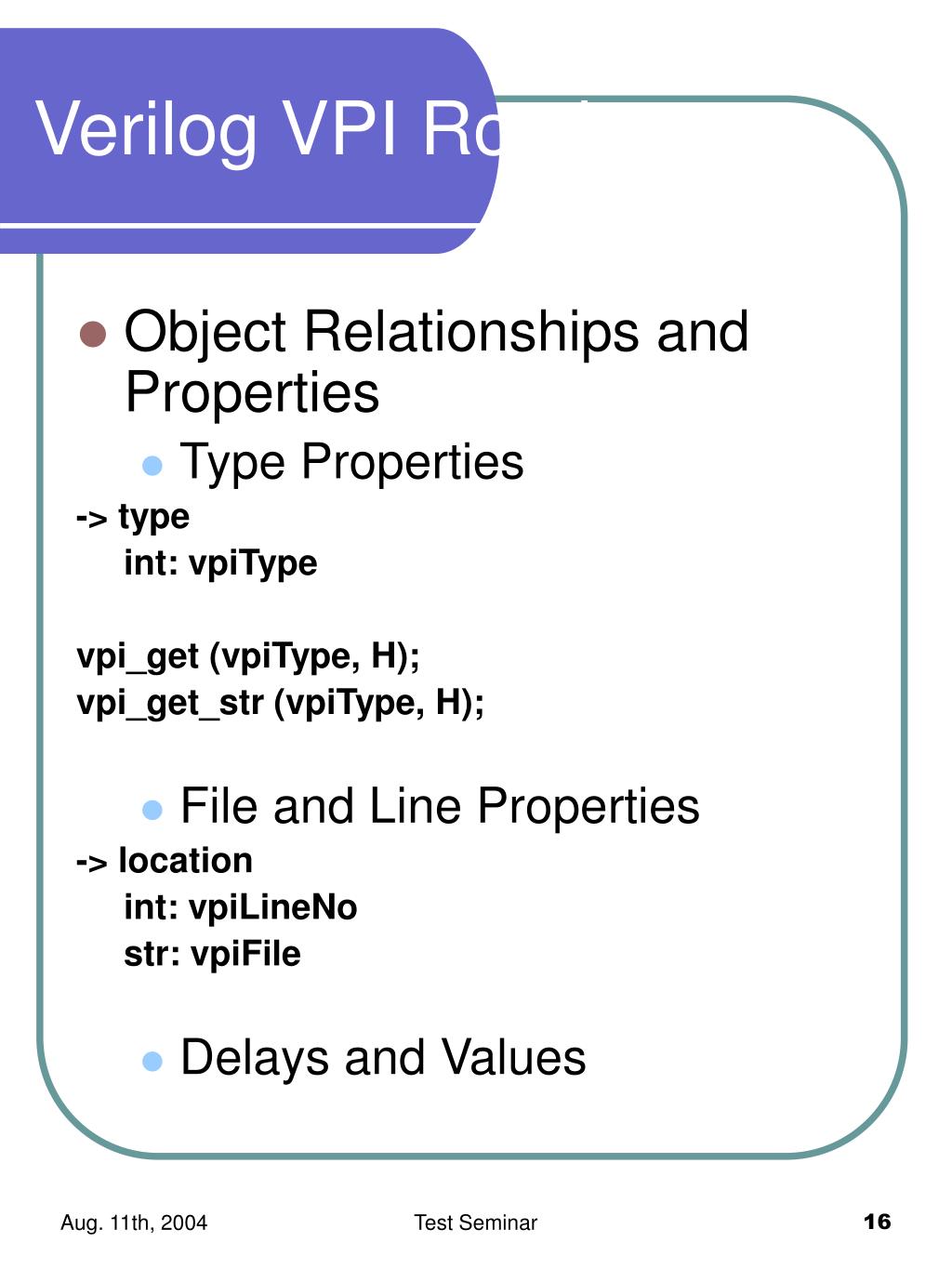

  16. Verilog VPI Routines • Object Relationships and Properties • Type Properties -> type int: vpiType vpi_get (vpiType, H); vpi_get_str (vpiType, H); • File and Line Properties -> location int: vpiLineNo str: vpiFile • Delays and Values Test Seminar

  17. Verilog VPI Routines • VPI Routines for Simulation Related Call-backs • vpi_register_cb(): Register a simulation-related call-back • vpi_remove_cb(): Remove a simulation-related call-back • vpi_get_cb_info(): Get information about a simulation-related call-back Test Seminar

  18. Verilog VPI Routines • VPI Routines for System Task/Function Call-backs • vpi_register_systf(): Register a system task/function call-back • vpi_get_systf_info(): Get information about a system task/function call-back Test Seminar

  19. Verilog VPI Routines • VPI Routines for Traversing Verilog HDL Hierarchy • vpi_handle(): Obtain a handle for an object with a one-to-one relationship • vpi_iterate(), vpi_scan(): Obtain handles for objects in a one-to-many relationship • vpi_handle_multi(): Obtain a handle for an object in a many-to-one relationship Test Seminar

  20. Verilog VPI Routines • VPI Routines for Accessing Properties of Objects • vpi_get(): Get the value of objects with types of int or bool • vpi_get_str(): Get the value of objects with types of string Test Seminar

  21. Verilog VPI Routines • VPI Routines for Accessing Objects from Properties • vpi_handle_by_name(): Obtain a handle for a named object • vpi_handle_by_index(): Obtain a handle for an indexed object • vpi_handle_by_multi_index(): Obtain a handle to a word or bit in an array Test Seminar

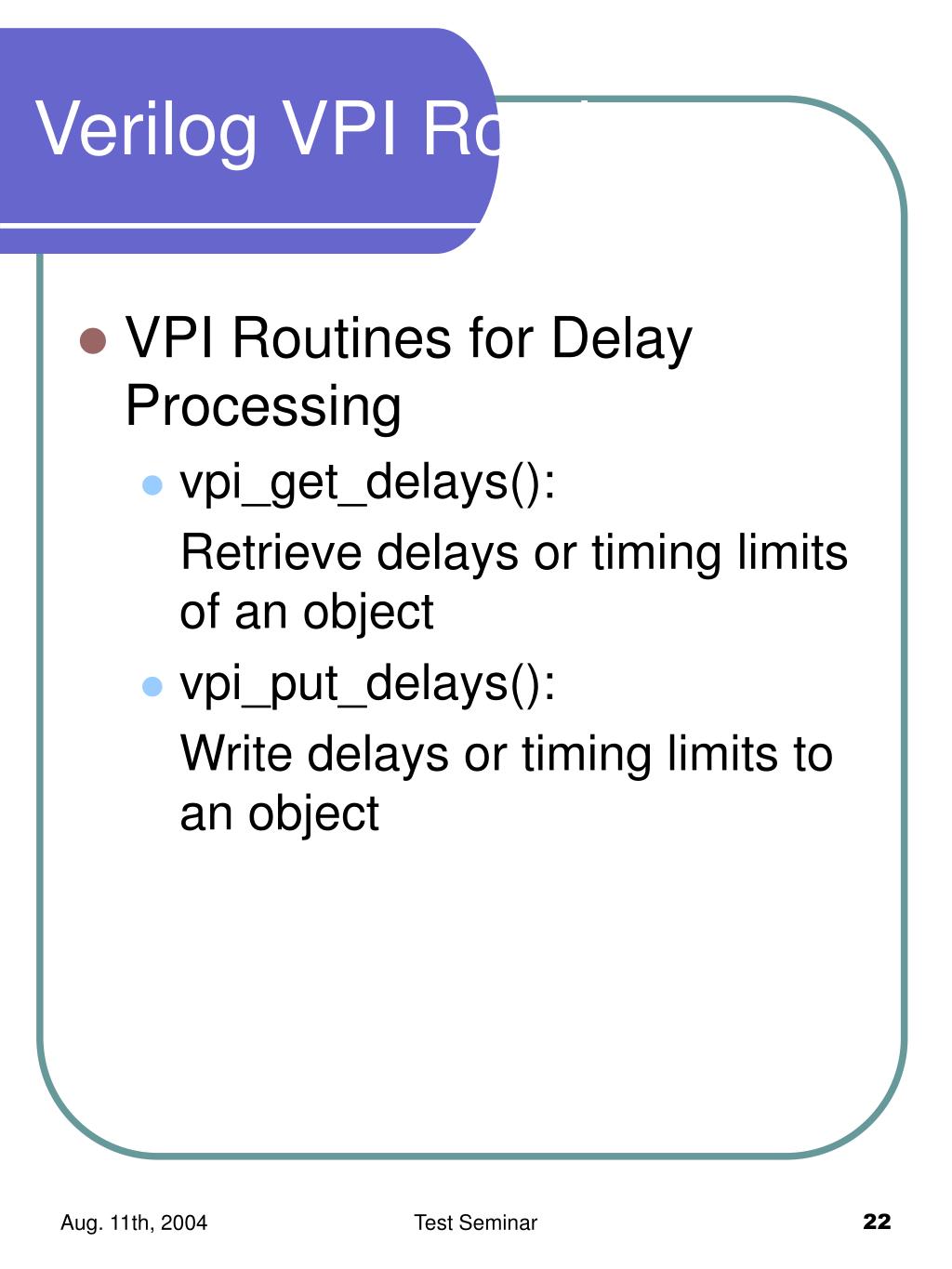

  22. Verilog VPI Routines • VPI Routines for Delay Processing • vpi_get_delays(): Retrieve delays or timing limits of an object • vpi_put_delays(): Write delays or timing limits to an object Test Seminar

  23. Verilog VPI Routines • VPI Routines for Logic and Strength Value Processing • vpi_get_value(): Retrieve logic value or strength value of an object • vpi_put_value(): Write logic value or strength value to an object Test Seminar

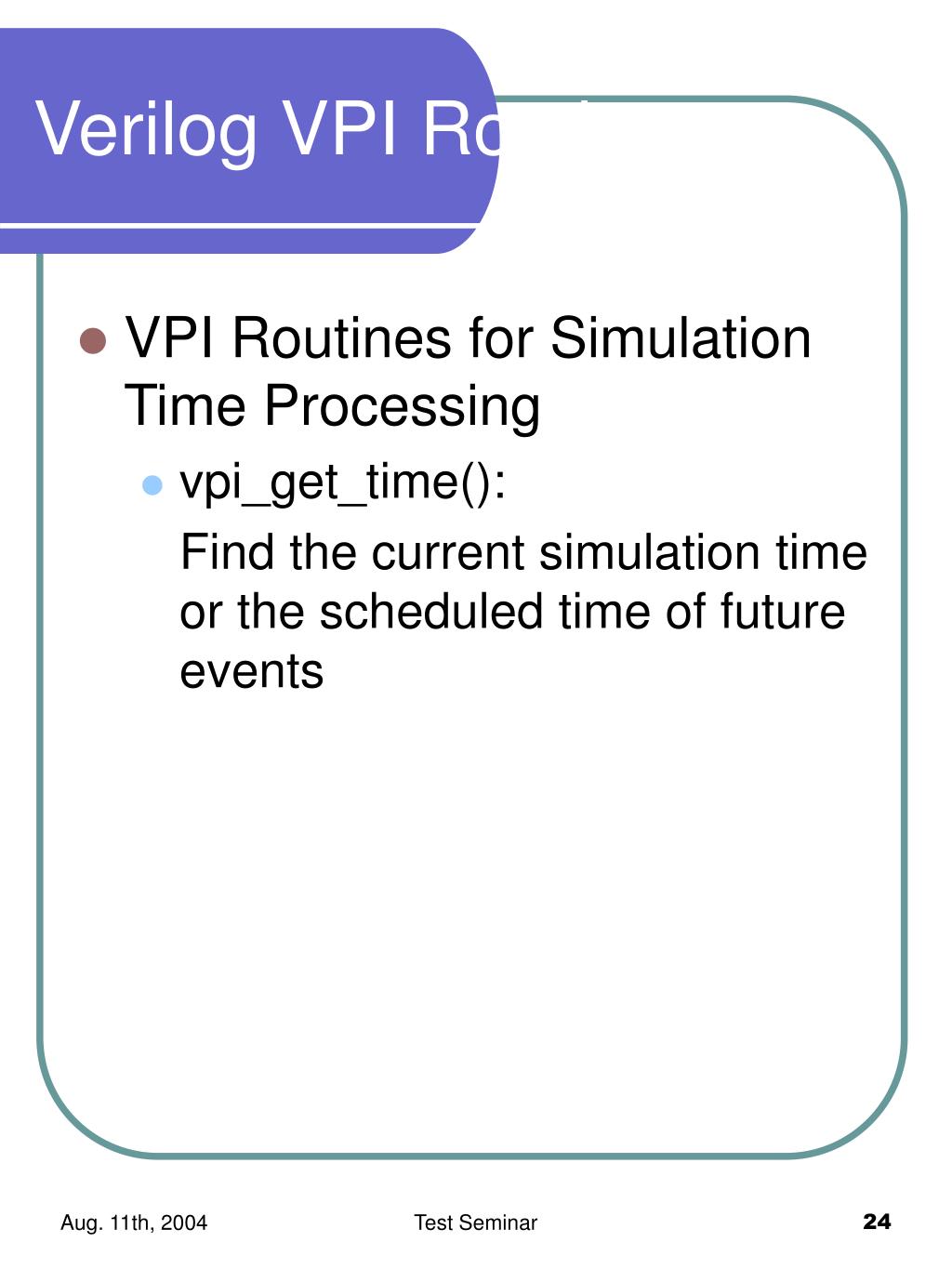

  24. Verilog VPI Routines • VPI Routines for Simulation Time Processing • vpi_get_time(): Find the current simulation time or the scheduled time of future events Test Seminar

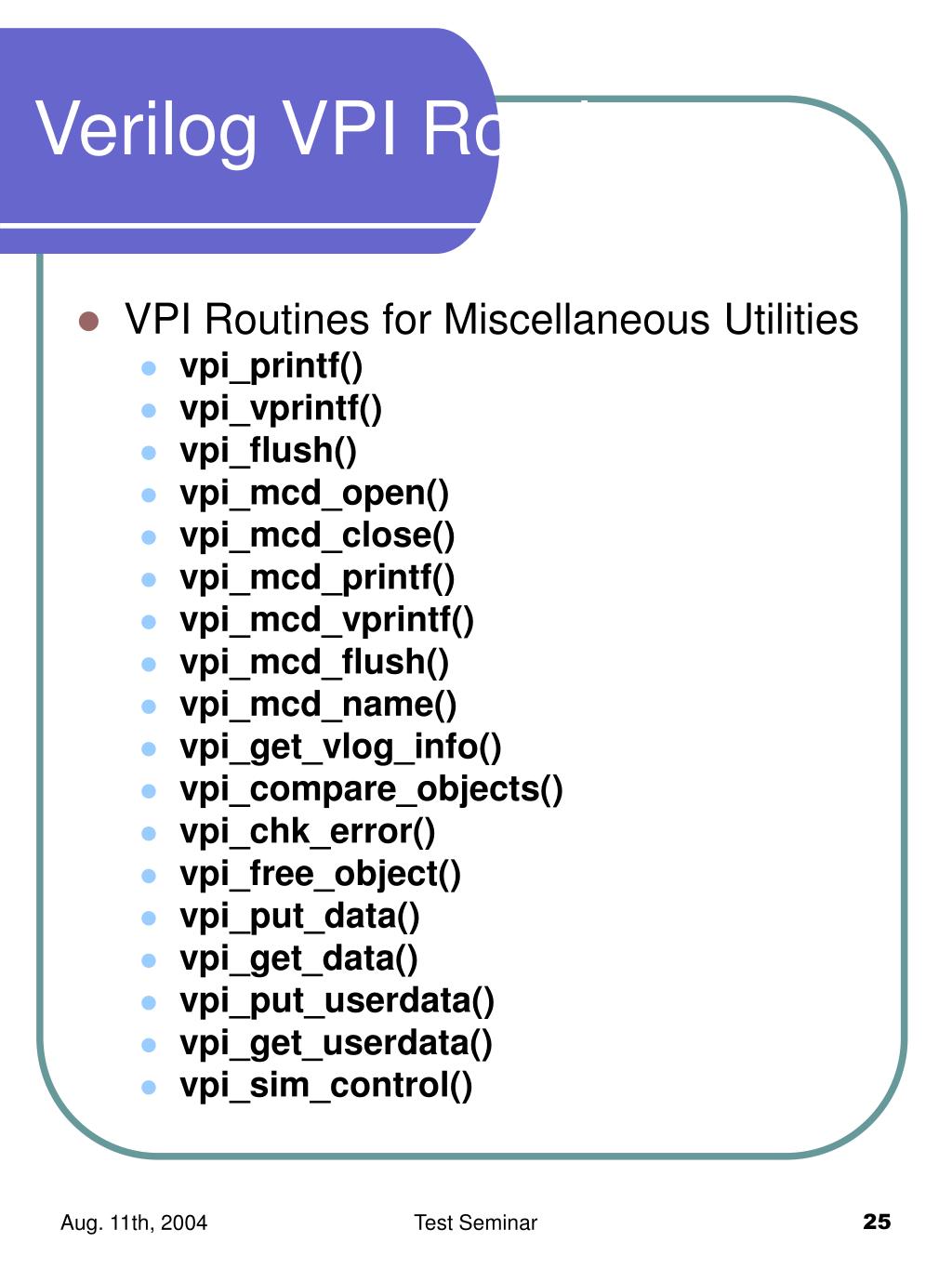

  25. Verilog VPI Routines • VPI Routines for Miscellaneous Utilities • vpi_printf() • vpi_vprintf() • vpi_flush() • vpi_mcd_open() • vpi_mcd_close() • vpi_mcd_printf() • vpi_mcd_vprintf() • vpi_mcd_flush() • vpi_mcd_name() • vpi_get_vlog_info() • vpi_compare_objects() • vpi_chk_error() • vpi_free_object() • vpi_put_data() • vpi_get_data() • vpi_put_userdata() • vpi_get_userdata() • vpi_sim_control() Test Seminar

  26. Verilog VPI Routines • Module Data Model Test Seminar

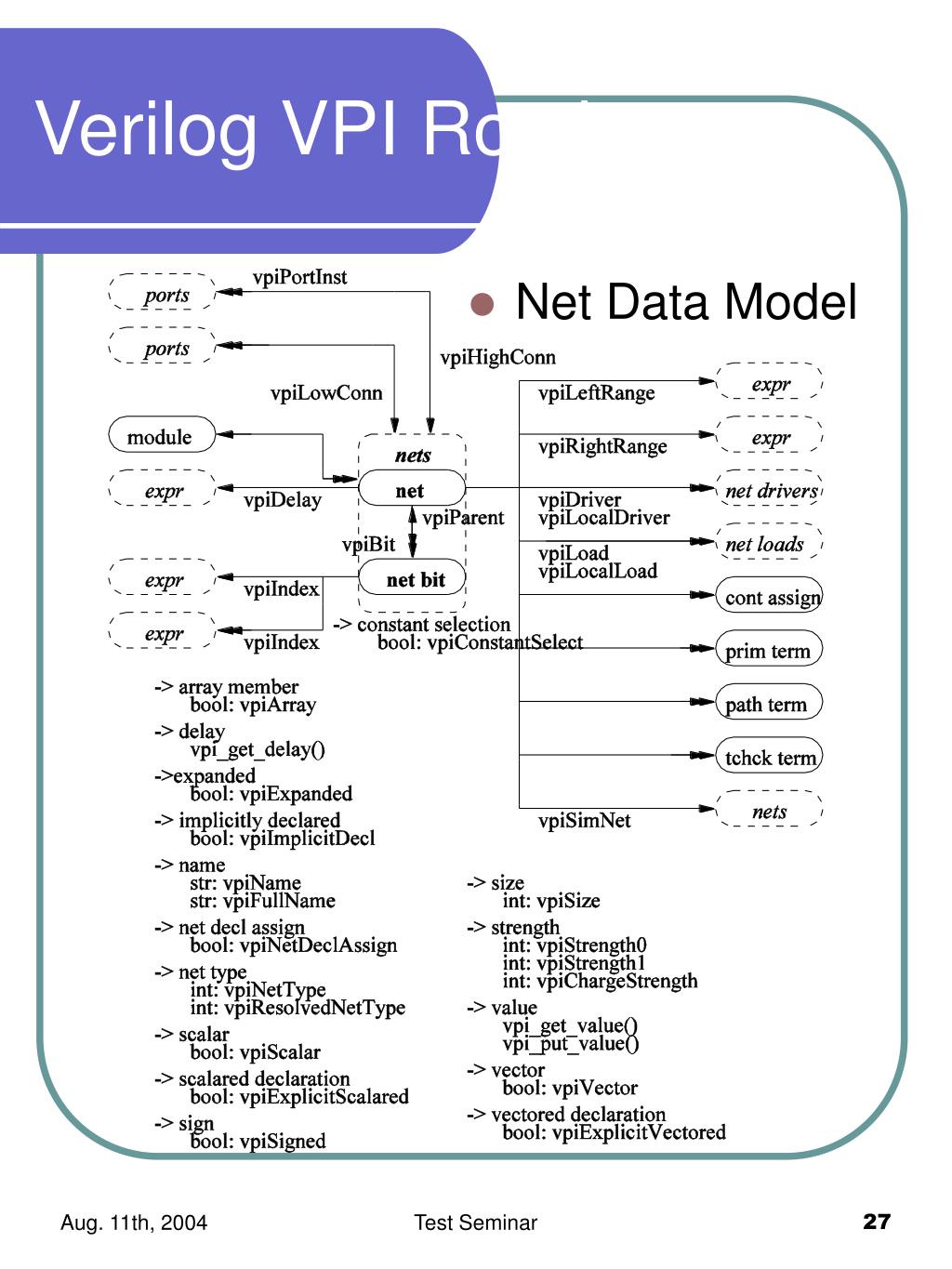

  27. Verilog VPI Routines • Net Data Model Test Seminar

  28. Verilog VPI Routines • Reg Data Model Test Seminar

  29. Verilog VPI Routines • Cadence PLI Environment Test Seminar

  30. Verilog VPI Routines • Cadence PLI Environment • Creating a C Function #include <stdio.h> #include vpi_user.h int hello_task () { vpi_printf (Hello from a new VPI task \n);} • Creating a C++ Function extern C void ncmain (int, char **); main(argc, argv) int argc; char* argv[]; { ncmain(argc, argv); } Test Seminar

  31. Verilog VPI Routines • Cadence PLI Environment • Associating C Function with a new System Task void register_my_systfs () { s_vpi_systf_data task_data_s; p_vpi_systf_data task_data_p = &task_data_s; task_data_p->type = vpiSysTask; task_data_p->tfname = $hello ; task_data_p->calltf = (int(*)()) hello_task; task_data_p->compiletf = NULL; vpi_register_systf (task_data_p); } Test Seminar

  32. Verilog VPI Routines • Cadence PLI Environment • Registering Users’ New System Task /* vpi_user.c */ #include vpi_user.h #include vpi_user_cds.h void (*vlog_startup_routines[]) () = {register_my_systfs, 0}; • Invoking Users’ System Task module top; Initial begin $hello; end endmodule Test Seminar

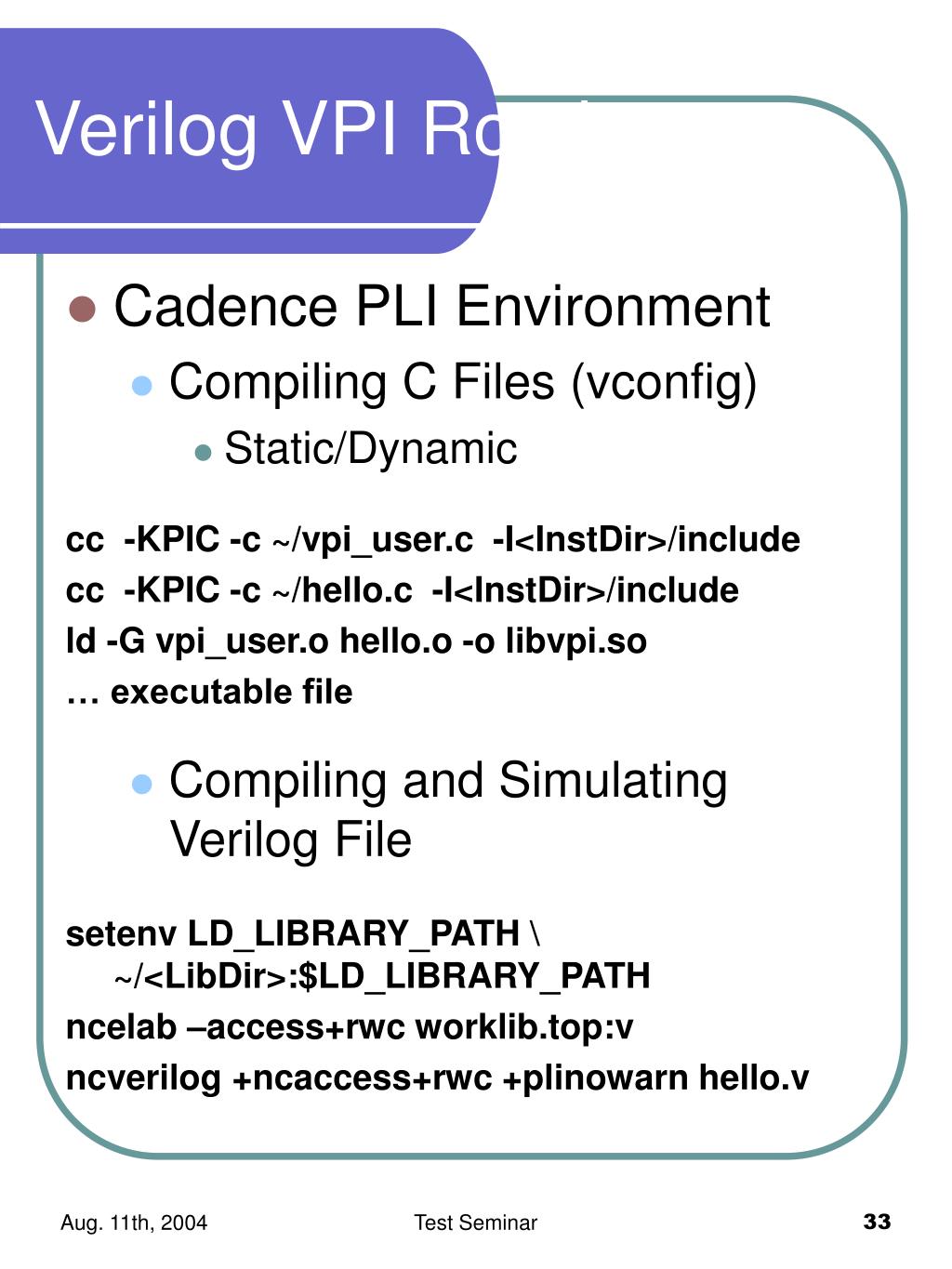

  33. Verilog VPI Routines • Cadence PLI Environment • Compiling C Files (vconfig) • Static/Dynamic cc -KPIC -c ~/vpi_user.c -I<InstDir>/include cc -KPIC -c ~/hello.c -I<InstDir>/include ld -G vpi_user.o hello.o -o libvpi.so … executable file • Compiling and Simulating Verilog File setenv LD_LIBRARY_PATH \ ~/<LibDir>:$LD_LIBRARY_PATH ncelab –access+rwc worklib.top:v ncverilog +ncaccess+rwc +plinowarn hello.v Test Seminar

  34. Verilog VPI Routines • Mentor Graphics PLI Environment • Compiling C Files cc -c ~/vpi_user.c -I<InstDir>/include cc -c ~/hello.c -I<InstDir>/include ld -G vpi_user.o hello.o -o vpi_lib.so • Compiling and Simulating Verilog File (modelsim.ini) vlib work vlog hello.v vsim -c -pli vpi_lib.so top Test Seminar

  35. References • Cadence Design Systems, Inc., “VPI User Guide and Reference,“ Product Version 3.2, Dec. 2000. • Cadence Design Systems, Inc., “NC-Verilog Simulator Help,” Product Version 3.2, Dec. 2000. • Cadence Design Systems, Inc., “Verilog-XL User Guide and Reference,” Product Version 2.8, Aug. 1999. • Mentor Graphics, “ModelSim SE User's Manual,” Version 5.7a, Jan. 2003 • Stuart Sutherland, “The Verilog PLI Handbook,” Kluwer Academic Publishers, 2002. • Swapnajit Mittra, “Principles of Verilog PLI,” Kluwer Academic Publishers, 1999. Test Seminar
