Programming Techniques Classes II. Important Class Features Spring 2009. References. C++ How to Program, Deitel, Prentice Hall, 2003 by Pearson Education, Fourth Edition Object Oriented Programming in C++, Robert Lafore, Waite Group Press, 1995, Second Edition. Classes II. Agenda:
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation
Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement.Téléchargez la présentation en cliquant sur ce lien.Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

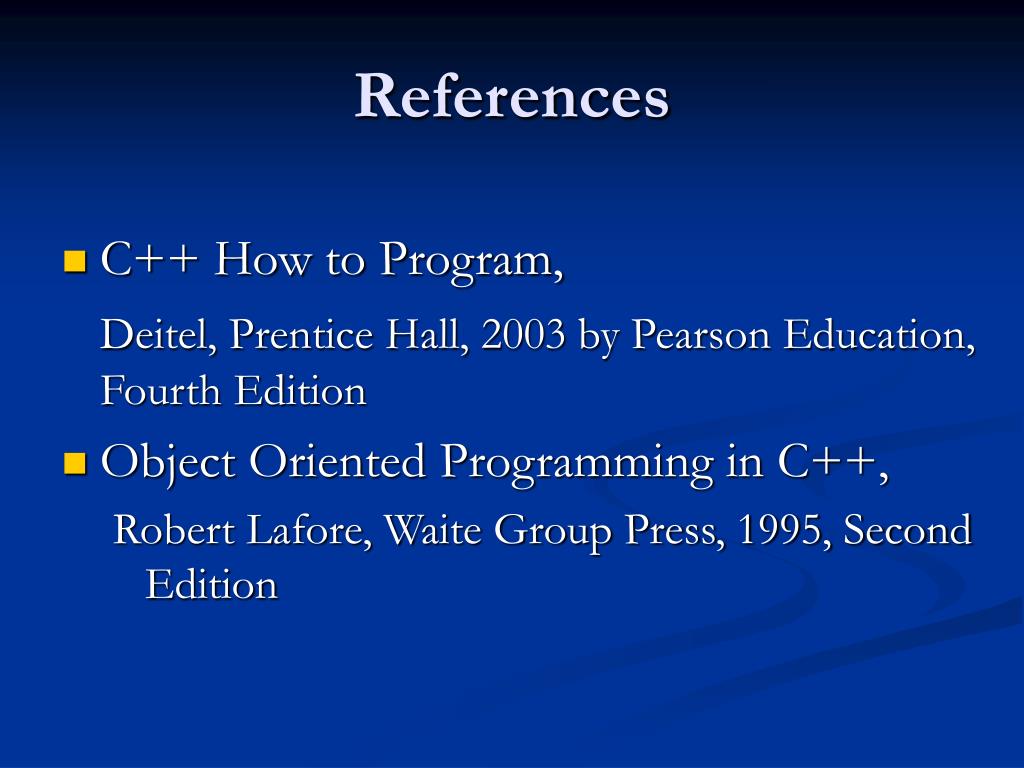

References • C++ How to Program, Deitel, Prentice Hall, 2003 by Pearson Education, Fourth Edition • Object Oriented Programming in C++, Robert Lafore, Waite Group Press, 1995, Second Edition

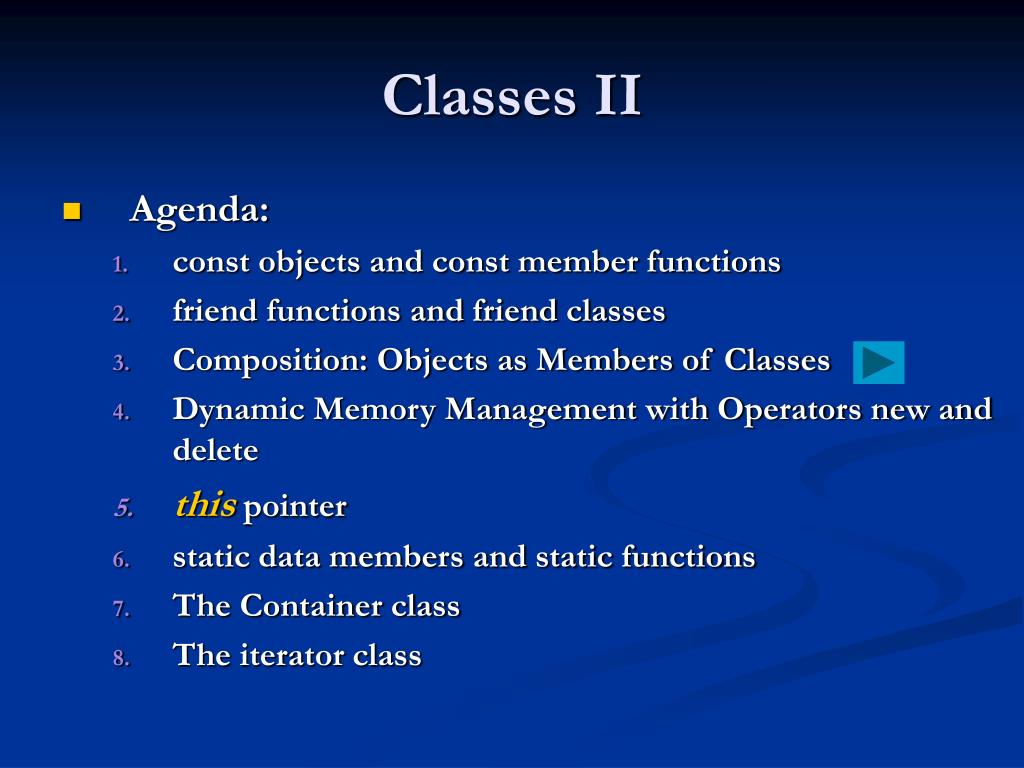

Classes II • Agenda: • const objects and const member functions • friend functions and friend classes • Composition: Objects as Members of Classes • Dynamic Memory Management with Operators new and delete • this pointer • static data members and static functions • The Container class • The iterator class
1. const objects and const member functions • Keyword const • Specify object not modifiable • Compiler error if attempt to modify const object • Example const Time noon( 12, 0, 0 ); • Declares const object noon of class Time • Initializes to 12

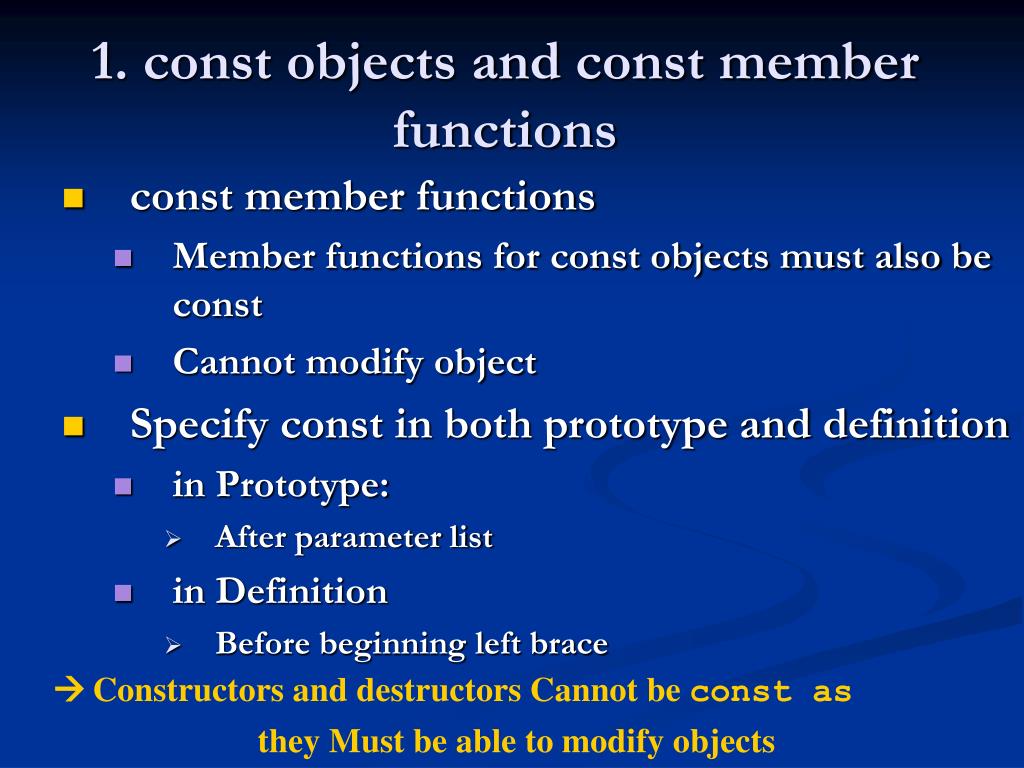

1. const objects and const member functions • const member functions • Member functions for const objects must also be const • Cannot modify object • Specify const in both prototype and definition • in Prototype: • After parameter list • in Definition • Before beginning left brace • Constructors and destructors Cannot be const as • they Must be able to modify objects

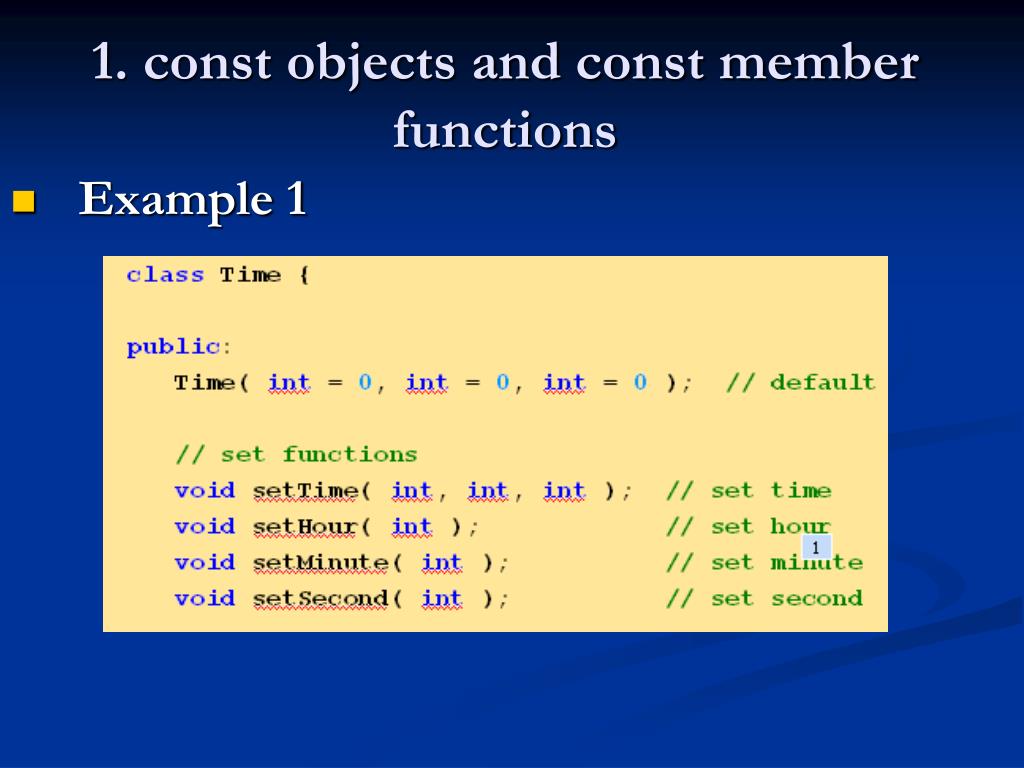

Declare noon a const object. Note that non-const constructor can initialize const object. 1. const objects and const member functions • Example 1

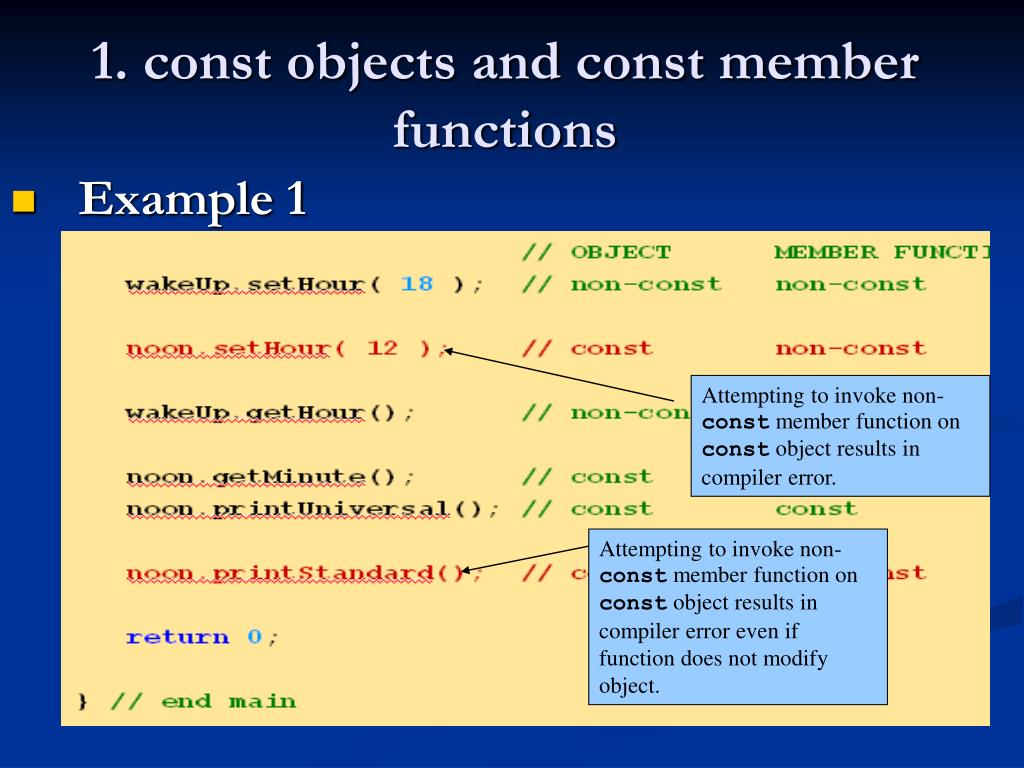

1. const objects and const member functions • Example 1 Attempting to invoke non-const member function on const object results in compiler error. Attempting to invoke non-const member function on const object results in compiler error even if function does not modify object.

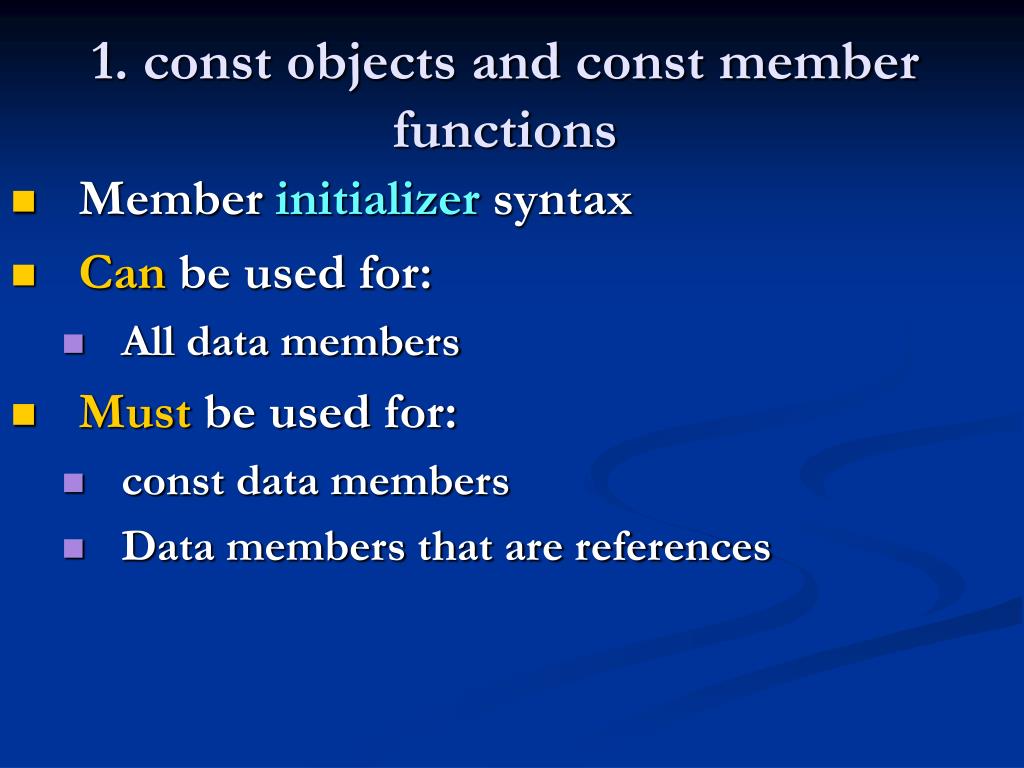

1. const objects and const member functions • Member initializer syntax • Can be used for: • All data members • Must be used for: • const data members • Data members that are references
Classes II • Agenda: • const objects and const member functions • friend functions and friend classes • Composition: Objects as Members of Classes • Dynamic Memory Management with Operators new and delete • this pointer • static data members and static functions • The Container class • The iterator class
2. friend functions and friend classes • Declaring friends • A function F ( ) : by preceding function prototype with keyword friend inside class • A class“classTwo” as friend of another class “class One”: by placing declaration of form: • Example: • friend F ( ); • friend class ClassTwo; inside ClassOne definition
2. friend functions and friend classes • Properties of friendship • Friendship granted, not taken i.e. • Class B friend of class A • Class A must explicitly declare class B friend • Not symmetric • Class B friend of class A • Class A not necessarily friend of class B

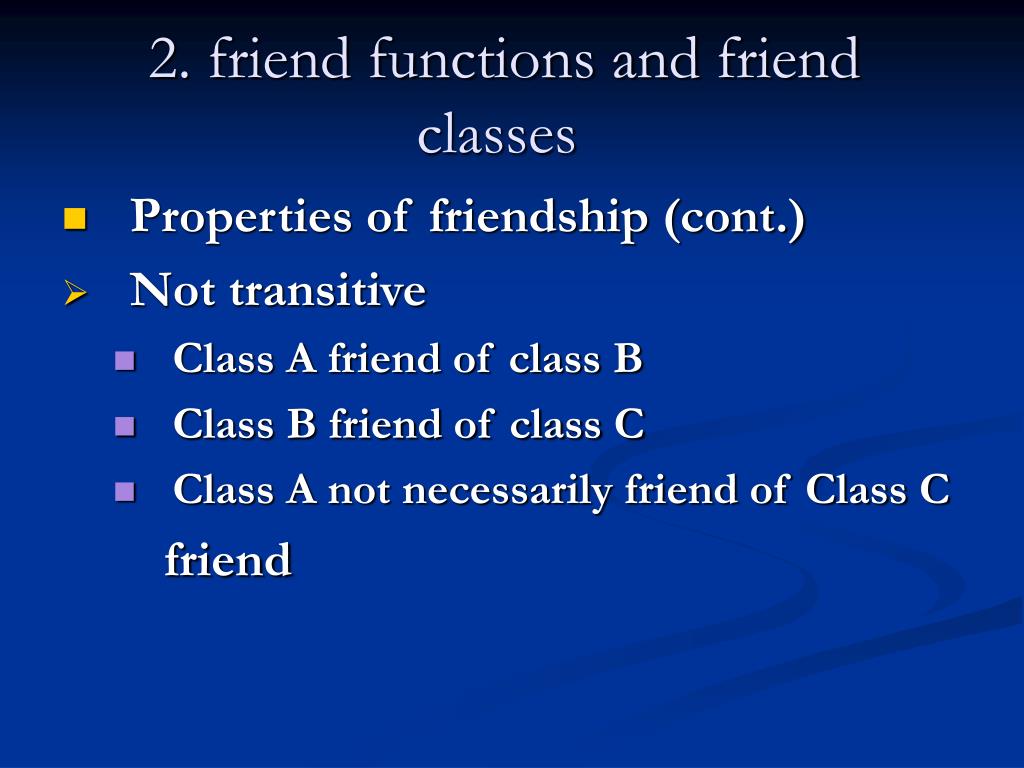

2. friend functions and friend classes • Properties of friendship (cont.) • Not transitive • Class A friend of class B • Class B friend of class C • Class A not necessarily friend of Class C friend
2. friend functions and friend classes • Example 2: A global function as friend class Distance // English Distance class { friend Distance Add_Dist (Distance , Distance); private: int feet; float inches; public: Distance ( ) { } // constructor (no args) Distance (int ft, float in); ..........................

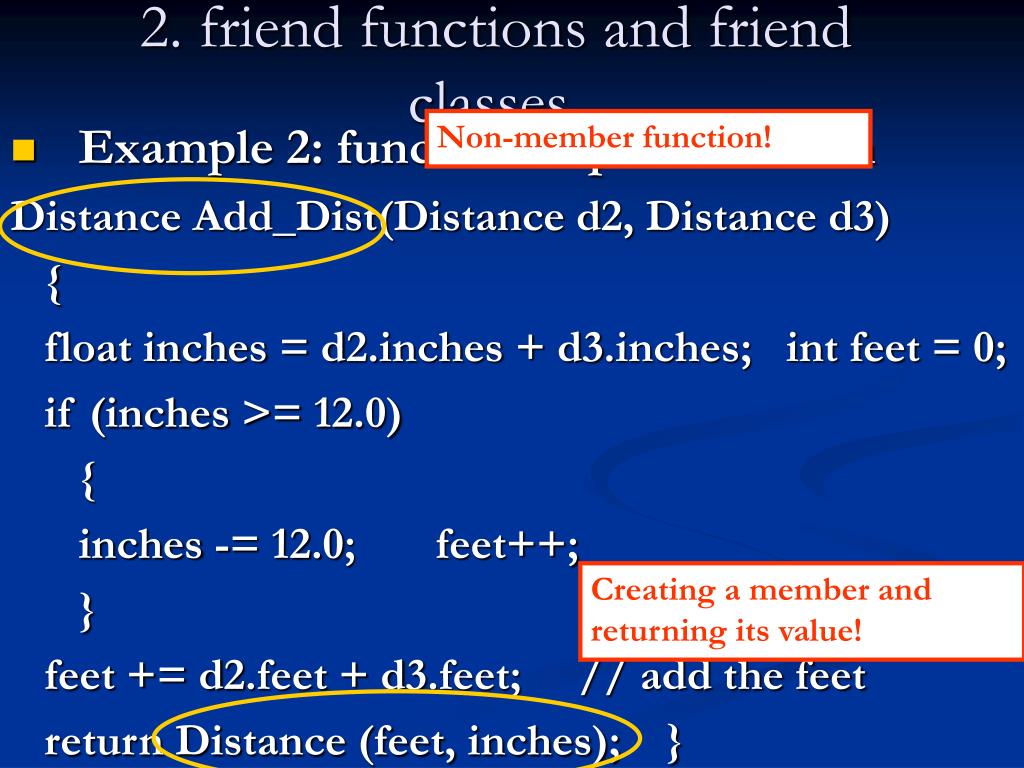

2. friend functions and friend classes • Example 2: function implementation Distance Add_Dist(Distance d2, Distance d3) { float inches = d2.inches + d3.inches; int feet = 0; if (inches >= 12.0) { inches -= 12.0; feet++; } feet += d2.feet + d3.feet; // add the feet return Distance (feet, inches); } Non-member function! Creating a member and returning its value!

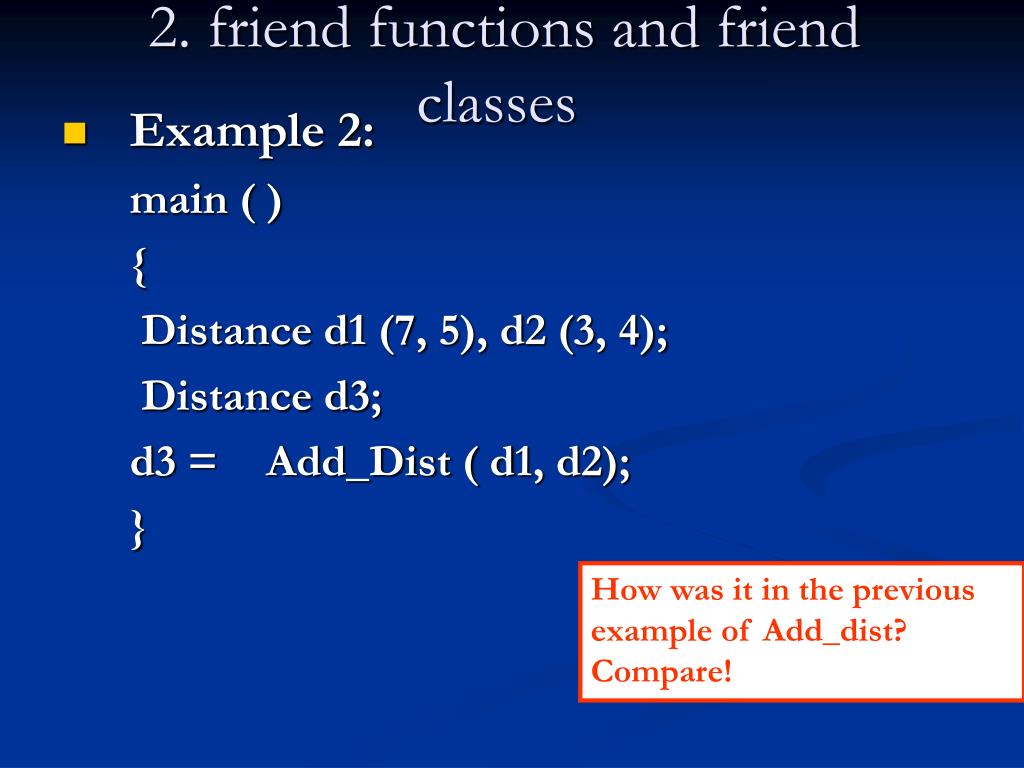

2. friend functions and friend classes • Example 2: main ( ) { Distance d1 (7, 5), d2 (3, 4); Distance d3; d3 = Add_Dist ( d1, d2); } How was it in the previous example of Add_dist? Compare!

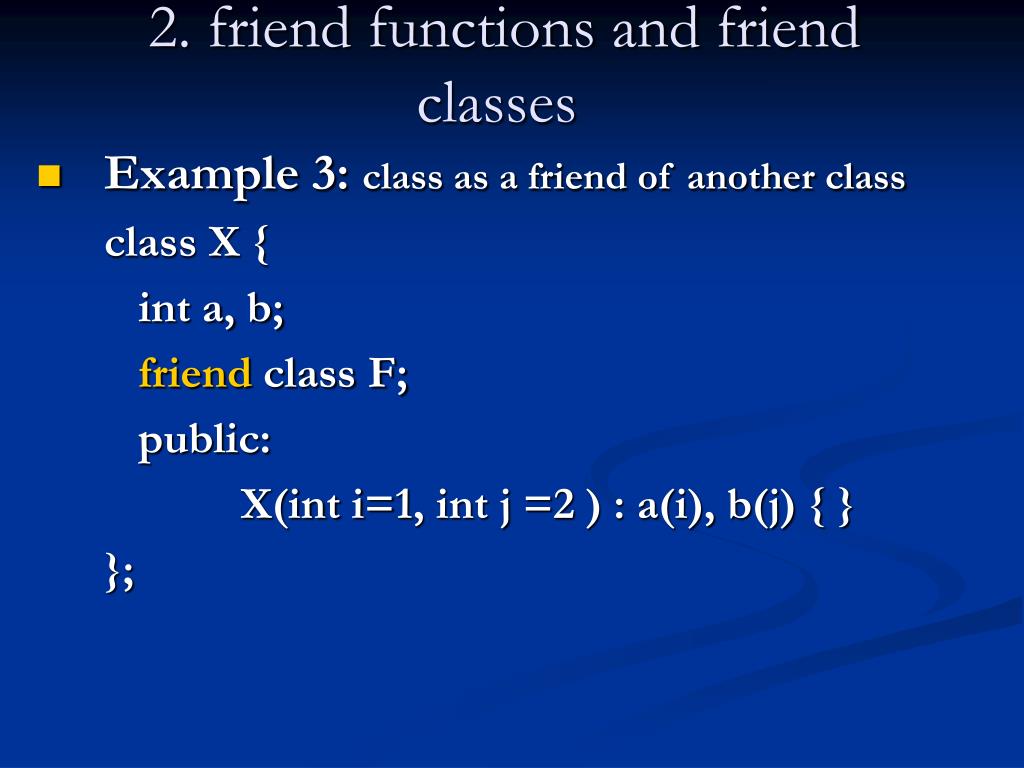

2. friend functions and friend classes • Example 3: class as a friend of another class class X { int a, b; friend class F; public: X(int i=1, int j =2 ) : a(i), b(j) { } };
2. friend functions and friend classes • Example 3: class as a friend of another class class F { public: void print( X& x ) { cout << "a is " << x . a << endl; cout << "b is " << x . b << endl; } };
2. friend functions and friend classes • Example 3: class as a friend of another class int main( ) { X xobj; F fobj; fobj . Print ( xobj ); } Another alternative was to make only F::Print ( ) a friend to class X
Classes II • Agenda: • const objects and const member functions • friend functions and friend classes • Composition: Objects as Members of Classes • Dynamic Memory Management with Operators new and delete • this pointer • static data members and static functions • The Container class • The iterator class
3. Composition: Objects as Members of Classes • Composition: an object inside another one ==> very strong automatic relationship • Aggregation: an object inside another one, also. If implementation is done using pointers, then the outer object (may or may not be) is responsible for const and destruc. of inner objects. • Association: an object with pointer to another object(s). Outer object is not resp. for const or destruc of the other object.
3. Composition: Objects as Members of Classes • Composition versus Aggregation: • In both we talk about objects of one class declared inside another class. • Aggregation differs from ordinary composition in that it pointers may be used, whilein composition they are automatic. • In both, when the owning object is destroyed, so are the contained objects.
3. Composition: Objects as Members of Classes • Composition versus Aggregation Example: • A university owns various departments (e.g., chemistry) • Composition: If departments are implemented as static array • Aggregation: If departments are implemented as pointers
3. Composition: Objects as Members of Classes • What about Association ? • An object with pointer to another object(s). Outer object is NOT resp. for const or destruc of the other object. Example: • Association: Each department has a number of professors. • When university is deleted, professors are not deleted ( Refer to website notes)

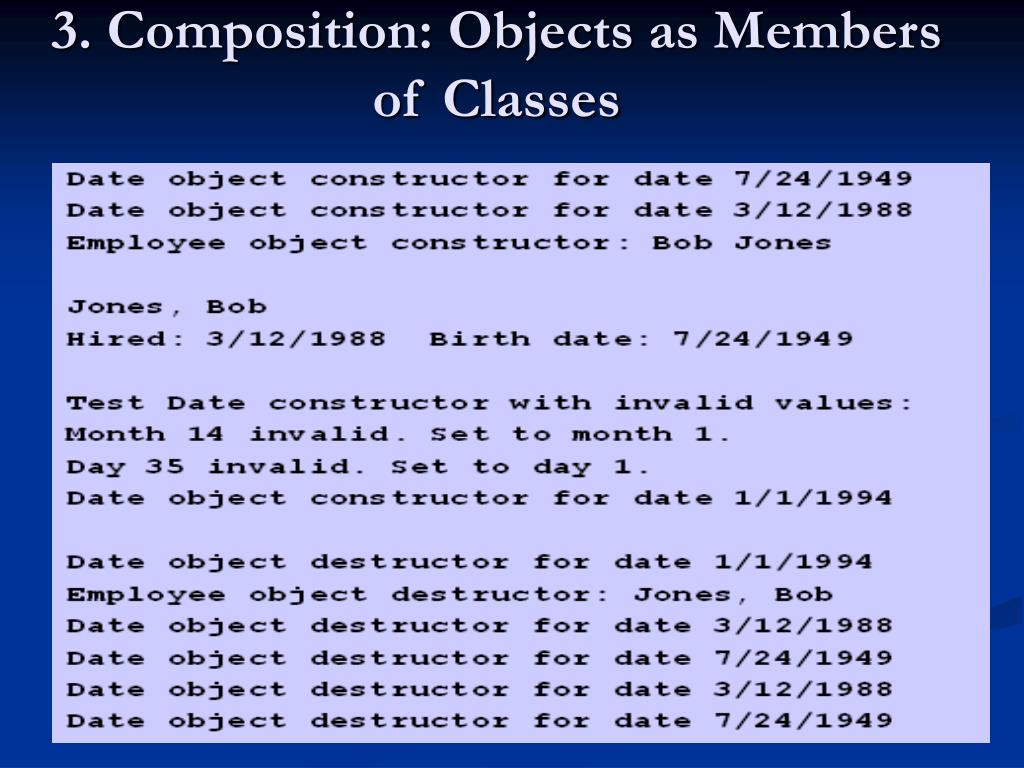

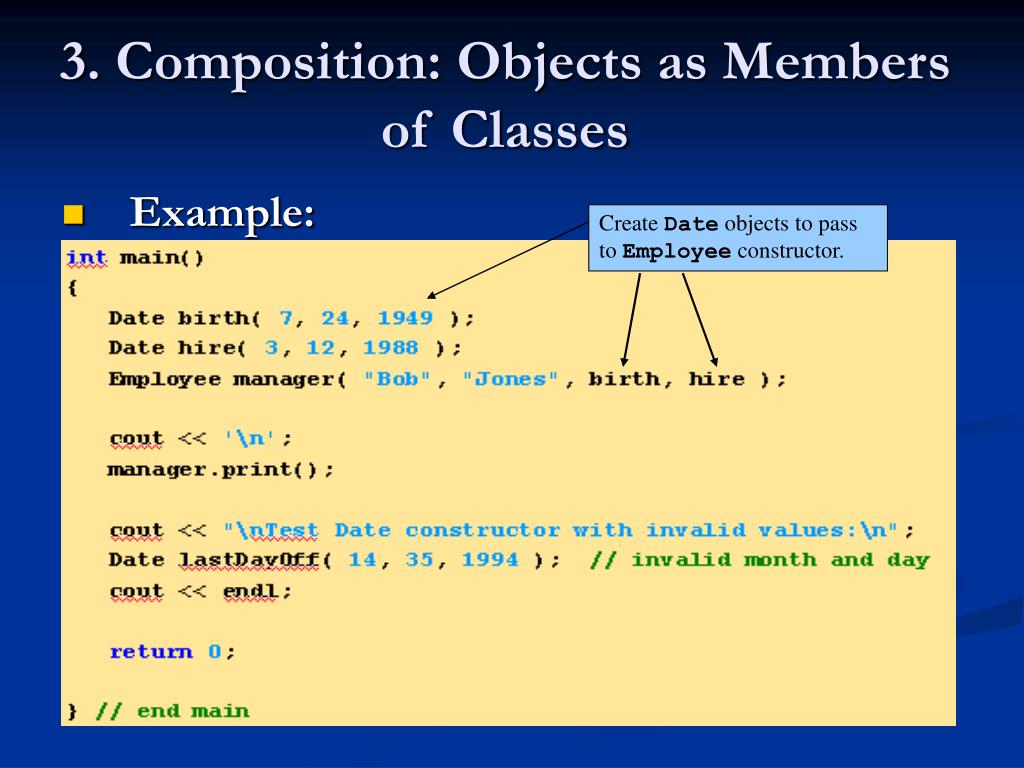

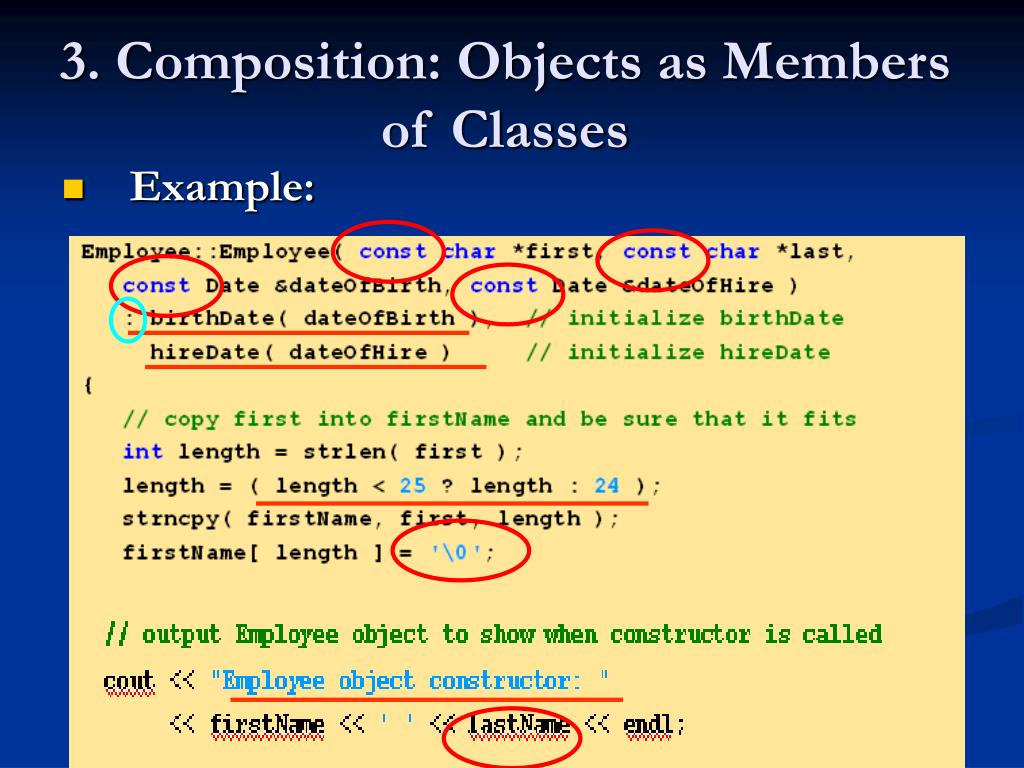

3. Composition: Objects as Members of Classes • Construction of member objects • Member objects are constructed in order of declaration • Member objects are constructed before the enclosing outer class objects (host objects)
3. Composition: Objects as Members of Classes • Aggregation: As opposed to composition class Sales_Person { Sales_info * sales; ………… public: Sales_Person (int num_sales = 10); ~Sales_Person ( ); };

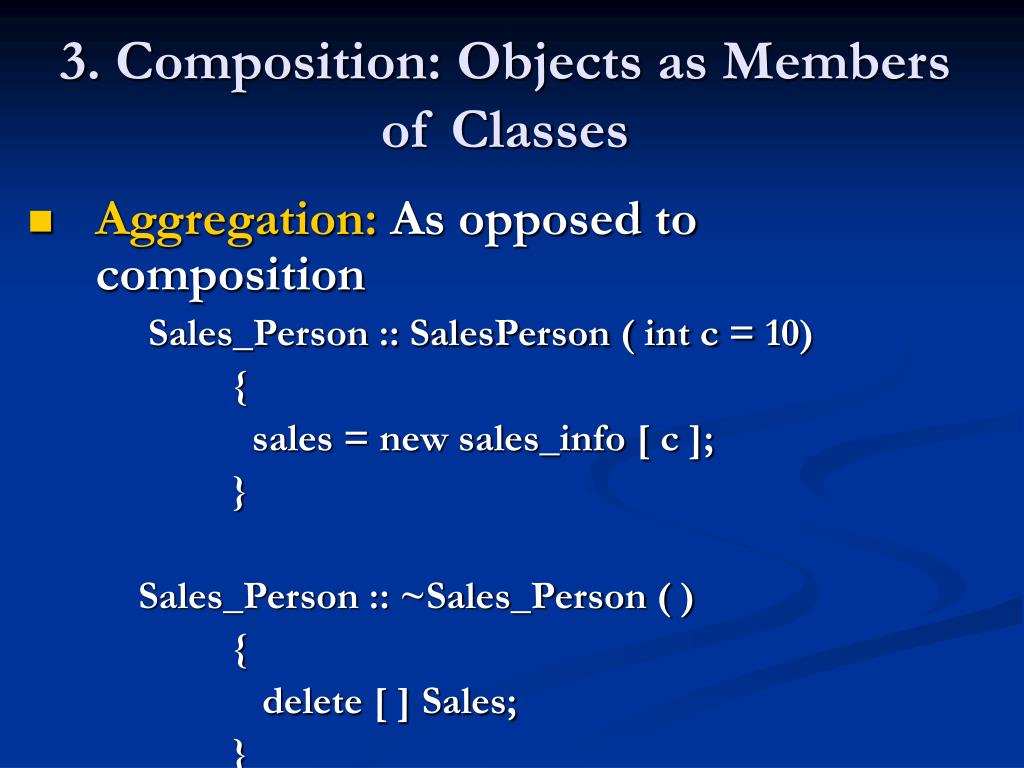

3. Composition: Objects as Members of Classes • Aggregation: As opposed to composition Sales_Person :: SalesPerson ( int c = 10) { sales = new sales_info [ c ]; } Sales_Person :: ~Sales_Person ( ) { delete [ ] Sales; }
3. Composition: Objects as Members of Classes • Association: As opposed to composition and aggregation class Prof; // forward declaration class Course { char course_id [ 8 ]; ….. Prof * prof; public: Course ( char* id, ….., Prof* p); ~ Course ( ); }
3. Composition: Objects as Members of Classes • Association: As opposed to composition and aggregation Course :: Course ( char* id, ….., Prof* p) { ………. prof = p; } ~ Course ( ) { // No deletion of prof pointer!! // He is still allowed to exist! ! }
