1. Load and Functional Testing Flex 2 and ColdFusion Matthew Stevanus Universal Mind CFUNITED – The premier ColdFusion conference www.cfunited.com

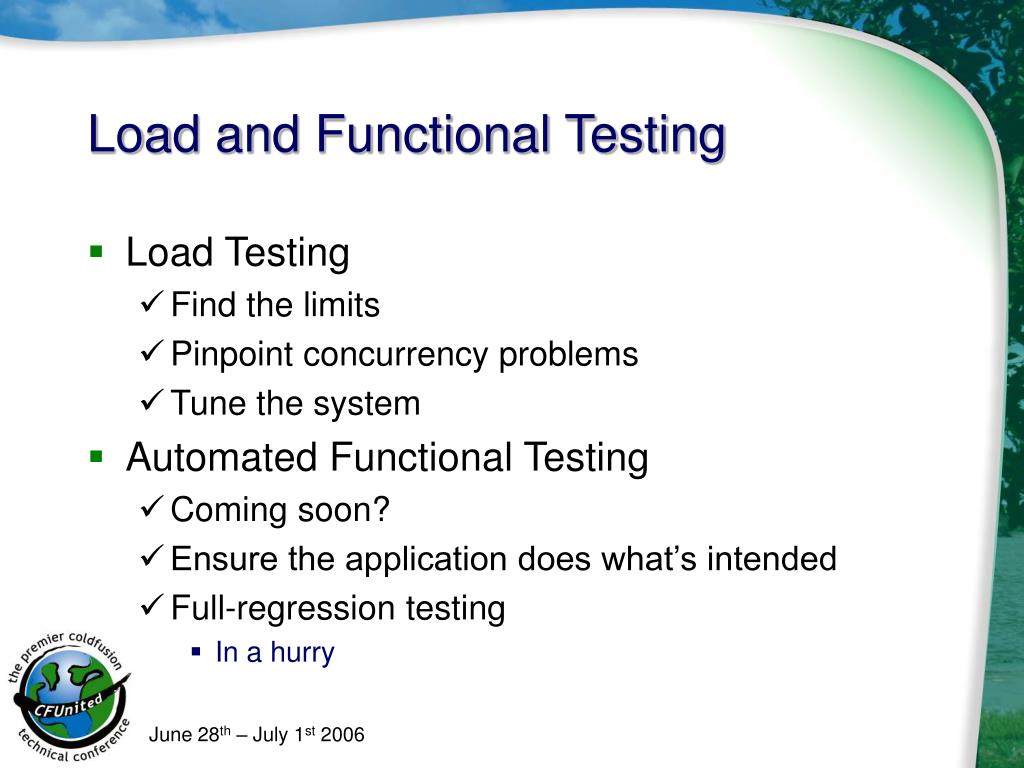

2. Load and Functional Testing • Load Testing • Find the limits • Pinpoint concurrency problems • Tune the system • Automated Functional Testing • Coming soon? • Ensure the application does what’s intended • Full-regression testing • In a hurry

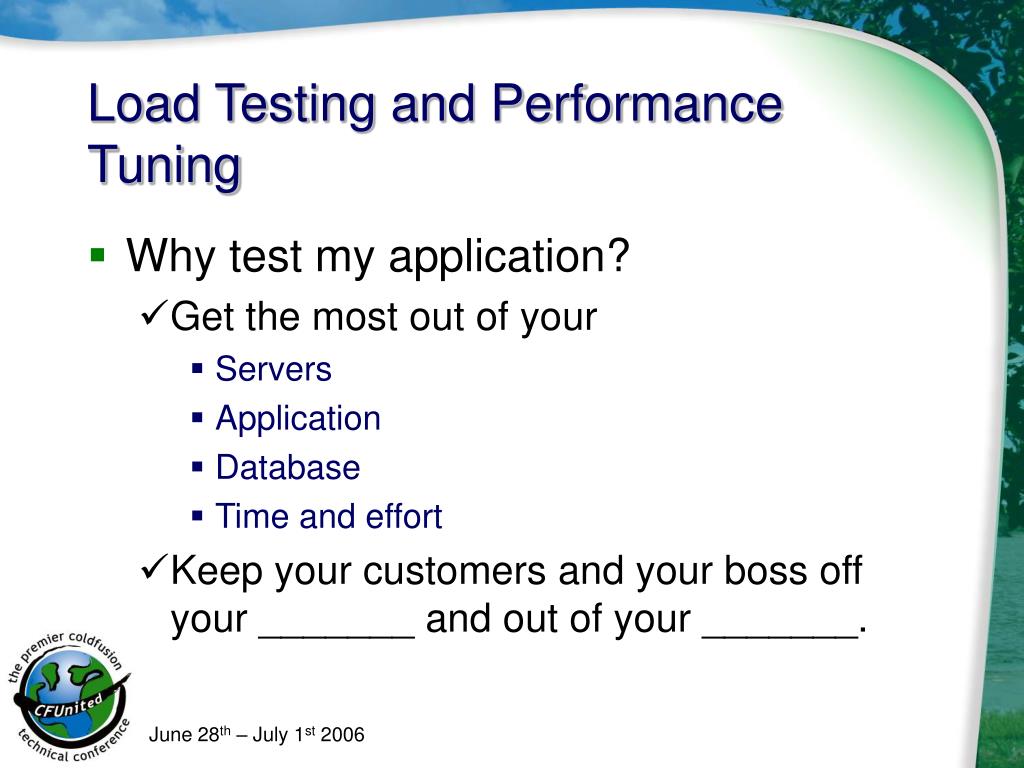

3. Load Testing and Performance Tuning • Why test my application? • Get the most out of your • Servers • Application • Database • Time and effort • Keep your customers and your boss off your _______ and out of your _______.

4. Load Testing and Performance Tuning • What to Load Test • Any new application • That is to be released to 2 or more users • Concurrency issues can happen at any load • An application that has undergone • Any significant changes • Any major infrastructure changes • Network topology changes • Operating System upgrades • Hardware upgrades

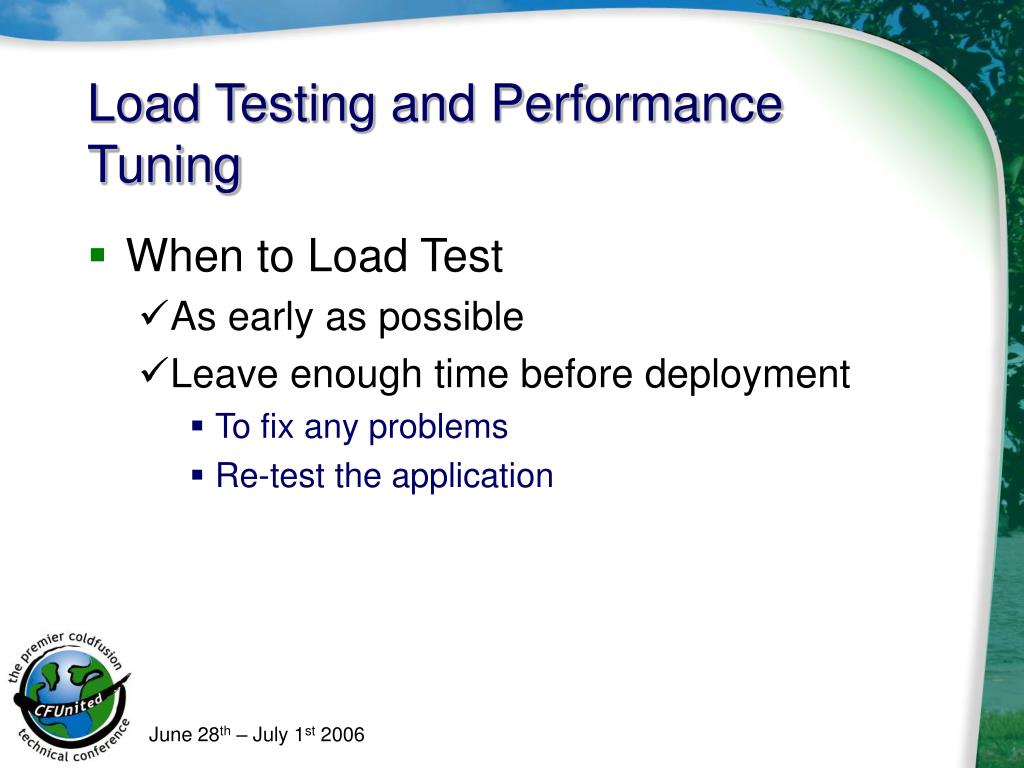

5. Load Testing and Performance Tuning • When to Load Test • As early as possible • Leave enough time before deployment • To fix any problems • Re-test the application

6. Load Testing Flex 2 • Load Testing Tools • Mercury LoadRunner • Microsoft Web Application Stress Tool • Borland SilkPerformer • Previously Segue SilkPerformer

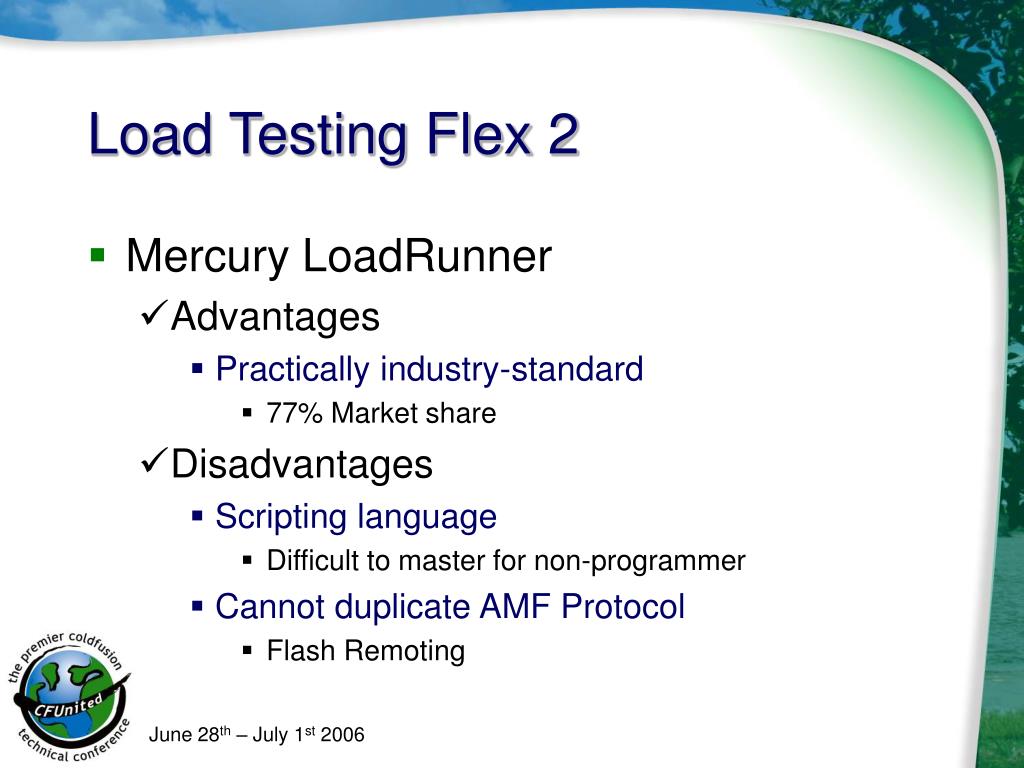

7. Load Testing Flex 2 • Mercury LoadRunner • Advantages • Practically industry-standard • 77% Market share • Disadvantages • Scripting language • Difficult to master for non-programmer • Cannot duplicate AMF Protocol • Flash Remoting

8. Load Testing Flex 2 • Microsoft Web Application Stress Tool • Advantages • Free • Disadvantages • Limited user-defined data • No results management • Error codes • Returned data set sizes • No re-directs allowed • Cannot duplicate AMF Protocol • Flash Remoting

9. Load Testing Flex 2 • Borland SilkPerformer • Advantages • Supports AMF Protocol • Recording • Playback • Disadvantages

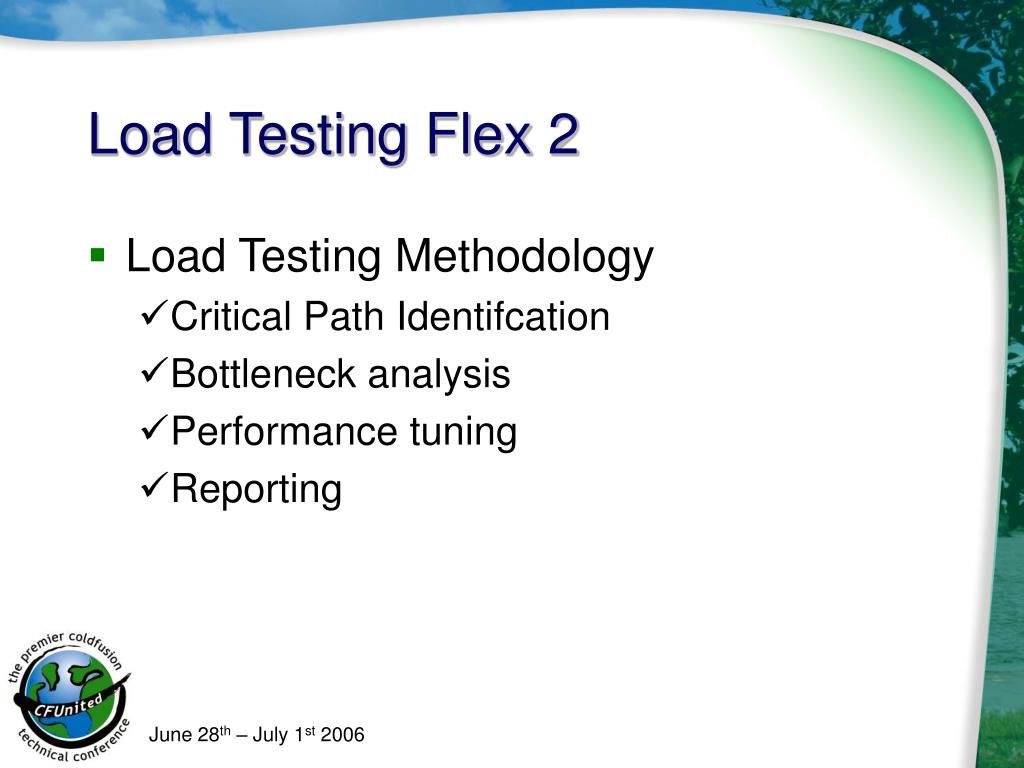

10. Load Testing Flex 2 • Load Testing Methodology • Critical Path Identifcation • Bottleneck analysis • Performance tuning • Reporting

11. Load Testing Flex 2 • Load Testing Specifics • Stress Testing • Worst-case Scenarios • No Think Time • Concurrency issues quickly detected • Real-world testing • Matches real traffic more closely • More expensive licensing • Longer test cycles • Concurrency issues not addressed

12. Load Testing Flex 2 • Load Testing Specifics (cont’d) • Virtual Users • Like regular users • Each has its own session • Including cookies

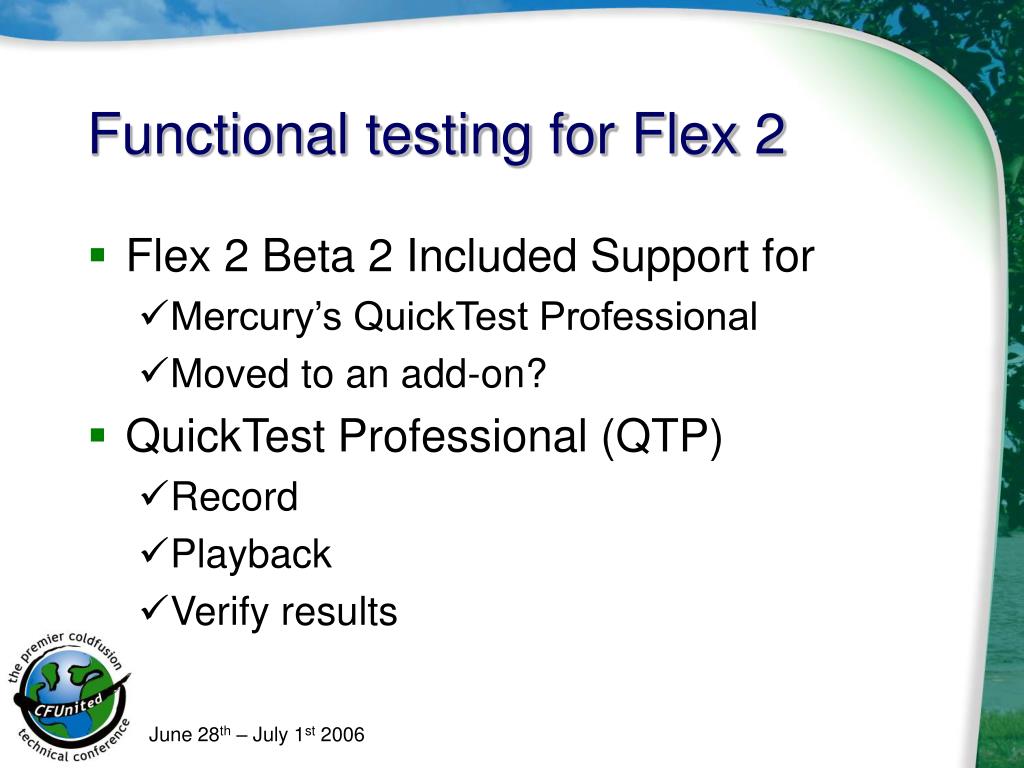

13. Functional testing for Flex 2 • Flex 2 Beta 2 Included Support for • Mercury’s QuickTest Professional • Moved to an add-on? • QuickTest Professional (QTP) • Record • Playback • Verify results

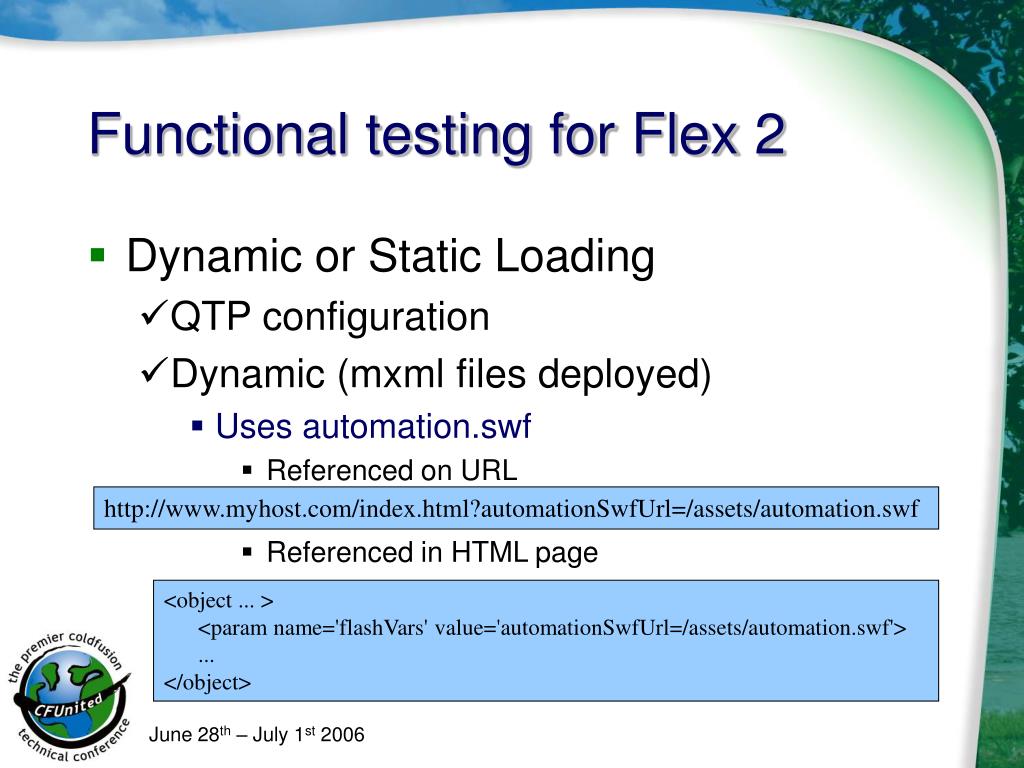

14. Functional testing for Flex 2 • Dynamic or Static Loading • QTP configuration • Dynamic (mxml files deployed) • Uses automation.swf • Referenced on URL • Referenced in HTML page http://www.myhost.com/index.html?automationSwfUrl=/assets/automation.swf <object ... > <param name='flashVars' value='automationSwfUrl=/assets/automation.swf'> ... </object>

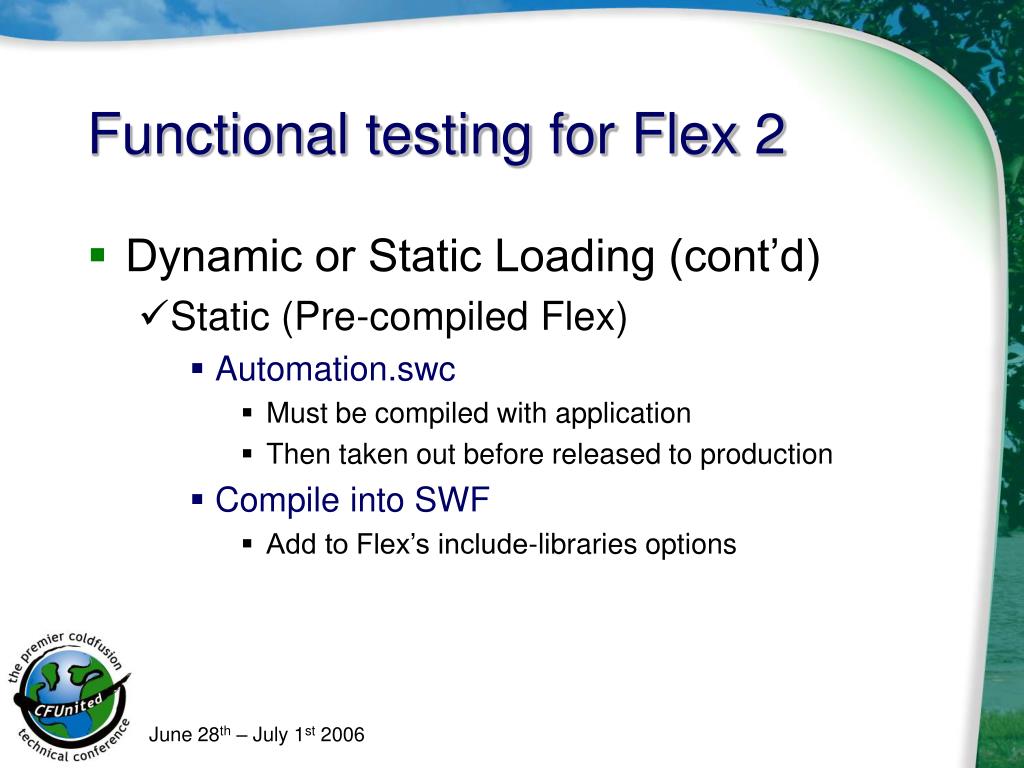

15. Functional testing for Flex 2 • Dynamic or Static Loading (cont’d) • Static (Pre-compiled Flex) • Automation.swc • Must be compiled with application • Then taken out before released to production • Compile into SWF • Add to Flex’s include-libraries options

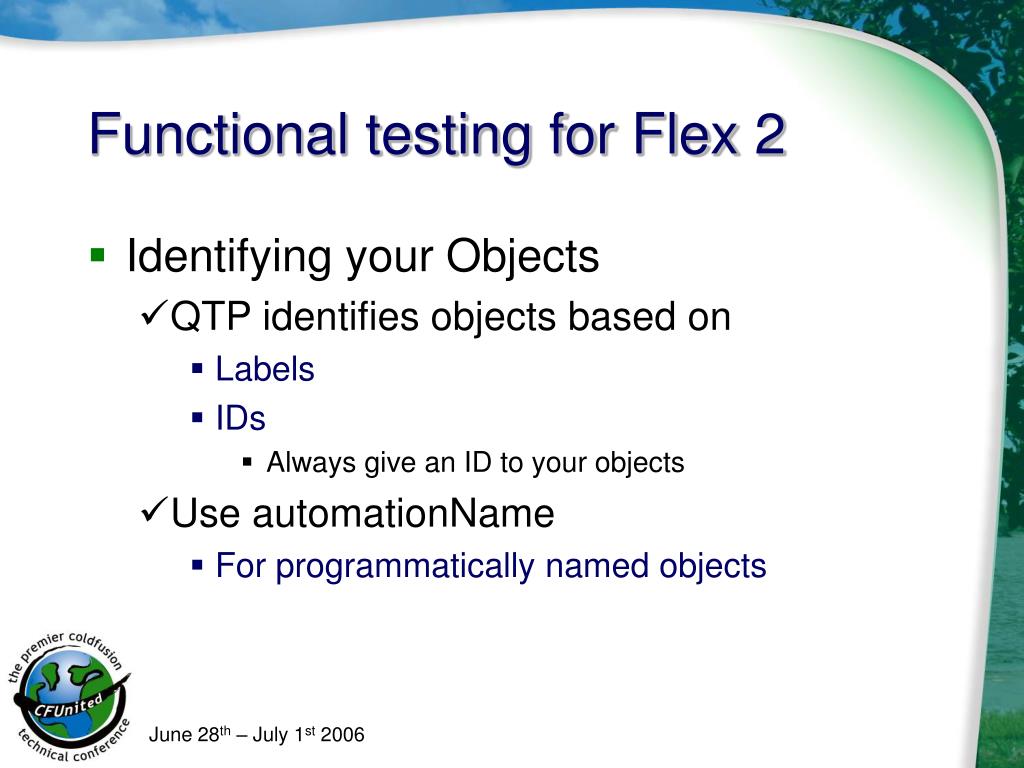

16. Functional testing for Flex 2 • Identifying your Objects • QTP identifies objects based on • Labels • IDs • Always give an ID to your objects • Use automationName • For programmatically named objects

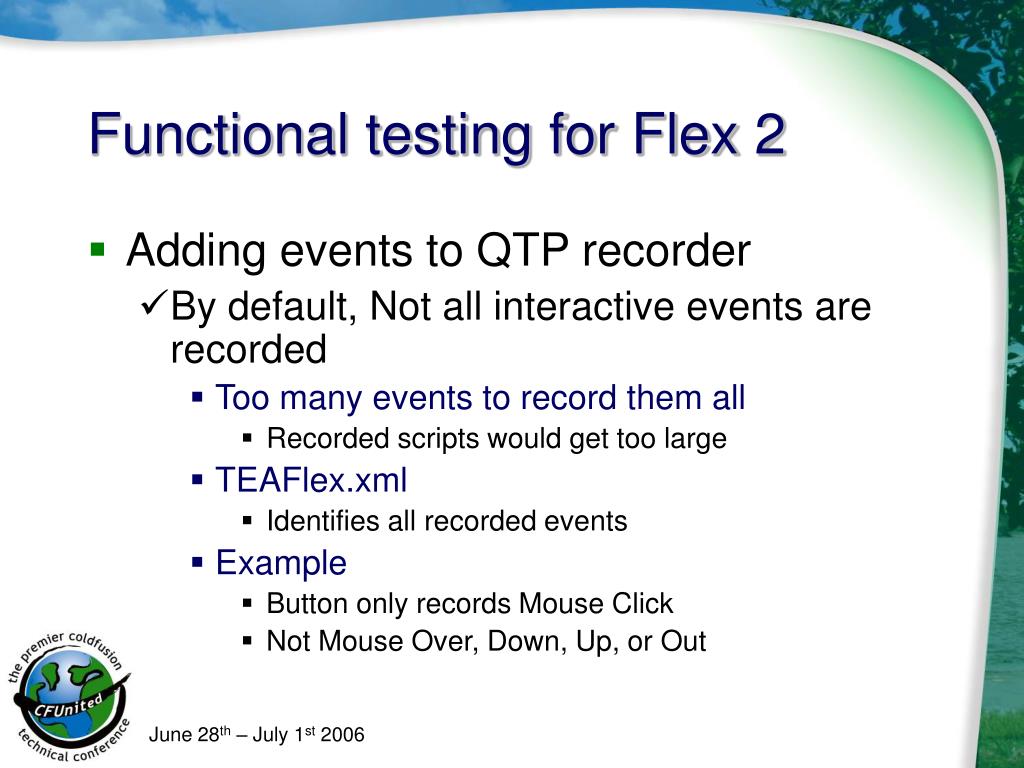

17. Functional testing for Flex 2 • Adding events to QTP recorder • By default, Not all interactive events are recorded • Too many events to record them all • Recorded scripts would get too large • TEAFlex.xml • Identifies all recorded events • Example • Button only records Mouse Click • Not Mouse Over, Down, Up, or Out

18. Functional testing for Flex 2 Adding the MouseOver Event to TEAFlex.xml <TypeInfo> <Operation ExposureLevel="CommonUsed" Name="MouseOver“ PropertyType="Method"> <Implementation Class="flash.events::MouseEvent" Type="mouseOver"/> <Argument Name="inputType" IsMandatory="false" DefaultValue="mouse"> <Type VariantType="String"/> </Argument> <Argument Name="shiftKey" IsMandatory="false" DefaultValue="false"> <Type VariantType="Boolean"/> </Argument> <Argument Name="ctrlKey" IsMandatory="false" DefaultValue="false"> <Type VariantType="Boolean"/> </Argument> <Argument Name="altKey" IsMandatory="false" DefaultValue="false"> <Type VariantType="Boolean"/> </Argument> </Operation> </TypeInfo>

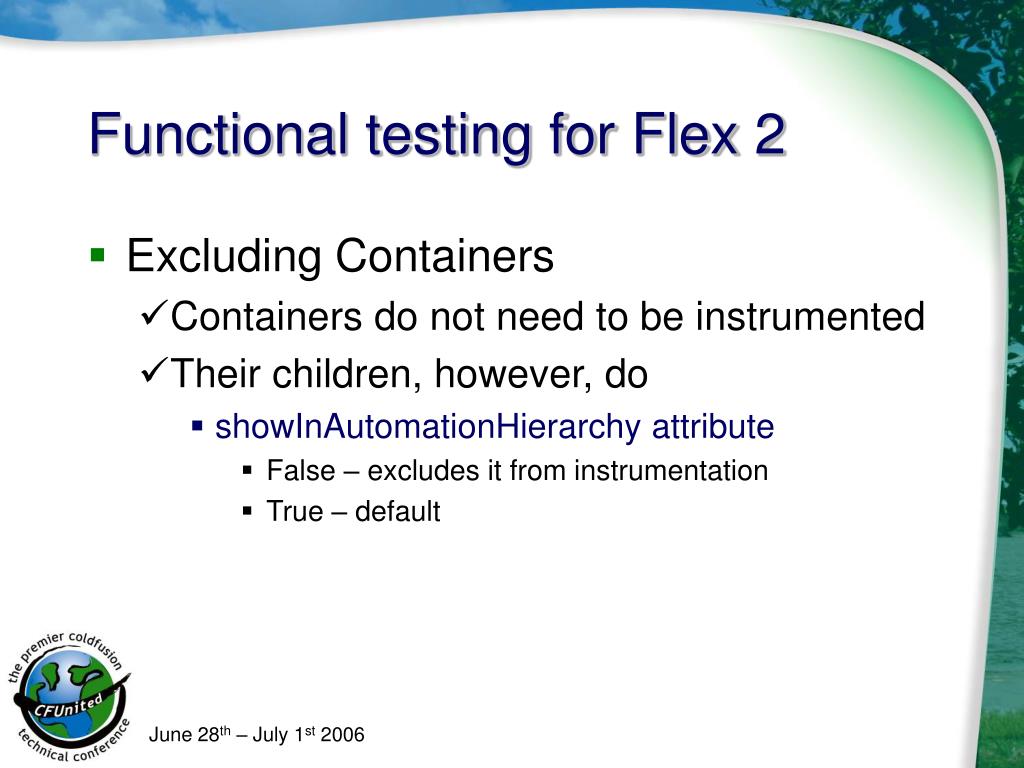

19. Functional testing for Flex 2 • Excluding Containers • Containers do not need to be instrumented • Their children, however, do • showInAutomationHierarchy attribute • False – excludes it from instrumentation • True – default

20. Conclusions • Performance Testing and Tuning • As early as possible in the development cycle • Every time a major change is implemented • Load Testing Tools • Mercury Load Runner • Segue SilkPerformer • Only tool that supports Flash Remoting

21. Conclusions • Functional Testing • Manual or Automated • Both will lead to successful application deployments • Manual • Excellent, detailed Use Cases • Thorough, obsessive testers

22. Conclusions • Functional Testing (cont’d) • Automated • Detailed Use Cases • Recorded Sessions • Re-use many times • Small QA staff required • Faster, more complete than Manual

23. Conclusions • Automated Testing Tool • Mercury QuickTest Professional • Natively supported in Flex

24. Thank you • Any questions?
