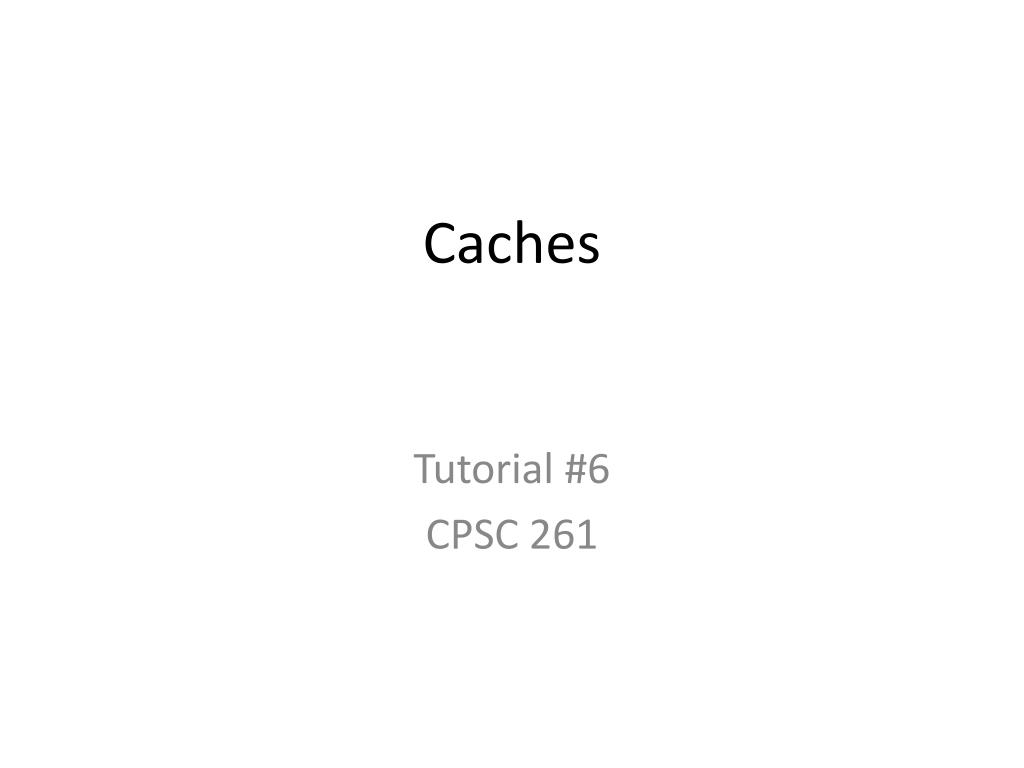

Caches. Tutorial #6 CPSC 261. Simulating a cache. Two things are required to simulate a cache to discover how it will perform A reference string A sequence of memory requests issued by the processor address, size, read/write An implementation of the algorithms used by the cache

magee
Télécharger la présentation

Caches

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Caches Tutorial #6 CPSC 261

  2. Simulating a cache • Two things are required to simulate a cache to discover how it will perform • A reference string • A sequence of memory requests issued by the processor • address, size, read/write • An implementation of the algorithms used by the cache • Parameterized by cache design parameters

  3. Reference string • There are 2 ways of obtaining a string of memory references • Extract from a running program • Modified hardware • Simulated hardware (QEMU) • Construct it synthetically • Knowing something about how programs tend to work, create a random reference string with similar characteristics • Need to know distributions of reads/writes, address ranges, frequencies

  4. We’re doing it synthetically • generate.c • Prints on stdout a random string of addresses • Can be tuned by defining various constants at the top of the file • Makes the simplifying assumption that all accesses are the same size (1 byte) and that all are reads

  5. Simulating the cache • Recall the parameters that characterize a cache • How big is the cache in bytes? • What is the block size in bytes? • What is N (N-way set associative cache)? • How big are addresses? • From these we can calculate everything else of interest

  6. simulate.c • Contains a skeleton of a simple cache simulator • Look at the main program to see what it does • Is missing a bunch of basic functions • long tagFromAddress(long address) • long setindexFromAddress(long address) • void updateLastUsedOrder(longsetindex, long tag) • long lruLineInSet(longsetindex) • long inSet(longsetindex, long tag) • long addToSet(longsetindex, long tag)

  7. Your task • Implement all of these functions • Make sure they are general with respect to the constants defined at the top of the file • BLOCKSIZE • N • NSETS • ADDRESSWIDTH • Note: BLOCKSIZE * N * NSETS = cache size in bytes

  8. Writing cache-friendly code • We saw in class matrix multiply • Its performance was almost 10x different depending on the order of the loops • We have a function closure() that is sort of like that

  9. Understanding memory • Many algorithms manipulate matrices • Declared as 2-D arrays in C • long G[N][N] • How are such entities laid out in memory? • Everything in C eventually maps down to memory addresses, which are simply byte addresses

  10. Row-major order • The row (the first index) changes most slowly as you move through memory • The column (the second index) changes most rapidly as you move through memory

  11. Column-major order • The column (the second index) changes most slowly as you move through memory • The row (the first index) changes most rapidly as you move through memory

  12. Which one? • C uses one • Fortran historically uses the other • How can you decide which one C uses? • Read the specification • Write a program

  13. major.c void major() { long G[2][2]; long rowdiff = &G[1][0] - &G[0][0]; long columndiff = &G[0][1] - &G[0][0]; if (rowdiff > columndiff) { printf(“Row-major\n”); } else { printf(“Column-major\n”); } }

  14. OK, so what? long G[3][3] G[0][0] G[0][1] G[0][2] G[1][0] G[1][1] G[1][2] G[2][0] G[2][1] G[2][2]

  15. Which order is more cache-friendly? • Assume long G[N][N] • Assume that N is big • G[0][0], G[0][1], G[0][2] • vs • G[0][0], G[1][0], G[2][0]

  16. The complication • closure()accesses more than one element at a time • The main computation is: G[i][j] |= G[i][k] && G[k][j]
