  1. Synchronized Co-migration of Virtual Machines for IDS Offloading in Clouds Kenichi Kourai and Hisato Utsunomiya Kyushu Institute of Technology, Japan

  2. IDS in IaaS Clouds VM VM VM IDS IaaS cloud • Users run their VMs in IaaS clouds • The VMs are not always well maintained • Intrusion detection systems (IDSes) are useful • Difficult for IaaS providers to enforce users to install IDSes • They cannot install any software without users' cooperation

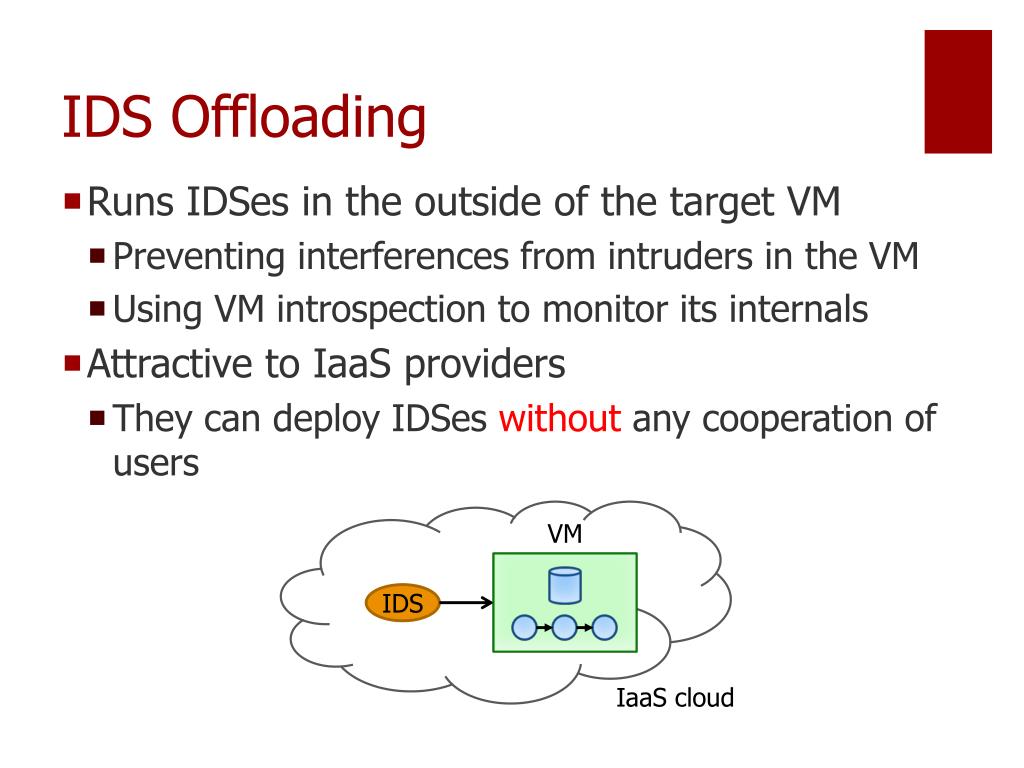

  3. IDS Offloading VM IDS IaaS cloud • Runs IDSes in the outside of the target VM • Preventing interferences from intruders in the VM • Using VM introspection to monitor its internals • Attractive to IaaS providers • They can deploy IDSes without any cooperation of users

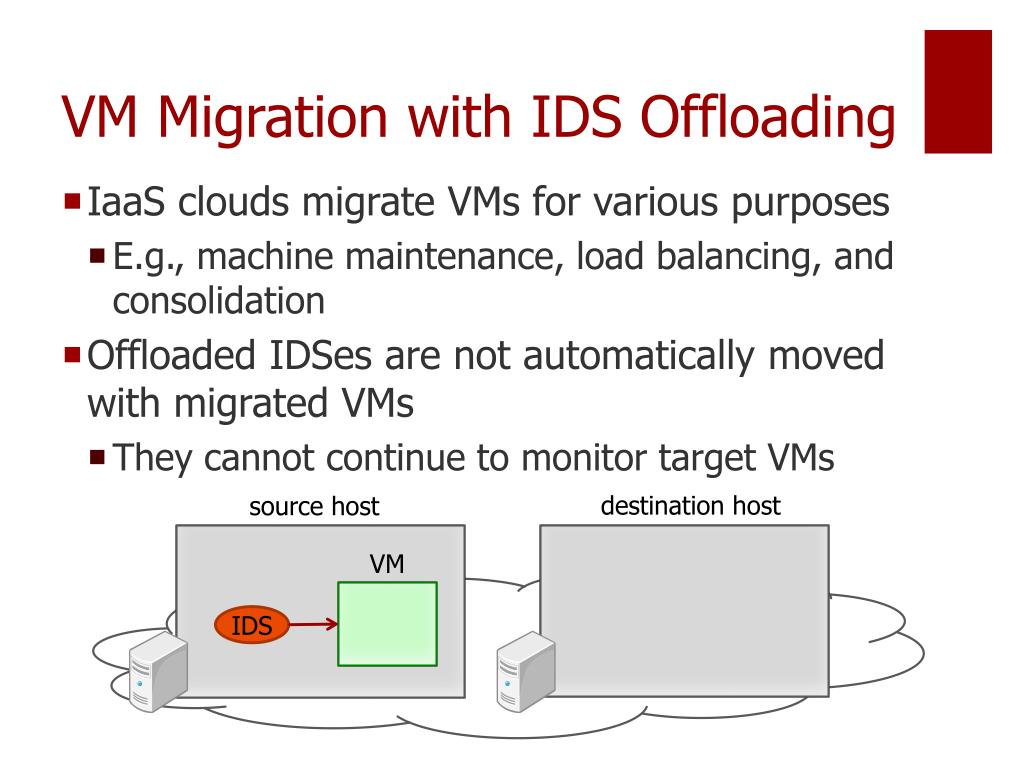

  4. VM Migration with IDS Offloading destination host source host VM IDS • IaaS clouds migrate VMs for various purposes • E.g., machine maintenance, load balancing, and consolidation • Offloaded IDSes are not automatically moved with migrated VMs • They cannot continue to monitor target VMs

  5. VMCoupler destination host source host target VM guard VM IDS • Enables co-migration of offloaded IDSes and their target VM • Offloaded IDSes run in a guard VM • A guard VM is migrated together with its target VM • IDSes can continue to monitor the target VM without any modification

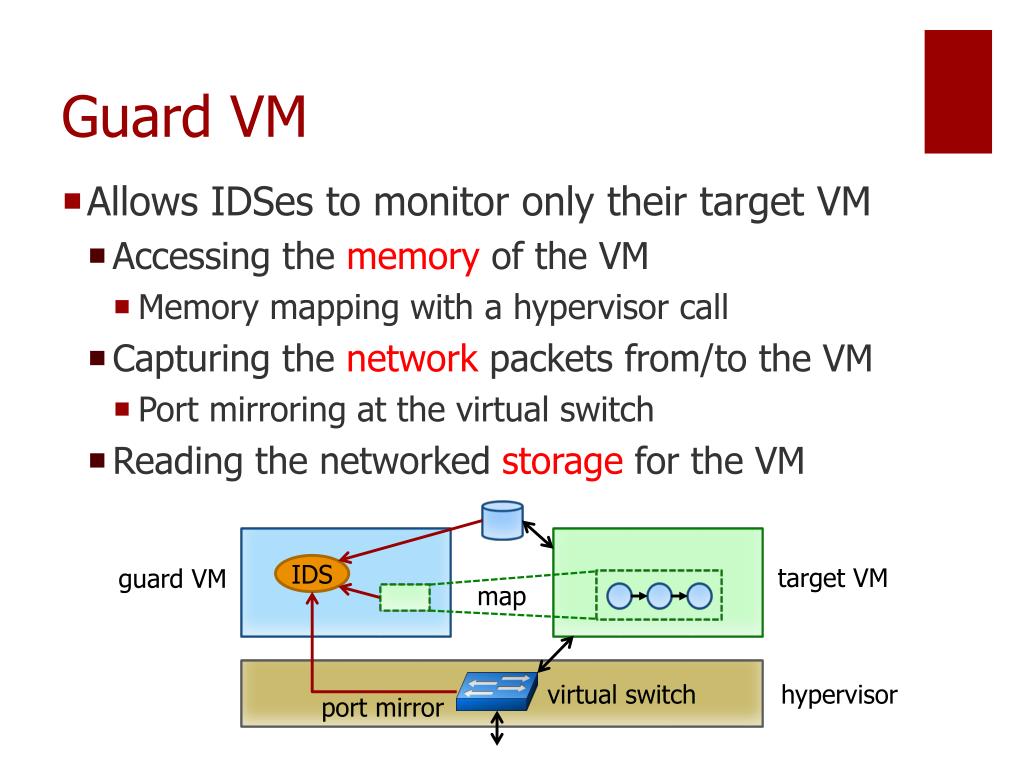

  6. Guard VM IDS target VM guard VM map virtual switch hypervisor port mirror • Allows IDSes to monitor only their target VM • Accessing the memory of the VM • Memory mapping with a hypervisor call • Capturing the network packets from/to the VM • Port mirroring at the virtual switch • Reading the networked storage for the VM

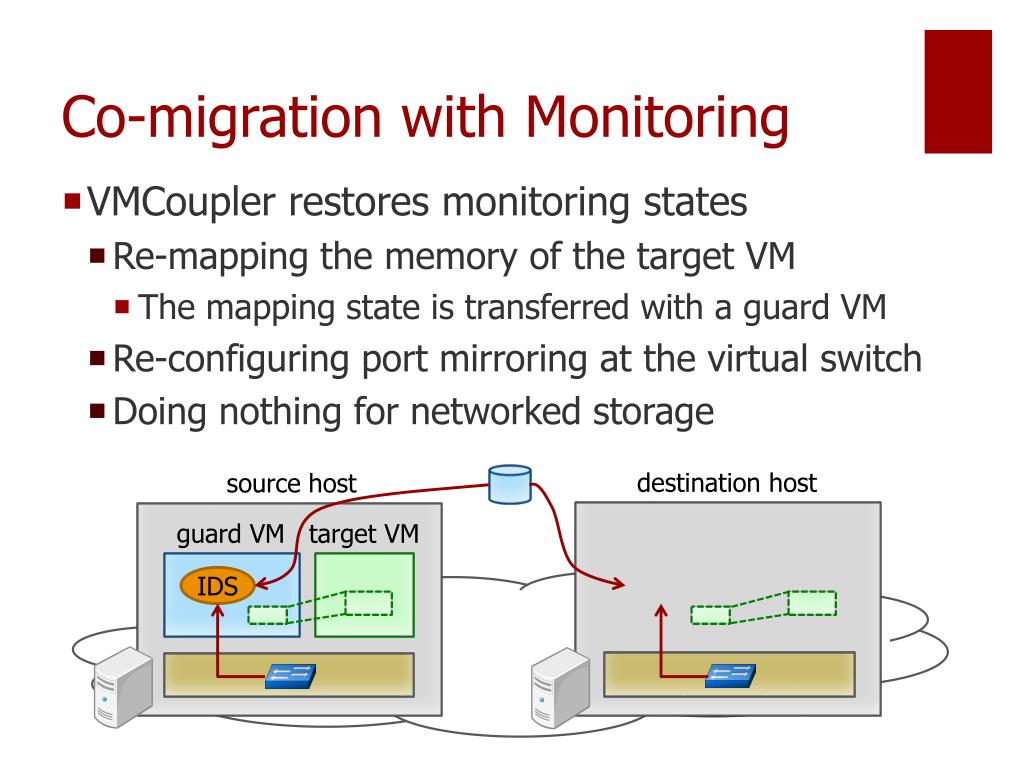

  7. Co-migration with Monitoring destination host source host target VM guard VM IDS • VMCoupler restores monitoring states • Re-mapping the memory of the target VM • The mapping state is transferred with a guard VM • Re-configuring port mirroring at the virtual switch • Doing nothing for networked storage

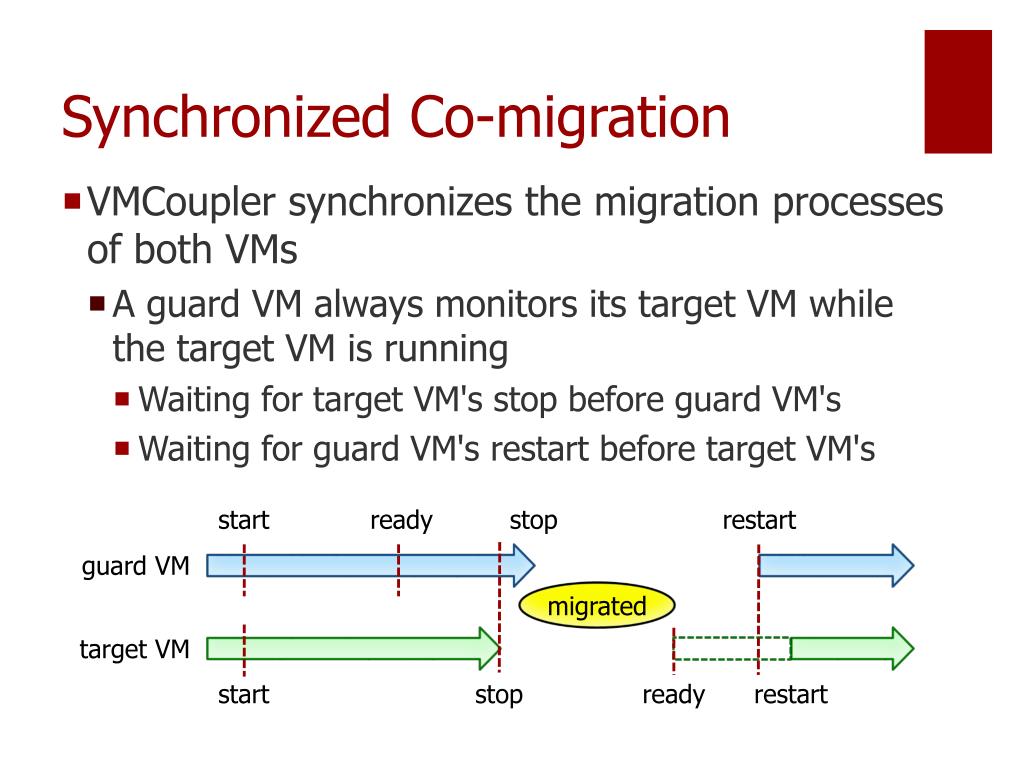

  8. Synchronized Co-migration start stop restart ready guard VM migrated target VM start stop ready restart • VMCoupler synchronizes the migration processes of both VMs • A guard VM always monitors its target VM while the target VM is running • Waiting for target VM's stop before guard VM's • Waiting for guard VM's restart before target VM's

  9. Co-migration Time& Downtime migration time downtime • The time for synchronized co-migration • Increased only by 0.6s at maximum • Downtime of the target VM • Increased by 162 ms at worst

  10. Conclusion • We proposed VMCoupler • Offloaded IDSes are run in a guard VM • A guard VM is synchronously co-migrated with its target VM • Future work • Reducing downtime • More synchronization between two VMs • Allowing one guard VM to monitor multiple target VMs • How does VMCoupler migrate them?
