Presentation Transcript

  1. Worklists Gemini for Miniprep Page 1

  2. Worklists Pipetting in Gemini can be controlled with an external file Load one or several Worklists (external files) to execute later. Gemini for Miniprep Page 2

  3. Worklists The Aspirate record has the following structure : A;RackLabel;RackID;RackName;Position;TubeID;Volume;LiquidClass;TipType;TipMask The Dispense record has the following structure : D;RackLabel;RackID;RackName;Position;TubeID;Volume;LiquidClass;TipType;TipMask The Wash / Change DITI record has the following structure : W; Gemini for Miniprep Page 3

  4. Worklists Gemini for Miniprep Page 4

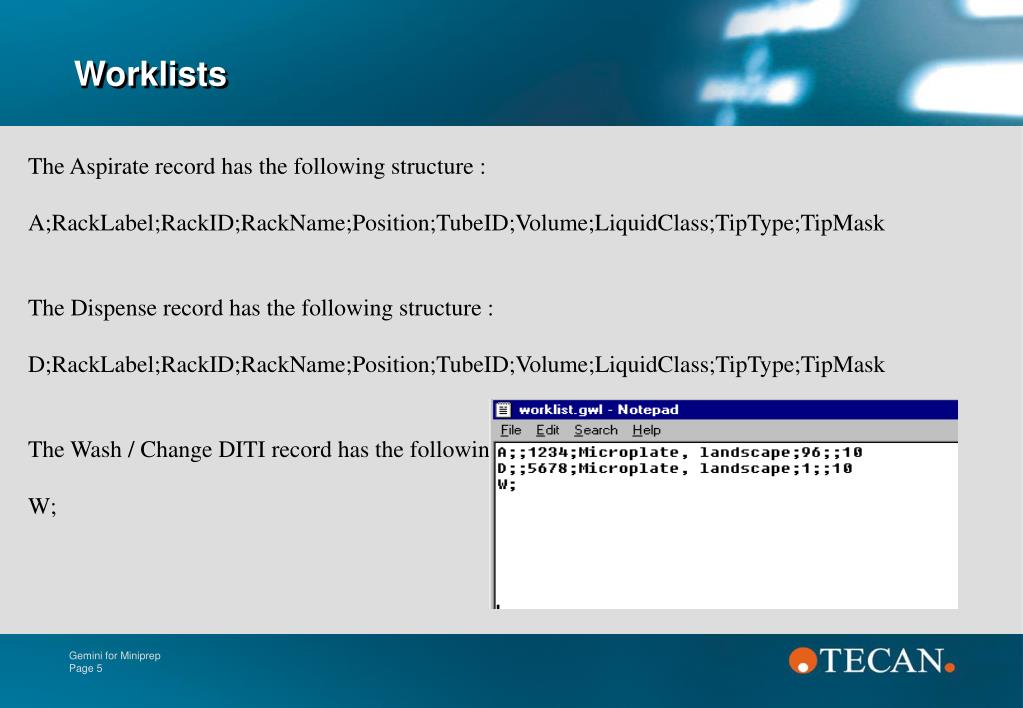

  5. Worklists The Aspirate record has the following structure : A;RackLabel;RackID;RackName;Position;TubeID;Volume;LiquidClass;TipType;TipMask The Dispense record has the following structure : D;RackLabel;RackID;RackName;Position;TubeID;Volume;LiquidClass;TipType;TipMask The Wash / Change DITI record has the following structure : W; Gemini for Miniprep Page 5

  6. Worklists Gemini for Miniprep Page 6

  7. Worklists • File must be ; delimited • File must be saved as .gwl • In Notepad save file using “” e.g. “test.gwl” • In Excel need a macro to generate a ; delimited file Gemini for Miniprep Page 7

  8. Worklists Select location of import file Enter Wash Parameters Gemini for Miniprep Page 8

  9. Worklists Check box to Execute worklist Gemini for Miniprep Page 9

  10. Worklists Gemini for Miniprep Page 10

  11. Exercise TEN Gemini for Miniprep Page 11
