  1. Fourier Analysis for GPS ASEN5190 P. Axelrad October 2003

  2. Periodic Functions • A periodic function of period Tp = 1/fp • Can be expressed by a Fourier Trigonometric Series as:

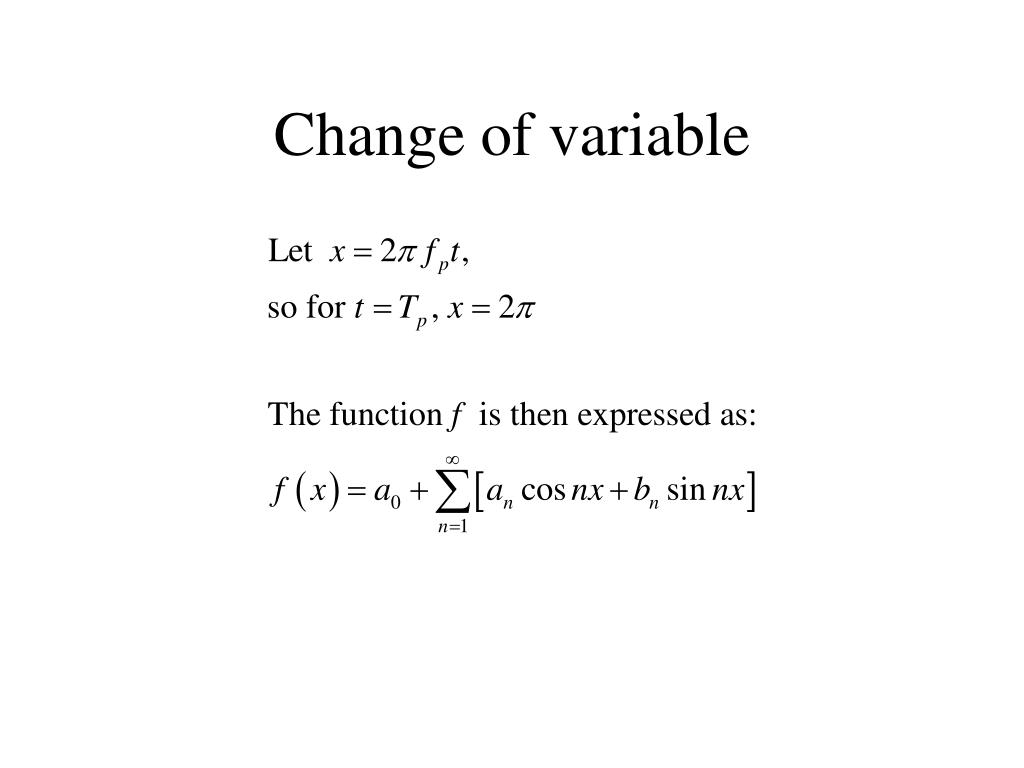

  3. Change of variable

  4. Fourier Coefficients

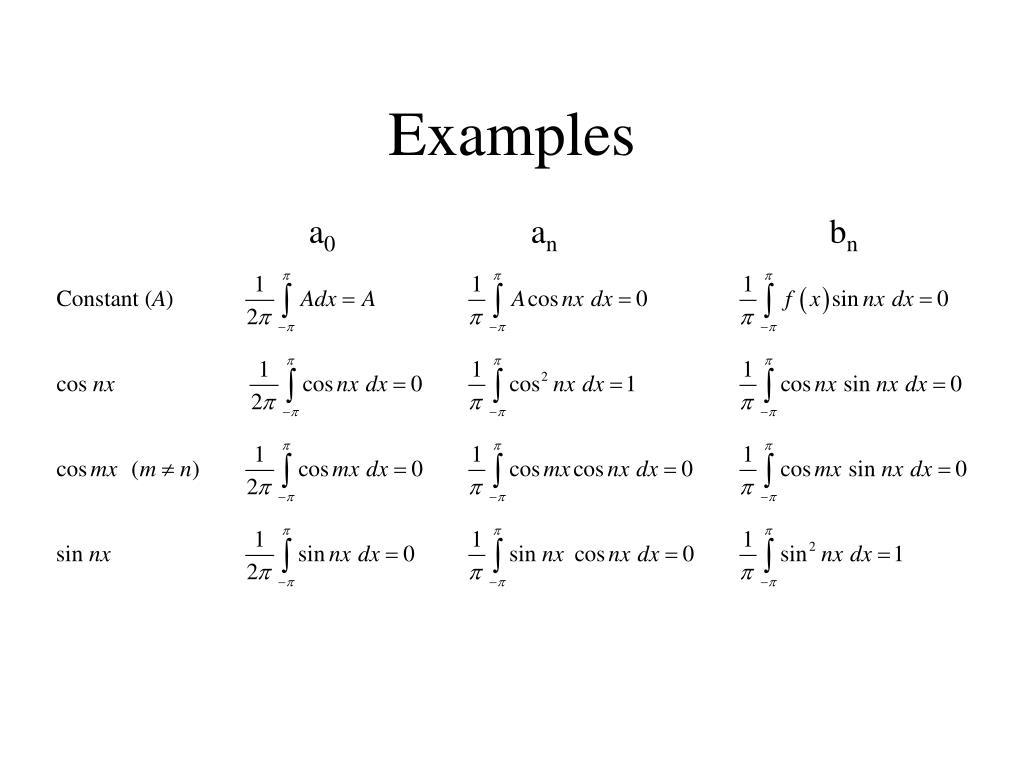

  5. Examples a0 an bn

  6. Square Wave

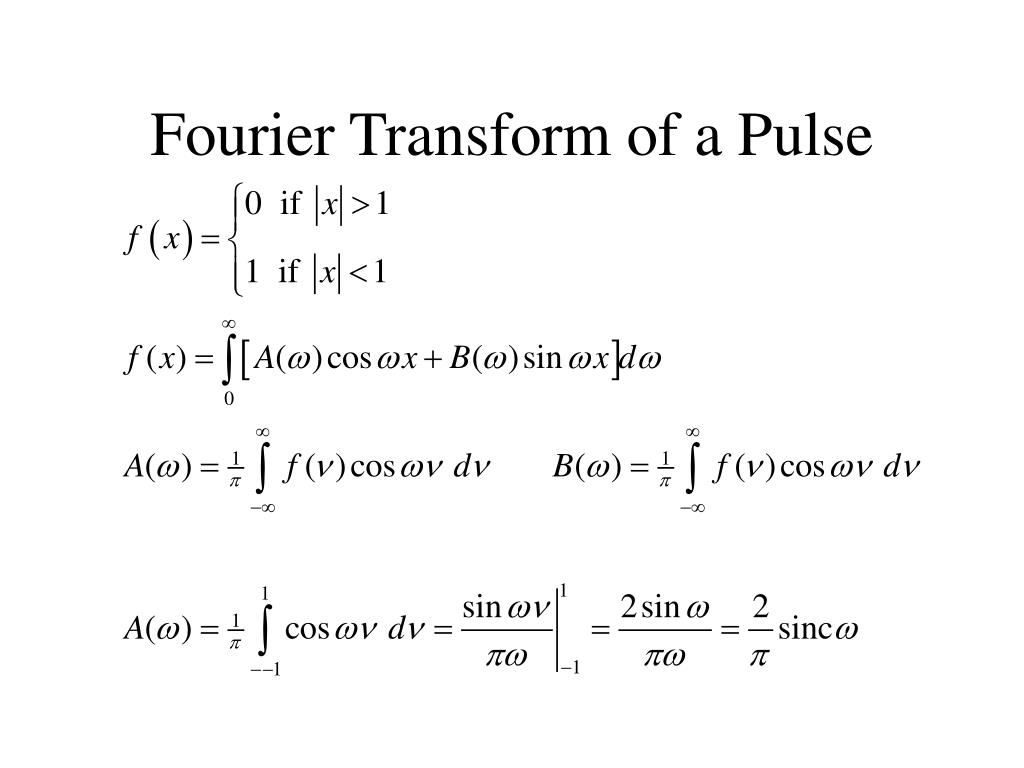

  7. Fourier Transform of a Pulse

  8. Sinc and Sinc2

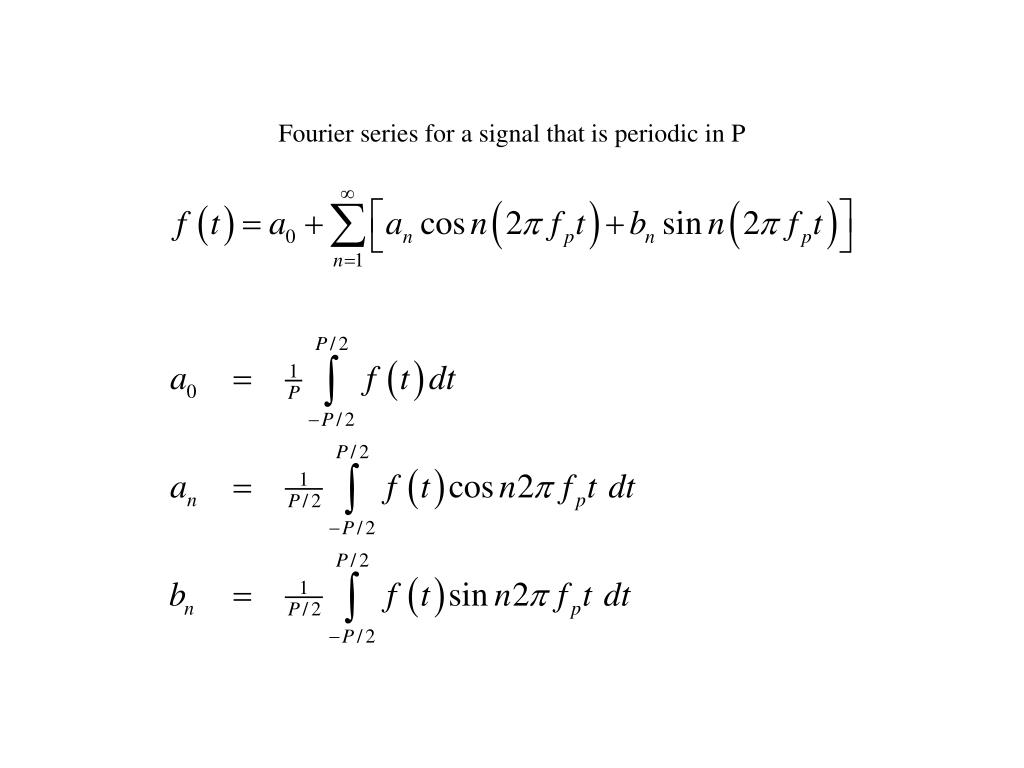

  9. Fourier series for a signal that is periodic in P

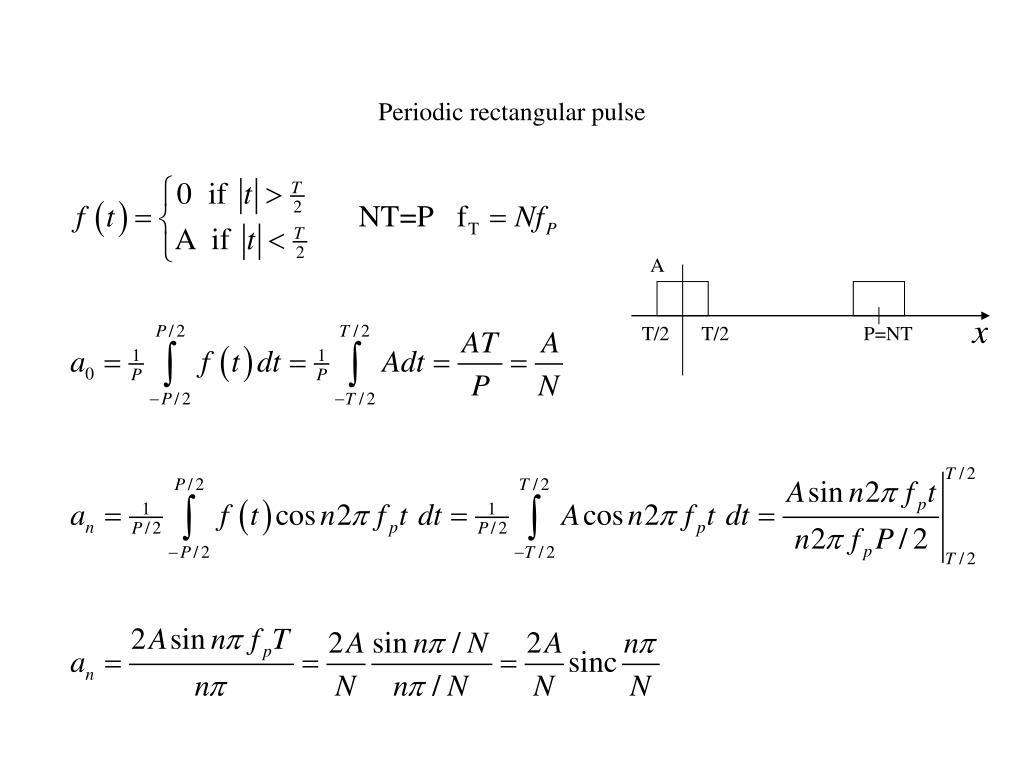

  10. T/2 T/2 P=NT A Periodic rectangular pulse

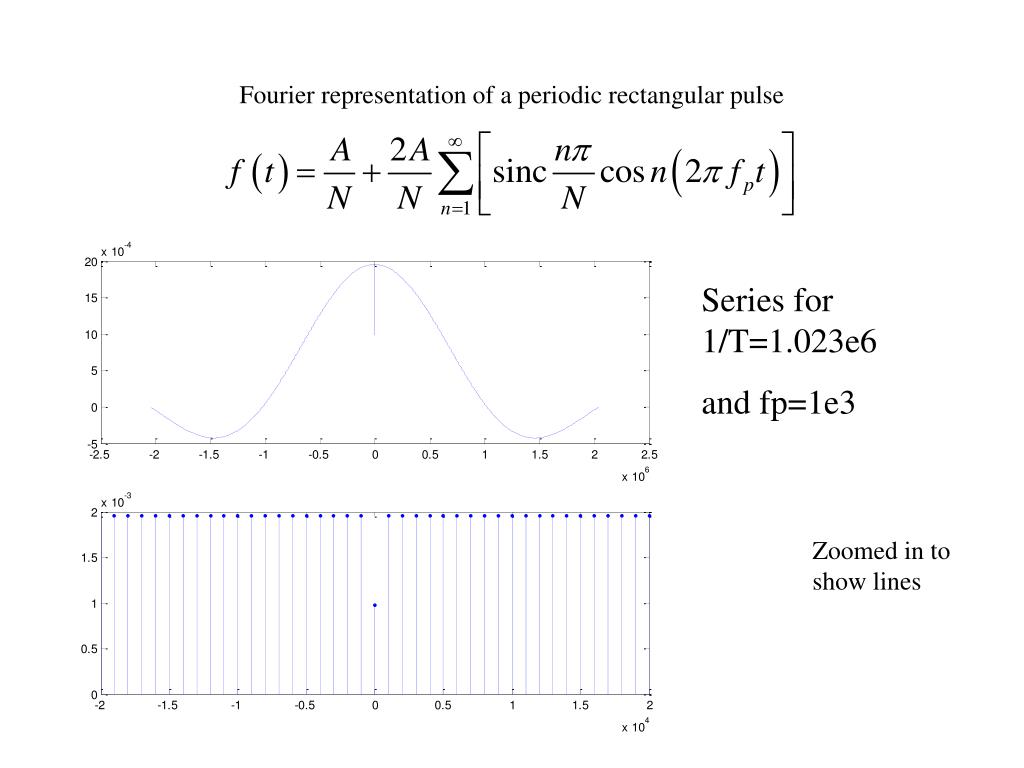

  11. Fourier representation of a periodic rectangular pulse Series for 1/T=1.023e6 and fp=1e3 Zoomed in to show lines
