  1. Converged IP Solutions

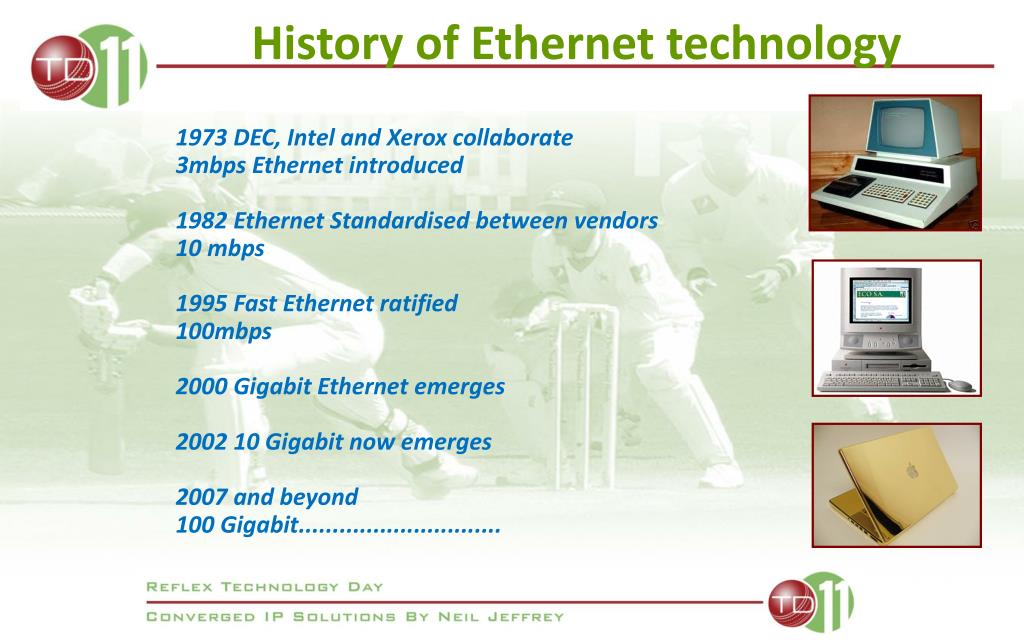

  2. History of Ethernet technology 1973 DEC, Intel and Xerox collaborate 3mbps Ethernet introduced 1982 Ethernet Standardised between vendors 10 mbps 1995 Fast Ethernet ratified 100mbps 2000 Gigabit Ethernet emerges 2002 10 Gigabit now emerges 2007 and beyond 100 Gigabit..............................

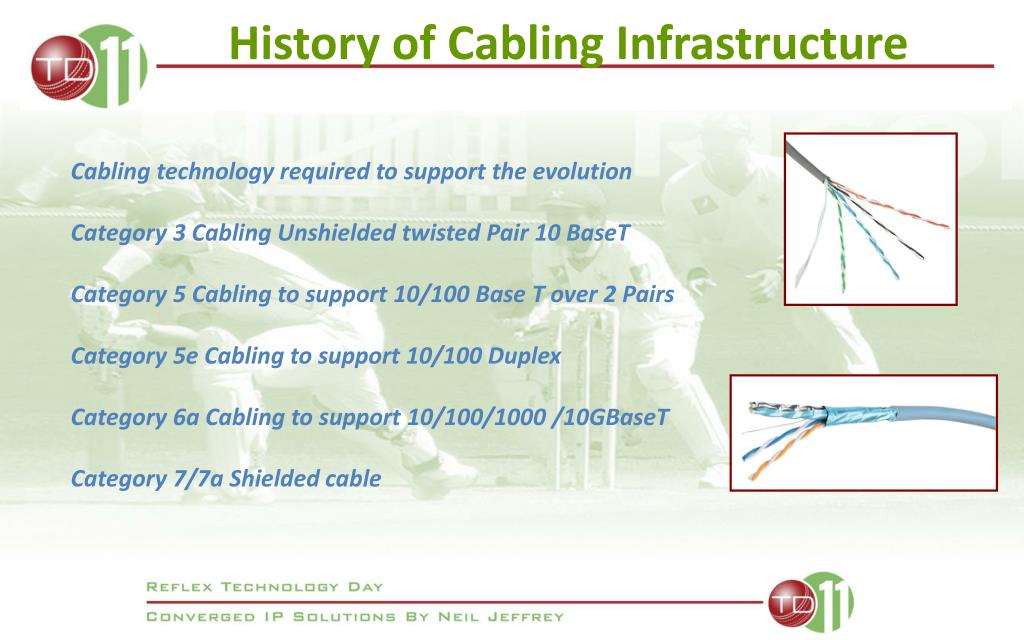

  3. History of Cabling Infrastructure Cabling technology required to support the evolution Category 3 Cabling Unshielded twisted Pair 10 BaseT Category 5 Cabling to support 10/100 Base T over 2 Pairs Category 5e Cabling to support 10/100 Duplex Category 6a Cabling to support 10/100/1000 /10GBaseT Category 7/7a Shielded cable

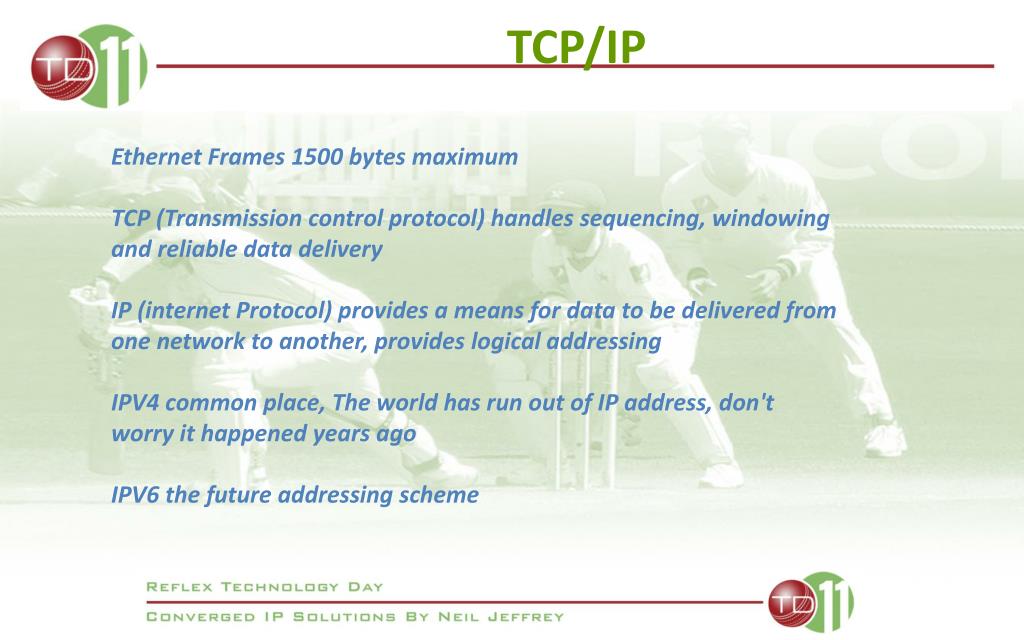

  4. TCP/IP Ethernet Frames 1500 bytes maximum TCP (Transmission control protocol) handles sequencing, windowing and reliable data delivery IP (internet Protocol) provides a means for data to be delivered from one network to another, provides logical addressing IPV4 common place, The world has run out of IP address, don't worry it happened years ago IPV6 the future addressing scheme

  5. Power over Ethernet

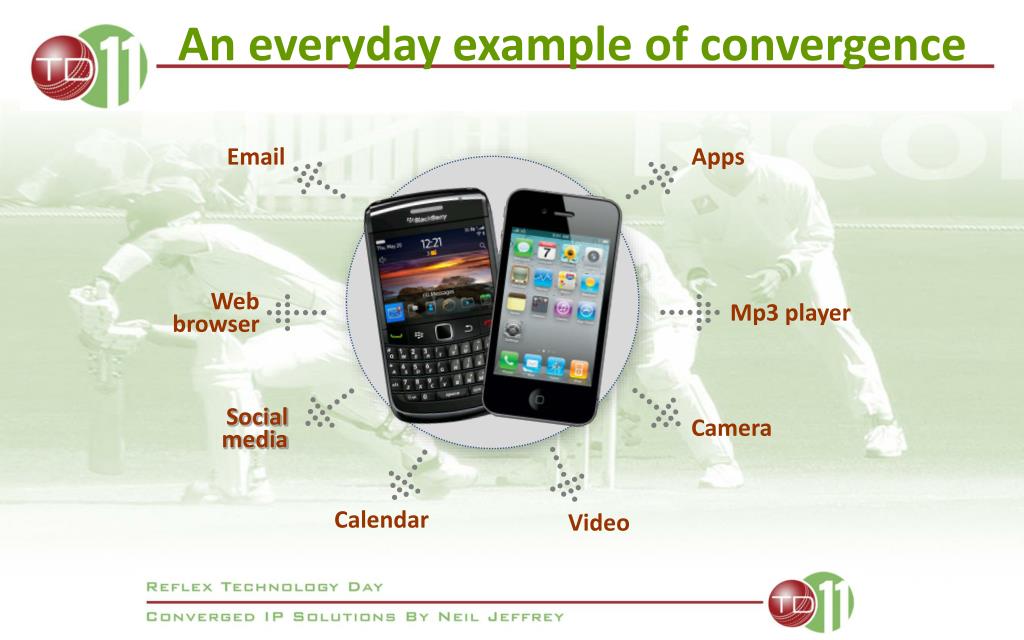

  6. An everyday example of convergence Email Apps Web browser Mp3 player Social media Camera Calendar Video

  7. Converged IP Solutions

  8. Converged IP in the business environment Cabling Racks WiFi Switching Power distribution Access control Lighting Cabling WiFi Audio visual Access control PCs DATACENTRES EDUCATION Cabling WiFi Cameras Access control Telephony Air conditioning Lighting PCs Cabling Cameras WiFi Image storage Access control Tills ENTERPRISE RETAIL

  9. The benefits of converged IP to business Cabling Racks WiFi Switching Power distribution Access control Lighting Cabling WiFi Audio visual Access control PCs • Flexible • Scalable • Cost effective • Efficient • Remote access / management • One cable any device DATACENTRES EDUCATION Cabling WiFi Cameras Access control Telephony Air conditioning Lighting PCs Cabling Cameras WiFi Image storage Access control Tills ENTERPRISE RETAIL

  10. Our converged IP solutions Copper structured cabling • Copper Structured cabling Infrastructure • Fibre optic cabling • Voice cabling • Power management • Network cabinets & enclosures Power management Fibre optic cabling Network cabinets & enclosures Voice cabling

  11. Our converged IP solutions Environmental & security threat management Copper structured cabling • Copper Structured cabling Infrastructure • Fibre optic cabling WiFi & WiMax • Voice cabling Networking • Power management • Network cabinets & enclosures • Ethernet switching • WiFi & WiMax wireless • Voice & Data Business Gateway Ethernet switching • Environmental & security threat management • Power management Voice & data business gateway Power management Fibre optic cabling Network cabinets & enclosures Asset management Voice cabling

  12. Our converged IP solutions Environmental & security threat management Infra-red & white light illuminators Mesh networking technology Copper structured cabling Infrastructure • Copper Structured cabling • Fibre optic cabling WiFi & WiMax Networking • Voice cabling • Power management Electronic Security • Network cabinets & enclosures • Ethernet switching CCTV cameras • WiFi & WiMax wireless • Voice & Data Business Gateway Ethernet switching • Environmental & security threat management • Power management Voice & data business gateway • CCTV cameras • Image recording & storage • Infra-red and “White light” illuminators Power management Image recording & storage • Mesh networking technology Fibre optic cabling Network cabinets & enclosures Asset management Voice cabling

  13. Video Surveillance Evolution Digital Storage Analogue Systems Networked Systems Analogue Cameras IP Cameras Analogue Cameras Coax,Data,Power Coax,Data,Power Ethernet or Wi-Fi PoE Switch Video Matrix Switch Video Matrix Switch Hybrid DVRs or NVRs VCRs DVRs TVs • Low Image Quality • Tape Changing • Records Inactivity TVs or PCs TVs, PCs or mobile PDAs Lower cost Larger Storage Integrated Audio & PoE High Scalability, Lower TCO

  14. IP Video, The advantage is clear

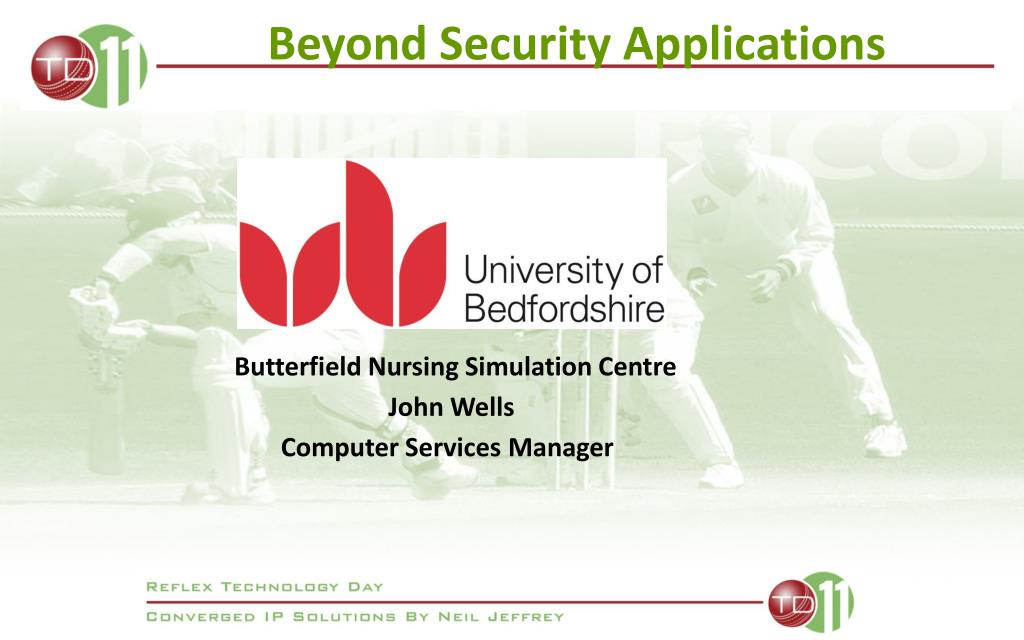

  15. Beyond Security Applications Butterfield Nursing Simulation Centre John Wells Computer Services Manager

  16. Location

  17. Architect’s Plan

  18. Briefing Room

  19. Briefing Room

  20. Family Room/Observation Room

  21. Ward

  22. Anaesthetic Room

  23. Operation Theatre

  24. Machines that go “Ping”!
