The Amazing Honey Bee

1. The Amazing Honey Bee Photo by D.J. Shlien

2. We hear about various problems with bees: bee mites Africanized bees colony collapse disorder. Should we care? After all bees are just a small insect, one of very many.

3. What is the most important contribution to the world by honey bees?

5. Pollinator Protection Act of 2007 As a result of the CCD (colony collapse disorder) problem, this bill was submitted to congress on June 26 to fund bee research (>7 M$/yr for several years). As part of the justification, the bill states that: • “pollination by honey and native bees adds more than $18,000,000,000 annually to the value of United States crops; • “1/3 of the food supply of the United States depends on bee pollination, which makes the management and protection of pollinators an issue of paramount importance to the security of the United States food supply system;” http://www.govtrack.us/congress/billtext.xpd?bill=s110-1694

6. “No other pollinating insect can be as easily managed and manipulated as the honey bee.” (Caron)

7. The Hive – the feral nest

9. The Hive - skeps

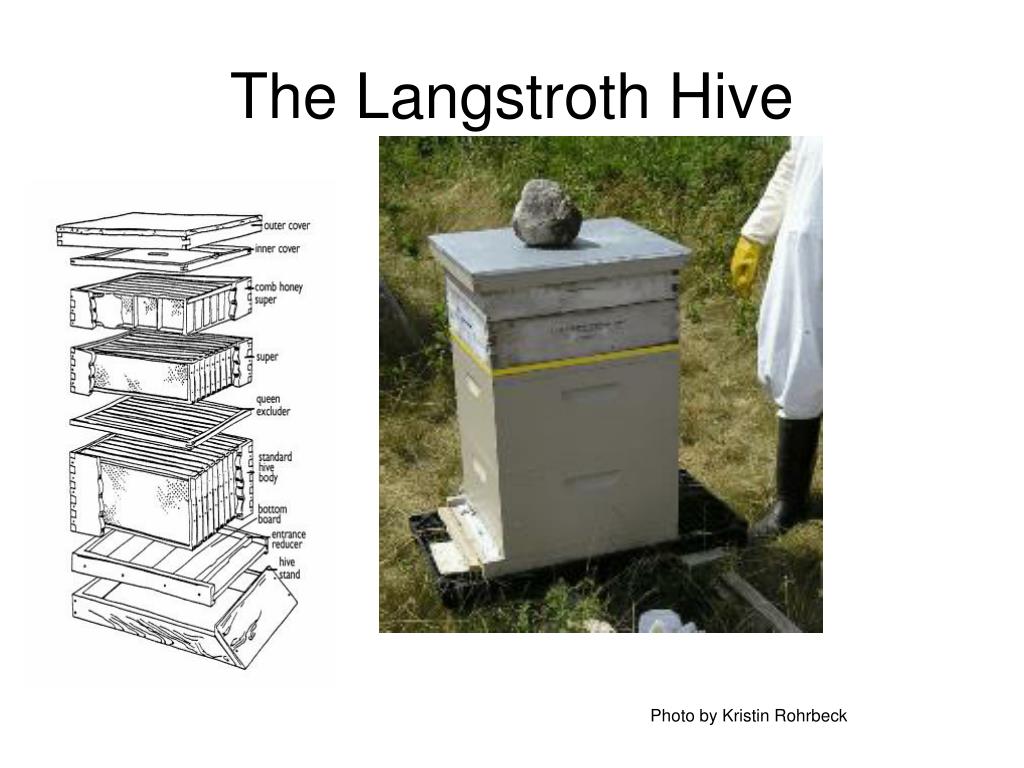

10. The Langstroth Hive Photo by Kristin Rohrbeck

11. Brood frame with capped honey Photo by Deborah Hautau

12. Bees capping honey cells Photo by Deborah Hautau

13. Pollen cells

14. Order: Hymenoptera * clear membrane like wings * includes social insects * constricted abdomen * do not damage plants by direct feeding Superfamily: Apoidea * branched body hairs * special body hairs for pollen transport * plant pollen and nectar sole source of food Family: Apidae * Includes honey bee and bumble bee * most are eusocial *cooperative brood care * reproductive castes * generation overlap Genus: Apis * 6 species (includes Apis mellifera) Kingdom: Animalia Phylum: Arthropoda * segmented body (2 or 3 regions) * paired segmented appendages * exoskeleton * bilaterally symmetrical with tubular alimentary canal * open circulatory system (dorsal blood vessel and open body cavity) * Invertebrates Class: Insecta (over 1,000 species can be found around your home) * Head, thorax, abdomen * one pair of antennae * 3 pairs of legs * 1 or 2 pairs of wings

15. Bee Types within Colony Queen Drone Worker

16. The Queen • She is longer than the worker bee. • The only job of mated queen is to lay eggs – 800 (typical) to 2000 per day. • She is groomed and fed by the worker bees. • There is only one queen in a colony. • It is difficult to find the queen in the colony.

17. Photo by Deborah Hautau

19. • Mating takes place 200 to 300 ft. in the air. • After mating, the drone loses his reproduction organ (barbed) in the queen and he dies. • Only about 1% of the drones get to mate. • Over several mating flights the queen will have mated with a dozen or more drones. • She stores the sperm in a sac in her abdomen and does not mate again. • She starts laying eggs within 3 days. • As she lays an egg, a few spermatozoa pass out of the storage and into the vagina where one of them fertilizes the egg. • Unfertilized eggs become drones.

20. Bee Types within Colony Queen Drone Worker

21. The Drone • He is also larger than the worker and is more barrel shaped than the queen. • He is hatched from unfertilized eggs. • He doesn’t forage for food, he doesn’t help with the building of comb, nor can he defend the hive having no stinger. • He is fed and cared for by the workers. • When cold weather approaches and food may be scarce, the worker bees force the drones out of the hive.

22. The Drone Photo from http://www.agpix.com/catalog/AGPix_ScCa13/large/AGPix_ScCa13_0086_Lg.jpg

23. The Worker • is the smallest of the three types. (average weight 80 mg) • there are about 50,000 bees in a hive. • her specific jobs changes with her age: - clean cells - undertaking - nursing - attending the queen - accepting nectar from foragers, deposit it in cells, add enzyme to nectar, evaporate water from nectar, also accept and pack pollen - fanning for temperature/humidity control - comb and cap building - guard duty - foraging after taking orientation flights

24. Find the queen Photo by Deborah Hautau

25. Find the queen Photo by Deborah Hautau

26. Find the queen Photo by Thomas Jenkins

27. Anatomy Drawing modified from R. E. Snodgrass Drawing from R.E. Snodgrass

28. Head

29. Major glands of the worker bee

30. Pollen basket

31. Bees with full pollen baskets entering hive. • Photo by D.J. Shlien

32. Digestive and excretory organs From H.A. Dade

33. Eggs

34. Eggs as seen in cross-section of cells.

35. larvae

36. Eggs and larvae Photo by Deborah Hautau

37. Bee brood summary

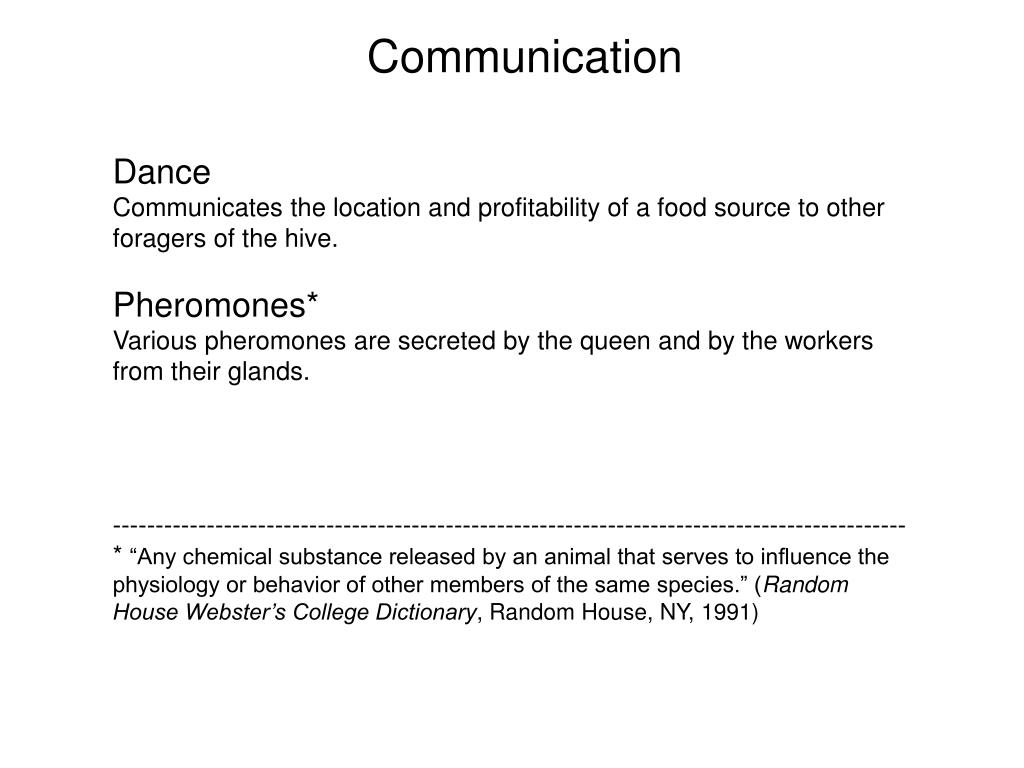

38. Communication Dance Communicates the location and profitability of a food source to other foragers of the hive. Pheromones* Various pheromones are secreted by the queen and by the workers from their glands. --------------------------------------------------------------------------------------------- * “Any chemical substance released by an animal that serves to influence the physiology or behavior of other members of the same species.” (Random House Webster’s College Dictionary, Random House, NY, 1991)

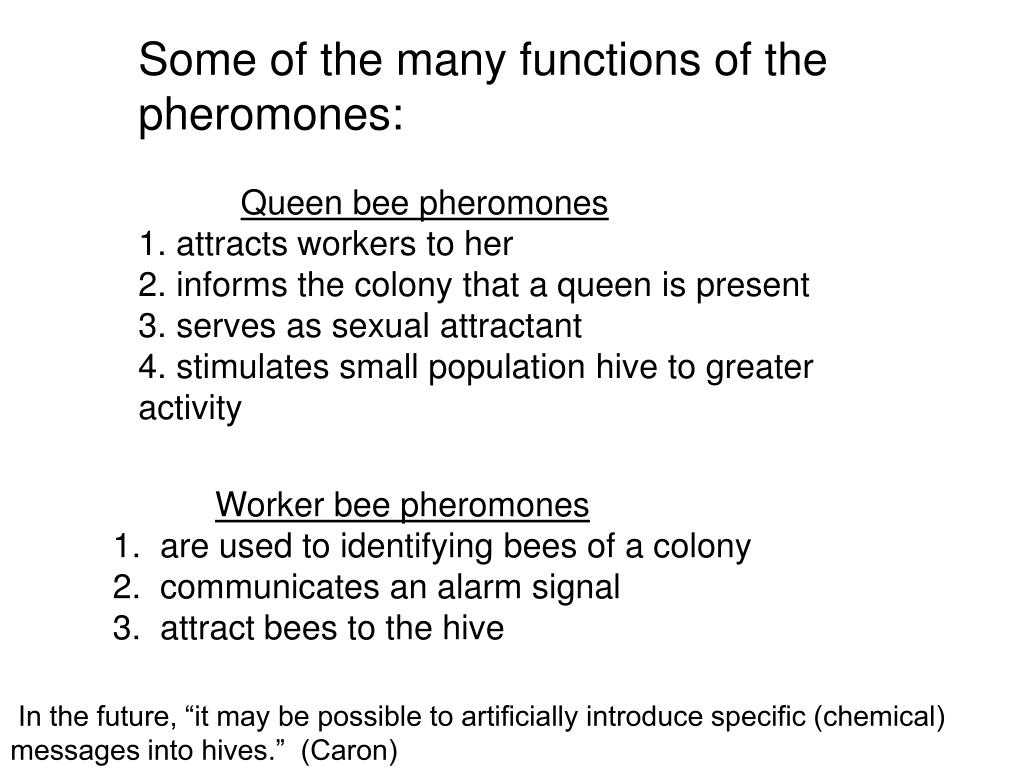

39. Some of the many functions of the pheromones: Queen bee pheromones 1. attracts workers to her 2. informs the colony that a queen is present 3. serves as sexual attractant 4. stimulates small population hive to greater activity Worker bee pheromones 1. are used to identifying bees of a colony 2. communicates an alarm signal 3. attract bees to the hive In the future, “it may be possible to artificially introduce specific (chemical) messages into hives.” (Caron)

40. Seasonal management • Inspect hives regularly: - summer: once or twice per month. winter: not at all unless there is a warm day. - spring and fall: thorough inspection every two weeks or so, as needed. • Inspect for: performance of queen, disease symptoms, poorly drawn combs, damaged hive. • In the fall: - harvest honey. - check hive for adequate stores of honey and pollen for the bees.

41. Uncapping knife Photo by Jason Keeler

42. Honey Extractor Photo by Jason Keeler

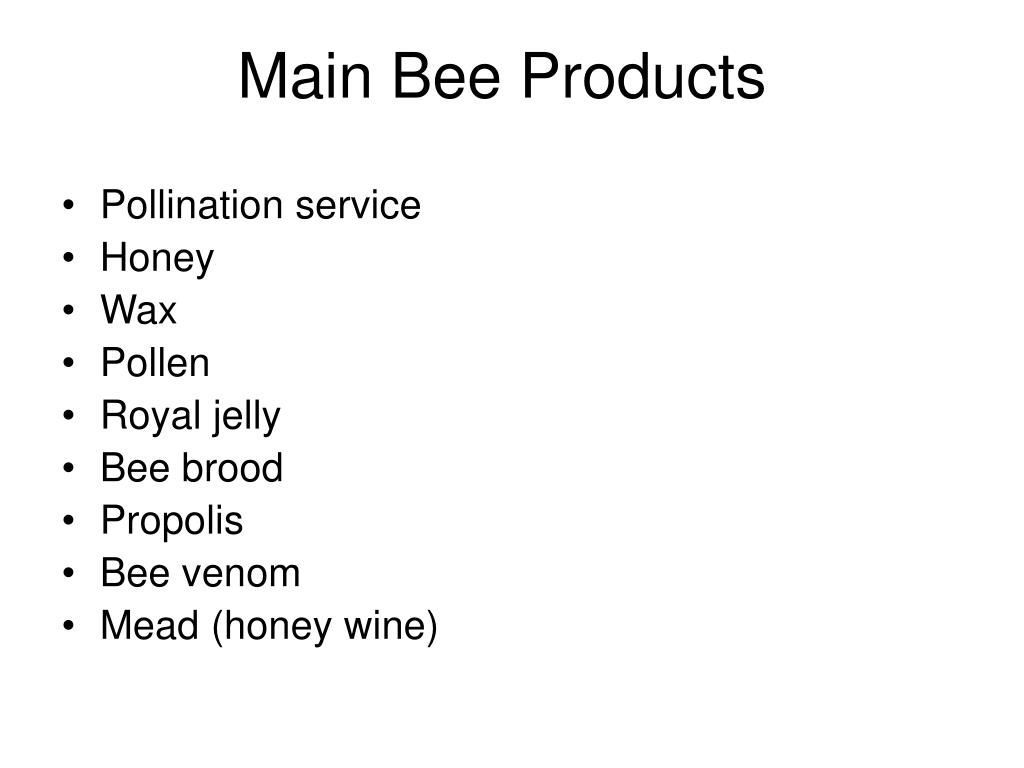

43. Main Bee Products • Pollination service • Honey • Wax • Pollen • Royal jelly • Bee brood • Propolis • Bee venom • Mead (honey wine)

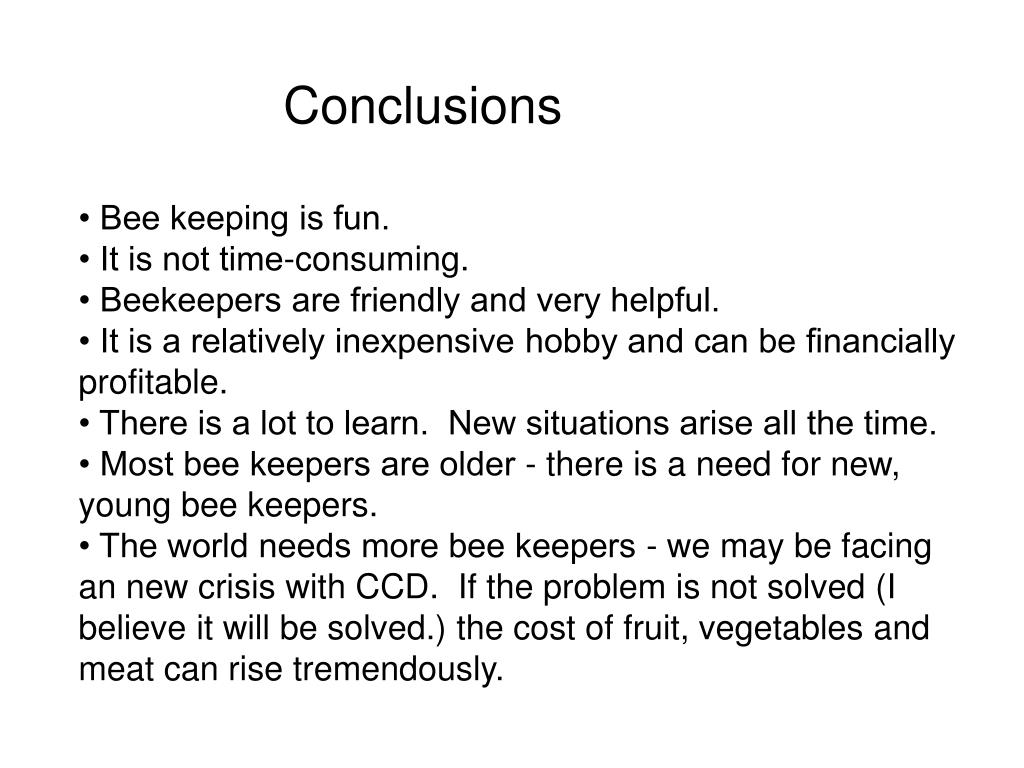

44. Conclusions • Bee keeping is fun. • It is not time-consuming. • Beekeepers are friendly and very helpful. • It is a relatively inexpensive hobby and can be financially profitable. • There is a lot to learn. New situations arise all the time. • Most bee keepers are older - there is a need for new, young bee keepers. • The world needs more bee keepers - we may be facing an new crisis with CCD. If the problem is not solved (I believe it will be solved.) the cost of fruit, vegetables and meat can rise tremendously.

45. For more about beekeeping and volunteering to help with hive work: contact me shlien@svsu.edu or extension 4239.

46. S. O. B.

47. S. O. B. Save Our Bees

48. Main References Blackiston, Howland (2002) Beekeeping for Dummies, Wiley Publishing, Inc., Indianapolis, IN. Caron, Dewey M. (2006) Honey Bee Biology and Beekeeping, Wicwas Press, Chesire, CT. Crane, Eva (1990) Bees and Beekeeping, Science, Practice and World Resources, Cornell University Press. Sammataro, Diana and Avitabile, Alphonse (1998) The Beekeeper’s Handbook, Comstock Publ. Assoc. NOTE: Much of this presentation (including unattributed photos) is based on material in Caron (2006).

49. A sample page (one of 53) of the bibliography from Crane (1990).
