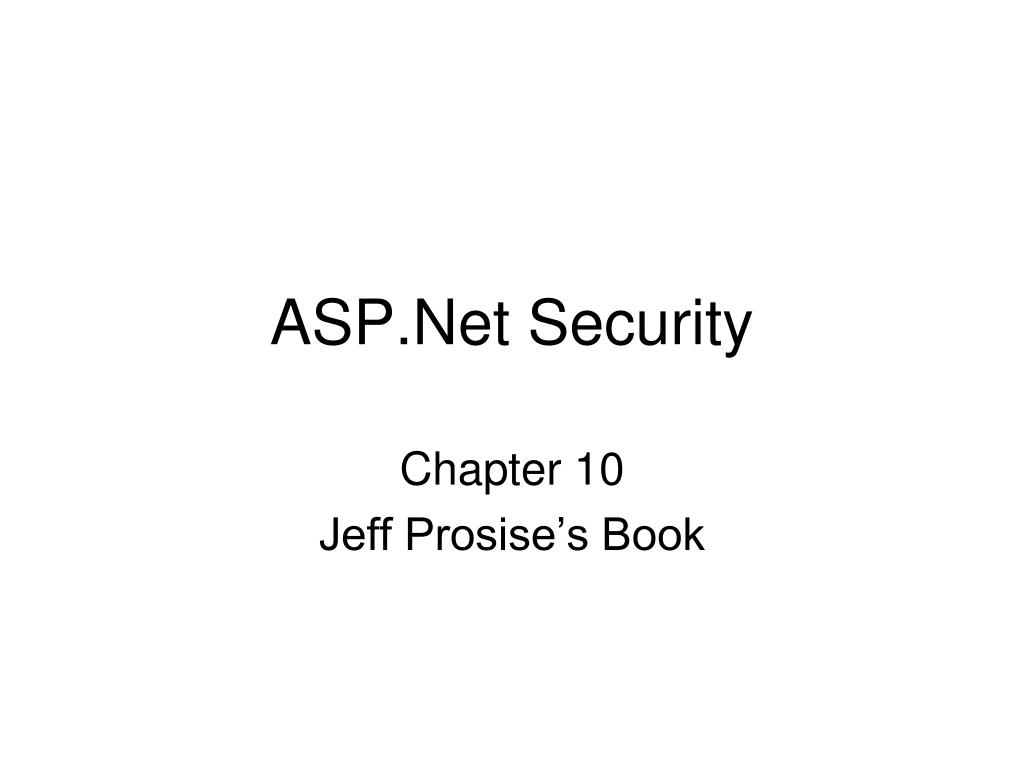

  1. ASP.Net Security Chapter 10 Jeff Prosise’s Book

  2. Authentication • To ascertain the caller’s identity • Windows authentication • Forms authentication • Passport authentication • Windows authentication: Here, IIS does the authentication and makes the caller’s identity available to ASP.Net (via a token) • Most suitable when everyone that uses the application can login to the local machine • Uses the built-in security features of the OS

  3. Passport authentication: • Passport serves as a front-end to a large group of users registered with Microsoft Passport • Such users can be authenticated anywhere on the Internet by applications that present long credentials to Passport. • If Passport validates them, it returns an authentication ticket to the application; that in turn stores it as an encoded cookie

  4. Forms authentication • Relies on login forms in web pages to authenticate users • In an e-commerce application such as e-bay’s bidding, windows authentication is not viable since it is impractical to create windows accounts for all millions • In web.config, we set <authentication mode = “Forms” /> • Other modes are: None, Windows, and Passport

  5. Authorization • Determines what resources a user can access • ASP.Net supports: • ACL authorization or file authorization---e.g., using NTFS file system’s ACL • URL authorization---relies on configuration directives in web.config using the <authorization> element • Authorization link

  6. Windows Authentication • Maps incoming requests to accounts on the web server • Used to serve a well defined user group that may be controlled through windows accounts • Basic authentication: transmits a user name and password in each request; IIS maps them to an account on the web server and generates a token. • Suppose a web page is placed in the virtual directory • Suppose IIS is configured to disallow anonymous access to that directory and to require basic authentication • When a user attempts to access it for the first time (via HTTP request, a 401 is returned indicating that it requires basic authentication • The user’s browser then prompts the user for windows user name/password • Problem: User name/password sent in plain text between the browser and the web server with each request; user needs a windows account • Digest authentication: User name/password are sent as an encrypted token with each request integrated windows authentication

  7. IIS Security • Internet Information Services---a web server • IIS protects a server in four ways: • Web applications are deployed in virtual directories that are URL-addressable on the server. Remote clients cannot automatically access files outside this directory. • IIS assigns every request a token---a windows security principal; OS and .Net check this token prior to allowing access • It can enable/disable requests based on IP addresses and domains • Supports SSL and HTTPs • IIS supports four types of authentication: • Basic authentication (user name/password) • Digest authentication (user name/password) • Integrated windows authentication • SSL client authentication

  8. Forms Authenticatrion • Authenticates a user by asking the user to type credentials (e.g., user name/password) into a web form. • Entries in web.config can identify login page • When a user accesses for the 1st time, ASP.Net redirects the user to the login page. • If the login is successful, ASP.Net issues a ticket in the form of a cookie and redirects the user to the page originally requested. • The cookie enables the user not to login everytime. Lifetime of a cookie is dictated by your application.

  9. Example Application with Forms Authentication • Application contains two pages: • PublicPage.aspx --- viewed by any one • ProtectedPage.aspx --- available only to authenticated users (validated by login page) • LoginPage.aspx---asks for a user name and a password • Web.config---stores valid user names and passwords

  10. PublicPage.aspx <html> <body> <h1>Public Page</h1> <hr> <form runat="server"> <asp:Button Text="View Secret Message" OnClick="OnViewSecret" RunAt="server" /> </form> </body> </html> <script language="C#" runat="server"> void OnViewSecret (Object sender, EventArgs e) { Response.Redirect ("Secret/ProtectedPage.aspx"); } </script>

  11. LoginPage.aspx <html> <body> <h1>Please Log In</h1> <hr> <form runat="server"> <table cellpadding="8"> <tr> <td> User Name: </td> <td> <asp:TextBox ID="UserName" RunAt="server" /> </td> </tr> <tr> <td> Password: </td> <td> <asp:TextBox ID="Password" TextMode="password" RunAt="server" /> </td> </tr> <tr> <td> <asp:Button Text="Log In" OnClick="OnLogIn" RunAt="server" /> </td> <td> </td> </tr> </table> </form> <hr> <h3><asp:Label ID="Output" RunAt="server" /></h3> </body> </html> <script language="C#" runat="server"> void OnLogIn (Object sender, EventArgs e) { if (FormsAuthentication.Authenticate (UserName.Text, Password.Text)) FormsAuthentication.RedirectFromLoginPage (UserName.Text, false); else Output.Text = "Invalid login"; } </script>

  12. Web.config in the main directory <configuration> <system.web> <authentication mode="Forms"> <forms loginUrl="LoginPage.aspx"> <credentials passwordFormat="Clear"> <user name="Jeff" password="imbatman" /> <user name="John" password="redrover" /> <user name="Bob" password="mxyzptlk" /> <user name="Alice" password="nomalice" /> <user name="Mary" password="contrary" /> </credentials> </forms> </authentication> </system.web> </configuration>

  13. Web.config in the secret subdirectory (to deny unauthenticated users) <configuration> <system.web> <authorization> <deny users="?" /> </authorization> </system.web> </configuration>

  14. Why is the earlier example not realistic? • Unreasonable to store passwords in clear text • Storing a large number of names/passwords in Web.config is unrealistic. Instead, store them in a database. • Modified Login.aspx is in the next few slides

  15. <%@ Import NameSpace="System.Data.SqlClient" %> <html> <body> <h1>Please Log In</h1> <hr> <form runat="server"> <table cellpadding="8"> <tr> <td> User Name: </td> <td> <asp:TextBox ID="UserName" RunAt="server" /> </td> </tr> <tr> <td> Password: </td> <td> <asp:TextBox ID="Password" TextMode="password" RunAt="server" /> </td> </tr> <tr> <td> <asp:Button Text="Log In" OnClick="OnLogIn" RunAt="server" /> </td>

  16. <td> <asp:Button Text="Log In" OnClick="OnLogIn" RunAt="server" /> </td> <td> <asp:CheckBox Text="Keep me signed in" ID="Persistent" RunAt="server" /> </td> </tr> </table> </form> <hr> <h3><asp:Label ID="Output" RunAt="server" /></h3> </body> </html>

  17. <script language="C#" runat="server"> • void OnLogIn (Object sender, EventArgs e) • { • if (CustomAuthenticate (UserName.Text, Password.Text)) • FormsAuthentication.RedirectFromLoginPage (UserName.Text, • Persistent.Checked); • else • Output.Text = "Invalid login"; • } • bool CustomAuthenticate (string username, string password) • { • SqlConnection connection = new SqlConnection • ("server=localhost;database=weblogin;uid=sa;pwd="); • try { • connection.Open (); • StringBuilder builder = new StringBuilder (); • builder.Append ("select count (*) from users " + • "where username = \'"); • builder.Append (username); • builder.Append ("\' and cast (rtrim (password) as " + • "varbinary) = cast (\'"); • builder.Append (password); • builder.Append ("\' as varbinary)"); • SqlCommand command = new SqlCommand (builder.ToString (), • connection); • int count = (int) command.ExecuteScalar (); • return (count > 0); • } • catch (SqlException) { • return false; • } • finally { • connection.Close (); • } • } • </script>

  18. New Web.config in main directory <configuration> <system.web> <authentication mode="Forms"> <forms loginUrl="LoginPage.aspx" /> </authentication> </system.web> </configuration>

  19. Authentication Cookie Lifetime • Timeout value is controlled by: • In Machine.config file: • <forms … timeout=“30”> • In local Web.config file: configuration> <system.web> <authentication mode="Forms"> <forms loginUrl="LoginPage.aspx" timeout = “30”/> </authentication> </system.web> </configuration>

  20. Forms Authentication and Role-based Security • Previous example, all authenticated users have access; what if we want to restrict access to a few? (Here, * means all; ? means unauthenticated users) • In Web.config of the secret page: <authorization> <allow users = “John, Alice” /> <deny users=“*” /> </authorization>

  21. Alternately, deny access to Jeff, Bob, and Mary explicitly. <authorization> <deny users = “?” /> <deny users = “Jeff, Bob, Mary” /> <allow users=“*” /> </authorization> • Order sensitive statement execution • Still not practical when a large number of users are involved • Solution: Role based control

  22. Using role-based authorization: Step 1 In Web.config file of the secret directory: <configuration> <system.web> <authorization> <allow roles="Manager" /> <deny users="*" /> </authorization> </system.web> </configuration>

  23. Step 2: Mapping users to roles void Application_AuthenticateRequest (Object sender, EventArgs e) { HttpApplication app = (HttpApplication) sender; if (app.Request.IsAuthenticated && app.User.Identity is FormsIdentity) { FormsIdentity identity = (FormsIdentity) app.User.Identity; // Find out what role (if any) the user belongs to string role = GetUserRole (identity.Name); //From DB // Create a GenericPrincipal containing the role name // and assign it to the current request if (role != null) app.Context.User = new GenericPrincipal (identity, new string[] { role }); } }

  24. Multiple roles? if (role != null) app.Context.User = new GenericPrincipal (identity, new string[] { role }); The 2nd parameter is a string and hence could be: new string[] { “Manager”, “Developer”}); In Web.config we can say: <allow roles = “Manager, developer”/> <deny users = “*”/>
