  1. Unit 2.4 Containers and Damage Assessment

  2. Objectives • Key characteristics of containers • Identify various types of highway, rail, fixed and portable containers • Identify potential emergency control devices • Recognize the importance of proper container damage assessment Unit 2.4  2

  3. Key Characteristics • Shape • Pressure • Non-pressurized (0  5 psi) • Low pressure (5  100 psi) • High pressure (100  3,000 psi) • Ultra-high pressure (over 3,000 psi) • Capacity Unit 2.4  3

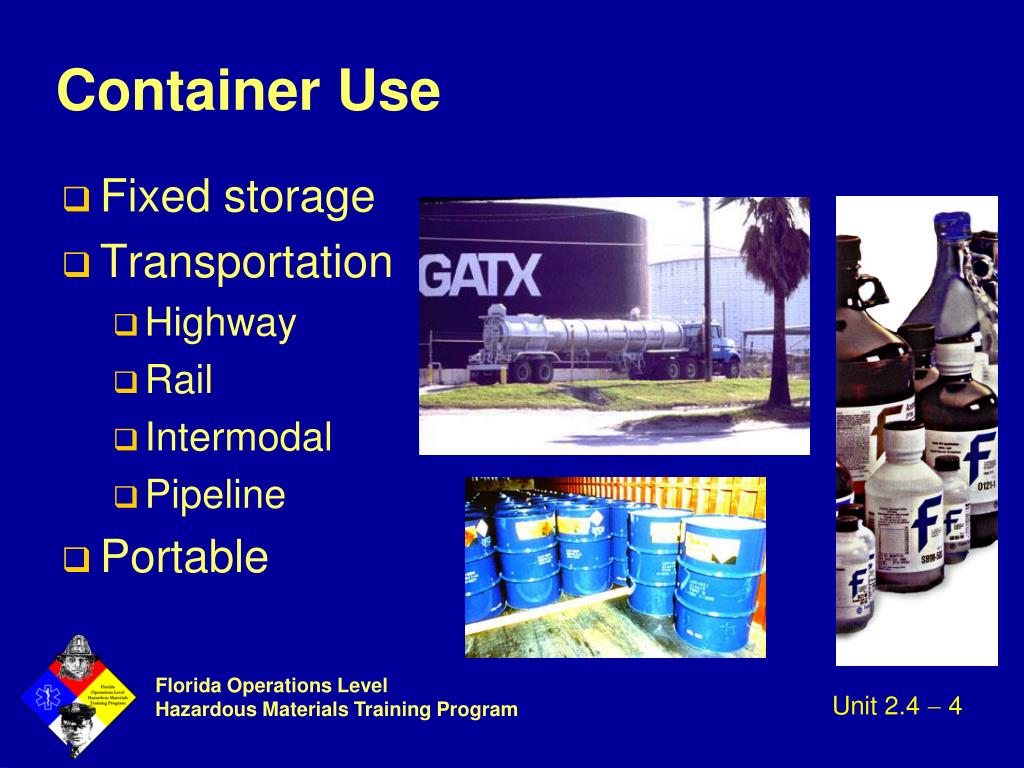

  4. Container Use • Fixed storage • Transportation • Highway • Rail • Intermodal • Pipeline • Portable Unit 2.4  4

  5. Construction and Standards • Construction materials • Non-ferrous • Ferrous • Alloys • Aluminum • HSLA • Stainless steel • Standards • Rail specification • Highway spec plate • DOT • Motor carrier (MC) Unit 2.4  5

  6. Fixed Facility Containers Unit 2.4  6

  7. Non- and Low Pressure Storage Unit 2.4  7

  8. Pressurized Storage Unit 2.4  8

  9. Specialty Fixed Containers • Telescoping • Cryogenic • Other unique containers exist • Planning is essential Unit 2.4  9

  10. Highway Containers Unit 2.4  10

  11. Non-Pressurized (DOT 406) • Common use: Petroleum products, some poisons • Construction: Mostly made of aluminum Unit 2.4  11

  12. Low Pressure (DOT 407) • Use: General purpose chemical tanker • Construction: Aluminum, SS or steel • Might be insulated Unit 2.4  12

  13. Corrosive Carrier (Dot 412) • Use: Heavy corrosive liquids • Construction: Black iron, SS or alloys • May be specially lined Unit 2.4  13

  14. Pressurized (MC 330 & MC 331) • Use: Liquefied compressed gases • Construction: Steel, HSLA Unit 2.4  14

  15. Cryogenic Carrier (MC 338) • Use: Ultra cold cryogenic liquids • Construction: Specialized with annular space and unique venting characteristics Unit 2.4  15

  16. High Pressure Tube Trailers Unit 2.4  16

  17. Dry-Bulk Carrier (Non specification) • Use: Hazardous and non-hazardous powdered and granular materials • Pneumatically off-loaded Unit 2.4  17

  18. Intermodal Containers Unit 2.4  18

  19. Video  Containers Unit 2.4  19

  20. Rail Containers Unit 2.4  20

  21. General Rail Containers • Box cars • Flat cars • Gondola cars • Hopper cars • Tank cars Unit 2.4  21

  22. Rail Tank Cars • Classifications • Non-pressurized (less than 100 psi) • Pressurized (greater than 100 psi) • Capacities up to 31,500 gallons • Some are dedicated service (approx. 40) • Intermodal • TOFC and COFC Unit 2.4  22

  23. Non-Pressurized • Use: Liquids with low vapor pressures • Construction: No expansion dome Unit 2.4  23

  24. Non-Pressurized (with expansion dome) • Use: Liquids with higher volatility • Construction: Expansion dome for vapors Unit 2.4  24

  25. Pressurized (Liquefied gas service) • Use: Liquefied gas carrier • Construction: Protective dome, no underside piping Unit 2.4  25

  26. Shipping Papers and Placards • Highway shipping papers • Rail shipping papers • Marine (Dangerous cargo manifest) • Air (Air bill) Unit 2.4  26

  27. Non-Bulk Containers • Capacities • Less than 119 gallons • Less than 1000 lbs. water capacity • Types • Cylinders, bags, carboys • Drums, boxes, totes Unit 2.4  27

  28. Pipelines • May be single or multi product lines • Use of “pigs” • Specific gravity • Pipeline markers • Safety features Unit 2.4  28

  29. Radiological Packaging • Special form • Normal • Low specific activity • Type “A” packaging • Type “B” packaging Unit 2.4  29

  30. Summary • Numerous types of containers • General classifications • Container used is largely dependent upon vapor pressure of the product • Shipping papers are essential • Radioactive packaging considerations Unit 2.4  30

  31. Container Damage Assessment

  32. Objectives • Identify three types of stressors • Understand the need for damage assessment • Define BLEVE and its potential impact Unit 2.4  32

  33. Types of Container Stressors • Thermal • Chemical • Mechanical Unit 2.4  33

  34. Failures and Releases • Failures • Disintegration • Run-away cracking • Openings in closures • Punctures • Splits and tears • Release Types • Detonation • Violent rupture • Rapid relief • Spill or leak Unit 2.4  34

  35. Container Damage Assessment • Very risky operation • Goal is to identify “critical containers” • Ones in which catastrophic failure is possible • Items to consider • Pressure • Container construction • Type of stressor Unit 2.4  35

  36. Critical Pressurized Containers • Mechanical failures • Pressurized tanks (e.g. MC 330 and 331) do tolerate dents well • Thermal impacts • BLEVE Unit 2.4  36

  37. Activity 2.4 Container Recognition Unit 2.4  37

  38. Unit 2.4  38

  39. Unit 2.4  39

  40. Unit 2.4  40

  41. Unit 2.4  41

  42. Unit 2.4  42

  43. Unit 2.4  43

  44. Unit 2.4  44

  45. Unit 2.4  45

  46. Unit 2.4  46

  47. Unit 2.4  47

  48. Unit 2.4  48

  49. Unit 2.4  49

  50. Unit 2.4  50
