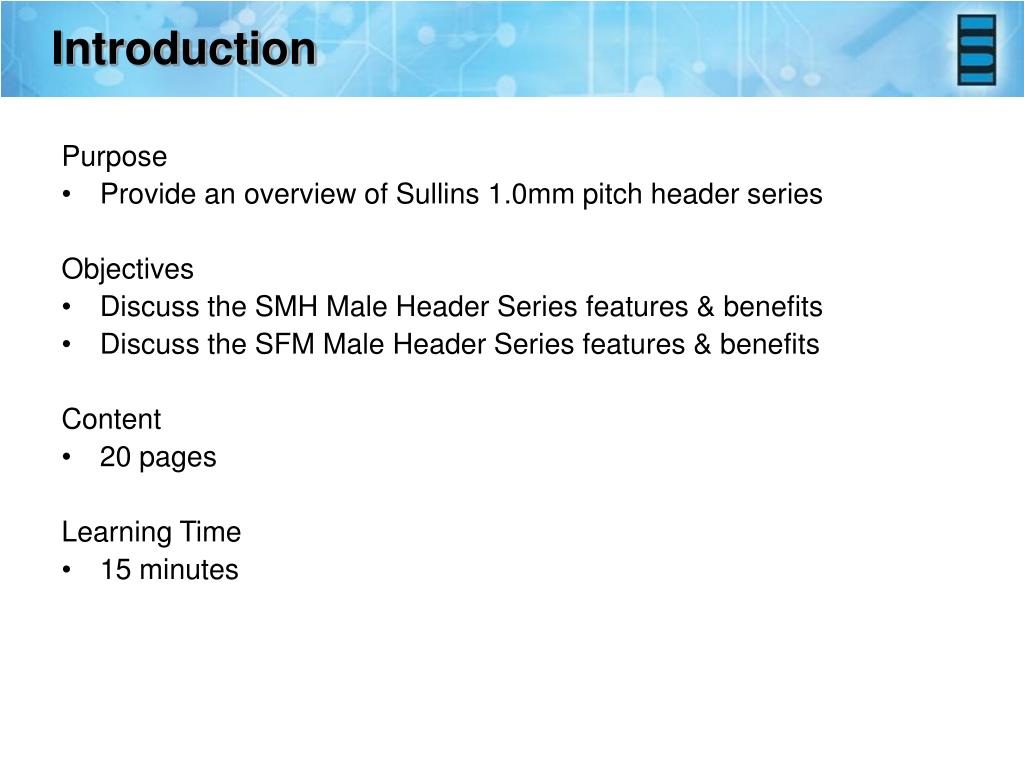

  1. Introduction Purpose • Provide an overview of Sullins 1.0mm pitch header series Objectives • Discuss the SMH Male Header Series features & benefits • Discuss the SFM Male Header Series features & benefits Content • 20 pages Learning Time • 15 minutes

  2. Overview

  3. Features • Single row and dual row • Available in 2-50 positions • Termination types: dip solder, right angle, and surface mount • SMH series mates with SFM series • SMH Male Header series offers 1.0mm and 1.5mm profiles, as well as 1.65mm and 1.90mm head heights in the surface mount type • Corresponding SFM female header mates are available in 2.10mm or 3.15mm profile • Plating options include 10u” gold or gold flash • Support operating temperatures up to 125°C with reflow processes up to 260°C peak for 10 seconds • RoHS compliant

  4. Benefits • High density board-to-board interconnection • Space saving • Design flexibility with profile and head height options • Tail length options available upon special request • Board stacking configurations available upon special request

  5. Product Application Examples - Headers

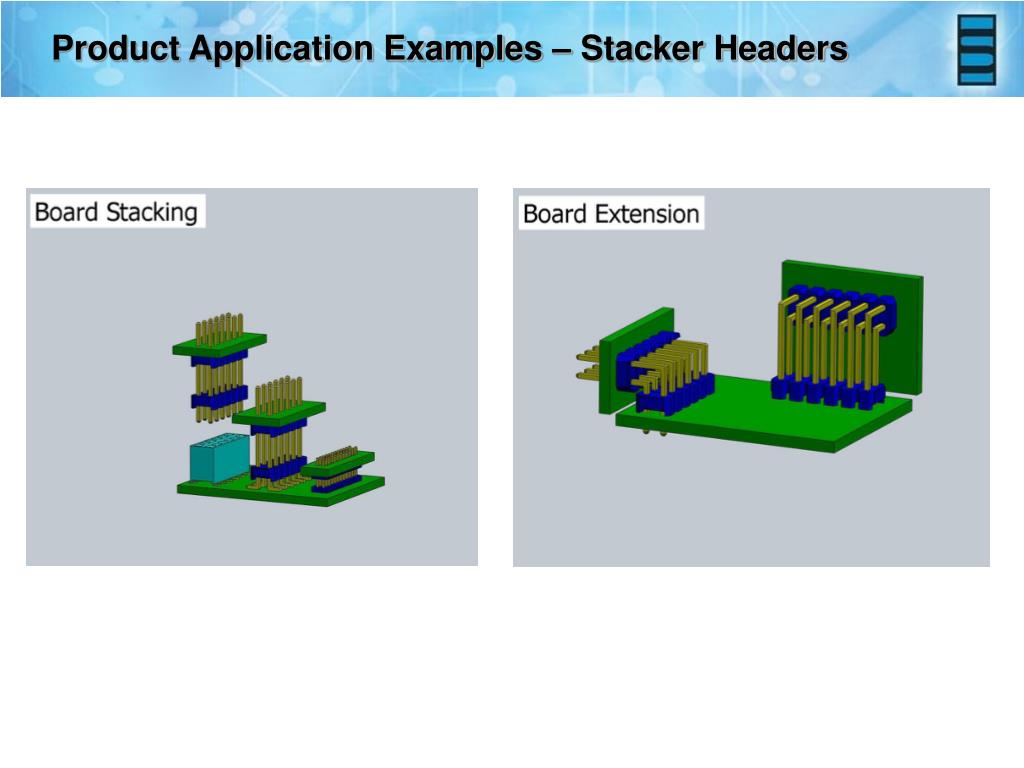

  6. Product Application Examples – Stacker Headers

  7. Applications • Aircraft Electronic Controls & Radio Communications • Computing Equipments & Peripherals • Consumer Electronics & Household Appliances • Office Equipment • Automotive Electronics & Accessories • Casino Gaming Devices • Medical Device • Industrial Machinery & Process Control Equipment • Telecommunication • Vending Machines

  8. Part Number Coding

  9. SMH100-LPPE-D10-ST-BK-M#

  10. SMH100-LPPE-D10-ST-BK-M#

  11. SMH100-LPPE-D10-ST-BK-M#

  12. SMH100-LPSE-D10-ST-BK-M#

  13. SMH100-LPPE-D10-ST-BK-M#

  14. SMH100-LPPE-D10-ST-BK-M#

  15. SMH100-LPPE-D10-ST-BK-M#

  16. SMH100-LPPE-D10-ST-BK-M#

  17. SMH100-LPPE-D10-ST-BK-M#

  18. SMH100-LPPE-D10-ST-BK-M#

  19. Sullins Advantage • Short lead time • Free samples – Fast! • High quality & reliable connectors • Design & build custom parts • Dedicated technical support resources • Dedicated inside sales team • Flexible delivery schedules

  20. Summary Sullins 1.0mm SMH & SFM series offers: • High density board-to-board interconnection • Space saving • Design flexibility with various options
