Win32 Programming Lesson 8: Processes

Where are we? • We’re starting to have some foundational understanding of Windows • But really, we don’t know how to get any work done (doesn’t that sound like your Sophomore year?)

Executing Code • The Operating System organizes executing code into a logical hierarchy • Processes • Threads • Fibers

Definition • A Process is defined as • An instance of a running program, which consists of two components: • A kernel object used by the operating system to manage the process • An address space which contains all the DLLs, executable code and data used by the process • Processes are inert: to accomplish anything, a process must have at least one thread that runs in its context

Threads • Each thread executes “simultaneously” (in some sense of the word… why, why not?) • Each thread has its own stack frame, and set of CPU registers

Scheduling • The OS schedules some time for each thread • Each thread gets a time slice or quantum from the CPU which provides the illusion of concurrency • We can think of it as a “round robin” scheduler… but it is significantly much more complicated • When a process is created, it is generally created with one thread, called the primary thread – this thread can create other threads

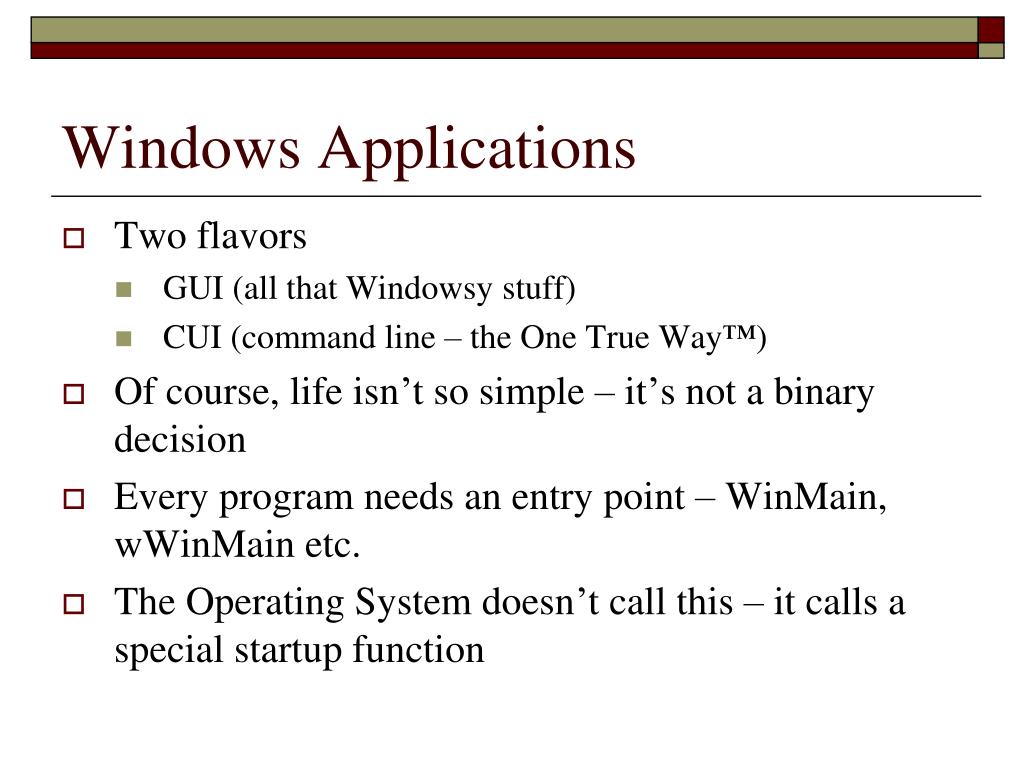

Windows Applications • Two flavors • GUI (all that Windowsy stuff) • CUI (command line – the One True Way™) • Of course, life isn’t so simple – it’s not a binary decision • Every program needs an entry point – WinMain, wWinMain etc. • The Operating System doesn’t call this – it calls a special startup function

Startup Code • The Runtime Libraries do a number of things • Retrieve a pointer to the command line parameters of the process • Retrieve a pointer to the new environment variables of the process • Initialize the RTL’s global variables • Initialize the heap for the RTL • Call constructors for global and static objects

A Process’ Instance Handle • Every DLL or executable gets its own Instance Handle, which is unique • Used when we load resources (like icons) • Can get the handle of a DLL with something like: • HMODULE GetModuleHandle(PCTSTR pszModule);

The Command Line • Can use the global variables __argv • Can call down to PTSTR GetCommandLine() • Can go from here to an argv-like structure using: • PWSTR CommandLineToArgvW( PWSTR pszCmdLine, int* pNumArgs);

Free alloced memory • int nNumArgs; PWSTR *ppArgv = CommandLineToArgvW( GetCommandLineW(), &nNumArgs); // Use the arguments… if (*ppArgv[1] == L'x') { } // Free the memory block HeapFree(GetProcessHeap(), 0, ppArgv);

Environment Variables • Associated on a per-process basis • Stored in the environment block • Stored in the form: • VarName1=Value1\0VarName2=Value2\0…VarNameX=ValueX\0\0

Associated Functions • GetEnvironmentVariable( PCTSTR pszName, PTSTR pszValue, DWORD dwSize); • Often in the form “%USERPROFILE%\My Documents” • Windows supplies a helper function for this case

ExpandEnvironmentString • ExpandEnvironmentStrings( PCTSTR pszSrc, PTSTR pszDst, DWORD nSize); • Where nSize is the maximum space available for expansion

ErrorModes • A process can choose to trap certain errors itself instead of having the Operating System trap those errors • UINT SetErrorMode(UINT fuErrorMode)

CurrentDirectory and Directory • Example: CreateFile • DWORD GetCurrentDirectory ( DWORD cchCurDir, PTSTR pszCurDir); • BOOL SetCurrentDirectory(PCTSTR pszCurDir); • Current Directories are also stored in the environment variables

Finally… • GetVersion and GetVersionEx • Read the history, it’s somewhat amusing

Creating a Process • Simple: use CreateProcess: • BOOL CreateProcess( PCTSTR pszApplicationName, PTSTR pszCommandLine, PSECURITY_ATTRIBUTES psaProcess, PSECURITY_ATTRIBUTES psaThread, BOOL bInheritHandles, DWORD fdwCreate, PVOID pvEnvironment, PCTSTR pszCurDir, PSTARTUPINFO psaStartInfo, PPROCESS_INFORMATION ppiProcInfo); • I could write out the usage, but let’s just look it up…

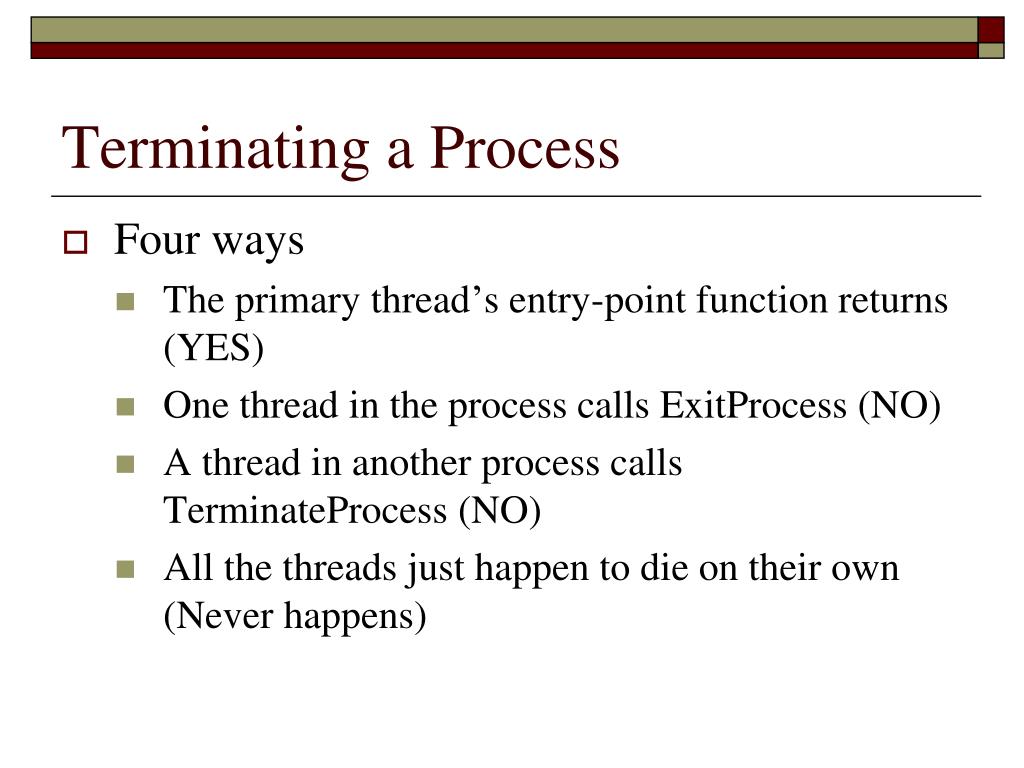

Terminating a Process • Four ways • The primary thread’s entry-point function returns (YES) • One thread in the process calls ExitProcess (NO) • A thread in another process calls TerminateProcess (NO) • All the threads just happen to die on their own (Never happens)

Entry point returns • When the primary thread dies • Any C++ objects are destroyed using destructors • Memory from the stack is correctly freed • The process’ exit code is set • The process’ kernel object is decremented

ExitProcess • Fine from an OS perspective • Horrible from the RTL perspective as Destructors aren’t called – you can prove this to yourself if you want to

ChildProcesses PROCESS_INFORMATION pi; DWORD dwExitCode; // Spawn the child process. BOOL fSuccess = CreateProcess(..., &pi); if (fSuccess) { // Close the thread handle as // soon as it is no longer needed! CloseHandle(pi.hThread); // Suspend our execution until // the child has terminated. WaitForSingleObject(pi.hProcess, INFINITE); // The child process terminated; //get its exit code. GetExitCodeProcess(pi.hProcess, &dwExitCode); // Close the process handle as soon as it // is no longer needed. CloseHandle(pi.hProcess); }

Detaching a Process • In the previous example, the processes are linked – the child process won’t be destroyed until the Parent reads the exit code • However, you can detach a process by closing the associated handles in the parent process

Enumerating Processes • Assignment time! • Easily create a simple application which enumerates all the processes on a machine. You may use a command-line application if you wish, or a GUI. Print out as much information about each process as you can. • This looks really nice in .NET… but that’s a little more tricky. • Your call – CLI is okay, but a nice GUI gets you extra marks…
