  1. Vulnerability Assessments with Nessus 3 Columbia Area LUG January 10 2007

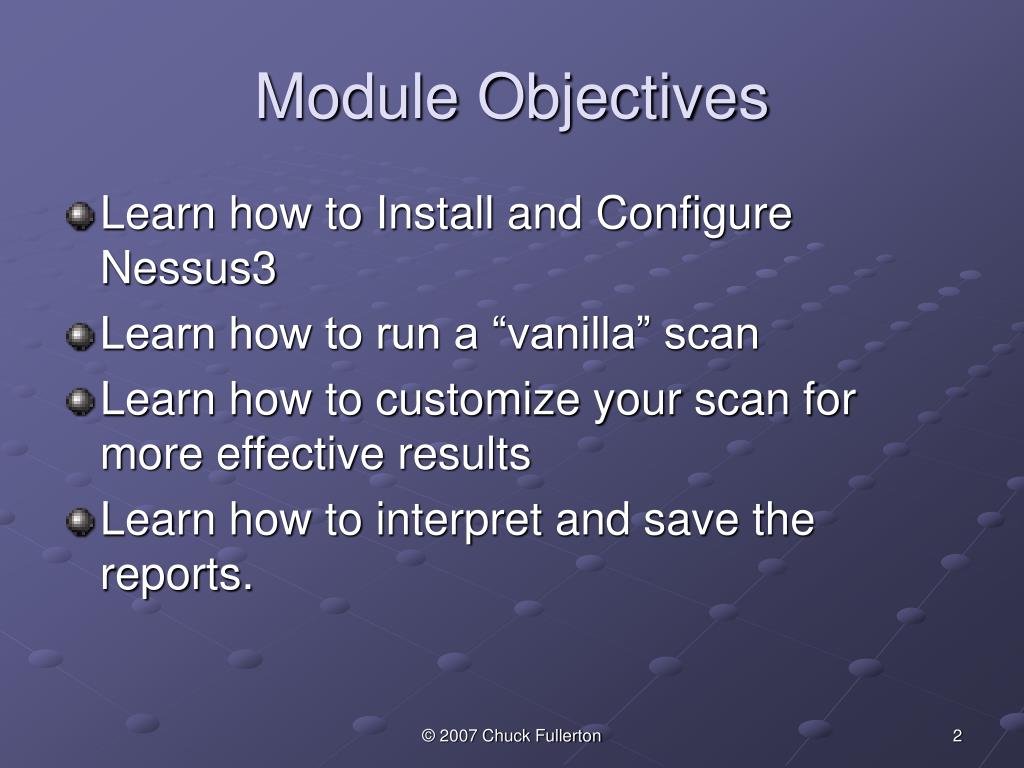

  2. Module Objectives • Learn how to Install and Configure Nessus3 • Learn how to run a “vanilla” scan • Learn how to customize your scan for more effective results • Learn how to interpret and save the reports. © 2007 Chuck Fullerton

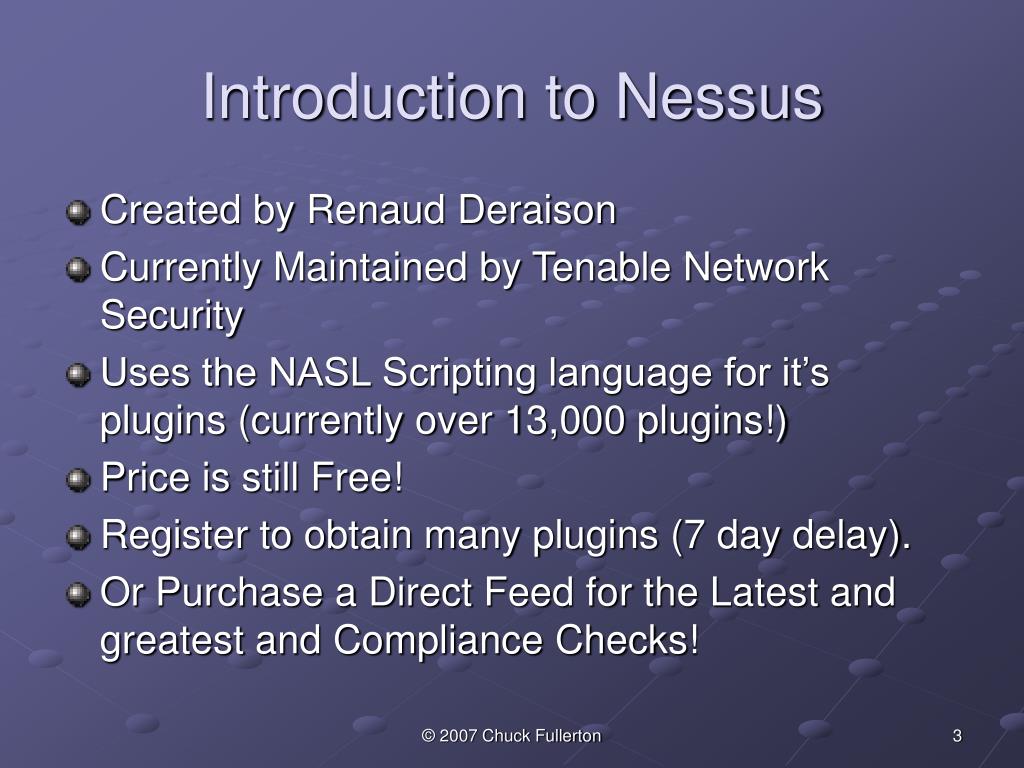

  3. Introduction to Nessus • Created by Renaud Deraison • Currently Maintained by Tenable Network Security • Uses the NASL Scripting language for it’s plugins (currently over 13,000 plugins!) • Price is still Free! • Register to obtain many plugins (7 day delay). • Or Purchase a Direct Feed for the Latest and greatest and Compliance Checks! © 2007 Chuck Fullerton

  4. Nessus Features • Client/Server Architecture • SSL/PKI supported • Smart Service Recognition • (i.e. FTP on 31337) • Non-Destructive or Thorough Tests • Vulnerability Mapping to CVE, Bugtraq, and others • Vulnerability Scoring using CVSS from NIST. © 2007 Chuck Fullerton

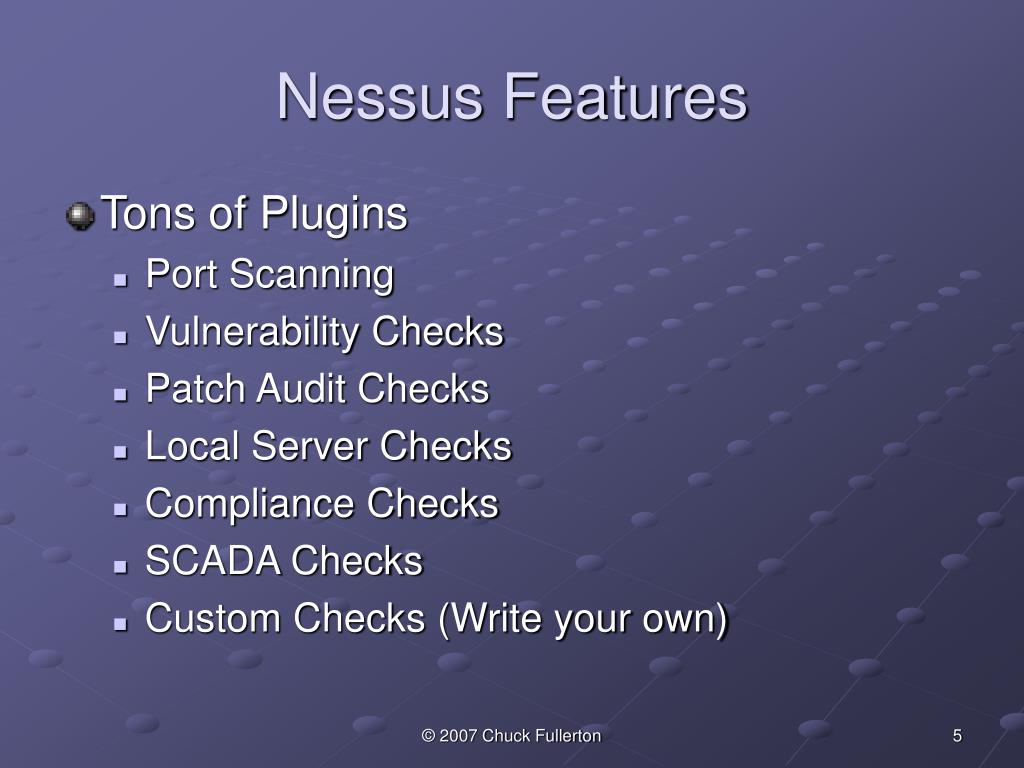

  5. Nessus Features • Tons of Plugins • Port Scanning • Vulnerability Checks • Patch Audit Checks • Local Server Checks • Compliance Checks • SCADA Checks • Custom Checks (Write your own) © 2007 Chuck Fullerton

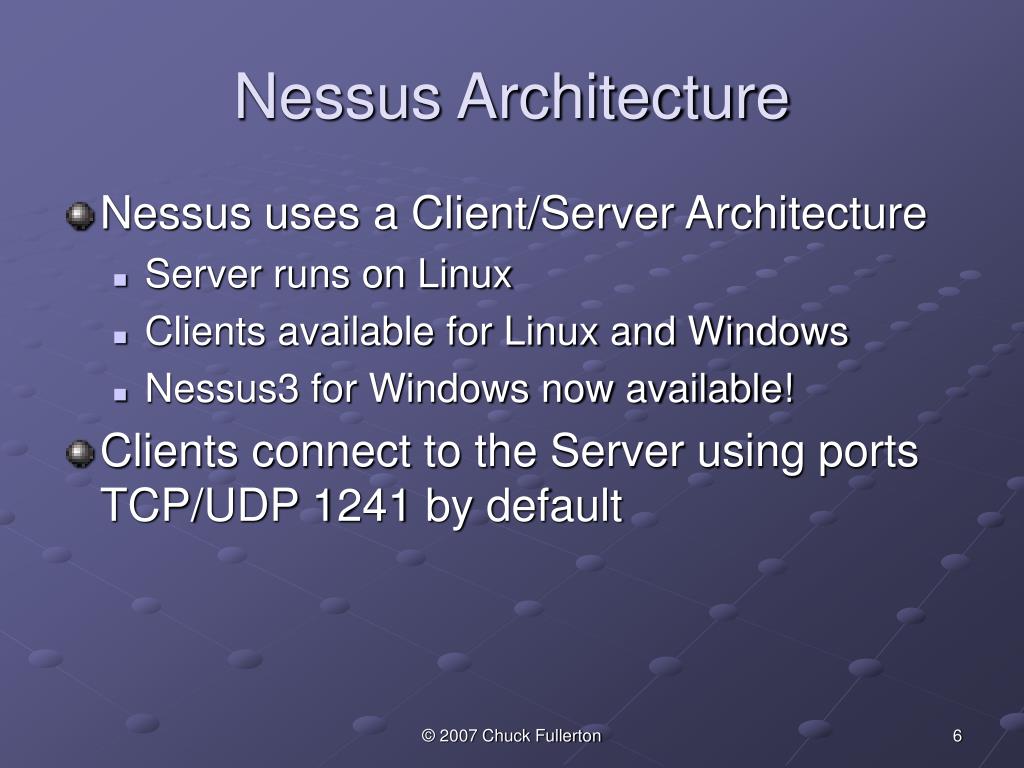

  6. Nessus Architecture • Nessus uses a Client/Server Architecture • Server runs on Linux • Clients available for Linux and Windows • Nessus3 for Windows now available! • Clients connect to the Server using ports TCP/UDP 1241 by default © 2007 Chuck Fullerton

  7. Ported Operating Systems • Nessus has been ported to the Following OS’s • Red Hat ES 3 & 4 ** • Fedora 5 & 6 • Debian 3 • FreeBSD 4, 5, & 6 • SUSE 9 & 10 • Solaris 9 & 10 • Windows 2003, XP (and soon Vista)** **Officially supported by Tenable Network Security © 2007 Chuck Fullerton

  8. Install Process • Uninstall any old versions of Nessus • Download RPM’s, Deb’s or whatever your system uses. (Current GA version is 3.0.4) • Prepare system for install • Install Nessus3 • Make the crypto certificate • Add users • Scan away! © 2007 Chuck Fullerton

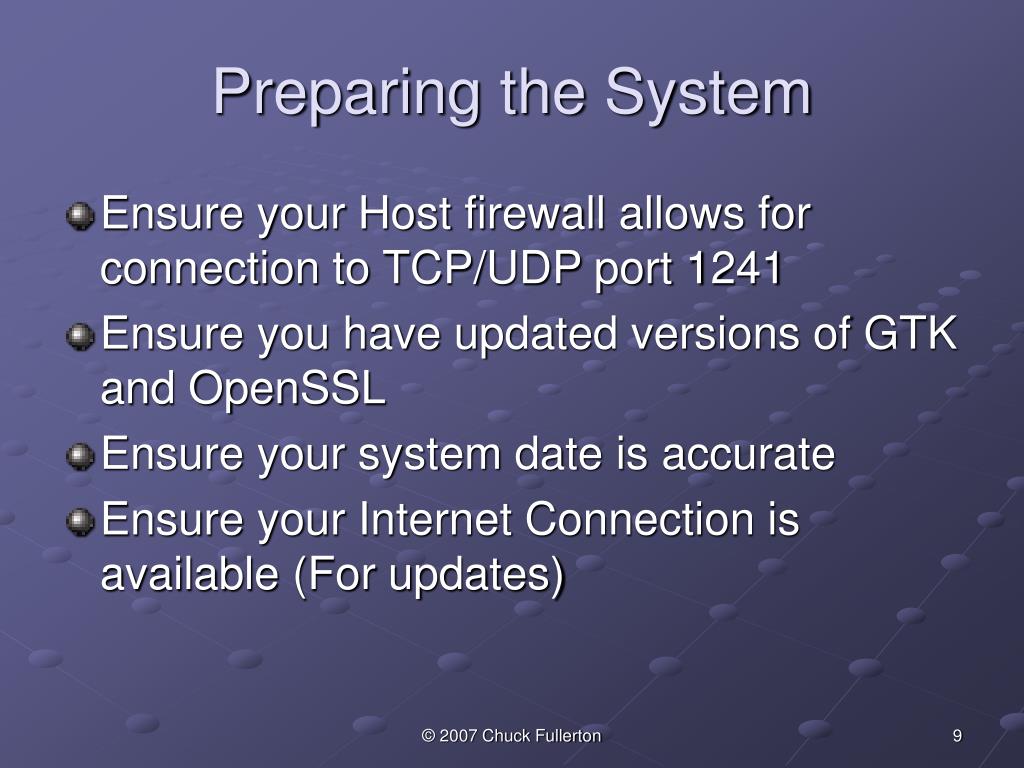

  9. Preparing the System • Ensure your Host firewall allows for connection to TCP/UDP port 1241 • Ensure you have updated versions of GTK and OpenSSL • Ensure your system date is accurate • Ensure your Internet Connection is available (For updates) © 2007 Chuck Fullerton

  10. Installing Nessus • rpm –ivh <nessusfilename> • /opt/nessus/sbin/add-first-user • Used mainly with other Tenable Products. • service nessusd start © 2007 Chuck Fullerton

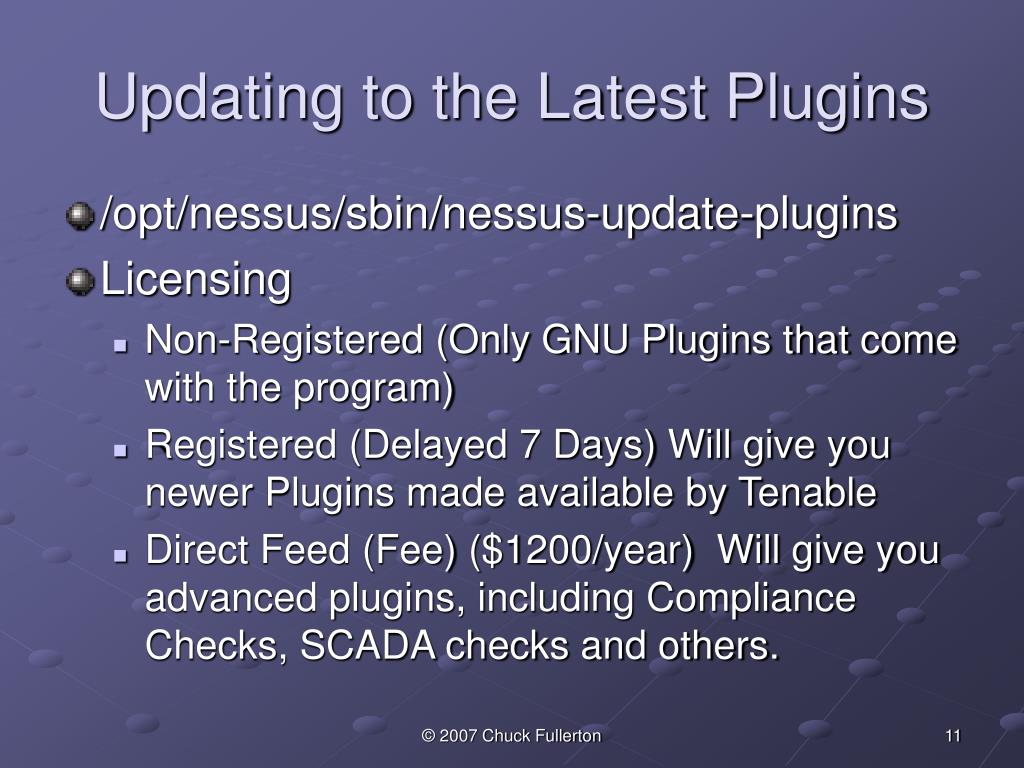

  11. Updating to the Latest Plugins • /opt/nessus/sbin/nessus-update-plugins • Licensing • Non-Registered (Only GNU Plugins that come with the program) • Registered (Delayed 7 Days) Will give you newer Plugins made available by Tenable • Direct Feed (Fee) ($1200/year) Will give you advanced plugins, including Compliance Checks, SCADA checks and others. © 2007 Chuck Fullerton

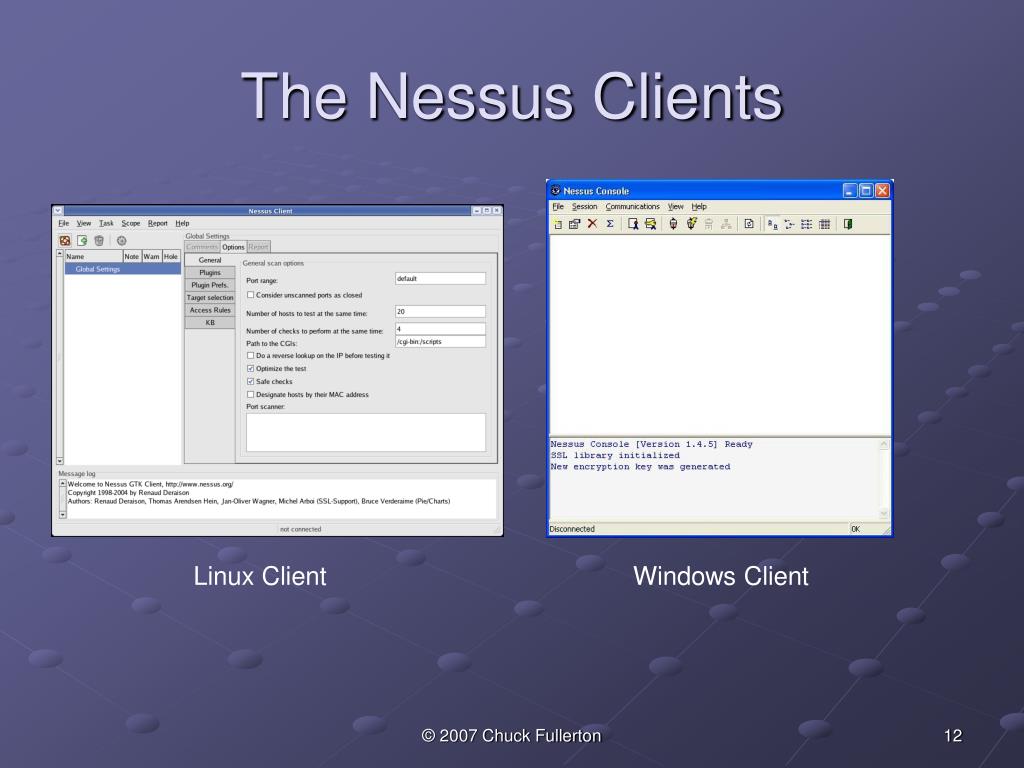

  12. The Nessus Clients Linux Client Windows Client © 2007 Chuck Fullerton

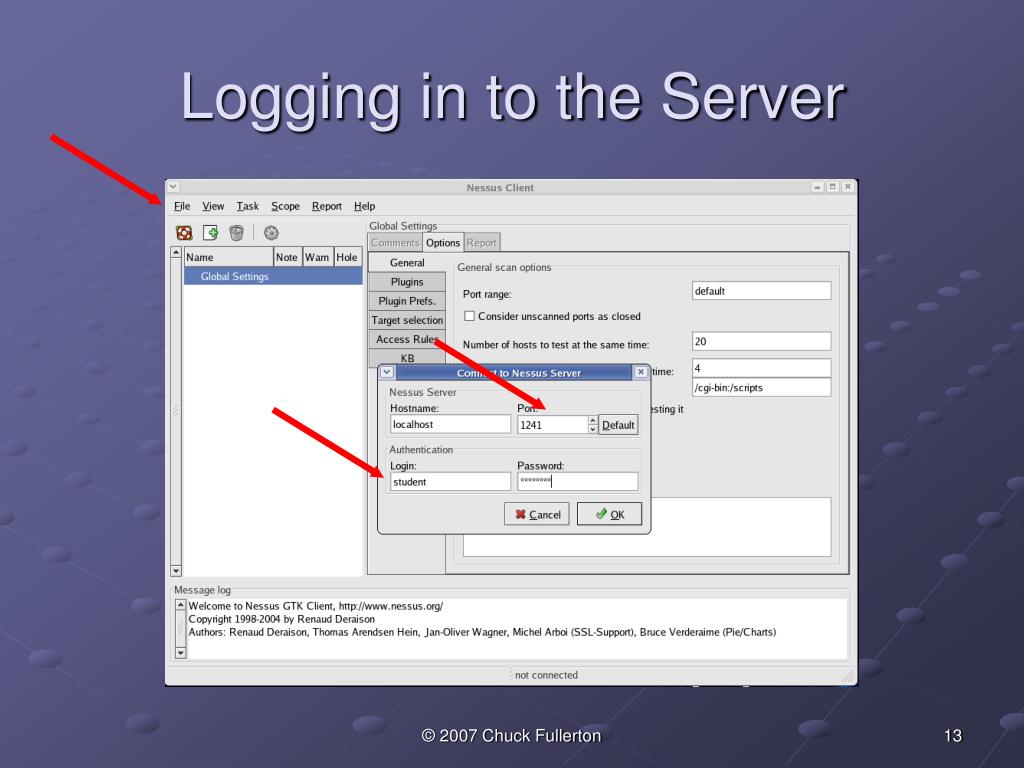

  13. Logging in to the Server © 2007 Chuck Fullerton

  14. Linux Client © 2007 Chuck Fullerton

  15. Client Plugins Tab © 2007 Chuck Fullerton

  16. Client Scan Preferences © 2007 Chuck Fullerton

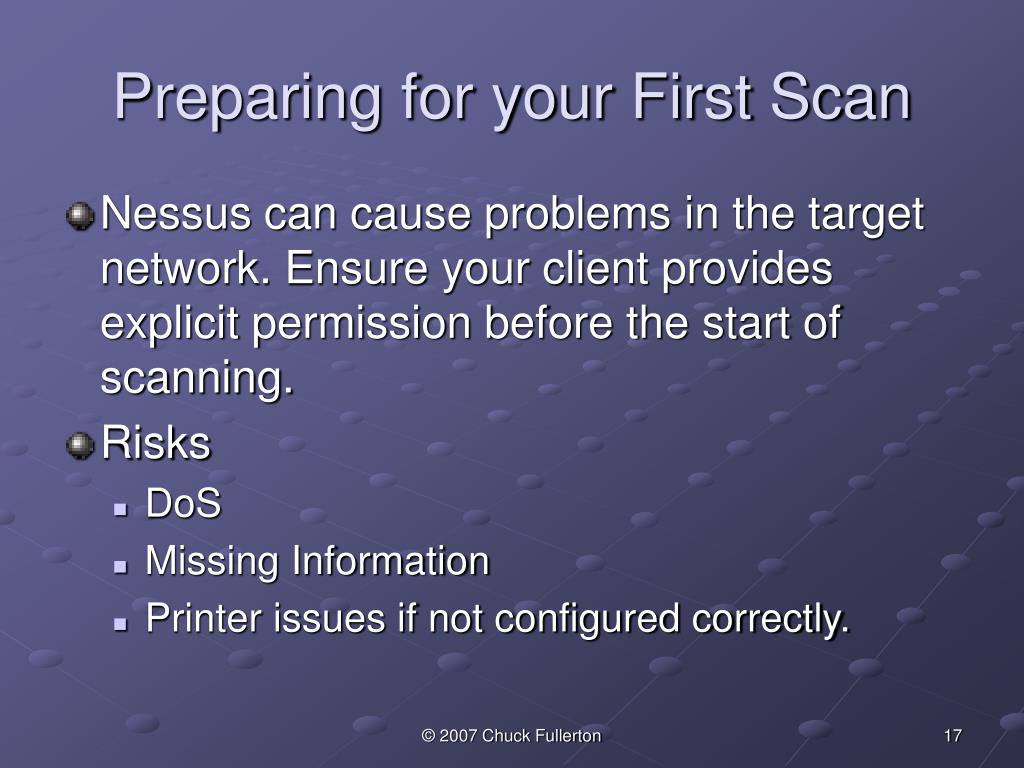

  17. Preparing for your First Scan • Nessus can cause problems in the target network. Ensure your client provides explicit permission before the start of scanning. • Risks • DoS • Missing Information • Printer issues if not configured correctly. © 2007 Chuck Fullerton

  18. Creating a new Scan © 2007 Chuck Fullerton

  19. Reviewing the Data © 2007 Chuck Fullerton

  20. Saving the Report © 2007 Chuck Fullerton

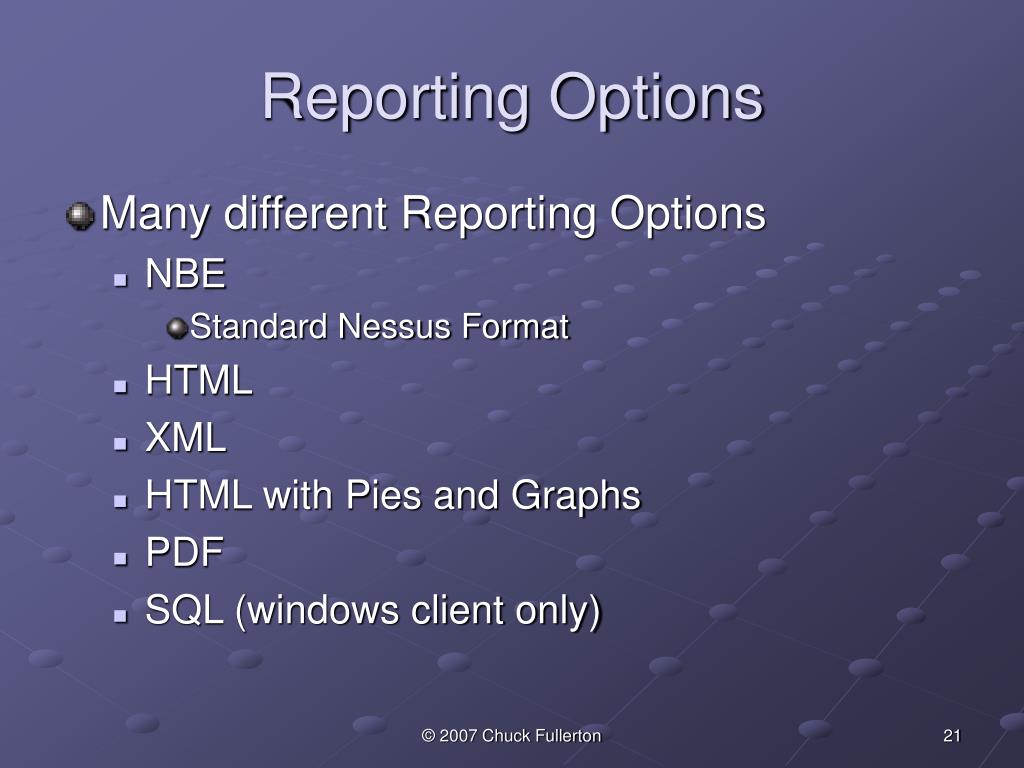

  21. Reporting Options • Many different Reporting Options • NBE • Standard Nessus Format • HTML • XML • HTML with Pies and Graphs • PDF • SQL (windows client only) © 2007 Chuck Fullerton

  22. Interpreting Nessus Reports © 2007 Chuck Fullerton

  23. Tenable Compliance Checks • Can check settings within Windows, Unix, Solaris, and Linux. • File permissions, File presence • User/Domain Settings • Registry Settings • Others. • User Configurable audit files. • There is even an audit file creation tool for Windows. © 2007 Chuck Fullerton

  24. Other Tenable Products • Log Correlation Engine (LCE) • Correlate and alert on specific logs • Passive Vulnerability Scanner (PVS) • Now you can scan servers without the risk. • Security Center 3.2 (SC3) • Manages Nessus3, LCE and PVS from one console. • SC3 3DTool • 3D Graphical tool to get your points across to management. © 2007 Chuck Fullerton

  25. For More Information • www.nessus.org • www.tenablesecurity.com • http://blog.tenablesecurity.com/ • http://www.tenablesecurity.com/news/webinars.shtml • http://mail.nessus.org/mailman/listinfo/ © 2007 Chuck Fullerton
