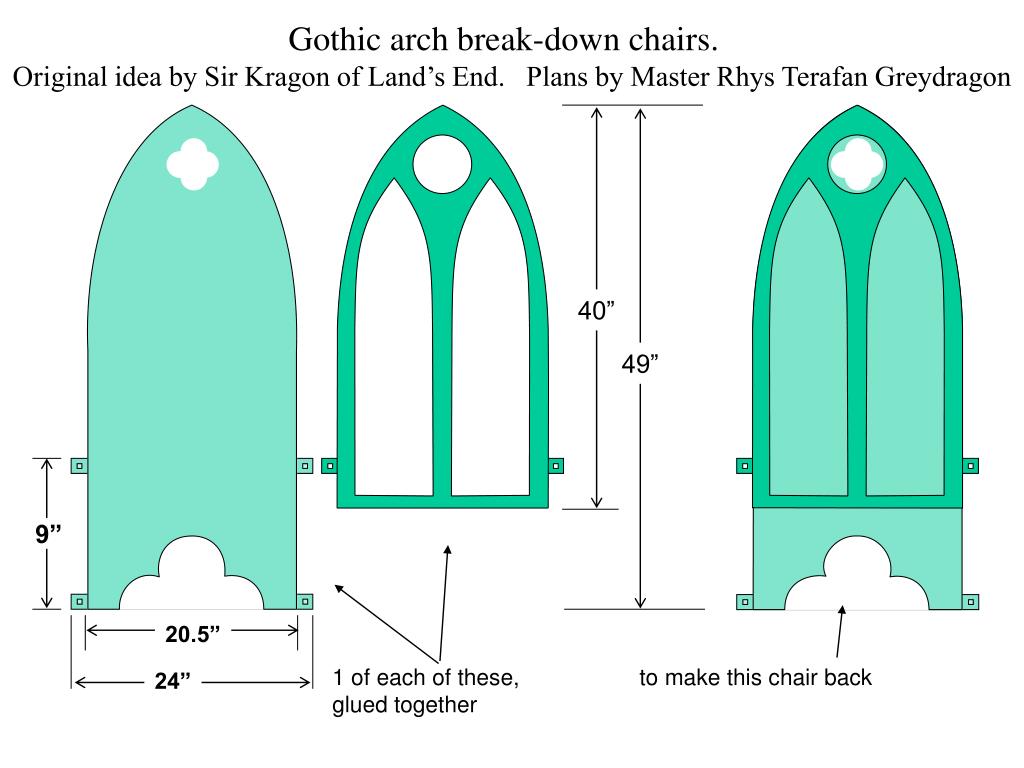

  1. Gothic arch break-down chairs. Original idea by Sir Kragon of Land’s End. Plans by Master Rhys Terafan Greydragon 40” 49” 9” 20.5” 1 of each of these, to make this chair back glued together 24”

  2. 24” Cut/assemble two of these arm rests 20.5” Three times the thickness of the sides The thickness of the sides 18.5” Cut one chair seat 21.5” Detail of the peg slots 18.5” The left space is the thickness of the sides of the chairs you make. (I used ¾” plywood.) 6” 26” .5” .5” .75” .5” 29” 18” 1.0” 8” .5” Cut two of these chair legs

  3. Full size rose pattern (2.5” circles with .5” in-between, 5.5” total) on a 6.5” circle
