  1. 응용전자회로#8 2012103816 강윤실

  2. Stress and stain F Axial load L L δ F Cantilever

  3. - Brittle material(glass) x Rapture (일정 힘 이상이 되면깨져버림) : ultimate stress

  4. - Ductile material(Al , Steel) X X Rupture Elastic region Plastic region : yield stress Elastic region Steel Al Young’s Modulus (크면 잘 안 늘어나고, 작으면 잘 늘어난다.)

  5. Strain gage s Strain →

  6. Load cell s1 s2 s4 s3 Cantilever

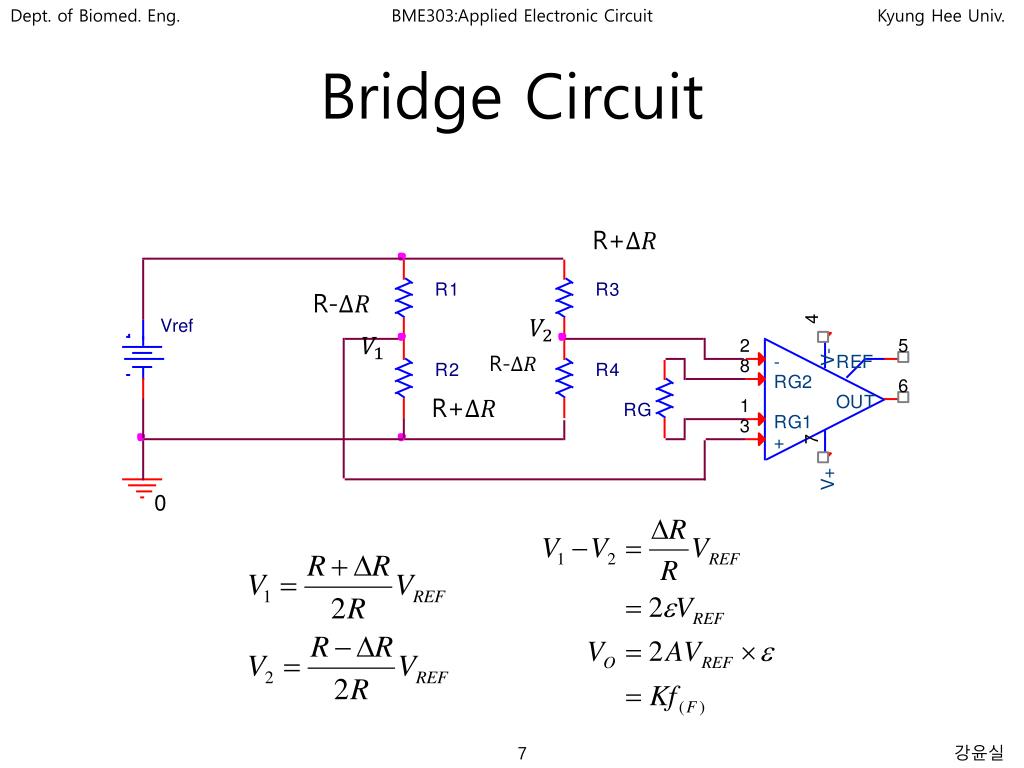

  7. Bridge Circuit R+ R- R- R+
