Presentation Transcript

  1. 2nd ID (Muller) CMF Definition

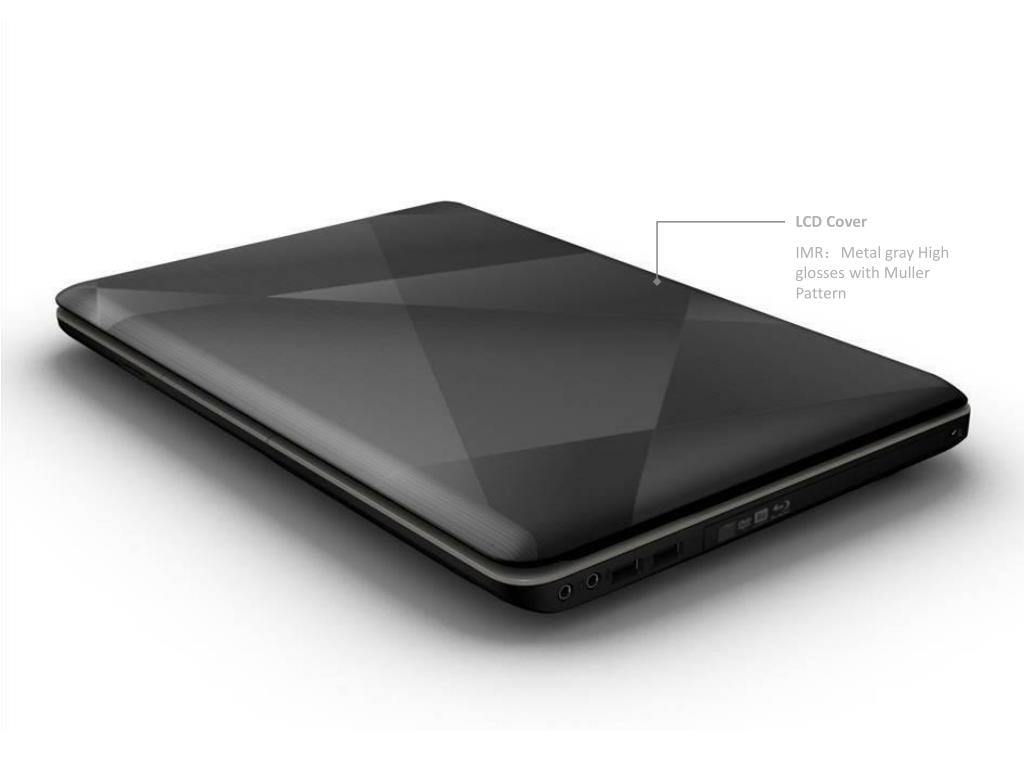

  2. LCD Cover IMR：Metal gray High glosses with Muller Pattern

  3. LCD Bezel HTM (Share with NCL50) Resin：Black C LCD Bezel HTM (Share with NCL50) Resin： Black C

  4. Strip cover Mylar Mylar: Matt Black KB Lens Texture Resin：Transparence with 0.03% TiO2 Systems lens Painting + laser icon T/P button : Plate chromium Logic Upper B Resin： Special texture Paint：Warm sliver Touch Pad: Resin ： Special textureBlack C( Polish and matt) paint : Black Logic up: Resin ： Special textureBlack C( Polish and texture) paint : Black

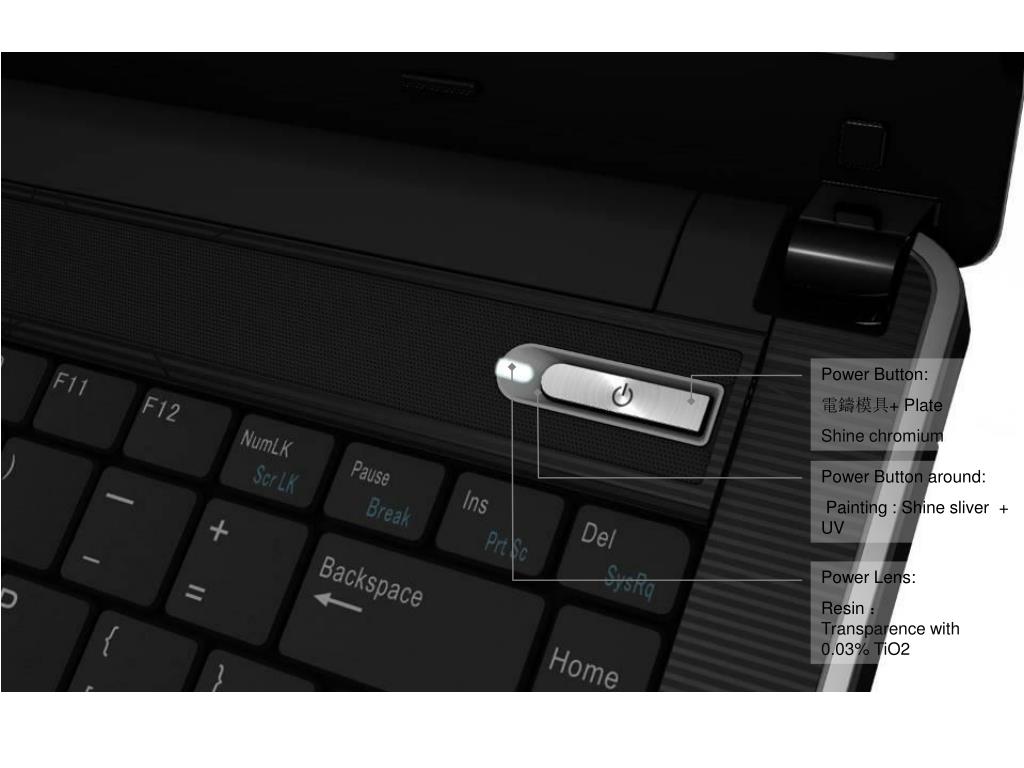

  5. Power Button: 電鑄模具+ Plate Shine chromium Power Button around: Painting : Shine sliver + UV Power Lens: Resin ：Transparence with 0.03% TiO2
