  1. The Master That Tells All Floria Foote Information Builders June 2008

  2. The MASTER That Tells All The Synonym – The Road Map

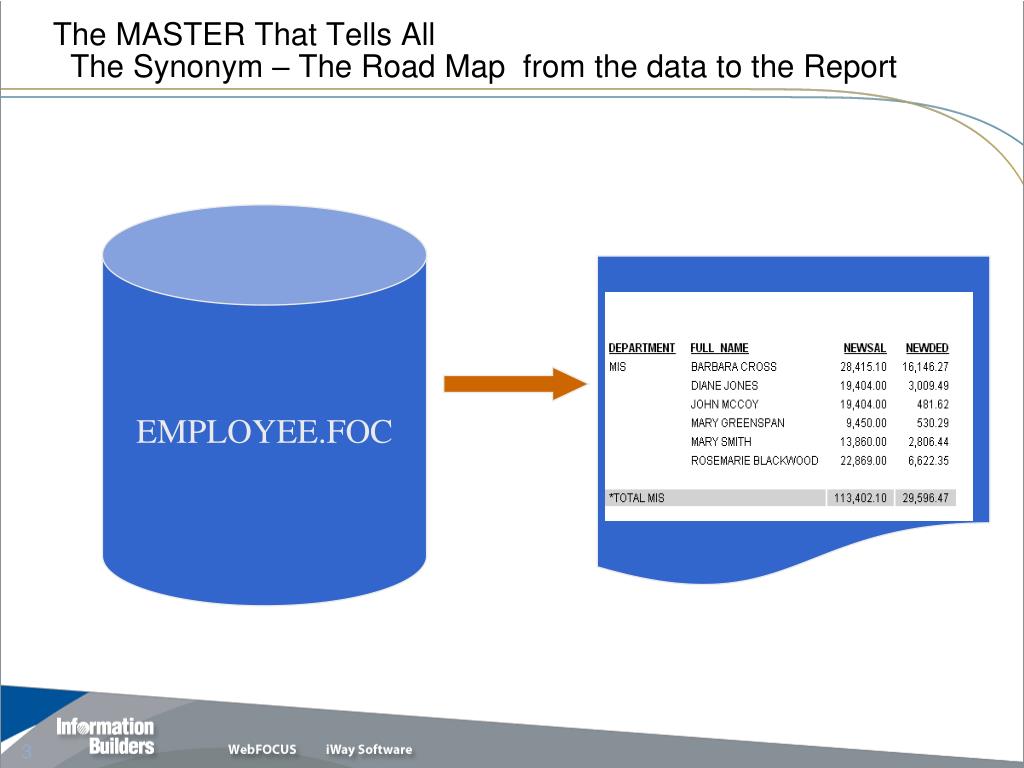

  3. The MASTER That Tells All The Synonym – The Road Map from the data to the Report EMPLOYEE.FOC

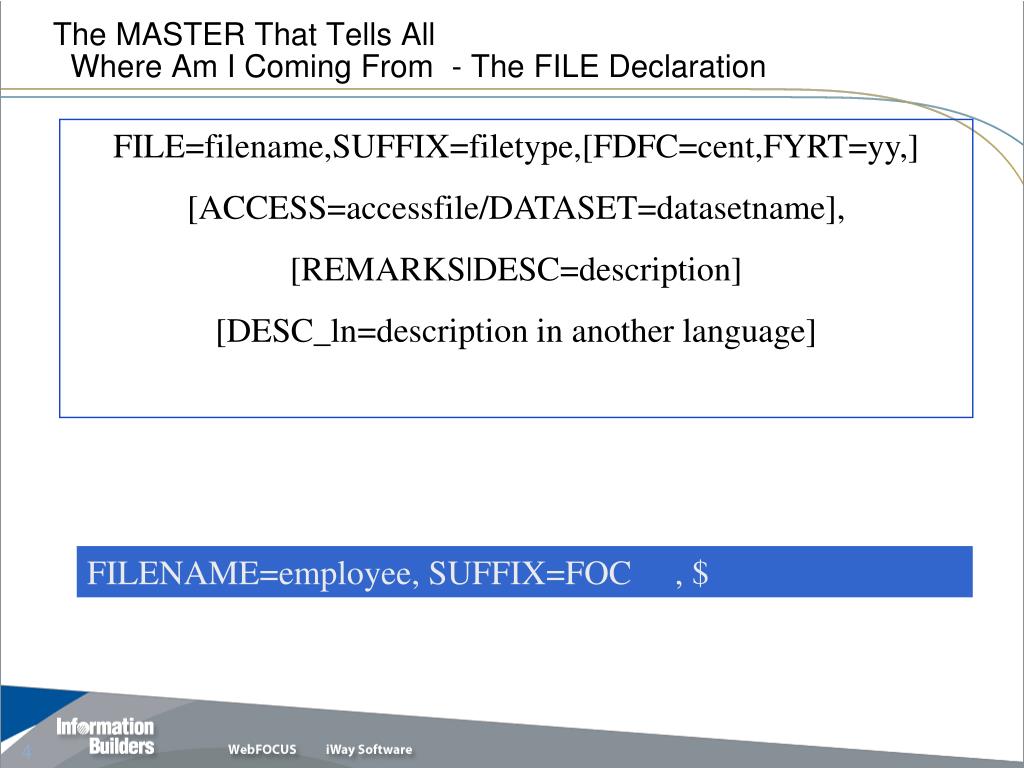

  4. The MASTER That Tells All Where Am I Coming From - The FILE Declaration FILE=filename,SUFFIX=filetype,[FDFC=cent,FYRT=yy,] [ACCESS=accessfile/DATASET=datasetname], [REMARKS|DESC=description] [DESC_ln=description in another language] FILENAME=employee, SUFFIX=FOC , $

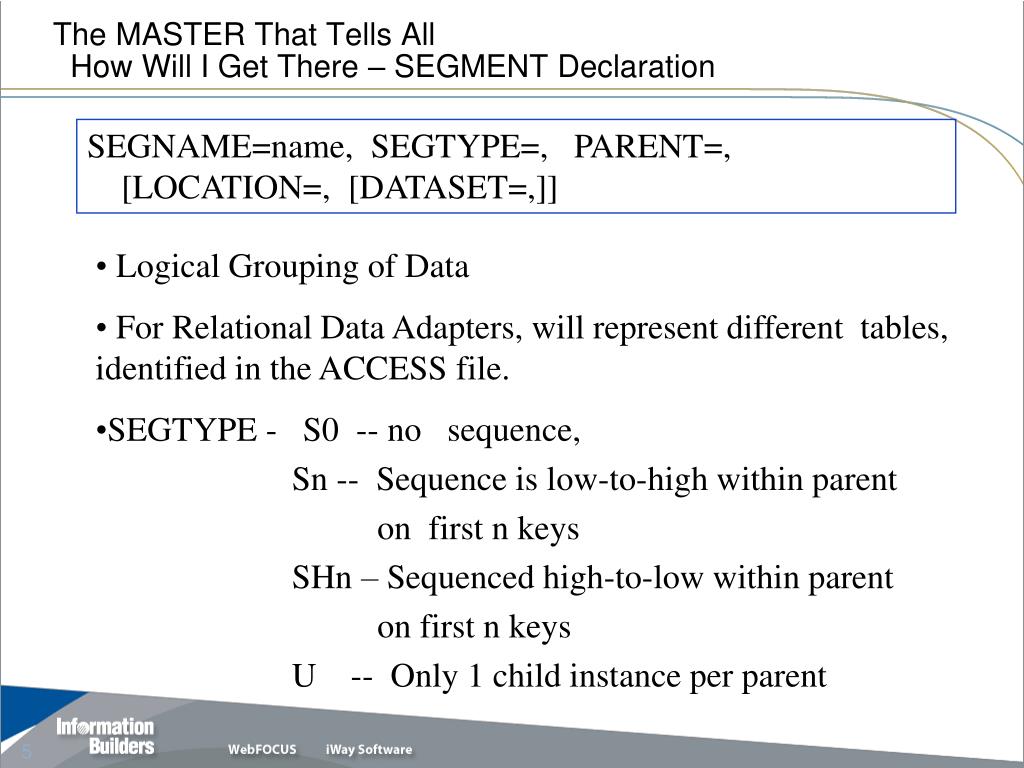

  5. The MASTER That Tells All How Will I Get There – SEGMENT Declaration SEGNAME=name, SEGTYPE=, PARENT=, [LOCATION=, [DATASET=,]] • Logical Grouping of Data • For Relational Data Adapters, will represent different tables, identified in the ACCESS file. • SEGTYPE - S0 -- no sequence, • Sn -- Sequence is low-to-high within parent • on first n keys • SHn – Sequenced high-to-low within parent • on first n keys • U -- Only 1 child instance per parent

  6. The MASTER That Tells All How Will I Get There – SEGMENT Declaration SEGNAME=name, SEGTYPE=, PARENT=, CRFILE=, [CRSEG=, [CRKEY=,]SEGSUF=suffix [,$] SEGTYPE: KU Uses Key to access unique instance in CRFILE KM Uses Key to access multiple instances in CRFILE KL[U] Uses Linkage in CRFILE to access other segments CRKEY: Common field in host and cross-referenced file CRSEG: Name of the segment in its own file/master SEGSUF: File SUFFIX of cross-reference file (if not equal host) ,$ No field declarations follow

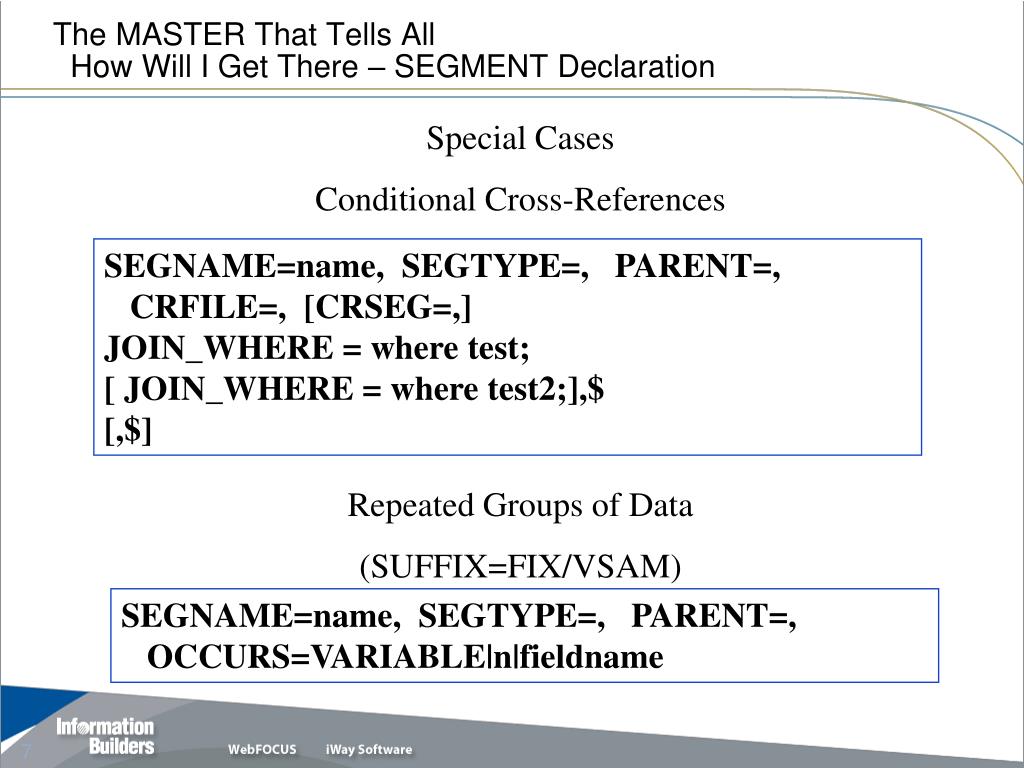

  7. The MASTER That Tells All How Will I Get There – SEGMENT Declaration Special Cases Conditional Cross-References SEGNAME=name, SEGTYPE=, PARENT=, CRFILE=, [CRSEG=,] JOIN_WHERE = where test; [ JOIN_WHERE = where test2;],$ [,$] Repeated Groups of Data (SUFFIX=FIX/VSAM) SEGNAME=name, SEGTYPE=, PARENT=, OCCURS=VARIABLE|n|fieldname

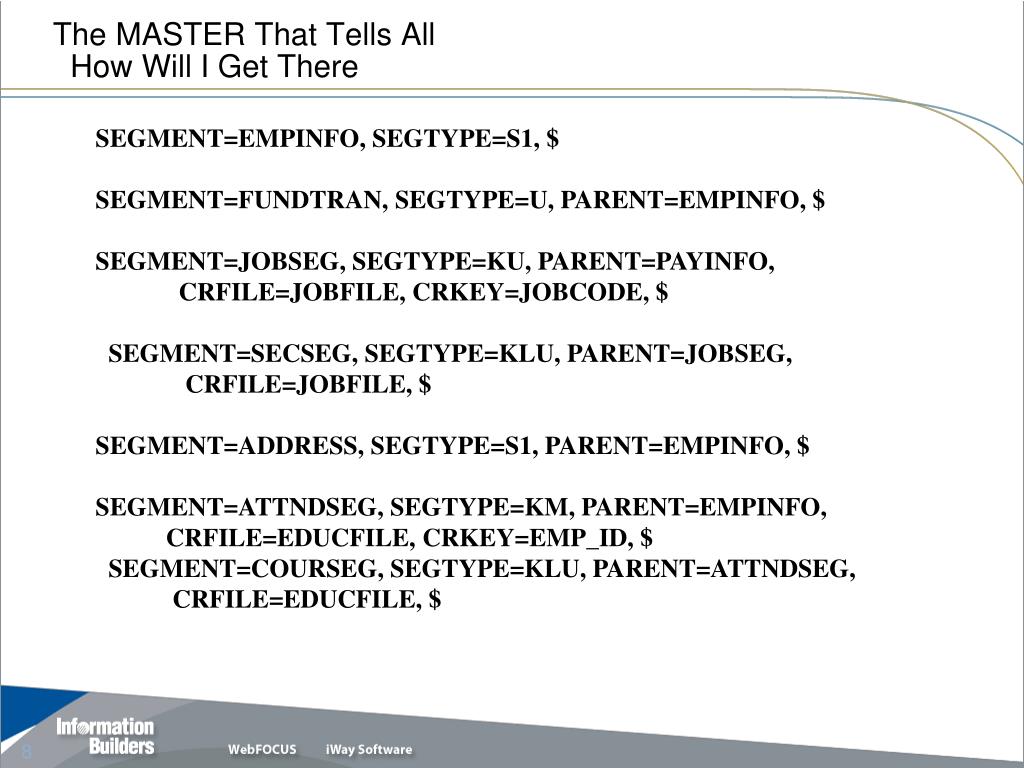

  8. The MASTER That Tells All How Will I Get There SEGMENT=EMPINFO, SEGTYPE=S1, $ SEGMENT=FUNDTRAN, SEGTYPE=U, PARENT=EMPINFO, $ SEGMENT=JOBSEG, SEGTYPE=KU, PARENT=PAYINFO, CRFILE=JOBFILE, CRKEY=JOBCODE, $ SEGMENT=SECSEG, SEGTYPE=KLU, PARENT=JOBSEG, CRFILE=JOBFILE, $ SEGMENT=ADDRESS, SEGTYPE=S1, PARENT=EMPINFO, $ SEGMENT=ATTNDSEG, SEGTYPE=KM, PARENT=EMPINFO, CRFILE=EDUCFILE, CRKEY=EMP_ID, $ SEGMENT=COURSEG, SEGTYPE=KLU, PARENT=ATTNDSEG, CRFILE=EDUCFILE, $

  9. The MASTER That Tells AllThe Paths to Success

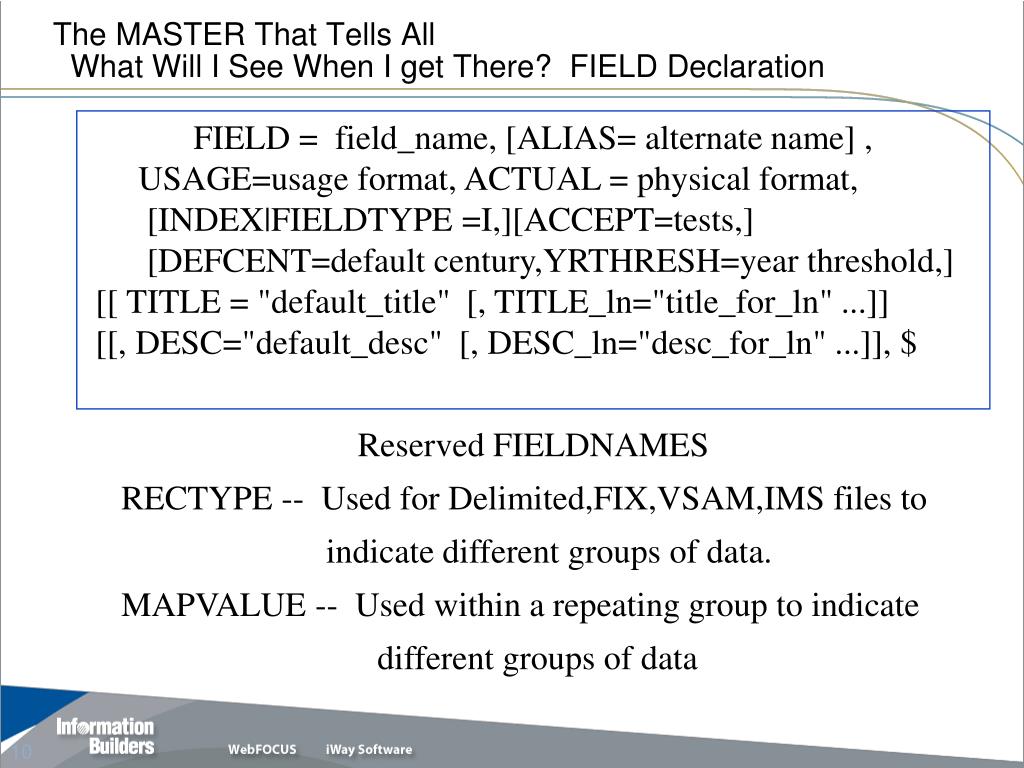

  10. The MASTER That Tells All What Will I See When I get There? FIELD Declaration FIELD = field_name, [ALIAS= alternate name] , USAGE=usage format, ACTUAL = physical format, [INDEX|FIELDTYPE =I,][ACCEPT=tests,] [DEFCENT=default century,YRTHRESH=year threshold,] [[ TITLE = "default_title"  [, TITLE_ln="title_for_ln" ...]] [[, DESC="default_desc"  [, DESC_ln="desc_for_ln" ...]], $ Reserved FIELDNAMES RECTYPE -- Used for Delimited,FIX,VSAM,IMS files to indicate different groups of data. MAPVALUE -- Used within a repeating group to indicate different groups of data

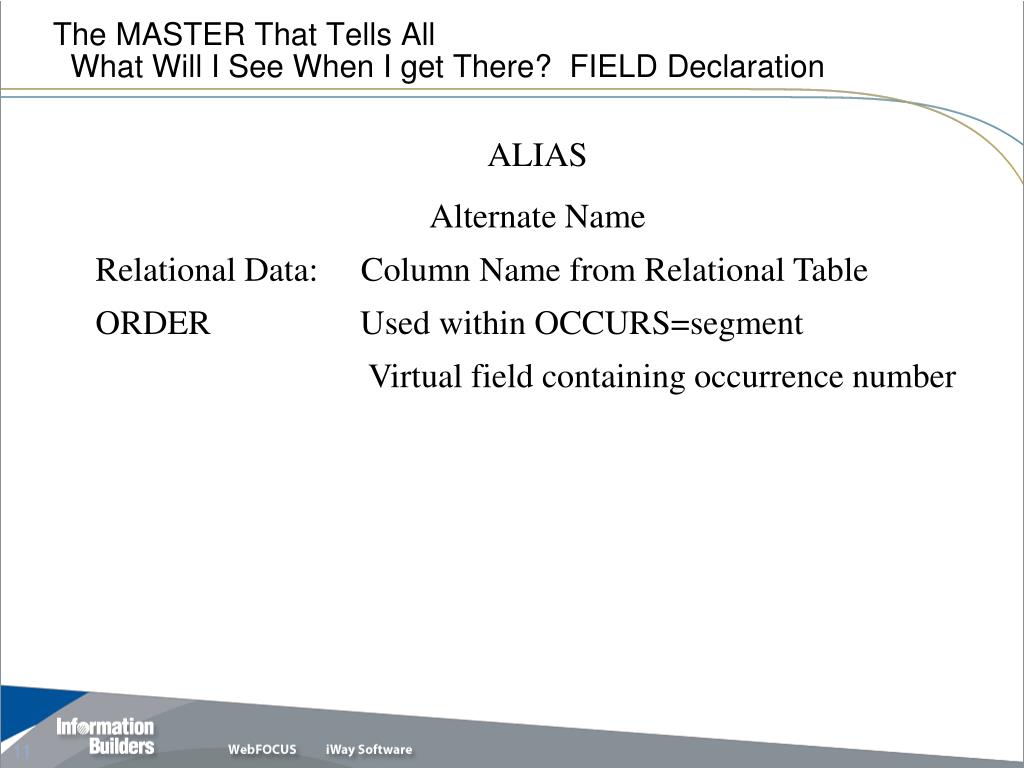

  11. The MASTER That Tells All What Will I See When I get There? FIELD Declaration ALIAS Alternate Name Relational Data: Column Name from Relational Table ORDER Used within OCCURS=segment Virtual field containing occurrence number

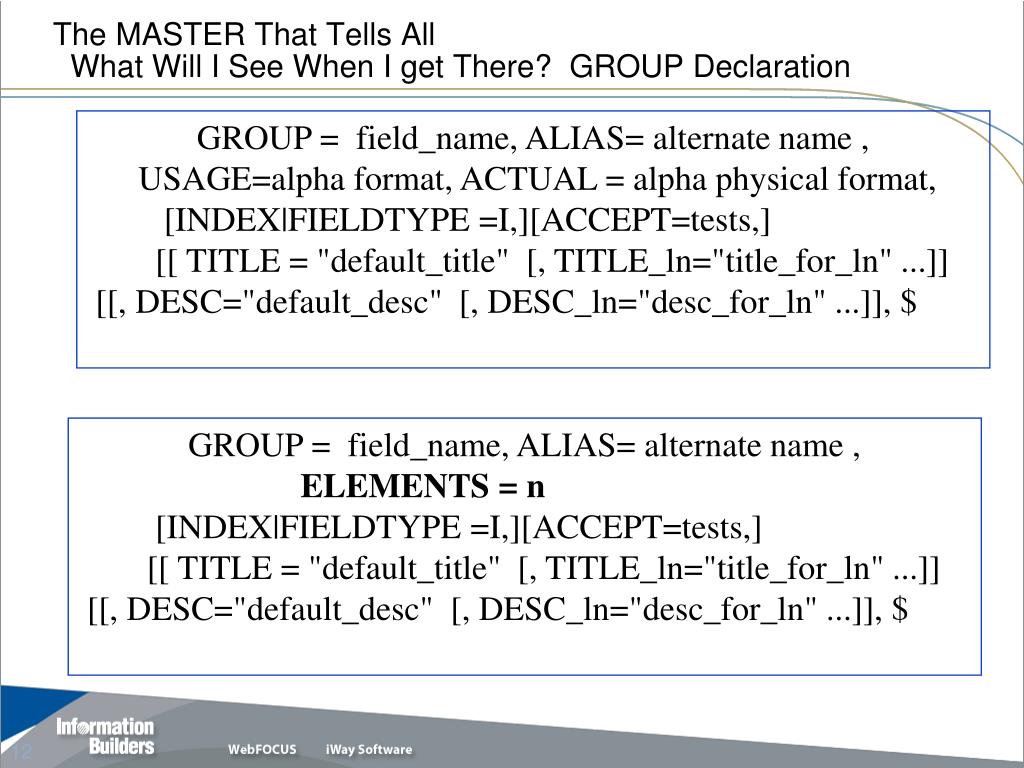

  12. The MASTER That Tells All What Will I See When I get There? GROUP Declaration GROUP = field_name, ALIAS= alternate name , USAGE=alpha format, ACTUAL = alpha physical format, [INDEX|FIELDTYPE =I,][ACCEPT=tests,] [[ TITLE = "default_title"  [, TITLE_ln="title_for_ln" ...]] [[, DESC="default_desc"  [, DESC_ln="desc_for_ln" ...]], $ GROUP = field_name, ALIAS= alternate name , ELEMENTS = n [INDEX|FIELDTYPE =I,][ACCEPT=tests,] [[ TITLE = "default_title"  [, TITLE_ln="title_for_ln" ...]] [[, DESC="default_desc"  [, DESC_ln="desc_for_ln" ...]], $

  13. The MASTER That Tells All How Will I Get There – Field Declaration FIELDNAME=EMP_ID, ALIAS=EID, USAGE=A9, $ GROUP=NAME1, ALIAS=NAME1, ELEMENTS=2, $ FIELDNAME=LAST_NAME, ALIAS=LN, USAGE=A15, $ FIELDNAME=FIRST_NAME, ALIAS=FN, USAGE=A10, $ FIELDNAME=HIRE_DATE, ALIAS=HDT, USAGE=I6YMD, $ FIELDNAME=DEPARTMENT, ALIAS=DPT, USAGE=A10, $ FIELDNAME=CURR_SAL, ALIAS=CSAL, USAGE=D12.2M, $ FIELDNAME=CURR_JOBCODE, ALIAS=CJC, USAGE=A3, $ FIELDNAME=ED_HRS, ALIAS=OJT, USAGE=F6.2, $

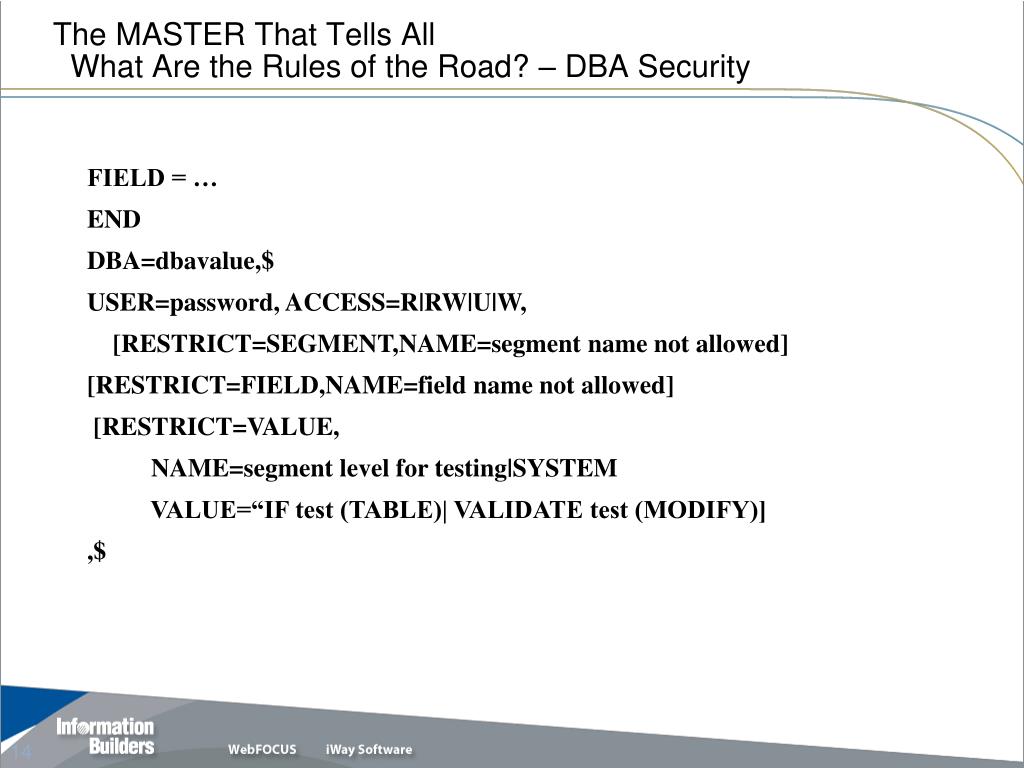

  14. The MASTER That Tells All What Are the Rules of the Road? – DBA Security FIELD = … END DBA=dbavalue,$ USER=password, ACCESS=R|RW|U|W, [RESTRICT=SEGMENT,NAME=segment name not allowed] [RESTRICT=FIELD,NAME=field name not allowed] [RESTRICT=VALUE, NAME=segment level for testing|SYSTEM VALUE=“IF test (TABLE)| VALIDATE test (MODIFY)] ,$

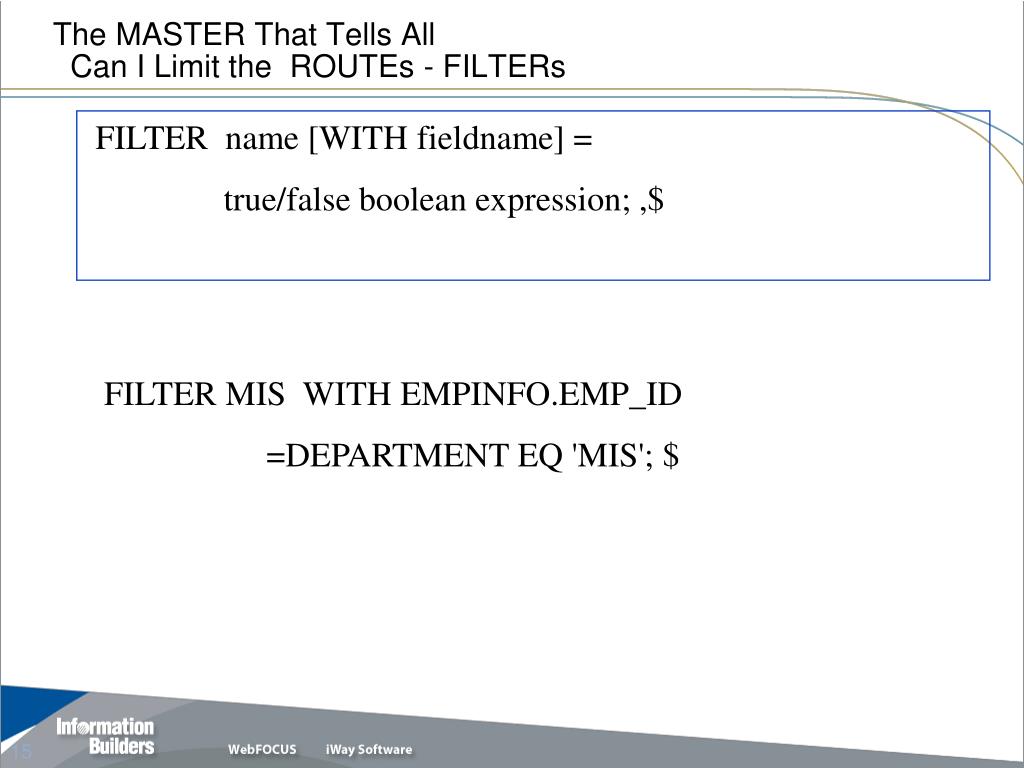

  15. The MASTER That Tells All Can I Limit the ROUTEs - FILTERs FILTER name [WITH fieldname] = true/false boolean expression; ,$ FILTER MIS WITH EMPINFO.EMP_ID =DEPARTMENT EQ 'MIS'; $

  16. The MASTER That Tells All What Can I do On the Way Create Virtual/Temporary Fields DEFINE field/format = expression; ,$ • Evaluated on Retrieval of Detail Information • May be used for selection, verb object, sort field DEFINE FULL_NAME/A26 WITH EMPINFO.EMP_ID = FIRST_NAME || (' ' | LAST_NAME); $

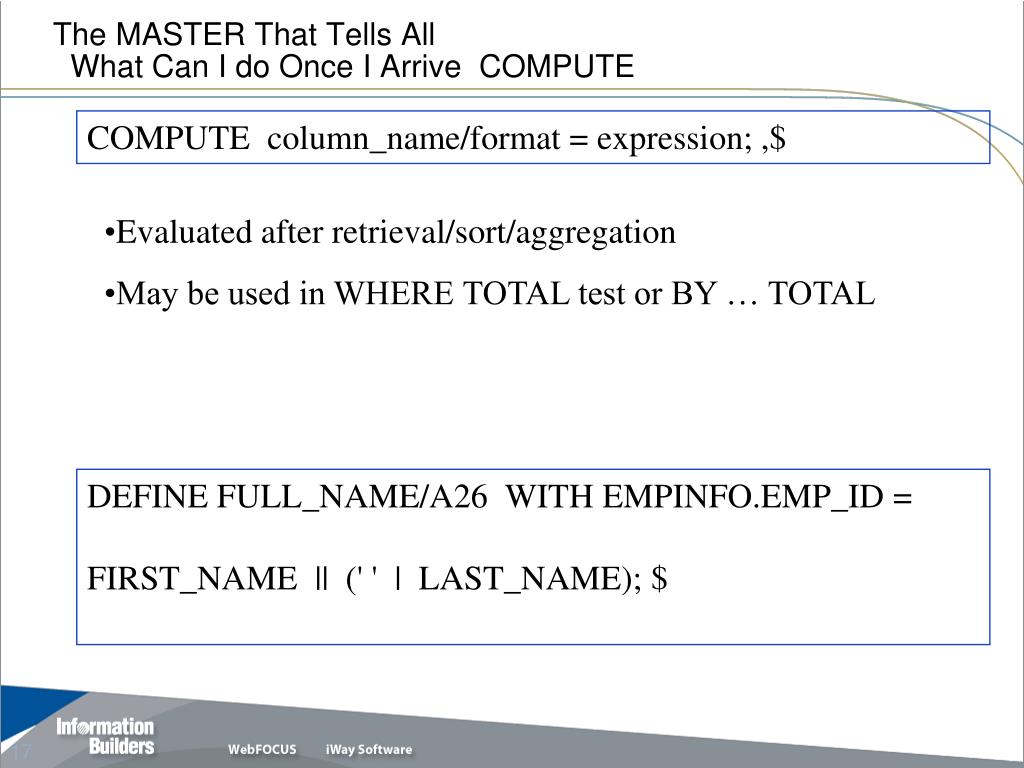

  17. The MASTER That Tells All What Can I do Once I Arrive COMPUTE COMPUTE column_name/format = expression; ,$ • Evaluated after retrieval/sort/aggregation • May be used in WHERE TOTAL test or BY … TOTAL DEFINE FULL_NAME/A26 WITH EMPINFO.EMP_ID = FIRST_NAME || (' ' | LAST_NAME); $

  18. The MASTER That Tells AllThe Journey

  19. The MASTER That Tells AllThe Procedure TABLE FILE EMPLOYEE SUM COMPUTE NEWSAL; COMPUTE NEWDED; BY DEPARTMENT BY FULL_NAME BY EMP_ID NOPRINT ON DEPARTMENT RECOMPUTE AS '*TOTAL' HEADING "" FOOTING "" WHERE MIS; END

  20. The MASTER That Tells AllThe Arrival
