Transportation Planning EGN 5623 Enterprise Systems Optimization(Professional MSEM)Fall, 2011
Transportation PlanningTheories & Concepts EGN 5623 Enterprise Systems Optimization(Professional MSEM)Fall, 2011
Transportation planning: • This planning is carried out after delivery note is created in the sales (fulfillment) process. • It is either executed automatically several times per day to deliver in batches, or manually by the transportation planner. • Objective of Transportation planning: • To group delivery into shipment in order to minimize the number of shipment and the length of the shipments. Transportation Planning (Overview)
TP/VS in SCM (review) THEORY AND PRACTICE OF ADVANCED PLANNER AND OPTIMIZER IN SUPPLY CHAIN DOMAIN by Sam Bansal
Inputs to transportation planning: • due date of customers’ orders, • calendars of customers for loading and unloading, • capacity restriction of vehicles, • vehicle availability, and • incompatibility (e.g. of the goods and locations). • TP/VS offers an optimization tool for transportation plan. • The transportation planning creates “shipments” in APO. Transportation Planning Overview
After creation of a shipment, the subsequent process steps are to select a carrier and to release the shipment. The shipment is transferred to ERP after it is released in APO. Transportation Planning Overview
Create shipments in TP/VS Assign transportation resource to each shipment Assign carrier(s) to each shipment Release shipments Transportation Planning Process in APO
The common process flow is to create deliveries in ERP first before running TP/VS. It is important that TP/VS is designed for the transportation planning of a production or trading company and not a transport service provider since TP/VS doesn’t cover some of their common functional requirement but require the master data for products, location, and resources. Transportation Planning Overview
Planning in TP/VS is possible for orders which contain a start location (LOCFROM) and a destination location (LOCTO). • Inbound documents: • purchase orders • Outbound documents: • delivery notes, sales orders, stock transfer orders, and return orders. • ERP and APO don’t combine inbound and outbound orders in one shipment. Transportation Planning Overview
The main master data for TP/VS relates the geographical condition: • locations – manufacturing plant, distribution centers, customers, transportation zone, transport service provider. • transportation lanes, • means of transport, and • vehicle resources. Master Data for TP/VS
Transportation Zone and Transport Service Providers: The transportation zones and transport service providers (carriers) are locations of type 1005 and 1020, respectively. Both are transferred from ERP. The transportation zone implicitly with the customer and the transport service provider using vendor in ERP. The transportation zone data are stored in Customer Master data in ERP and are transferred to APO. TP/VS scheduling methods are predefined in the APO, as shown in next slide. Master Data for TP/VS

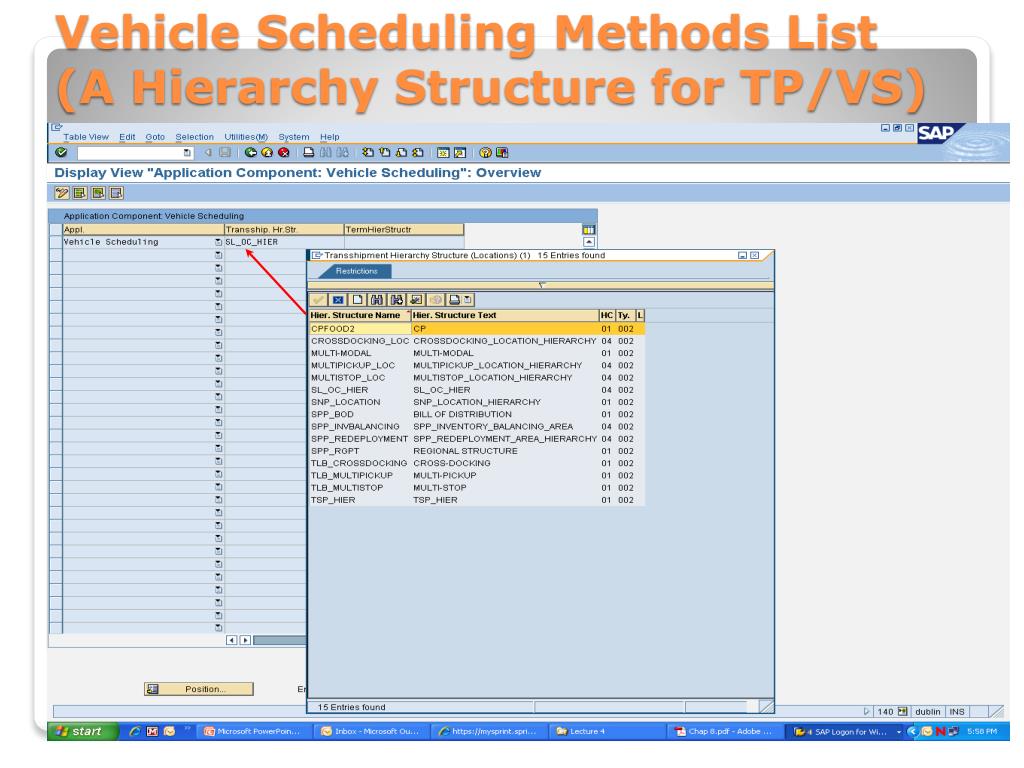

Vehicle Scheduling Methods List (A Hierarchy Structure for TP/VS)
Transportation Lane: Transportation lanes are required from plants, DCs to (customer’s) transportation zone and have to be created manually in APO. The allowed carriers have to be assigned per transportation means and transportation lane (route) explicitly. The restriction of the validity of a transportation lane per products is ignored by TP/VS. Master Data for TP/VS
There are three entities for vehicle modelling: • Mode • Means of transport, and • Vehicle resources • The mode is maintained with the customising path and is used only for grouping purpose, such as by sea, by air, by truck. • The means of transport should correspond either the type of transport vehicle (e.g. one for 20 T truck, one for 40 T truck) or to the transport service provider. • Vehicle resource : type vehicle and category T (e.g. a resource with the capacity of 20 T is not allowed to load 22 T products. Vehicle Modelling
The calculation of the transport duration depends on the accuracy of geo-coding of the locations and on the accuracy of the distance between locations. The determination of the geographical settings of locations is performed either based on country and region (standard setting), postal code, or address. The distance for the transportation lanes is performed either as the air-line distance (standard) or as the actual distance between addresses using a route planning based on the exact longitude and latitude of the locations as input. Geo-Coding
The optimiser is to create shipments with lowest penalty cost and meet all required constraints. Hard constraints: compatibilities, opening hours (modelled by handling resource), and finiteness Soft constraints: earliness and lateness defined in optimiser profile The TP/VS optimiser is a mixture of local search and evolutionary search. For configuration of the optimiser, the optimiser profile has to be created. TP/VS Optimisation
In order to generate a schedule with runtime lane, it is critical to determine the distance of the runtime lanes. The distance of the runtime lanes is either based on GIS information or is calculated using the geo-coding distance and the wiggle factor from the means of transport. If more detailed distance calculation with geo-coding is used, the mean of transport has to have the option ‘GIS quality’ selected and the average speed for city, country road and motorway have to be maintained. Scheduling with Runtime Lanes
Criteria for selection of carriers: • service quality based priority, and • cost. • The carrier selection should be performed after the planning for shipments is done, but before the shipments are transferred to SAP ERP. • If one stage of a transport is already assigned to a carrier who has the flag for continuous move, the same carrier is selected for succeeding stage. Carrier Selection

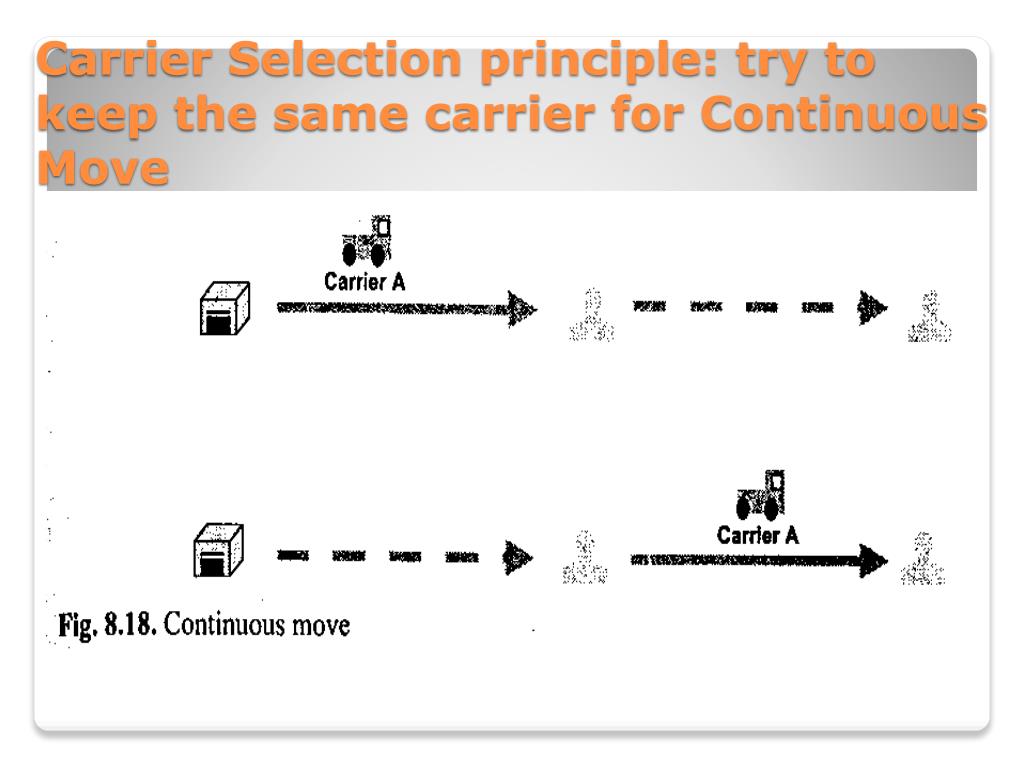

Carrier Selection principle: try to keep the same carrier for Continuous Move
The system groups transportation recommendations for individual products together until the minimum values for volume, weight, and number of pallets specified in the TLB profile for creating a load have been reached. • If transportation recommendations cannot be converted, the system generates an alert and the planner can convert the transfers manually. • In the TLB profile, the minimum and maximum values for volume, weight, and pallets are defined per load. Transport Load Builder (TLB)
In Customizing, you define if you want deployment to create stock transport orders or VMI sales orders. • Alternatively, you can use TLB to group together stock transfer of different products and generate stock transport orders or VMI sales orders with many items for different products. Available-to-deployment (ATD)
TLB groups plan stock transfers into practical freight units. The system can create full pallets with mixed products. You can also define flexible rule relationships for linking the upper and lower limits. Transport Load Builder (TLB)
Connecting upper limits with “and”, lower limits with “or”: The TLB cannot exceed the defined upper limits when the shipments are built. In addition, at least one of the lower limits must be reached or exceeded in line with how you defined the rule. • Connecting upper limits with “and”, lower limits with “and”: The TLB cannot exceed any of the defined upper limits. In addition, all defined lower limits must be reached or exceeded. • 3. As well as the standard connections, you can also establish user-defined relationship between the rules. Using the AND and OR operators as well as brackets, you can define which combination of these rules the TLB should use when building the shipments. TLB Rules
Summary • Deployment determines which distribution requirements of the distribution centers or VMI customers can be covered by the existing supply. If quantities are sufficient to match demand, Deployment merely confirms the plan. If not it will adjust the stock transfer to take in account the missing quantities. • The TLB, ensure that the means of transport are loaded close to their full capacity or, at least, over their minimum capacity Deployment and Transport Load Builder (TLB)
The transport load builder is a short term planning tool to combine confirmed distribution orders to truckloads or other transport units according to the capacity restrictions. • The use of TLB is an optional step in distribution and replenish planning. • TLB planning follows the deployment run and uses confirmed distribution orders as input. Transport Load Builder (TLB)

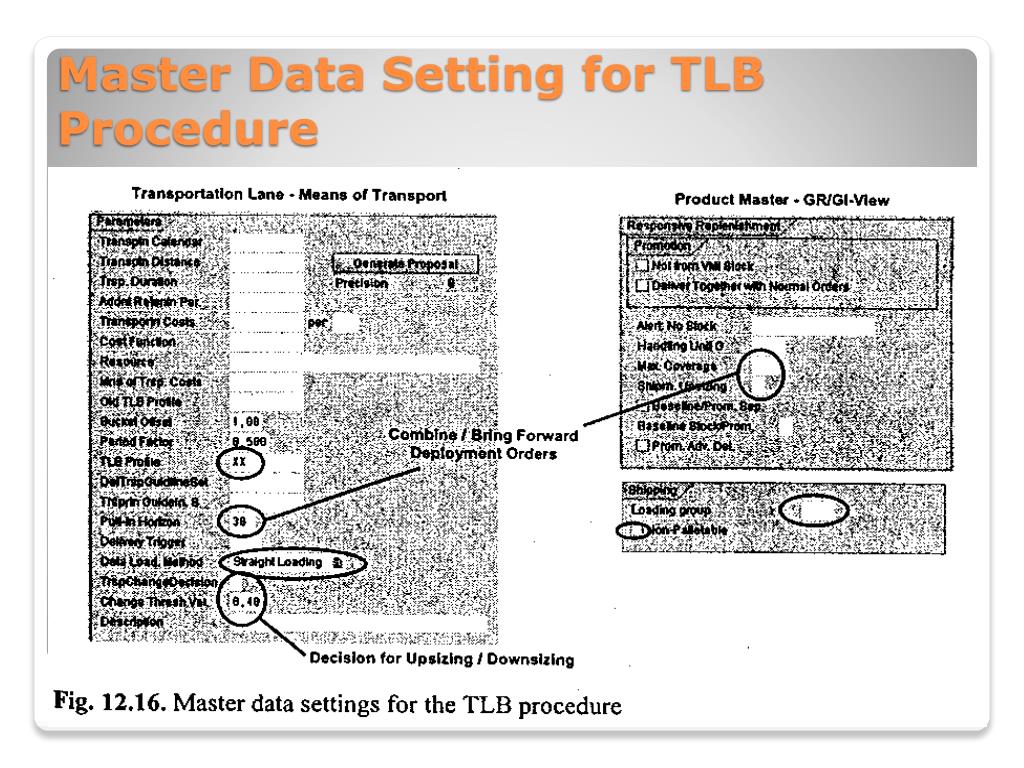

The procedure for TLB is to load all selected deployment orders according to the restrictions in TLB-profile (such as straight loading and load balancing). • Straight load: • The orders are stored according to the loading group. • Load balancing: • Distribute the products to be loaded evenly onto different truck loads (see Figure 12.14). • Figure 12.15 shows a procedure for straight loading. The settings to control the procedure for transport load building are maintained in the transportation lane and in product master (see Figure 12.16). Transport Load Builder (TLB)
The most important horizons for TLB are the planning horizon and the pull-in horizon. TLB planning horizon defines which distribution orders are taken into account for TLB run. TLB pull-in horizon defines which orders might be scheduled forward and is maintained in the transportation lane itself. Starting from the earliest order, combine it with other distribution orders within the TLB pull horizon (until the capacity is full) (see Figure 12.17). Horizon for TLB
The relevant capacity restriction in TLB profile in the following constraints: • Maximum volume, • Maximum weight, and • Maximum number of pallets. • A lower limit exists as well to inhibit uneconomical transport orders. Capacity Restrictions for TLB
Transportation PlanningSAP Implementation EGN 5623 Enterprise Systems Optimization(Professional MSEM)Fall, 2011

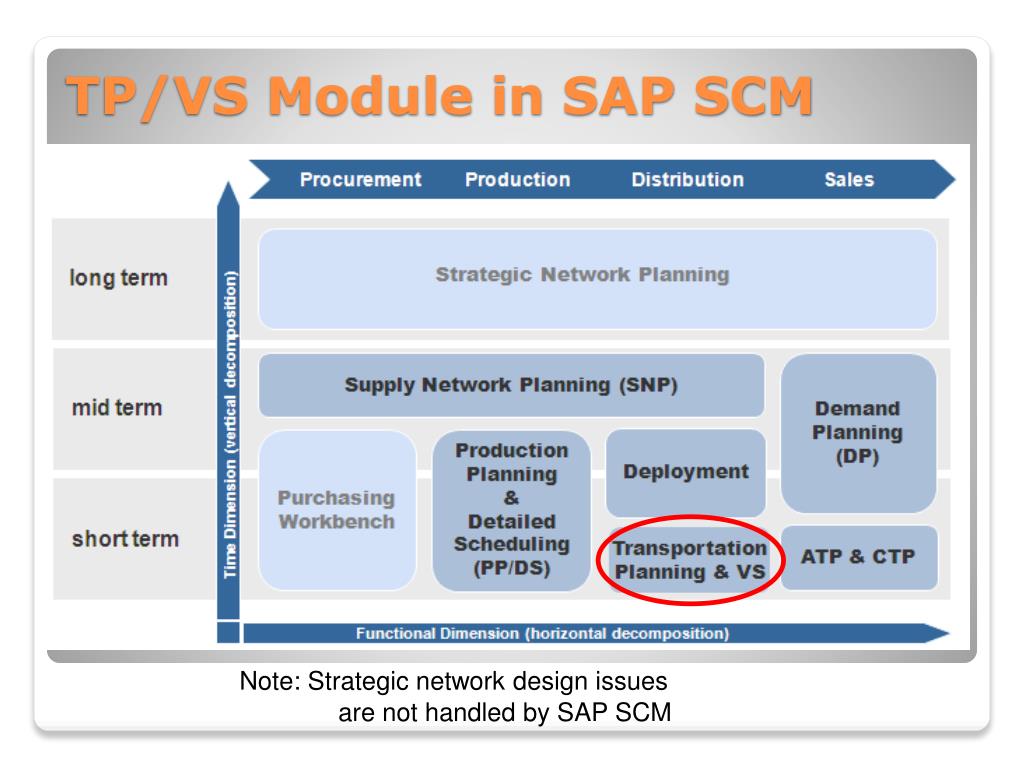

TP/VS Module in SAP SCM Note: Strategic network design issues are not handled by SAP SCM
Planning in TP/VS is usually performed on basis of deliveries, but it is possible to plan for sales orders as well. If TP/VS plans for sales orders, planning is performed either on basis of sales orders, sales order items or schedule line. Which of these is used depends on the consolidation level which is a setting on client level and is maintained with the customising path: APO-> TP/VS-> Basic setting -> Basic setting for vehicle scheduling Transportation Planning Overview
The central tool for TP/VS planning is TP/VS planning board that is called with transaction SAPAPO/VS01. When calling the planning board an optimization profile has to be entered. The optimization profile contains restrictions regarding the resources, locations, compatibilities or order types (ATP categories). Within the planning board it is possible to perform an interactive planning of shipment. There is a consistency check when saving the shipments (e.g. all relevant stages are assigned). It is possible to create and use heuristics in ‘multi-level planning’ – view of the planning board. TP/VS Planning Board
