  1. Why Use SIV for 11ai? Authors: • Date:2012-10-30 Dan Harkins, Aruba Networks

  2. Abstract • This presentation suggests the best solution to a problem that TGai has Dan Harkins, Aruba Networks

  3. What’s the Problem that Needs Solving? • The Association Request/Response is used for key confirmation– to prove possession of the key that results from exchanging Authentication frames • Some parts need authentication and encryption • KDEs containing keys • Potentially DHCP • Some parts need authentication but no encryption • The session IE • Other stuff? • We need some way to do this is an authenticated encryption that takes additional associated data– an AEAD mode Dan Harkins, Aruba Networks

  4. AEAD Cipher Modes • There are quite a few AEAD modes that encrypt and authenticate a plaintext and authenticate associated data • GCM, CCM, SIV, CWC, OCB, … • Similar interface: • Input: key, plaintext, nonce/IV/counter, AAD • Output: ciphertext (including a MIC/tag) • Key is used to encrypt and authenticate the plaintext and AAD. • The nonce/IV/counter is to make the mode probabilistic and is critical for security (for all but one mode) Dan Harkins, Aruba Networks

  5. Nonce Construction for AEAD Schemes • Nonce must be unique for all calls to encryption API, otherwise (according to RFC 5116, for GCM): • a loss of confidentialityensues because an attacker can reconstruct the bitwise exclusive-or of the two plaintext values • a loss of integrity ensues because the attacker will be able to recover the internal hash key used to provide data integrity • A loss of confidentiality and integrity for a scheme that is supposed to provide confidentiality and integrity means it’s security is completely voided! • Nonce hygiene must be strictly enforced! Unless… Dan Harkins, Aruba Networks

  6. Misuse-Resistant AEAD • SIV does not require a nonce and does not lose all security if one is used and it is repeated • If two identical messages, and identical AAD, get enciphered using the same key (and same nonce) then: • No loss of integrity • Loss of privacy in the sense that adversary knows two identical messages (with identical AAD) were protected with the same key • Using SIV means we don’t need to worry about the nonce! • It does not need to be passed in the message • It does not need to be reconstructed on both sides • It does not need to be managed to ensure uniqueness Dan Harkins, Aruba Networks

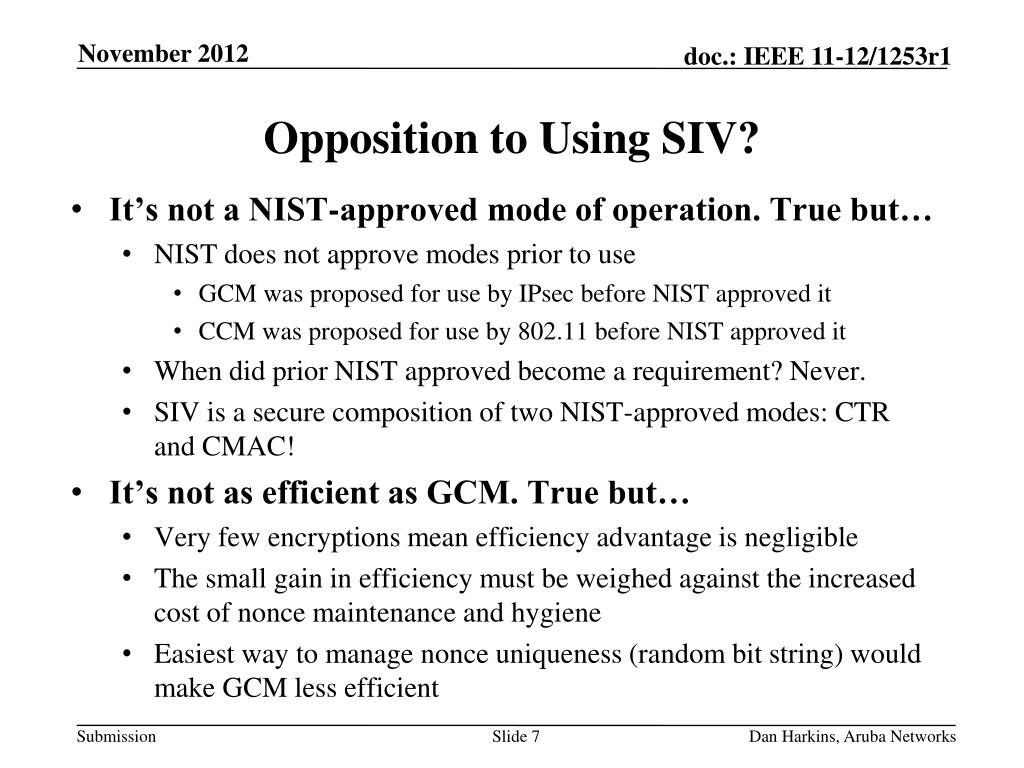

  7. Opposition to Using SIV? • It’s not a NIST-approved mode of operation. True but… • NIST does not approve modes prior to use • GCM was proposed for use by IPsec before NIST approved it • CCM was proposed for use by 802.11 before NIST approved it • When did prior NIST approved become a requirement? Never. • SIV is a secure composition of two NIST-approved modes: CTR and CMAC! • It’s not as efficient as GCM. True but… • Very few encryptions mean efficiency advantage is negligible • The small gain in efficiency must be weighed against the increased cost of nonce maintenance and hygiene • Easiest way to manage nonce uniqueness (random bit string) would make GCM less efficient Dan Harkins, Aruba Networks

  8. A Misunderstanding about Proposal • Not proposing to protect the whole Association frame! • Not doing 11w-style management frame protection! NO!!! authenticated (some fields masked to zero) encrypted MAC Header SIV Header MIC FCS Data (PDU) Apologies to Figure 11-16 from 802.11-2012 Dan Harkins, Aruba Networks

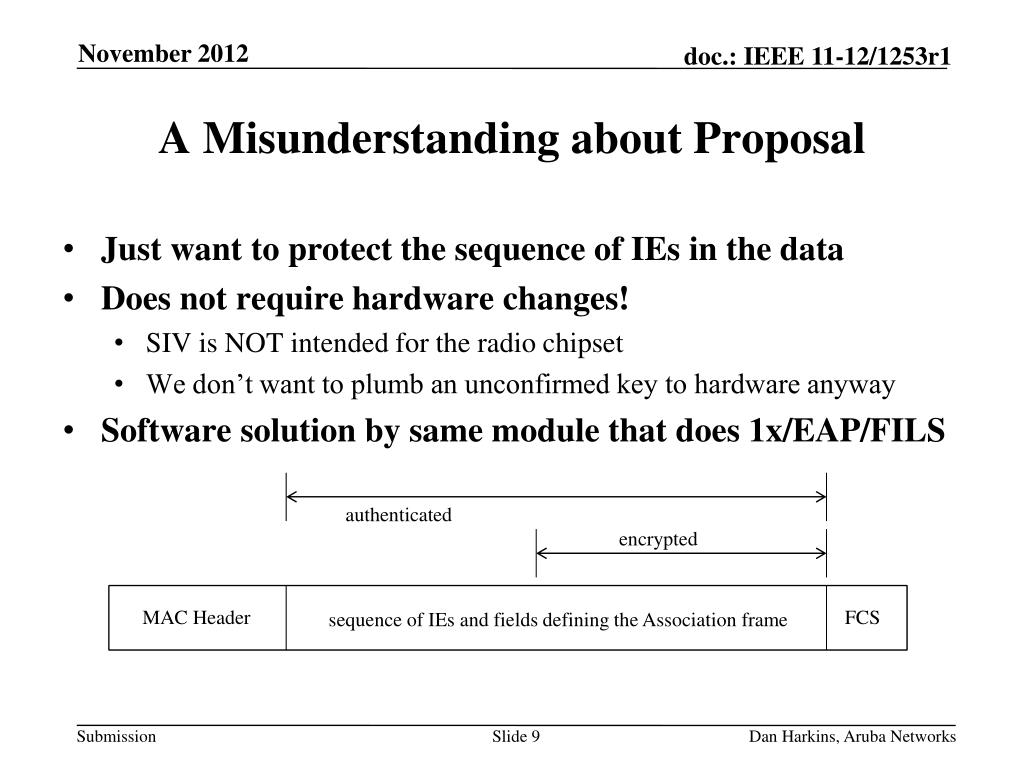

  9. A Misunderstanding about Proposal • Just want to protect the sequence of IEs in the data • Does not require hardware changes! • SIV is NOT intended for the radio chipset • We don’t want to plumb an unconfirmed key to hardware anyway • Software solution by same module that does 1x/EAP/FILS authenticated encrypted MAC Header FCS sequence of IEs and fields defining the Association frame Dan Harkins, Aruba Networks

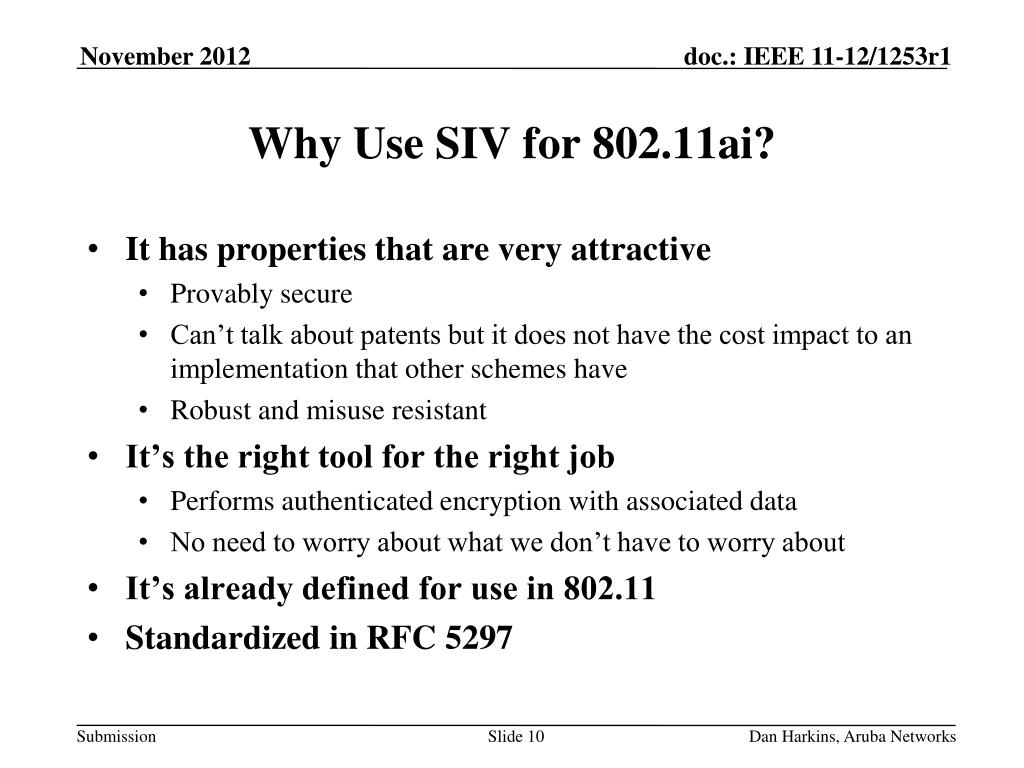

  10. Why Use SIV for 802.11ai? • It has properties that are very attractive • Provably secure • Can’t talk about patents but it does not have the cost impact to an implementation that other schemes have • Robust and misuse resistant • It’s the right tool for the right job • Performs authenticated encryption with associated data • No need to worry about what we don’t have to worry about • It’s already defined for use in 802.11 • Standardizedin RFC 5297 Dan Harkins, Aruba Networks

  11. References • Rogaway, P. and T. Shrimpton, “Deterministic Authenticated Encryption, A Provable-Security Treatment of the Key-Wrap Problem”, Advances in Cryptology –EUROCRYPT '06 St. Petersburg, Russia, 2006. • McGrew, D., “An Interface and Algorithms for Authenticated Encryption”, RFC 5116, January 2008 • Harkins, D, “Synthetic Initialization Vector (SIV) Authenticated EncryptionUsing the Advanced Encryption Standard (AES)”, RFC 5297, October 2008. Dan Harkins, Aruba Networks
