The GUS 3.0 Perl Object Layer CBIL Jonathan Schug June 18 2002

Outline • Overview • Objects • Using Objects • Superclasses • GA - GusApplication • Plugins

Core SRes DoTS RAD TESS GusApplication SQL Plugin Class SuperClasses Class DBI Class Class Class A Programmer's View of GUS3.0 • The application programmer interacts with GUS via the GusApplication (GA) Perl program. • The GA is a general framework for connecting to GUS30. • Specific tasks are performed by individual plugins. • Plugins use either table-specific classes or SQL access. • Low-level database access is provided by DBI classes.

A GUS3.0 Table Parents - pointed to by this table Primary key Table-specific attributes GUS overhead attributes Children - point to this table

A GUS3.0 Perl Object Layer Class • GUS30/DoTS/Clone.pm • package DoTS::Clone; • use strict; • use GUS30::DoTS::gen::Clone_gen; • use vars qw (@ISA); • @ISA = qw (DoTS::Clone_gen); • 1; • Relies on _gen class for accessor methods. • This is stub for hand-edited domain-specific methods.

The _gen Class - I • GUS30/DoTS/gen/Clone_gen.pm • package DoTS::Clone_gen; • use strict; • use GUS30::dbiperl_utils::RelationalRow; • use vars qw (@ISA); • @ISA = qw (RelationalRow); • sub setDefaultParams { ... } • Inherits from RelationalRow • setDefaultParams to determine if versionable and updateable.

The _gen Class - II GUS30/DoTS/gen/Clone_gen.pm sub setCloneId { ... } sub getCloneId { ... } sub setLibraryId { ... } sub getLibraryId { ... } sub setImageId { ... } sub getImageId { ... } sub setDbestCloneUid { ... } sub getDbestCloneUid { ... } sub setWashuName { ... } sub getWashuName { ... } sub setGdbId { ... } sub getGdbId { ... } sub setMgiId { ... } sub getMgiId { ... } sub setDbestLength { ... } sub getDbestLength { ... } sub setWashuLength { ... } sub getWashuLength { ... } • There is an accessor for each column. • Note the case change and loss of underscores.

The _gen Class - III GUS30/DoTS/gen/Clone_gen.pm sub setModificationDate { ... } sub getModificationDate { ... } sub setUserRead { ... } sub getUserRead { ... } sub setUserWrite { ... } sub getUserWrite { ... } sub setGroupRead { ... } sub getGroupRead { ... } sub setGroupWrite { ... } sub getGroupWrite { ... } sub setOtherRead { ... } sub getOtherRead { ... } sub setOtherWrite { ... } sub getOtherWrite { ... } sub setRowUserId { ... } sub getRowUserId { ... } sub setRowGroupId { ... } sub getRowGroupId { ... } sub setRowProjectId { ... } sub getRowProjectId { ... } sub setRowAlgInvocationId { ... } sub getRowAlgInvocationId { ... } • There is an accessor for each column. • Note the case change and loss of underscores.

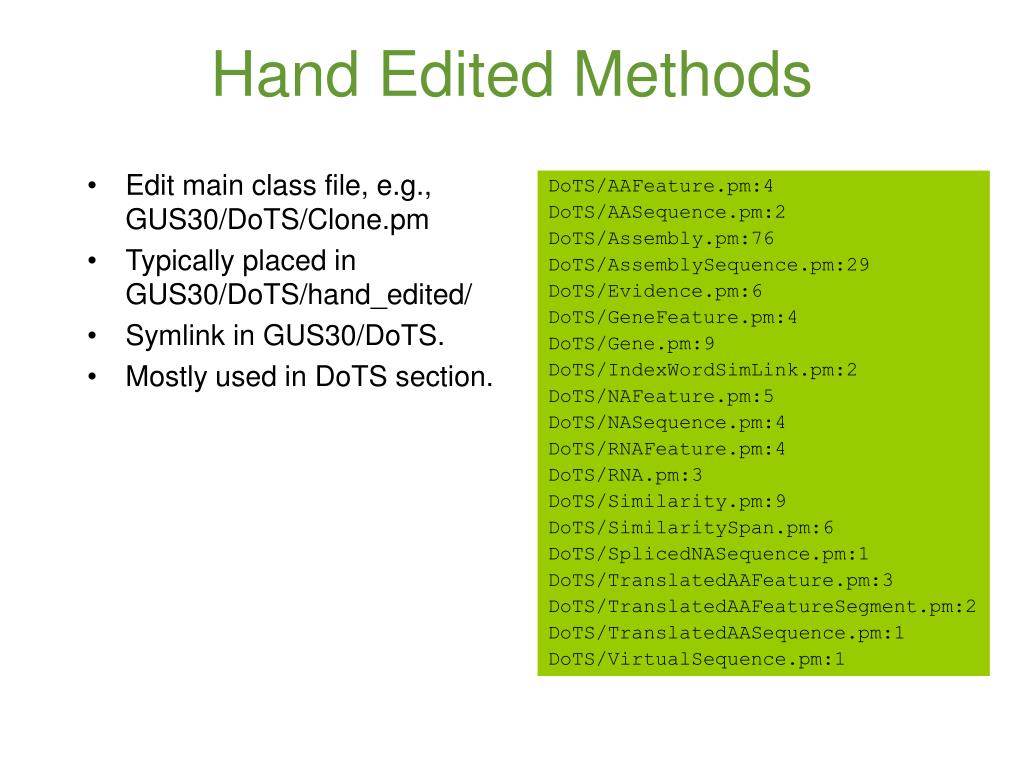

Hand Edited Methods • Edit main class file, e.g., GUS30/DoTS/Clone.pm • Typically placed in GUS30/DoTS/hand_edited/ • Symlink in GUS30/DoTS. • Mostly used in DoTS section. DoTS/AAFeature.pm:4 DoTS/AASequence.pm:2 DoTS/Assembly.pm:76 DoTS/AssemblySequence.pm:29 DoTS/Evidence.pm:6 DoTS/GeneFeature.pm:4 DoTS/Gene.pm:9 DoTS/IndexWordSimLink.pm:2 DoTS/NAFeature.pm:5 DoTS/NASequence.pm:4 DoTS/RNAFeature.pm:4 DoTS/RNA.pm:3 DoTS/Similarity.pm:9 DoTS/SimilaritySpan.pm:6 DoTS/SplicedNASequence.pm:1 DoTS/TranslatedAAFeature.pm:3 DoTS/TranslatedAAFeatureSegment.pm:2 DoTS/TranslatedAASequence.pm:1 DoTS/VirtualSequence.pm:1

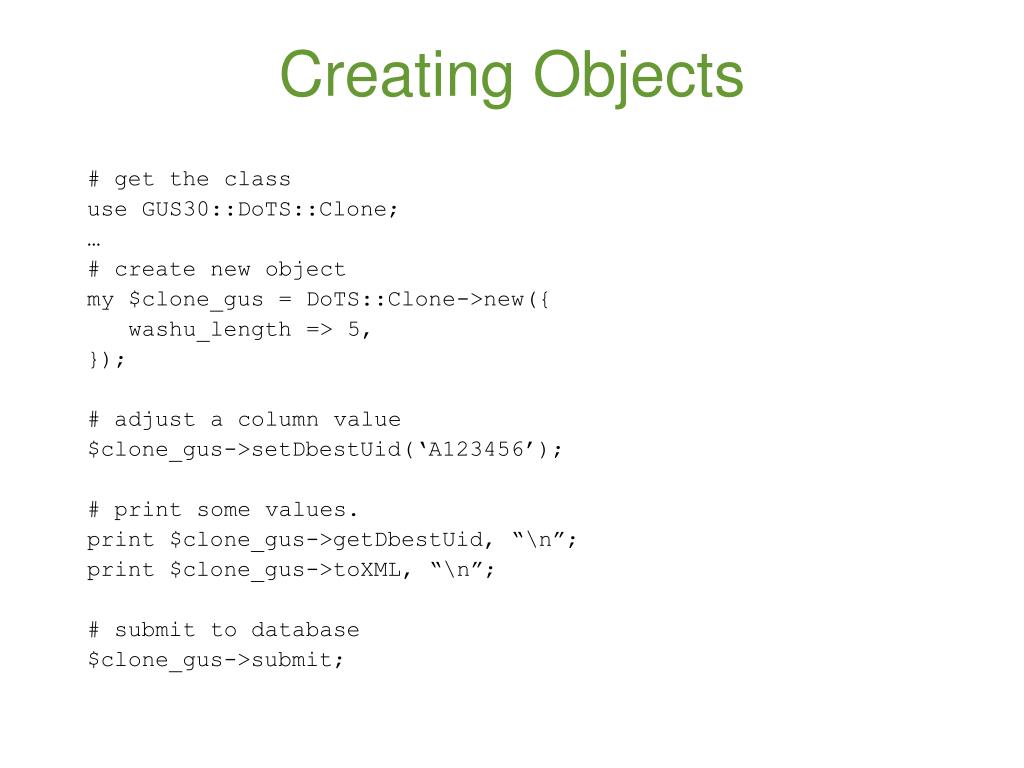

Creating Objects # get the class use GUS30::DoTS::Clone; … # create new object my $clone_gus = DoTS::Clone->new({ washu_length => 5, }); # adjust a column value $clone_gus->setDbestUid(‘A123456’); # print some values. print $clone_gus->getDbestUid, “\n”; print $clone_gus->toXML, “\n”; # submit to database $clone_gus->submit;

Connecting Objects use GUS30::DoTS::Clone; use GUS30::DoTS::CloneLibrary; My $clone_lib_gus = DoTS::CloneLibrary->new({…}); While (<>) {chomp; my @parts = split /\t/; my $clone_gus = DoTS::Clone->new({…}); # this $clone_lib_gus->addChild($clone_gus); # or this $clone_gus->setParent($clone_lib_gus); } $clone_lib_gus->submit;

Retrieving Objects Use GUS30::DoTS::CloneLibrary; My $clone_lib_gus = DoTS::CloneLibrary->new({ clone_library_id => 12345 }); If ($clone_lib_gus->retrieveFromDB) { $clone_lib_gus->set…(…); $clone_lib_gus->submit; print “found it!\n”; } Else { print “did not find any unique row!\n”; }

Traversing Object Relations - I Use GUS30::DoTS::CloneLibrary; Use GUS30::DoTS::Clone; My $clone_lib_gus = DoTS::CloneLibrary({ clone_library_id => 12345 }); If ($clone_lib_gus->retrieveFromDB) { my @clones = $clone_lib_gus->getChildren(‘DoTS.Clone’,1); foreach (@clones) { … } }

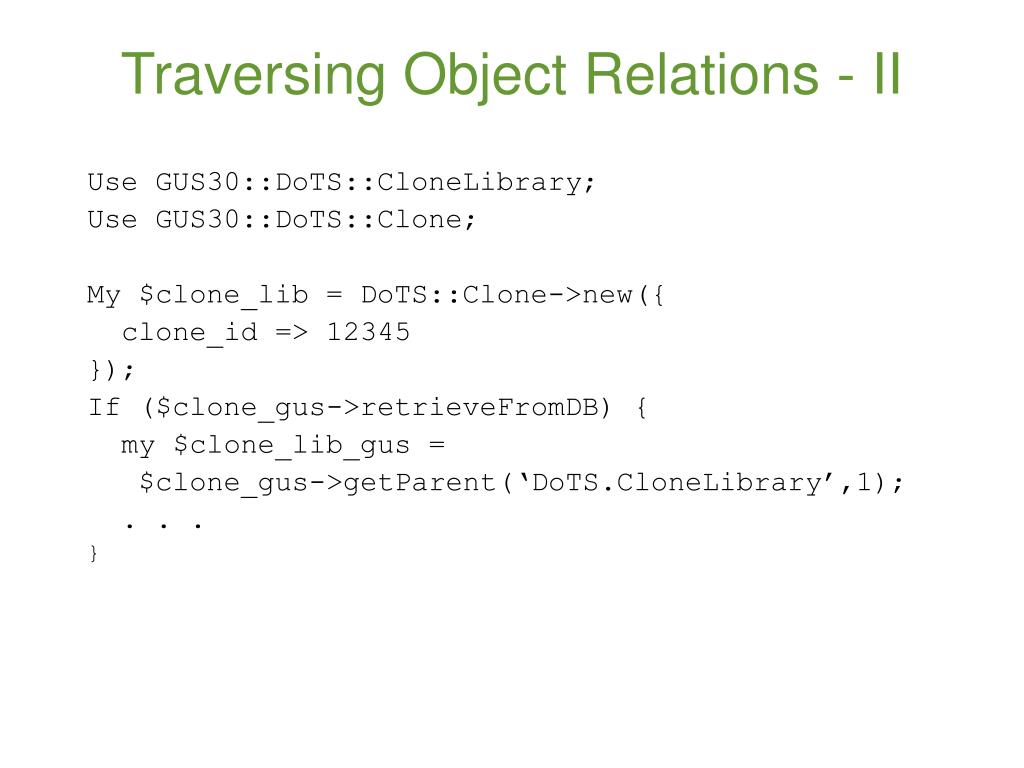

Traversing Object Relations - II Use GUS30::DoTS::CloneLibrary; Use GUS30::DoTS::Clone; My $clone_lib = DoTS::Clone->new({ clone_id => 12345 }); If ($clone_gus->retrieveFromDB) { my $clone_lib_gus = $clone_gus->getParent(‘DoTS.CloneLibrary’,1); . . . }

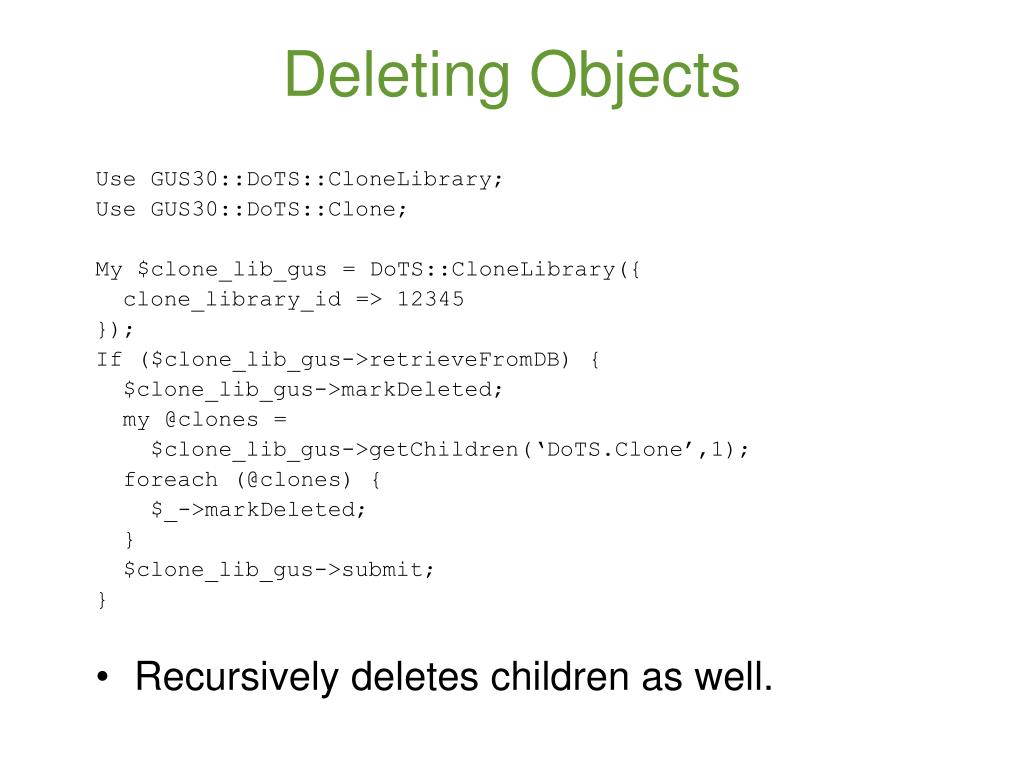

Deleting Objects Use GUS30::DoTS::CloneLibrary; Use GUS30::DoTS::Clone; My $clone_lib_gus = DoTS::CloneLibrary({ clone_library_id => 12345 }); If ($clone_lib_gus->retrieveFromDB) { $clone_lib_gus->markDeleted; my @clones = $clone_lib_gus->getChildren(‘DoTS.Clone’,1); foreach (@clones) { $_->markDeleted; } $clone_lib_gus->submit; } • Recursively deletes children as well.

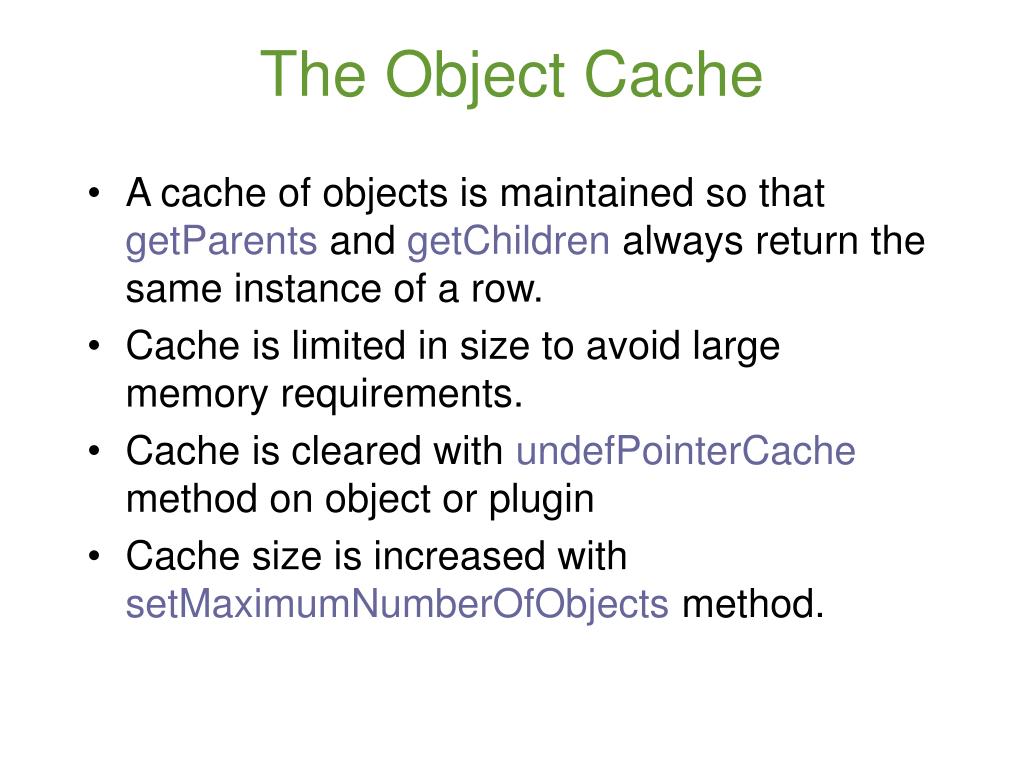

The Object Cache • A cache of objects is maintained so that getParents and getChildren always return the same instance of a row. • Cache is limited in size to avoid large memory requirements. • Cache is cleared with undefPointerCache method on object or plugin • Cache size is increased with setMaximumNumberOfObjects method.

Dbiperl_utils Support and base classes for object classes. • RelationalRow • DbiRow • DbiTable • DbiDatabase

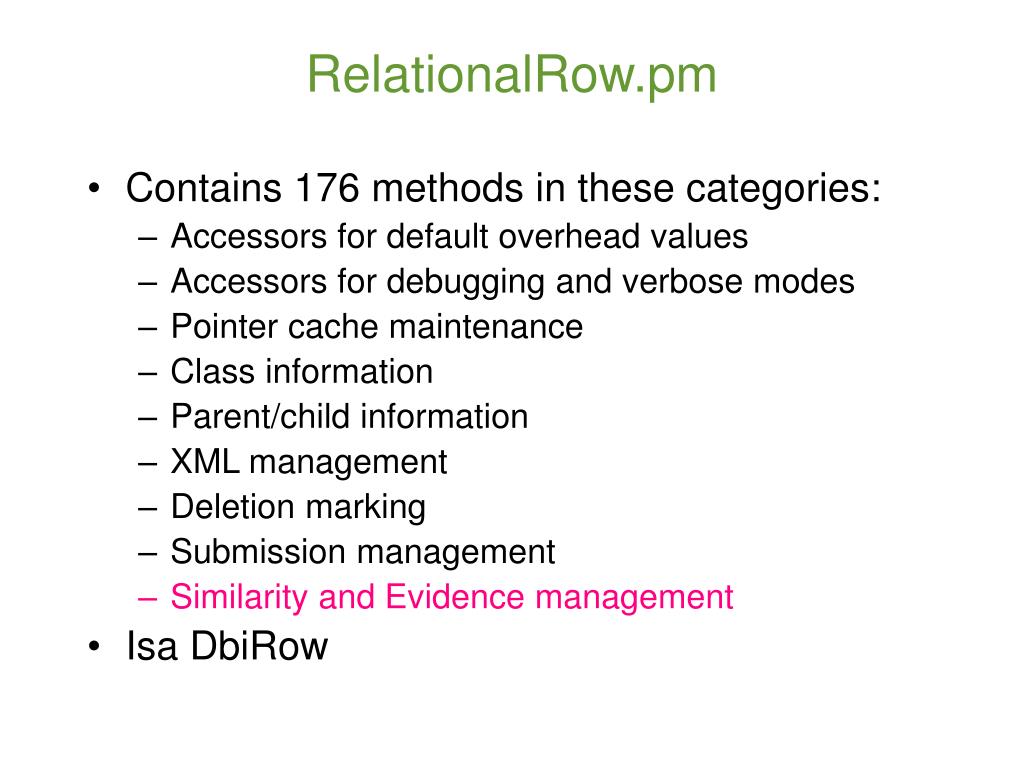

RelationalRow.pm • Contains 176 methods in these categories: • Accessors for default overhead values • Accessors for debugging and verbose modes • Pointer cache maintenance • Class information • Parent/child information • XML management • Deletion marking • Submission management • Similarity and Evidence management • Isa DbiRow

DbiRow.pm • Contains 43 methods in these categories: • Get/Set methods to support class-specific accessors • Accessors for table and class names • Attribute information • Tracking attribute value changes • retrieveFromDB • IdentityInsert management • Get DbHandle, MetaHandle, and Database

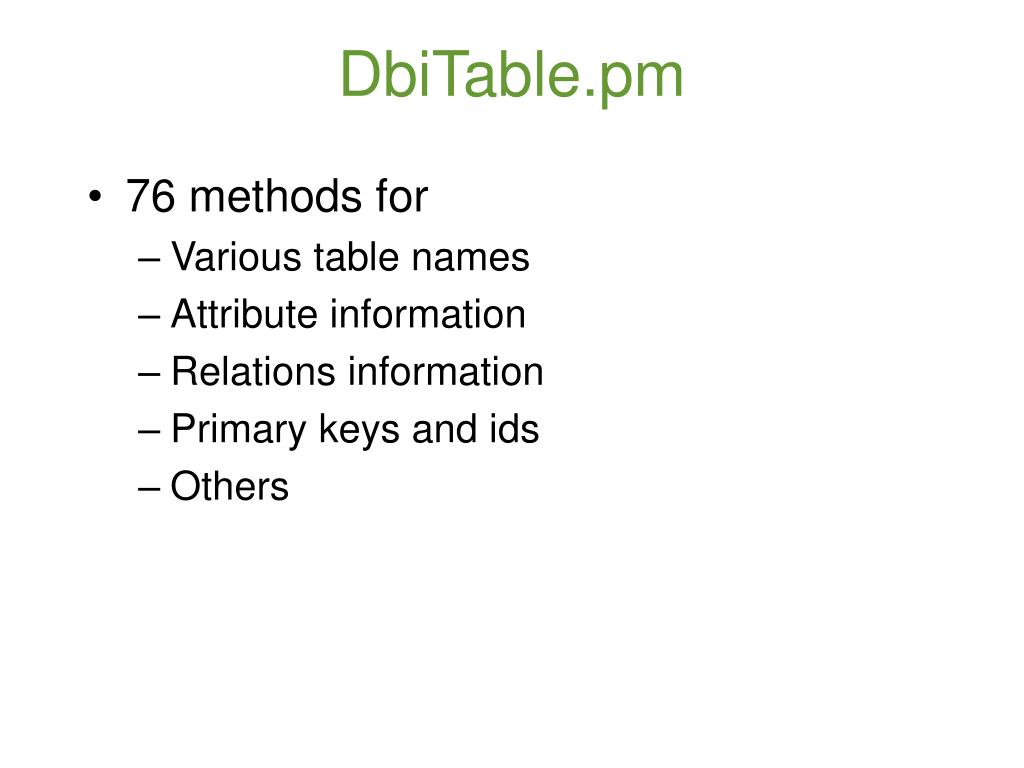

DbiTable.pm • 76 methods for • Various table names • Attribute information • Relations information • Primary keys and ids • Others

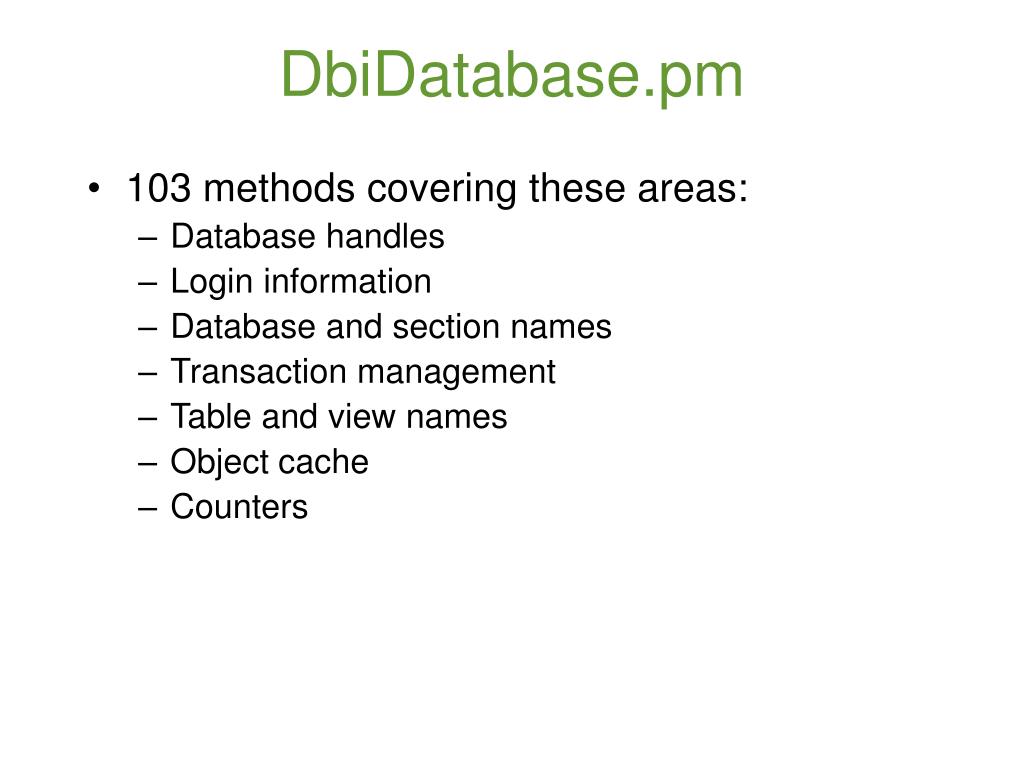

DbiDatabase.pm • 103 methods covering these areas: • Database handles • Login information • Database and section names • Transaction management • Table and view names • Object cache • Counters

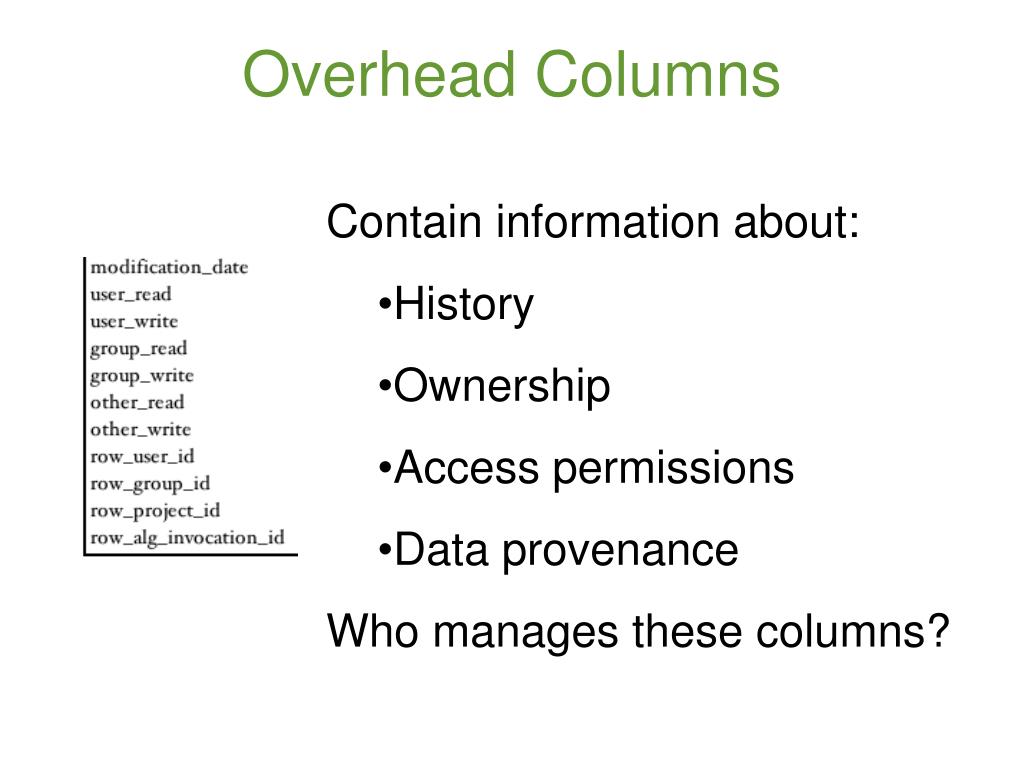

Overhead Columns • Contain information about: • History • Ownership • Access permissions • Data provenance • Who manages these columns?

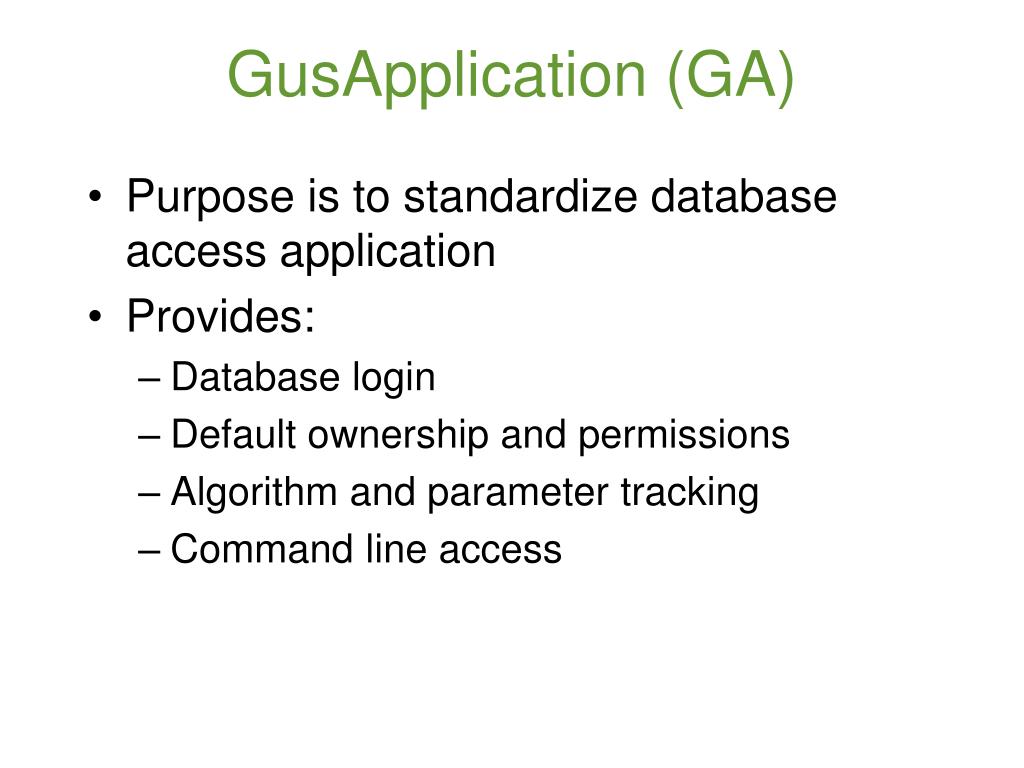

GusApplication (GA) • Purpose is to standardize database access application • Provides: • Database login • Default ownership and permissions • Algorithm and parameter tracking • Command line access

Algorithms & Stuff Algorithm AlgorithmParamKeyType AlgorithmImplementation AlgorithmParamKey AlgorithmInvocation AlgorithmParam Tracks what programs implementing what algorithms were run with what parameters. GA populates these tables.

GA Usage ga [<mode>] [<plugin_class>] <plugin_class_options> • <mode> is one of • +create : creates Algorithm, AlgorithmImplementation, and AlgorithmParamKey • +update : creates AlgorithmImplementation and AlgorithmParamKey • +history : lists invocations • +run : runs the plugin (default) • <plugin_class> • From hierarchical namespace, e.g., Utils::UpdateGusFromXML • <plugin_class_options> • Defined by plugin plus some generic GA options. • E.g., --file data.tab --commit --verbose

Plugins • A plugin is just a package that inherits from GUS30::GA_plugins::Plugin. package GUS30::GA_plugins::Utils::UpdateGusFromXML; @ISA = qw(GUS30::GA_plugins::Plugin); • It must have two methods: • new - to create and initialize the plugin object • run - perform actions of plugin

The new Method • Must initialize certain important plugin attributes: sub new { my $Class = shift; my $m = bless {}, $Class; $m->setUsage(‘what this algorithm does’); $m->setVersion('2.0'); $m->setRequiredDbVersion({ Core => ‘3’, DoTS => ‘3’ }); $m->setDescription(‘what is new in implementation); $m->setEasyCspOptions(…); # command line options return $m }

Command Line Options • A hash describing a parameter: • h => hint for user • t => parameter data type (boolean, string, integer, float) • d => default value • l => is a list if true • e => list of legal reg-exps • r => required if true • o => command line flag • E.g., { h => 'start label ordinals with this value', t => 'integer', d => 0, o => 'FirstOrdinal', },

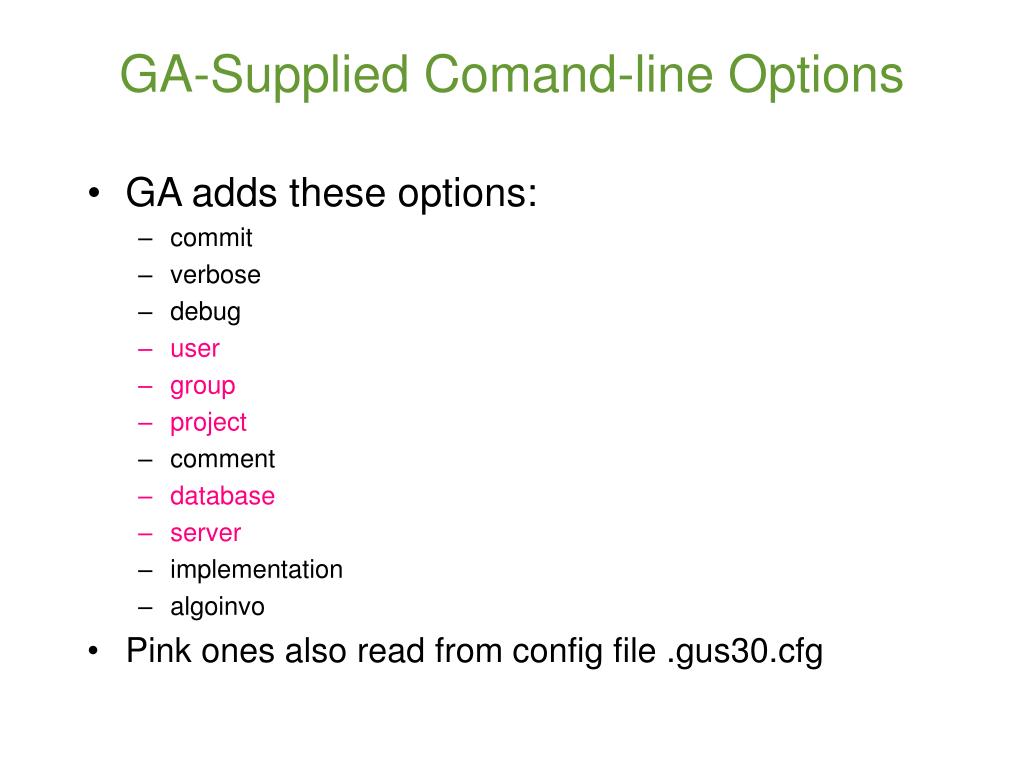

GA-Supplied Comand-line Options • GA adds these options: • commit • verbose • debug • user • group • project • comment • database • server • implementation • algoinvo • Pink ones also read from config file .gus30.cfg

Example: TESS::LoadMultinomialLabelSet TESS::MultinomialLabelSet TESS::MultinomialLabel • Task is to maintain entries in these two tables • MultinomialLabelSet stores sets of labels for multinomial observations, e.g., DNA, AA, or dimer gaps. • Can also be DNA or AA dimers, trimers, etc. • MultinomialLabel stores individual names.
