Pallatana Power Project Commissioning Details

Comprehensive overview of the commissioning schedule for the 363.3 MW units at Pallatana Power Project in Tripura. Critical infrastructure, including switchyards, transmission lines, and sub-stations, are detailed, along with the power allocation and evacuation systems.

mandell
Télécharger la présentation

Pallatana Power Project Commissioning Details

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

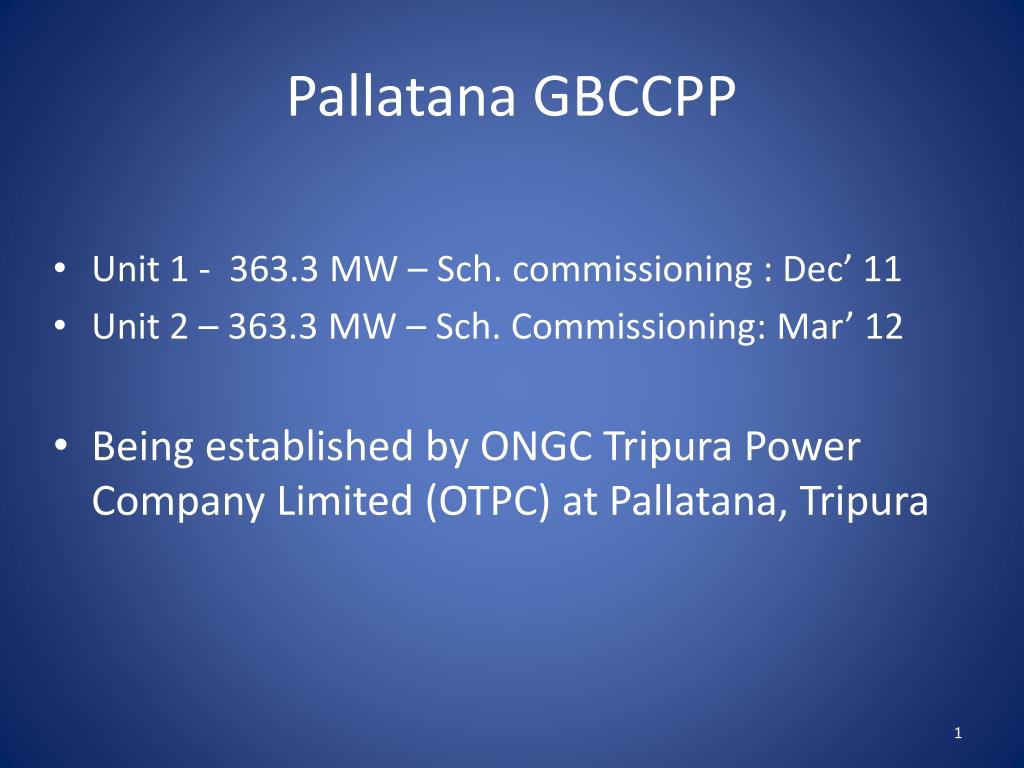

  1. Pallatana GBCCPP • Unit 1 - 363.3 MW – Sch. commissioning : Dec’ 11 • Unit 2 – 363.3 MW – Sch. Commissioning: Mar’ 12 • Being established by ONGC Tripura Power Company Limited (OTPC) at Pallatana, Tripura

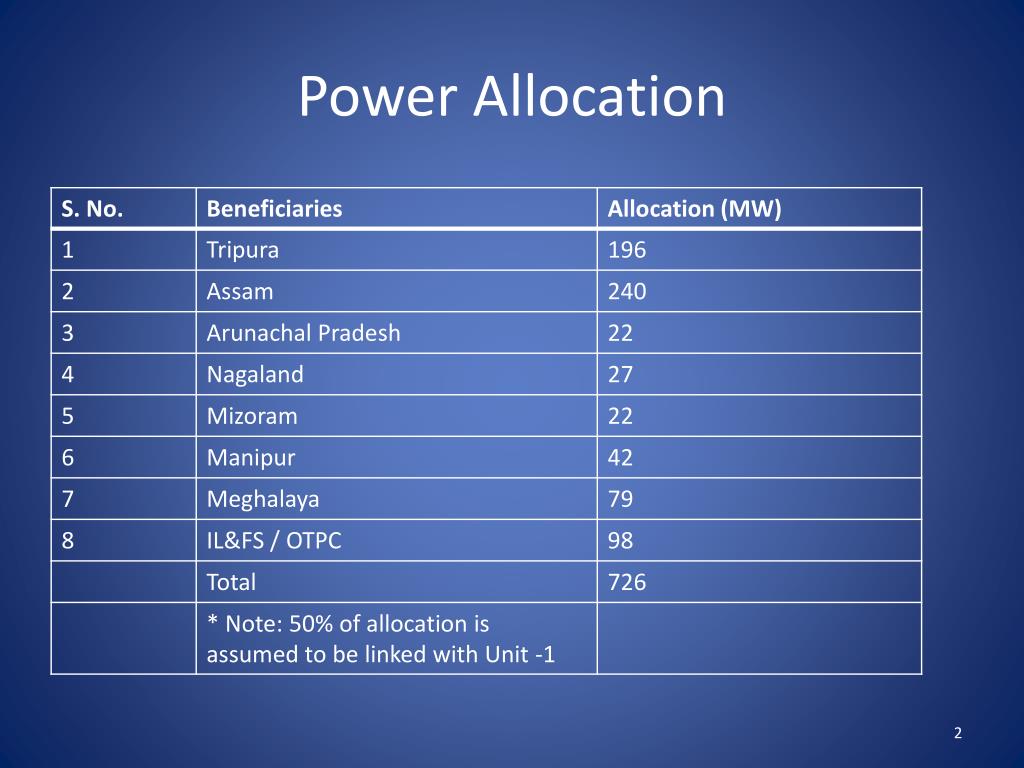

  2. Power Allocation

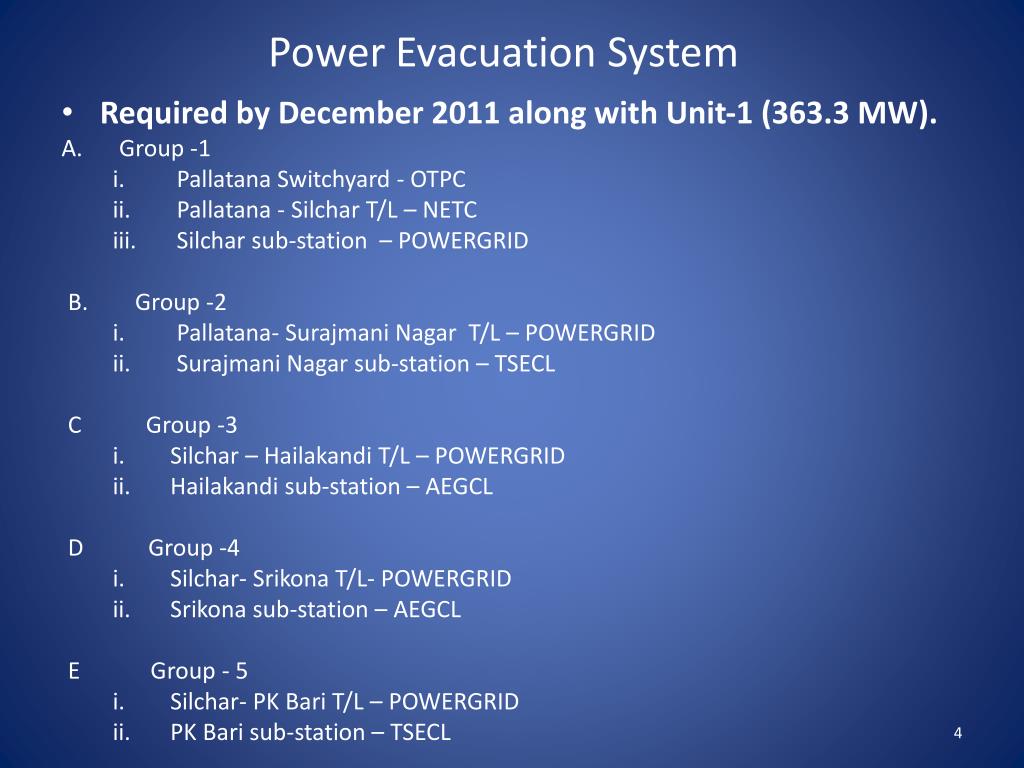

  3. Power Evacuation System • Required by December 2011 along with Unit-1 (363.3 MW). • Group -1 • Pallatana Switchyard - OTPC • Pallatana - Silchar T/L – NETC • Silchar sub-station – POWERGRID B. Group -2 • Pallatana- Surajmani Nagar T/L – POWERGRID • Surajmani Nagar sub-station – TSECL C Group -3 • Silchar – Hailakandi T/L – POWERGRID • Hailakandi sub-station – AEGCL D Group -4 • Silchar- Srikona T/L- POWERGRID • Srikona sub-station – AEGCL E Group - 5 • Silchar- PK Bari T/L – POWERGRID • PK Bari sub-station – TSECL

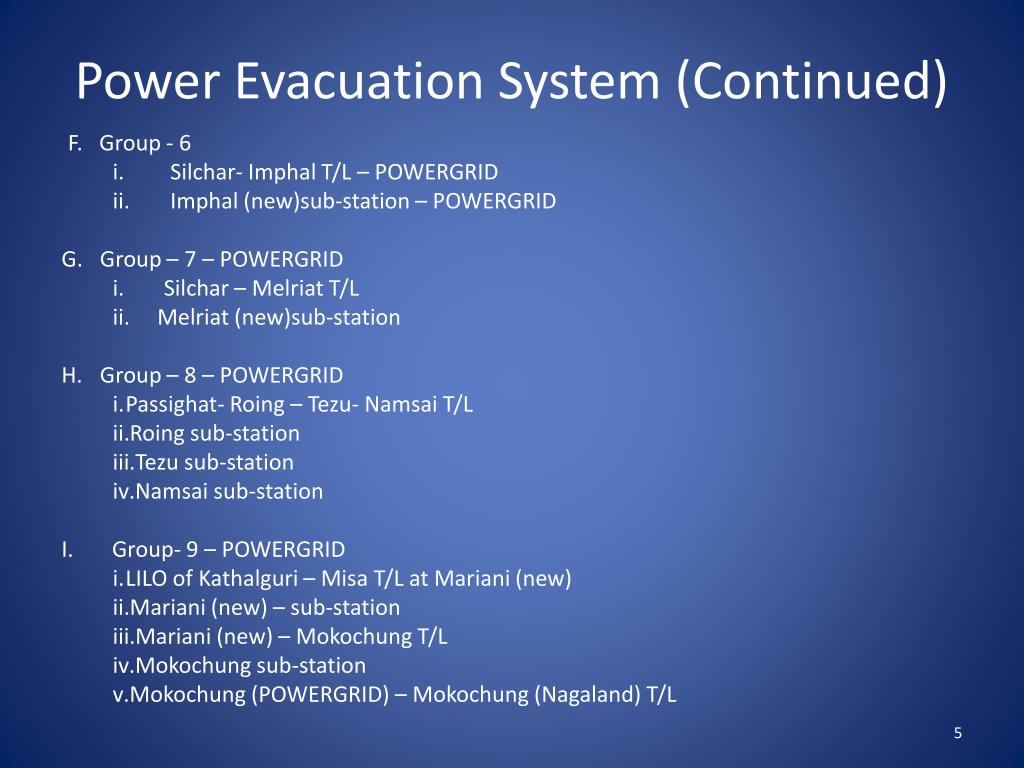

  4. Power Evacuation System (Continued) F. Group - 6 • Silchar- Imphal T/L – POWERGRID • Imphal (new)sub-station – POWERGRID • Group – 7 – POWERGRID • Silchar – Melriat T/L • Melriat (new)sub-station • Group – 8 – POWERGRID • Passighat- Roing – Tezu- Namsai T/L • Roing sub-station • Tezu sub-station • Namsai sub-station I. Group- 9 – POWERGRID • LILO of Kathalguri – Misa T/L at Mariani (new) • Mariani (new) – sub-station • Mariani (new) – Mokochung T/L • Mokochung sub-station • Mokochung (POWERGRID) – Mokochung (Nagaland) T/L

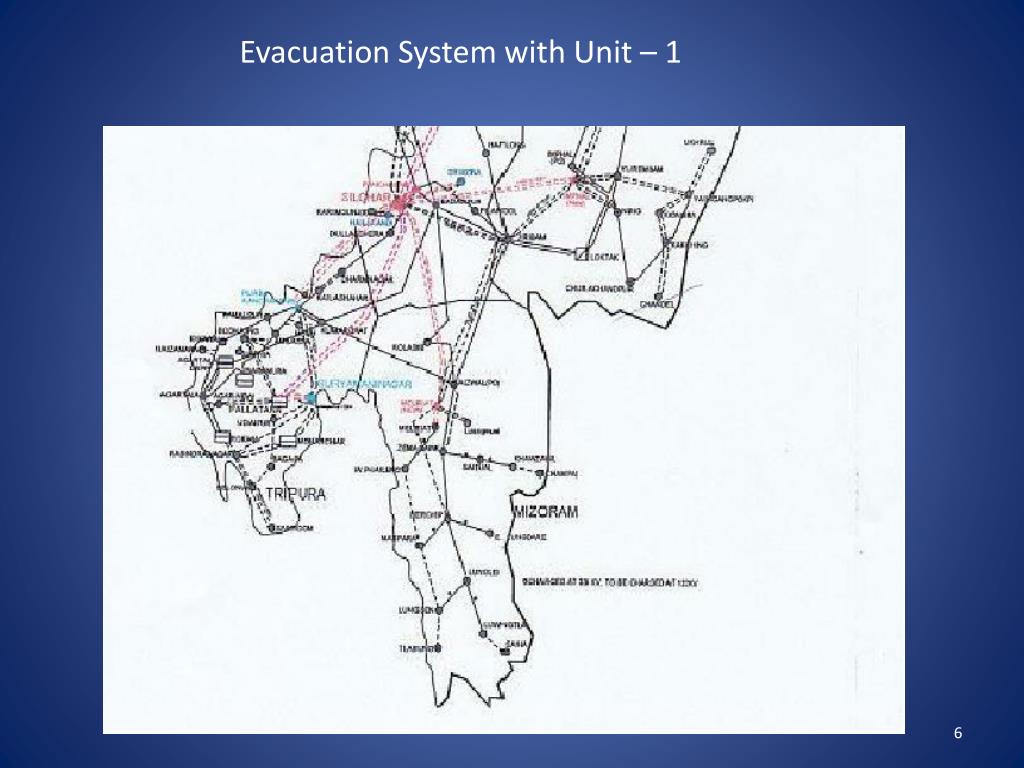

  5. Evacuation System with Unit – 1

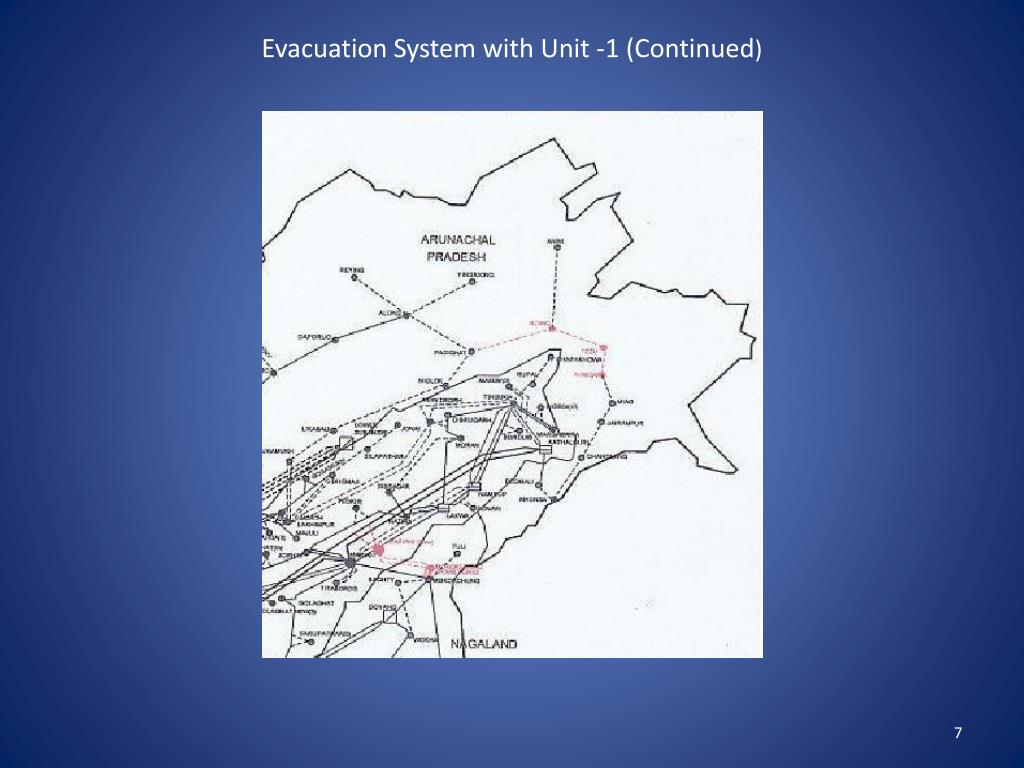

  6. Evacuation System with Unit -1 (Continued)

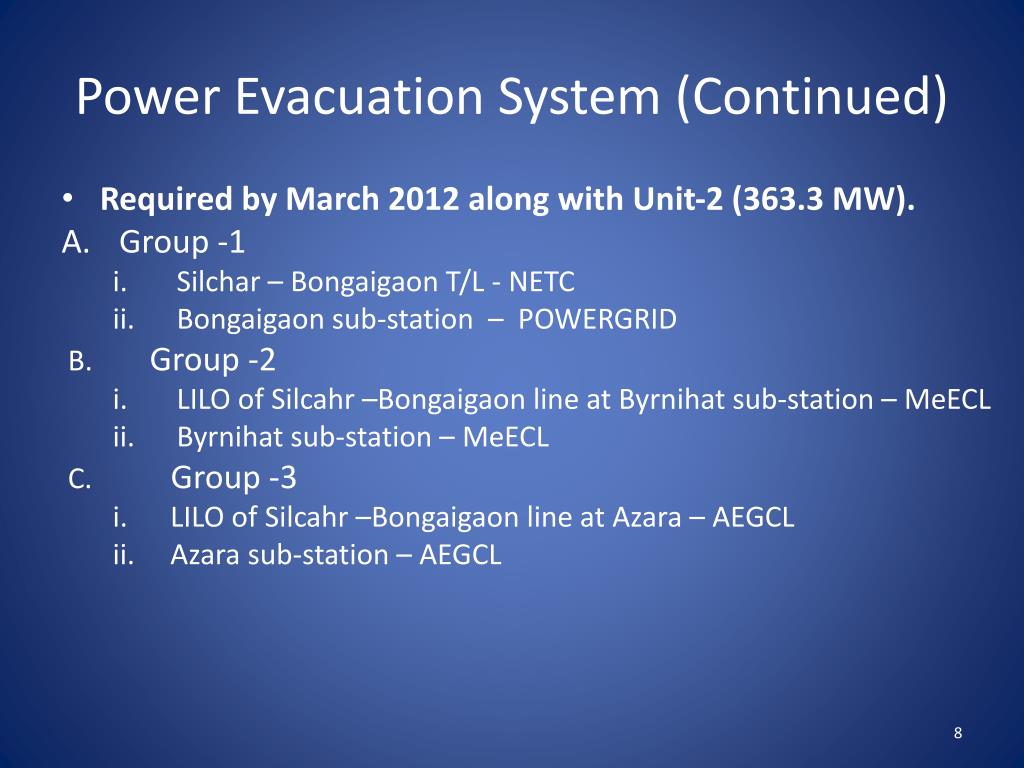

  7. Power Evacuation System (Continued) • Required by March 2012 along with Unit-2 (363.3 MW). • Group -1 • Silchar – Bongaigaon T/L - NETC • Bongaigaon sub-station – POWERGRID B. Group -2 • LILO of Silcahr –Bongaigaon line at Byrnihat sub-station – MeECL • Byrnihat sub-station – MeECL C. Group -3 • LILO of Silcahr –Bongaigaon line at Azara – AEGCL • Azara sub-station – AEGCL

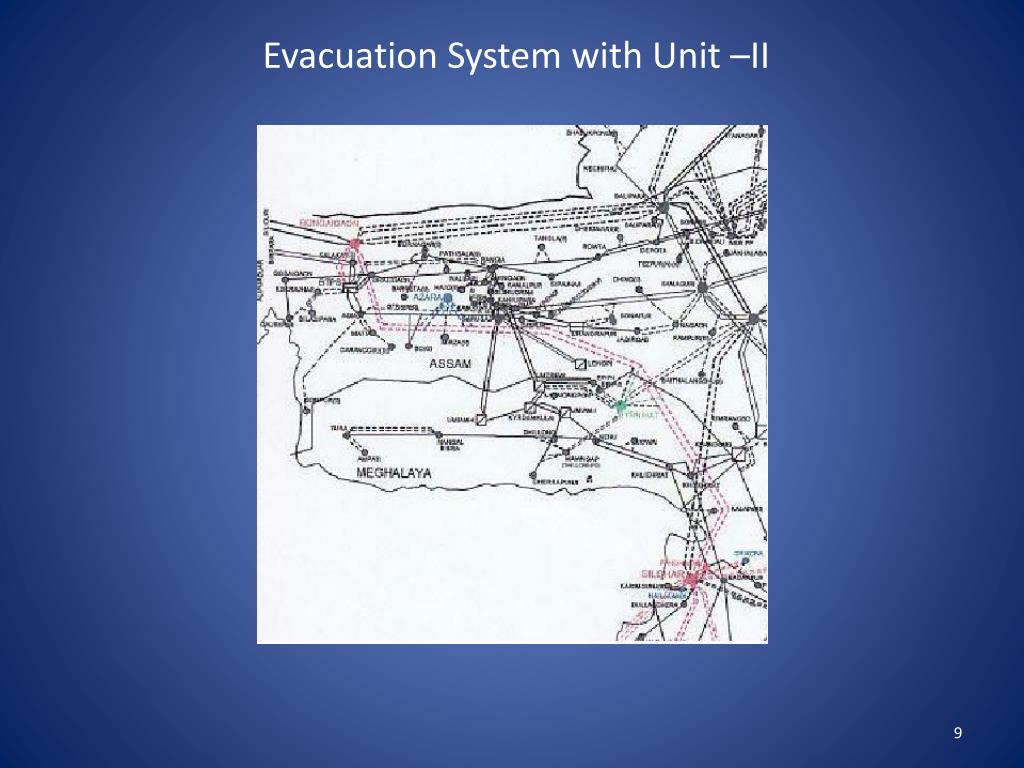

  8. Evacuation System with Unit –II
