  1. Traffic Management System AndPassenger Information System Western Railway Experience

  2. Contents • Need for an integrated control room • TMS - introduction • TMS - functionality • Visible Benefits to Customer derived from the project

  3. Passengers’ concerns Safe travel Punctuality Correct and timely information More avenues of getting this information Availability of travel options Comfort Integrated control room - Why ?

  4. Integrated control room - Why (?) ...2 • What is the controller supposed to do? • Pass on correct information to station masters for safe & efficient train operation • Ensure trains run as per time table • Handle deviations in timetable factoring in unusual events/accidents. • Quick decision making to optimize line capacity • Ensure that ASMs execute Control Room instructions • What he really does? • Imagine the current condition in mind • Keeps updating his own picture in mind by taking fresh inputs from station masters. • Keeps filling arrival/departure time for trains at major stations • In times of emergency, decision-making takes time – limitations of latest information about the event

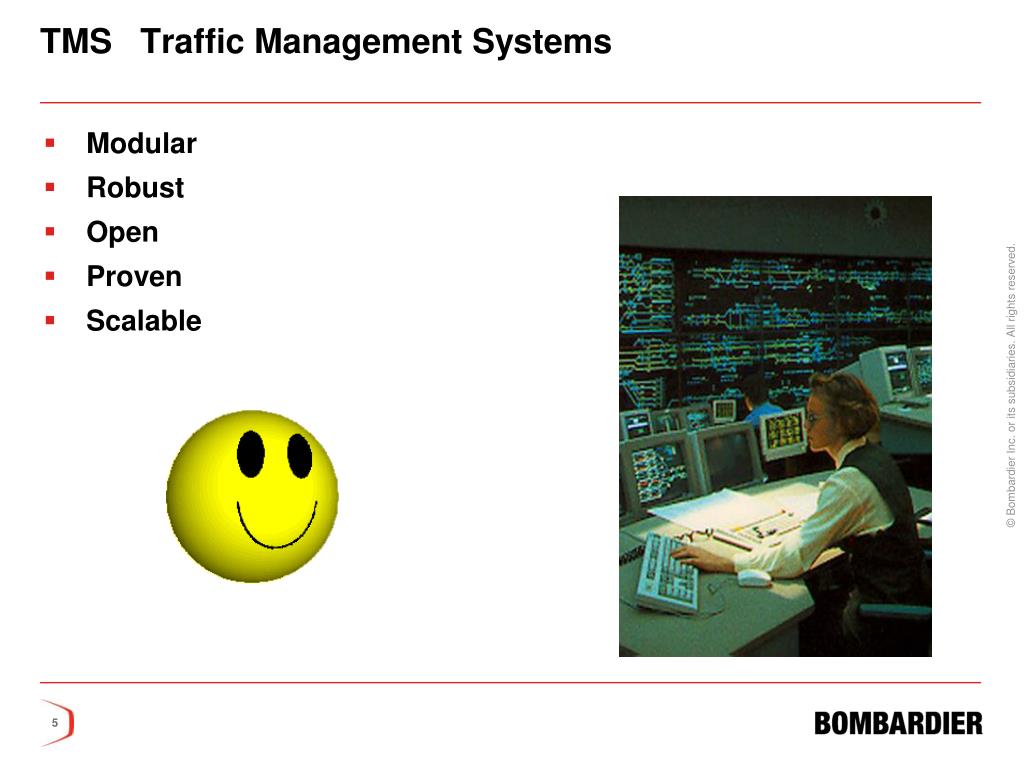

  5. TMS Traffic Management Systems • Modular • Robust • Open • Proven • Scalable

  6. Train Planning Train Operation Train Control TMS - Composition

  7. TMSModular, Open System TMS is not just a ‘auto charting’

  8. TMS Centralised Traffic Control

  9. TMS-WR Functionality Overview • Traffic Management System (TMS) for Railway Control Room Applications • State of the art Control Room • Live Indications of station layout for close monitoring • Interface with RVPU • Alarms (Signaling / Traffic ) • Train Describer System • Timetable Systems • Passenger Information • Management Information • Train Graph • Log Replay Facility for investigation • Remote Control Operations (CTC)

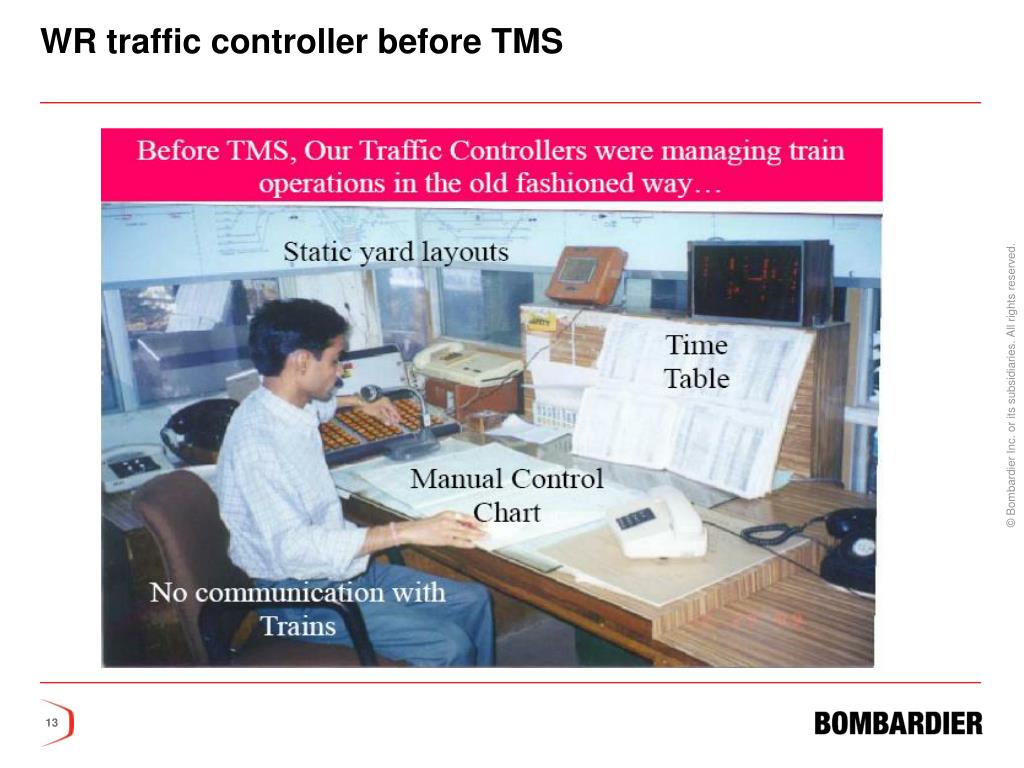

  10. WR traffic controller before TMS

  11. TMS-WR Control Room

  12. Typical Operator Station

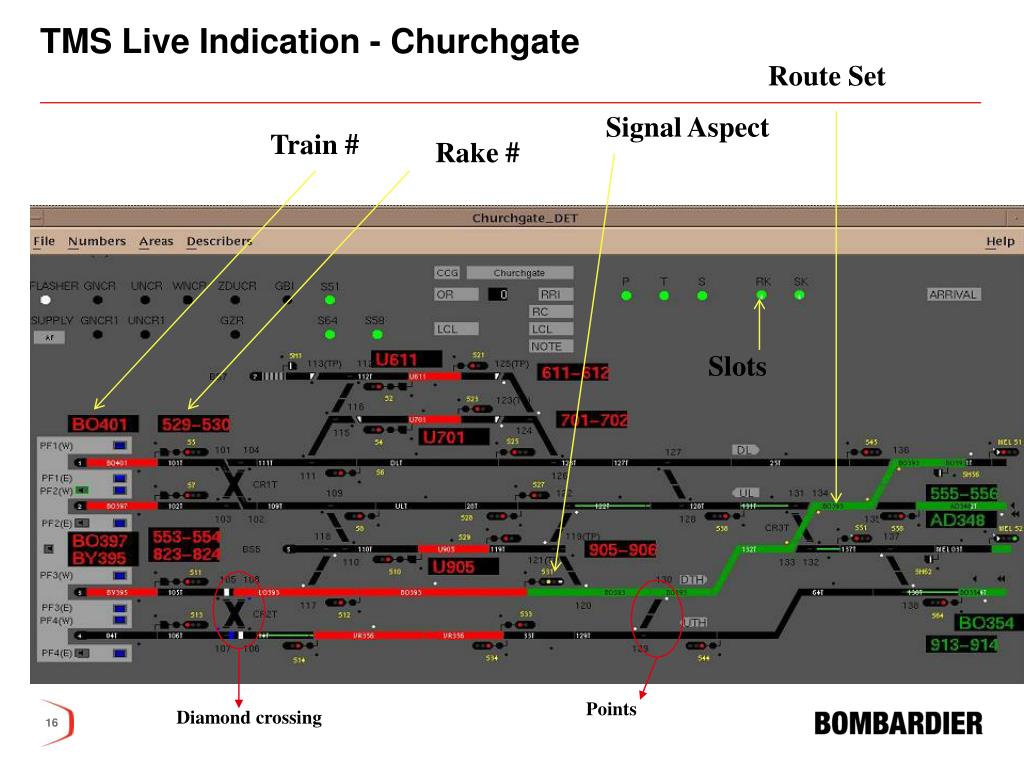

  13. TMS Live Indication - Churchgate Route Set Signal Aspect Train # Rake # Slots Points Diamond crossing

  14. TMS Train Describer System

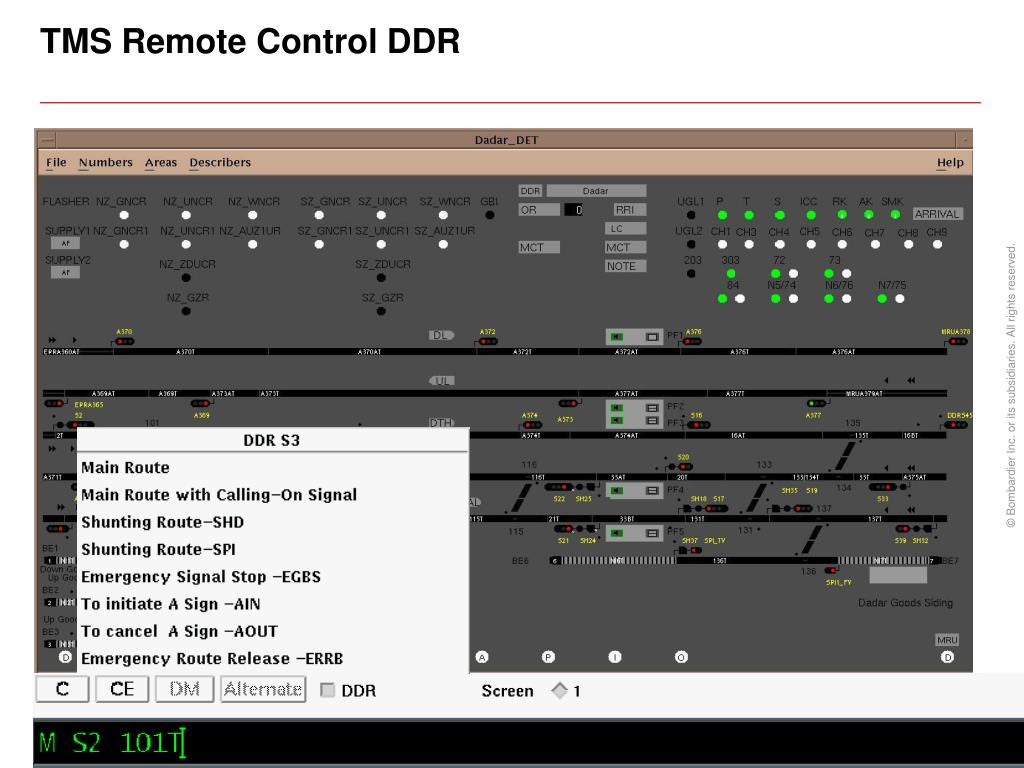

  15. TMS Remote Control DDR

  16. TMS Alarms

  17. TMS Log Replay

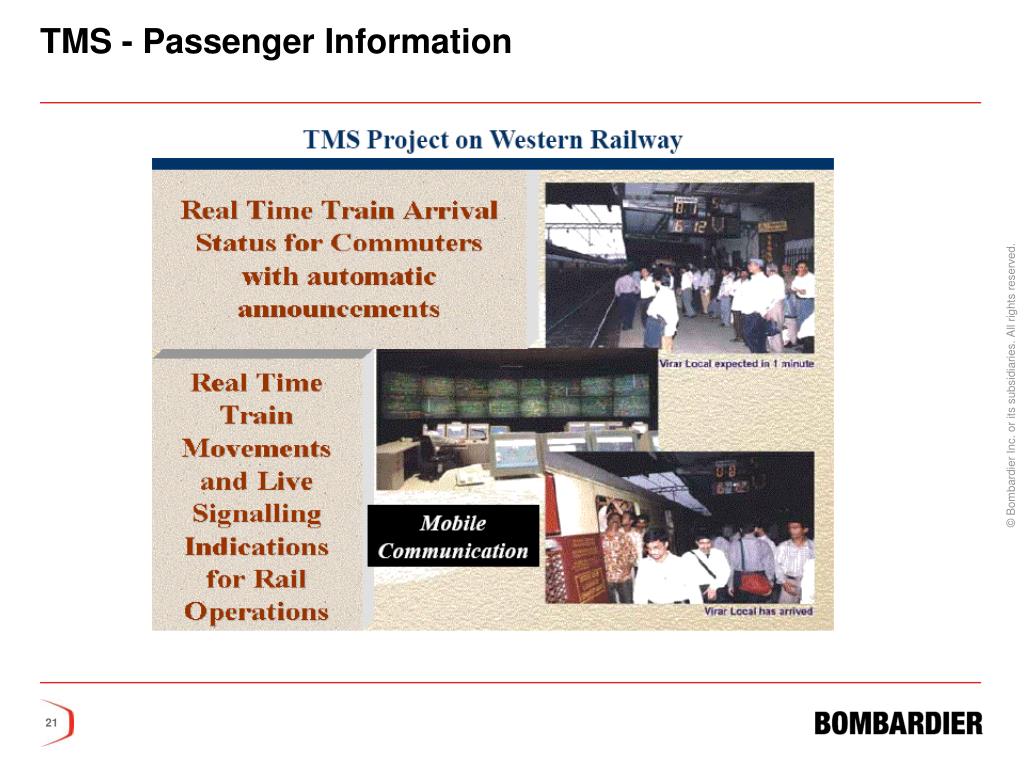

  18. TMS - Passenger Information

  19. TMS - Passenger Information Pf Destination Sch. Time EIM Mode Coach

  20. TMS - Passenger Information - 2 Pf Destination Sch. Time EIM Mode Coach

  21. TMS Management Information Train Control Chart

  22. TMS Management Information Punctuality Report

  23. TMS Train Graph

  24. Major benefits from the project • Real time information on train traffic available on Projection screens and also on Controllers workstations • Nothing is left for imagination since updated information is available leading to safety enhancement. • Controller now ‘CONTROLS’ the traffic instead of recording and working the phones • Failure analysis based on Log & replay facility • Generation of MIS reports – Train Control Charts, Punctuality reports, Train Graphs and Failure reports • Multi-pronged communication facilitates better handling of unusual incidents • Motorman/guard to control room • Motorman to motorman • Motorman to guard

  25. Major benefits from the project (passengers) • Then • Passengers waited on FOB to find which train would come first • Passengers had information about only single train per platform • Occasional errors in making announcements • Now • Passengers now know when their train is arriving (Expected in Minutes) • Multi-level dissemination of train information • Indicators on platforms • VDUs on strategic station locations • Multi-lingual voice announcements • Information about next 2 trains per platform • Automatic announcements ensure timely and correct information • Better forecasting is possible

  26. TMS – Customer testimonial

  27. Thank You
