  1. Composite MaterialsFundamental considerations • How do composite materials differ from other engineering materials? • What are the constituent materials, and how do their properties compare? • How do the properties of the composite depend on the type, amount and arrangement of the constituents? • How are composite products made, and why does manufacture affect quality?

  2. Fibres have better stiffness and strength compared to bulk materials • Atomic or molecular alignment(carbon, aramid) • Removal of flaws and cracks (glass) • Strain hardening (metals)

  3. As fibre diameter is reduced, so is maximum possible crack size in glass. Theoretical strength is achieved in defect-free material (zero diameter!). D Hull: Introduction to Composite Materials J Gordon: The New Science of Strong Materials Carbon fibre – alignment of graphite sheets. Strong, in-plane covalent bonds; weak secondary bonds between sheets (cf polymer structures).

  4. Carbon fibres seen under the electron microscope. Note the irregular surface. Fibre diameters are around 5 – 7 microns (thousandths of a mm).

  5. Glass fibres being drawn from the furnace. Molten glass emerges through a bushing – the rate of pulling determines the fibre diameter. Because the fibres are so small, they lose heat very quickly.

  6. The surface of a fractured composite, containing both carbon and glass fibres. Note the larger, smoother glass, and regions where fibres have been pulled out of the plastic matrix.

  7. steel aluminium heat-treated aluminium alloy heat-treated alloy steel

  8. Compare stiffness and strength per unit weight: Tensile strength / density Tensile modulus / density

  9. Nominal properties – ‘high strength’ carbon fibres tensile strength (GPa) tensile modulus (GPa)

  10. Nominal properties – ‘intermediate-high modulus’ carbon fibres

  11. ~ 0.02 mm • Young's Modulus (SWNT) ~ 1 TPa (1000 GPa) • Young's Modulus (MWNT) 1.28 TPa • Maximum Tensile Strength ~ 30 GPa (30,000 MPa)

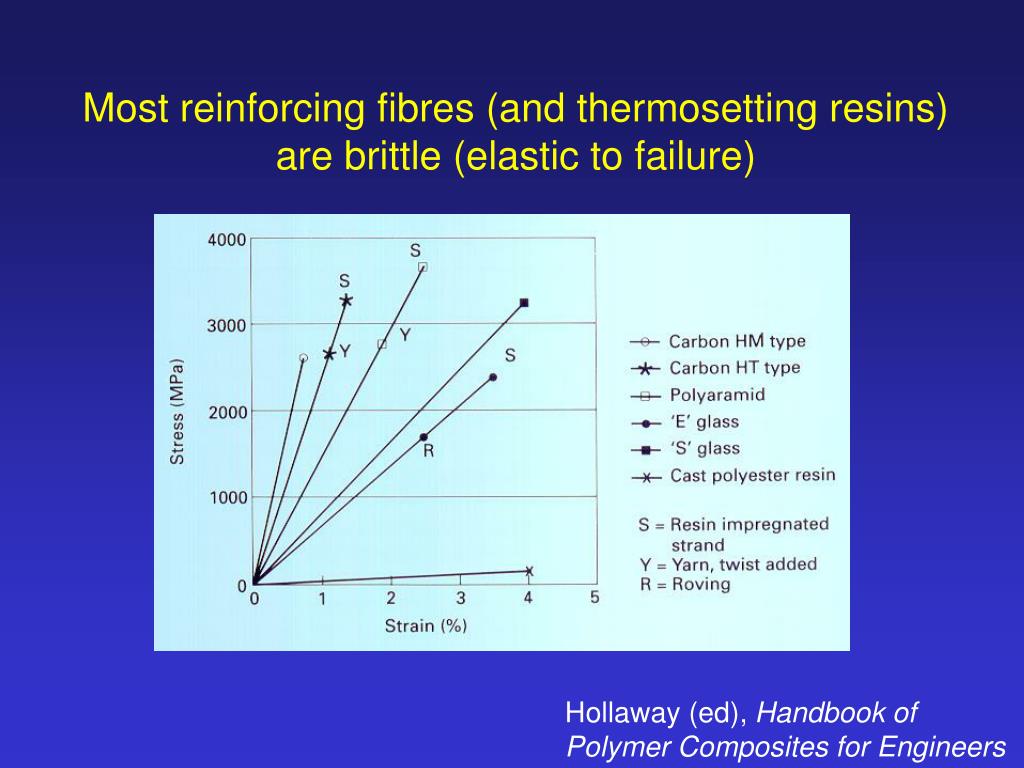

  12. Most reinforcing fibres (and thermosetting resins) are brittle (elastic to failure) Hollaway (ed), Handbook of Polymer Composites for Engineers

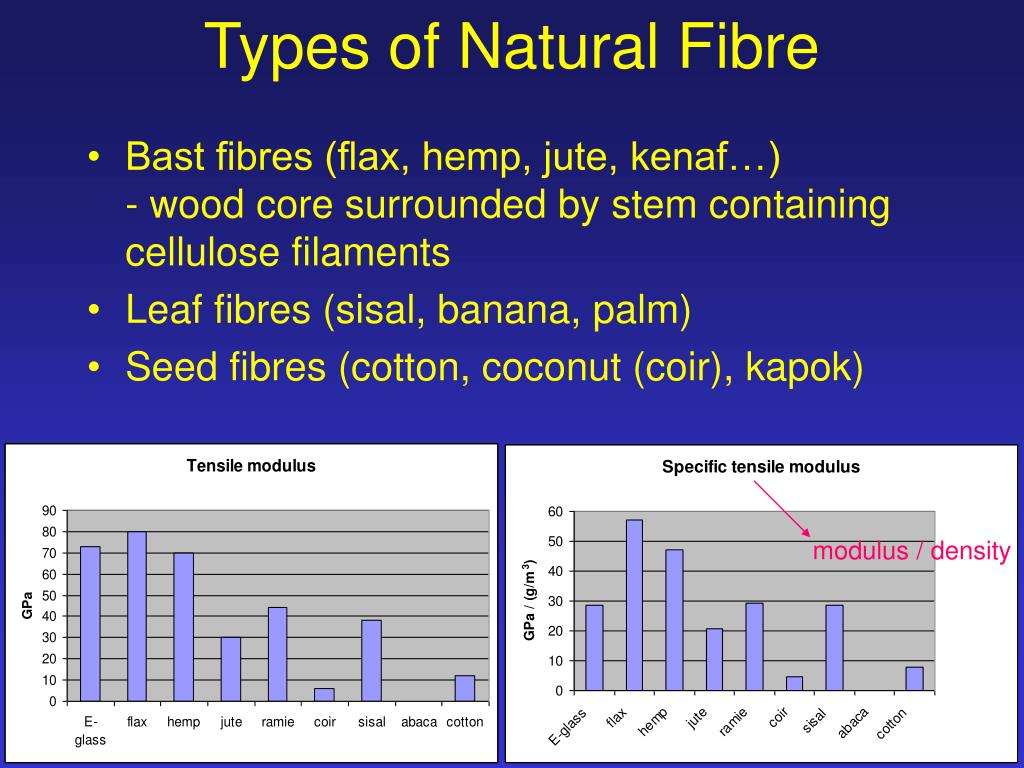

  13. Types of Natural Fibre • Bast fibres (flax, hemp, jute, kenaf…)- wood core surrounded by stem containing cellulose filaments • Leaf fibres (sisal, banana, palm) • Seed fibres (cotton, coconut (coir), kapok) modulus / density

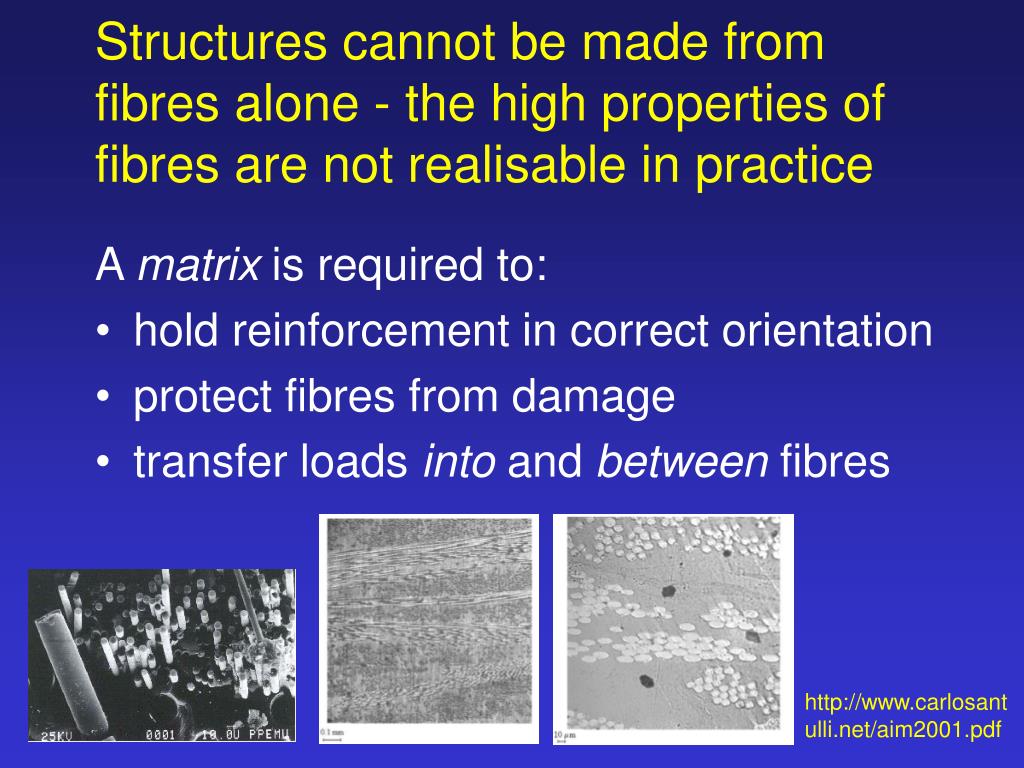

  14. Structures cannot be made from fibres alone - the high properties of fibres are not realisable in practice A matrix is required to: • hold reinforcement in correct orientation • protect fibres from damage • transfer loads into and between fibres http://www.carlosantulli.net/aim2001.pdf

  15. COMPOSITES - A FORMAL DEFINITION(Hull, 1981) 1. Consist of two or more physically distinct and mechanically separable parts. reinforcement(discontinuous phase) matrix (continuous phase) + fibres or particles short, ‘long’ or continuous

  16. Concrete - hard particles (gravel) + cement (ceramic/ceramic composite). Properties determined by particle size distribution, quantity and matrix formulation Additives and fillers in polymers: carbon black (conductivity, wear/heat resistance) aluminium trihydride (fire retardancy) glass or polymer microspheres (density reduction) chalk (cost reduction) Cutting tool materials and abrasives (alumina, SiC, BN bonded by glass or polymer matrix; diamond/metal matrix) Electrical contacts (silver/tungsten for conductivity and wear resistance) Cast aluminium with SiC particles Examples of particulate composites

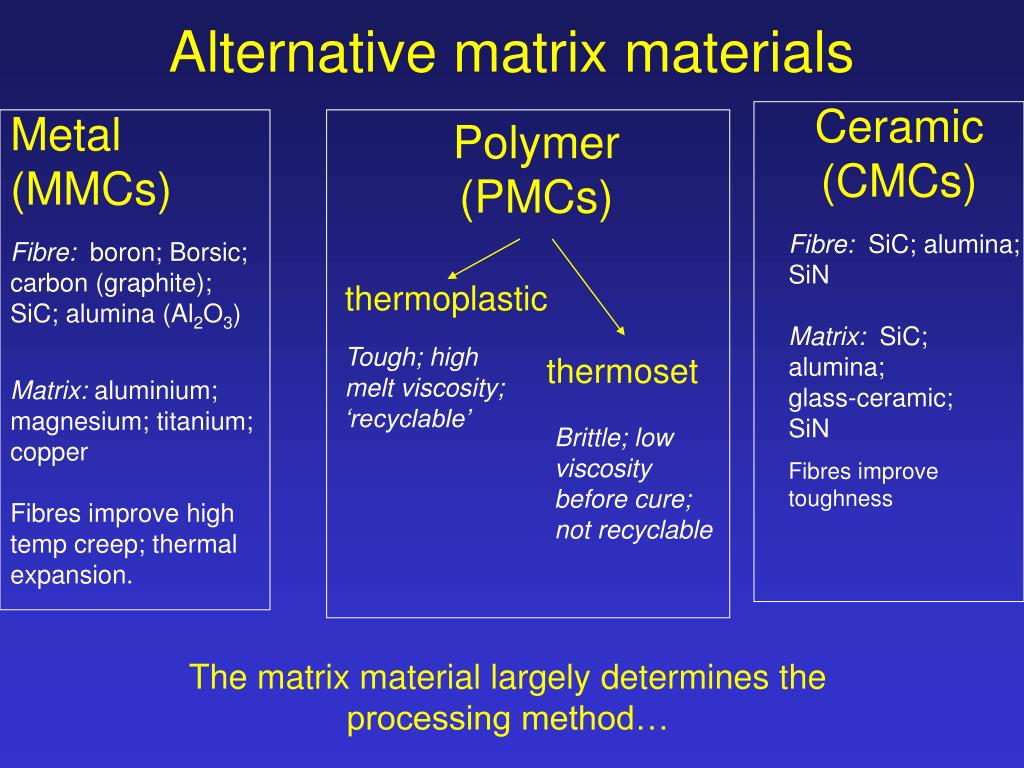

  17. Alternative matrix materials Ceramic(CMCs) Metal (MMCs) Polymer(PMCs) Fibre: SiC; alumina; SiN Matrix: SiC;alumina;glass-ceramic;SiN Fibres improve toughness Fibre: boron; Borsic; carbon (graphite); SiC; alumina (Al2O3) Matrix: aluminium; magnesium; titanium; copper Fibres improve high temp creep; thermal expansion. thermoplastic thermoset Tough; high melt viscosity; ‘recyclable’ Brittle; low viscosity before cure; not recyclable The matrix material largely determines the processing method…

  18. Composite property might be only 10% of the fibre property:

  19. COMPOSITES - A FORMAL DEFINITION(Hull, 1981) 1. Consist of two or more physically distinct and mechanically separable parts. 2. Constituents can be combined in a controlled way to achieve optimum properties.

  20. COMPOSITES - A FORMAL DEFINITION(Hull, 1981) 1. Consist of two or more physically distinct and mechanically separable parts. 2. Constituents can be combined in a controlled way to achieve optimum properties. 3. Properties are superior, and possibly unique, compared those of the individual components

  21. Addition of properties: GLASS + POLYESTER = GRP (strength) (chemical resistance) (strength and chemical resistance) Unique properties: GLASS + POLYESTER = GRP (brittle) (brittle) (tough!)

  22. Aerospace, defence, F1… Highly stressed Glass, carbon, aramid fibres Honeycomb cores Epoxy, bismaleimide… Prepregs Vacuum bag/oven/autoclave Highly tested and qualified materials Marine, building… Lightly stressed Glass (random and woven) Foam cores Polyester, vinylester… Wet resins Hand lay up, room temperature cure Limited range of lower performance materials ADVANCED COMPOSITES vs REINFORCED PLASTICS

  23. Why are composites used in engineering? • Weight saving (high specific properties) • Corrosion resistance • Fatigue properties • Manufacturing advantages:- reduced parts count- novel geometries- low cost tooling • Design freedoms- continuous property spectrum- anisotropic properties

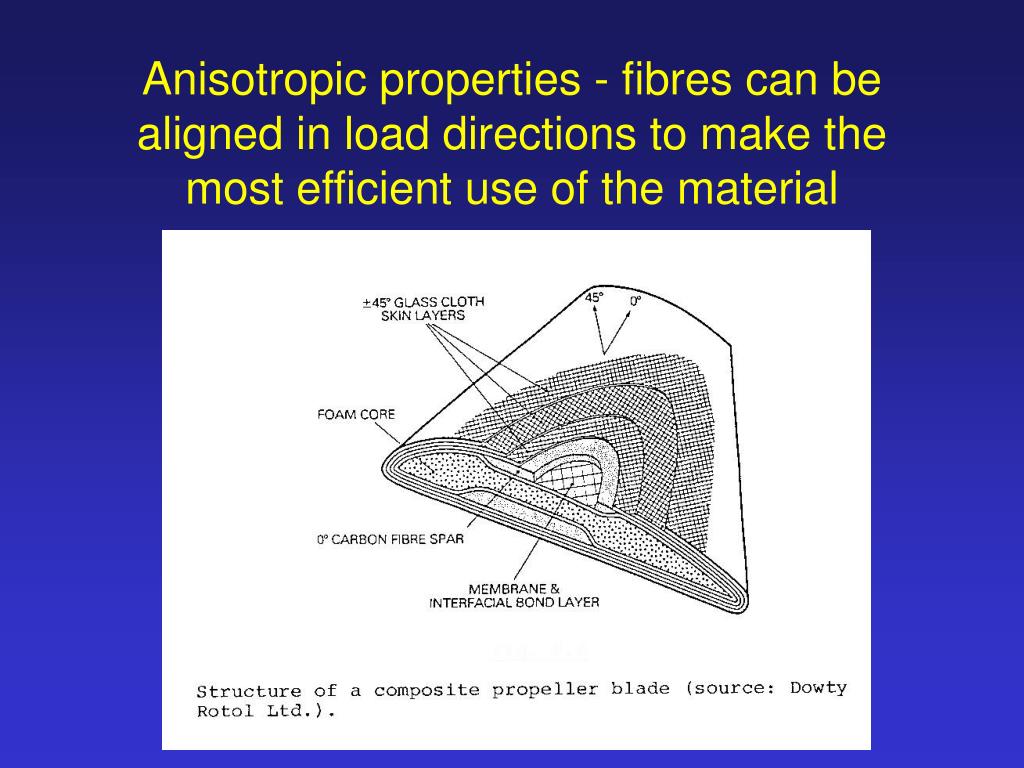

  24. Anisotropic properties - fibres can be aligned in load directions to make the most efficient use of the material

  25. Why aren’t composites used more in engineering? • High cost of raw materials • Lack of design standards • Few ‘mass production’ processes available • Properties of laminated composites:- low through-thickness strength- low interlaminar shear strength • No ‘off the shelf’ properties - performance depends on quality of manufacture

  26. There are no ‘off the shelf’ properties with composites. Both the structure and the material are made at the same time. Material quality depends on quality of manufacture.

  27. Metal (steel, aluminium, titanium, magnesium…)Composite (carbon fibre / epoxy)?

  28. Aluminium or composite? 2005: Airbus engineers are claiming Boeing has rushed the development of the 7E7 Dreamliner. In particular, they say composite technology is not mature enough to build an all-composite fuselage. But the claims may be no more than a marketing ploy, in response to Boeing's criticism of weight overruns on the Airbus A380.

  29. SEATTLE, Jan. 11, 2005 – Boeing recently completed the first full-scale composite one-piece fuselage section for its new 7E7 Dreamliner program, demonstrating concepts for 7E7 production that begins next year. The structure, 7 m long and nearly 6 m wide, is the 7E7's first major development piece. "This is a piece of aviation history," said Walt Gillette, Boeing vice president of Engineering, Manufacturing and Partner Alignment. "Nothing like this is already in production. Hundreds of aerospace experts from Boeing and our partners developed everything, including the design, tools that served as the mold, programming for the composite lay-down, and tools that moved the structure into the autoclave." He added that using composites "allowed us to create optimized structural designs and develop an efficient production process. We now see how all advanced airplanes will be built from this time forward."

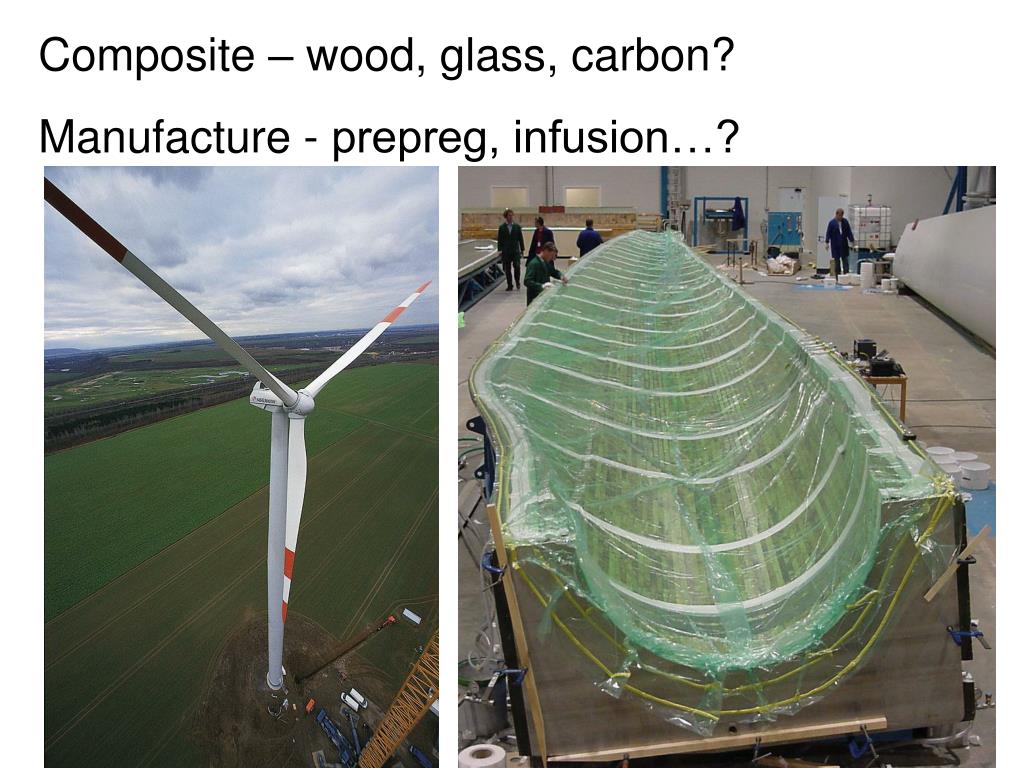

  30. Composite – wood, glass, carbon? Manufacture - prepreg, infusion…?

  31. ADVANTAGES OF COMPOSITES(for construction applications) Aesthetic appeal Ability to mould complex shapes Various surface finishes available Lightweight Durability / Corrosion resistance Parts integration Cost effectiveness Electrical properties

  32. POSSIBLE APPLICATIONS(in construction) Roofs / canopies Complete buildings Cladding panels Masts & towers Domes Unusual architectural features / structures Radomes Permanent or temporary formwork Strengthening / repair of conventional structures Tanks, covers, pipes, ducts etc

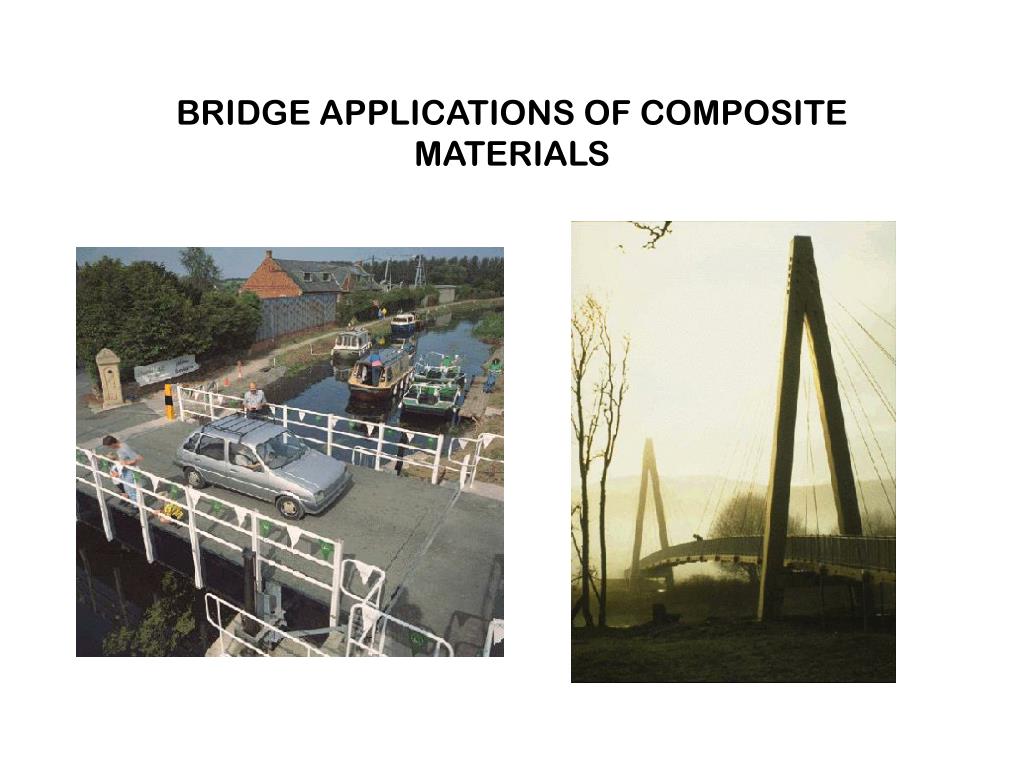

  33. BRIDGE APPLICATIONS OF COMPOSITE MATERIALS

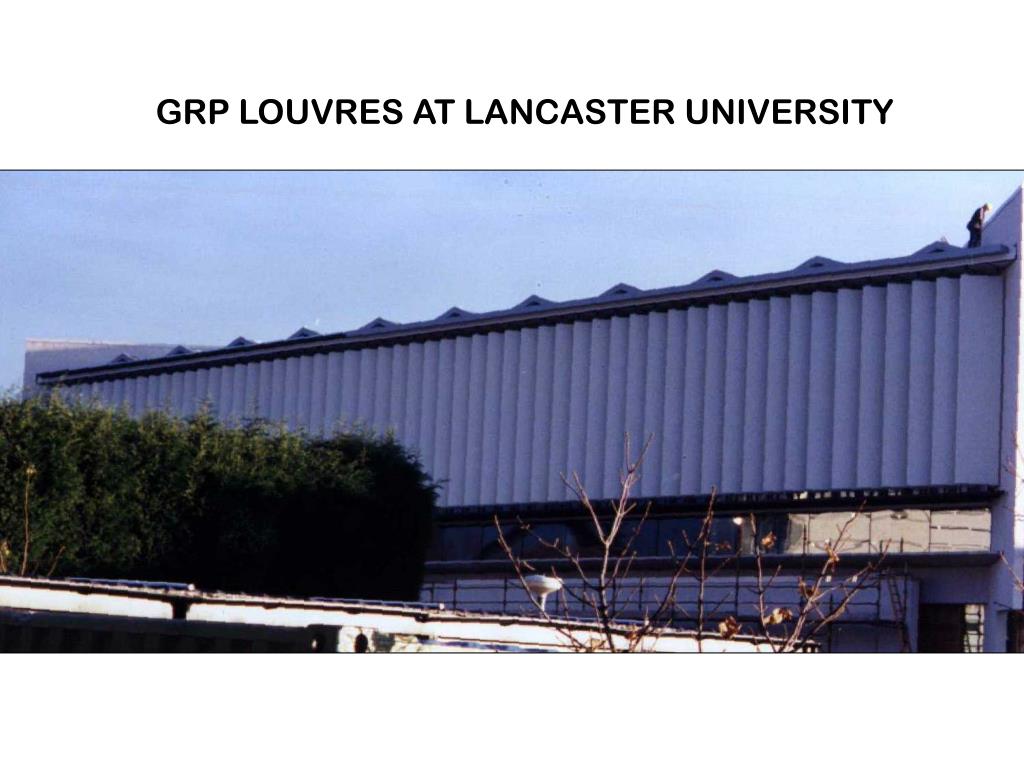

  34. GRP LOUVRES AT LANCASTER UNIVERSITY

  35. HARARE INTERNATIONAL AIRPORTARCHITECTURAL GRP STRUCTURE ON THE TOP OF THE AIR TRAFFIC CONTROL TOWER

  36. FRPMOSQUEDOMES PHOTOS COURTESY OF NORTHSHORE COMPOSITES

  37. MILLENNIUM DOMEHOME PLANET ZONE

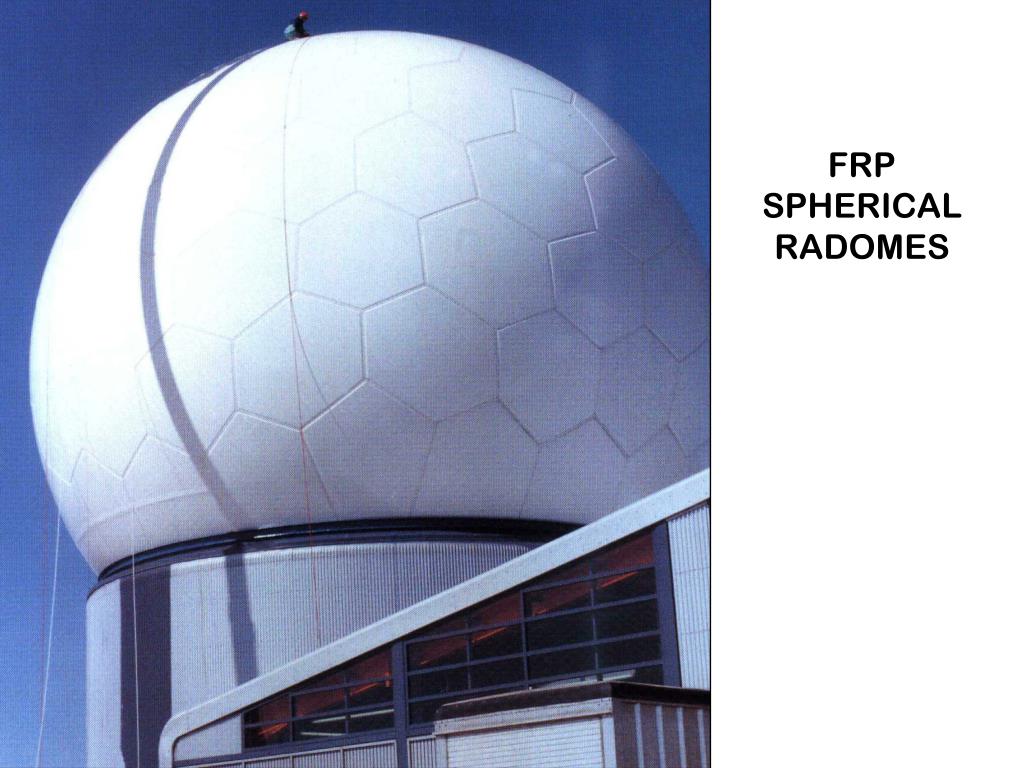

  38. FRPSPHERICAL RADOMES

  39. FRP CYLINDRICAL RADOMES

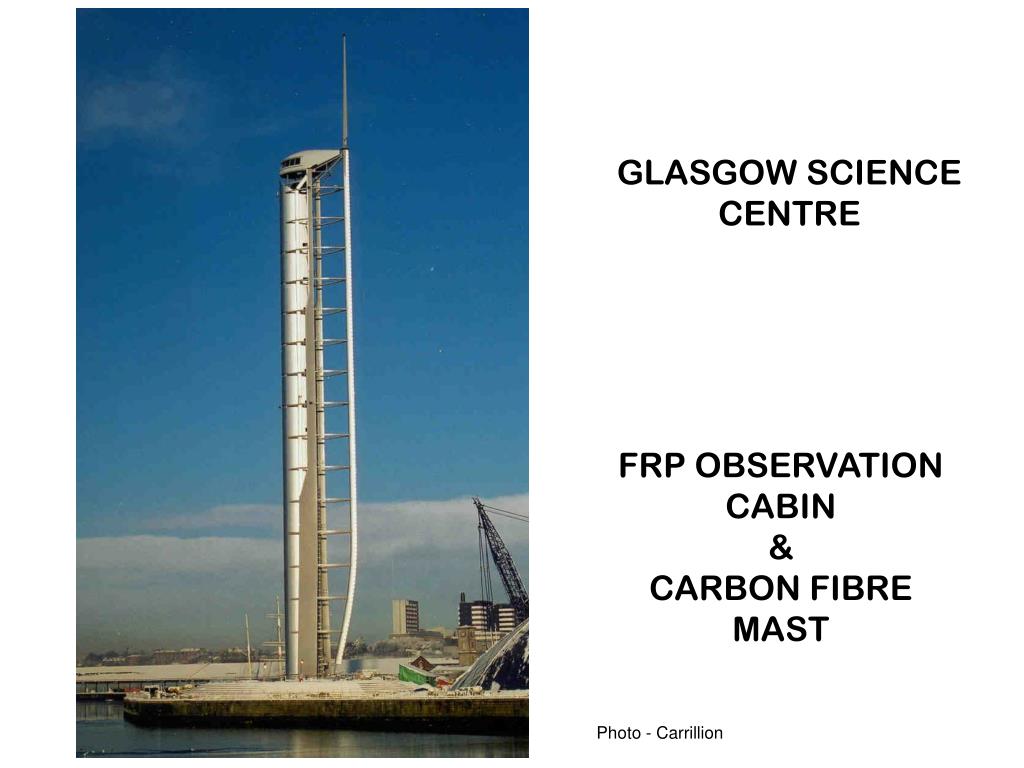

  40. FRP OBSERVATION CABIN & CARBON FIBREMAST GLASGOW SCIENCE CENTRE Photo - Carrillion

  41. GLASGOW SCIENCE CENTREOBSERVATION CABIN

  42. CABIN MANUFACTURE

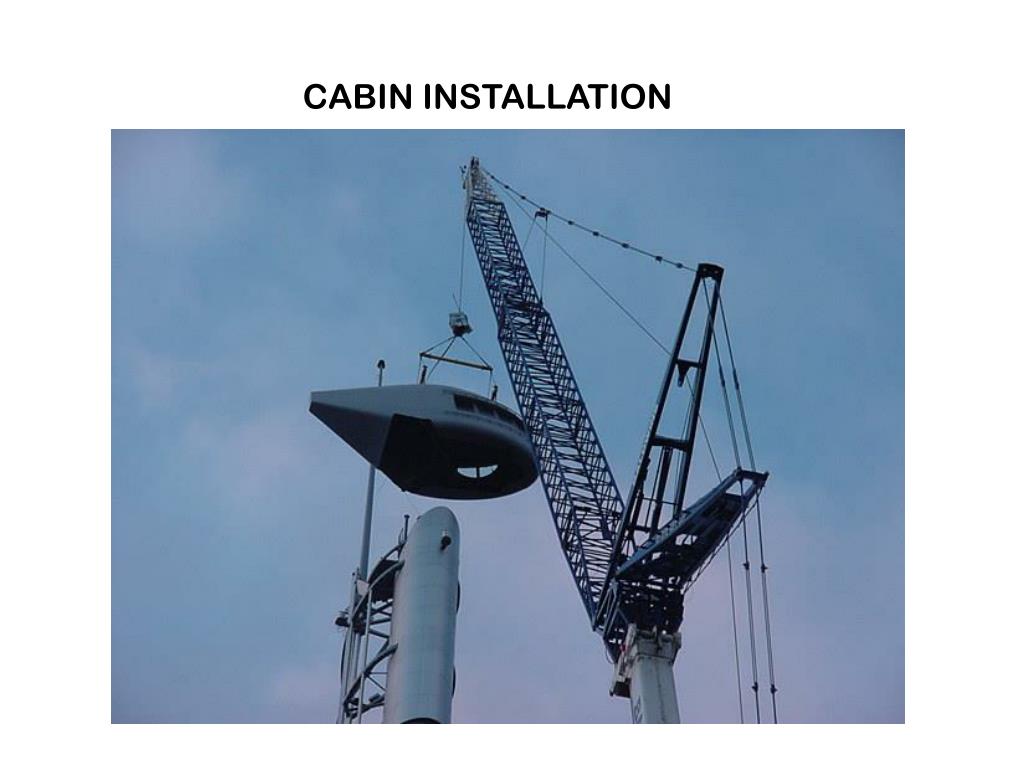

  43. CABIN INSTALLATION

  44. CONCRETE COLUMN REINFORCEMENT

  45. FRP LIGHTSTATIONS

  46. FRP BRIDGE ENCLOSURES
