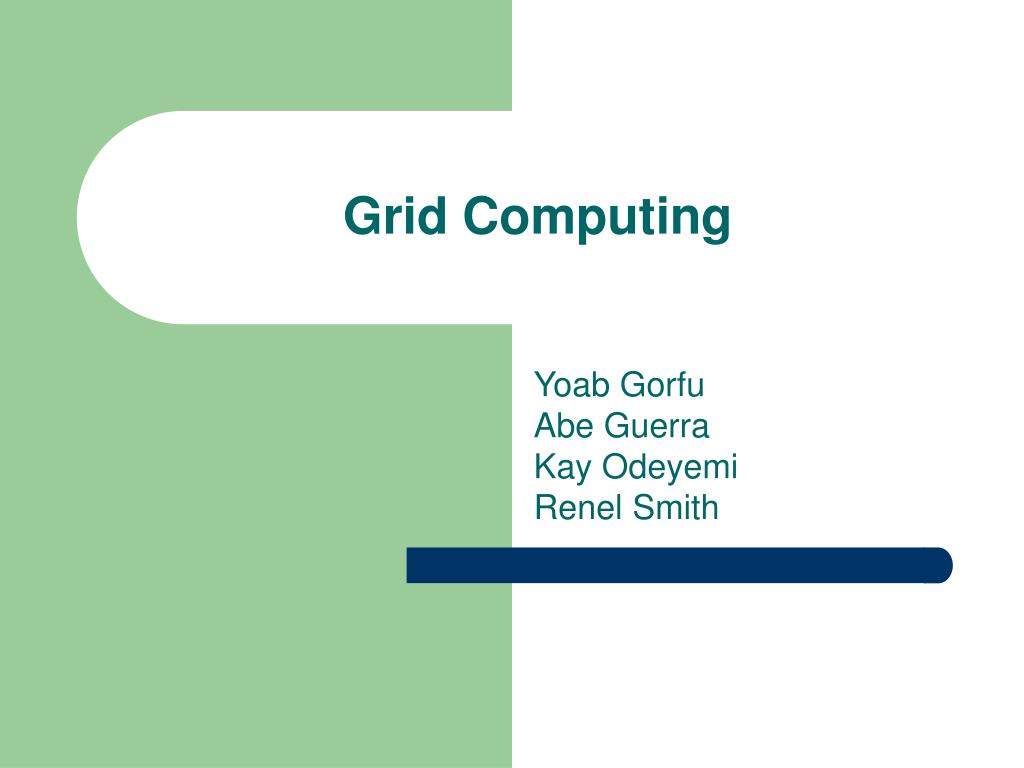

  1. Grid Computing Yoab Gorfu Abe Guerra Kay Odeyemi Renel Smith

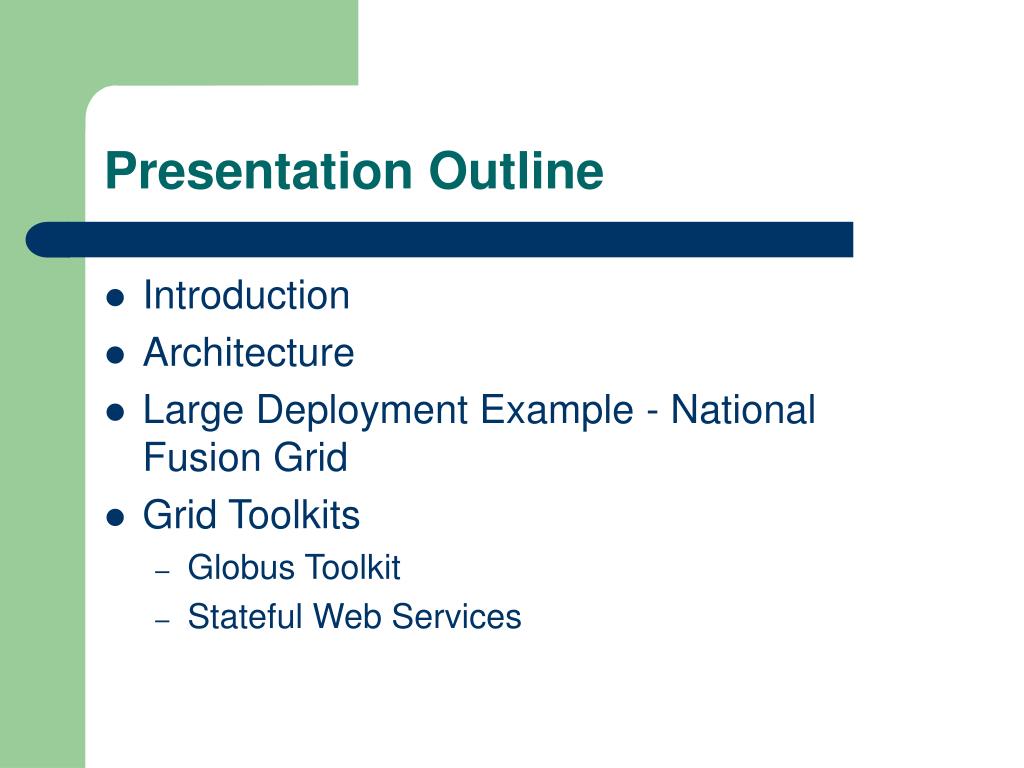

  2. Presentation Outline • Introduction • Architecture • Large Deployment Example - National Fusion Grid • Grid Toolkits • Globus Toolkit • Stateful Web Services

  3. Introduction • “A computational grid is a hardware and software infrastructure that provides dependable, consistent, pervasive, and inexpensive access to high-end computational capabilities.” • Criteria for a Grid • Coordinates resources that are not subject to centralized control. • Uses standard, open, general-purpose protocols and interfaces. • Delivers nontrivial qualities of service.

  4. Introduction • ‘Grid Problem’ - ‘coordinated resource sharing and problem solving in dynamic, multi-institutional virtual organizations’ [1] • Virtual Organizations (VOs) • Vary dramatically • Core set of requirements

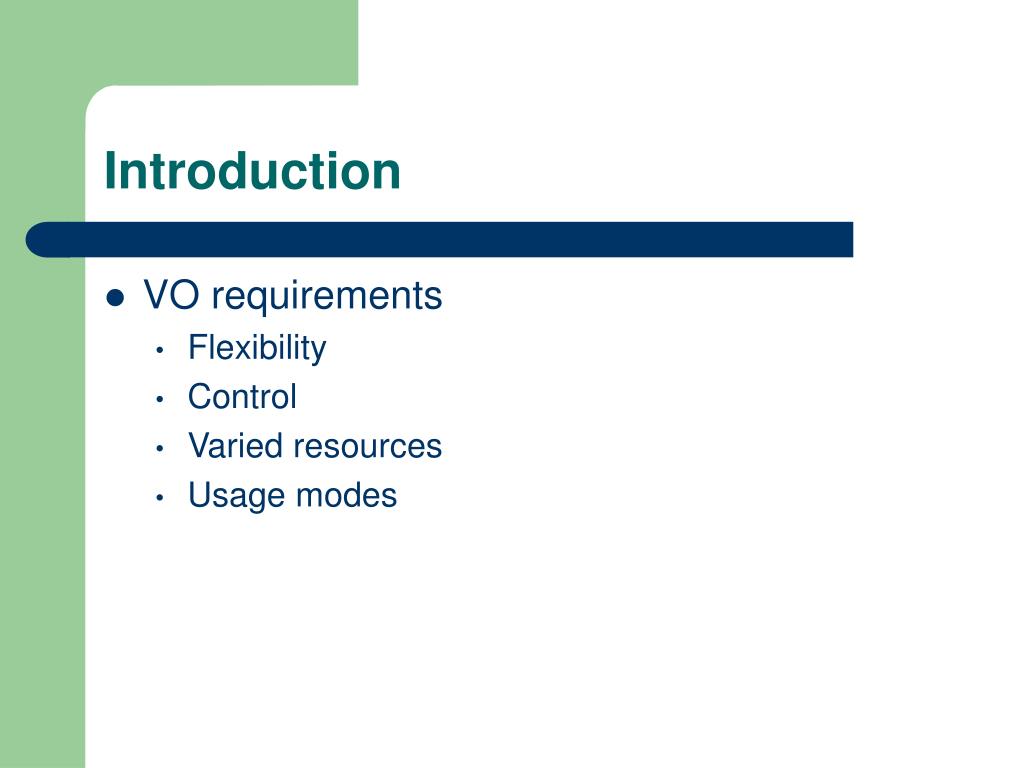

  5. Introduction • VO requirements • Flexibility • Control • Varied resources • Usage modes

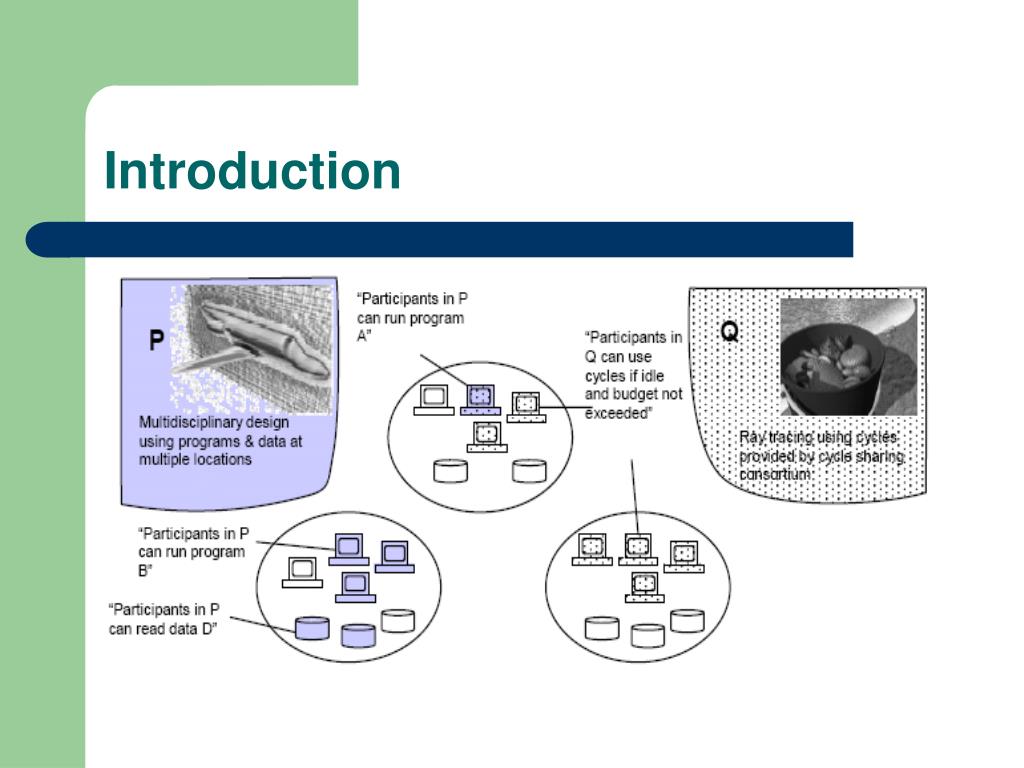

  6. Introduction

  7. Introduction • Grid Computing Benefits: • Exploit underutilized resources • Resource balancing • Virtualize resources across an enterprise • Enable collaboration for virtual organizations

  8. Companies involved in Grid Computing • Avaki • Axceleon • CapCal • Centrata • DataSynapse • Distributed Science • Elepar • Entropia.com • Grid Frastructure • GridSystems • Groove Networks • IBM • Intel • Jivalti • Mithral • Mind Electric • Mojo Nation • NewsToYou.com • NICE, Italy • Noemix, Inc. • Oracle • Parabon • Platform Computing • Popular Power • Powerllel • ProcessTree • Sharman Networks Kazza • Sun Gridware • Sysnet Solutions • Tsunami Research • Ubero • United Devices • Veritas • Xcomp Source: http://www.gridcomputing.com/

  9. Computation Grid Projects • Particle Physics –global sharing of data and computation • Astronomy –‘Virtual Observatory' for multi-wavelength astrophysics • Chemistry –remote control of equipment and electronic logbooks • Engineering –industrial healthcare and virtual organizations • Bioinformatics –data integration, knowledge discovery and workflow • Healthcare –sharing normalized mammograms • Environment –Ocean, weather, climate modeling, sensor networks

  10. Grid Architecture • Protocol architecture • Standards-based open architecture offers: • Interoperability • Services • API flexibility

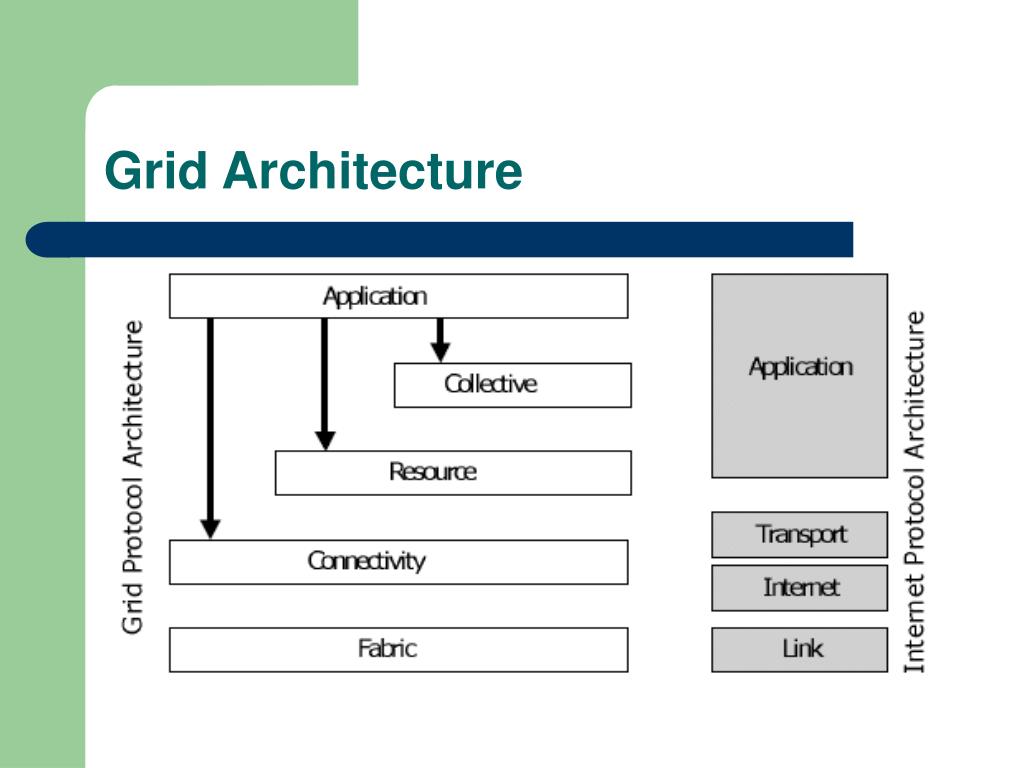

  11. Grid Architecture

  12. Grid Architecture • Fabric Layer – ‘provides the resources to which shared access is mediated by Grid protocols’ • Resource-specific operations • Functionality vs. simplicity

  13. Grid Architecture • Fabric layer should provide: • Enquiry mechanisms • Resource management mechanisms

  14. Grid Architecture • Connectivity Layer – ‘defines core communication and authentication protocols required for Grid-specific network transactions’ • Data exchange • Verification

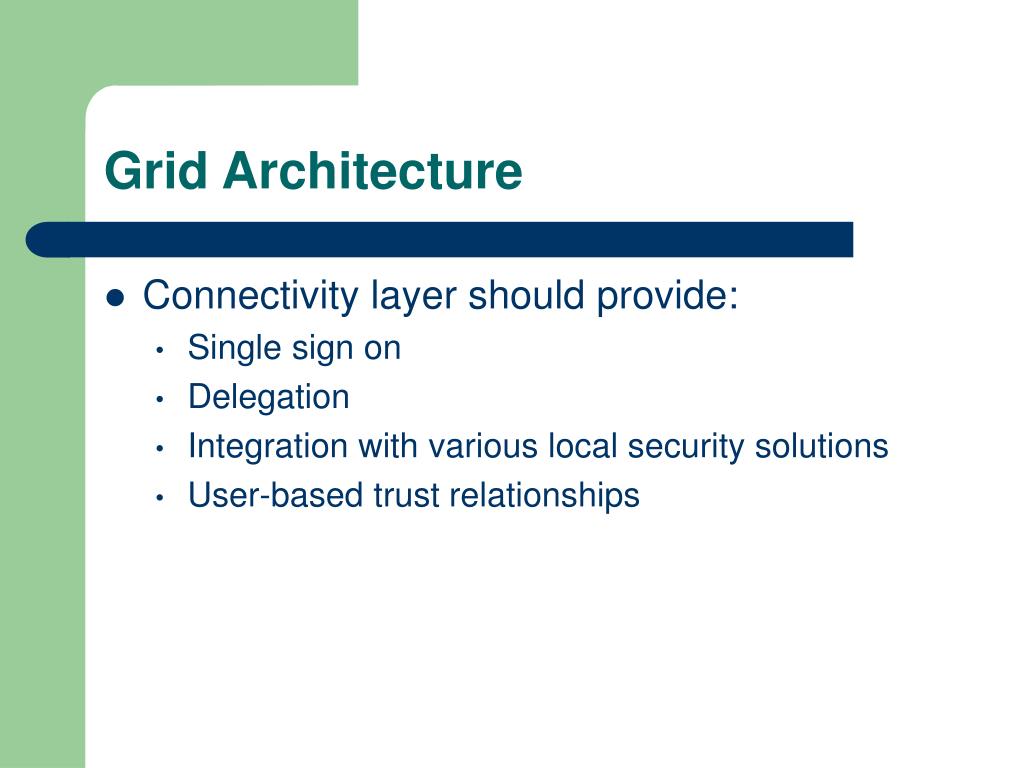

  15. Grid Architecture • Connectivity layer should provide: • Single sign on • Delegation • Integration with various local security solutions • User-based trust relationships

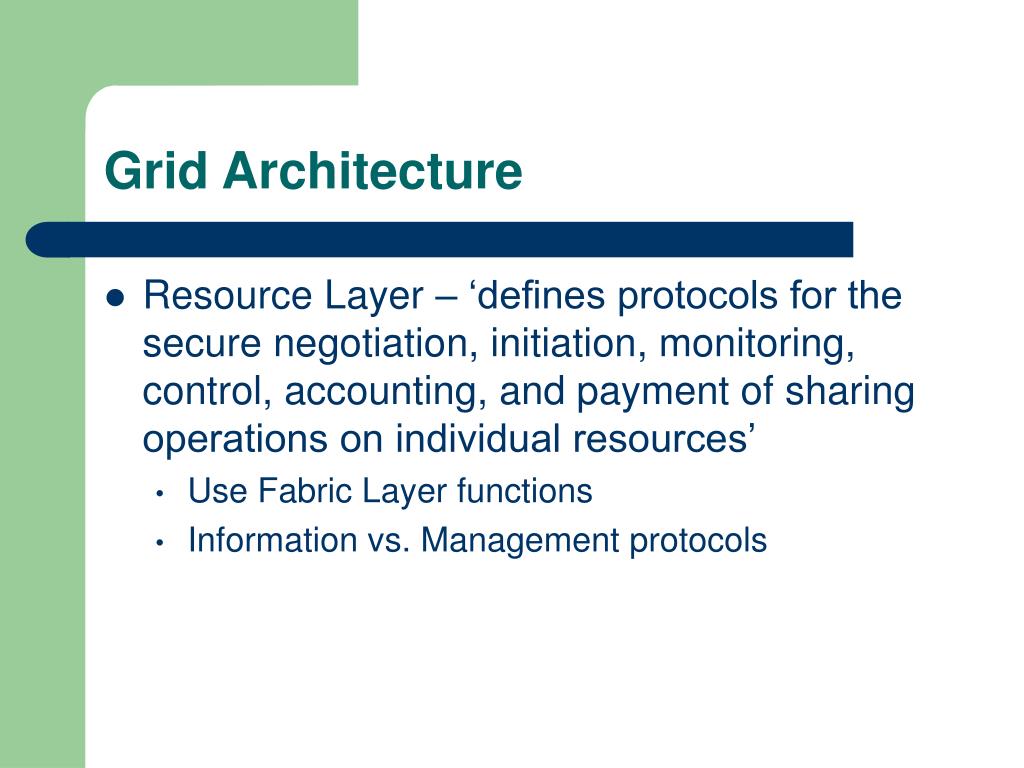

  16. Grid Architecture • Resource Layer – ‘defines protocols for the secure negotiation, initiation, monitoring, control, accounting, and payment of sharing operations on individual resources’ • Use Fabric Layer functions • Information vs. Management protocols

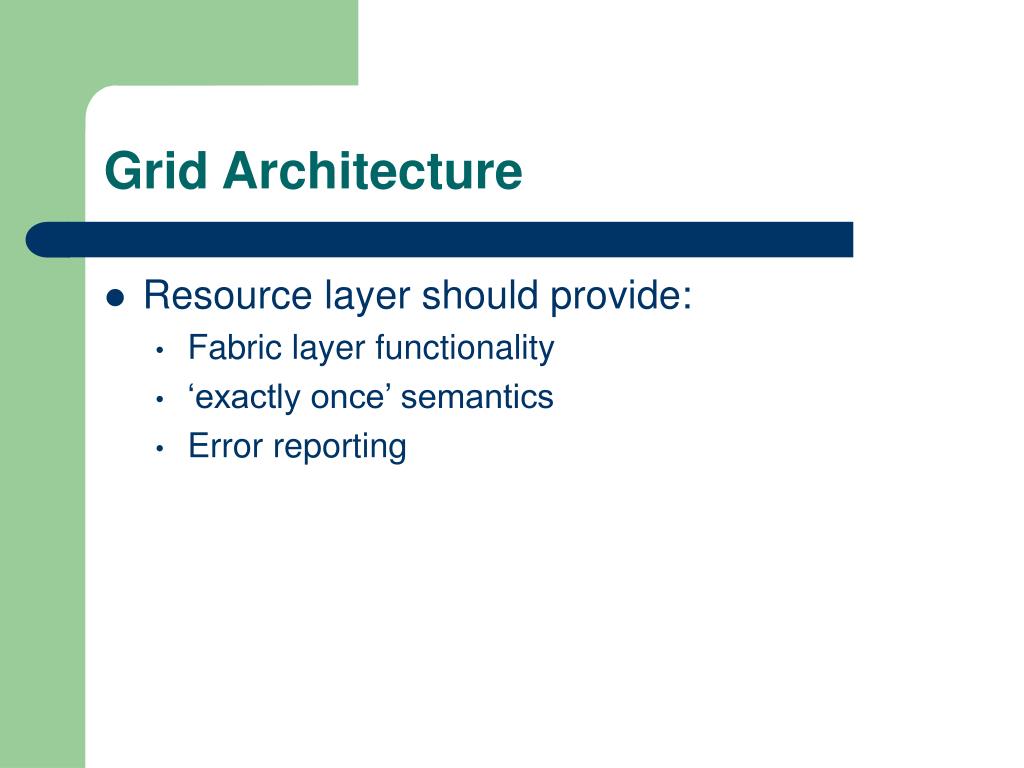

  17. Grid Architecture • Resource layer should provide: • Fabric layer functionality • ‘exactly once’ semantics • Error reporting

  18. Grid Architecture • Collective Layer – ‘contains protocols and services which capture interactions across collections of resources’ • General vs. specific purpose

  19. Grid Architecture • Collective layer could provide: • Software discovery services • Community accounting and payment services • Collaboratory services

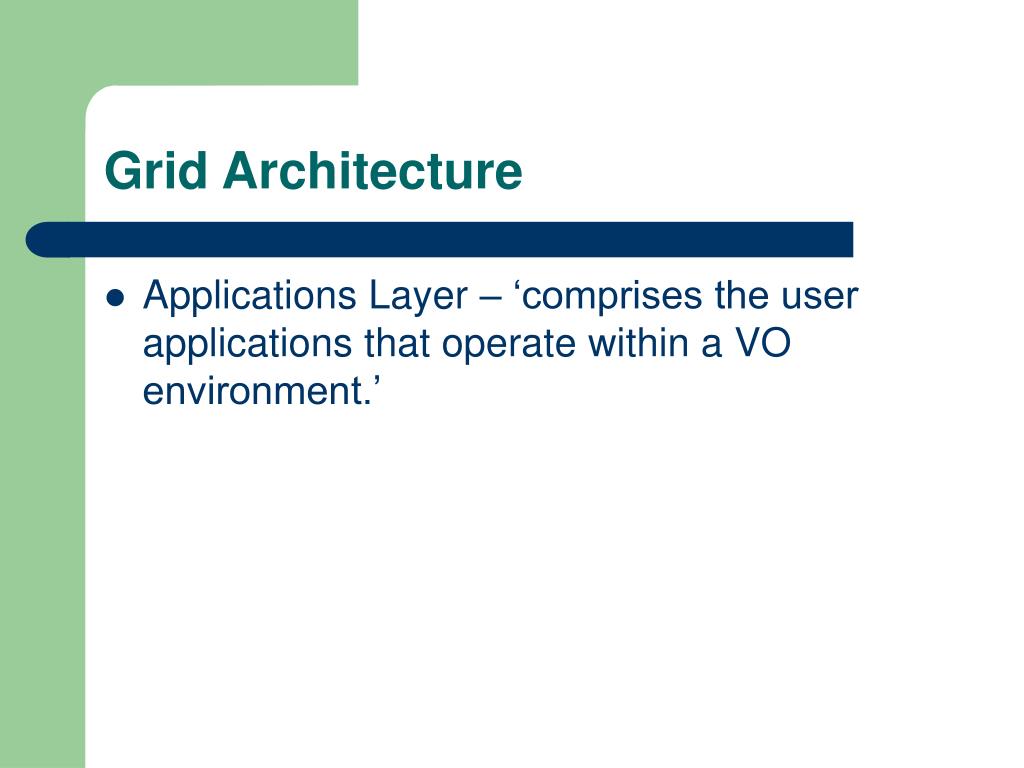

  20. Grid Architecture • Applications Layer – ‘comprises the user applications that operate within a VO environment.’

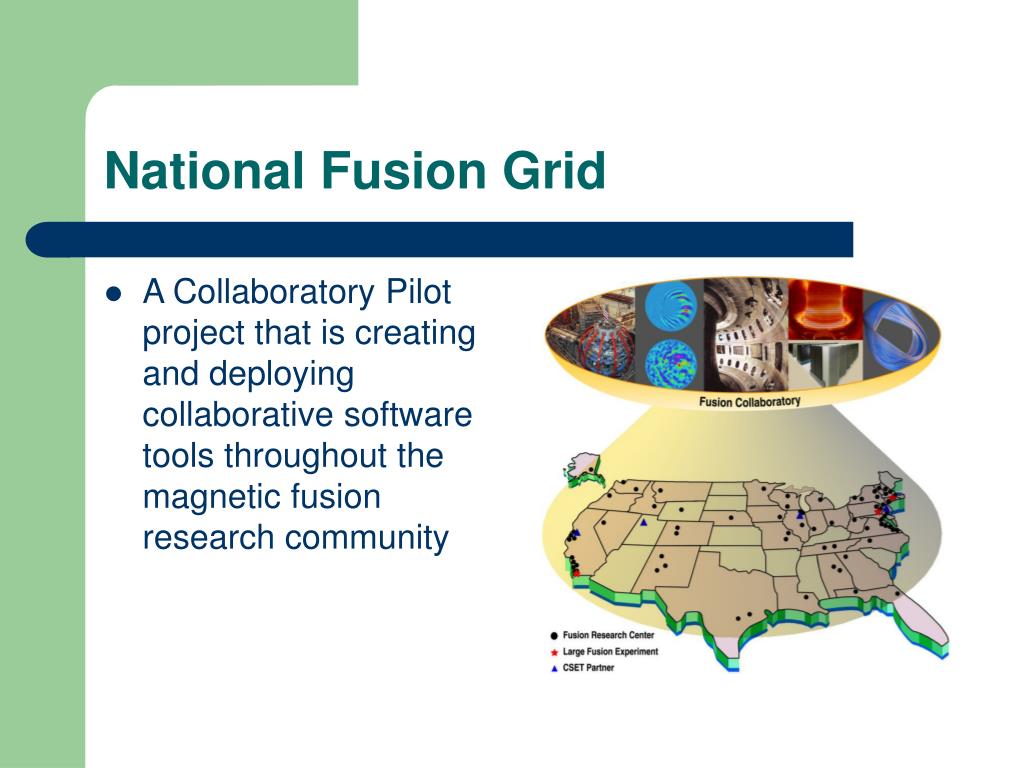

  21. National Fusion Grid • A Collaboratory Pilot project that is creating and deploying collaborative software tools throughout the magnetic fusion research community

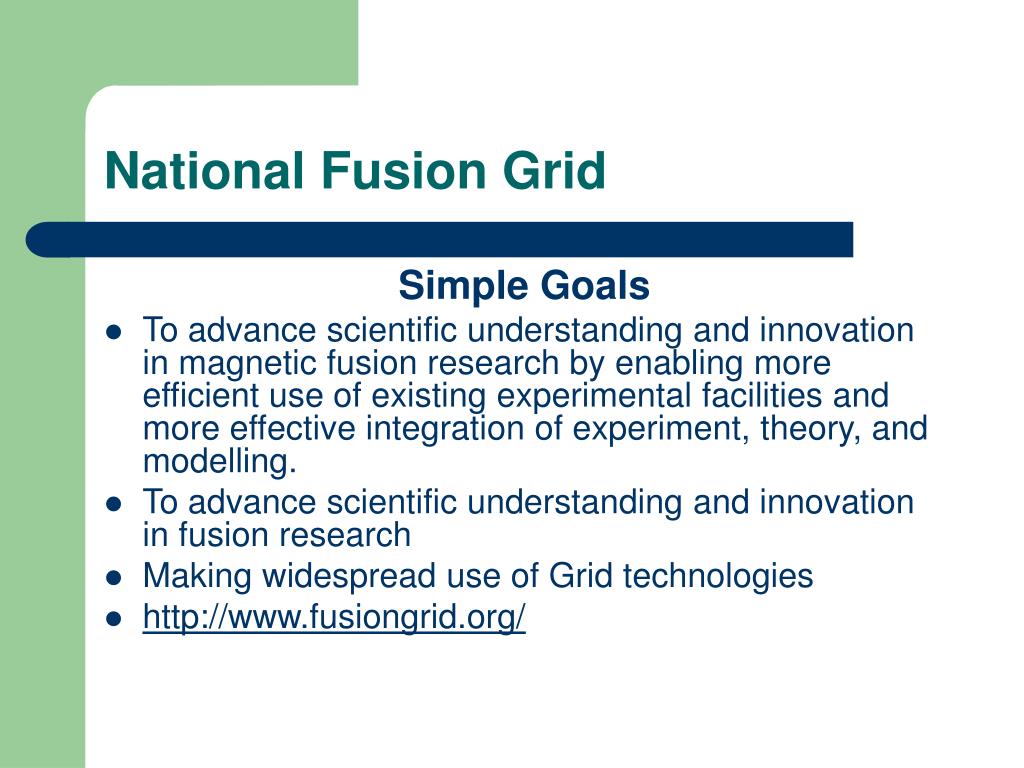

  22. National Fusion Grid Simple Goals • To advance scientific understanding and innovation in magnetic fusion research by enabling more efficient use of existing experimental facilities and more effective integration of experiment, theory, and modelling. • To advance scientific understanding and innovation in fusion research • Making widespread use of Grid technologies • http://www.fusiongrid.org/

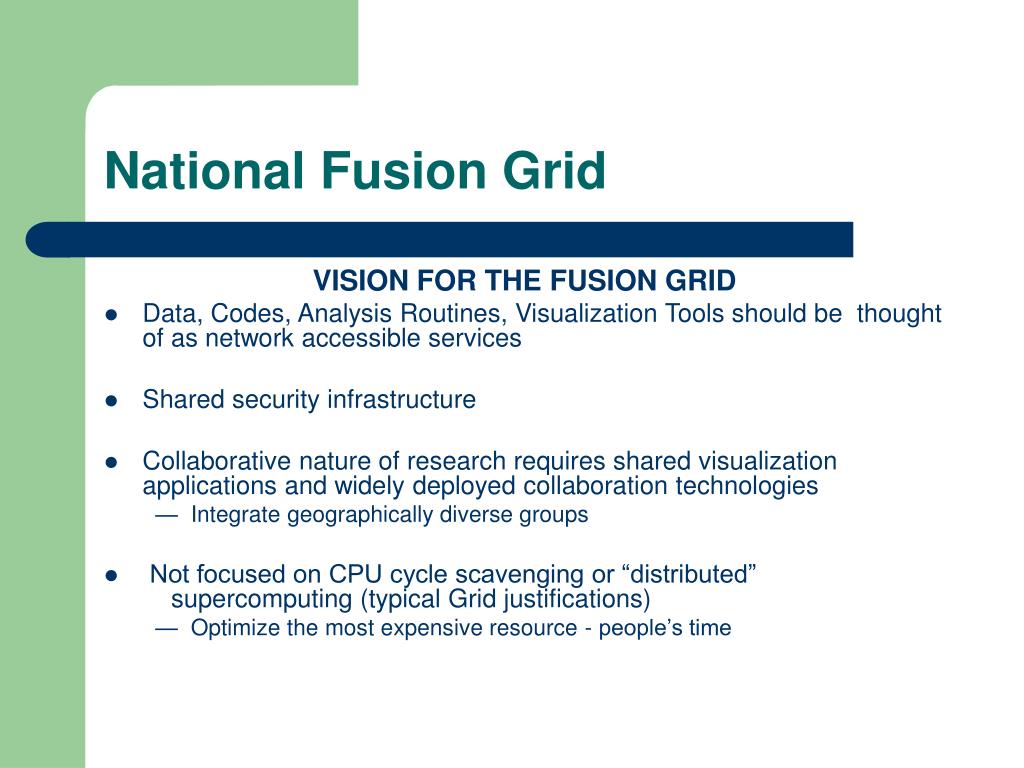

  23. National Fusion Grid VISION FOR THE FUSION GRID • Data, Codes, Analysis Routines, Visualization Tools should be thought of as network accessible services • Shared security infrastructure • Collaborative nature of research requires shared visualization applications and widely deployed collaboration technologies — Integrate geographically diverse groups • Not focused on CPU cycle scavenging or “distributed” supercomputing (typical Grid justifications) — Optimize the most expensive resource - people’s time

  24. National Fusion Grid • The problems of data sharing and rapid data analysis the National Fusion Collaboratory community adopted: • a common data acquisition and management system • common relational database run-management schema

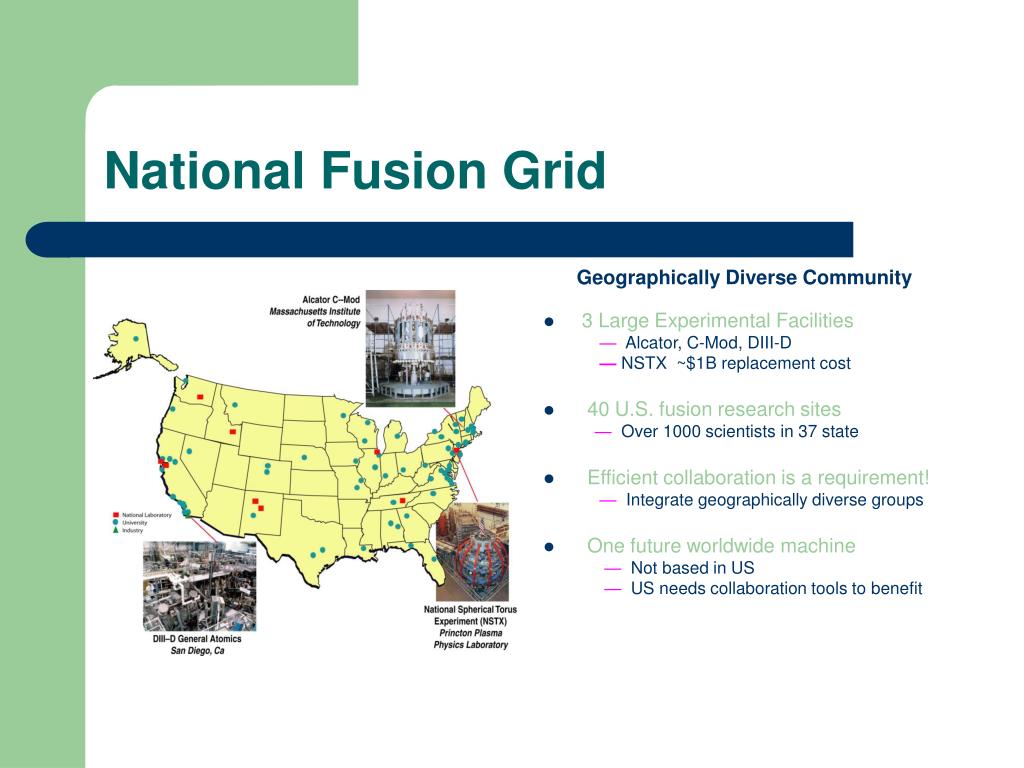

  25. National Fusion Grid Geographically Diverse Community • 3 Large Experimental Facilities — Alcator, C-Mod, DIII-D — NSTX  ~$1B replacement cost • 40 U.S. fusion research sites — Over 1000 scientists in 37 state • Efficient collaboration is a requirement! — Integrate geographically diverse groups • One future worldwide machine — Not based in US — US needs collaboration tools to benefit

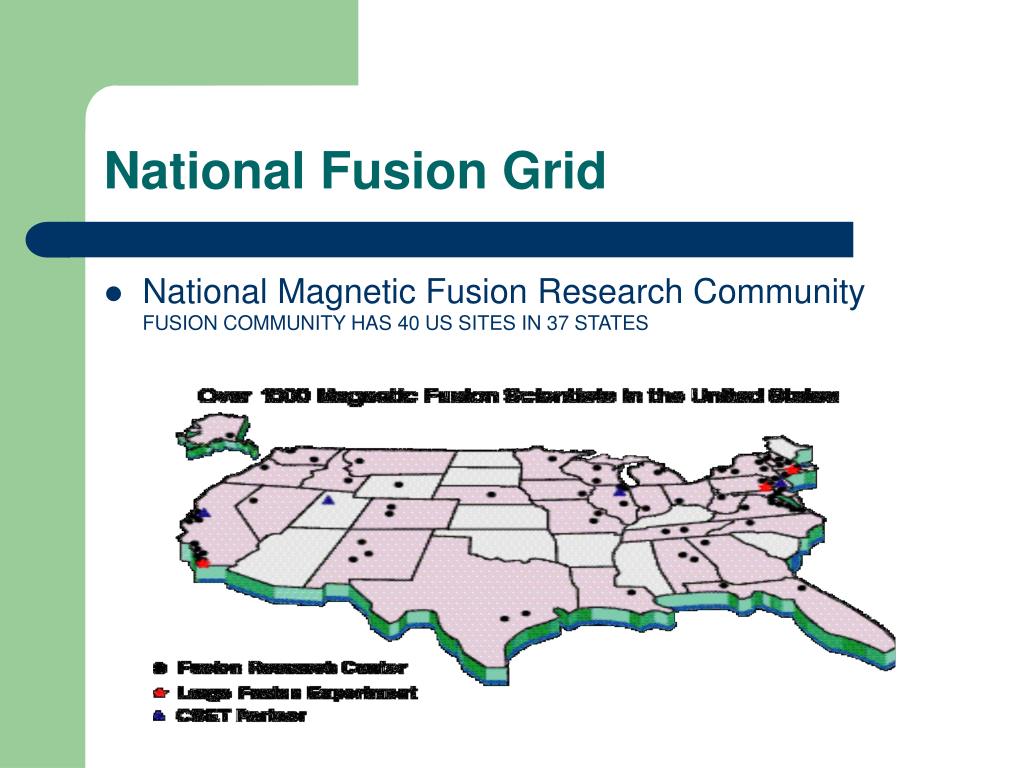

  26. National Fusion Grid • National Magnetic Fusion Research Community FUSION COMMUNITY HAS 40 US SITES IN 37 STATES

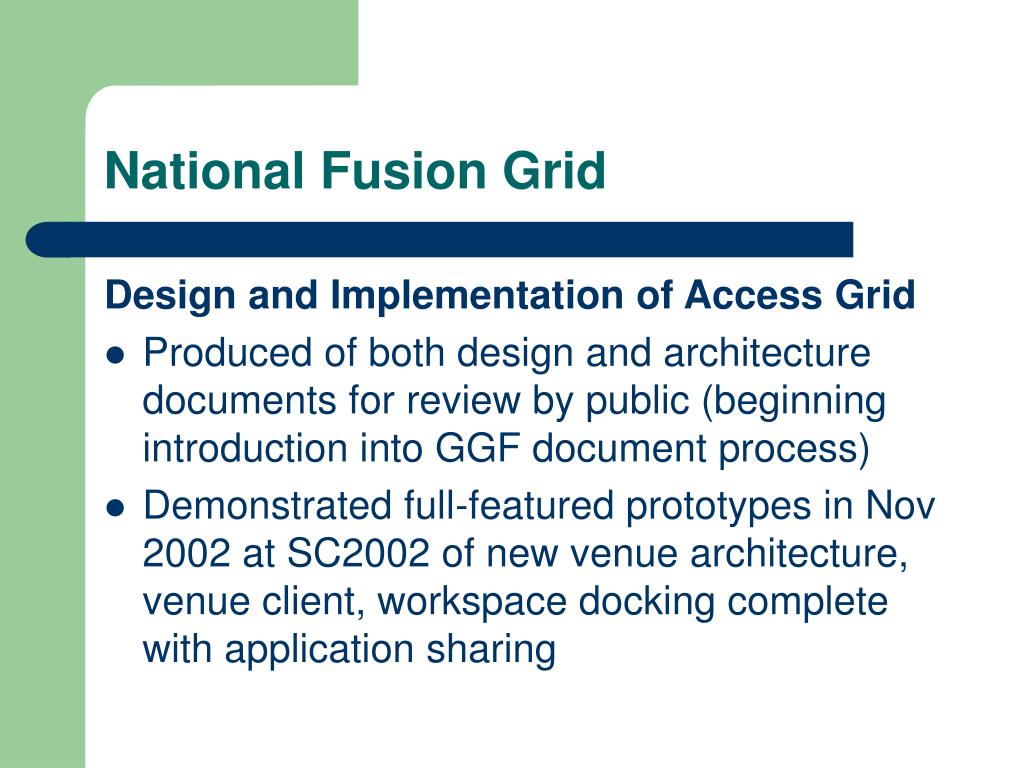

  27. National Fusion Grid Design and Implementation of Access Grid • Produced of both design and architecture documents for review by public (beginning introduction into GGF document process) • Demonstrated full-featured prototypes in Nov 2002 at SC2002 of new venue architecture, venue client, workspace docking complete with application sharing

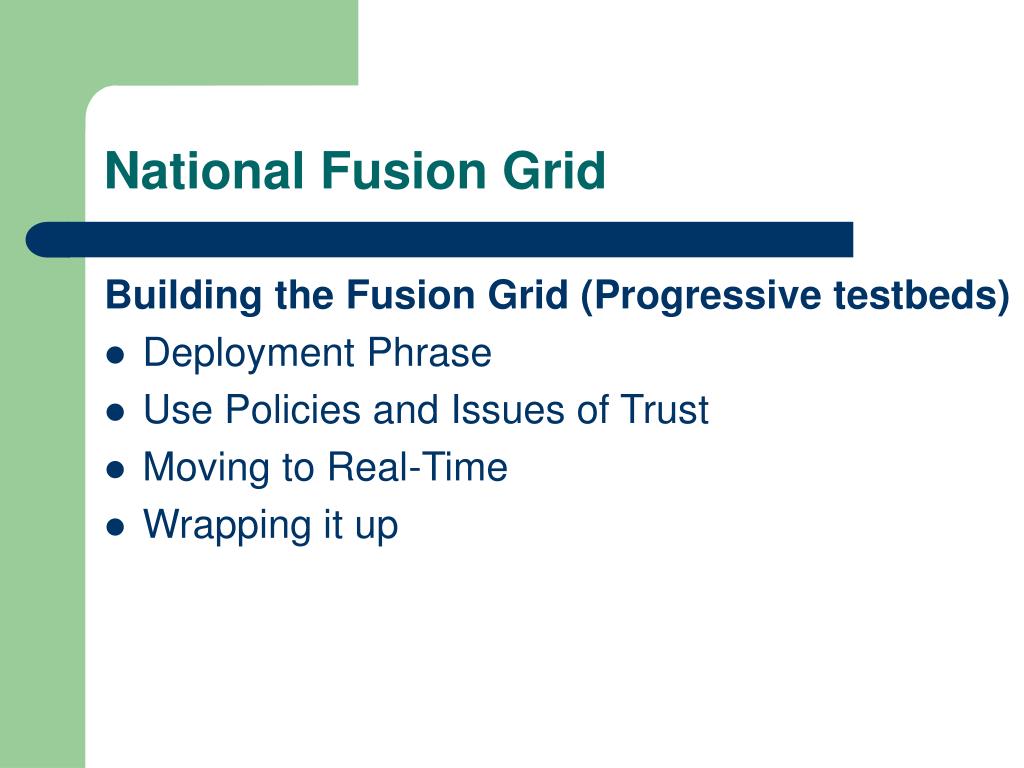

  28. National Fusion Grid Building the Fusion Grid (Progressive testbeds) • Deployment Phrase • Use Policies and Issues of Trust • Moving to Real-Time • Wrapping it up

  29. Globus & the Globus Toolkit • Globus • Open source community focused on Grid computing • Globus Toolkit • Started in the late 1990’s to address common Grid application problems • … found at www.globus.org • Includes • A set of services focused on infrastructure management • Tools for building new Web services, in Java, C, and Python • Standards-based security infrastructure • Client APIs and command line programs

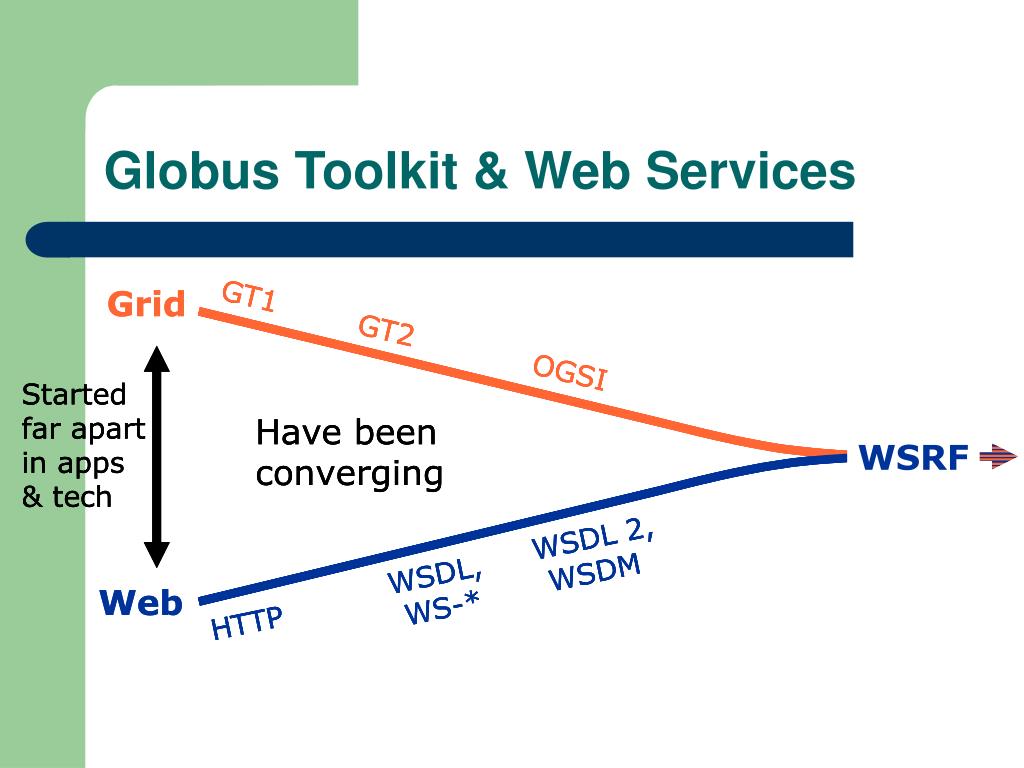

  30. Globus Toolkit & Web Services

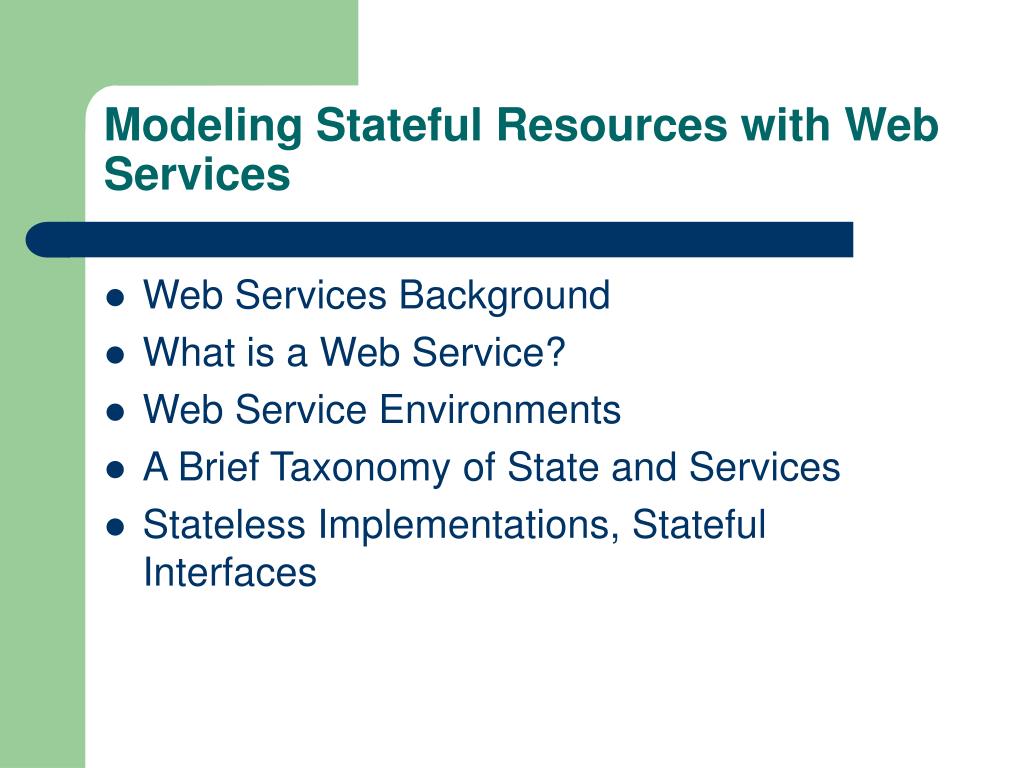

  31. Modeling Stateful Resources with Web Services • Web Services Background • What is a Web Service? • Web Service Environments • A Brief Taxonomy of State and Services • Stateless Implementations, Stateful Interfaces

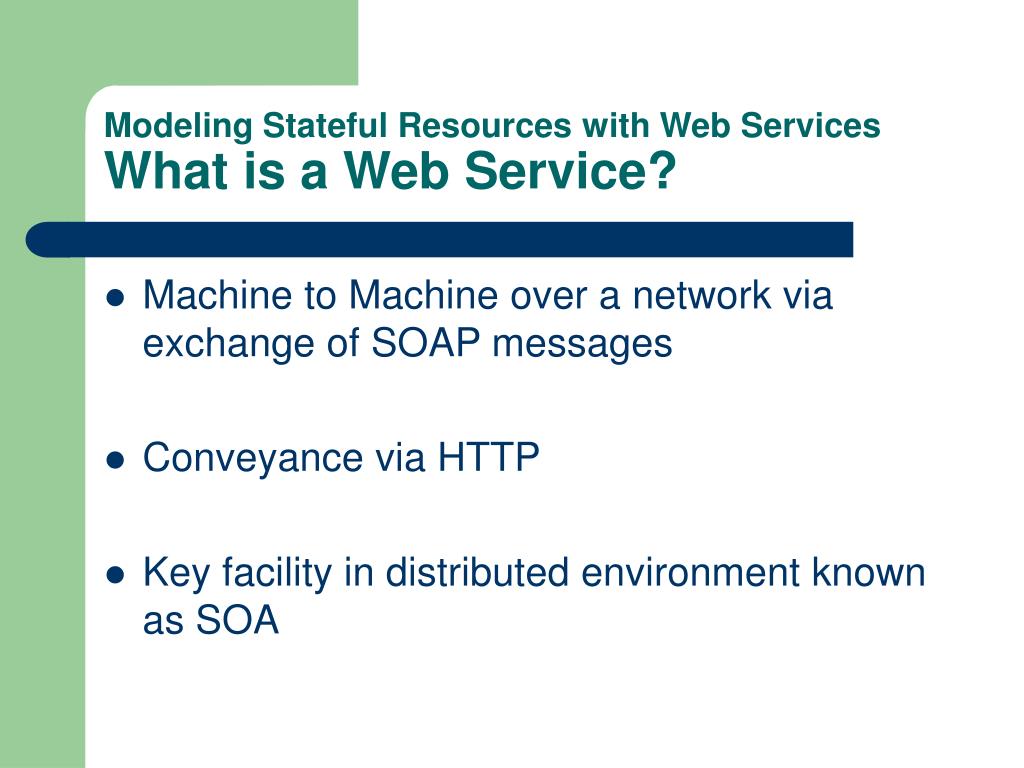

  32. Modeling Stateful Resources with Web ServicesWhat is a Web Service? • Machine to Machine over a network via exchange of SOAP messages • Conveyance via HTTP • Key facility in distributed environment known as SOA

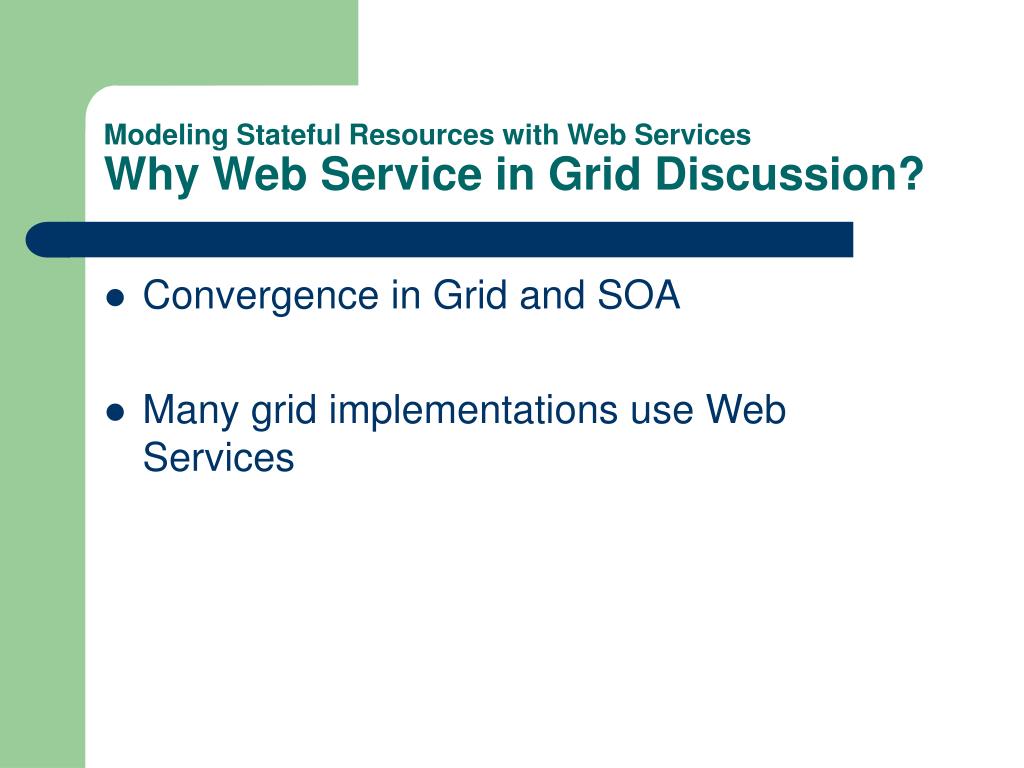

  33. Modeling Stateful Resources with Web ServicesWhy Web Service in Grid Discussion? • Convergence in Grid and SOA • Many grid implementations use Web Services

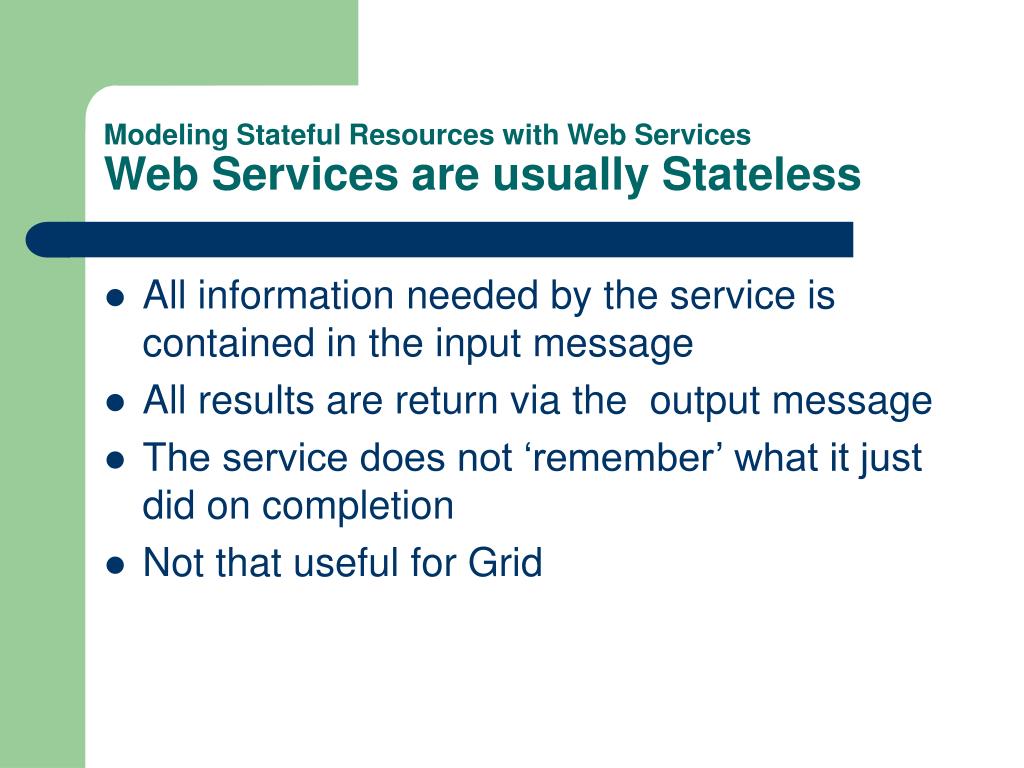

  34. Modeling Stateful Resources with Web ServicesWeb Services are usually Stateless • All information needed by the service is contained in the input message • All results are return via the output message • The service does not ‘remember’ what it just did on completion • Not that useful for Grid

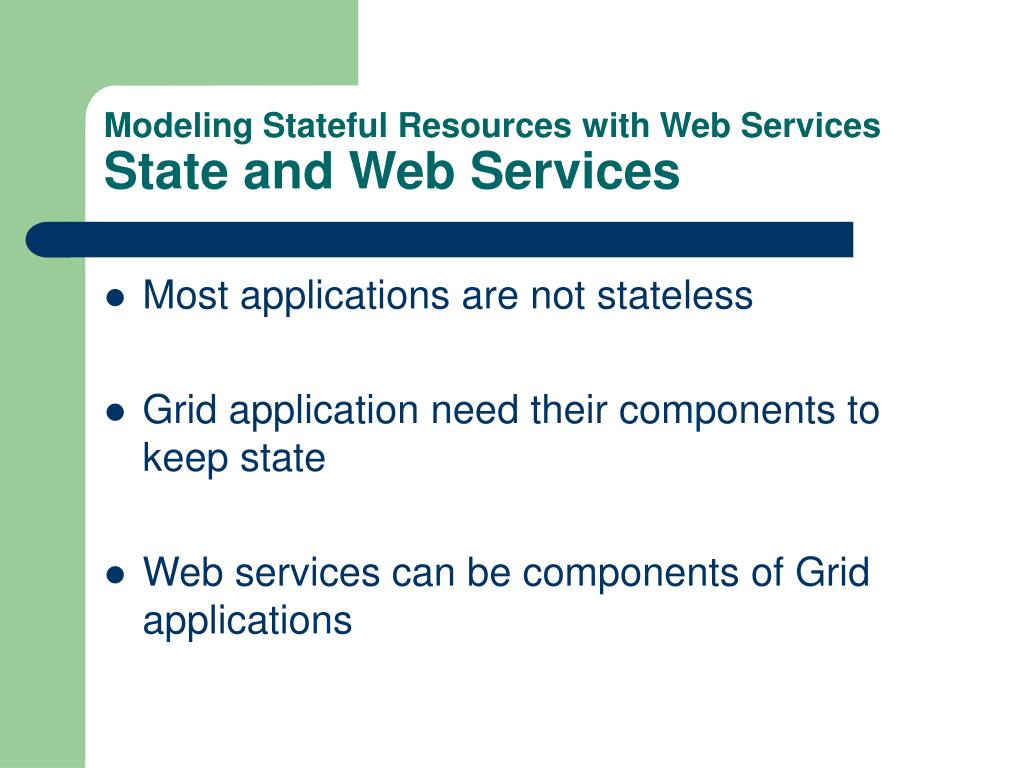

  35. Modeling Stateful Resources with Web ServicesState and Web Services • Most applications are not stateless • Grid application need their components to keep state • Web services can be components of Grid applications

  36. Modeling Stateful Resources with Web ServicesState and Web Services • Two general ways for representing state • The service keep track of it’s state • The service has other systems keep track of state for it • Ideally, Option 2 preferred

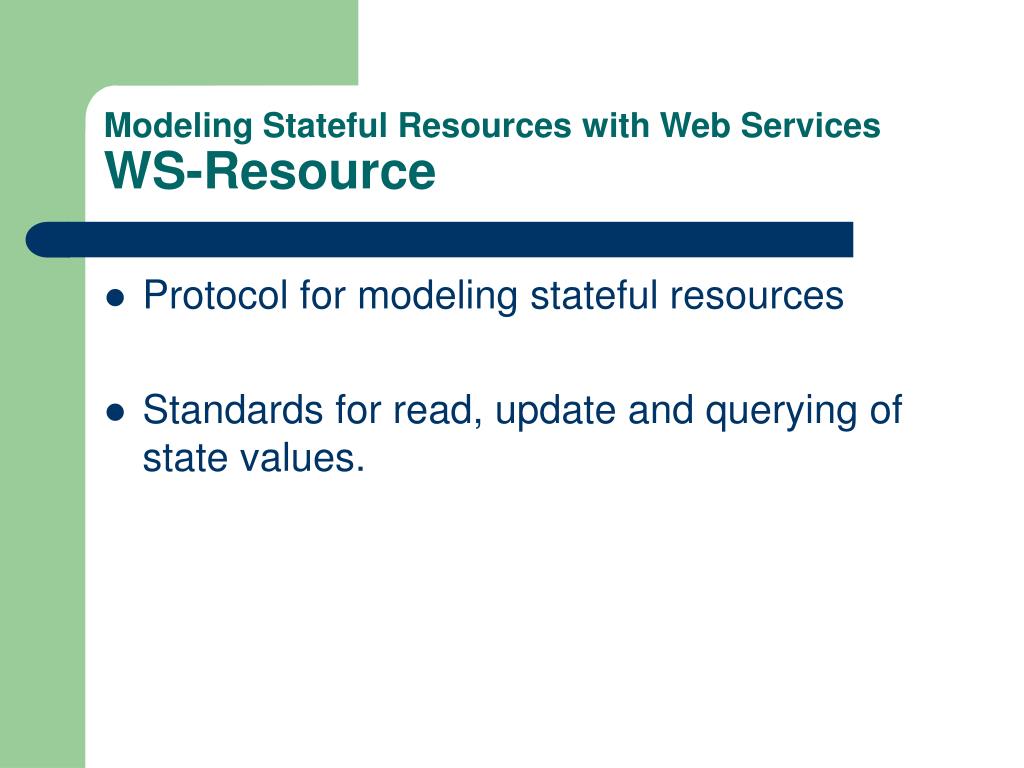

  37. Modeling Stateful Resources with Web ServicesWS-Resource • Protocol for modeling stateful resources • Standards for read, update and querying of state values.

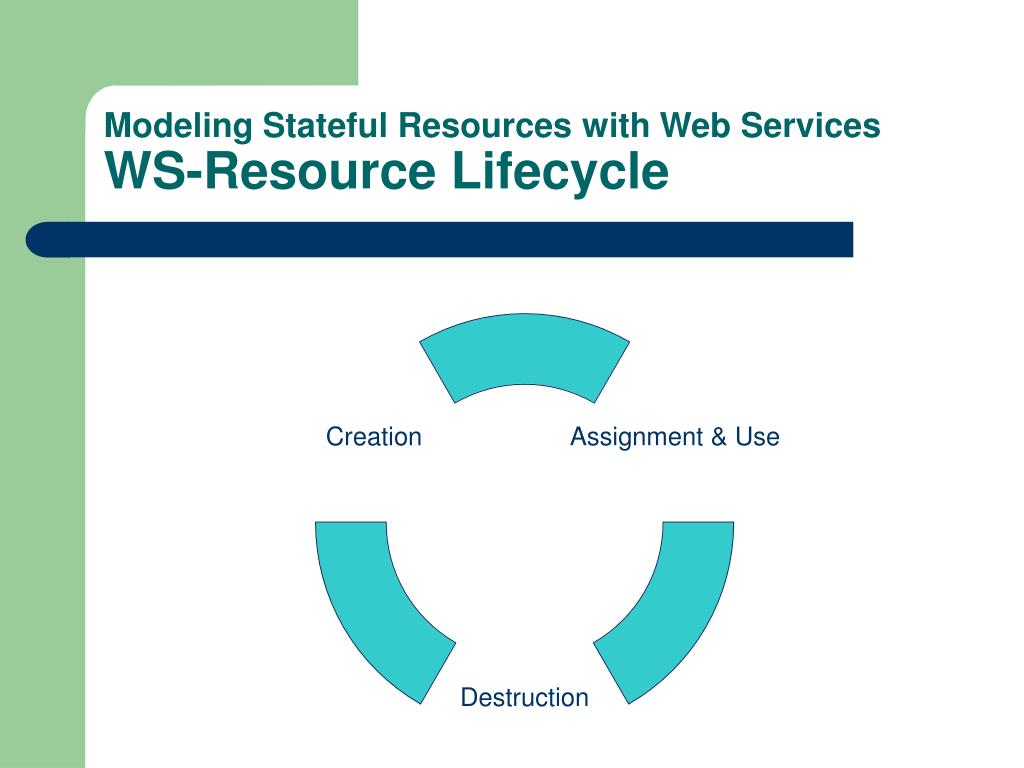

  38. Modeling Stateful Resources with Web ServicesWS-Resource Lifecycle

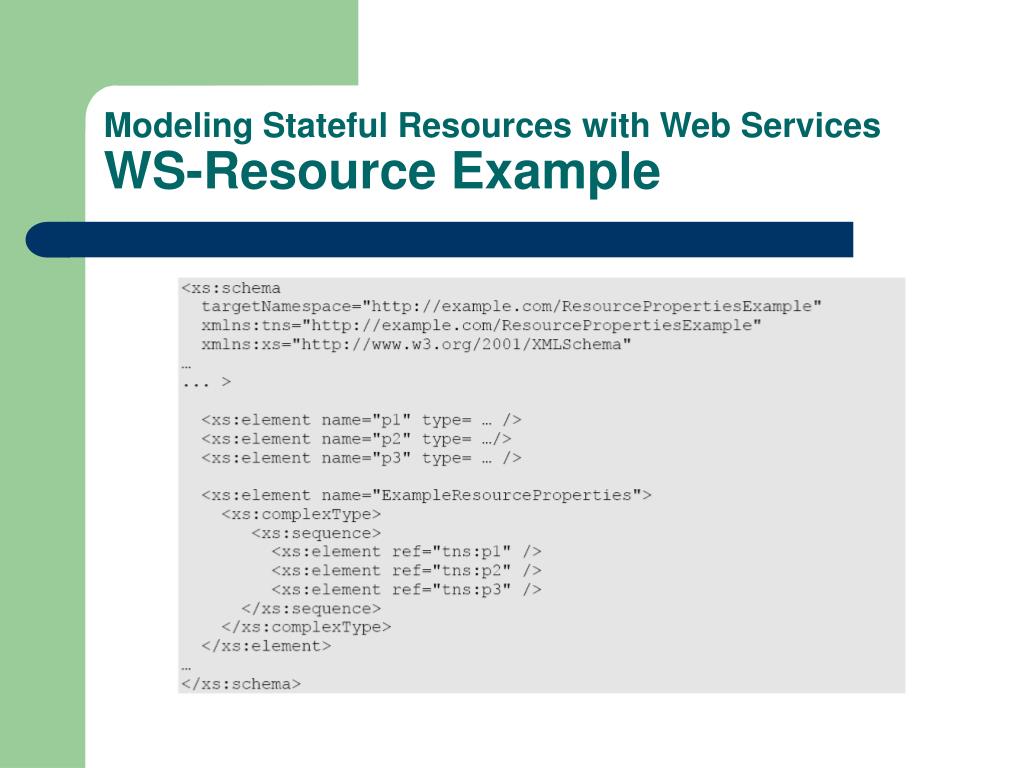

  39. Modeling Stateful Resources with Web ServicesWS-Resource Example

  40. Modeling Stateful Resources with Web ServicesWS Resource – ACID properties • Atomicity • Consistency • Isolation • Durability

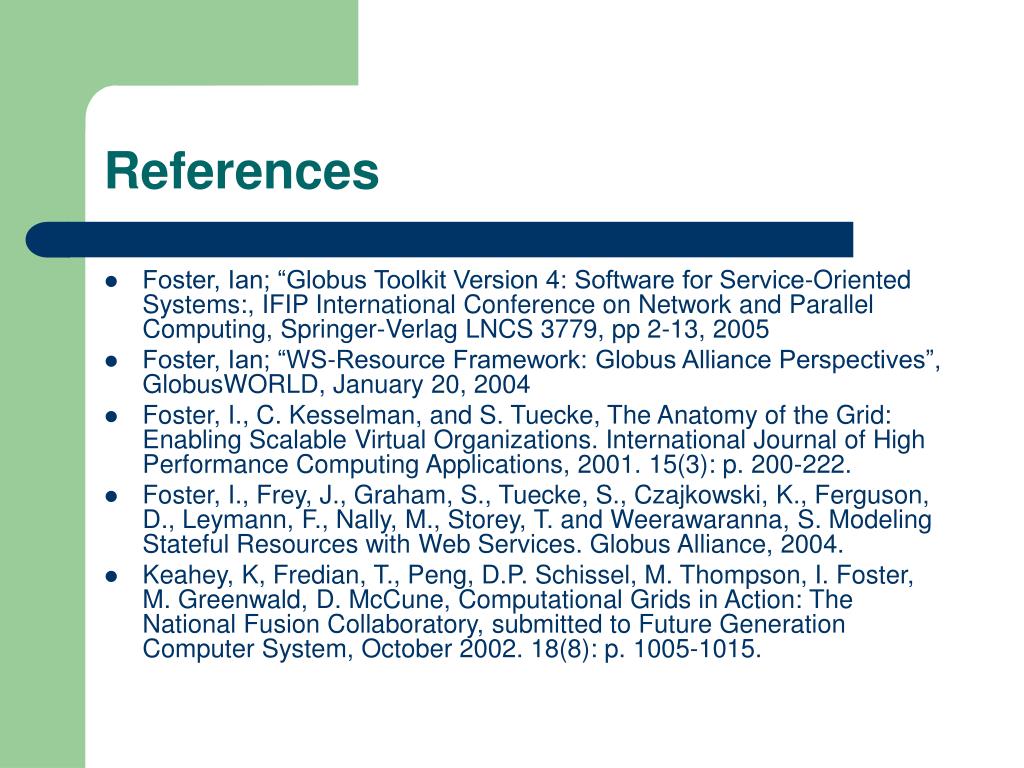

  41. References • Foster, Ian; “Globus Toolkit Version 4: Software for Service-Oriented Systems:, IFIP International Conference on Network and Parallel Computing, Springer-Verlag LNCS 3779, pp 2-13, 2005 • Foster, Ian; “WS-Resource Framework: Globus Alliance Perspectives”, GlobusWORLD, January 20, 2004 • Foster, I., C. Kesselman, and S. Tuecke, The Anatomy of the Grid: Enabling Scalable Virtual Organizations. International Journal of High Performance Computing Applications, 2001. 15(3): p. 200-222. • Foster, I., Frey, J., Graham, S., Tuecke, S., Czajkowski, K., Ferguson, D., Leymann, F., Nally, M., Storey, T. and Weerawaranna, S. Modeling Stateful Resources with Web Services. Globus Alliance, 2004. • Keahey, K, Fredian, T., Peng, D.P. Schissel, M. Thompson, I. Foster, M. Greenwald, D. McCune, Computational Grids in Action: The National Fusion Collaboratory, submitted to Future Generation Computer System, October 2002. 18(8): p. 1005-1015.
