You will need to read the section on power, do the assigned problems so that you are an expert.

You will need to read the section on power, do the assigned problems so that you are an expert. Also be able to derive the expressions for power from ohms law. P = work/time = Vq/t = VI because I = q/t Then just substitute from R = V/I

manju
Télécharger la présentation

You will need to read the section on power, do the assigned problems so that you are an expert.

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. You will need to read the section on power, do the assigned problems so that you are an expert. Also be able to derive the expressions for power from ohms law. P = work/time = Vq/t = VI because I = q/t Then just substitute from R = V/I You want to make about 4-6 whiteboard questions as these are not to difficult. Try to use all the formulas.

  2. Power • power = work • time • P = IV = I2R = V2 • R • P: Power in W • I: Current in Amps • V: Voltage in Volts • R: Resistance in Ohms Derive all eqn using: V = W/q I = q/t R = V/I Example 1: goes here Example 2: goes here Demo: power supply and heating element, motor and ammeter (I can do these for you?)

  3. Whiteboards I think you should do 5 or 6 – try to use all three power equations equally 1 | 2 | 3 | 4 | 5 | 6

  4. A heating element draws 2.07 A from a 12.0 volt source. What is the power it consumes? • Given: • P = IV = I2R = V2 • R • P = ?? • V = 12.0 V • I = 2.07 A • R (not given) • Use P = IV • P = 24.84 = 24.8 W W 24.8 W

  5. Question goes here? • Given: • P = IV = I2R = V2 • R • R • P = • V = • I = • R = • Use answer

  6. Question goes here? • Given: • P = IV = I2R = V2 • R • R • P = • V = • I = • R = • Use answer

  7. Question goes here? • Given: • P = IV = I2R = V2 • R • R • P = • V = • I = • R = • Use answer

  8. Question goes here? • Given: • P = IV = I2R = V2 • R • R • P = • V = • I = • R = • Use answer

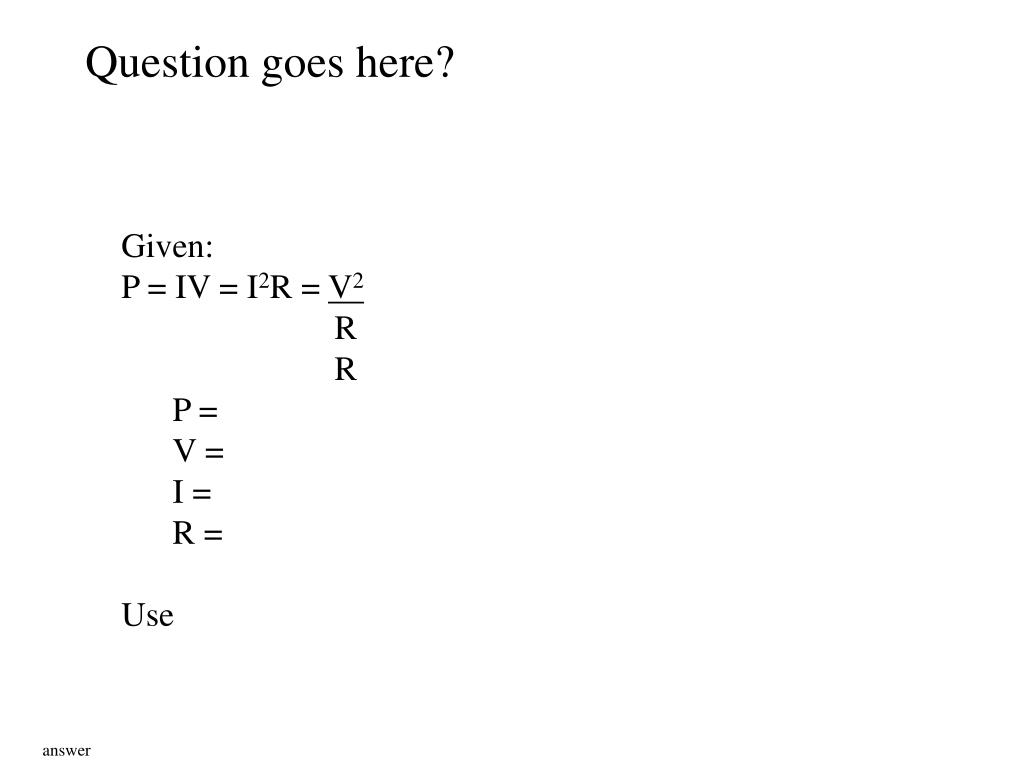

  9. Question goes here? • Given: • P = IV = I2R = V2 • R • R • P = • V = • I = • R = • Use answer
