This study explores the gene expression profile of KIX domain encoding genes in japonica rice Nipponbare during various stages of seed development. The heat map depicts normalized and baseline transformed average log2 signal values of these genes across different stages, such as leaf, root, fertilization, ovary control, pollinated ovary, zygote, and embryo at different days after pollination (DAP), as well as endosperm development stages. The color legend at the bottom of the heat map helps interpret the data, with gene names displayed on the left side.
E N D

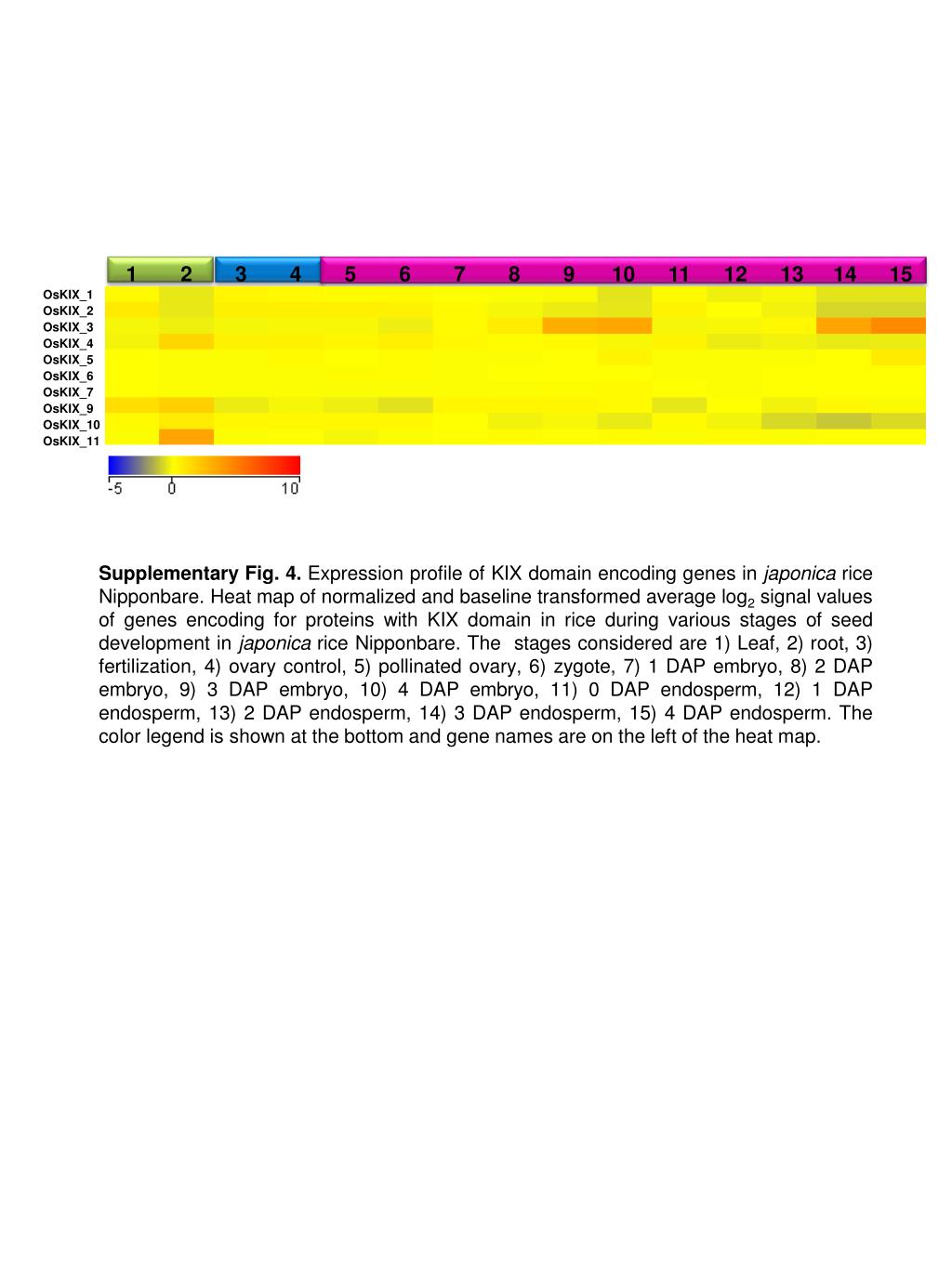

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 OsKIX_1 OsKIX_2 OsKIX_3 OsKIX_4 OsKIX_5 OsKIX_6 OsKIX_7 OsKIX_9 OsKIX_10 OsKIX_11 Supplementary Fig. 4. Expression profile of KIX domain encoding genes in japonica rice Nipponbare. Heat map of normalized and baseline transformed average log2 signal values of genes encoding for proteins with KIX domain in riceduring various stages of seed development in japonica rice Nipponbare. The stages considered are 1) Leaf, 2) root, 3) fertilization, 4) ovary control, 5) pollinated ovary, 6) zygote, 7) 1 DAP embryo, 8) 2 DAP embryo, 9) 3 DAP embryo, 10) 4 DAP embryo, 11) 0 DAP endosperm, 12) 1 DAP endosperm, 13) 2 DAP endosperm, 14) 3 DAP endosperm, 15) 4 DAP endosperm. The color legend is shown at the bottom and gene names are on the left of the heat map.
