http://simplement.skoda.free.fr. C1 = 10 micF C2 = 100 micF R1 = 1kh 1% R2 = 1kh 1% P1 = 1kh R3 = 2.2h / 9W R4 = 2.2h / 9W. Présence clignos ou/et veilleuses. Masse. Relai au repos. Lt1083cp. R3. 3A. 12V. In. out. R4. Adj. C1. + -. C2. + -. R2. 3,3v. R1. 350mA

marcel
Télécharger la présentation

Masse

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

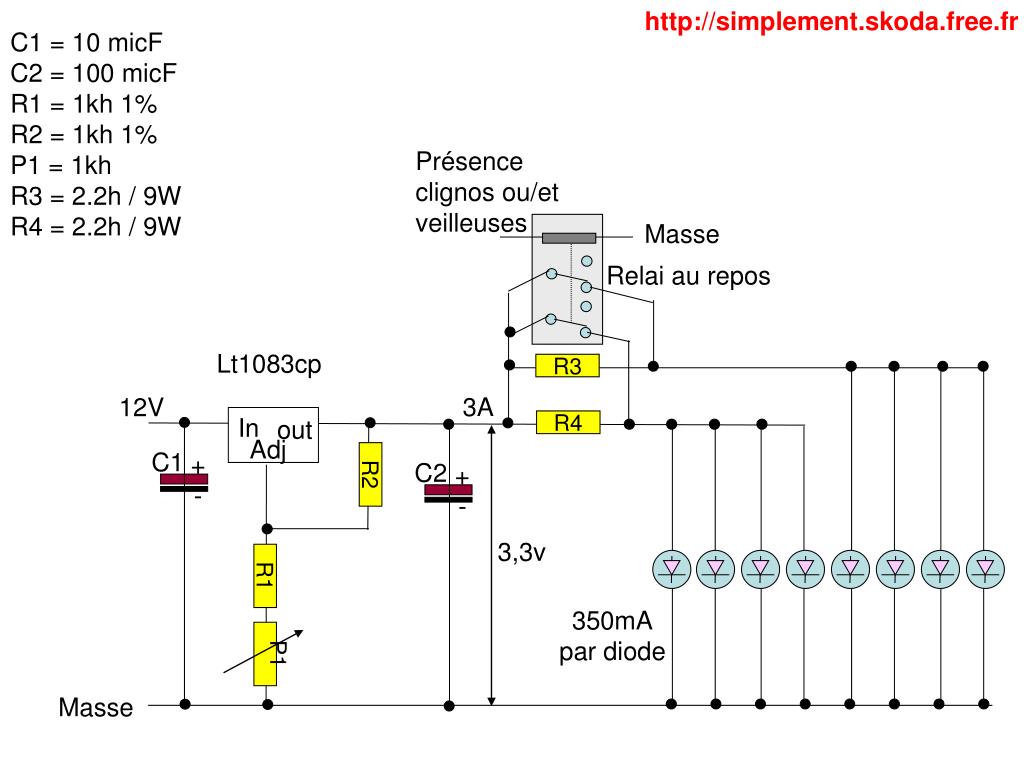

  1. http://simplement.skoda.free.fr C1 = 10 micF C2 = 100 micF R1 = 1kh 1% R2 = 1kh 1% P1 = 1kh R3 = 2.2h / 9W R4 = 2.2h / 9W Présence clignos ou/et veilleuses Masse Relai au repos Lt1083cp R3 3A 12V In out R4 Adj C1 + - C2 + - R2 3,3v R1 350mA par diode P1 Masse

  2. http://simplement.skoda.free.fr C1 = 10 micF C2 = 100 micF R1 = 1kh 1% R2 = 1kh 1% P1 = 2.2kh R3 = 0.33h / 9W R4 = 1.5h / 9W Régler P1 pour avoir 4,3v en sortie du régulateur, ou 3,3v après R3 (relai au repos) tension nominale de fonctionnement des Leds R4 a été choisie pour ½ puissance des Leds Présence clignos ou/et veilleuses Masse Vout= 1.25 (1+(R1+P)) Regu R2 Relai présenté au repos LT1083CP 7A max 3A 12V In Vout R3 R4 Adj Led 1w 6500k C1 + - C2 + - R2 4,3v *3,3v R1 350mA par diode P1 Masse * Relais au repos
