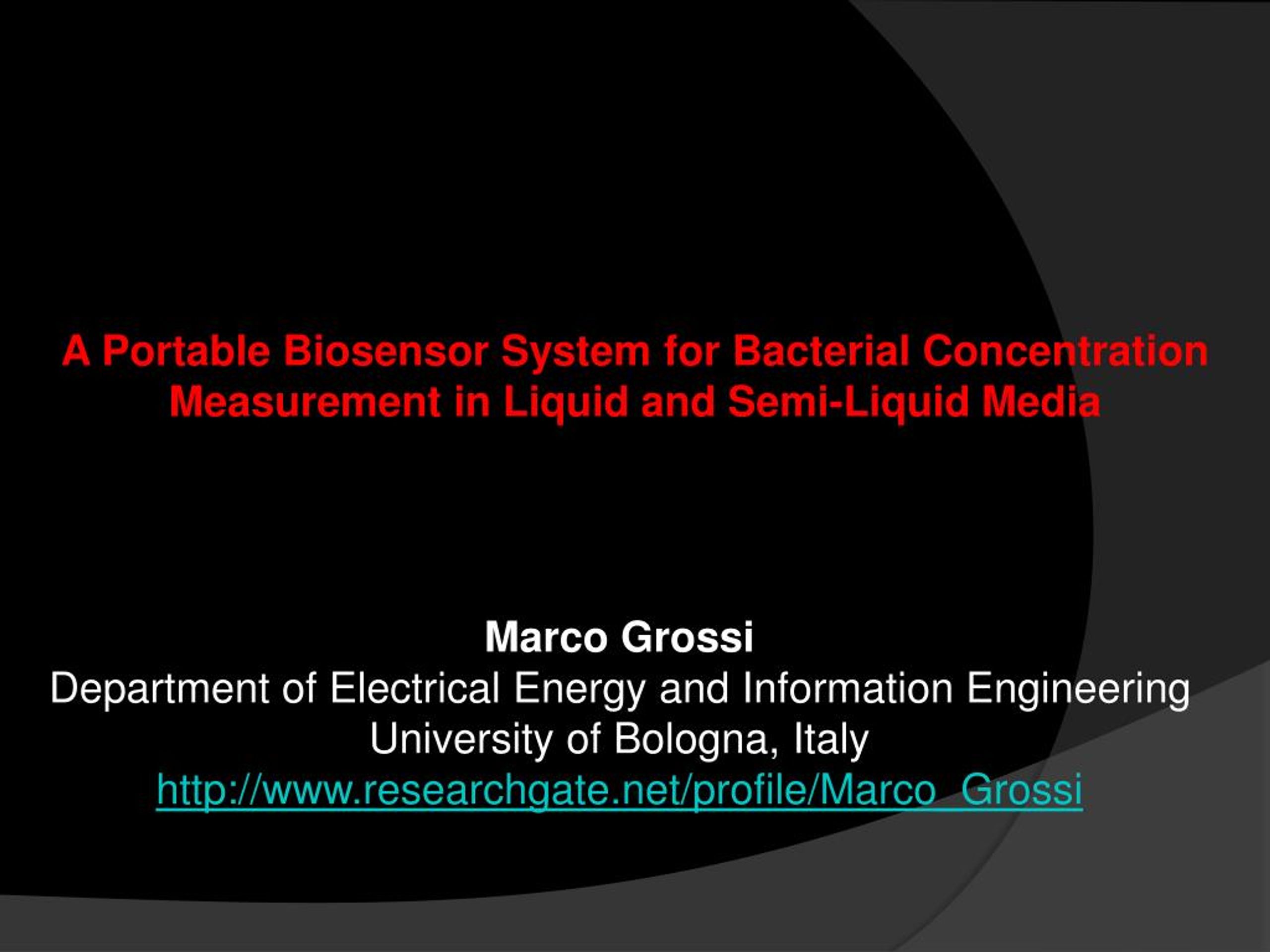

A Portable Biosensor System for Bacterial Concentration Measurement in Liquid and Semi-Liquid Media Marco Grossi Department of Electrical Energy and Information Engineering University of Bologna, Italy http://www.researchgate.net/profile/Marco_Grossi
Bacterial reproduction happens by means of binary scission. • duplication of the bacterial chromosome • elongation of the cell • formation of a transverse septum centrally located • subdivision of a copy of the chromosome and cytoplasm in the two daughter cells (A) Lag Phase (B) Exponential Phase (C) Stationary Phase (D) Death Phase
The standard reference technique for bacterial concentration measurement is the Plate Count method. Advantages Drawbacks • It is the reference method • Long response times • Accurate and reliable results • It is a laboratory method
A system composed of a liquid medium in direct contact with a couple of electrodes can be modeled with the following circuit. Rm : medium resistance Cm : medium capacitance Ri : interface resistance Ci : interface capacitance When the frequency of the applied signal is lower than 1MHz Rs = Rm + Ri Cs = Ci
a sine wave voltage Vin(t) is applied to the electrodes • the current through the electrodes Iin(t) is measured • the electrical parameters Rs and Cs are calculated
The liquid sample is placed in a sensor in direct contact with a couple of electrodes. The electrical parameters Rs and Cs are measured at regular time intervals of 5 minutes. Conc. < CTH: the electrical parameters Rs and Cs are almost constant. Conc. > CTH: the electrical parameters Rs and Cs deviate from baseline value. Detect Time (DT): time needed for the bacterial population to reach the critical concentration CTH = 107 cfu/ml
Low contaminated samples feature high values of DT. Higher contaminated samples feature lower values of DT.
The impedance technique has advantages and drawbacks if compared with the reference Plate Count method. Advantages Drawbacks • Shorter response time (2−12 hours vs 24−72 hours) • Need of calibration for the different sample types and different bacterial strains • The technique can be easily automated as part of an embedded system • The electrical parameters are very sensitive to temperature variations
Different commercial systems have been produced that measure the bacterial concentration with the impedance technique. • Bactometer • (Biomerieux, France) • 2ml sensor cell • up to 128 samples • weight 130.2 kg • Bac Trac • (Sy-Lab, Austria) • 20ml sensor cell • up to 64 samples • weight 20 kg
A portable biosensor system that measures bacterial concentration using the impedance technique has been built. • Electronics boards: impedance measures and thermoregulation • Incubation chamber to store the sample • Both serial and wireless communication
The sample is loaded in the sterile incubation chamber • Thermoregulation is enabled • Electrical parameters are measured every 5 minutes • At the end of the assay, DT is calculated and the bacterial concentration is estimated
Bacterial concentration measure in ice-cream samples Incubation temperature 35 °C
Bacterial concentration measure in raw milk samples Two incubation temperatures (a) 18 °C and (b) 30 °C Shorter response time when incubated at 30°C Better correlation when incubated at 18°C A trade off between accuracy and measure time is needed
Bacterial concentration measure in water samples Incubation temperature 37 °C
Bibliography [1] Grossi M., Lanzoni M., Pompei A., Lazzarini R., Matteuzzi D., Riccò B. (2008). Detection of microbial concentration in ice-cream using the impedance technique. Biosensors & Bioelectronics, 23, 1616-1623. [2] Grossi M., Pompei A., Lanzoni M., Lazzarini R., Matteuzzi D., Riccò B. (2009). Total bacterial count in soft-frozen dairy products by impedance biosensor system. IEEE Sensors Journal, 9 (10), 1270-1276. [3] Grossi M., Lanzoni M., Pompei A., Lazzarini R., Matteuzzi D., Riccò B. (2010). An embedded portable biosensor system for bacterial concentration detection. Biosensors & Bioelectronics, 26, 983-990. [4] Grossi M., Lanzoni M., Pompei A., Lazzarini R., Matteuzzi D., Riccò B. (2011). A portable biosensor system for bacterial concentration measurements in cow’s raw milk. 4th IEEE International Workshop on Advances in Sensors and Interfaces, 132-136. [5] Grossi M., Lazzarini R., Lanzoni M., Pompei A., Matteuzzi D., Riccò B. (2013). A portable sensor with disposable electrodes for water bacterial quality assessment. IEEE Sensors Journal, 13 (5), 1775-1781.
