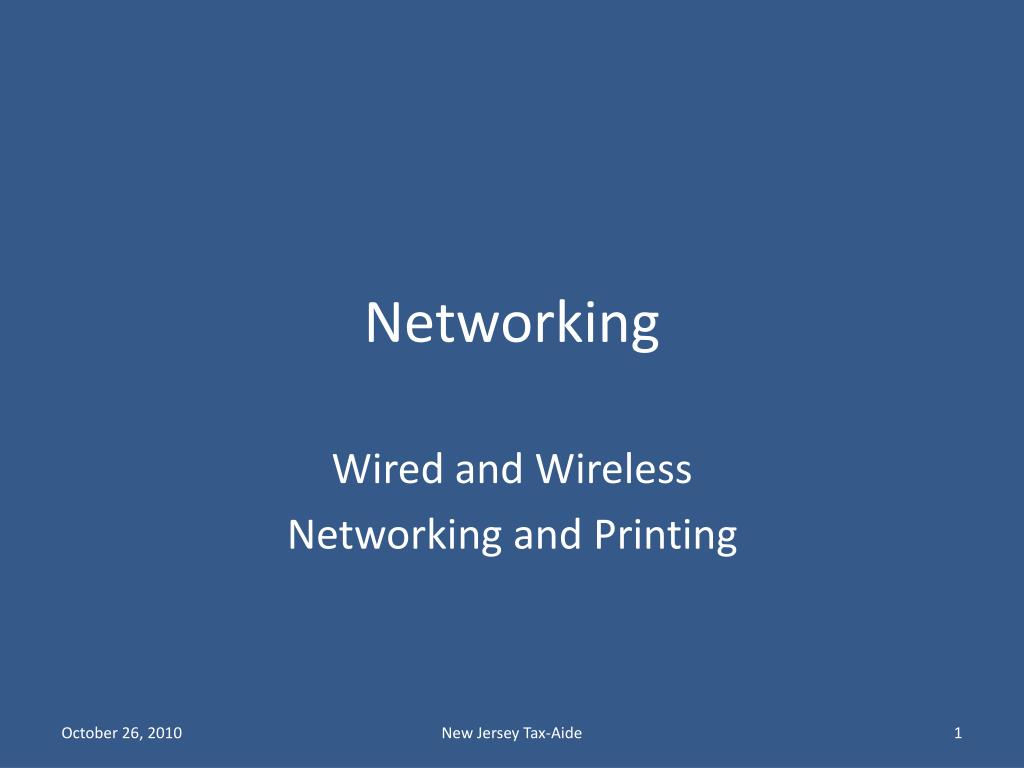

  1. Networking Wired and Wireless Networking and Printing New Jersey Tax-Aide

  2. Objectives • Know acceptable ways to use wired and wireless networks to prepare and print returns with TWO and Desktop • Know the options for network printer driver installation • Know the benefits of different printer driver options for various site and district situations New Jersey Tax-Aide

  3. Performance Objectives • Basic – Be able to: • Change a printer name on the Printer Control Panel • Set up a secure wireless network • Install wireless network settings on computers • Configure a router to reserve an IP address • Install a network printer driver • Advanced • Change the host name using the printer EWS • Change advanced printer port configuration • Change router address space New Jersey Tax-Aide

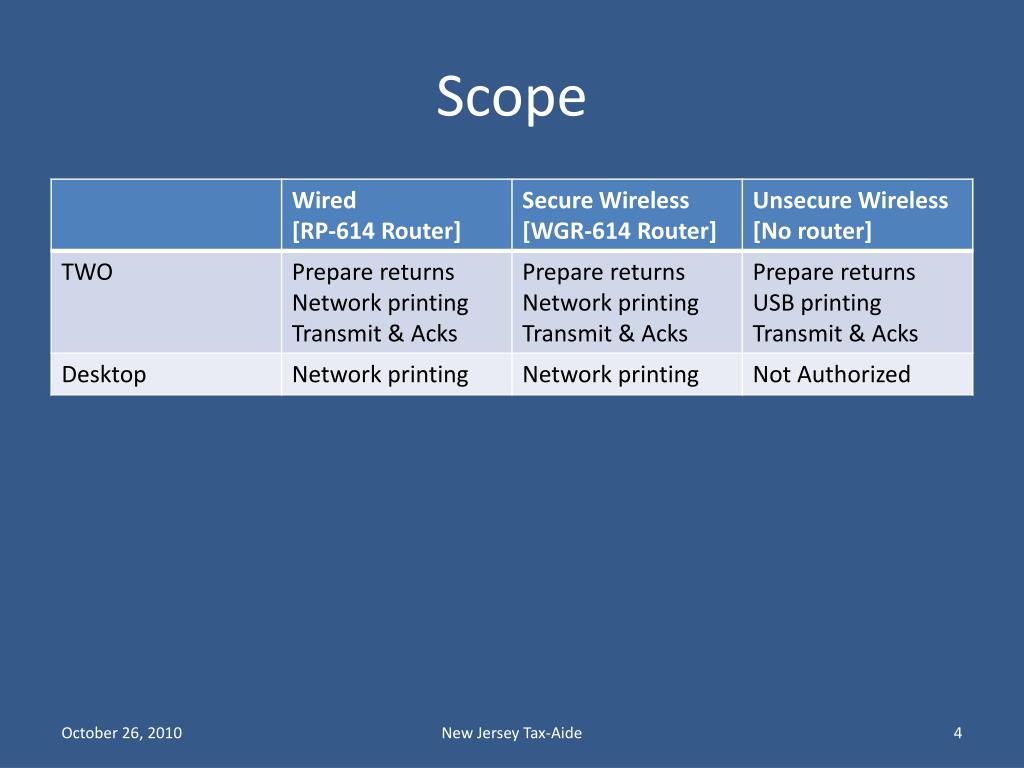

  4. Scope New Jersey Tax-Aide

  5. Agenda • Objectives • Scope • Network configurations • Wireless router setup • Computers • Network printers • Network printer drivers • Summary • Advanced topics New Jersey Tax-Aide

  6. Network Configurations • Wired & Secure wireless [Tax-Aide router] • TWO return preparation & printing; connected to internet • Desktop for printing only; isolated from internet • Network printer • Unsecure wireless [no Tax-Aide router] • TWO return preparation only • USB printer • connected to ERO/QR computer • Driver is NOT SHARED New Jersey Tax-Aide

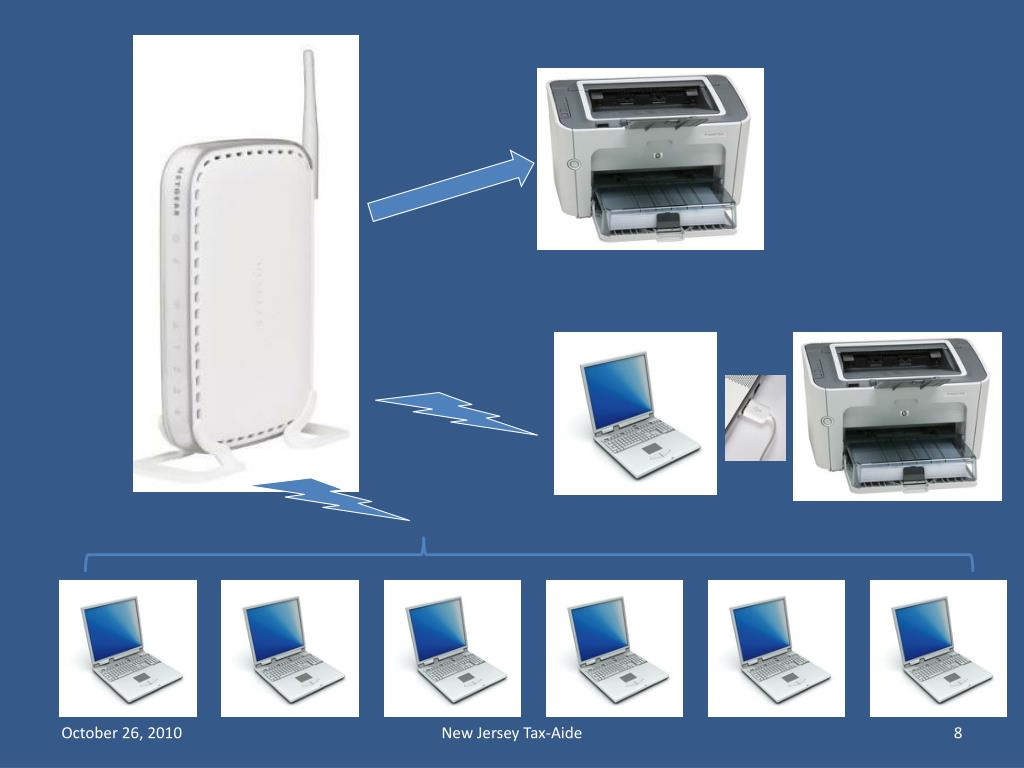

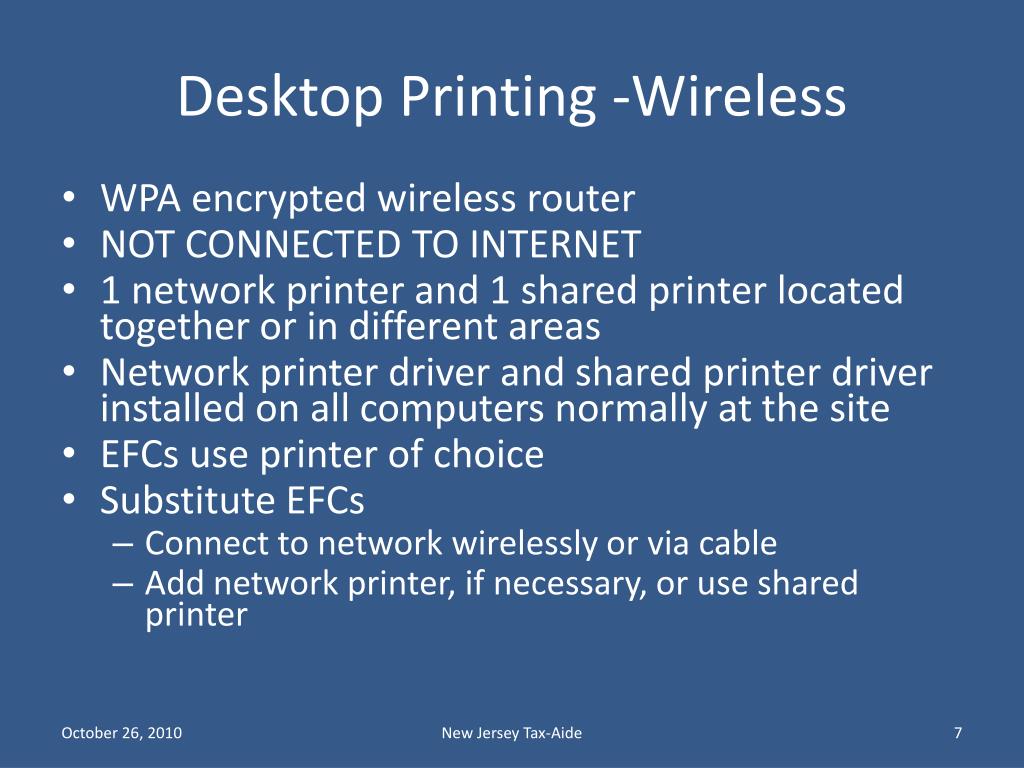

  7. Desktop Printing -Wireless • WPA encrypted wireless router • NOT CONNECTED TO INTERNET • 1 network printer and 1 shared printer located together or in different areas • Network printer driver and shared printer driver installed on all computers normally at the site • EFCs use printer of choice • Substitute EFCs • Connect to network wirelessly or via cable • Add network printer, if necessary, or use shared printer New Jersey Tax-Aide

  8. New Jersey Tax-Aide

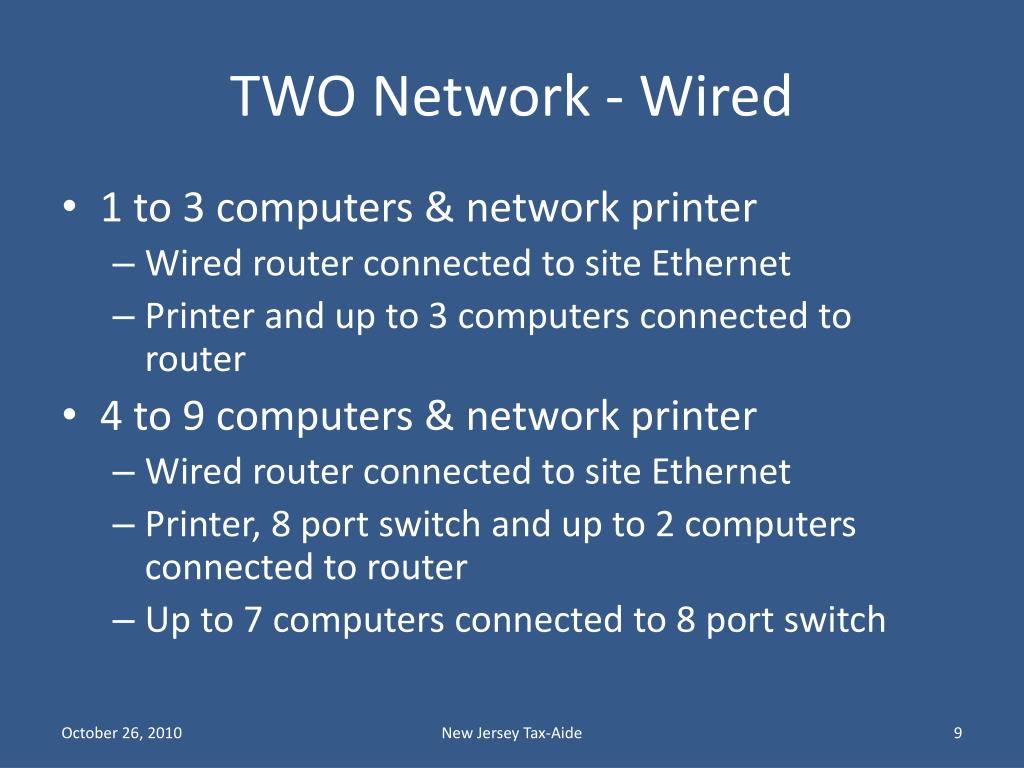

  9. TWO Network - Wired • 1 to 3 computers & network printer • Wired router connected to site Ethernet • Printer and up to 3 computers connected to router • 4 to 9 computers & network printer • Wired router connected to site Ethernet • Printer, 8 port switch and up to 2 computers connected to router • Up to 7 computers connected to 8 port switch New Jersey Tax-Aide

  10. New Jersey Tax-Aide

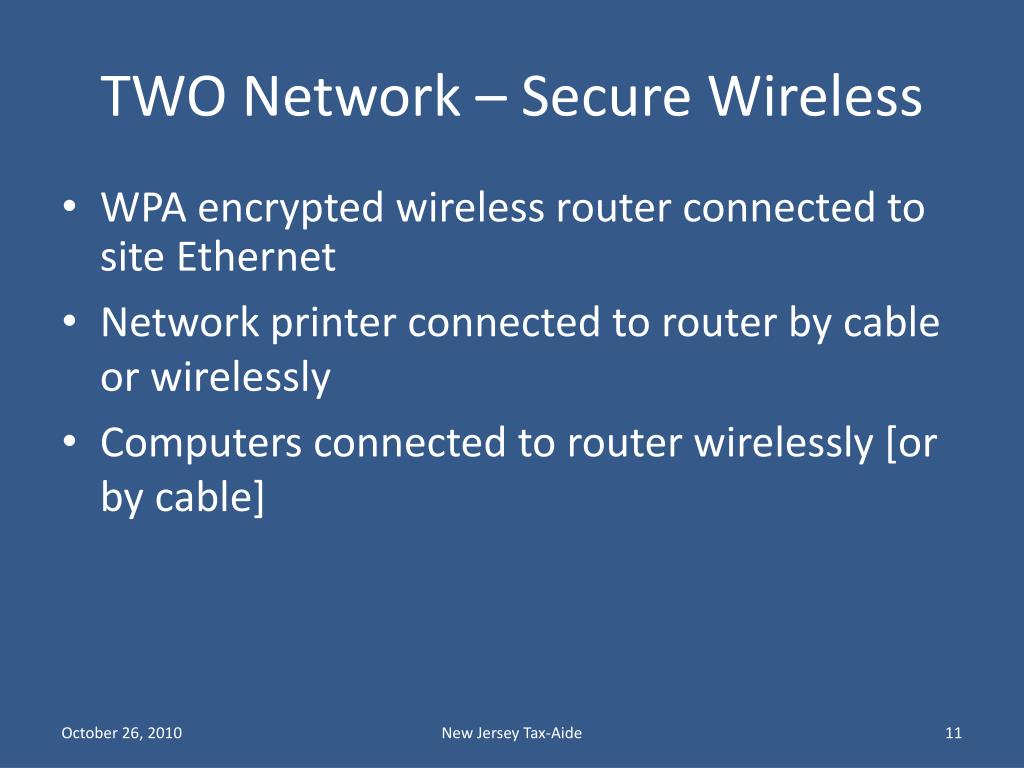

  11. TWO Network – Secure Wireless • WPA encrypted wireless router connected to site Ethernet • Network printer connected to router by cable or wirelessly • Computers connected to router wirelessly [or by cable] New Jersey Tax-Aide

  12. New Jersey Tax-Aide

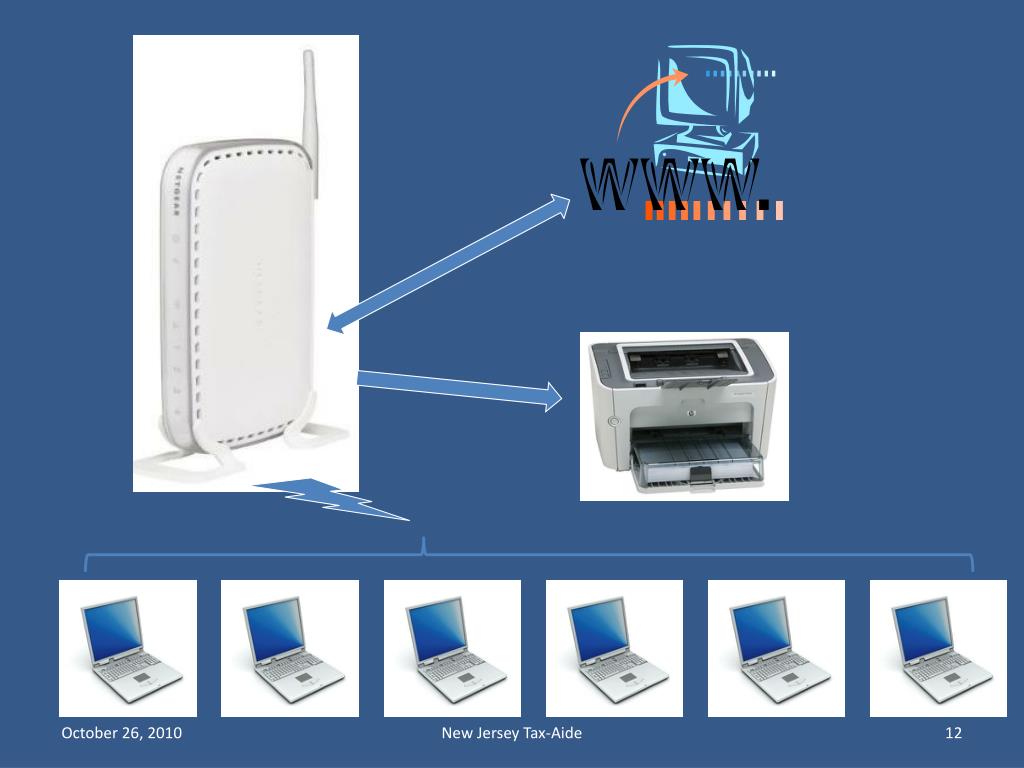

  13. Unsecured Wireless • Acceptable for connection to TWO server because all transmitted data is encrypted, including the PDF of the return to be printed • Data transmitted to a network printer or shared printer is not encrypted and should not be sent over an unsecured wireless path • When using unsecured wireless, printing is permitted only to a printer connected to the computer via cable New Jersey Tax-Aide

  14. Unsecured Wireless TWO Network • ERO or Quality Review computer with USB printer attached • Can print all returns for this EFIN • Network printers prohibited • The driver for this printer must not be designated “Shared Printer” New Jersey Tax-Aide

  15. New Jersey Tax-Aide

  16. Wireless Printing Security Policy A router will be used for wireless printer sharing and all the following steps are recommended to configure and secure a wireless router when used with an AARP Tax-Aide network for printer sharing: 1. Infrastructure network configuration will be used. Ad-Hoc networks are not permitted. 2. The wireless router or access point will be protected by changing the default username and adding a password. 3. The manufacturer’s default SSID will be changed to "TAV" (without quotes). 4. WPA encryption will be used. 5. MAC address filtering is optional and adds extra security when used in conjunction with WPA. 6. A wireless network will never be connected such as to allow connection to the Internet while using wireless networking for printer sharing. 7. High power antennae and/or other signal boosters will not be used. 8. File sharing will be turned off. New Jersey Tax-Aide

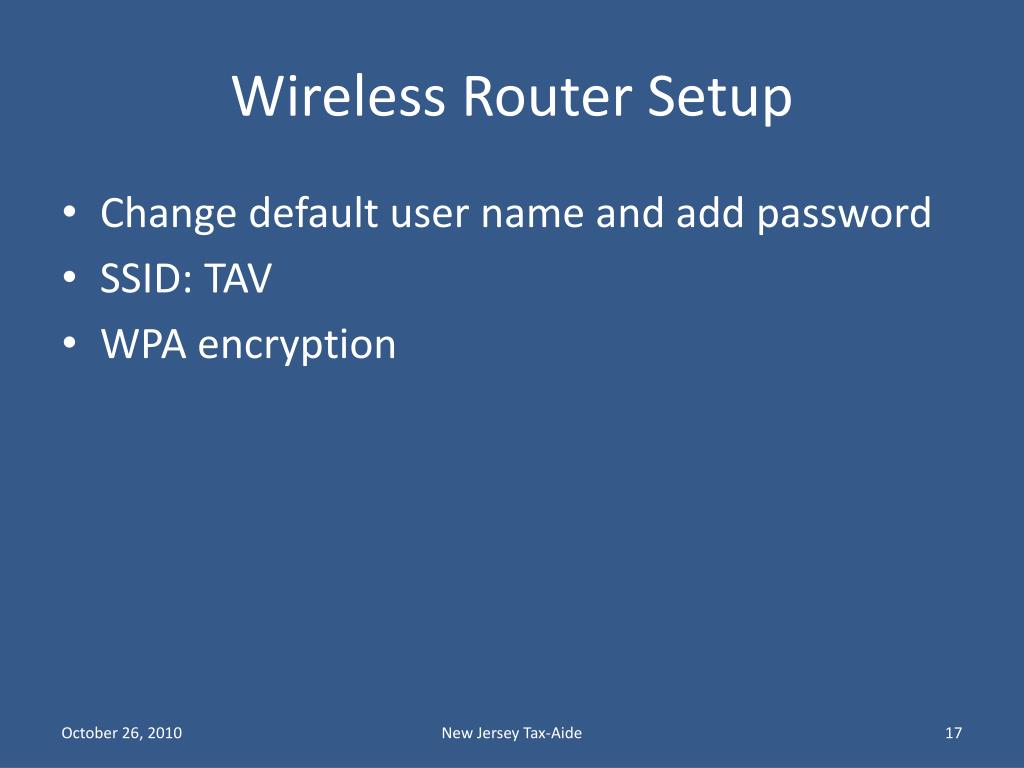

  17. Wireless Router Setup • Change default user name and add password • SSID: TAV • WPA encryption New Jersey Tax-Aide

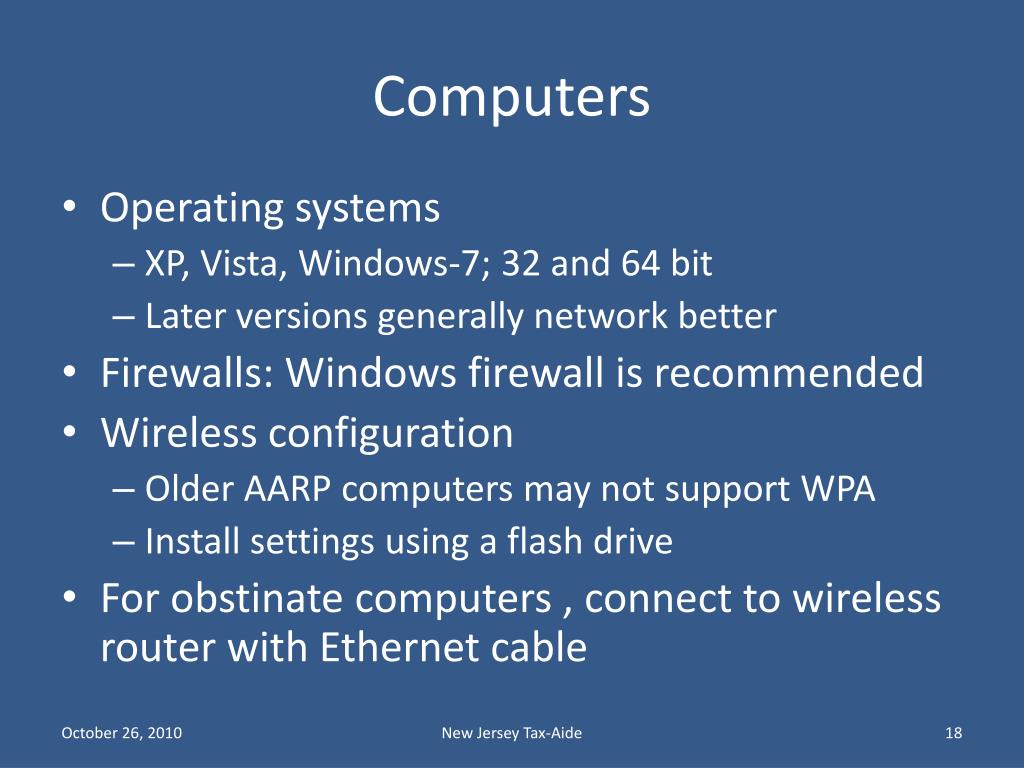

  18. Computers • Operating systems • XP, Vista, Windows-7; 32 and 64 bit • Later versions generally network better • Firewalls: Windows firewall is recommended • Wireless configuration • Older AARP computers may not support WPA • Install settings using a flash drive • For obstinate computers , connect to wireless router with Ethernet cable New Jersey Tax-Aide

  19. Save & Install Network Settings using a flash drive • http://njtaxaide.org/tavolunteers/Technology/Networking.htm • Under Wireless, see “Network properties on a flash drive” • Save network properties to a flash drive using Vista or Windows-7 • Install on any operating system by inserting flash drive New Jersey Tax-Aide

  20. Network Configuration Questions Are these configurations acceptable? Why? • Wired network for Desktop printing connected to the internet • Laptop connected to TWO via library unencrypted wireless network printing to HP1102w in the wireless mode • ERO checking for TWO acknowledgements from an Internet Explorer equipped smart phone at Starbucks New Jersey Tax-Aide

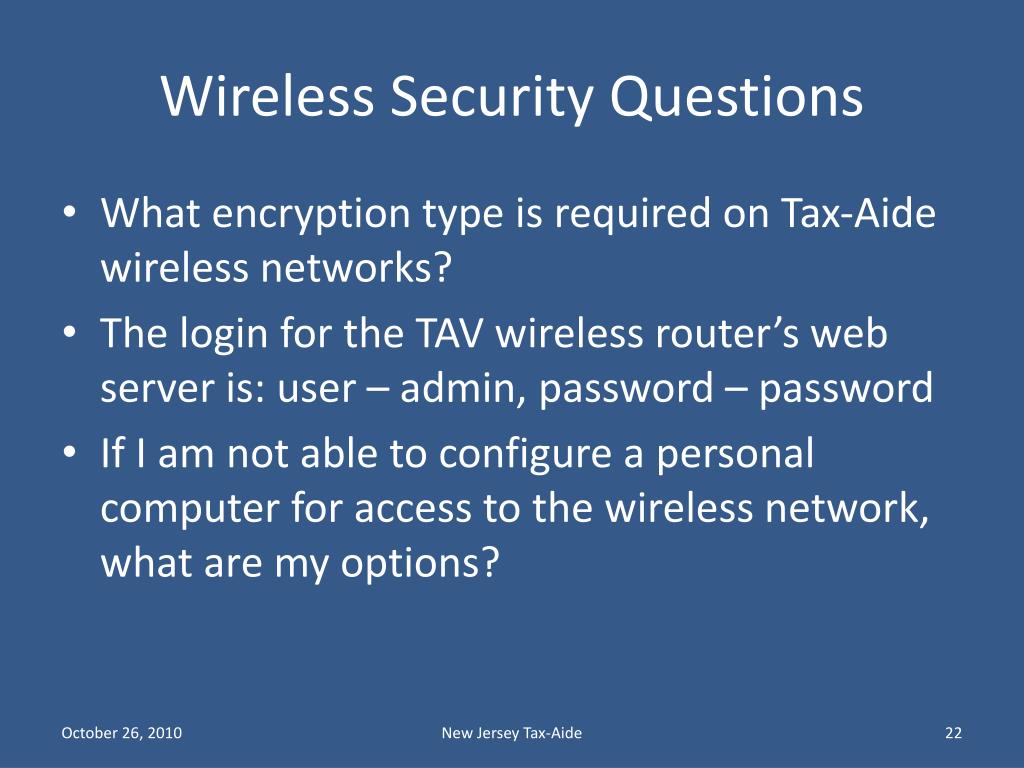

  21. Wireless Security Questions • What encryption type is required on Tax-Aide wireless networks? • The login for the TAV wireless router’s web server is: user – admin, password – password • If I am not able to configure a personal computer for access to the wireless network, what are my options? New Jersey Tax-Aide

  22. TWO Wireless Computer • Preliminary information • 1 scan required prior to using TWO in production • Scan computer on 2 web sites • Download some software for scans • Ignore anti-virus results • Correct other problems, if any • Report successful results at a 3rd web site • More details expected at TC Seminar New Jersey Tax-Aide

  23. Network Printer Inventory All have USB connections Brothers have parallel connections New Jersey Tax-Aide

  24. Network Printers • Configuration page • Printer name [Host name] • MAC address [Hardware address] • IP address • Firmware [Firmware datecode] • Firmware New Jersey Tax-Aide

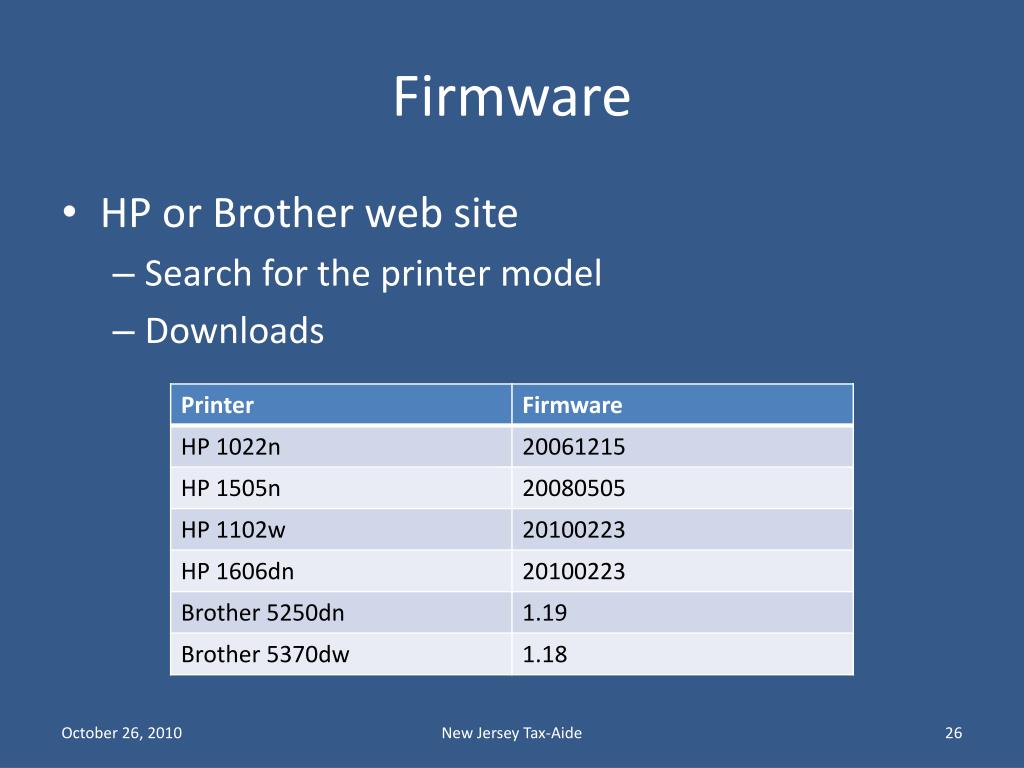

  25. Firmware • HP or Brother web site • Search for the printer model • Downloads New Jersey Tax-Aide

  26. Network Printer Drivers • Which driver to use • Driver Install Options • Recommendations New Jersey Tax-Aide

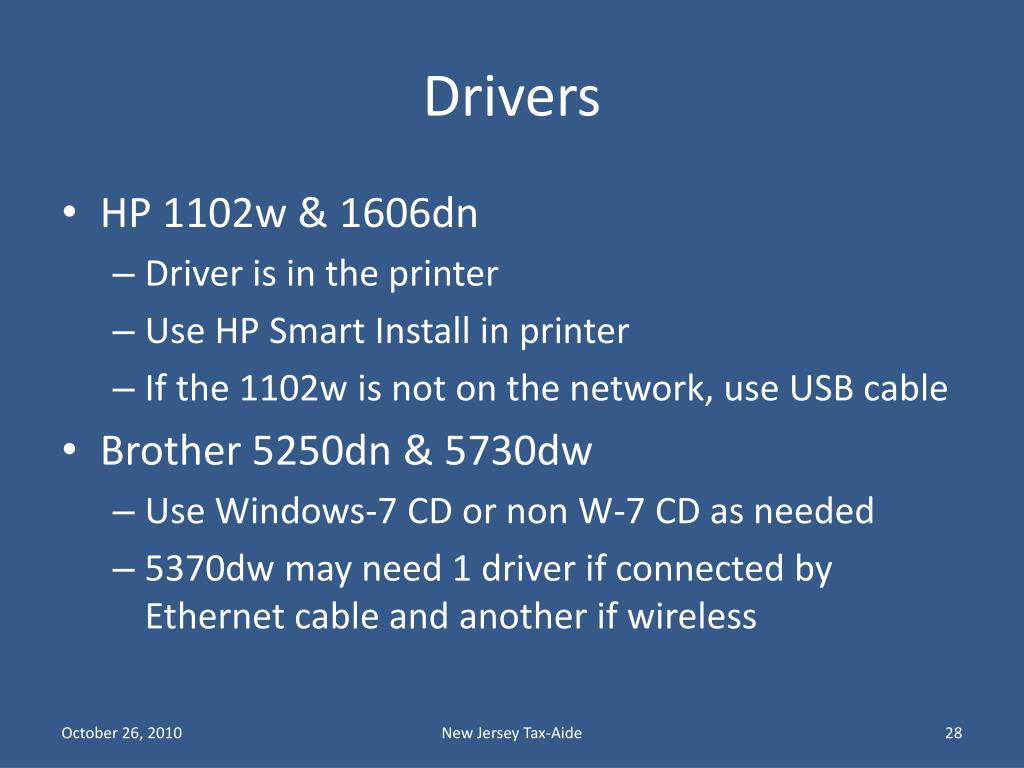

  27. Drivers • HP 1102w & 1606dn • Driver is in the printer • Use HP Smart Install in printer • If the 1102w is not on the network, use USB cable • Brother 5250dn & 5730dw • Use Windows-7 CD or non W-7 CD as needed • 5370dw may need 1 driver if connected by Ethernet cable and another if wireless New Jersey Tax-Aide

  28. Drivers - continued • HP 1505n • Full Feature Software & Driver, version 7 • All operating systems, 32 & 64 bit • HP 1022n • All 32 bit operating systems : Host Based Plug & Play Package, version 20071210 • All 64 bit operating systems : Host Based Plug & Play Basic Driver, version 20071210 • Install as USB first, then put printer on the network and use Windows Install Printer Wizard to install network driver New Jersey Tax-Aide

  29. Network Printer Driver Options • HP 1022n & 1505n: consider IP address reservation • Individual name requires one driver for each unit of that model • Model name allows one driver to print to all units of that model New Jersey Tax-Aide

  30. IP Address at Install • The driver will print to any unit of that model at the IP address of the printer when the driver was installed • If the printer is assigned a different IP address, a new driver must be installed • A driver that worked yesterday may not work today • A driver that worked at site 1 may not work at site 2 • Reserving an IP address in the router enables one driver for each printer model New Jersey Tax-Aide

  31. Individual Name • The driver will print to this unit regardless of IP address • If the IP address is different tomorrow, the driver will find the printer and print to it • A different driver is required for each unit of this model. The printers at site 1 and site 2 each require their own driver – not a big deal if there are only 1 or 2, but with more? New Jersey Tax-Aide

  32. Model Name • Changing the [Host]name of each unit to the model name enables the driver to print to all units of this model regardless of IP address • If the IP address of a printer is different tomorrow, the driver will find it and print to it • The driver will print to the same model printers at site 1 and site 2 regardless of IP address New Jersey Tax-Aide

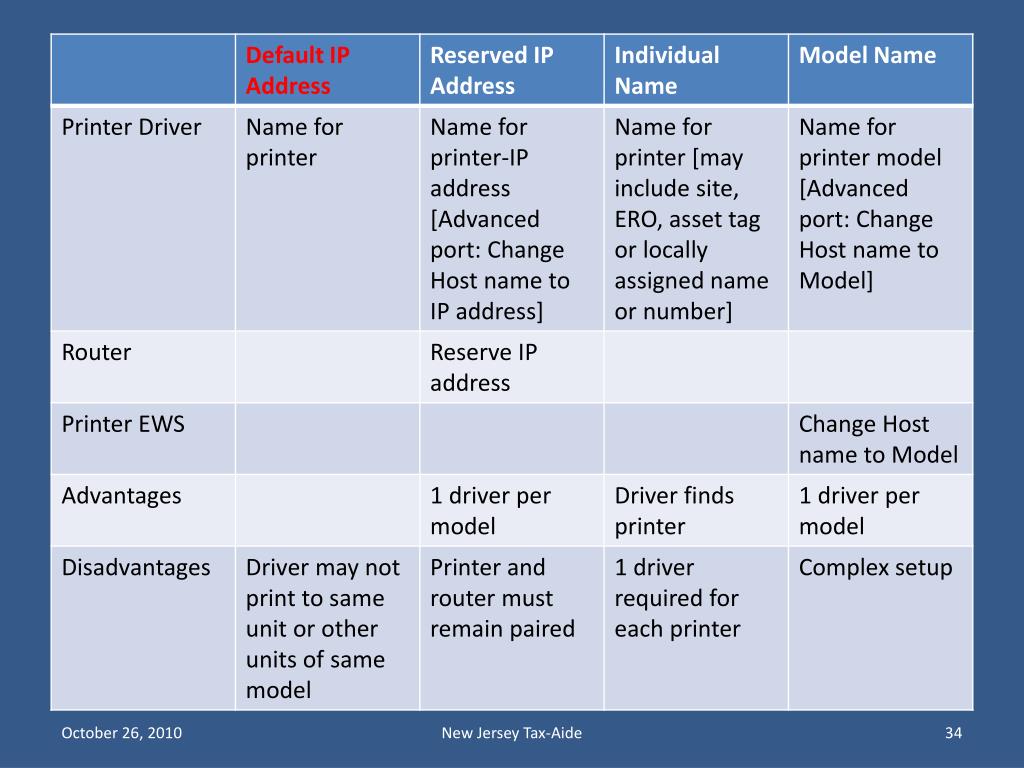

  33. Summary of Options New Jersey Tax-Aide

  34. Demonstratons • Install HP 1606dn driver • Address reservation [in router] – after lunch • Advanced – end of day • Printer driver Advanced Port [on computer] • Printer Host name change [in printer EWS] • Changing the router address to avoid conflicts when using TWO [in router] New Jersey Tax-Aide

  35. SSID:TAVDEMO • Encryption:WPA • Passphrase:ilove2dotaxes!

  36. Network Printer withReserved Address • Use Address Reservation in router to always assign the same IP address to this printer • HP 1022n: 192.168.1.51 • HP 1505n: 192.168.1.50 • Assignment of IP address is by printer MAC so printer and router must be operated as a pair • A computer with a 1505n-50 driver can print to a different 1505n on another network if the printer has IP address 192.168.1.50 New Jersey Tax-Aide

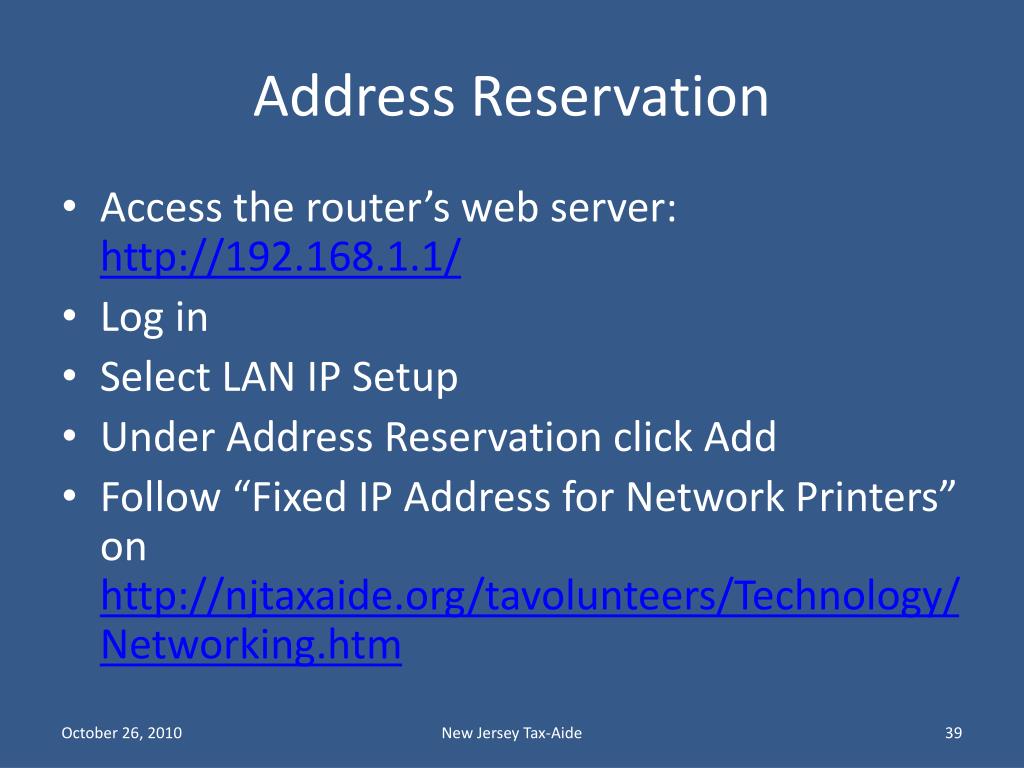

  37. Address Reservation • Access the router’s web server: http://192.168.1.1/ • Log in • Select LAN IP Setup • Under Address Reservation click Add • Follow “Fixed IP Address for Network Printers” on http://njtaxaide.org/tavolunteers/Technology/Networking.htm New Jersey Tax-Aide

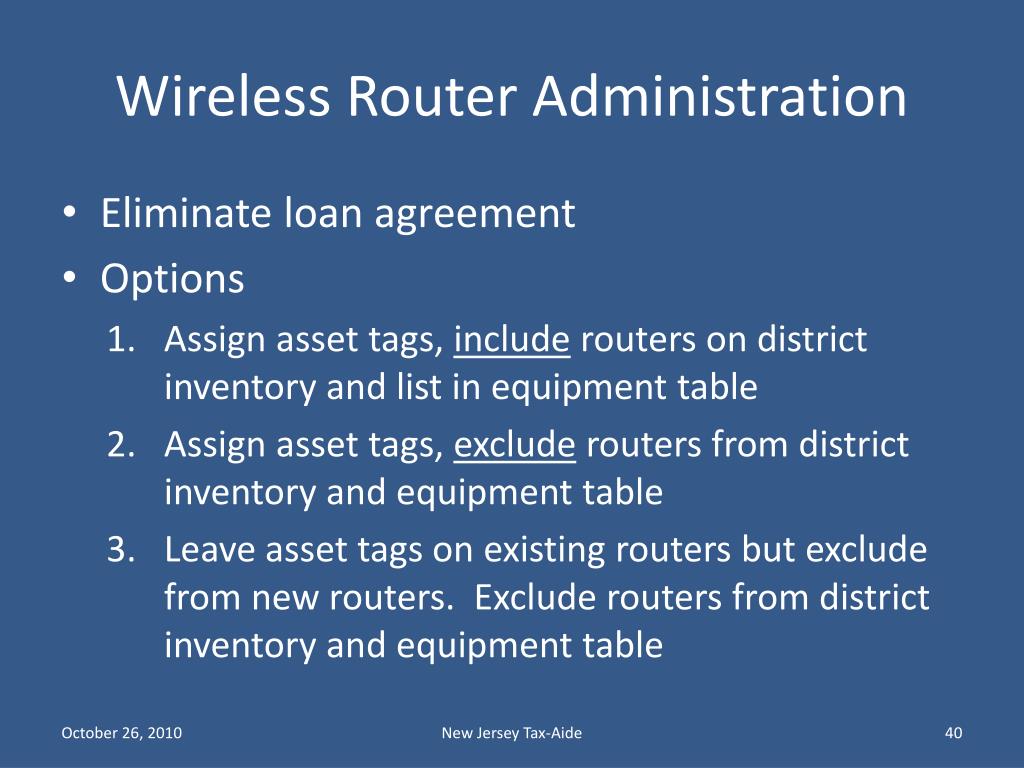

  38. Wireless Router Administration • Eliminate loan agreement • Options • Assign asset tags, include routers on district inventory and list in equipment table • Assign asset tags, exclude routers from district inventory and equipment table • Leave asset tags on existing routers but exclude from new routers. Exclude routers from district inventory and equipment table New Jersey Tax-Aide

  39. Network Printer Questions • Two printers of the same model with the same Host name are placed on the same network. What happens when a computer tries to print? • I have 3 printers of the same model at different sites in my district. To print to each in the network mode, how many drivers will I need on my computer if the printers are all HP 1022n? HP 1606dn? New Jersey Tax-Aide

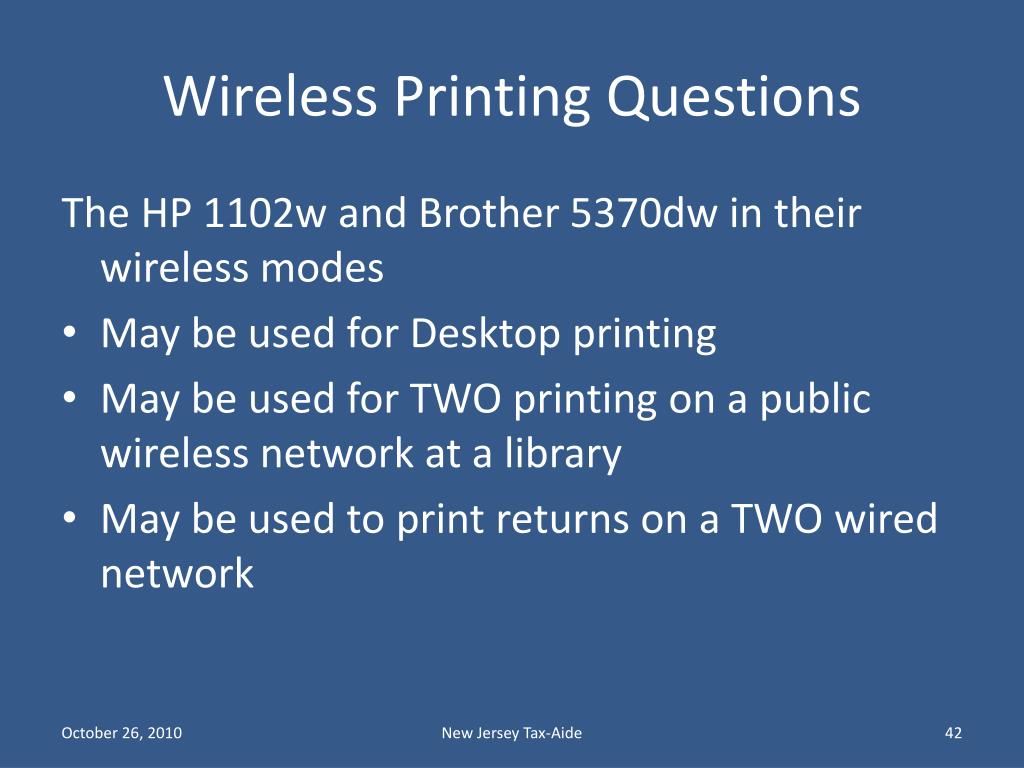

  40. Wireless Printing Questions The HP 1102w and Brother 5370dw in their wireless modes • May be used for Desktop printing • May be used for TWO printing on a public wireless network at a library • May be used to print returns on a TWO wired network New Jersey Tax-Aide

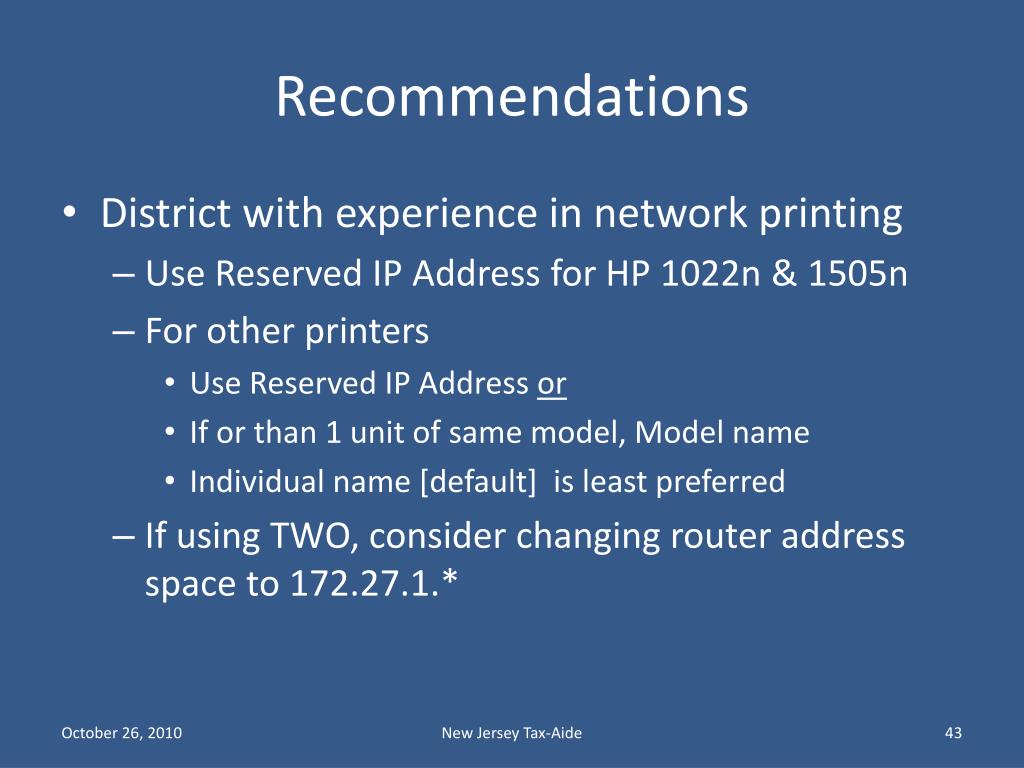

  41. Recommendations • District with experience in network printing • Use Reserved IP Address for HP 1022n & 1505n • For other printers • Use Reserved IP Address or • If or than 1 unit of same model, Model name • Individual name [default] is least preferred • If using TWO, consider changing router address space to 172.27.1.* New Jersey Tax-Aide

  42. Recommendations • District with little or no experience in network printing • Use Reserved IP Address for HP 1022n & 1505n • For other printers • Use Individual name [default] if 1 to 3 units of same model • If >3 units of same modeluse Reserved IP Address or Model name • If using TWO, consider changing router address space to 172.27.1.* New Jersey Tax-Aide

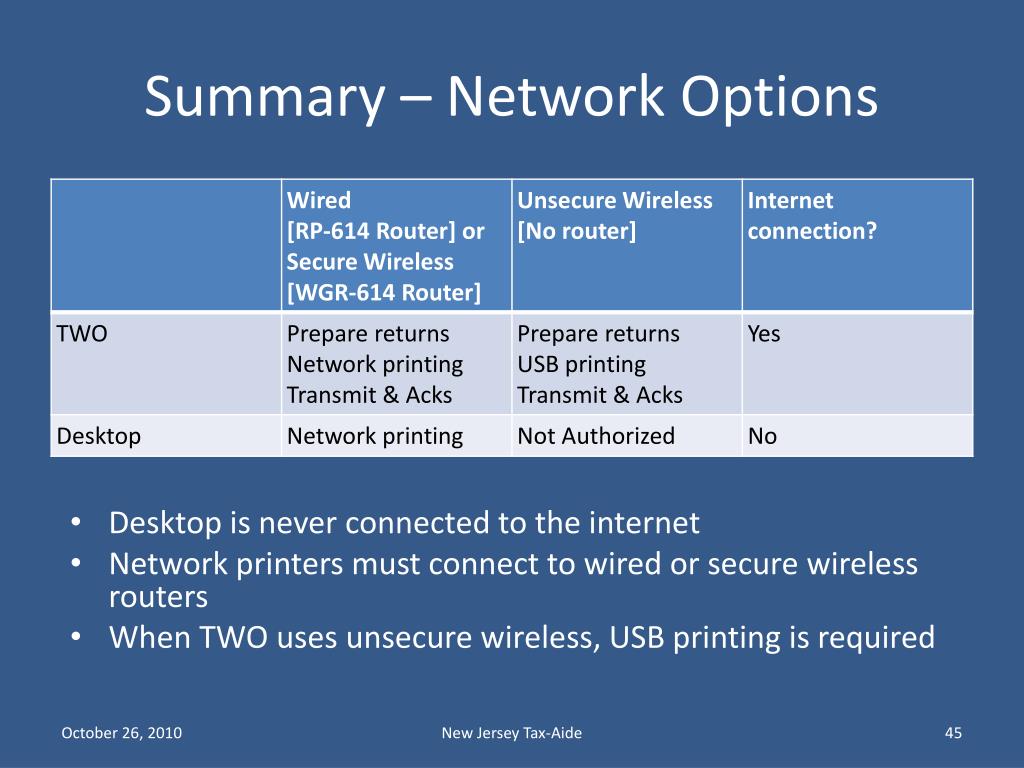

  43. Summary – Network Options • Desktop is never connected to the internet • Network printers must connect to wired or secure wireless routers • When TWO uses unsecure wireless, USB printing is required New Jersey Tax-Aide

  44. Summary – Driver Options 1 • Reserved IP Address • Requires 1 driver per model • Recommended for HP 1022n & 1505n • Reserve IP address in router [wired or wireless] • Operate printer and router as a pair • On each computer, change printer name [in Printer Control Panel] to include IP address • HP 1102w & 1606dn and Brothers: on each computer, change Advanced Port to IP address New Jersey Tax-Aide

  45. Summary – Driver Options 2 • Individual Name • Requires 1 driver for each printer • Default for HP 1102w, 1606dn and Brothers • Not available for HP 1022n & 1505n • Change printer name [in Printer Control Panel on each computer] to something unique New Jersey Tax-Aide

  46. Summary – Driver Options 3 • Model Name • Requires 1 driver per printer model • Not available for HP 1022n & 1505n • For HP 1102w, 1606dn and Brothers • For each printer, change printer name [in printer’s EWS] to model • On each computer, change Advanced Port to IP address • On each computer, change printer name [in Printer Control Panel] to printer model New Jersey Tax-Aide

  47. Summary – Driver Options New Jersey Tax-Aide

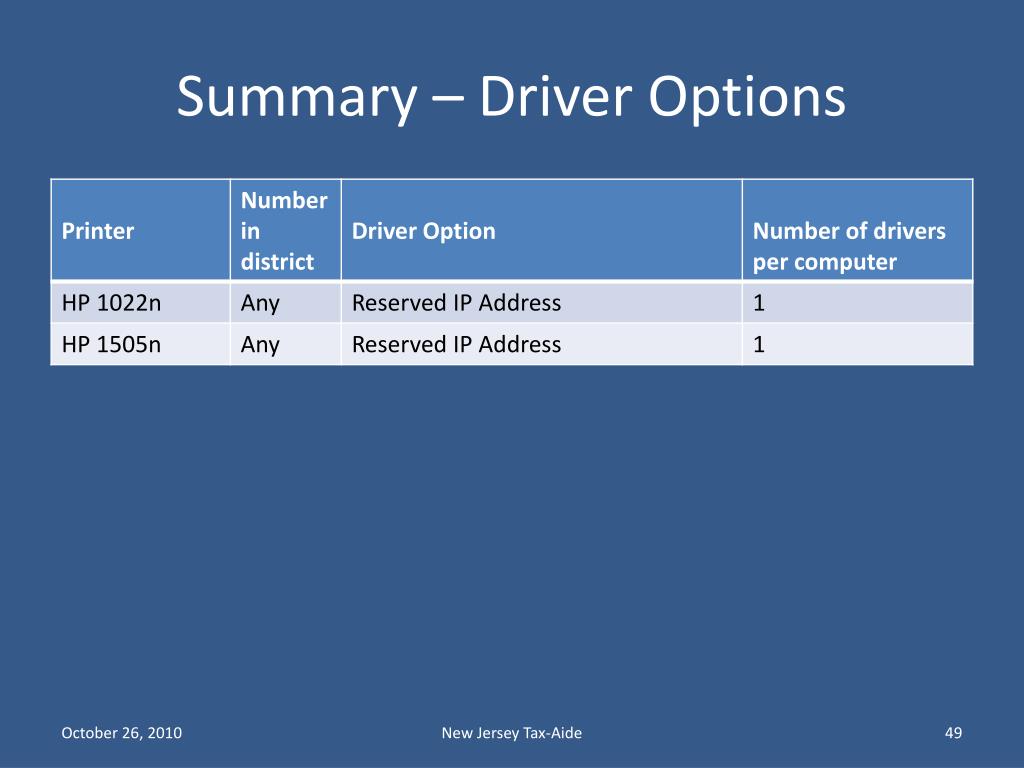

  48. Summary – Driver Options New Jersey Tax-Aide
