Galactic science with the Planck Spacecraft Richard Davis EWASS Torku Finland

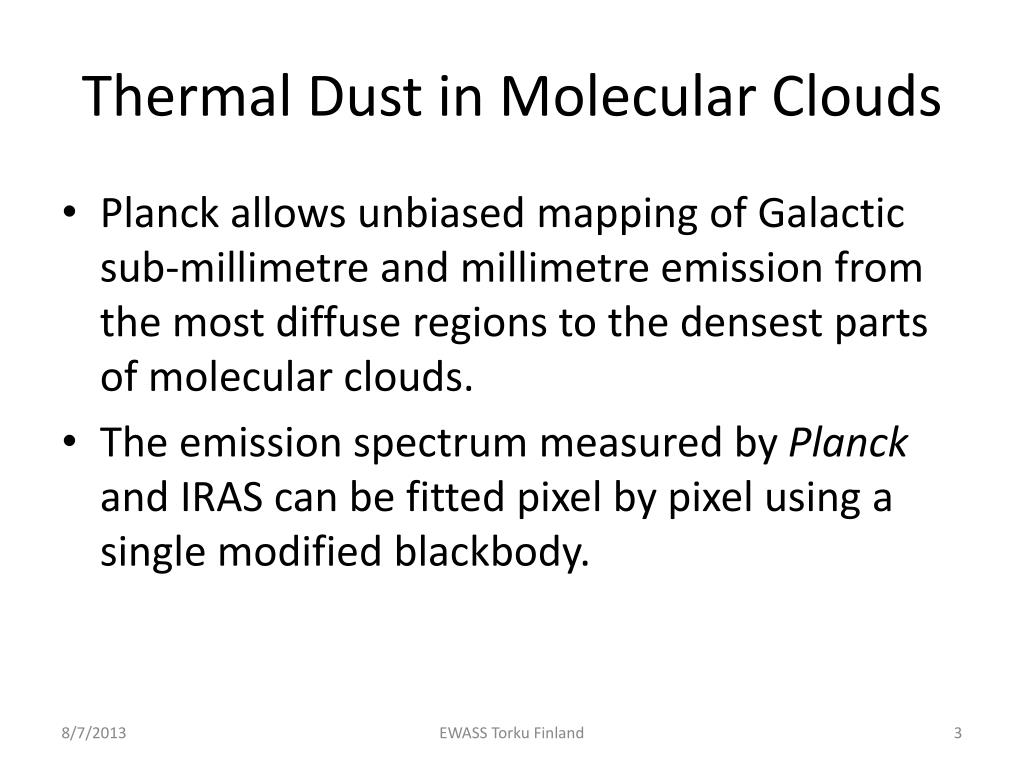

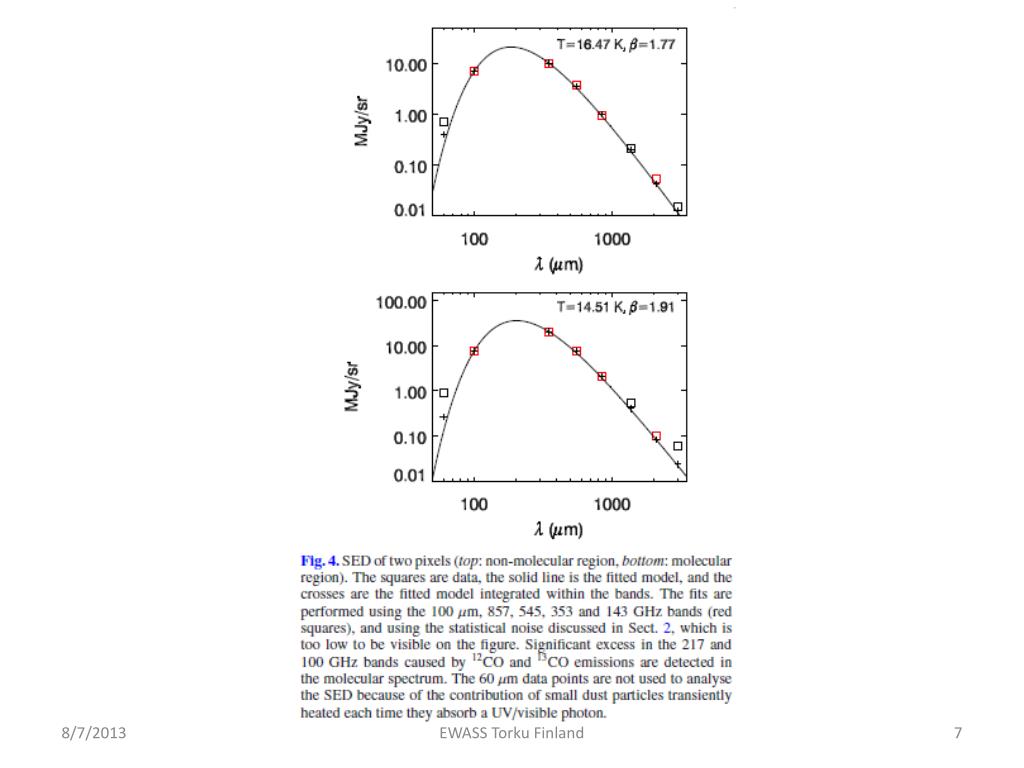

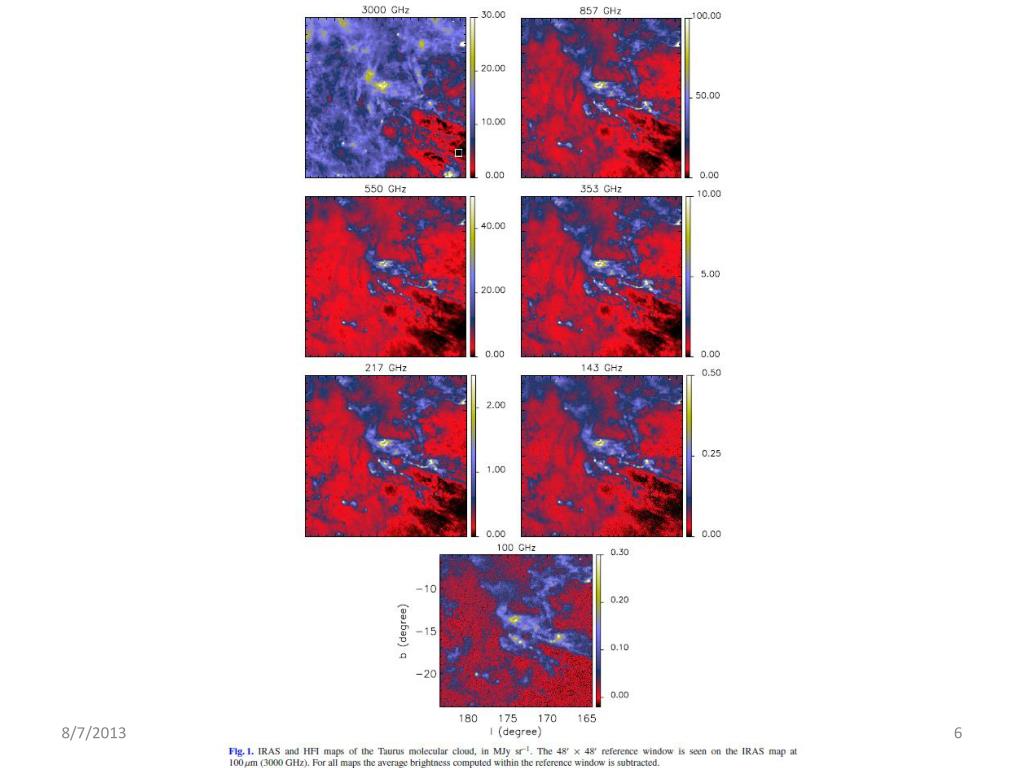

Thermal Dust in Molecular Clouds • Planck allows unbiased mapping of Galactic sub-millimetre and millimetre emission from the most diffuse regions to the densest parts of molecular clouds. • The emission spectrum measured by Planck andIRAScan be fitted pixel by pixel using a single modified blackbody. EWASS Torku Finland

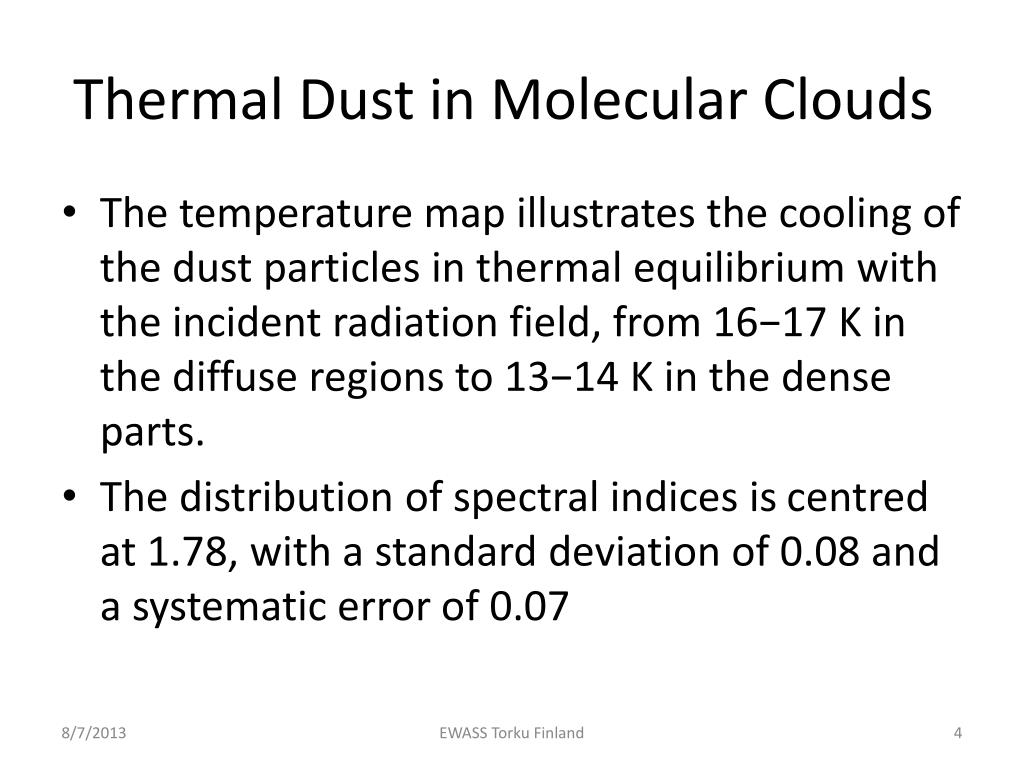

Thermal Dust in Molecular Clouds • The temperature map illustrates the cooling of the dust particles in thermal equilibrium with the incident radiation field, from 16−17 K in the diffuse regions to 13−14 K in the dense parts. • The distribution of spectral indices is centred at 1.78, with a standard deviation of 0.08 and a systematic error of 0.07 EWASS Torku Finland

Thermal Dust in Molecular Clouds • Some systematic residuals are detected at 353 GHz and 143 GHz, with amplitudes around −7% and +13%, respectively, indicating that the measured spectra are likely more complex than a simple modified blackbody. Significant positive residuals are also detected in the molecular regions and in the 217 GHz and 100 GHz bands, mainly caused by the contribution of the J = 2 → 1 and J = 1 → 0 12CO and 13CO emission lines. EWASS Torku Finland

EWASS Torku Finland

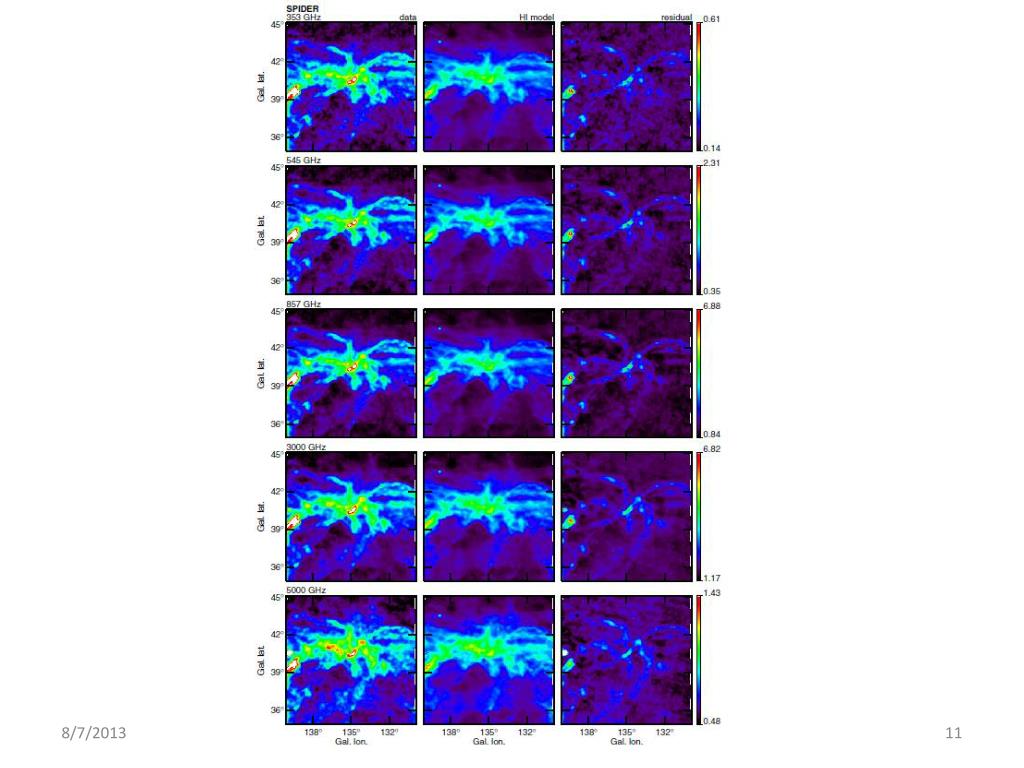

Dust in the diffuse interstellar mediumand the Galactic halo • This paper presents the first results from a comparison of Planck dust maps at 353, 545 and 857 GHz, along with IRAS data at 3000 (100 μm) and 5000 GHz (60 μm), with Green Bank Telescope 21-cm observations of Hi in 14 fields covering more than 800 deg2 at high Galactic latitude. EWASS Torku Finland

Dust in the diffuse interstellar mediumand the Galactic halo • Galactic dust emission for fields with average Hi column density lower than 2 × 1020 cm−2 is well correlated with 21-cm emission because in such diffuse areas the hydrogen is predominantly in the neutral atomic phase. EWASS Torku Finland

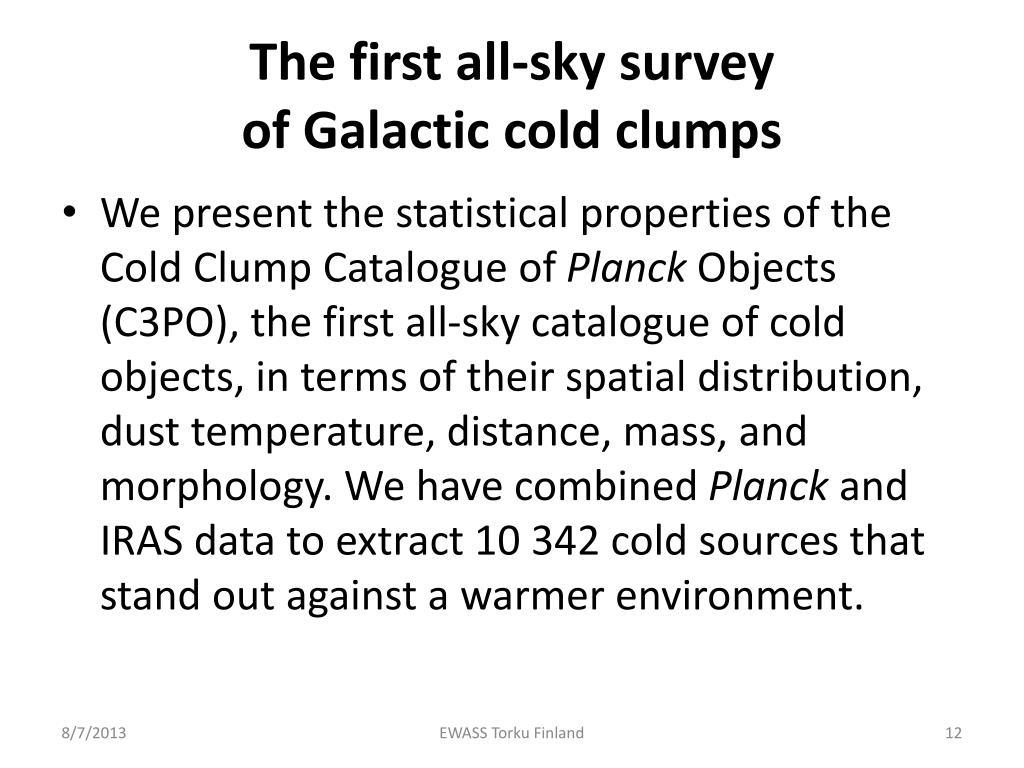

The first all-sky surveyof Galactic cold clumps • We present the statistical properties of the Cold Clump Catalogue of Planck Objects (C3PO), the first all-sky catalogue of cold objects, in terms of their spatial distribution, dust temperature, distance, mass, and morphology. We have combined Planck and IRAS data to extract 10 342 cold sources that stand out against a warmer environment. EWASS Torku Finland

The first all-sky surveyof Galactic cold clumps • These cold clumps are not isolated but clustered in groups. Dust temperature and emissivity spectral index values are derived from their spectral energy distributions using both Planck and IRAS data. The temperatures range from 7K to 19K, with a distribution peaking around 13K. EWASS Torku Finland

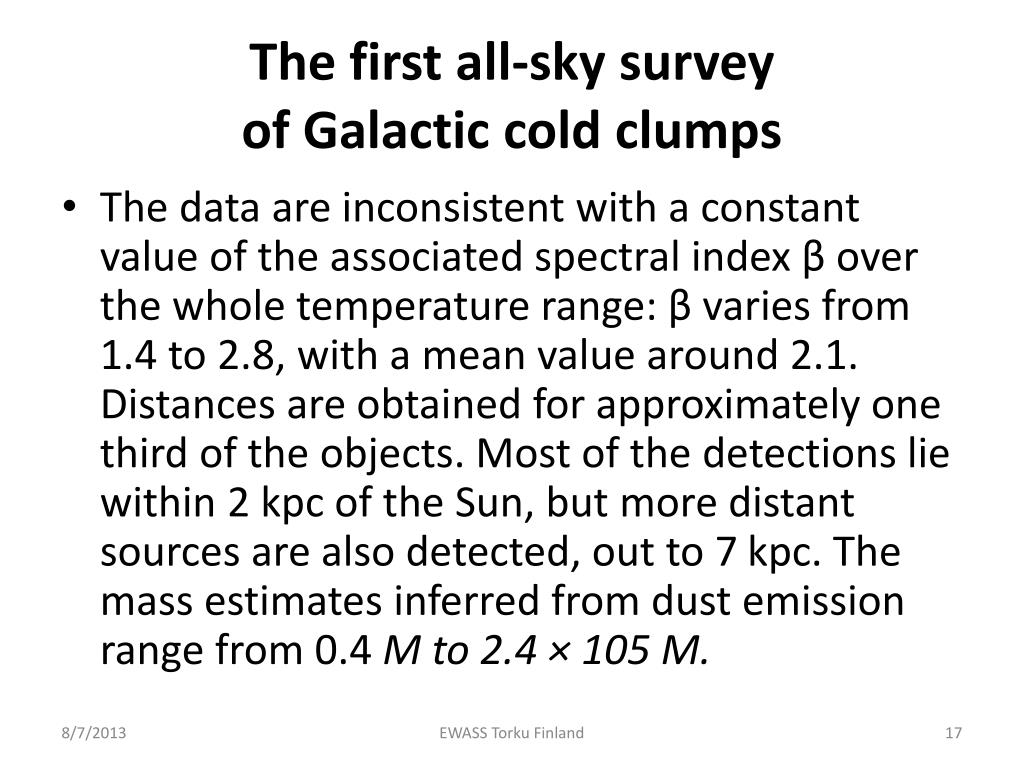

The first all-sky surveyof Galactic cold clumps • The data are inconsistent with a constant value of the associated spectral index β over the whole temperature range: β varies from 1.4 to 2.8, with a mean value around 2.1. Distances are obtained for approximately one third of the objects. Most of the detections lie within 2 kpc of the Sun, but more distant sources are also detected, out to 7 kpc. The mass estimates inferred from dust emission range from 0.4 M to 2.4 × 105 M. EWASS Torku Finland

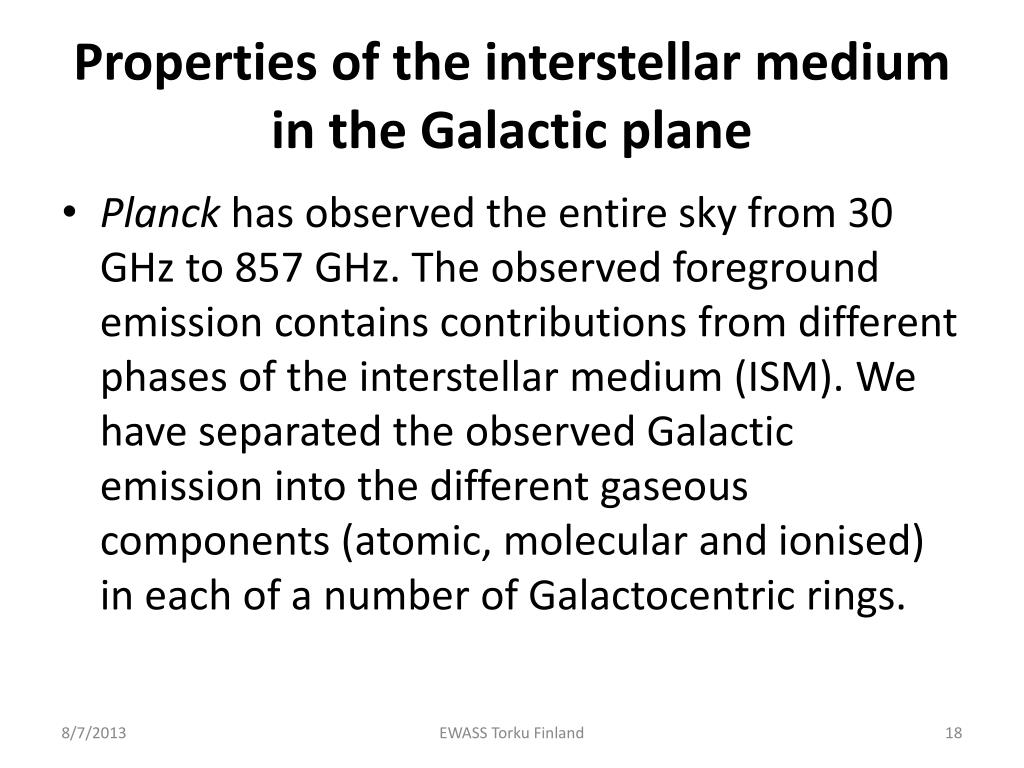

Properties of the interstellar mediumin the Galactic plane • Planck has observed the entire sky from 30 GHz to 857 GHz. The observed foreground emission contains contributions from different phases of the interstellar medium (ISM). We have separated the observed Galactic emission into the different gaseous components (atomic, molecular and ionised) in each of a number of Galactocentric rings. EWASS Torku Finland

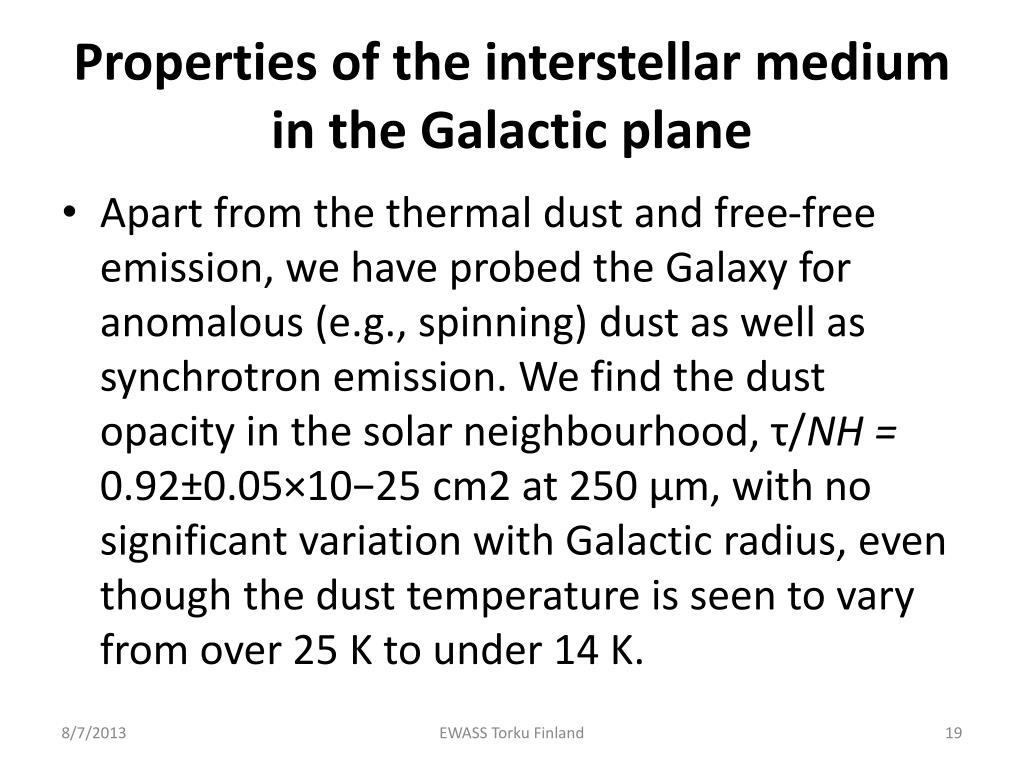

Properties of the interstellar mediumin the Galactic plane • Apart from the thermal dust and free-free emission, we have probed the Galaxy for anomalous (e.g., spinning) dust as well as synchrotron emission. We find the dust opacity in the solar neighbourhood, τ/NH = 0.92±0.05×10−25 cm2 at 250 μm, with no significant variation with Galactic radius, even though the dust temperature is seen to vary from over 25 K to under 14 K. EWASS Torku Finland

Properties of the interstellar mediumin the Galactic plane • For all environments, the anomalous emission is consistent with rotation from polycyclic aromatic hydrocarbons (PAHs) and, according to our simple model, accounts for (25 ± 5)% (statistical) of the total emission at 30 GHz. EWASS Torku Finland

New light on anomalous microwaveemission from spinning dust grains • Using Planck maps and multi-frequency ancillary data, we have constructed spectra for two known AME regions: the Perseus and ρ Ophiuchi molecular clouds. The spectra are well fitted by a combination of free-free radiation, cosmic microwave background, thermal dust, and electric dipole radiation from small spinning dust grains. EWASS Torku Finland

New light on anomalous microwaveemission from spinning dust grains • The spinning dust spectra are the most precisely measured to date, and show the high frequency side clearly for the first time. The spectra have a peak in the range 20–40 GHz and are detected at high significances of 17.1σ for Perseus and 8.4σ for ρ Ophiuchi. • In Perseus, spinning dust in the dense molecular gas can account for most of the AME; the low density atomic gas appears to play a minor role. • In ρ Ophiuchi, the ∼30 GHz peak is dominated by dense molecular gas, EWASS Torku Finland

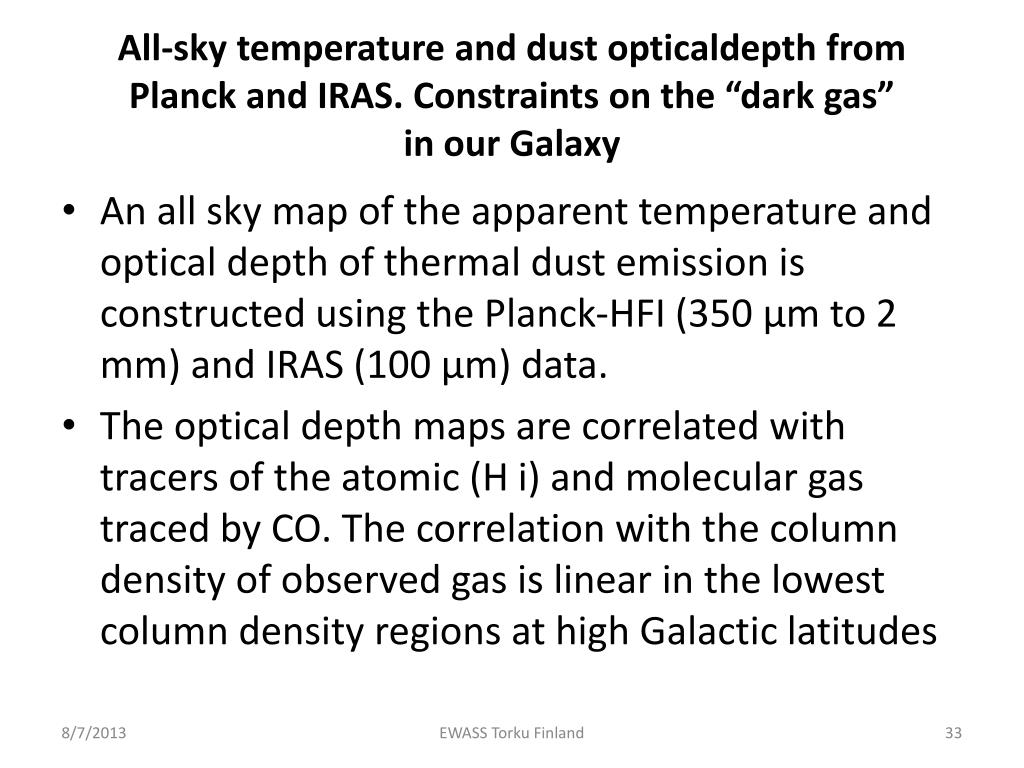

All-sky temperature and dust opticaldepthfrom Planck and IRAS. Constraints on the “dark gas”in our Galaxy • An all sky map of the apparent temperature and optical depth of thermal dust emission is constructed using the Planck-HFI (350 μm to 2 mm) and IRAS (100 μm) data. • The optical depth maps are correlated with tracers of the atomic (H i) and molecular gas traced by CO. The correlation with the column density of observed gas is linear in the lowest column density regions at high Galactic latitudes EWASS Torku Finland

All-sky temperature and dust opticaldepth from Planck and IRAS. Constraints on the “dark gas”in our Galaxy • The average dust emissivity in the Hi phase in the solar neighbourhood is found to be τD/NtotH = 5.2 × 10−26 cm2 at 857 GHz. It follows roughly a power law distribution with a spectral index β = 1.8 all the way down to 3 mm, although the SED flattens slightly in the millimetre. Taking into account the spectral shape of the dust optical depth, the emissivity is consistent with previous values derived from FIRAS measurements at high latitudes within 10%. EWASS Torku Finland

The 2D spatial distribution of the dark gas in the solar neighbourhood (|bII| > 10◦) is shown to extend around known molecular regions traced by CO. • The mass of dark gas is found to be 28% of the atomic gas and 118% of the CO emitting gas in the solar neighbourhood. The Galactic latitude distribution shows that its mass fraction is relatively constant down to a few degrees from the Galactic plane. EWASS Torku Finland
